Need ABS ecu pic of how its mounted.

This site may earn a commission from merchant affiliate
links, including eBay, Amazon, Skimlinks, and others.

J

jkewl999

10 Year
Joined
Apr 8, 2013
Threads
8
Messages
36
Location
Leicester
Hi I have a 2003 LC100 UZJ100. I was installing a new alarm/Pke system and in the driver foot while working on the alarm noticed the ABS ecu is just hanging with wires. It has the clamps n all but I CNN figure out where and how its supposed to be mounted. Someone please send a pick. Mine is rhd so maybe won't be same side but mine is on driver side. Above the fuses in the driver kick panel.

Thankx

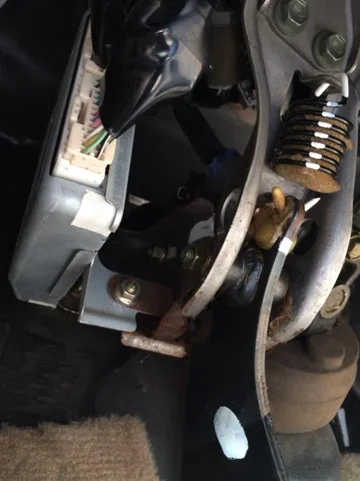

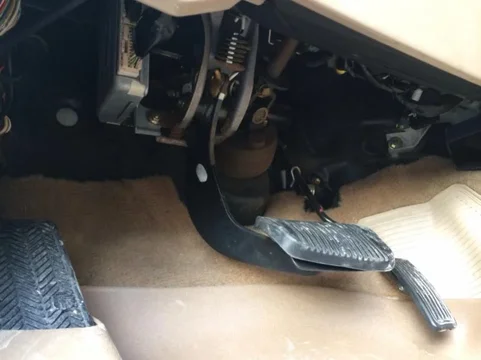

Here is the driver side of my US '99LC. Is the silver box in the upper right of the photo the ABS ECU? Sorry I am not sure!

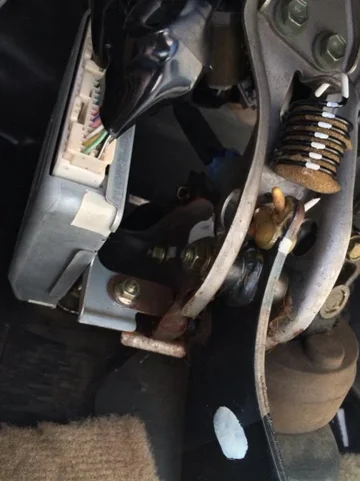

Hey wow thankx a million.. yes that silver box... OK now if I could trouble u to take a pic of where the clamp is screwed on to the body. Yours is lhd but ill just mirror the image ... really thankx a lot even this helps a little more and ill be sorted!

Also just confirm for me I'm seeing this right. The sockets for the ecu are facing the driver towards the back of the car right?
Thankx

Excellent this will be great help! Fantastic Timely Response youre a star !!!

Is there a chance that the box in the photo could be the 4wd control and not the ABS ECU? Reason I am asking is I am looking for the ABS ECU, and was unable to find such a device anywhere on the net. The only one I could find is the one sitting in the engine bay by the brake booster... . Searching the parts catalog I find the attached pic here: TOYOTA LAND CRUISER 100 UZJ100R-GNAEKW - ELECTRICAL - SWITCH RELAY COMPUTER | Japan Parts EU. No where on that pic do I see the ABS ECU.... Might be that my year model moved it to the enigne bay... Mine is a RHD 2006 Land Cruiser UZJ




Thankx a bunch guys sold the car now. Now I have a cygnus 2002 in uk it's awesome!!
