I have a 24V Battery Tender that I am going to hook up today.

This one: 022-0158-1

The tender has 1 positive and 1 negative alligator clip lead.

Would someone be kind enough to tell me which battery terminals I should connect the tender to on my 2 12V batteries?

I'm thinking the positive to "A" and the negative to "D", but before I blow myself to the moon, I figured I'd ask.

Thanks in advance!


Joined
Dec 5, 2015
Messages
177
Location
New England

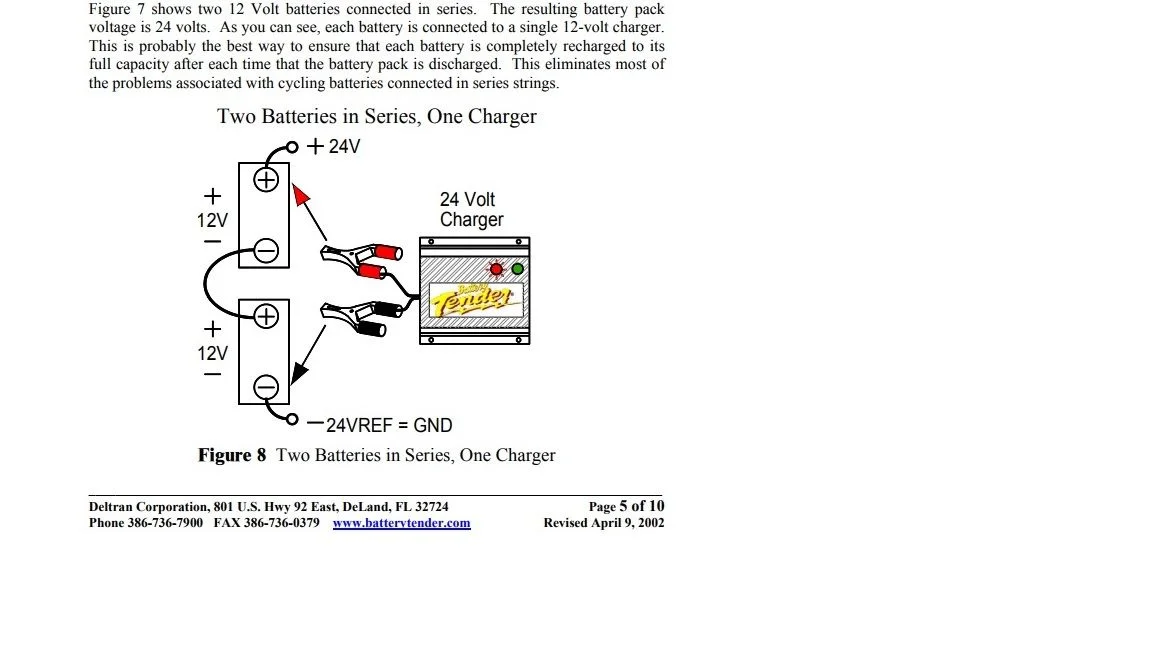

So for anyone who searches and finds this in the future, the correct way to charge a 24v system using a 24v tender is to connect the tender to leads B and C in the first photo.

Alternatively, you can disconnect the leads from the truck and the one that connects the batteries and charge each battery separately using a 12v tender.
