Gauge wiring diagram HJ61

[adampeck1]

Hey guys

I’m chasing a wiring diagram showing all the loom colours that enter the back of the dash instruments for a 1986 HJ61.

I’ve searched everywhere both on here and and google but can’t seem to find one (possibly interweb user error

The reason for the search is I’m replacing ALL gauges with VDO aftermarket.

Thanks in advance guys, much appreciated.
Adam



[OGBeno]

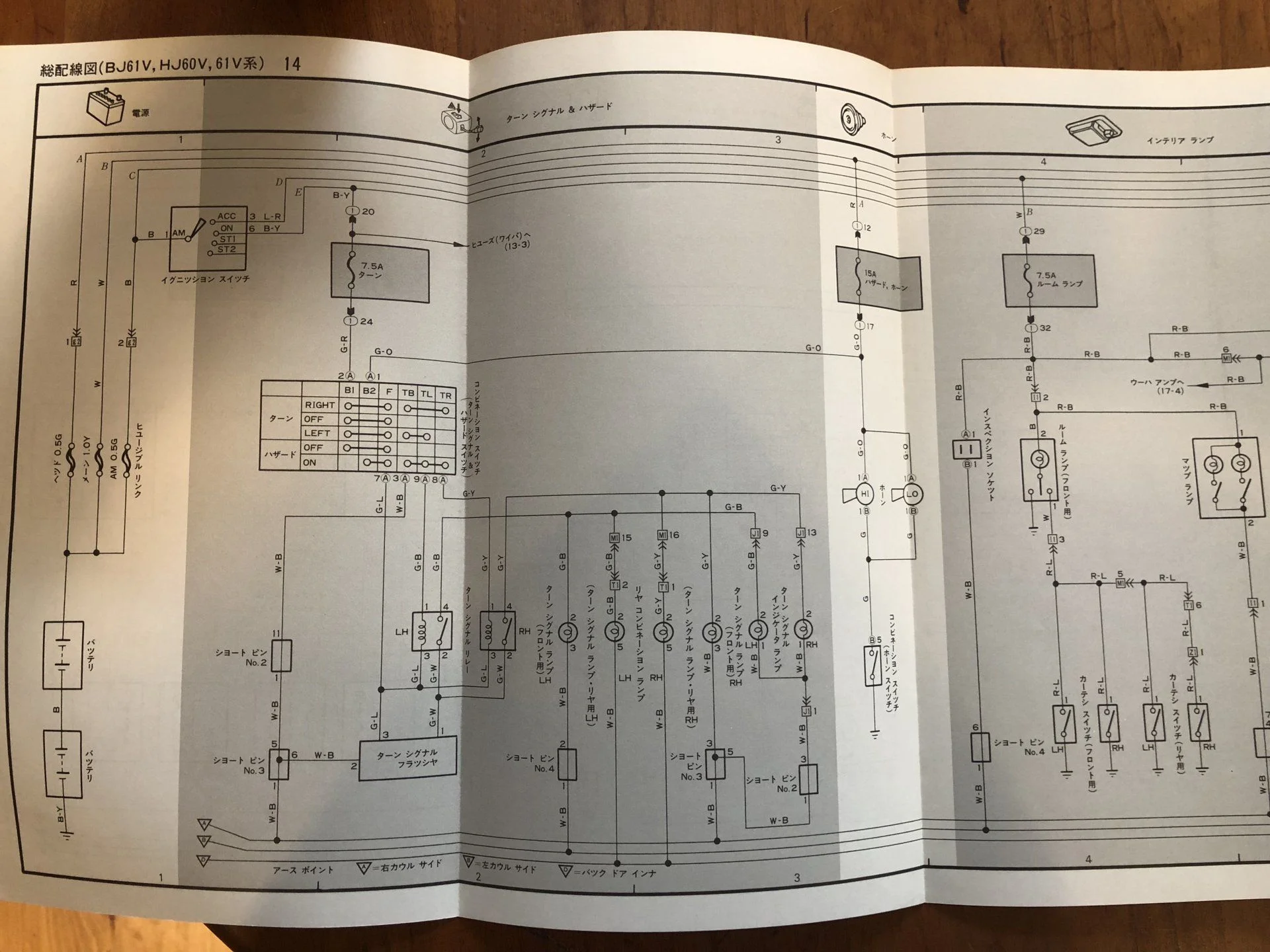

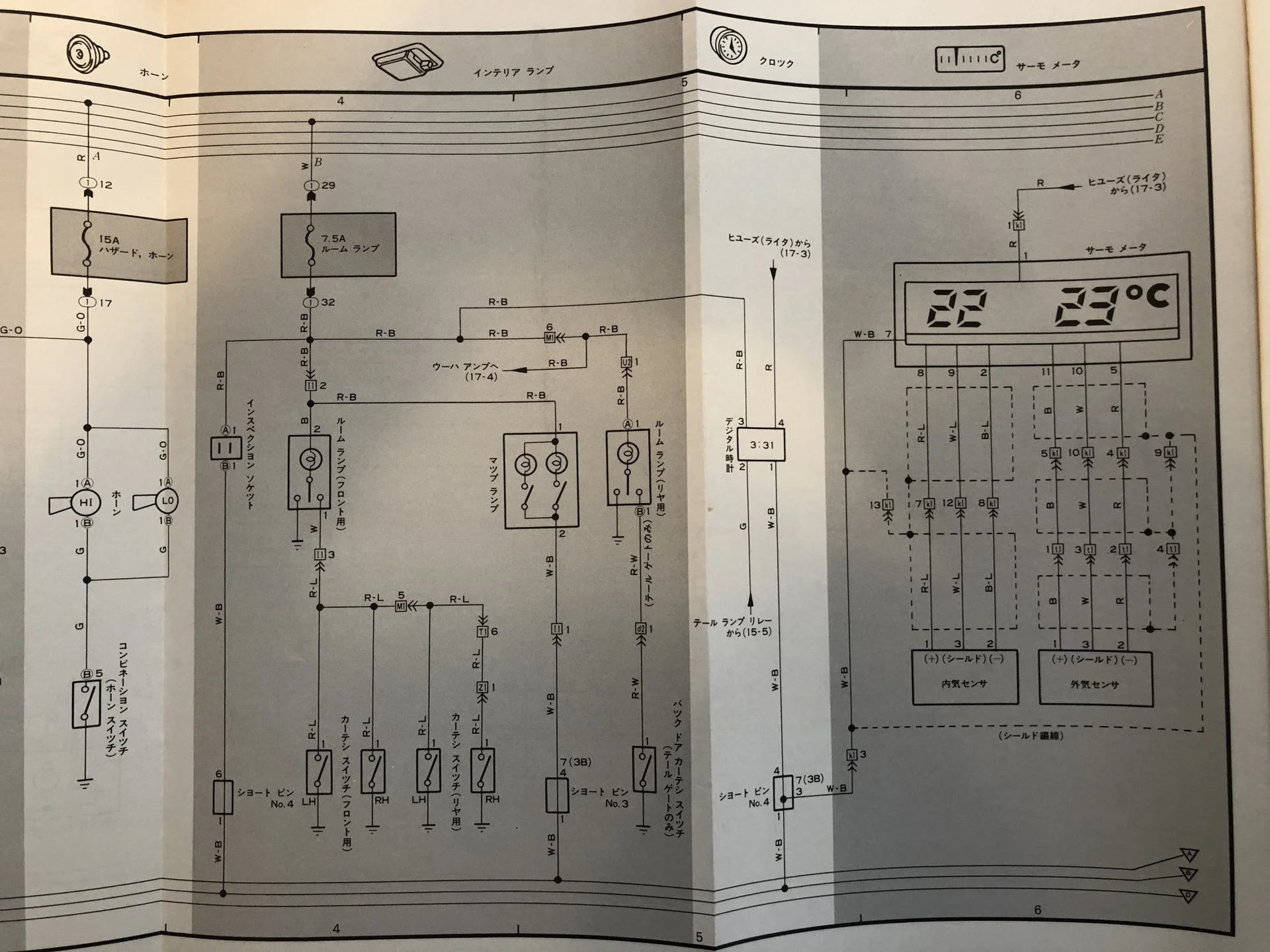

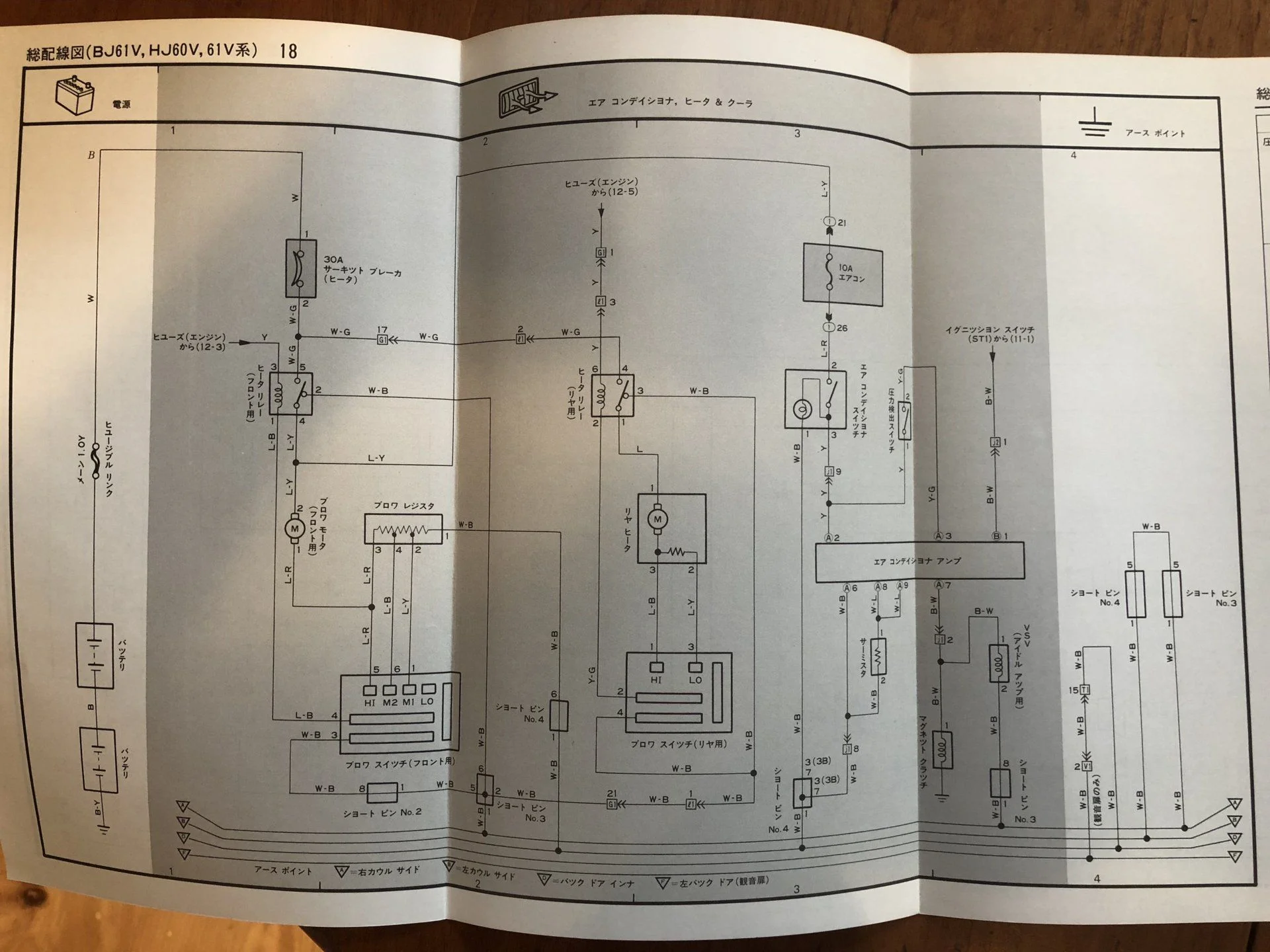

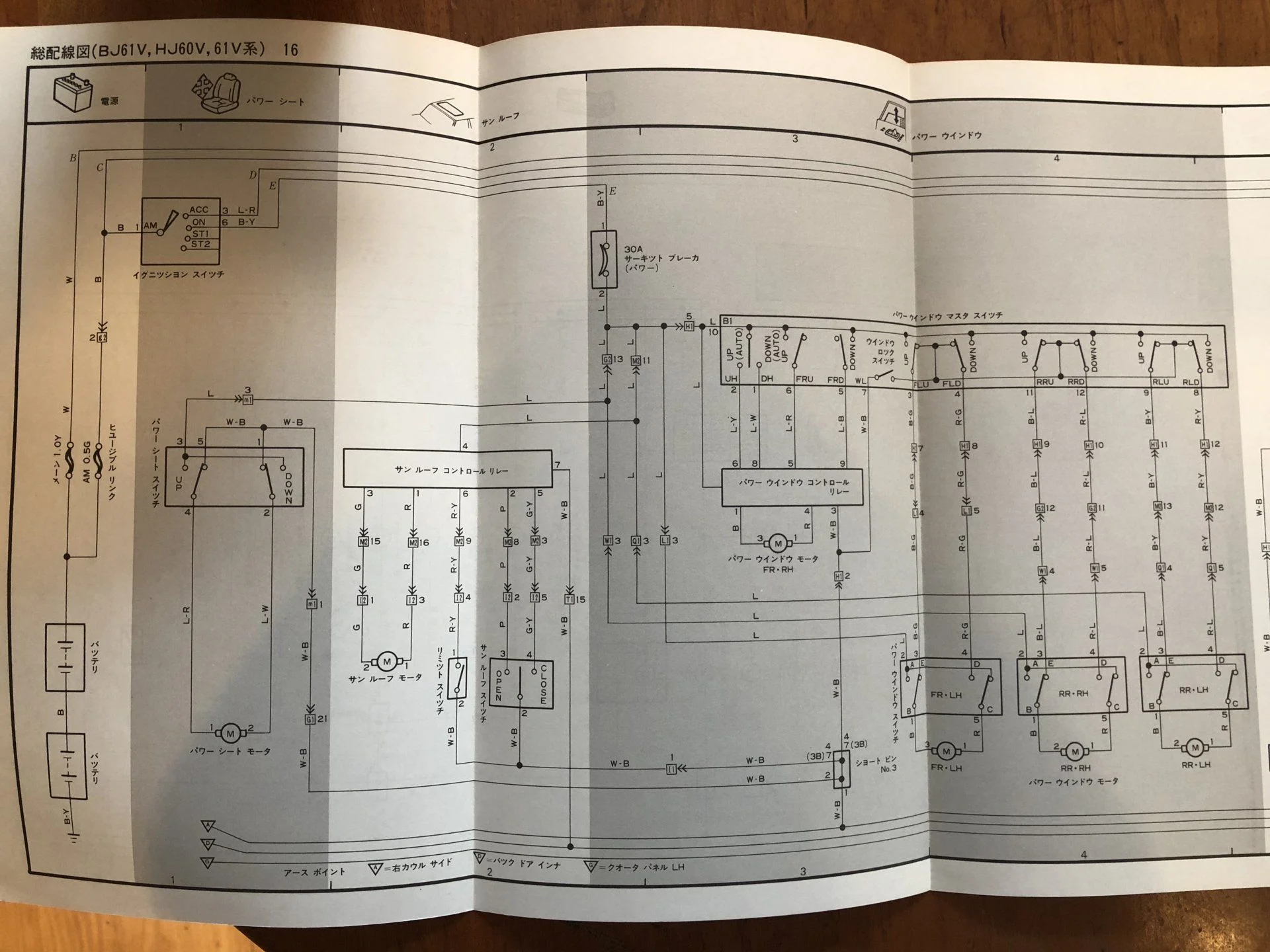

Here is the HJ60 version in English. I am going to post the correct HJ61 schematic in Japanese which will be correct in terms of the designations of wiring and color and connectors but will be in Japanese. But they make it simple enough with diagrammatics to figure out exactly what system you are working on.

English version: HJ60-WIRING-DIAGRAM.pdf



[OGBeno]



[OGBeno]



[OGBeno]



[60Works]

Fantastic! Thanks, Onur.



[OGBeno]

Fantastic! Thanks, Onur.

I have tons of these Japanese EWD's for that time period but I have not had a chance to scan them all in, upload them, and host them.

I'll make this a FAQ stickie if anyone needs it.



[adampeck1]

That’s great, thanks Beno. Much appreciated mate

Adam



[bottombracket]

Sticky please @beno.



[kizku]

Here is the HJ60 version in English. I am going to post the correct HJ61 schematic in Japanese which will be correct in terms of the designations of wiring and color and connectors but will be in Japanese. But they make it simple enough with diagrammatics to figure out exactly what system you are working on.

English version: HJ60-WIRING-DIAGRAM.pdf

Thank you very much @Onur



[BTUMAN]

Thanks! Did you have a chance to scan the hj61 electrical diagram into pdf yet?



[abdulmusawwir555]

Here is the HJ60 version in English. I am going to post the correct HJ61 schematic in Japanese which will be correct in terms of the designations of wiring and color and connectors but will be in Japanese. But they make it simple enough with diagrammatics to figure out exactly what system you are working on.

English version: HJ60-WIRING-DIAGRAM.pdf

Kindly allow access request for the mentioned google drive link in the thread.



[expat]

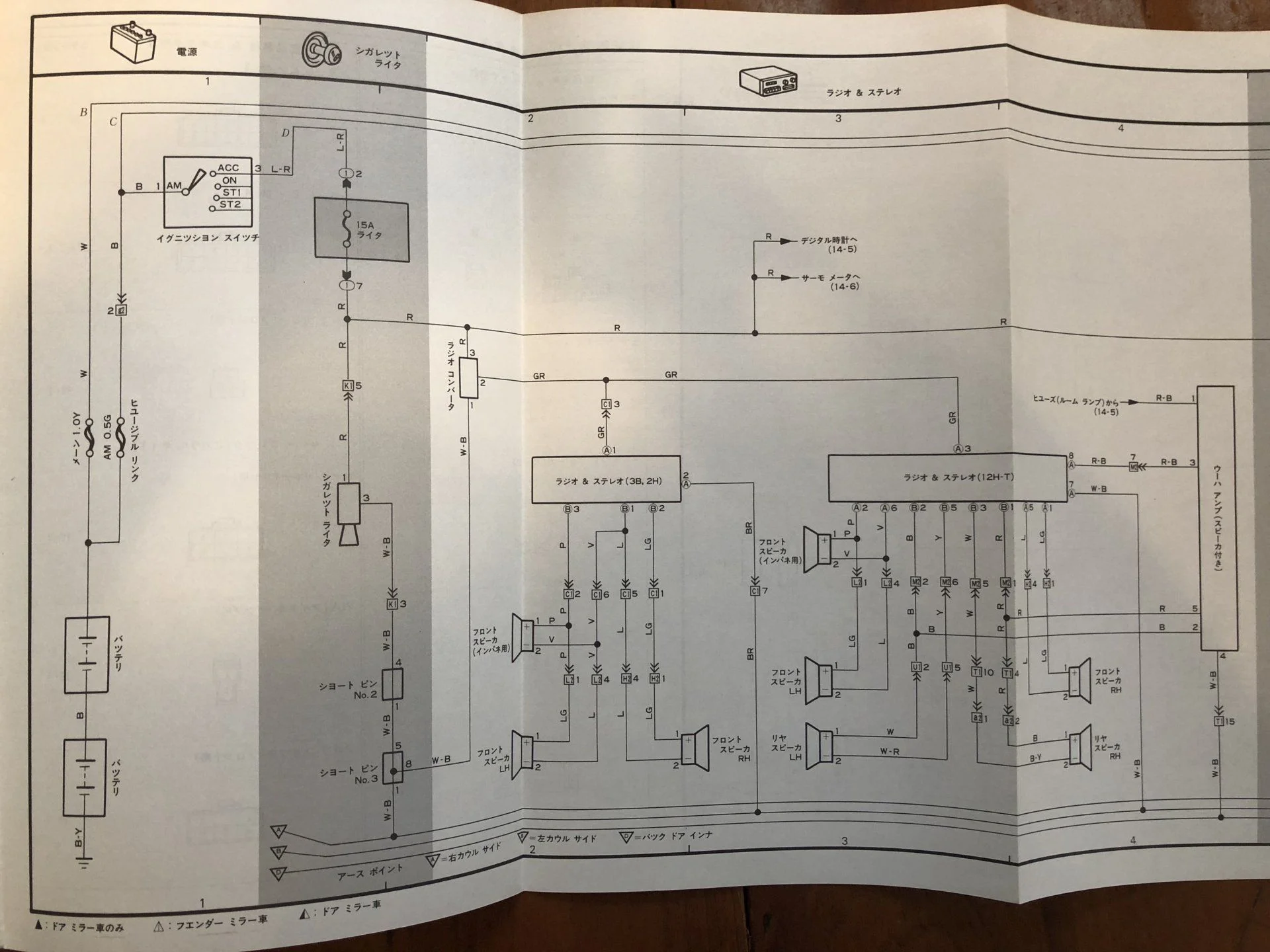

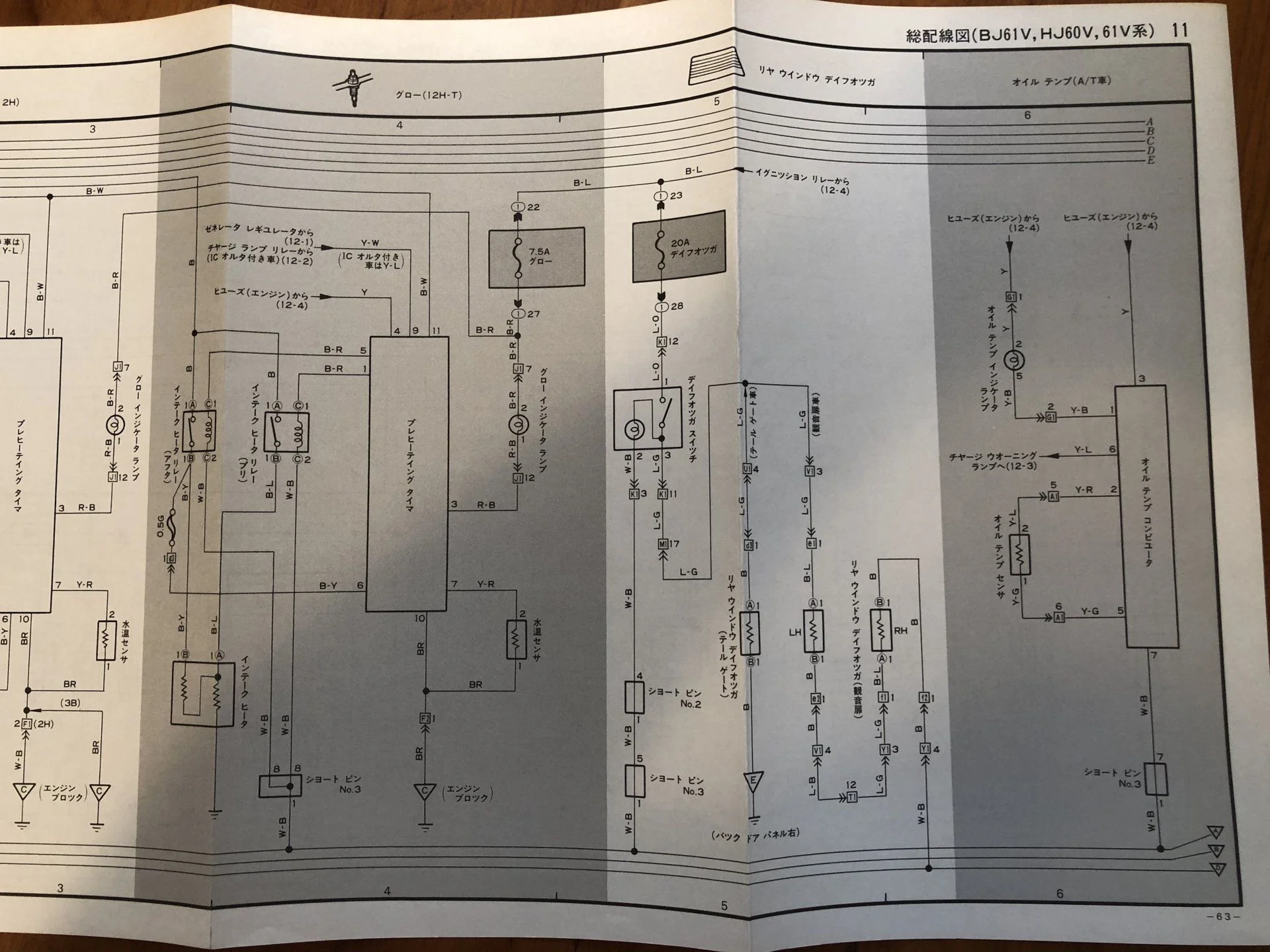

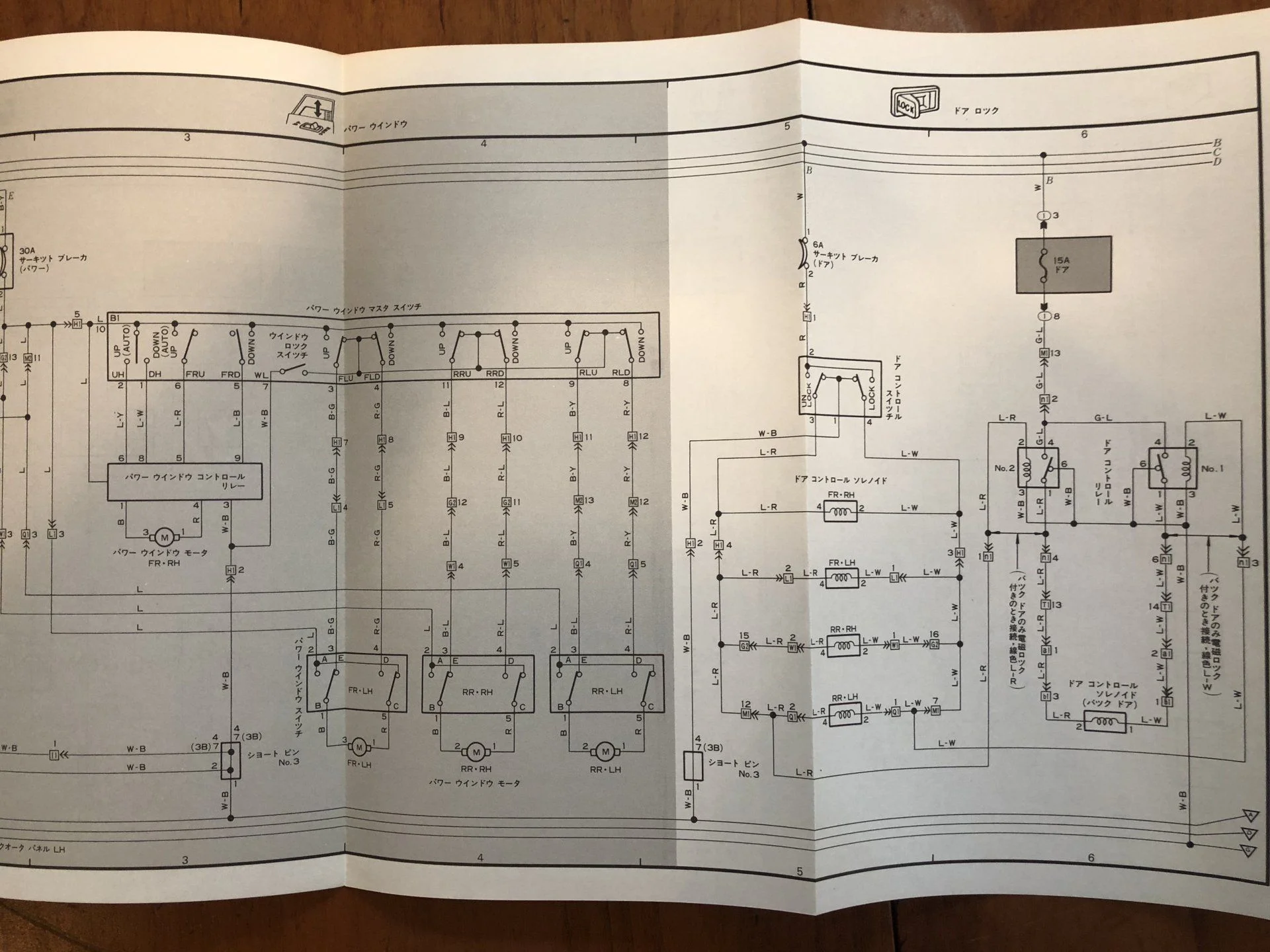

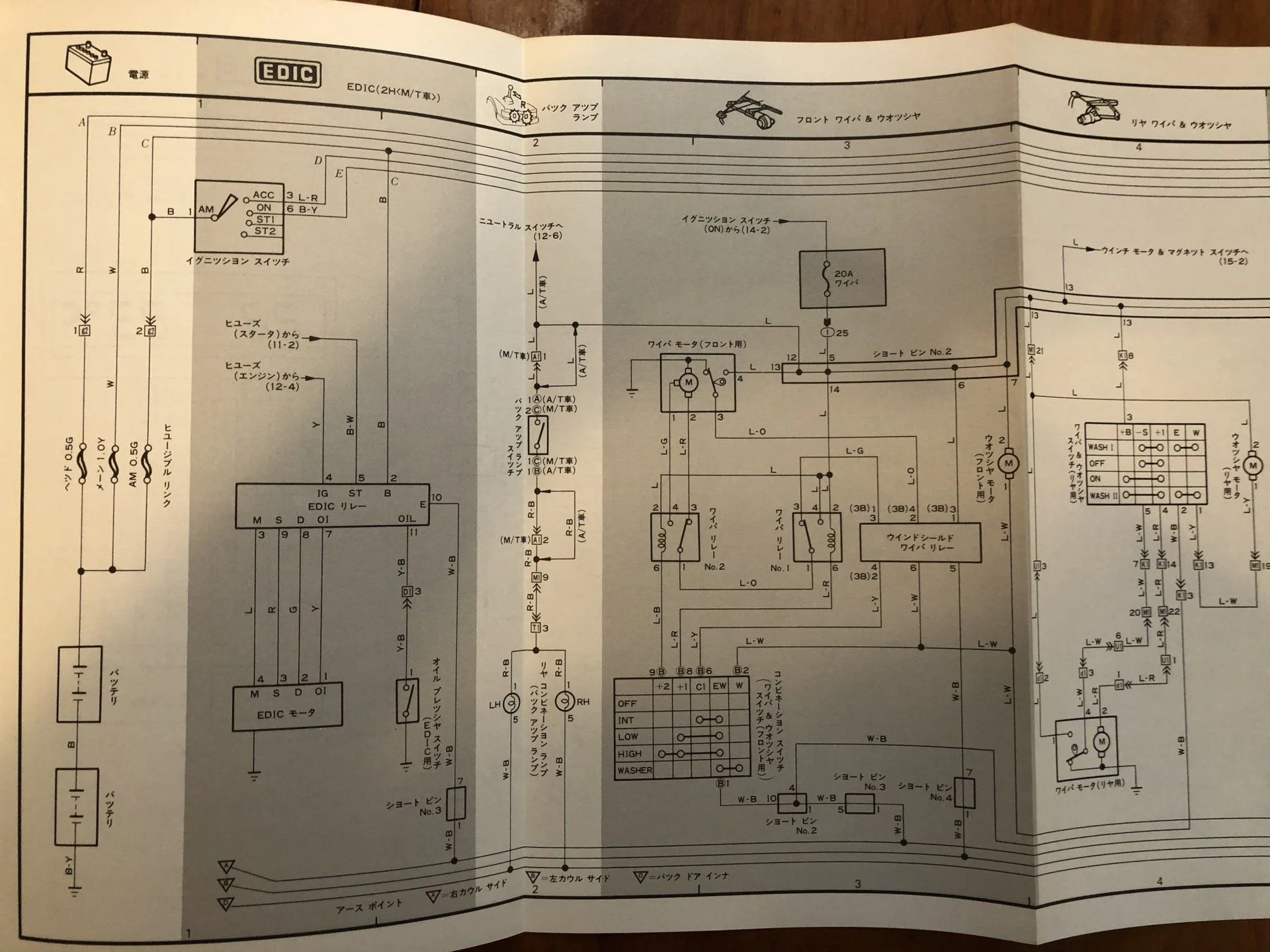

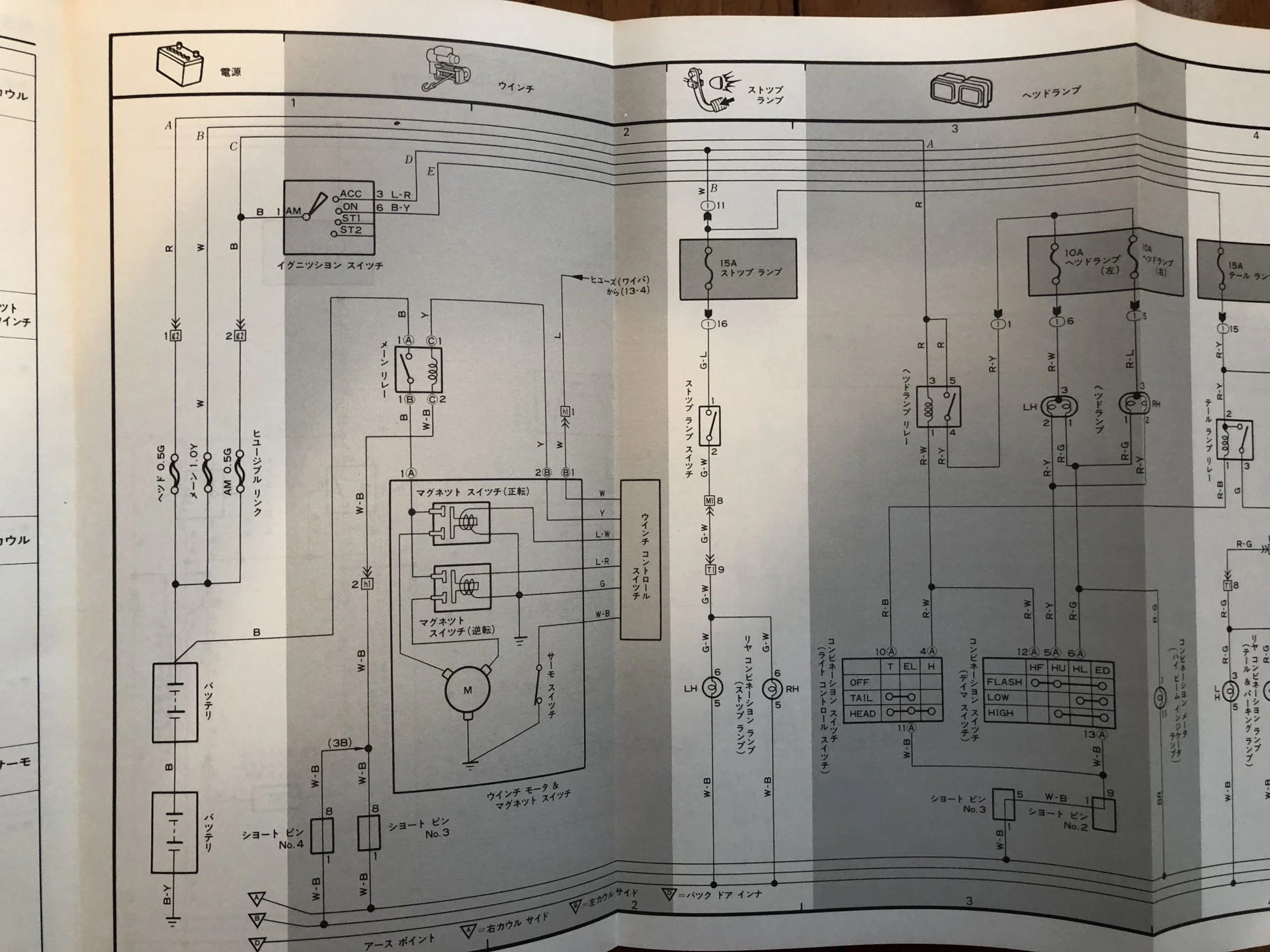

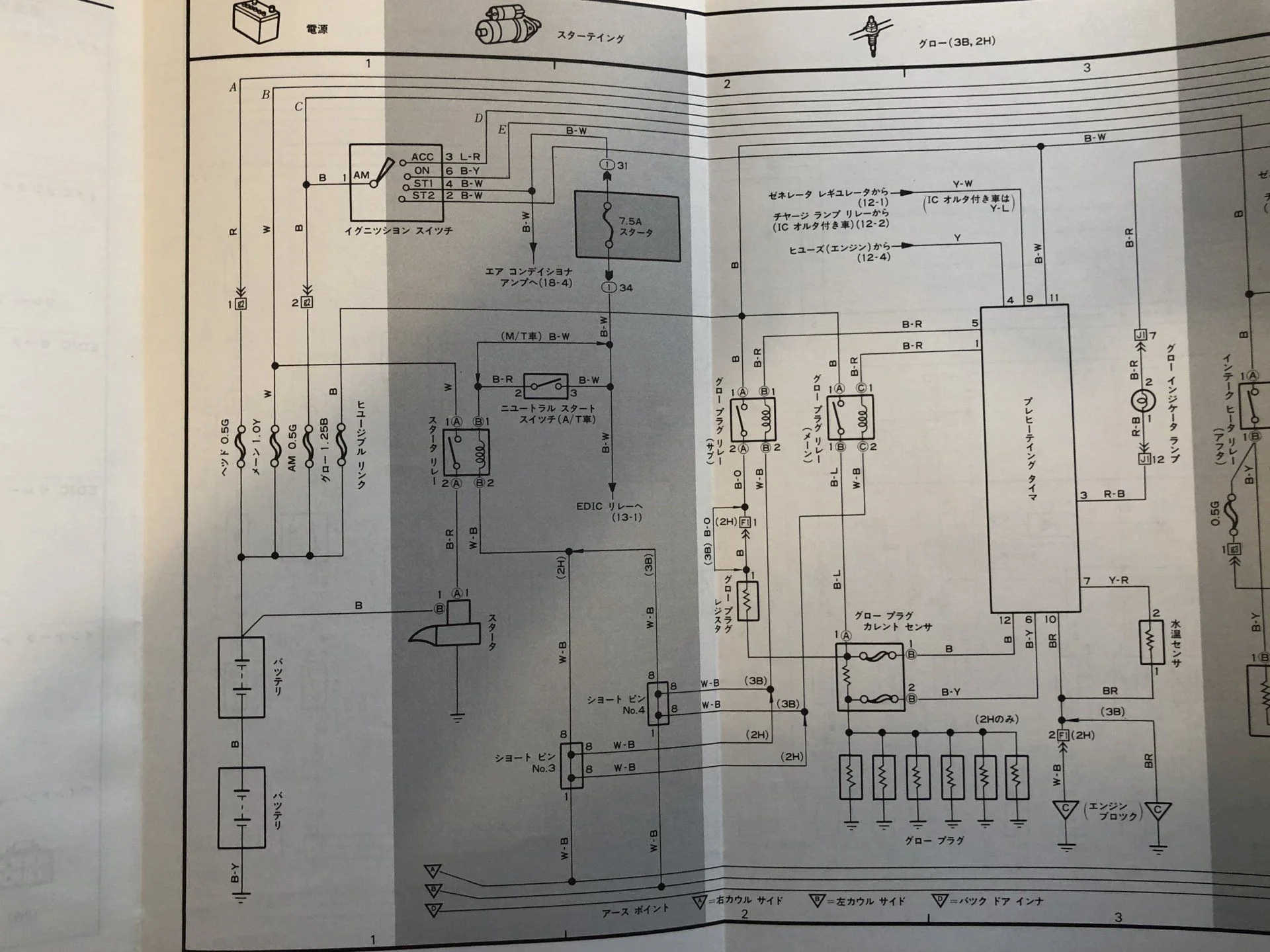

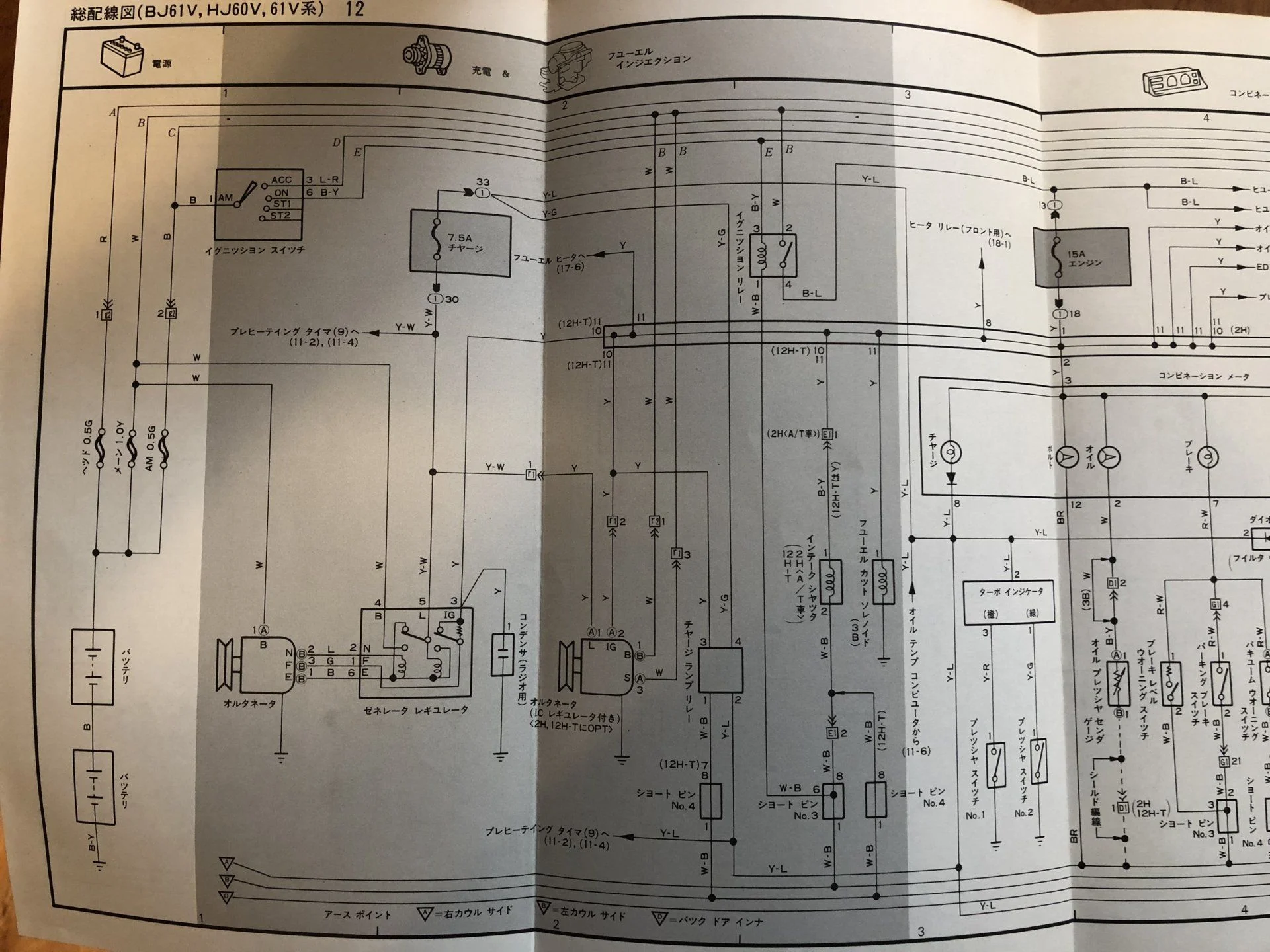

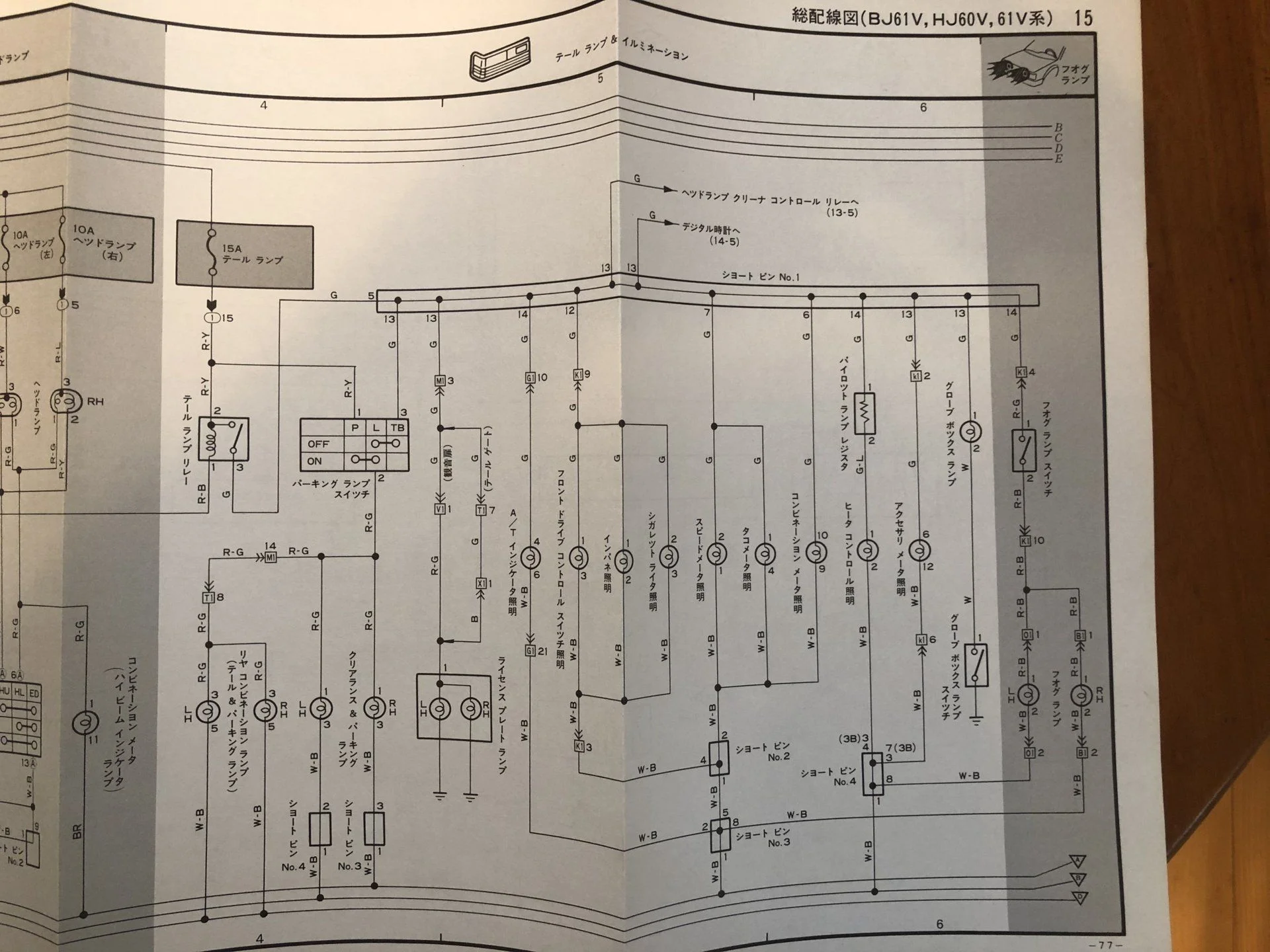

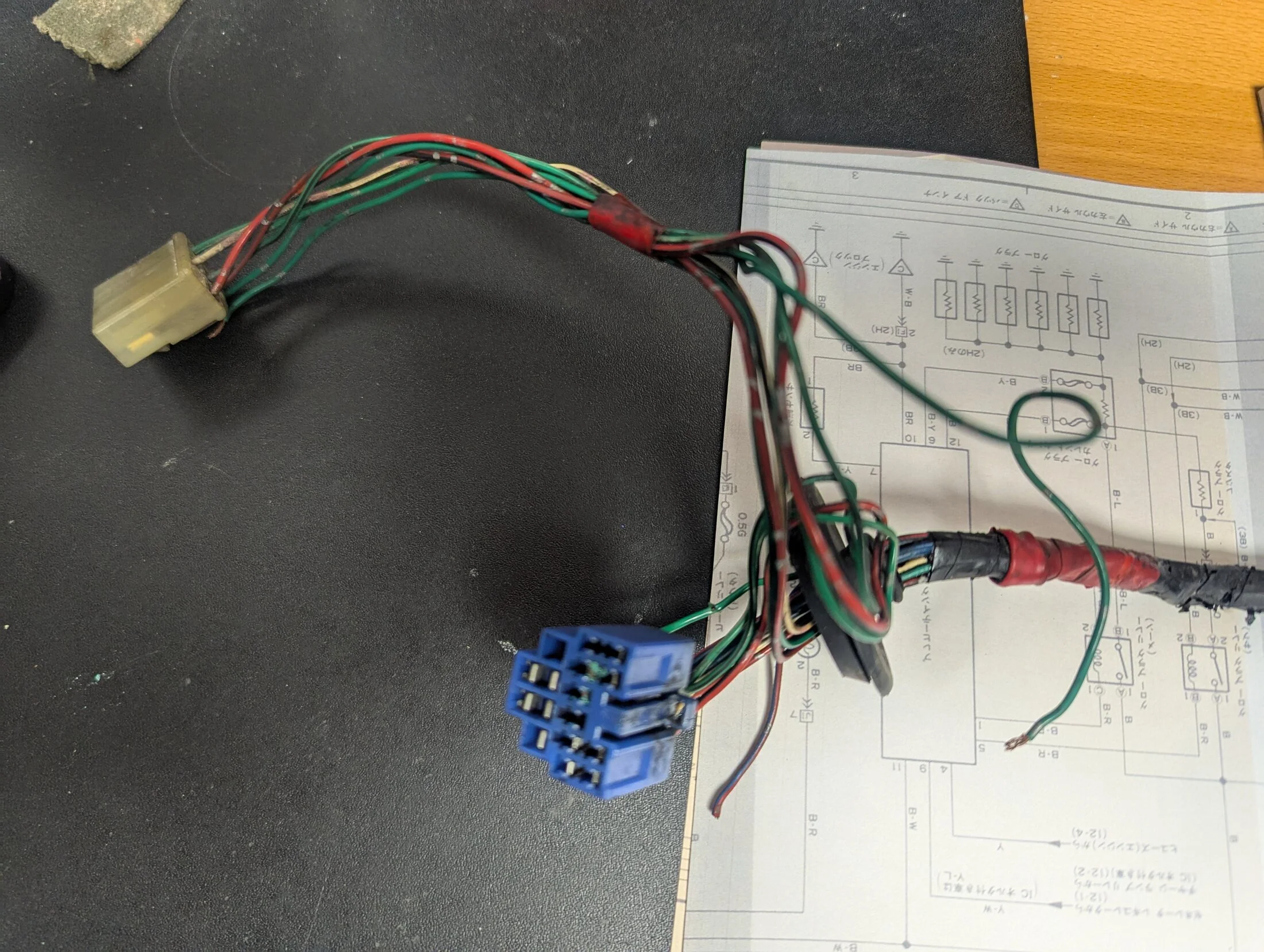

Thank you ever so much Onur! Trying to repair Wire, Floor, No.2 (82162-90A35), where it connects to Wire, Floor (82161-90A40) and I found these photos of the EWD invaluable and could not find anywhere else on the web.

I have tons of these Japanese EWD's for that time period but I have not had a chance to scan them all in, upload them, and host them.

I'll make this a FAQ stickie if anyone needs it.

Ever get the scans done?
