FJ62 Alternator photos (1 Viewer)

[joesfj40]

Hey everyone,

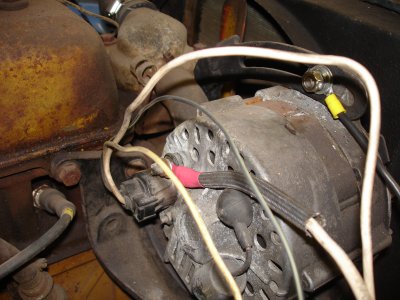

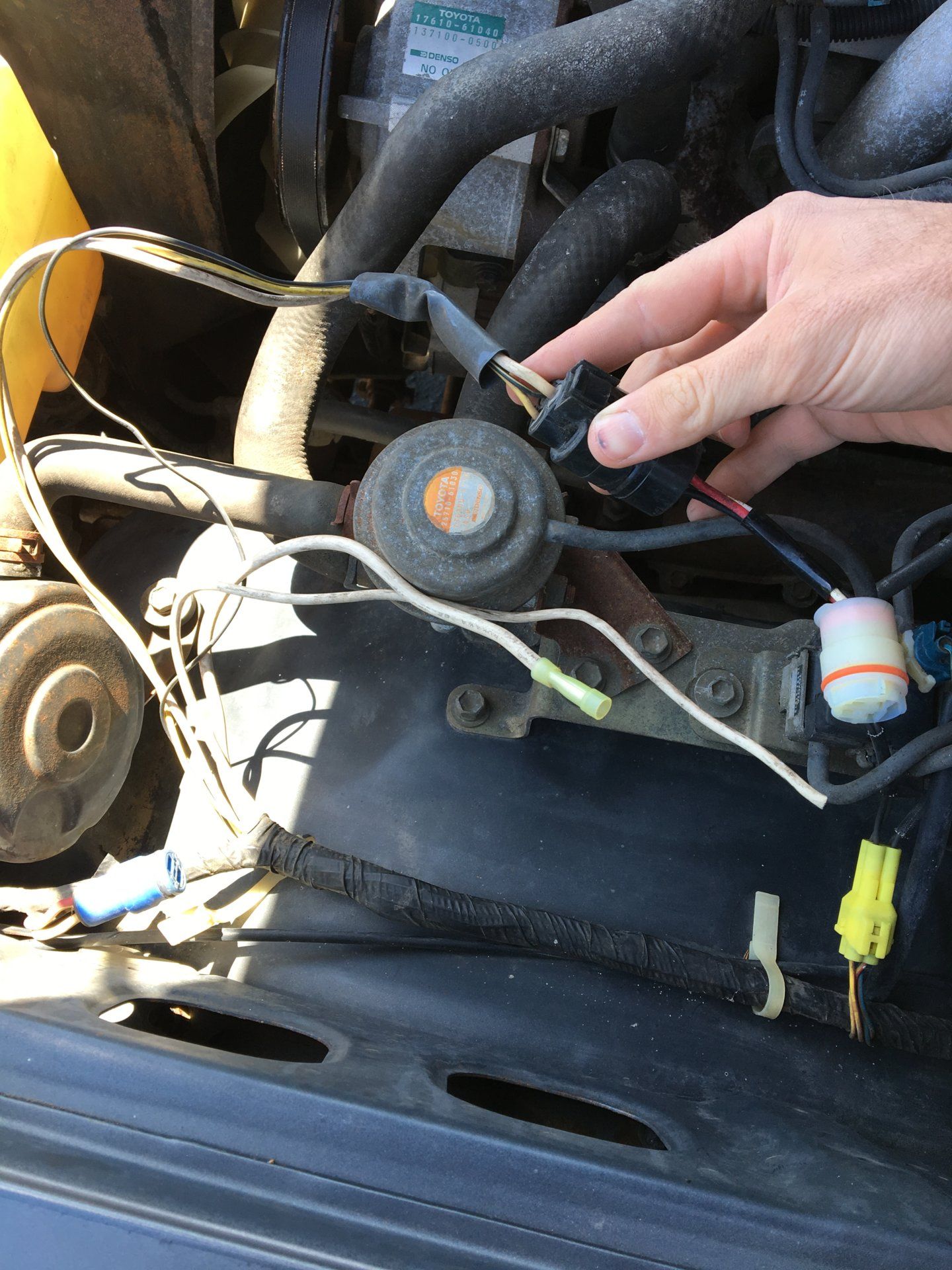

Seeing if someone can point me in a direction here on this alternator wiring. Previous owner wired up an aftermarket. I’d like to go back to a factory nippondenso. Could anyone provide photos of where these white wires should be going?

Thanks for any input.

-Joe



[RodrigzCrzr]

https://forum.ih8mud.com/attachments/dsc03845a-jpg.334481/



[RodrigzCrzr]

here is the schematic for the 62
