Wanted FJ45 LWB Heater Harness

[67azcruizr]

Location

United States

looking for the 3 wire (blue w/black, blue w/red and blue w/white) to the switch then to the heater (blue w/white, blue w/black and white w/black)



[DomSmith]

I’ll look in my wiring box when I get back home. Is the 45 harness any different from a 40 harness?



[67azcruizr]

I’m not sure



[45Kevin]

You could make your own new one.

@Coolerman will sell you the correct wires and connectors for a good price and prompt shipment.

Should be identical to a 40 series.



[DomSmith]

Great idea. Sean I’ll see what I have tomorrow. I could also just measure it all up for you to clone with new wire from coolerman.



[67azcruizr]

Mark does not carry the "3 prong style connector" I am looking for.

this is for an accurate restoration, thanks

-Sean



[Bear]

Sean, @67azcruizr ,

I'm not going to use the heater harnesses on the older 45s here and you are welcome to one if it's not too difficult for me to locate and remove. Could you let me know where I should look to unplug it from the main underdash harness-- one set goes from the H switch to the heater box, and the other from the H switch to the main harness?



[1969FJ]

Mark does not carry the "3 prong style connector" I am looking for.

this is for an accurate restoration, thanks

-Sean

Can you advise on this "3 prong connector", or , is it lost into disintegration ?



[DomSmith]

Sean-

I think you’re best off with Michaels offer. I found remnants of plugs but not a harness. Everything is cut up.



[ToyotaMatt]

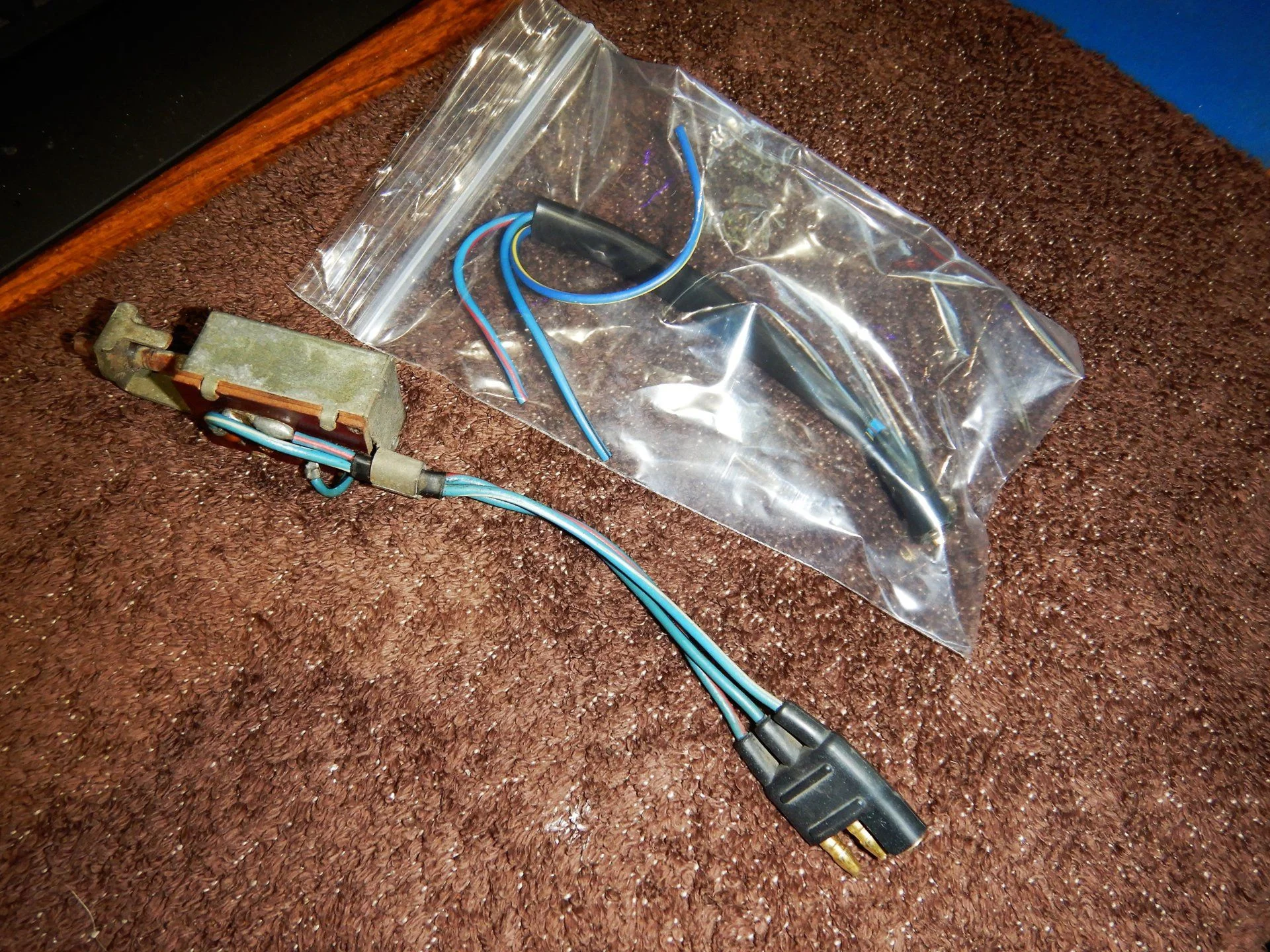

I Have a NOS Female Harness Side Connector / Plug OEM YAZAKI

I removed this NOS YAZAKI Rubber connector Pigtail From A TOYOTA Corona Dash Harness Back I High school , when i worked for a Toyota Dealership

I then Harvested The Color Coded Tracer Stripe Wire For My 1978 FJ40

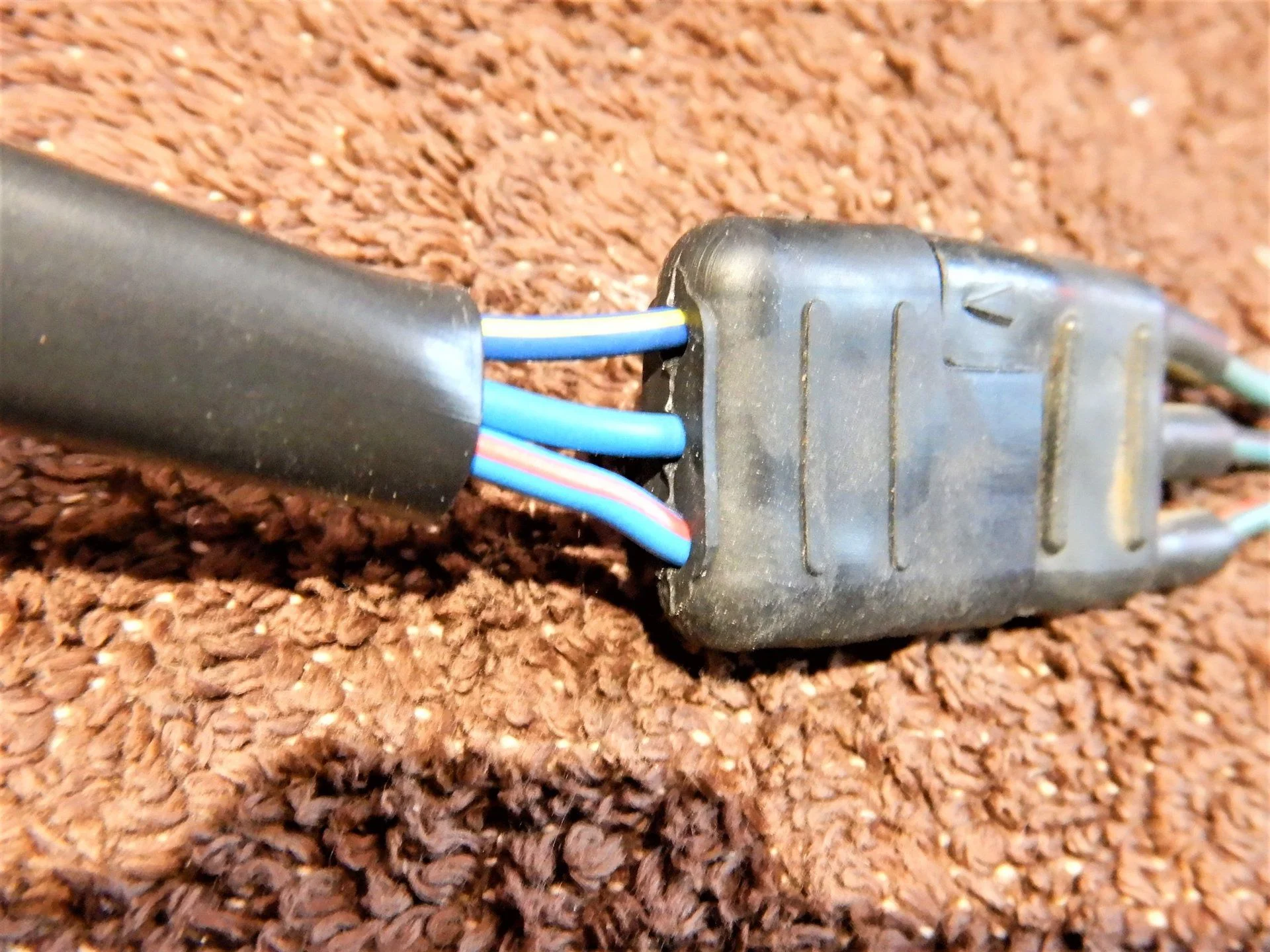

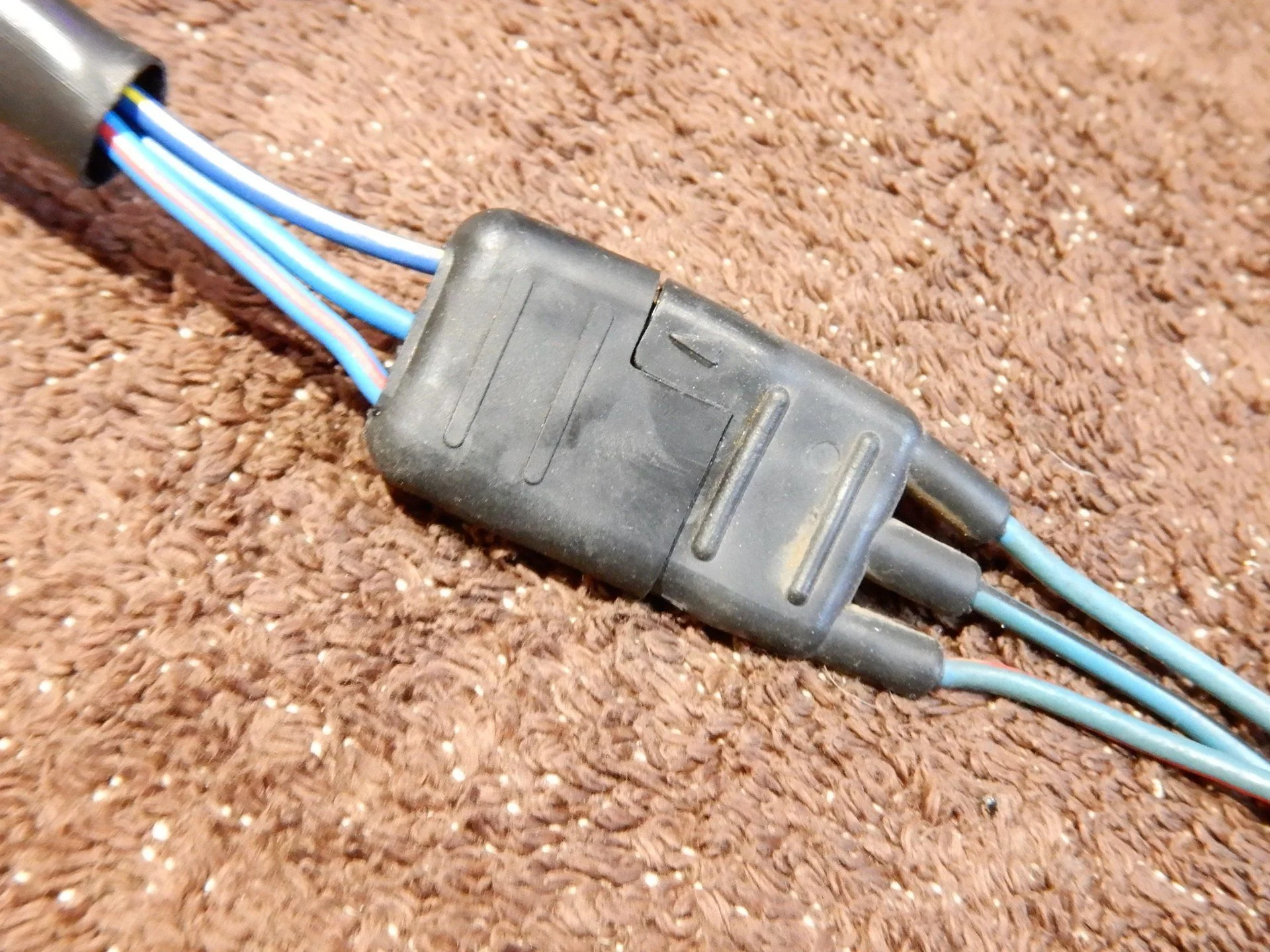

the pigtail mates up with the FJ40 FaN Switch Heater Connector Perfectly as you see



[ToyotaMatt]



[ToyotaMatt]



[pardion]

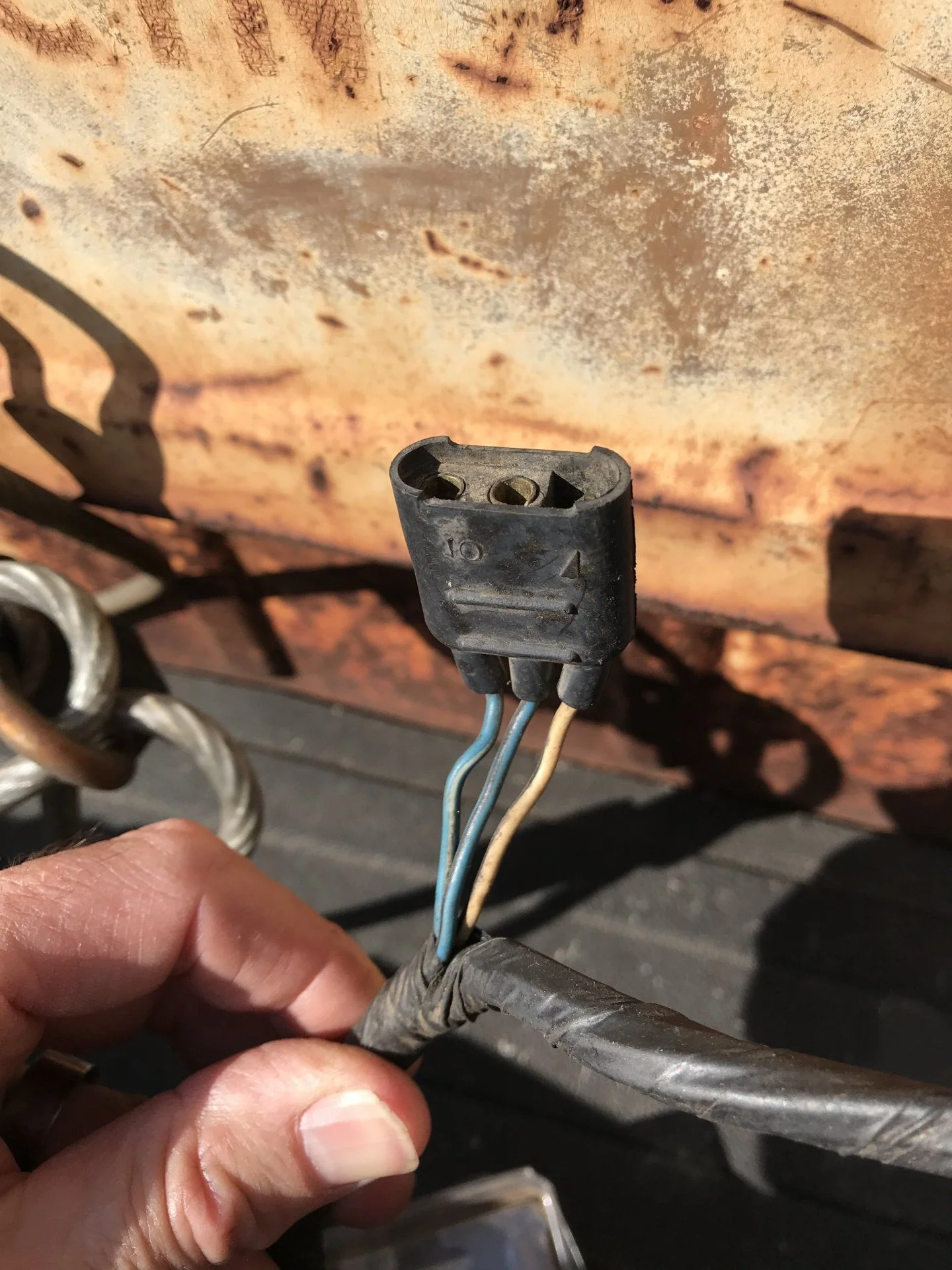

Sean is this what you need?



[pardion]

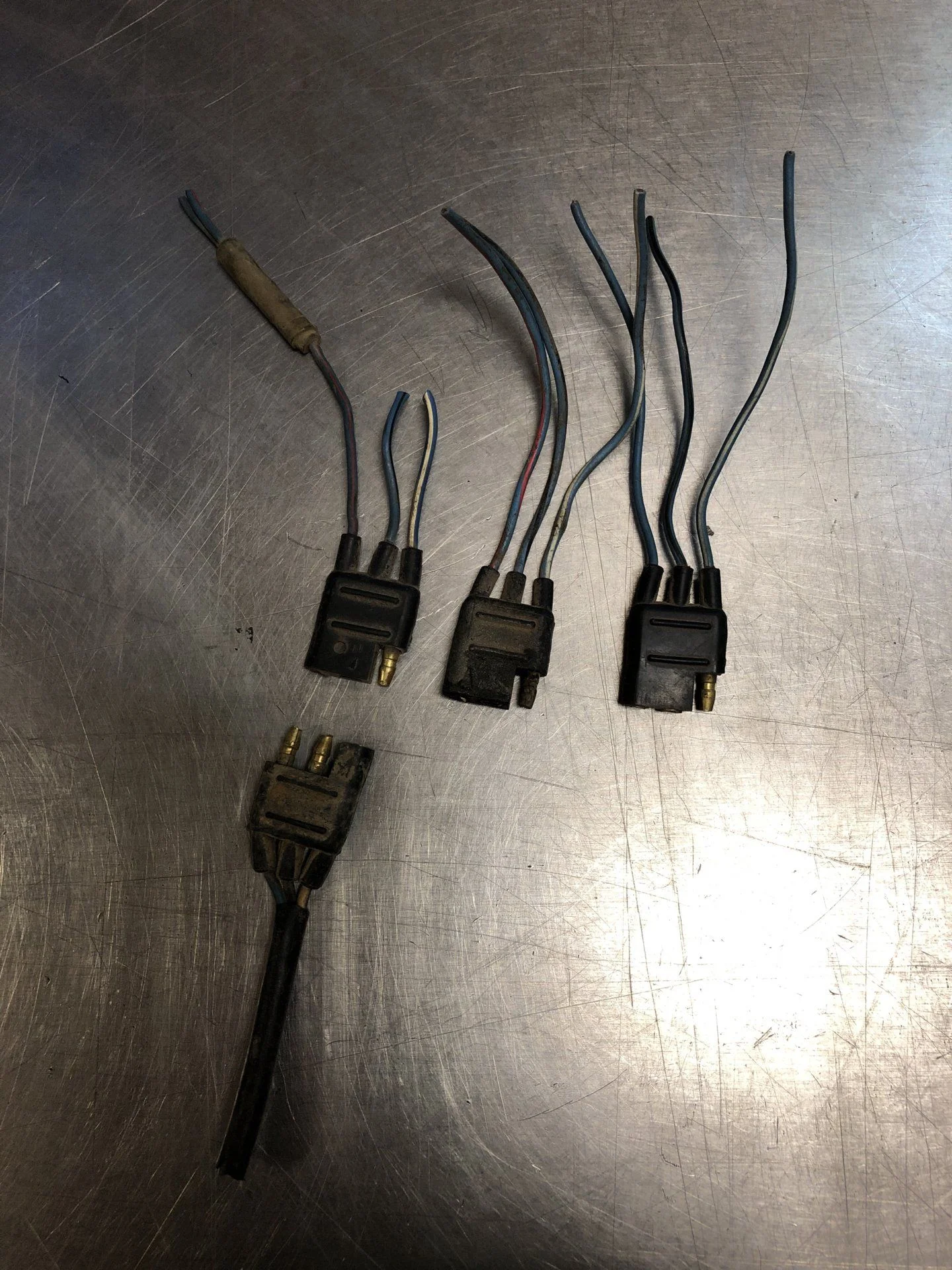

Or this?
