Drawings for front and rear bumper!? (1 Viewer)

This site may earn a commission from merchant affiliate
links, including eBay, Amazon, Skimlinks, and others.

Joined
Apr 16, 2025
Threads
3
Messages
20
Location
norway
Hello!

Anyone who got some drawing for front and rear bumper?
Was wondering to get a local shop to cut the metal plates and weld myself.
living in Norway so not easy to get my hands on premade ones

Hello!

Anyone who got some drawing for front and rear bumper?
Was wondering to get a local shop to cut the metal plates and weld myself.
living in Norway so not easy to get my hands on premade ones

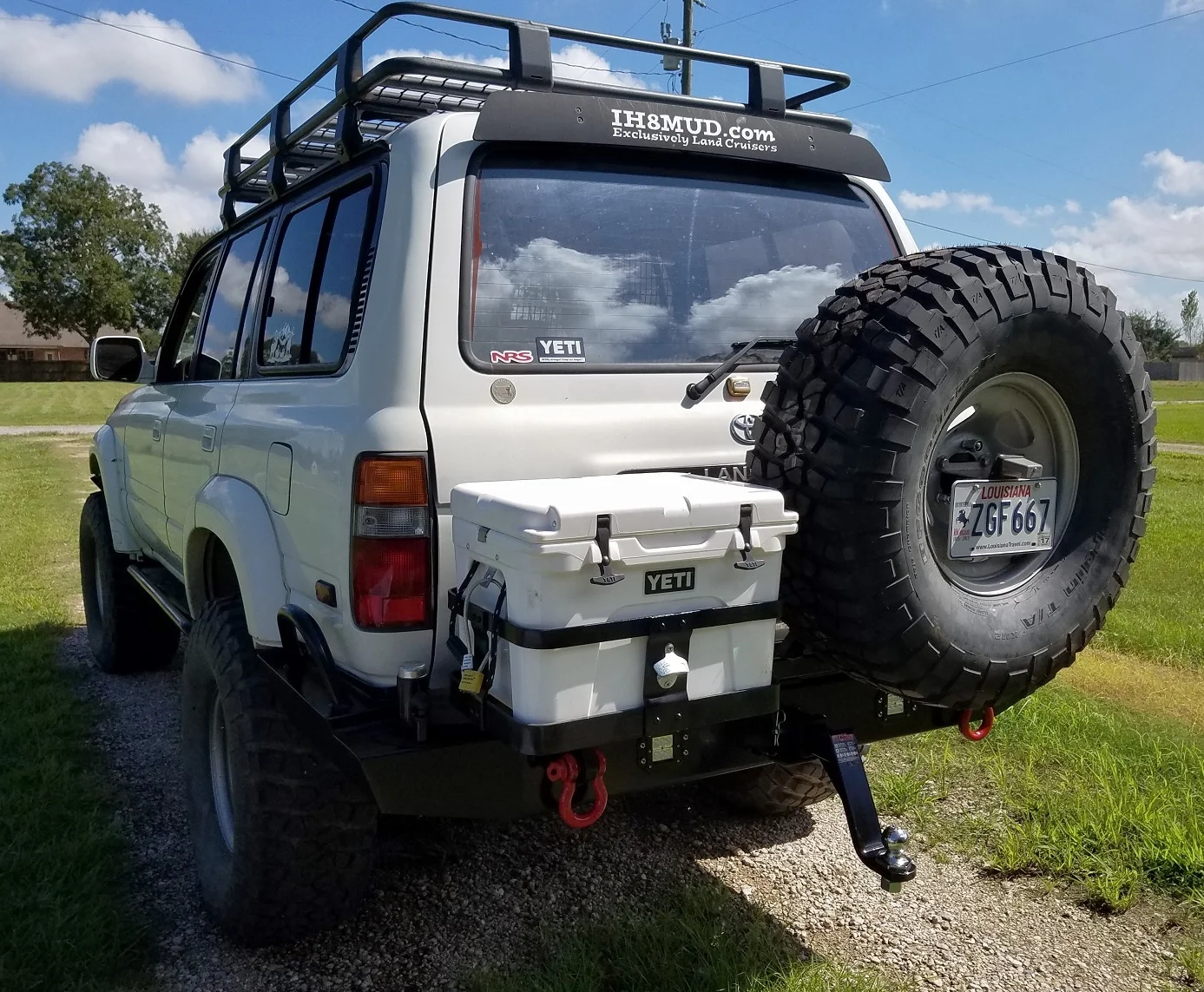

I may still have the plans I drew for my rear bumper. If you're interested in this style, I'll search in the morning. Below is the bumper I built.


I may still have the plans I drew for my rear bumper. If you're interested in this style, I'll search in the morning. Below is the bumper I built.

Yes that would be awesome! Nice rigg!

Yes that would be awesome! Nice rigg!

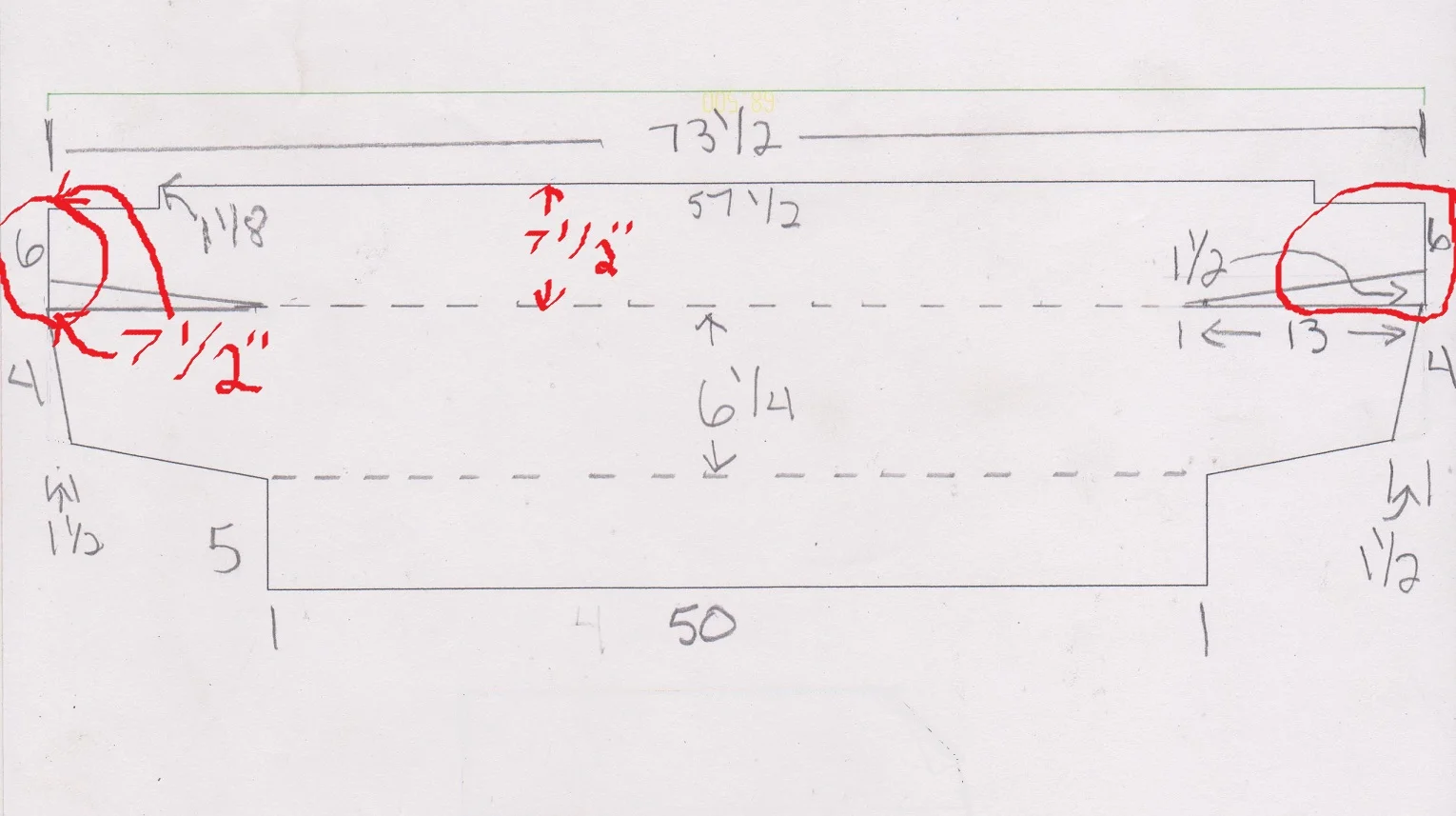

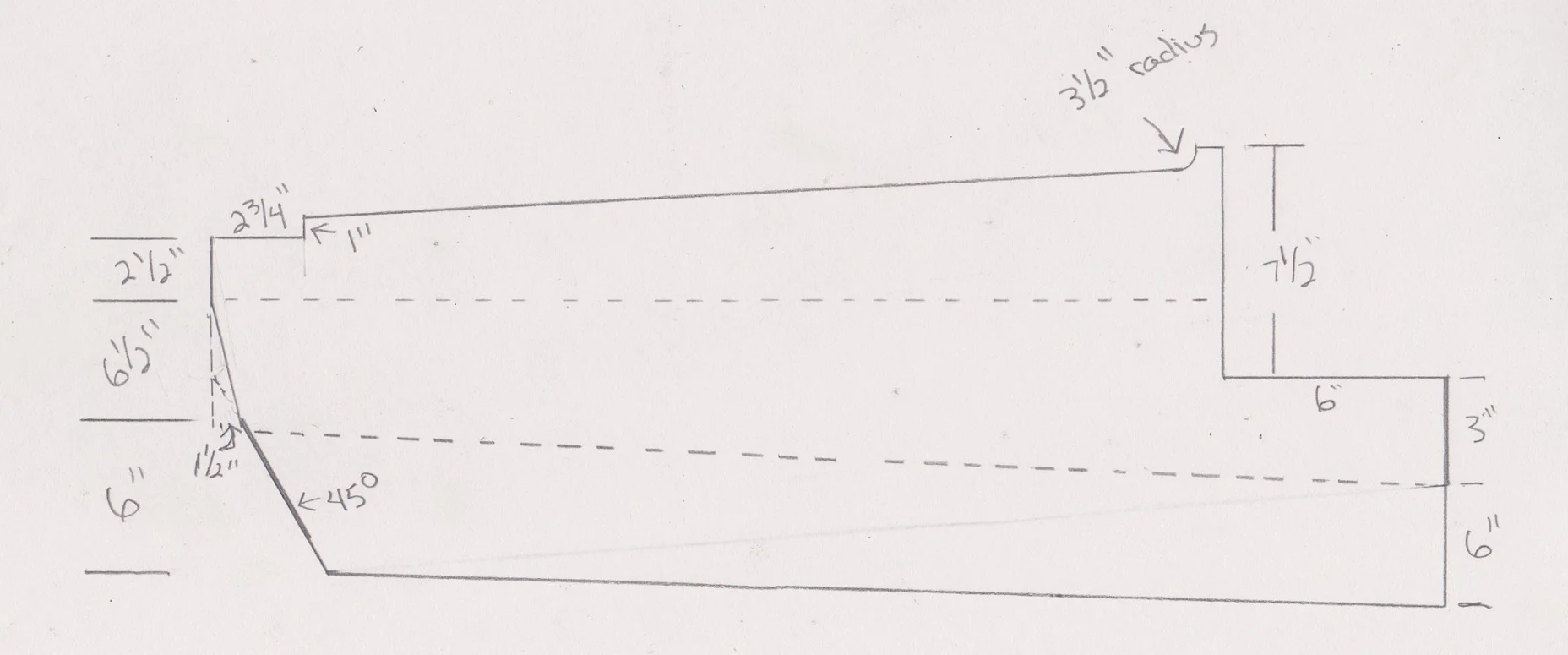

The two drawings below are all I could find. These are the drawings I gave to a waterjet company to cut for me. The bends were made on a friends press brake. I never made drawings for the tire mount or cooler, I made it up as I went along. Good luck!

bumper revision3.jpg
bumper sides 001.jpg
