Confirming Part Numbers for HVAC Servos - Help me correlate the Denso numbers

This site may earn a commission from merchant affiliate
links, including eBay, Amazon, Skimlinks, and others.

gofast

SILVER Star
Joined
Jun 27, 2007
Threads
279
Messages
2,144
Location
Peachland, BC
Hi Mud,

I'm having trouble with my heat. Blows cold or hot and not in between. All the threads I've read have helped me confirm its the servo motor...in particular the one that sits on top of the heater core housing. However, none of the threads I've read list the toyota part numbers.

I have a donor LX450 and its parts are Denso and when I search those numbers - nothing shows up - however Toyota numbers are available and I'd like to buy new units.

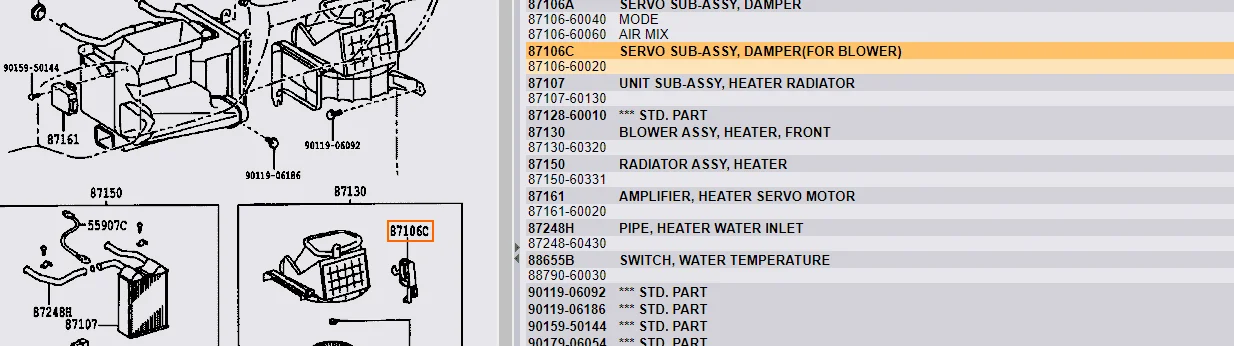

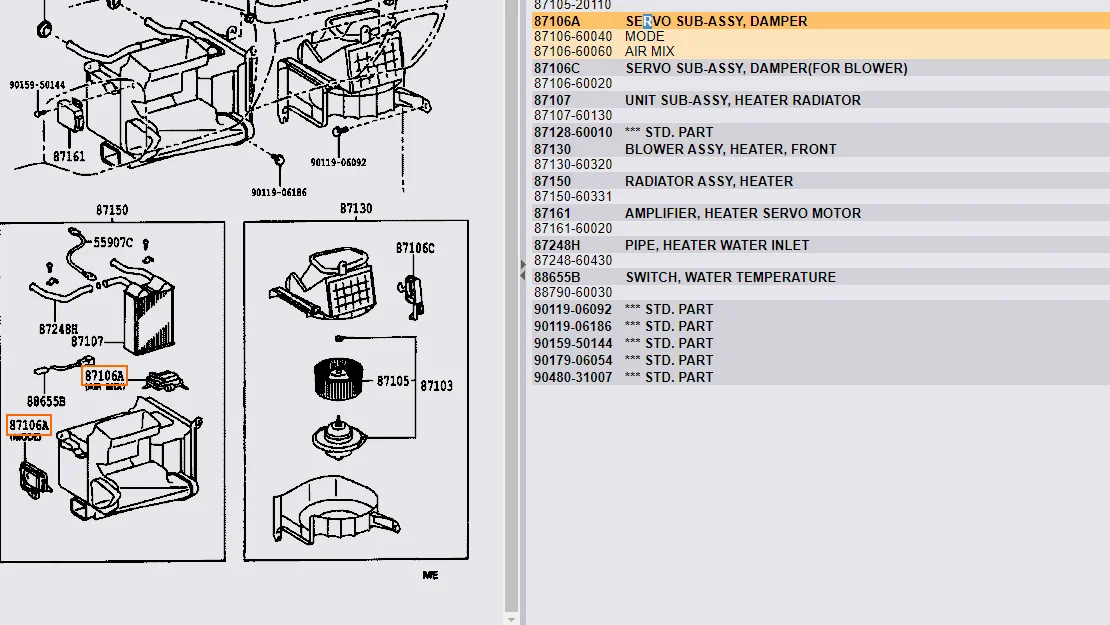

It wouild be awesome if someone could confirm toyota P/N. ToyoDIY lists assembly numbers but drawings lack detal.

This the servo motor that sits on the top of the heater core housing

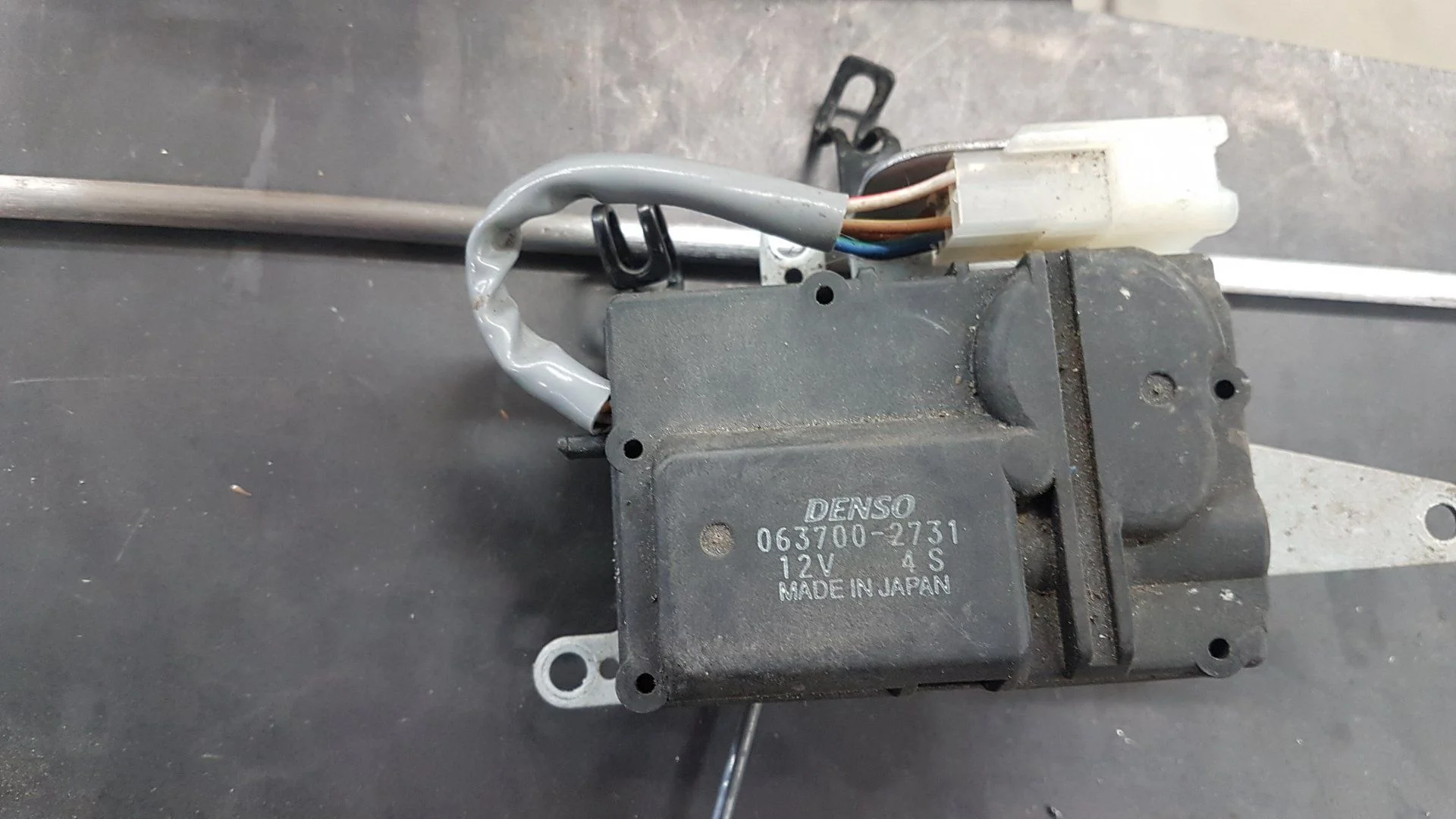

Denzo part number 063700-2731




I'm Assuming this is the Toyota Part Number 87106-60060 can anyone confirm this please??????






Last edited:
This is the servo that moves the vent flap

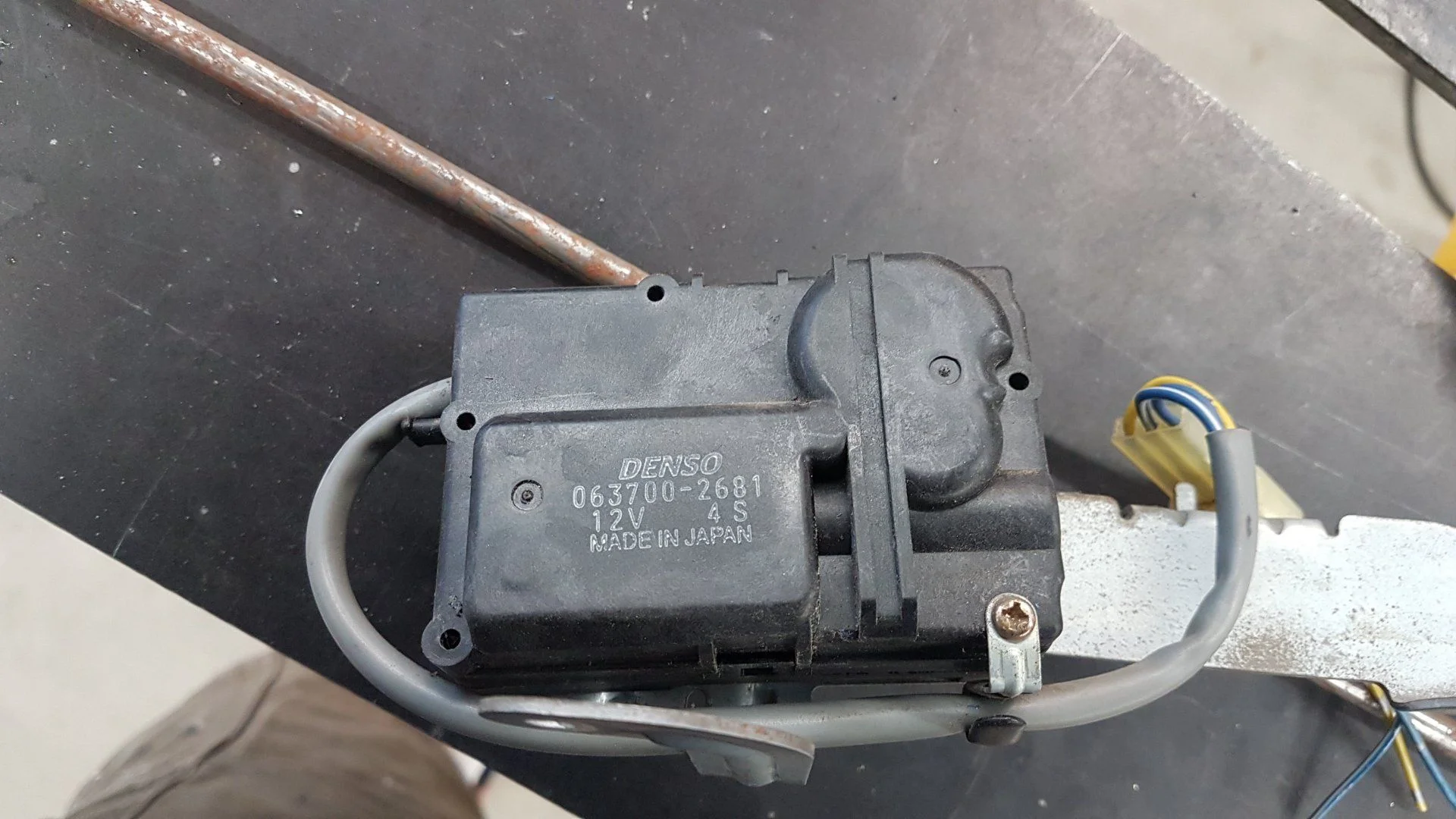

Denso part number 063700-2681

I'm Assuming this is Toyota Part Number 87106-60020. Can this also be confirmed please?

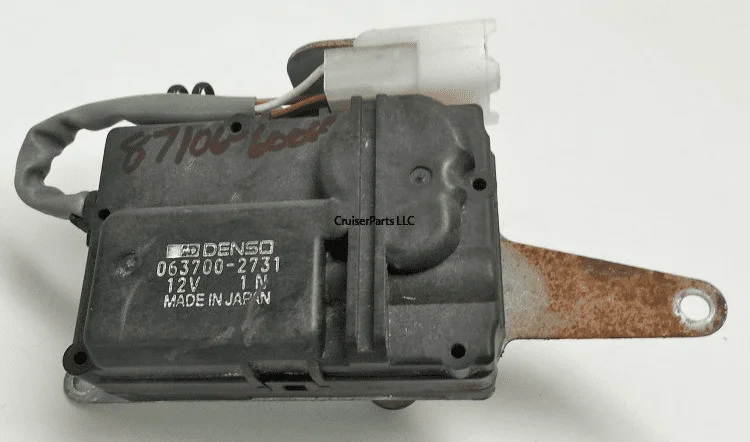

This appears to be 87106-60060
View attachment 2343838


Appreciate this Jon, I suspect this is the unit I have to replace and based on your confirmation, I can identify the other parts. I figure I should replace all sensors and servos as well as the heater core If I'm going to pull the dash.

Appreciate this Jon, I suspect this is the unit I have to replace and based on your confirmation, I can identify the other parts. I figure I should replace all sensors and servos as well as the heater core If I'm going to pull the dash.
Agreed. I don't think this is something I would want to do twice.

Ordered NOS off of ebay and through a Saudi Connection. I am good to go!
