I used a "Momentary-Swith/Pulse-Signal Control Latching DPDT Relay" to bypass the KDSS system on GX470. While first installing it I just used a simple momentary switch to make it work. After confirming it worked, I decided to buy an OEM style CH4x4 switch to "complete" my installation.
I cannot figure out how to make this thing work correctly... The switch itself has a light for text that is backlit/dims with the other dash lights and a second indicator light to signal when the switch is enabled/disabled.
I cannot figure out how to make the indicator light work - the rest of it works perfectly.

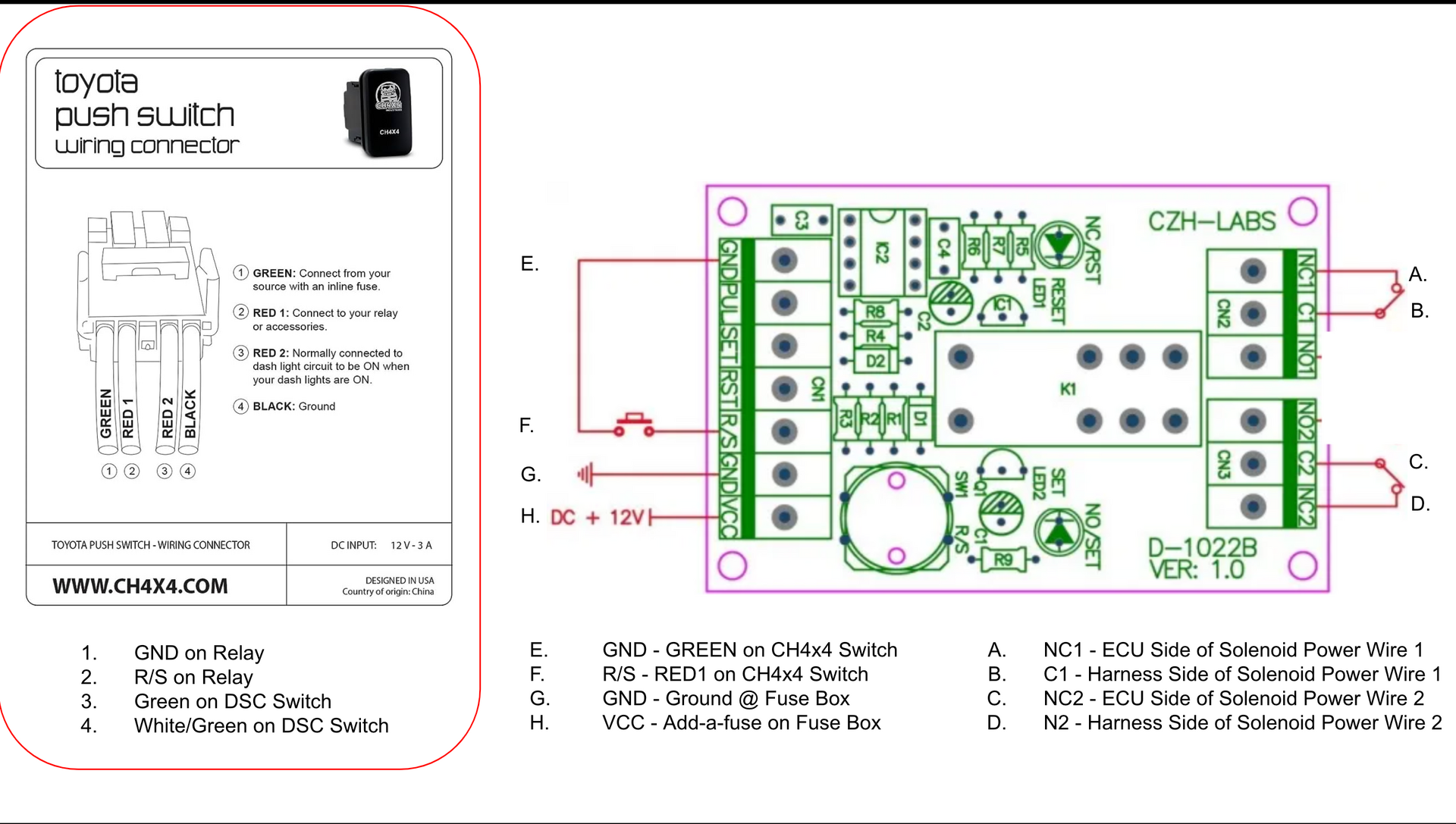

I made this diagram of how I have everything wired right now... I *think* the answer to my problem lies somewhere between terminals 3 and 4 on the Ch4x4 Switch and the GND and VCC terminals of the relay but I cannot get it to work.
Help appreciated!
