Axle Rebuild Complete...Almost (1 Viewer)

Joined
Jun 20, 2005
Messages
362
Location
Shawnee, KS
Well in spirit w/ the wrenching weekend I stayed up til 2AM on Saturday night and was up bright and early Sunday to complete the axle assembly.



It took me awhile to figure out how to reinsert the axle into the birf w/ that pesky inner snap ring. I also spent a considerable amount of time modifing my snap ring pliers so that I could install the out snap ring.

I'm not super confident I got the wheel bearing preload set right. The FSM wasn't real clear on what to do, so I just followed Roger Brown's instructions. Which was basically to tighten the inner axle nut to 43lbs rotate 4-5 rotations forward and back...loosen nut...rotate 4-5 rotations forward and back, repeat. then tighten down to 21lbs.

The fish scale shows it takes 30lbs to rotate. Does that seem right?

After this experience, all I have to say is I never want to do this on the trail ;)

Joined
Sep 30, 2004
Messages
528
Location
Fargo, ND
That sure is pretty looking. Nice work.

30 lbs sounds about right. It will feel stiff with out the tire on but with the tire it will spin better.

Matt


tornadoalleycruiser

Erik TLCA #5303
SILVER Star
Joined
Aug 2, 2004
Messages
5,506
Location
KC Mo
Website
www.tornadoalleycruisers.com
WOW. Nice shiny new parts.. Now let heather drive it, it'll never look the same again!

Joined
Jun 20, 2005
Messages
362
Location
Shawnee, KS
The only new parts are the rotors and steering arms. It sure was nice finally putting some stuff back together.

Seems a shame to put that axle under my rusty POS ;)

Joined
May 17, 2003
Messages
1,191
Location
Irving, TX
I used the procedure that I used on the 80. IIRC, it's tighten to 47 ft-lbs, then spin forward & backwards 3-4 times and and then loosen and retighten to 47 *in-lbs* and install the locking nut and torque it to 47 ft-lbs.

30 lbs drag sounds too high. Should be around 6-12.

Joined
May 17, 2003
Messages
1,191
Location
Irving, TX
Ranski said:
It took me awhile to figure out how to reinsert the axle into the birf w/ that pesky inner snap ring. I also spent a considerable amount of time modifing my snap ring pliers so that I could install the out snap ring.

I martacked my axles so that I didn't have to mess with the outer snap ring. :D I'm snap ring challenged, I guess :crybaby:

Joined
May 17, 2003
Messages
1,191
Location
Irving, TX

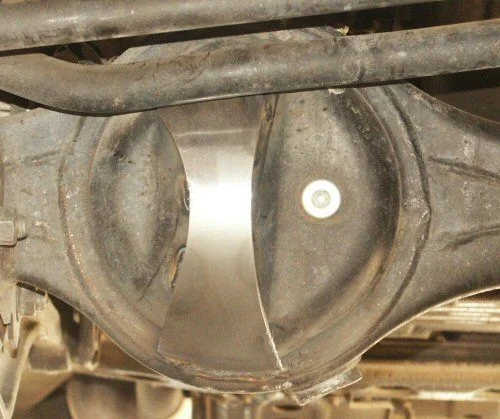

Before you reinstall that axle (or at least before adding gear oil), get a diff protector. I dented my front diff at Disney last year. Fortunately, it wasn't enough to cause contact with the ring gear! :eek: I just put this one on. http://www.marlincrawler.com/htm/armor.htm

Joined
Jun 22, 2005
Messages
351
Location
Kansas
HERE'S THE WAY I WAS TAUGHT IN TECK SCHOOL.
TIGHTEN DOWN GOOD AN TIGHT. BACK OFF. THEN TIGHTEN WITH THE WEIGHT OF YOUR HAND. JUST A SMIDGE MORE. LOCK IT ALL DOWN. THIS WORKS ON EVERYTHING. FROM CARS TO BIG TRUCKS & TRAILERS.
I THINK THEM ENGINEER FOLKS MAKE THIS WAY TO COMPLICATED.

C Ya, Don P.

Joined
Jun 20, 2005
Messages
362
Location
Shawnee, KS
I'll plan on pulling everythig off and check the oil seal...put everything back on - then try Don's method.

Bob thanks for the heads up on the diff armor. I'll defintitley do that.

Joined
Sep 30, 2004
Messages
528
Location
Fargo, ND
Dmidlfing4 said:
HERE'S THE WAY I WAS TAUGHT IN TECK SCHOOL.
TIGHTEN DOWN GOOD AN TIGHT. BACK OFF. THEN TIGHTEN WITH THE WEIGHT OF YOUR HAND. JUST A SMIDGE MORE. LOCK IT ALL DOWN. THIS WORKS ON EVERYTHING. FROM CARS TO BIG TRUCKS & TRAILERS.
I THINK THEM ENGINEER FOLKS MAKE THIS WAY TO COMPLICATED.

C Ya, Don P.

I've had good luck doing this. I did it by hand way before I had any scales to measure and havn't had a problem.

Matt

Joined
Jan 24, 2003
Messages
2,073
Location
Columbia, MO
Website
www.tornadoalleycruisers.com
Don's right on. I tighten enough to take all the play out and then a bit more, rotate a few times to smear the grease around, then back off and tighten to hand tight, zero free play, plus a touch more.
Much like adjusting valves, it's sort of a feel thing.

Joined
Jun 20, 2005
Messages
362
Location
Shawnee, KS
Thanks

Thanks for the feedback. I will give it another go this weekend and then have Erik give it a look see when he is here welding up stuff on the front end.


tornadoalleycruiser

Erik TLCA #5303
SILVER Star
Joined
Aug 2, 2004
Messages
5,506
Location
KC Mo
Website
www.tornadoalleycruisers.com
Mmmmm Catholic School girls! Such memories of my younger years... Oh.. Wrong forum!
Looking forward to helping you ger er done!

And yes.. I will admit I have learned a lot from Don and Chef.. Not all of it Good! or stuff I really wanted to learn but I learned a lot regardless..

Other pics of your project?
