For Sale 80 series Power Seat motors, gears and controls

arcteryx

Supporting Vendor
Joined
Sep 27, 2004
Messages
7,797
Location
Austin
Website
www.cruiseryard.com
I have a PS and DS motor, gear and a PS master control switch for 80 series with electric seats. All motors have been tested and work. Shipping not included. Please specify DS or PS as well as the part #'s needed.

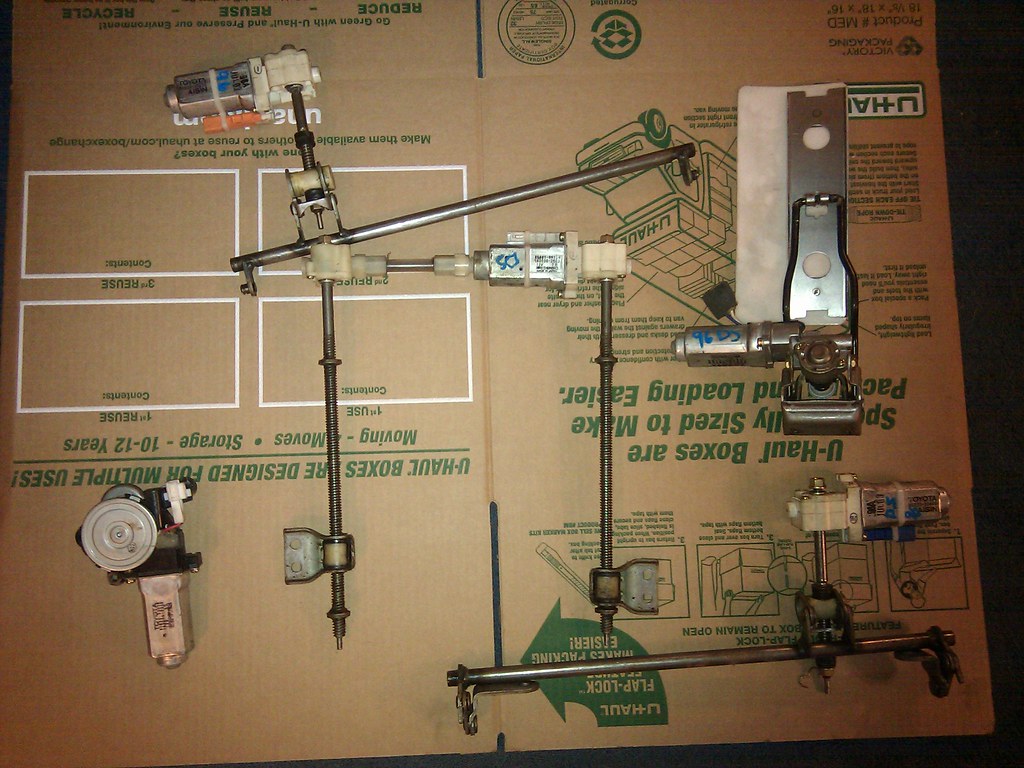

PS Seat motors/gears. Part numbers are below and go in clockwise order in the pic starting at the bottom left.
Brown master seat control, also have gray $60
85820-32020 $60
85820-30230 $60
85820-30400 $60
85801-99734 $80


DS Seat motors/gears. Part Numbers are below and go in clockwise order in the pic starting at the bottom left.
85820-33010 $60
85820-30230 $60
85820-30180 $60
85820-30400 $60
85801-99734 $80


PS components



DS components

Last edited:

FloridaFJ80

Roaming Land Cruiser Heaven
Joined
Sep 11, 2005
Messages
3,004
Location
Ashburn, Va
Website
www.landcruiserheaven.com
I would be interested.. My issue is the following. The PS doesnt move forward or back. I checked and the white plug is inserted. When I removed the bolts holding the seat from the car and tested, only the rail closest to the door moved forward and back but the other rail would not move. The part I am talking is pictured in the first picture in the middle, its the one with both rails connected. What do I need to replace to fix this?

Thank you!!!


arcteryx

Supporting Vendor
Joined
Sep 27, 2004
Messages
7,797
Location
Austin
Website
www.cruiseryard.com
Honestly, I am not sure what you need exactly, maybe check a seat diagram from the link n my sig at toyodiy. Create an account, then they show pics. No affiliation. Or try sor.com, they have schematics, but their part #'s wont reference over.

If you can determine which parts(s) you need let me know.

List updated too


Brentbba

Former Golfer
SILVER Star
Joined
Mar 27, 2003
Messages
10,548
Location
OC, CA
Do you have this? Loooking for a friend. I dont' know if the entire assembly needs replacing or just the missing button???


Brentbba

Former Golfer
SILVER Star
Joined
Mar 27, 2003
Messages
10,548
Location
OC, CA
Thx - I'll let my friend know...and keep searching parted trucks for just the button.

Joined
Oct 30, 2011
Messages
25
Hi, my ps side seat does not move forward or back. I want to replace the rail and motor. I am assuming the part is the large one in the center of the PS picture? How much shipped to CA, 95824? Thank You

Joined
Oct 5, 2003
Messages
1,144
Location
Golden, CO
I need the Passenger-side worm gear apparatus. I stripped out the right side/opposite side of the motor gearbox. I can buy the whole unit if that is how you’re selling it. I really only need the auger in gear in that box in can rebuild my existing unit if the driver side is available.

Joined
Aug 28, 2014
Messages
746
Location
Santa Cruz
I need a DS forward/backward motor for my 93’, gears are fine, switch works, the motor doesn’t work. Do you have one to sell still? My part # is 85820-30220. Pic for reference. Thanks!
