70 Series With 1FZFE Under Hood Pictures Needed

[MSGGrunt]

Like the title states, I'm looking for pictures of a 79 or 75 or any other 70 series that runs the 4.5 1FZFE engine. I am looking for as much detail as possible for a point of reference for my 79 body onto a 1996 FZJ80 with 1FZFE frame and drive-train build.

Thank You...

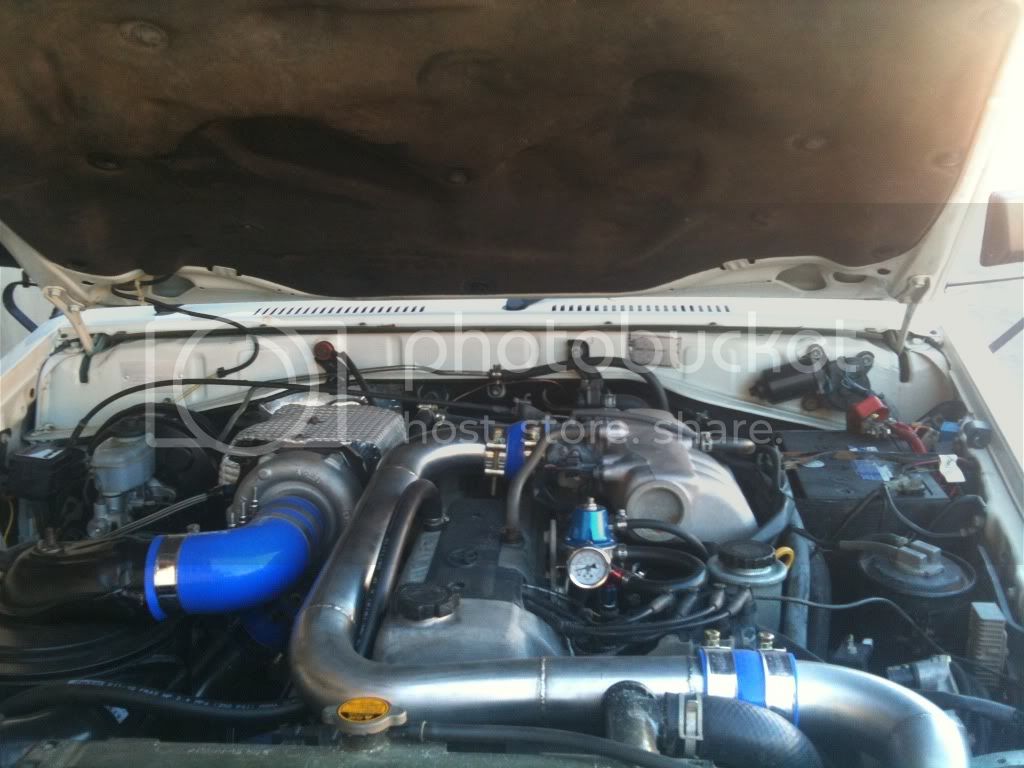

[Clint79]

if you want some side on shots with measurements yell out ,



[Hulsty]

Hey clint is that a stock FZJ air box lid? What is the diameter of it? Does it take a Ryco A340 filter like most other cruisers? I am thinking of getting one to use on my BJ74 for slightly better flow rather than the squashed type standard one.



[Clint79]

The one on the left is fj hzj hj and has a large squashed area as you can see, the fzj intake size also has larger diameter intake on the lid and also air box intake, I can't remeber the size of the fzj lid intake but i cut the end of and welded a 3" pipe in it to suit turbo intake which is also 3"
welding the lid is a mega pita as it's really thin metal
the air box intake is also bigger on fzj ,
the hdj also run smaller snot
not sure on vdj?



[MSGGrunt]

I'm just wondering how similar the under hood mounting of 1996 FZJ80 1FZ stuff will be in the 2010 79 series. Hopefully not too difficult.



[Clint79]

Both the 80 series post 07 7x series have plenty bit more room in there engine bays than the 85-05 7x series should fit piece of cake



[scruiser]

is this good for you

2008 swb with 4500 efi



[MSGGrunt]

That is what I am looking for. Just trying to see where everything bolts to the fenders and cowl and how things are routed when I drop the 79 series body on an 80 series frame.
