Anyone know where all the AhC fuses are for a 2013. I have a bad AHC leak and drained all the fluid. Truck remain in N position and I want to remove all the fuses to keep pump from cycling. The engine fuse box does not match the owners manual. I pulled fuse 18 thinking that may be it and I know there is an interior fuse box with an AHC fuse that should be under the glove box but there is no fuse box there. Also anyone that has pulled the AHC fuse, should I have a dash light. I have no dash light at all even when it leaked?

thanks in advanced.



[turbo8]

Post a picture of your fuse box and the lid



[turbo8]

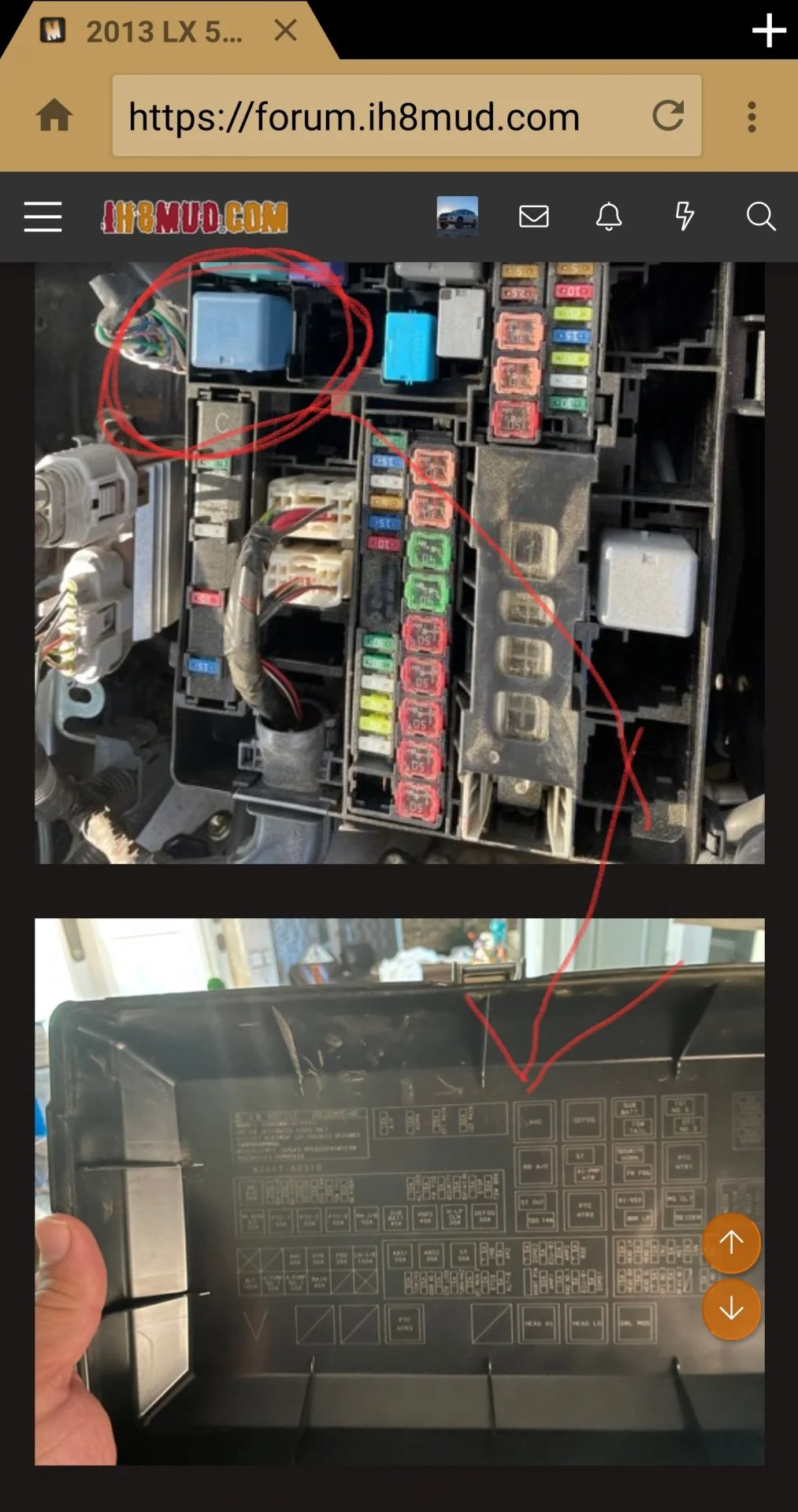

Pull the ahc relay in the engine compartment fuse box.

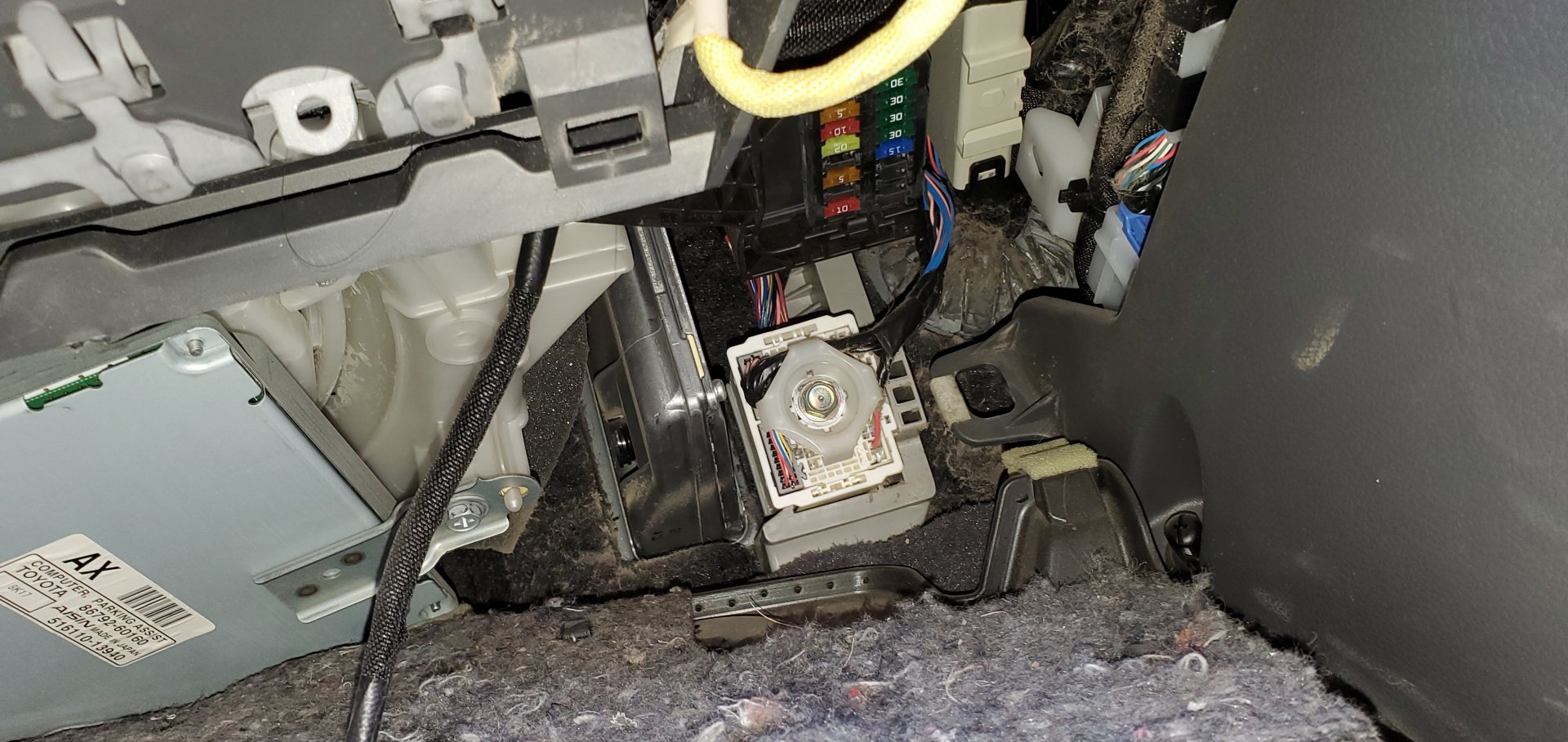

Pull the ahc/afs fuses under the glove box

You'll need to pull the trim out if the rear of the vehicle to get to the ahc ecu and disconnect it.

See my thread in my sig.



[turbo8]

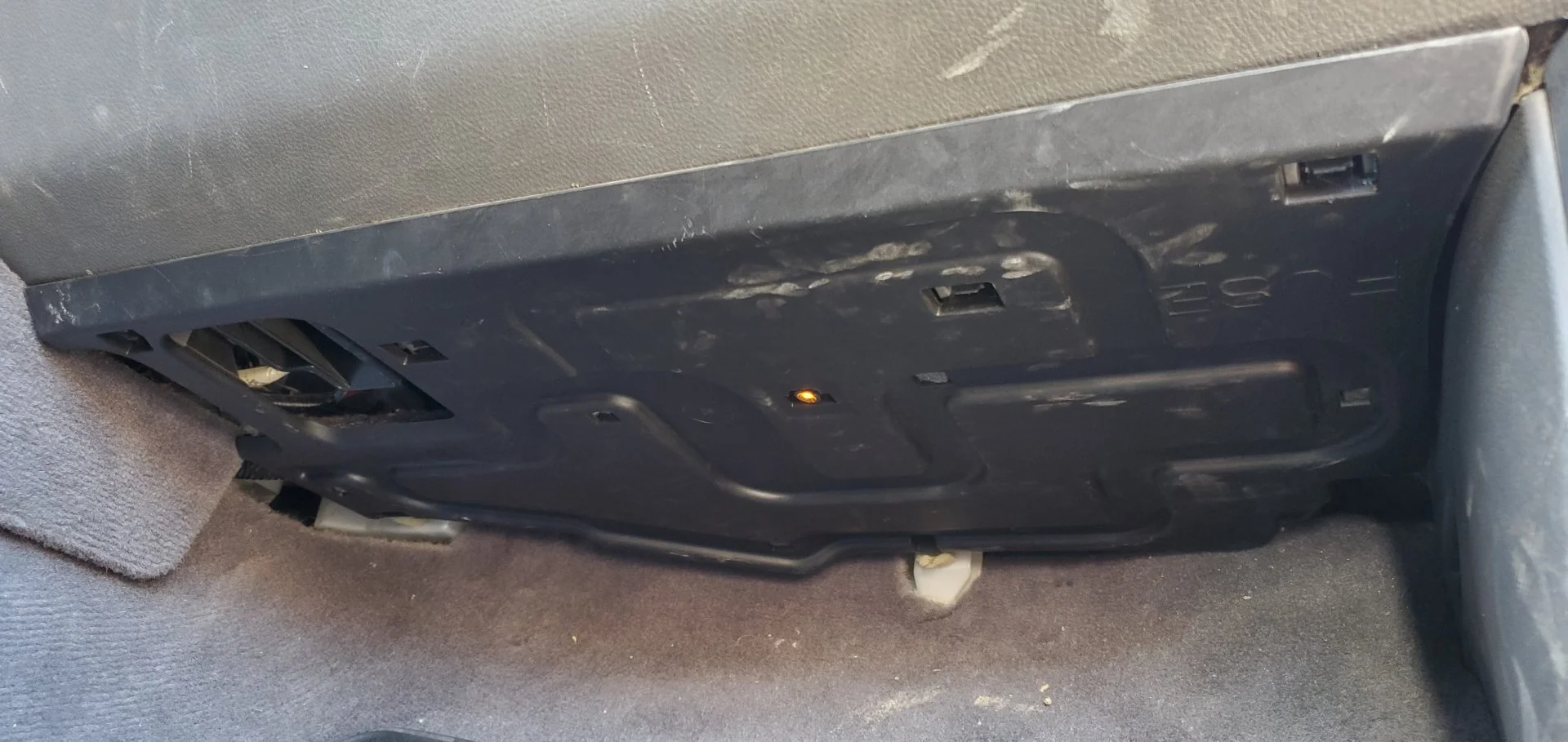

Fuses under the glove box are behind black trim. Which needs to be removed.



[turbo8]

Ahc relay



[casper9292]

Just had a similar issue I can’t tell where it’s leaking at inside the pump but something came loose while on the highway and all the oil has come out. I immediately pulled over and turned off the car and I wanna disconnect the pump. Is the relay sufficient or do I need to take out all three fuses?
I’m on a road trip so I can’t remove the bumper to access to ECU. I just wanted to disable it so that I can drive another hundred miles to DC and I will have a mechanic get up under there tomorrow to see what is actually causing the leak and see if I can’t patch it up
