2012 lc70 instrument cluster wiring diagram (2 Viewers)

[nico3dd]

Hey! I'm looking for an instrument cluster wiring diagram for lc70 2012. I'm not able to find any over the internet. Does anyone have it?



[rick_d]

I never found one even with subscription to toyota data. I had a VDJ cluster and was trying to get the tachometer to work with a HDT engine with zero success. I worked on some wire tracing but in the end I just sourced a new cluster with right set up. What is your question related to?

2010-2016 2 plug and 2016-present 3 plug Instrument combination clusters FAQ

I have revised this to discuss all clusters series to help with Tach identification. Later versions have ABS and/or Diff lock lights and other idiot lights on dash but main elements all work. The instrument clusters (aka combination meters) are solid state boards that are difficult to add or...

forum.ih8mud.com



[nico3dd]

I never found one even with subscription to toyota data. I had a VDJ cluster and was trying to get the tachometer to work with a HDT engine with zero success. I worked on some wire tracing but in the end I just sourced a new cluster with right set up. What is your question related to?

2010-2016 2 plug and 2016-present 3 plug Instrument combination clusters FAQ

I have revised this to discuss all clusters series to help with Tach identification. Later versions have ABS and/or Diff lock lights and other idiot lights on dash but main elements all work. The instrument clusters (aka combination meters) are solid state boards that are difficult to add or...

forum.ih8mud.com

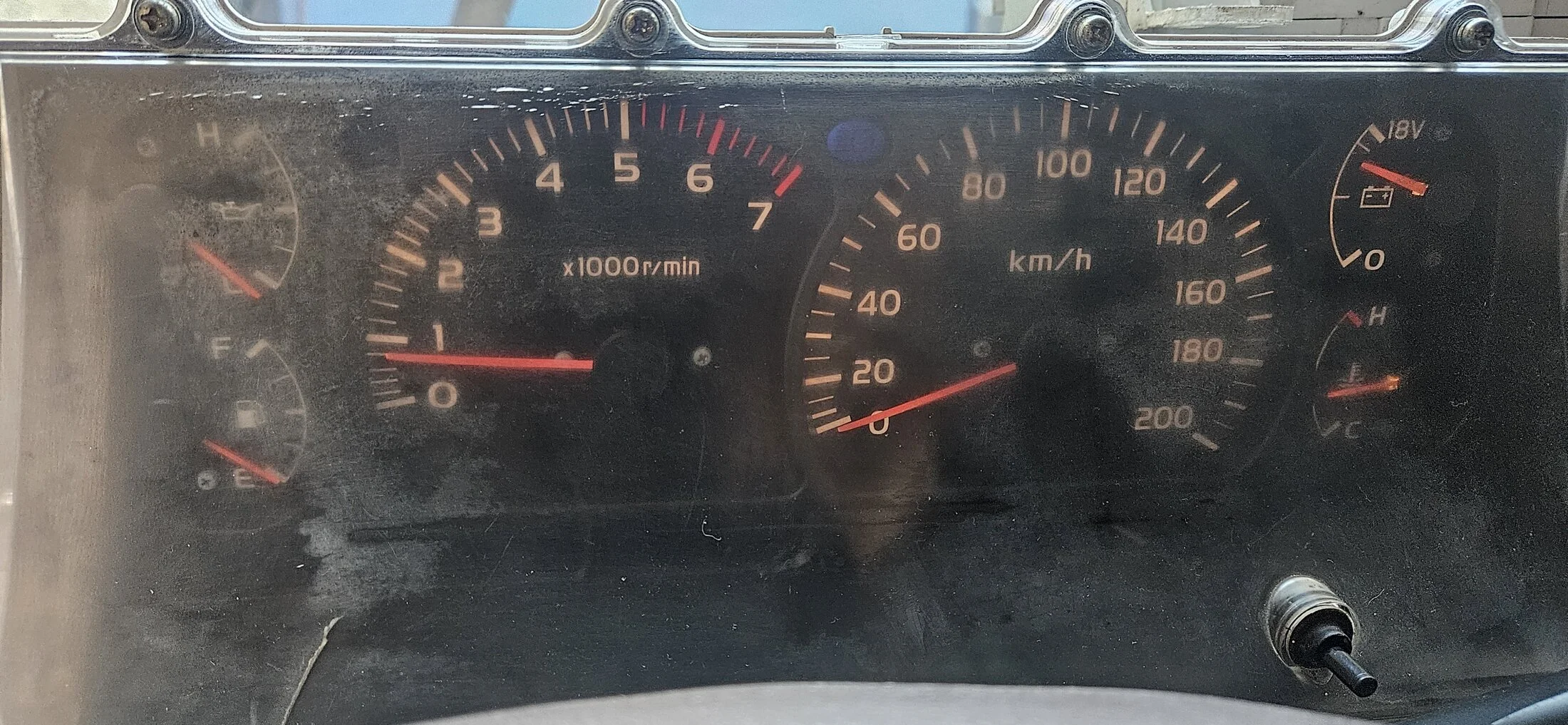

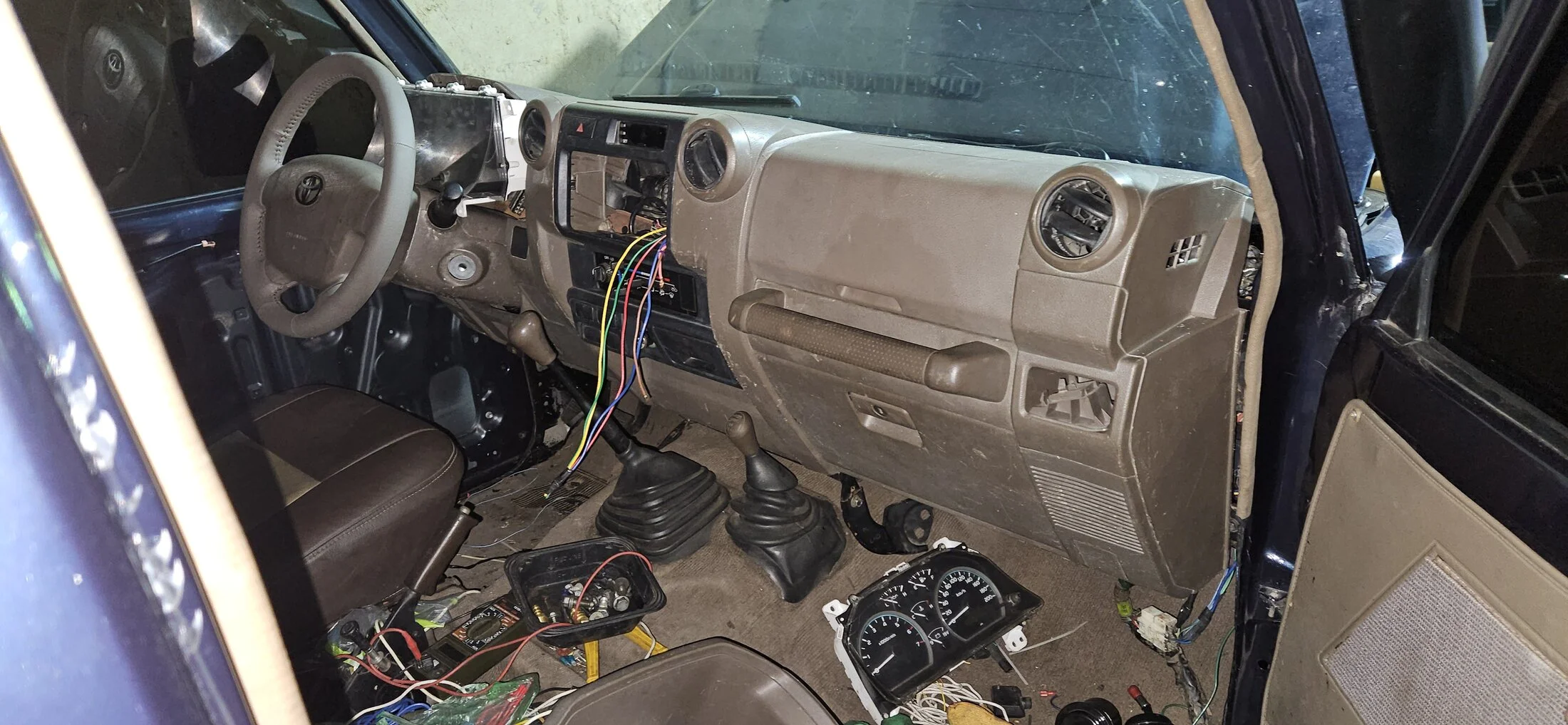

I'm running a 1fz-fe on a fzj body and upgraded dashboard to grj one. It all comes to wiring the new combination meter in. The old one works just fine. But won't fit the dashboard
