Hey Mud, looking for some help today. I'm attempting to replace a broken driver side mirror. Some kind person decided that mine didn't need to be in one piece any longer and broke mine at the shaft.

I found a replacement but the wiring appears to be different on this mirror than on my 2007. The donor is from a 2004 vehicle. The 2004 has a single wiring connection, while the 2007 has two connections, and the main connector is a different shape. Checking eBay, it appears that most of the replacement mirrors have the earlier style connection. Does anyone know why this was changed, what the second connection does, and if they can be swapped (depin and swap connectiors)?

I didn't find anything in search, if this has been covered.

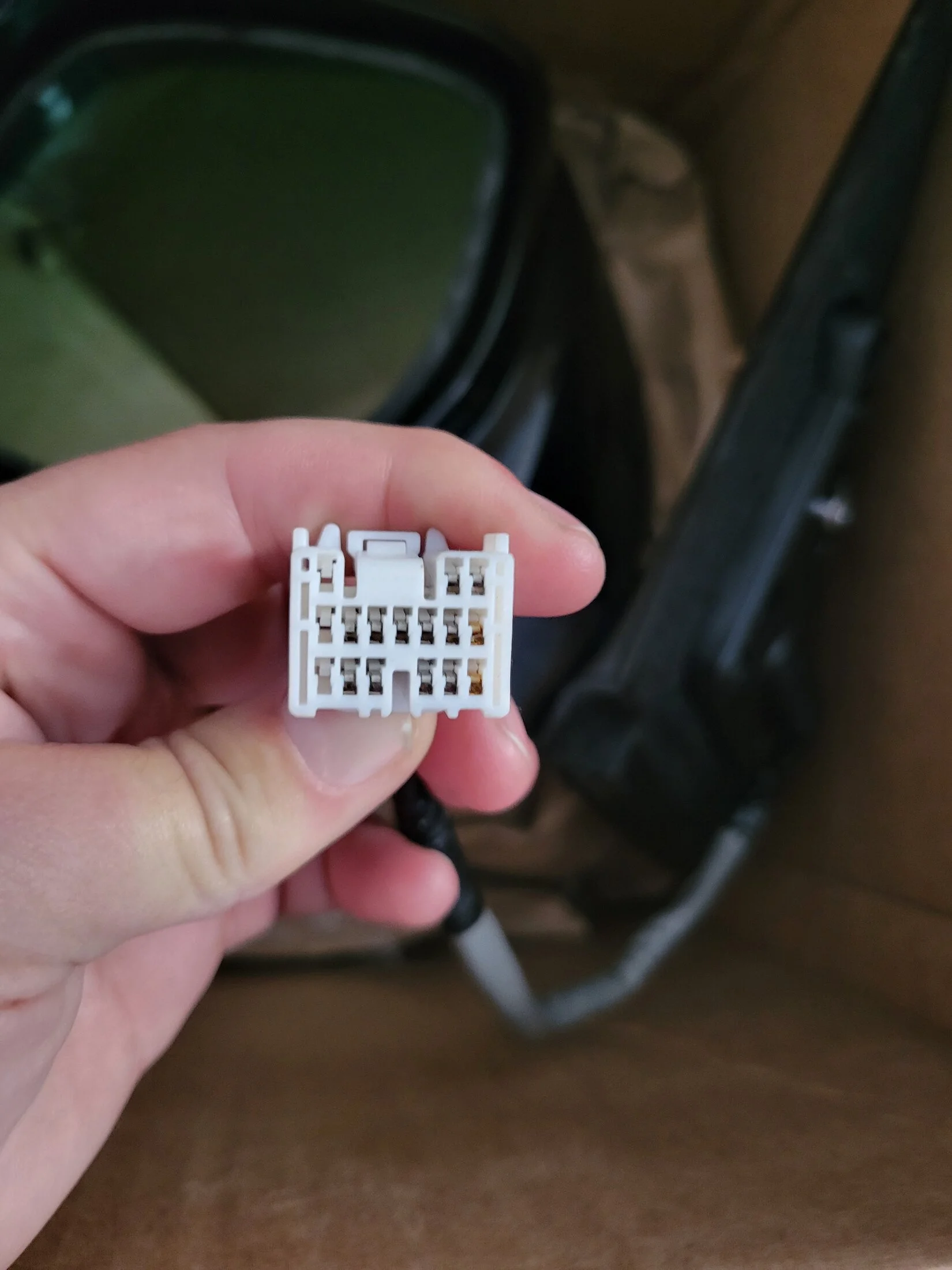

2004 LX Mirror

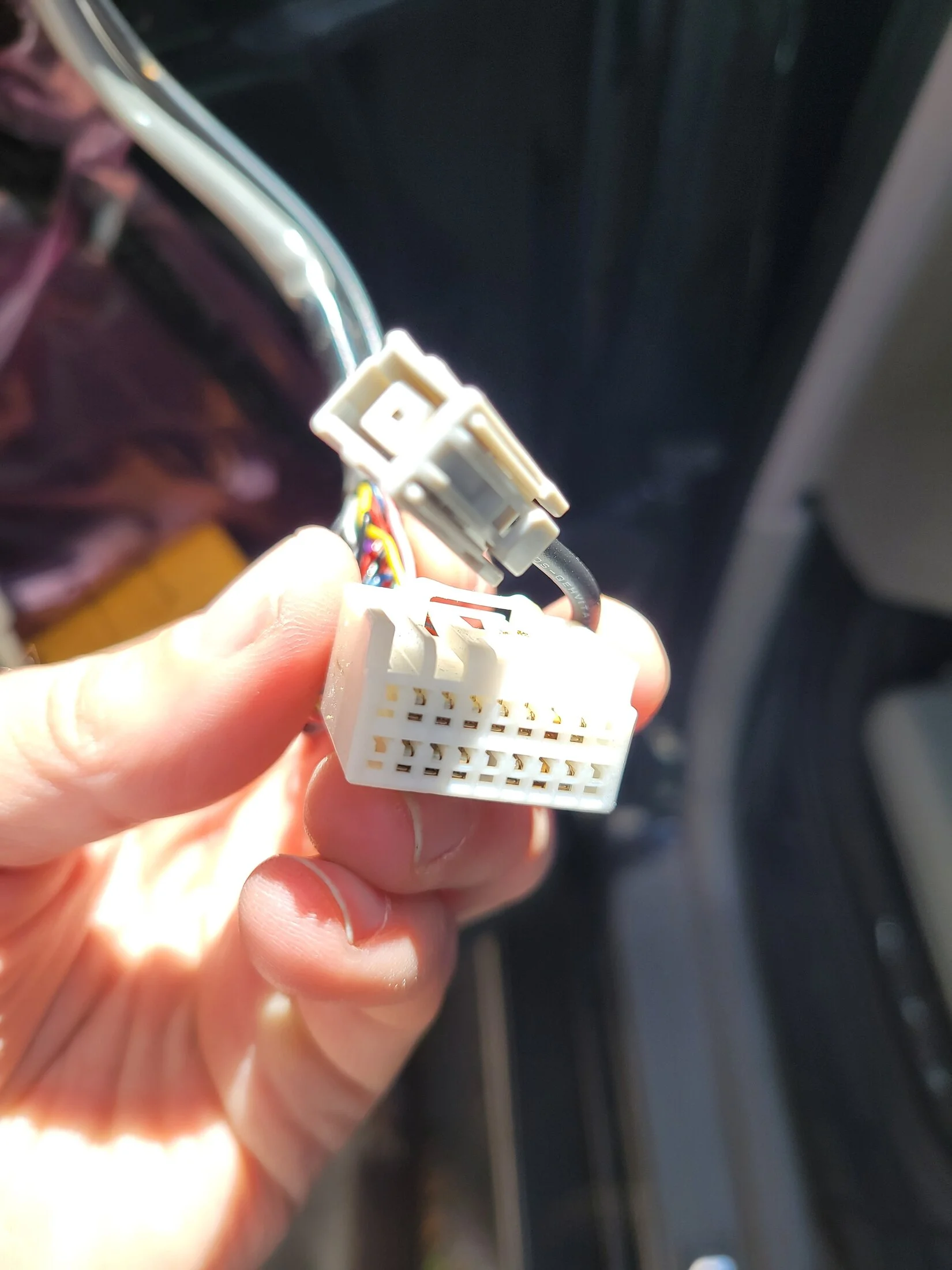

2007 LX Mirror
