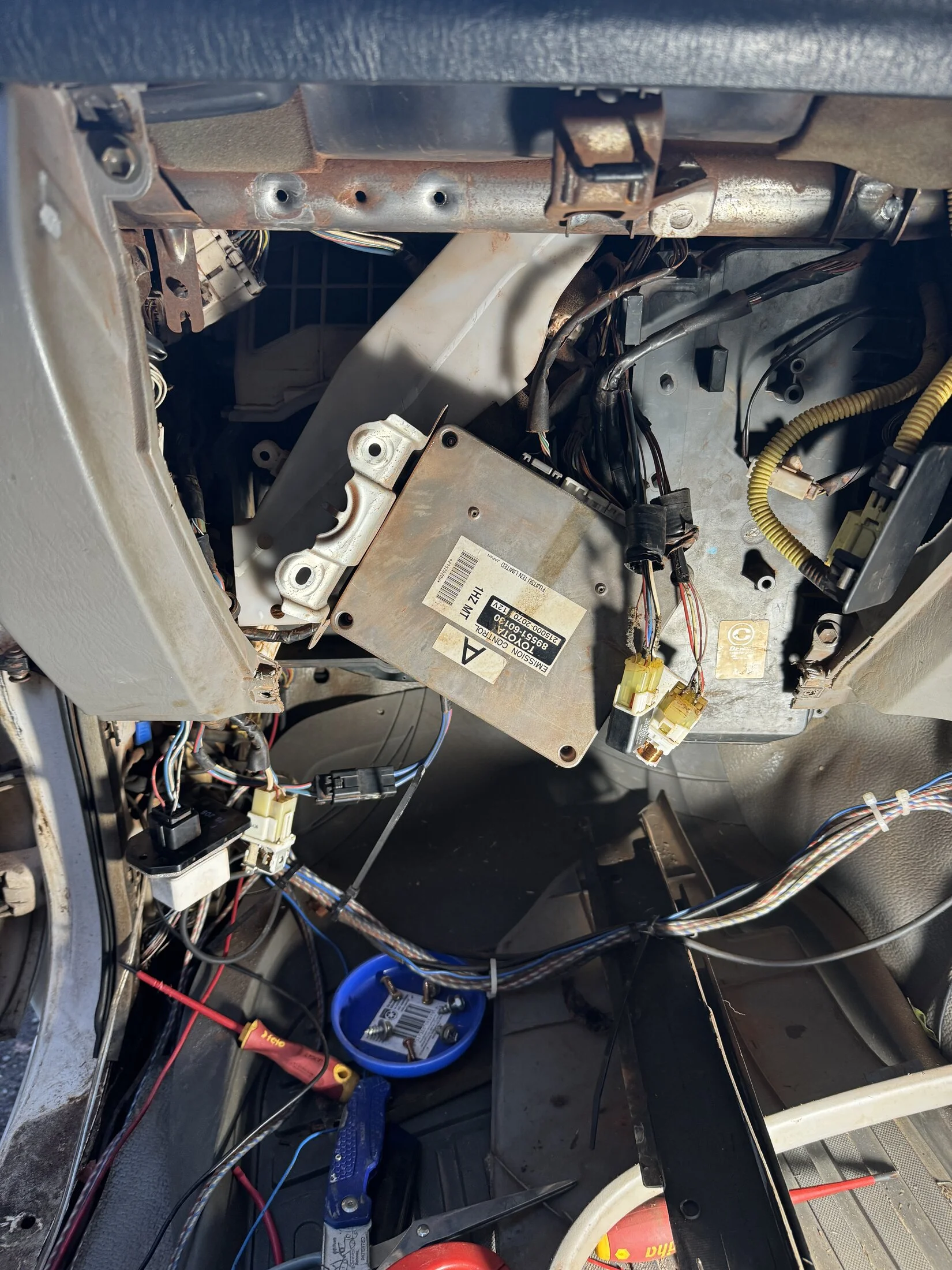

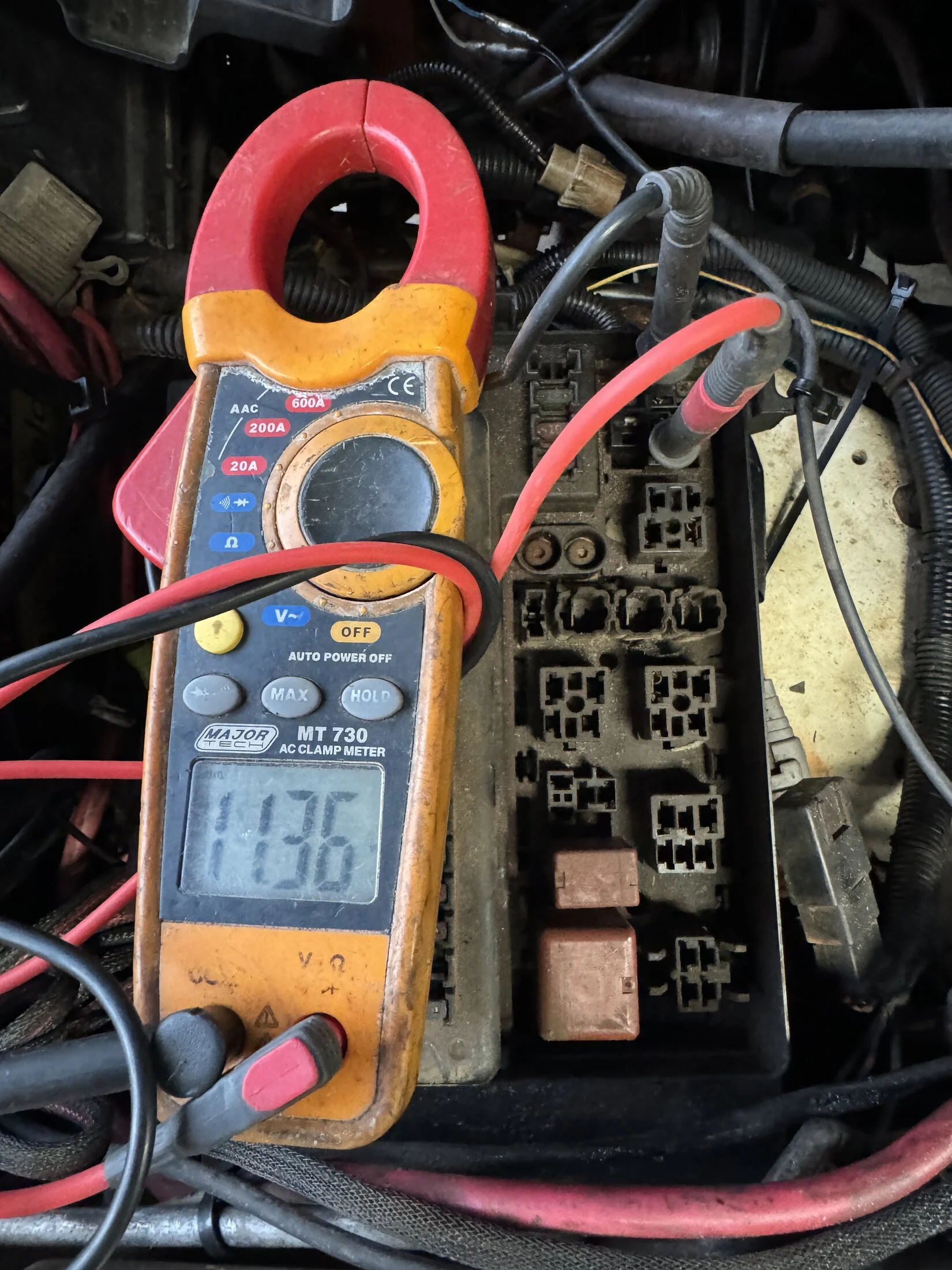

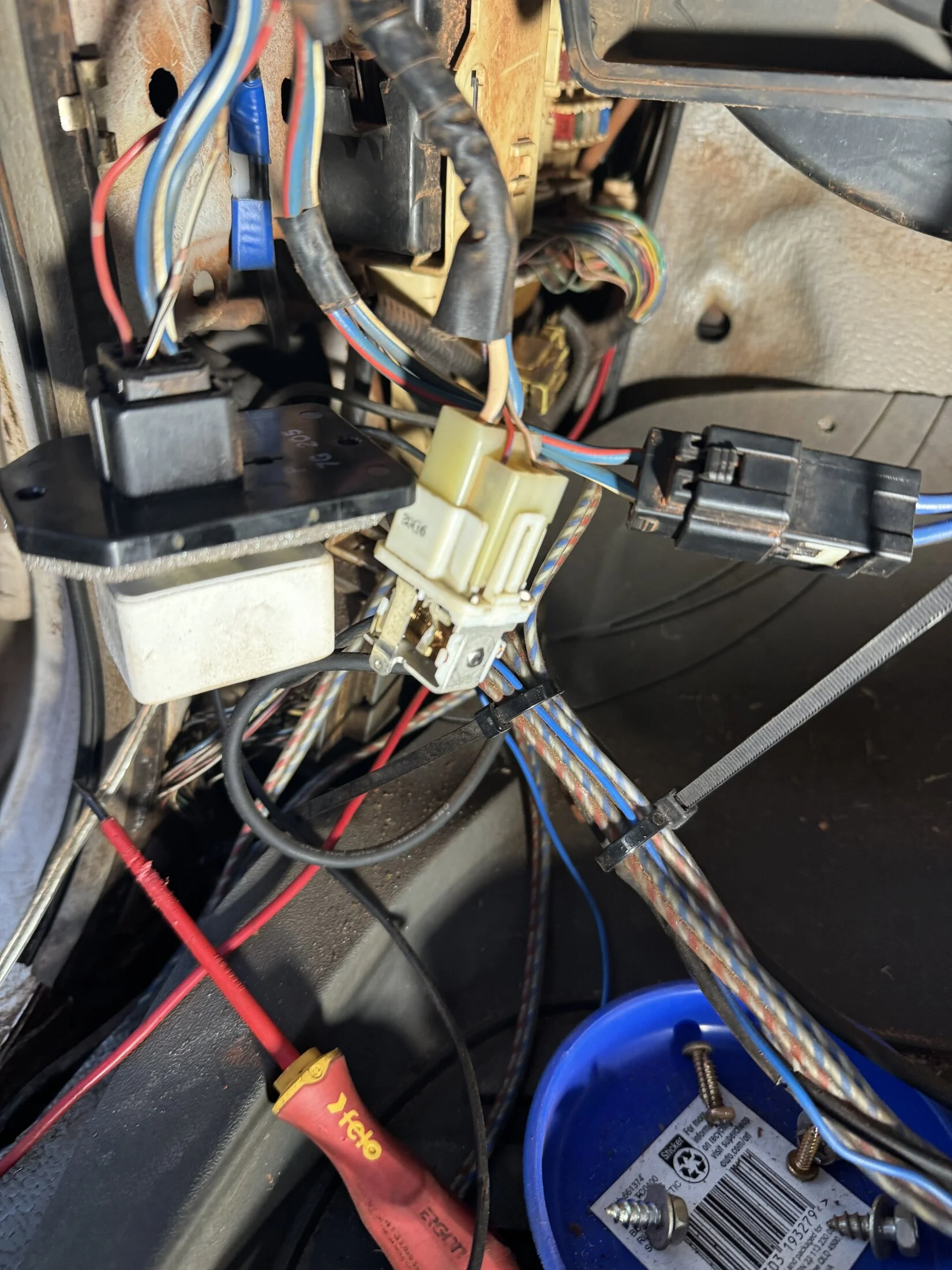

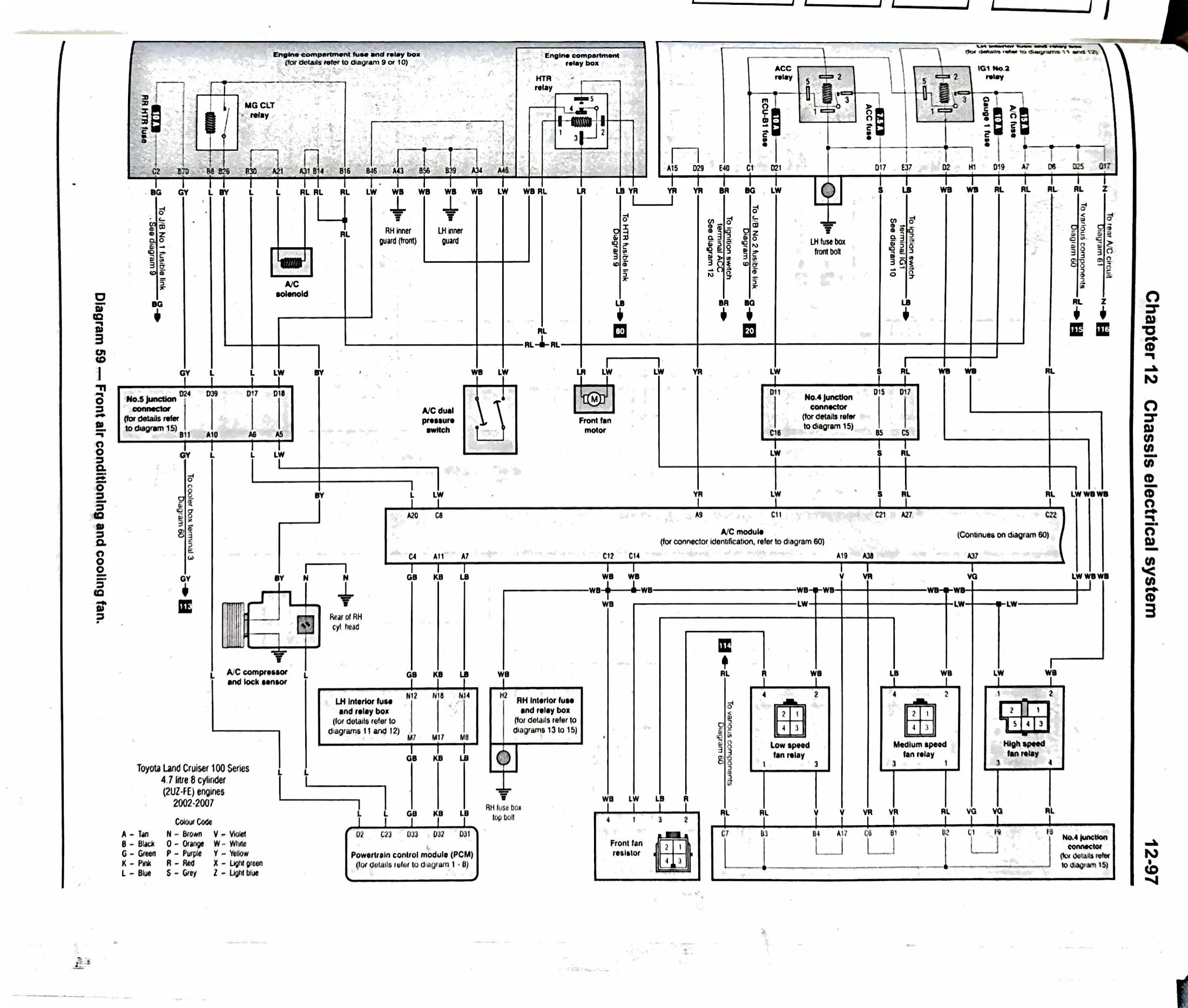

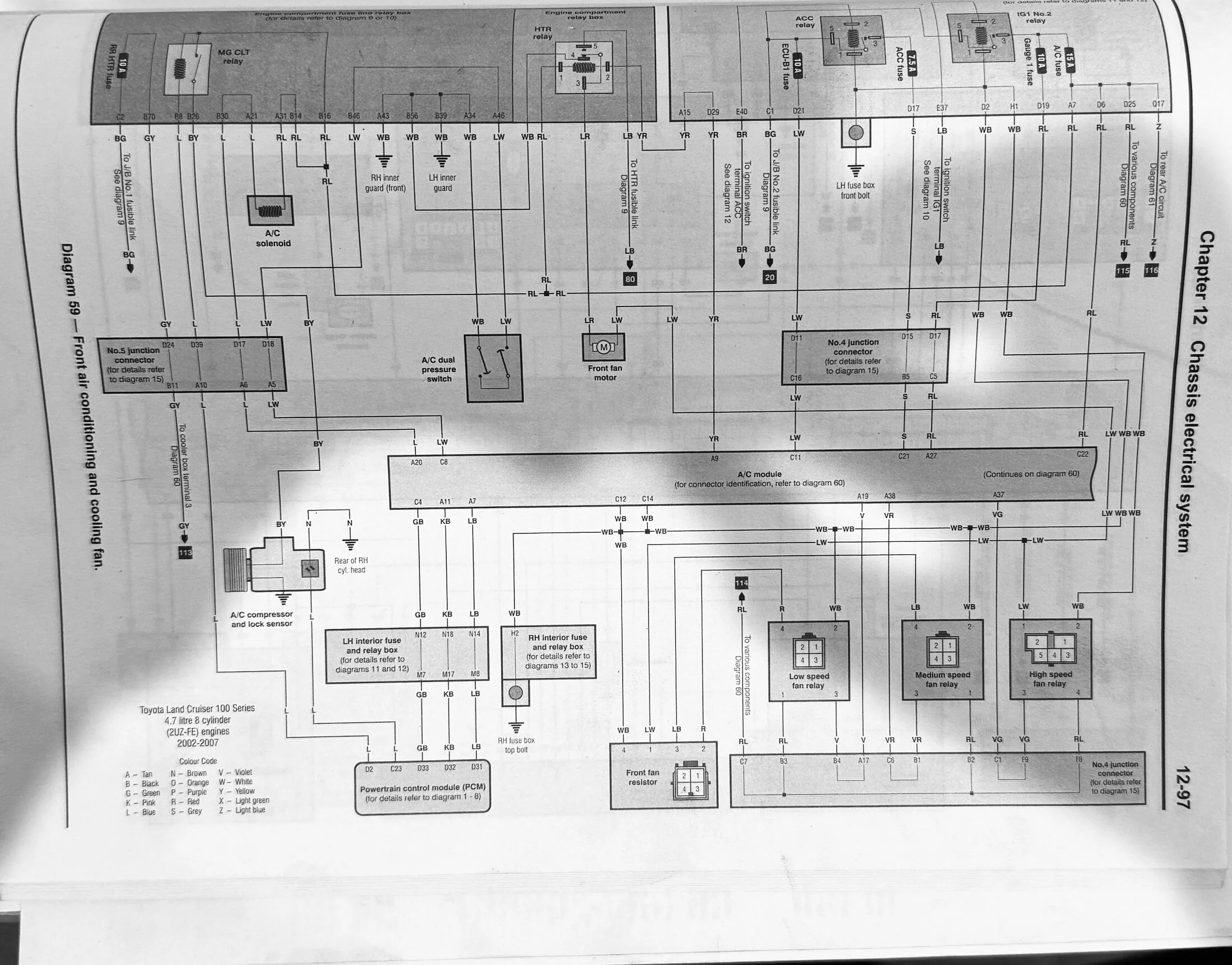

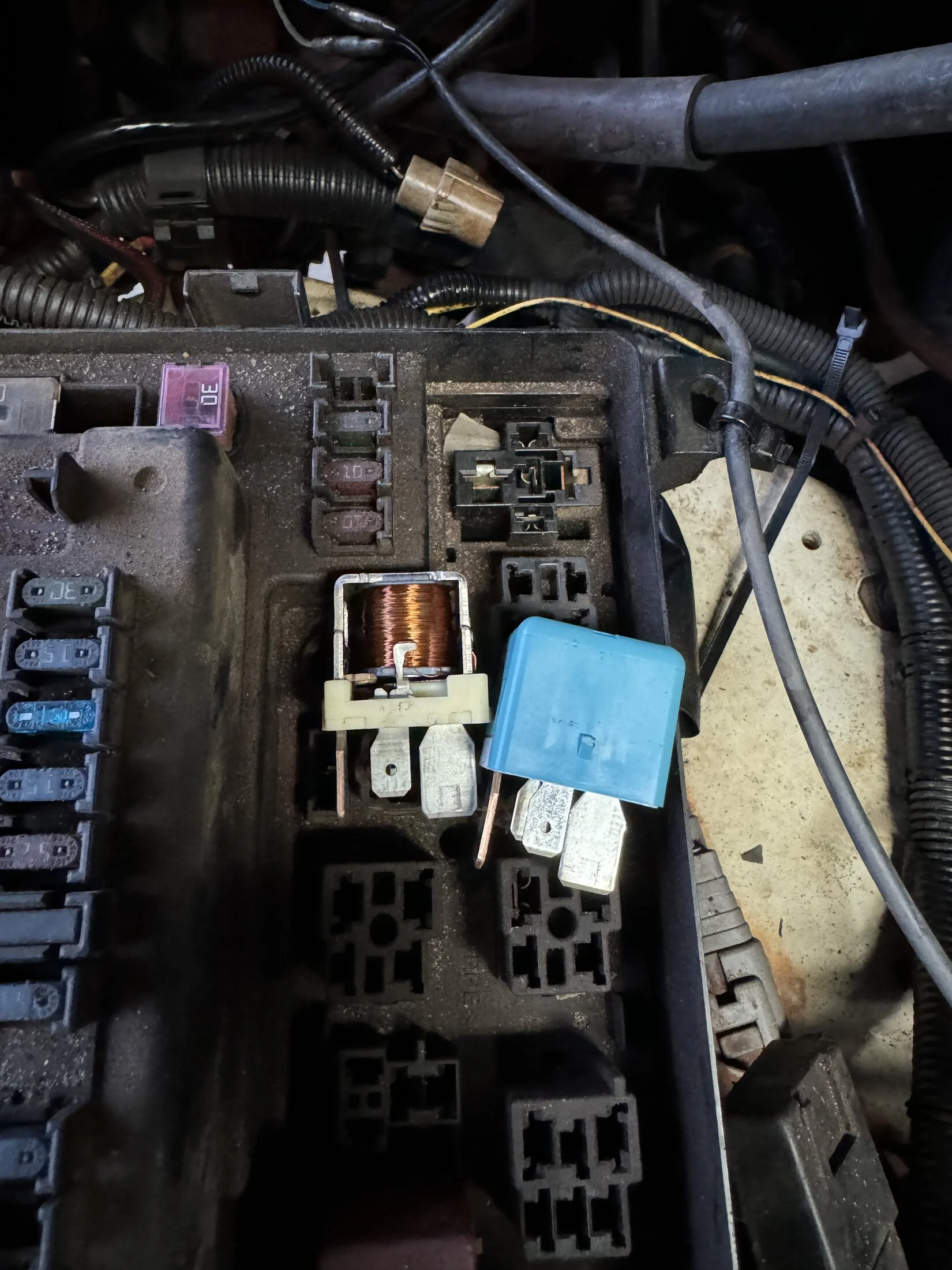

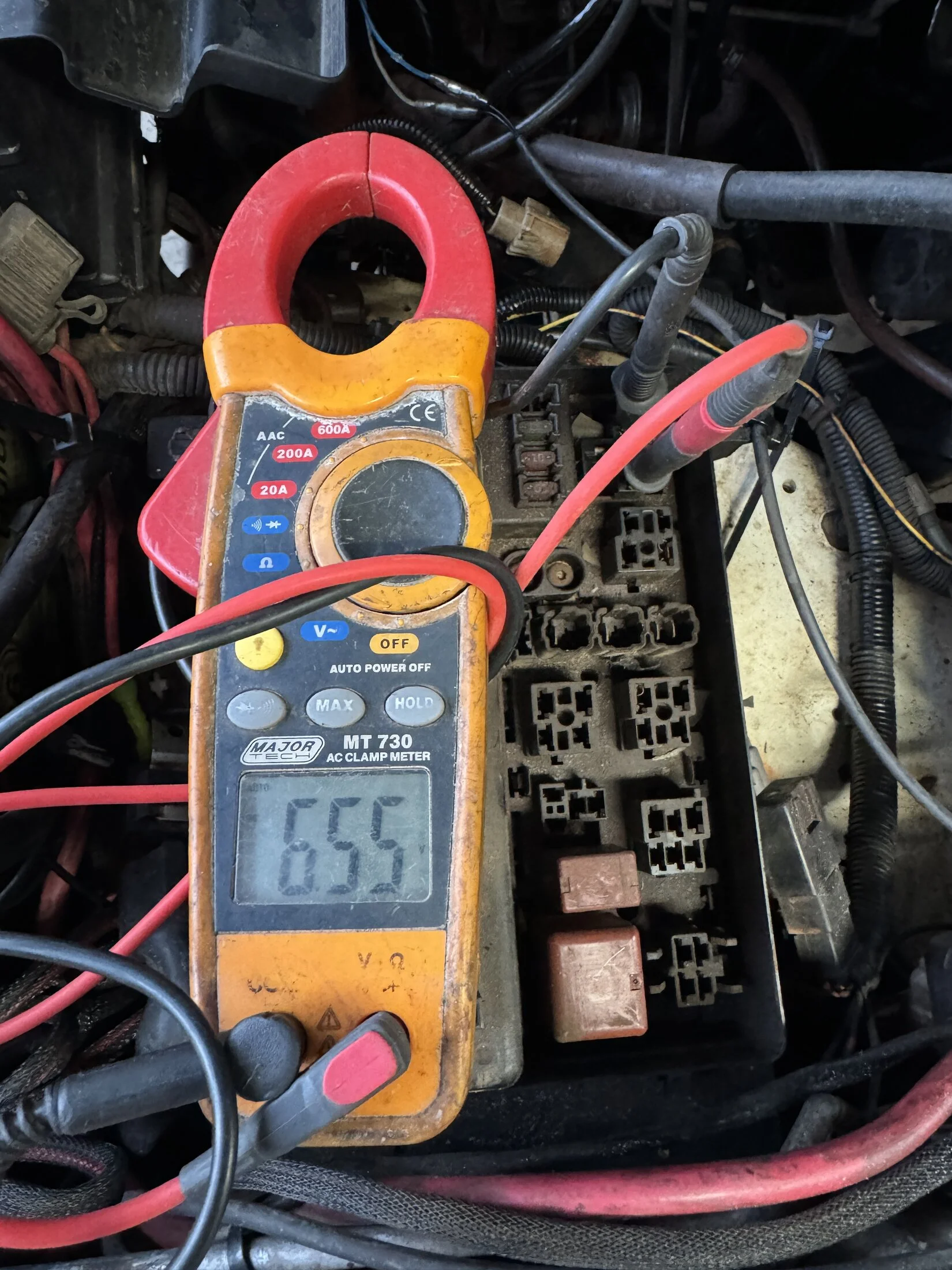

Hi, I owned a 2004 HZJ105R Series Landcruiser for several years. (RHD upside down Australian Version) I sold it to a mate and he owned it for 3 years. I have recently purchased it back. He told me that the blower motor fan isn’t working. I said “It will be ok, it will just be a fuse” Anyhow to cut a long story short, I have checked all of the fuses. I have tested the relays. I have a donor 105 so I have tried relays out of it. I have removed some of the relays covers just to be certain that they make contact. And I have replaced the resistor with a new resistor. It is the manual air conditioner, no fancy luxury stuff on the car. If I hot-wire the fan blower motor it runs. The relays all click and switch as the fan speed Dial is turned. I am not getting any power at the resistor that is located next to the fan blower motor. I don’t know what to try next. Is there a break in a wire somewhere in that wiring loom between the relays and the resistor? I don’t know. Do I run a new wire? 12 volt wiring is not my thing but I am giving it a good go to try and fix it. Please see the attached photos. Any help you can give me please would be greatly appreciated.
