Wiring External Lights to Fog and HighBeams (1 Viewer)

[vanosmaster]

Hi all,
I recently got these HELLA black magic lights for my favorite four letter word (free) and am struggling with wiring it on my 2000 Lexus LX470. I noticed that the bulb has two filaments and I was planning to wire the low beam to the fog lights and the high beam to the cars high beam. I was thinking that I could extend the harness for the fog and high beam lights and add this new light into the circuit but am unsure if this will work.
Has anyone wired similar lights into their rig? If so how did you go about wiring this?
I'll admit that i am a complete novice when it comes to wiring and would prefer to not start a fire
Below are some pictures of the lights and the miscellaneous wiring and hardware that came with.
Thanks.

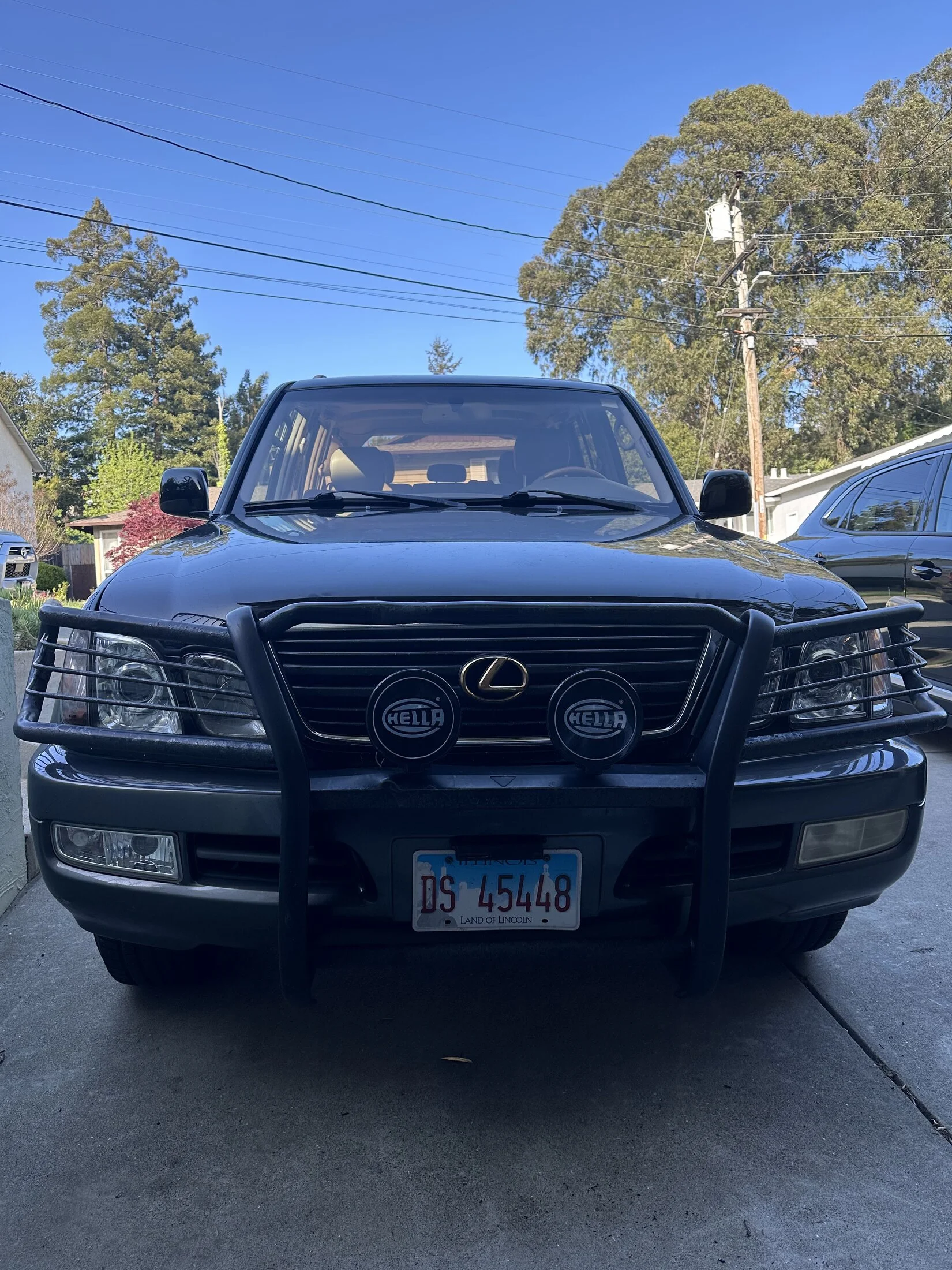

The lights on my rig.

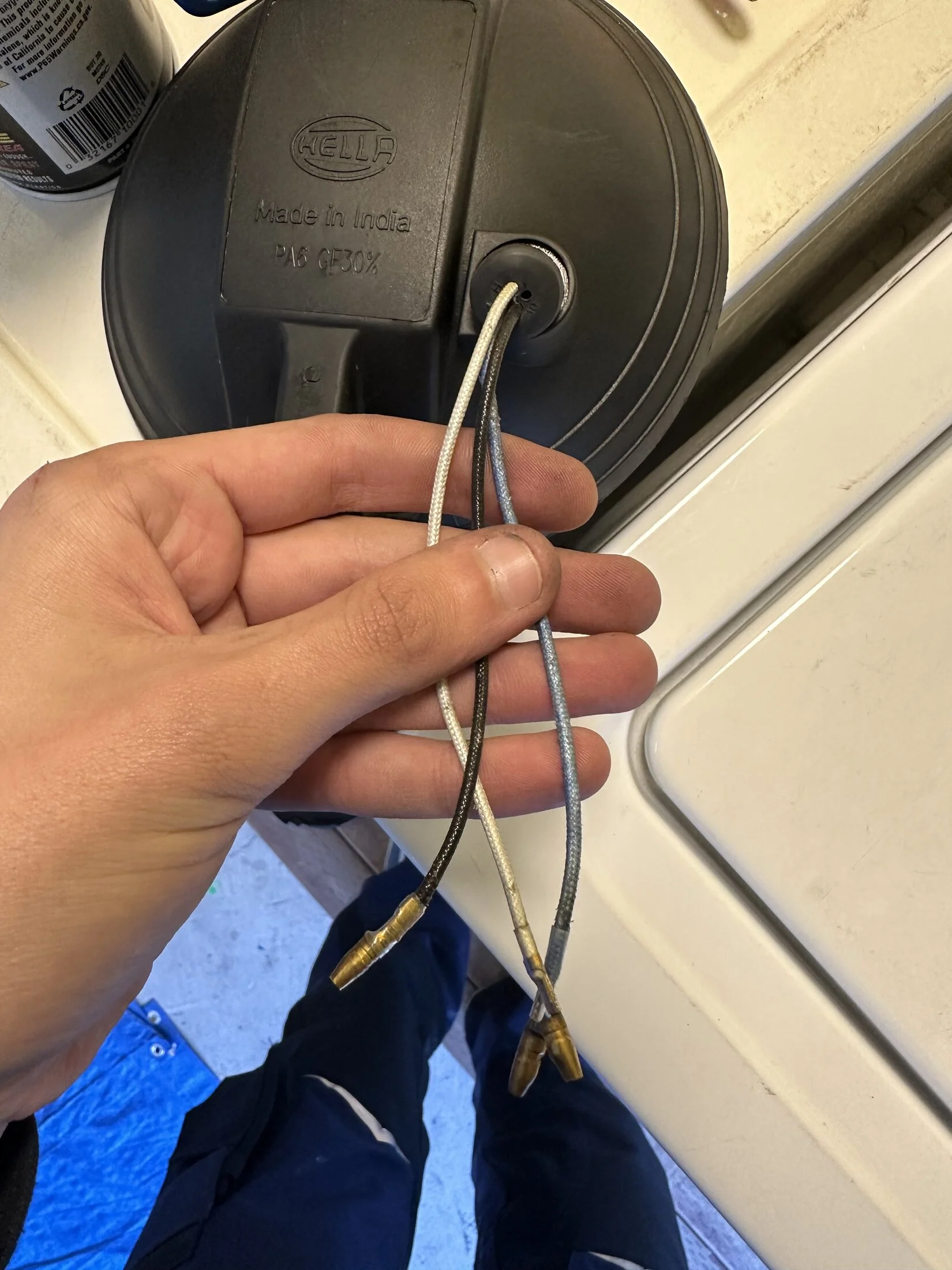

the back side of the light

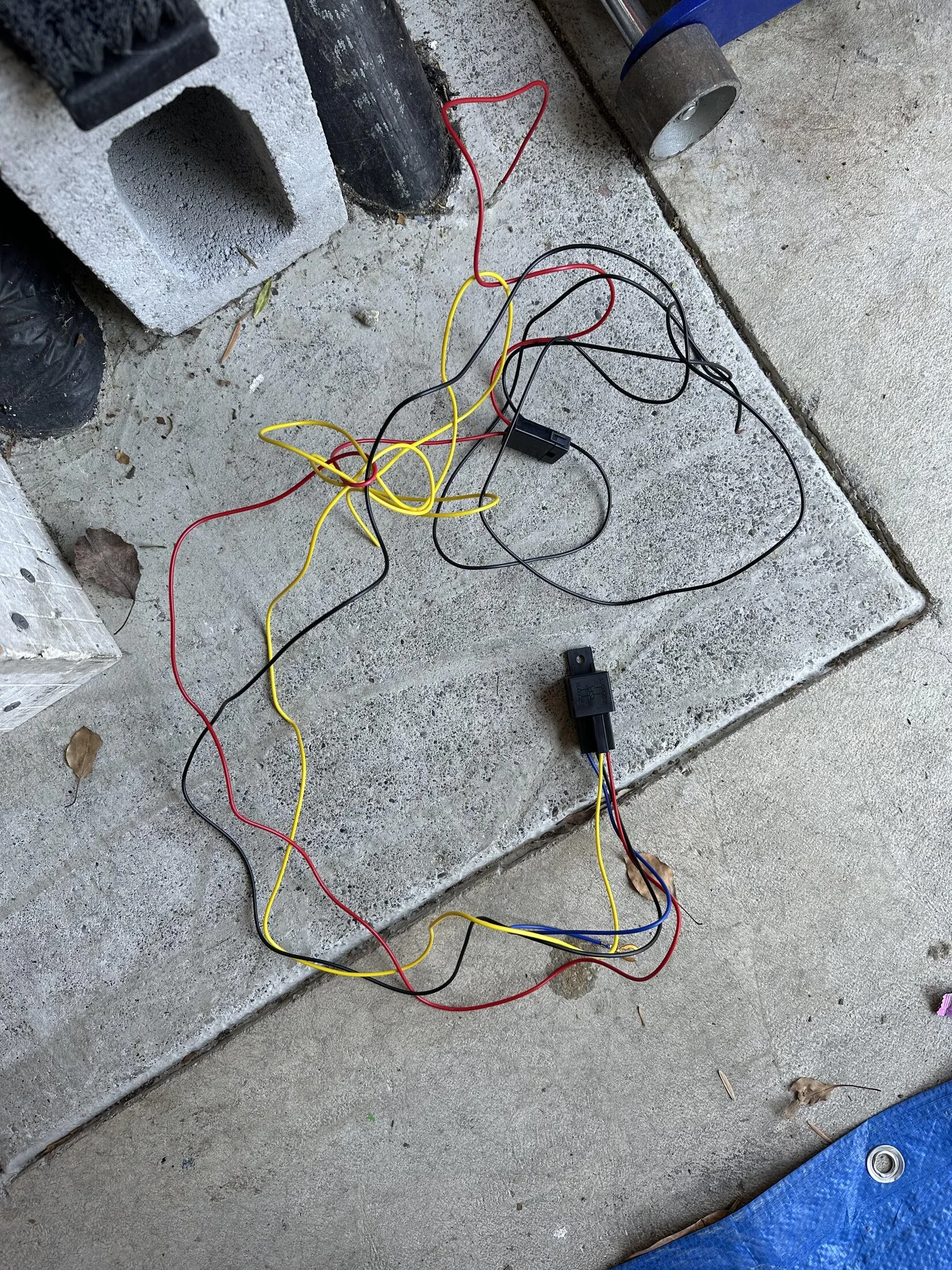

Included wiring harness.

Included relay

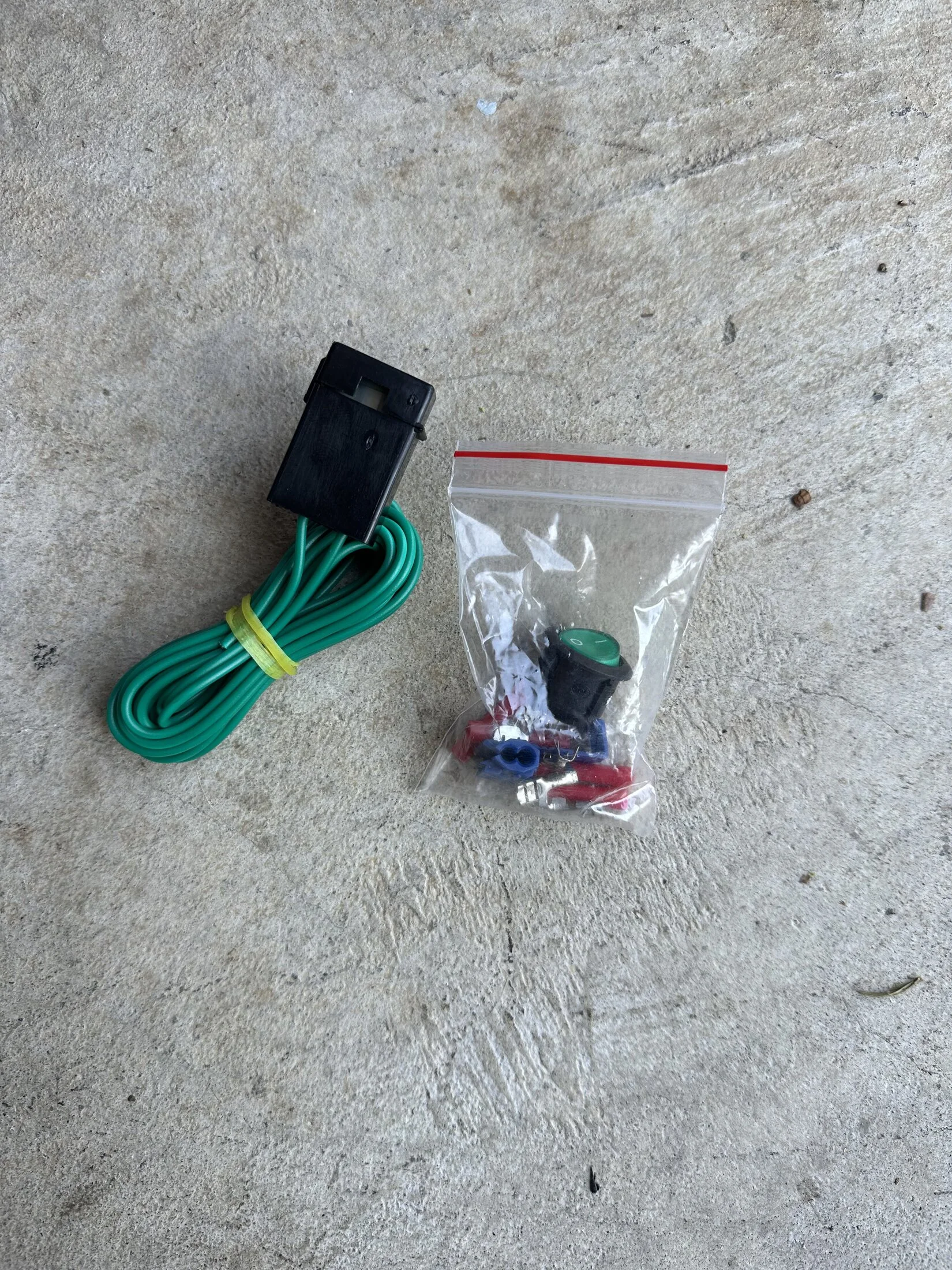

miscellaneous hardware and wiring that came with the lights.



[Scotty UZJ100]

In my head you would need 2 relays. 1 for the hi beam and 1 for the FOG



[Bisho]

If you want to use the trucks existing switches as you say, I think you can simply find the power wire and ground from one of the high beams and fogs and splice these wires in, not using the relay and switch. I have a similar setup, although my lights are LED, so not sure how much current yours will draw.
