Hey guys,
I’ve done some research and I can’t seem to find the wiring diagram for specific harnesses I am looking at. My ‘92 Land Cruiser shop manual doesn’t seem to show the color scheme for the wire looks either. I am trying to figure out which wires are the best to use for both a backup camera and a usb charger.

First: the backup camera wire is being run from the radio in front dash to the passenger side taillight as there is better accessibility for splicing a new circuit to the existing wire harness. I don’t know the original color scheme for fj80’s for this particular wire harness? I’ve listed a picture below. The wire harness was originally going to a speaker in the rear quarter passenger side.

Second:
Wiring up a usb where the cigarette lighter was. Just need to know which wire is hot and which is ground. I’m confused because there were a total of four wires going to it and I could not figure out why. I think based on the wiring scheme from my shop manual it was daisy chained to the clock? Not sure.

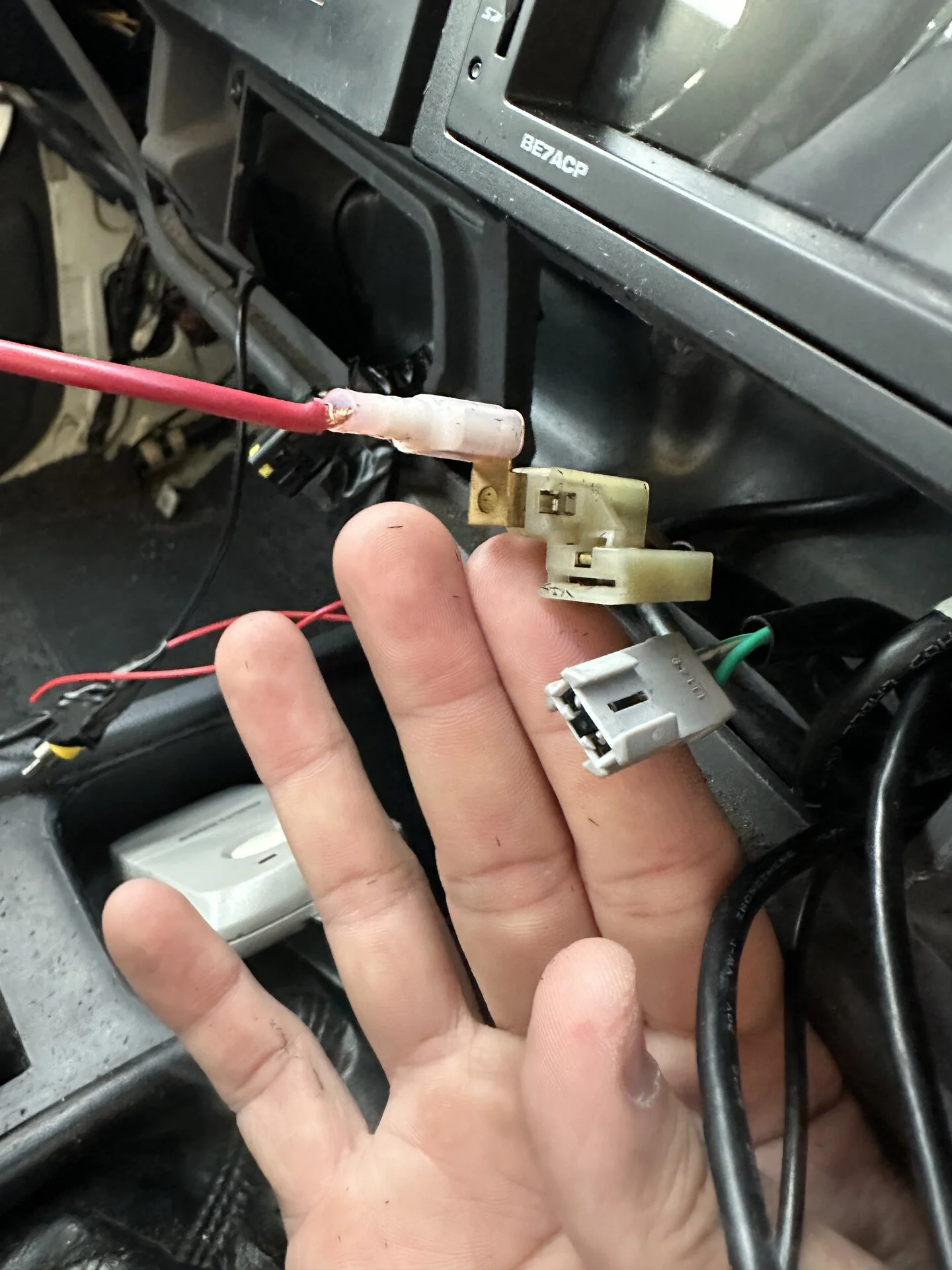

I attached pictures below of both wire harnesses which will hopefully better display what I am dealing with. I am merely looking for suggestions of which circuits to tap into and use?

Thanks in advance!



[kangjinsoo]

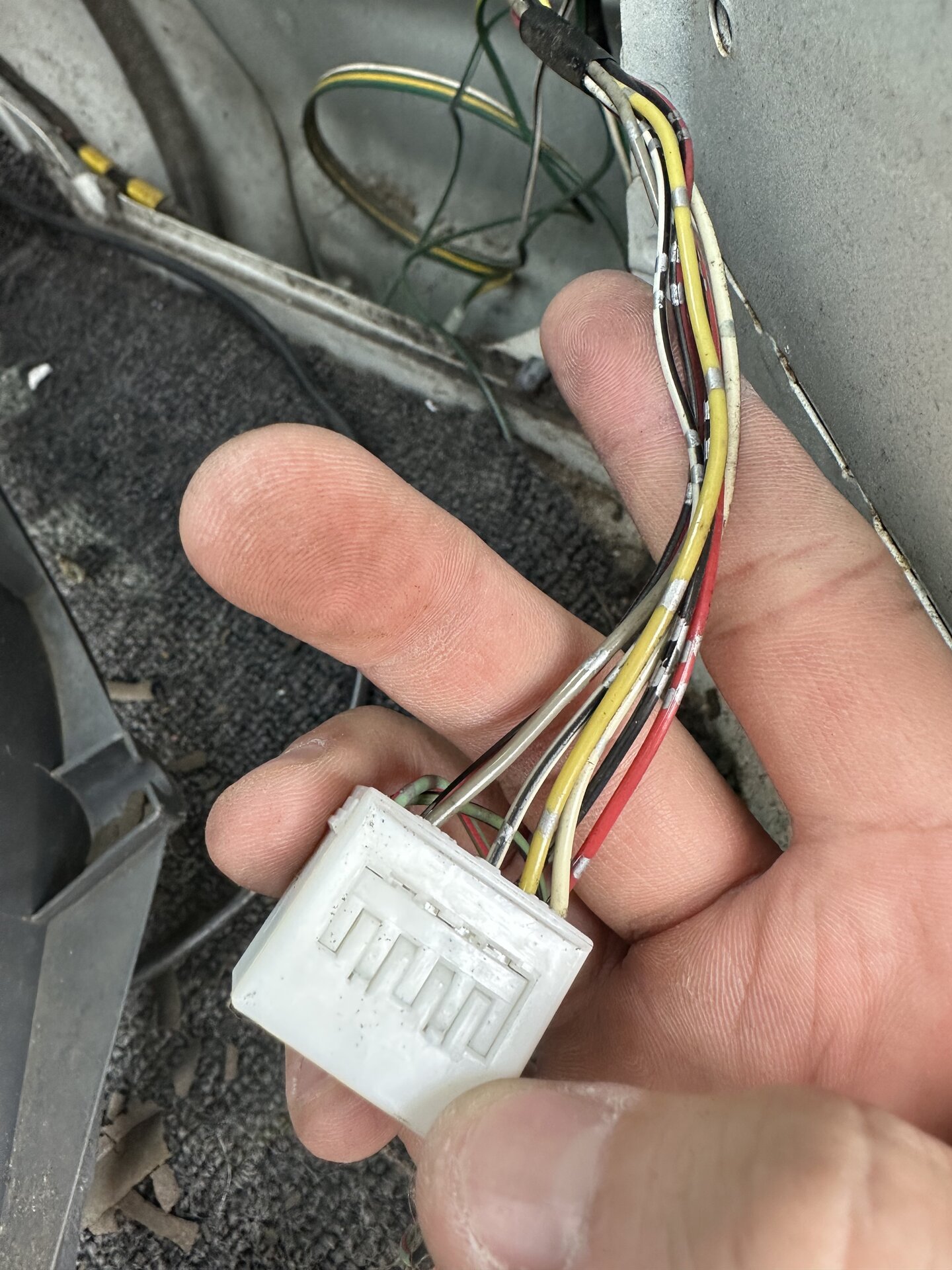

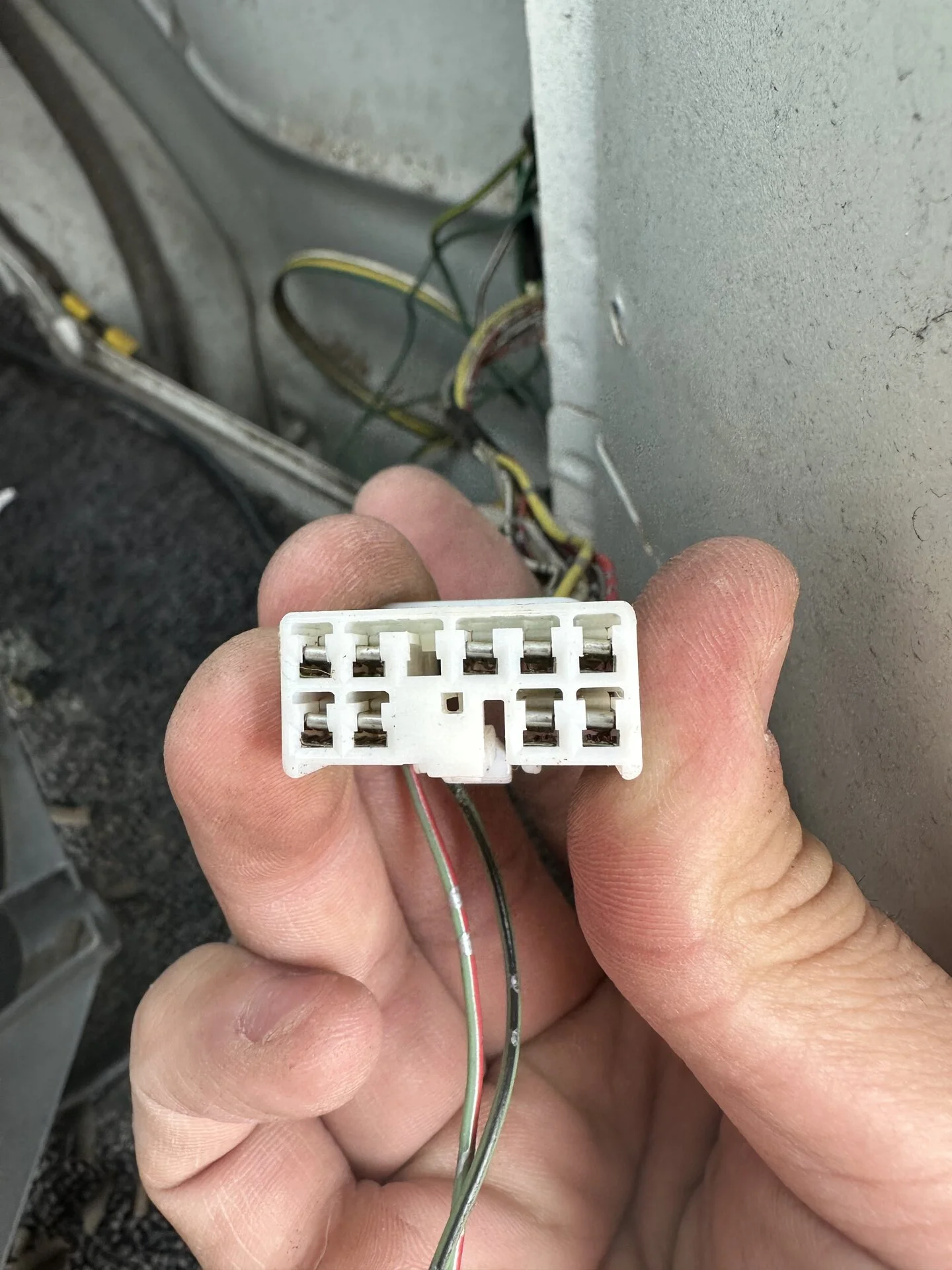

Picture of passenger rear quarter panel wire harness:



[kangjinsoo]

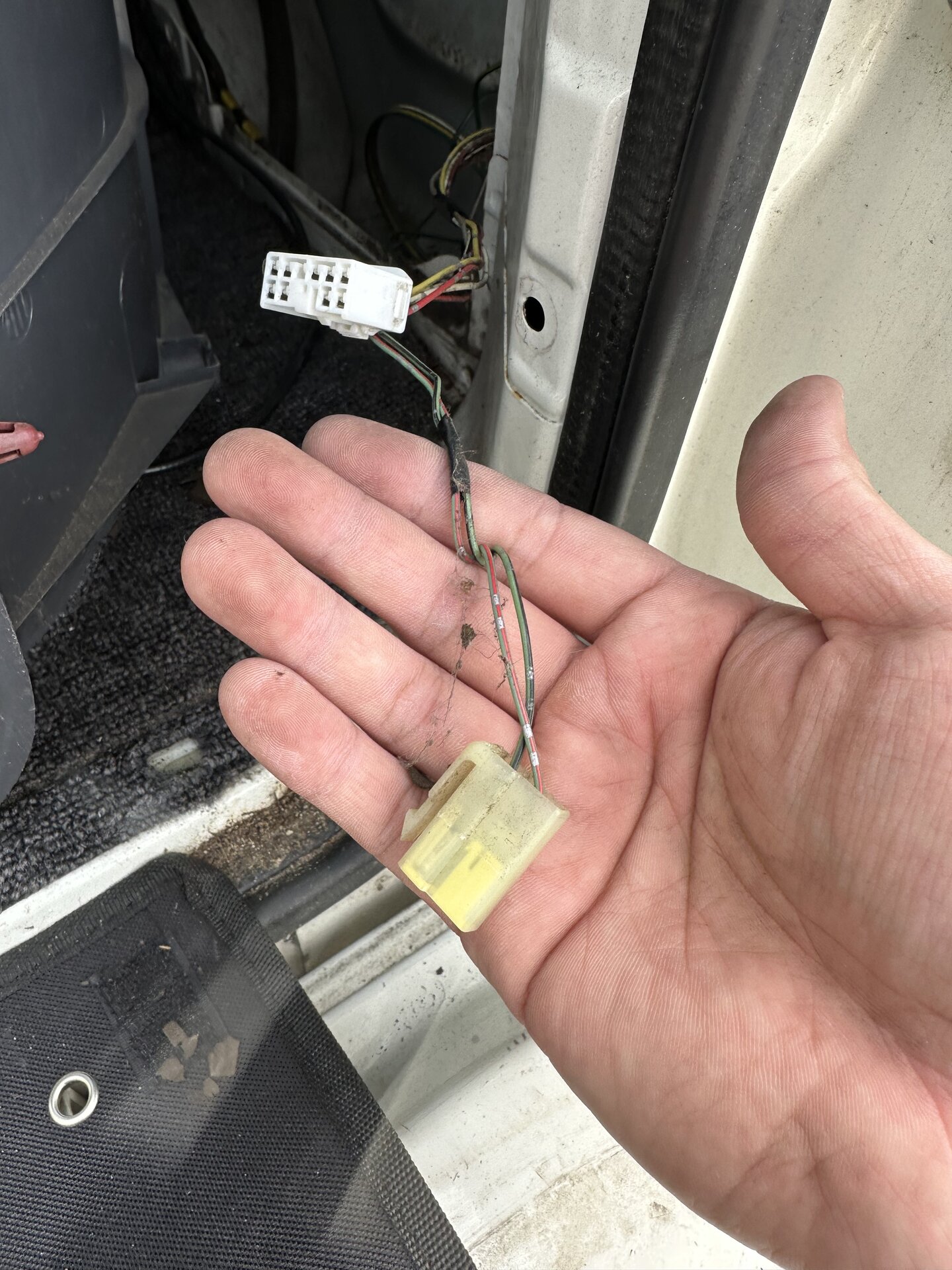

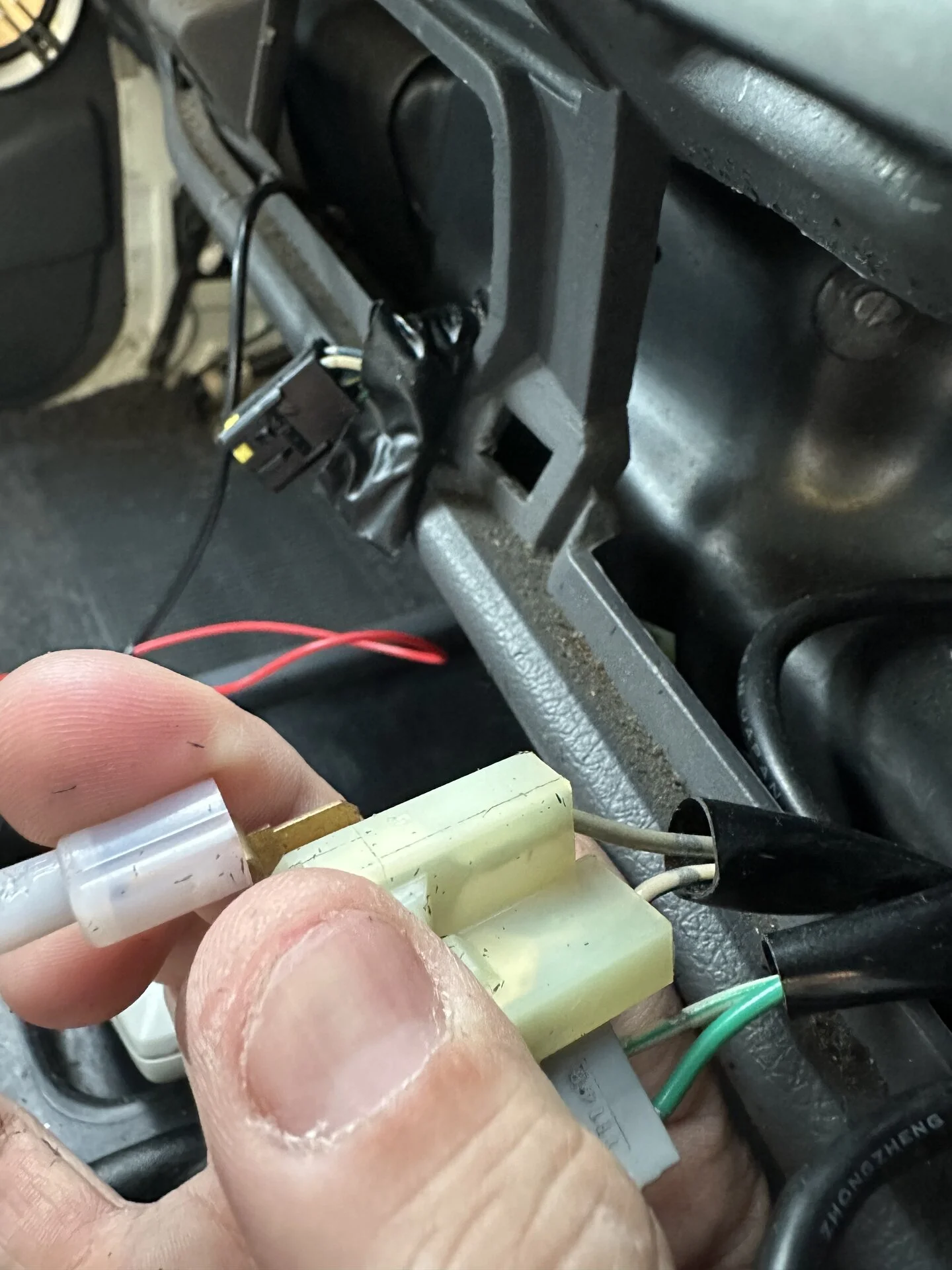

Picture of cigarette light wiring harness:



[Malleus]

I've just added the 1992 EWD (from the Chasiss Repair FSM) to the Resources section. Download a copy for yourself. All the connectors and wire colors are listed in that EWD.

I'm not an expert on the 1992 80 series electrical system; maybe @jonheld could chime in with a suggestion or two on which circuit is best to use for your addons.



[kangjinsoo]

I've just added the 1992 EWD (from the Chasiss Repair FSM) to the Resources section. Download a copy for yourself. All the connectors and wire colors are listed in that EWD.

I'm not an expert on the 1992 80 series electrical system; maybe @jonheld could chime in with a suggestion or two on which circuit is best to use for your addons.

Thank you!



[kangjinsoo]

Sorry! I forgot to mention that for the backup camera I am trying to splice into an “always on” circuitry to be able to switch to backup camera while driving as well as backing.



[Lams]

Does anyone know where the backup light wire at the rear of the 80? It'd be a great spot to tap into the wire to engage the backup camera.



[robnicko]

Does anyone know where the backup light wire at the rear of the 80? It'd be a great spot to tap into the wire to engage the backup camera.

i just tapped into the reverse light globe +ve wire when I installed my reverse camera



[Lams]

i just tapped into the reverse light globe +ve wire when I installed my reverse camera

Thank you very much! I'll get a splitter and tap into that
