I'm about to replace my valve cover gasket and I like to replace any rubber I touch. The image below is the throttle body with the valve cover to the left.

For the vent hoses I've got 12261-66021 and 12261-66022, plus 12204-35040 and 90480-18001 for the PCV valve and grommet.
Three vacuum lines are marked with #0 or #* , which I'd think indicates size, but I can't find any references to specs or part numbers. I think one of them may be 90999-92002 but I don't know which one.

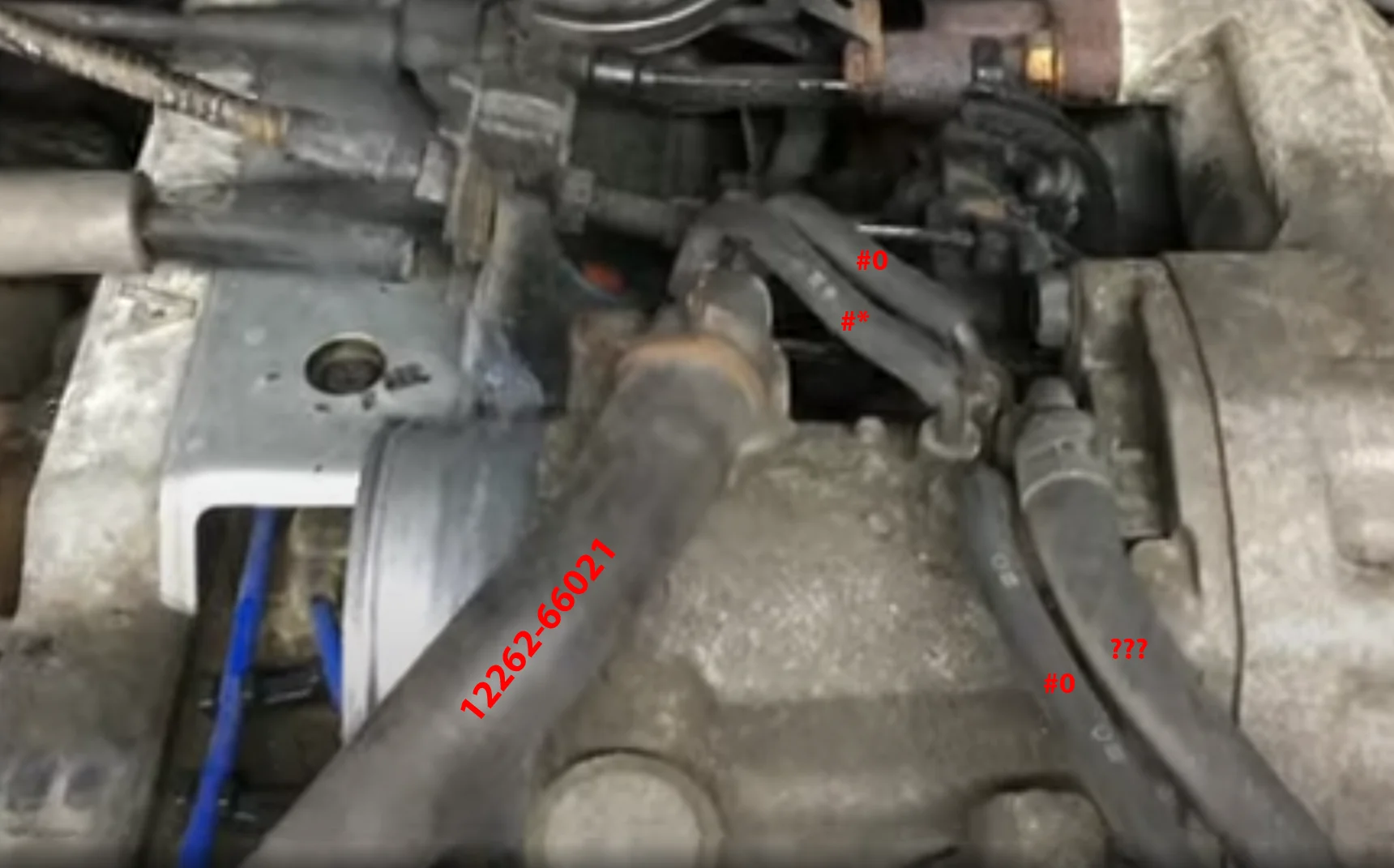

The hose marked ??? below is slightly bigger than the others, has no markings, and I can't find it on any parts diagrams.

Can anyone help me find part numbers for the #0, #* or ??? shown below?

Thanks,

T.



[cahill]

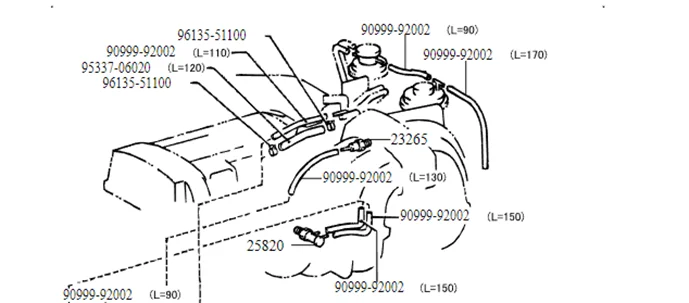

From a quick search on Partsouq, it looks like the one marked ??? looks like a fuel evap line part number 95337-06020. The lines marked #0 and #* are the same size diameter and are bought in single lengths that you cut to size: part # 90999-92002.

Here is a link to the page for vacuum piping: https://partsouq.com/en/catalog/gen...DKjZaPiQAAAAA1St0u$&vid=0&cid=1&uid=412474&q=

Hope that helps.



[cahill]

Here is a link to their website info on cut to length tubing: https://partsouq.com/en/catalog/genuine/unit?c=TOYOTA00&ssd=$*KwGxhZTl3Lrs49Xm4uW0hen93drEtbq3tqSLuPD2xdHNycvIjZq23PL28sPVzN2bhoyxuMnFzcalxIiBgdDH1_rtwv6lrvbyodinqKHhp73rqbb26-HE-KDm7r728rKup-Lq5qe9-OX_s7qnqKHr66Xg9vm0srW2sqD4-ay9rMP5p-fgoL-n-OPxsrGxtKGupaWzoOq5oqfUwtDEyvj46KHv5qa5oqfBgJ7ws9Cow83SwMyL9uSjoPPnobil6a-4pK-ip-Lq5qe9-uH4_gAAAAD_44Y6$&vid=0&cid=1&uid=412467&q=



[ZackR]

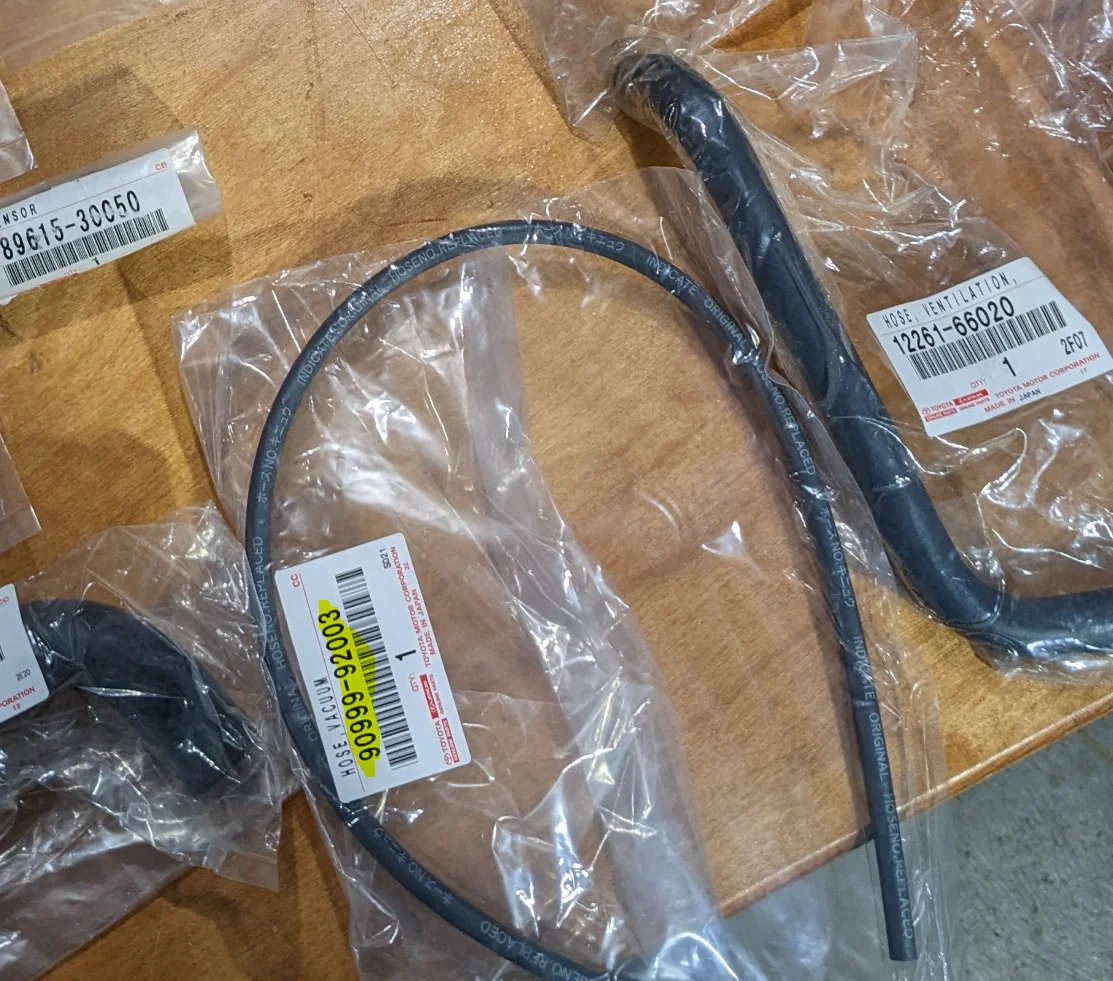

Here's the vacuum hose I ordered. The part you have shown as ??? I'm pretty sure its fuel hose.



[tech_dog]

This is such a good forum...

With the info above I finally found the right diagram. The 95337-06020 looks right for the bigger hose and all the indicated vacuum lines are 92002.

Thanks!

T.



[ppc]

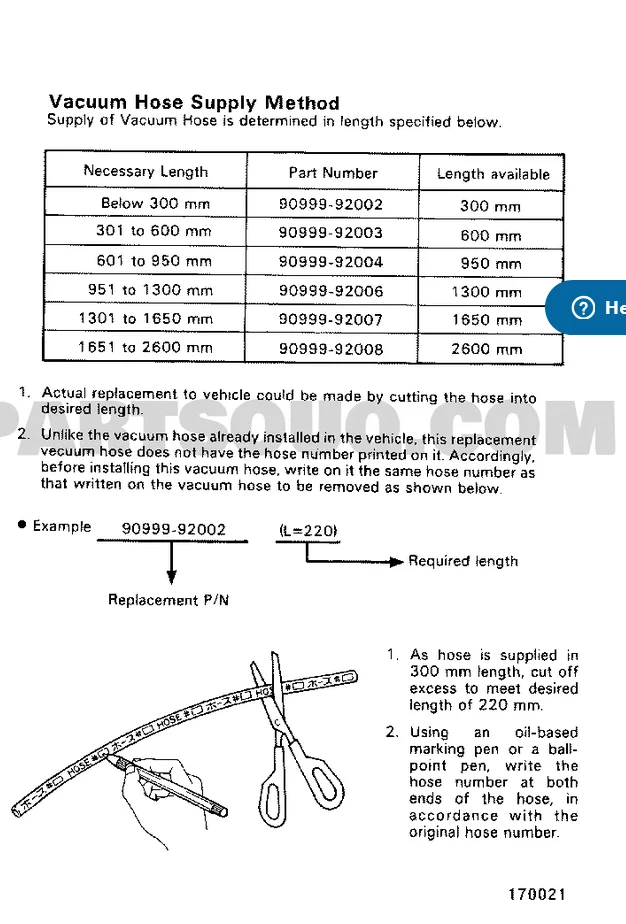

No need to buy the small lengths, get the 2600mm length (90999-92008) should cover all the hoses that size.
