SOLD Simply BLISS KOITO 24v NON USA Amber JDM Canary Yellow 6" Chrome round FOGS UNICORN parts have a new definition .......... (1 Viewer)

[ToyotaMatt]

Location

United States

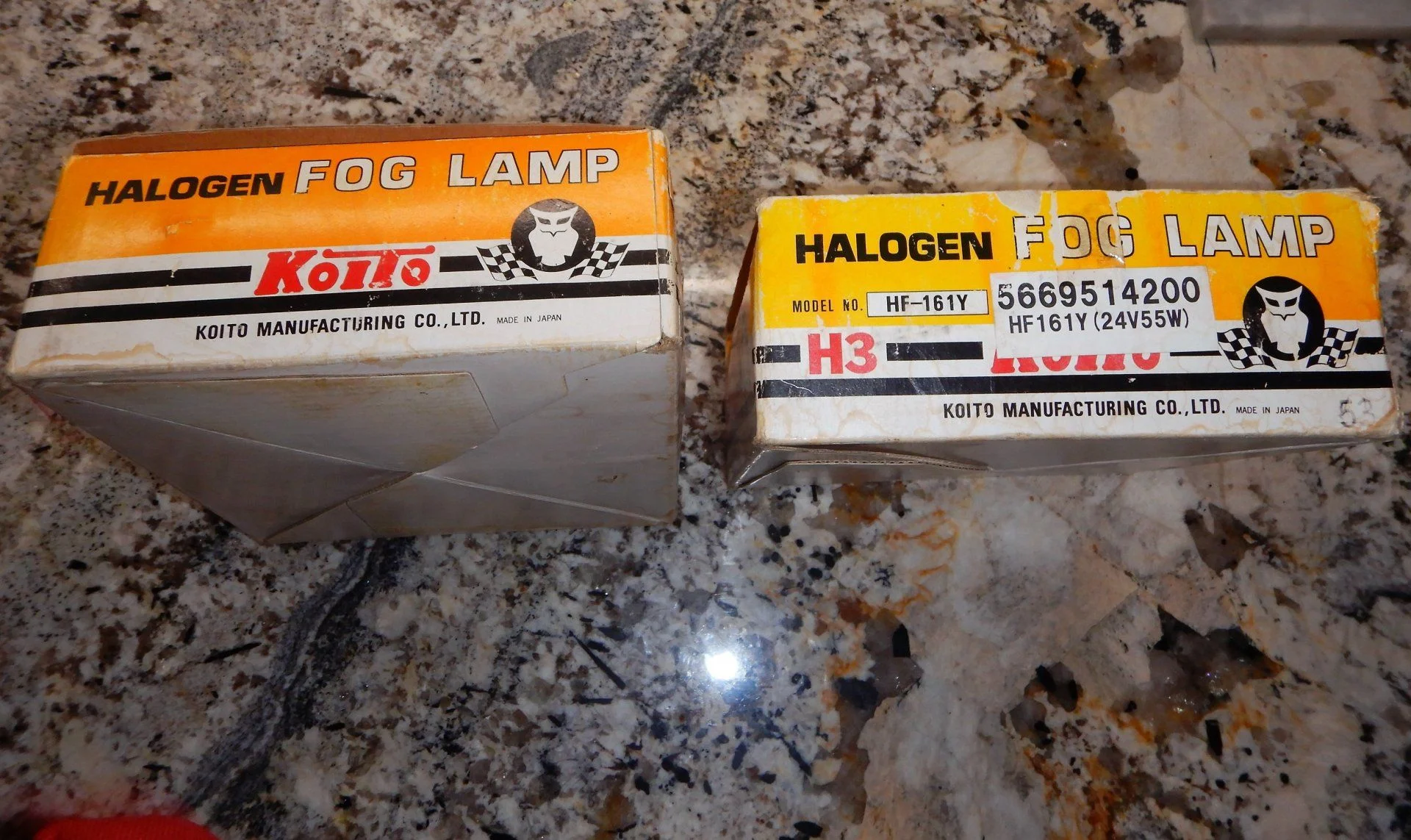

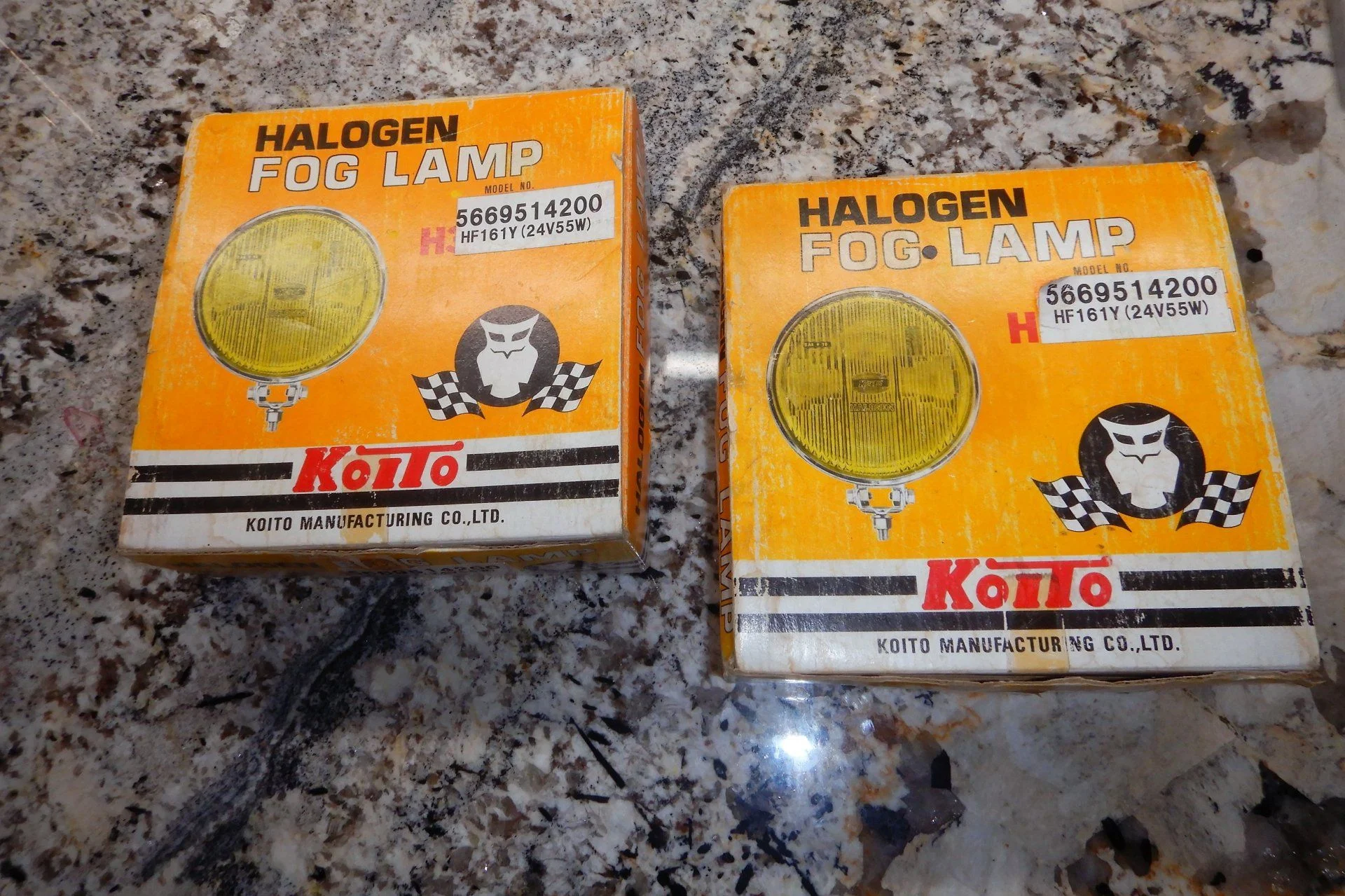

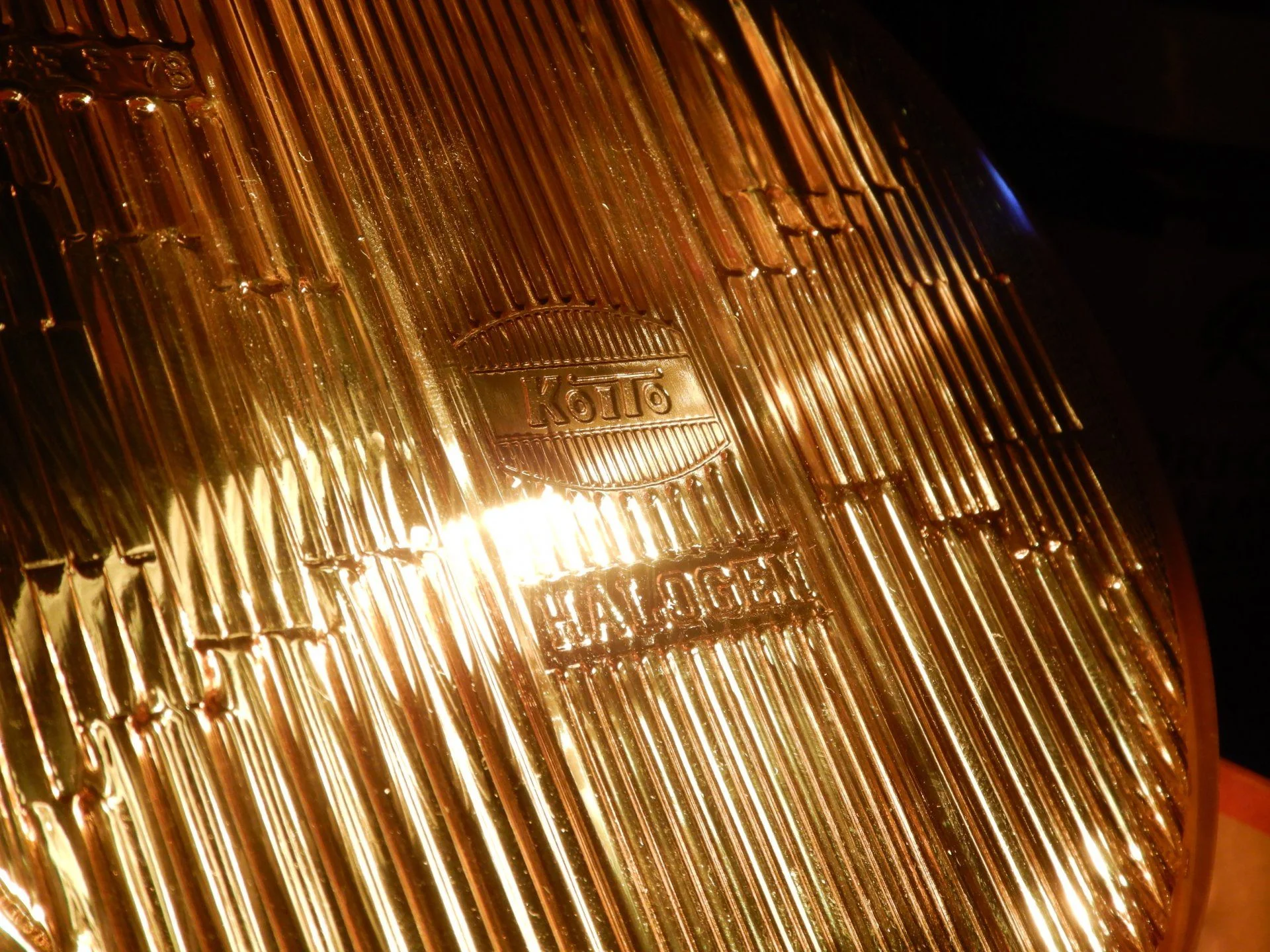

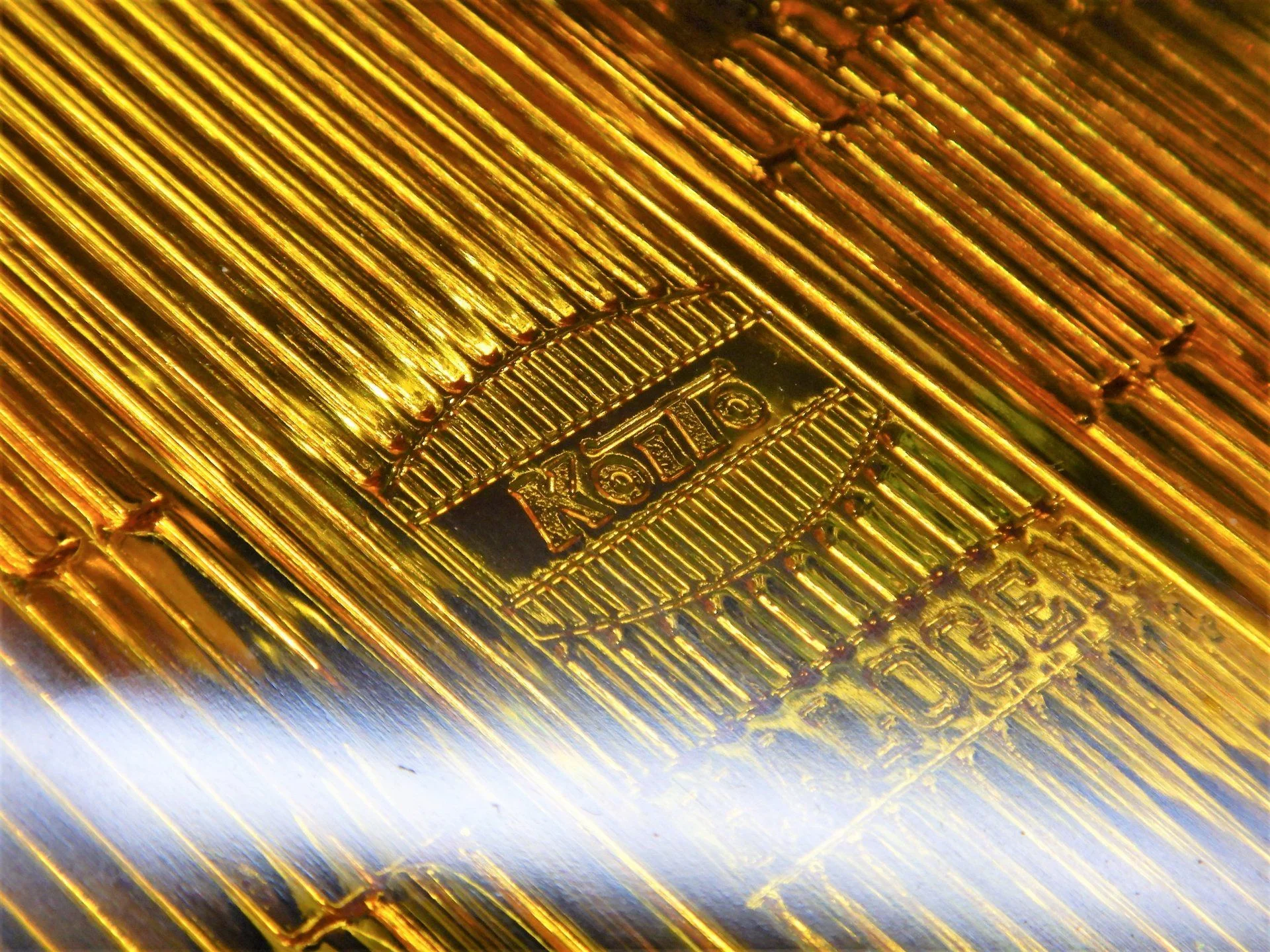

Simply BLISS KOITO 24v NON USA

Amber JDM Canary Yellow

6" Chrome round FOGS

UNICORN parts have a new definition ..........

$775






​



[ToyotaMatt]



[ToyotaMatt]



[ToyotaMatt]



[ToyotaMatt]



[D0g]

View attachment 2568506View attachment 2568507View attachment 2568508View attachment 2568509​

Do these come with a wiring harness, how do you add them in to your harness?



[ToyotaMatt]

Do these come with a wiring harness, how do you add them in to your harness?

what model land cruiser do u have ?



[ToyotaMatt]

some fog lamps require the installer kustom make his or her own oem type harness?

only parts in photos included


i DO have some fj40 fog lamps wire harnesses and a pull switch oem \



[D0g]

It's a 24 volt BJ41, no fog lights. Where do the the fog lights get power from on a factory equipped vehicle? I have an empty plug that goes to nowhere on my 41 near the starter relay and glow plug relay in passenger foot well not sure if thats what it's for.



[ToyotaMatt]

what year ?



[D0g]

what year ?

July of 1980



[ToyotaMatt]

your truck should have a integrated FOG sub harness



[ToyotaMatt]

can u post pics of the awol myster plug and note the wire color codes too

like red w/ yellow tracer stripe etc ...


you have 2 assy fused taps on back side of your glass tubes fuse box

one is assy key on

one is acc

one os ON 24/7 all time hot , this is the fogs one


hooking these up period correct is eazy peezy

NO relays required



[D0g]

can u post pics of the awol myster plug and note the wire color codes too

like red w/ yellow tracer stripe etc ...


you have 2 assy fused taps on back side of your glass tubes fuse box

one is assy key on

one is acc

one os ON 24/7 all time hot , this is the fogs one


hooking these up period correct is eazy peezy

NO relays required

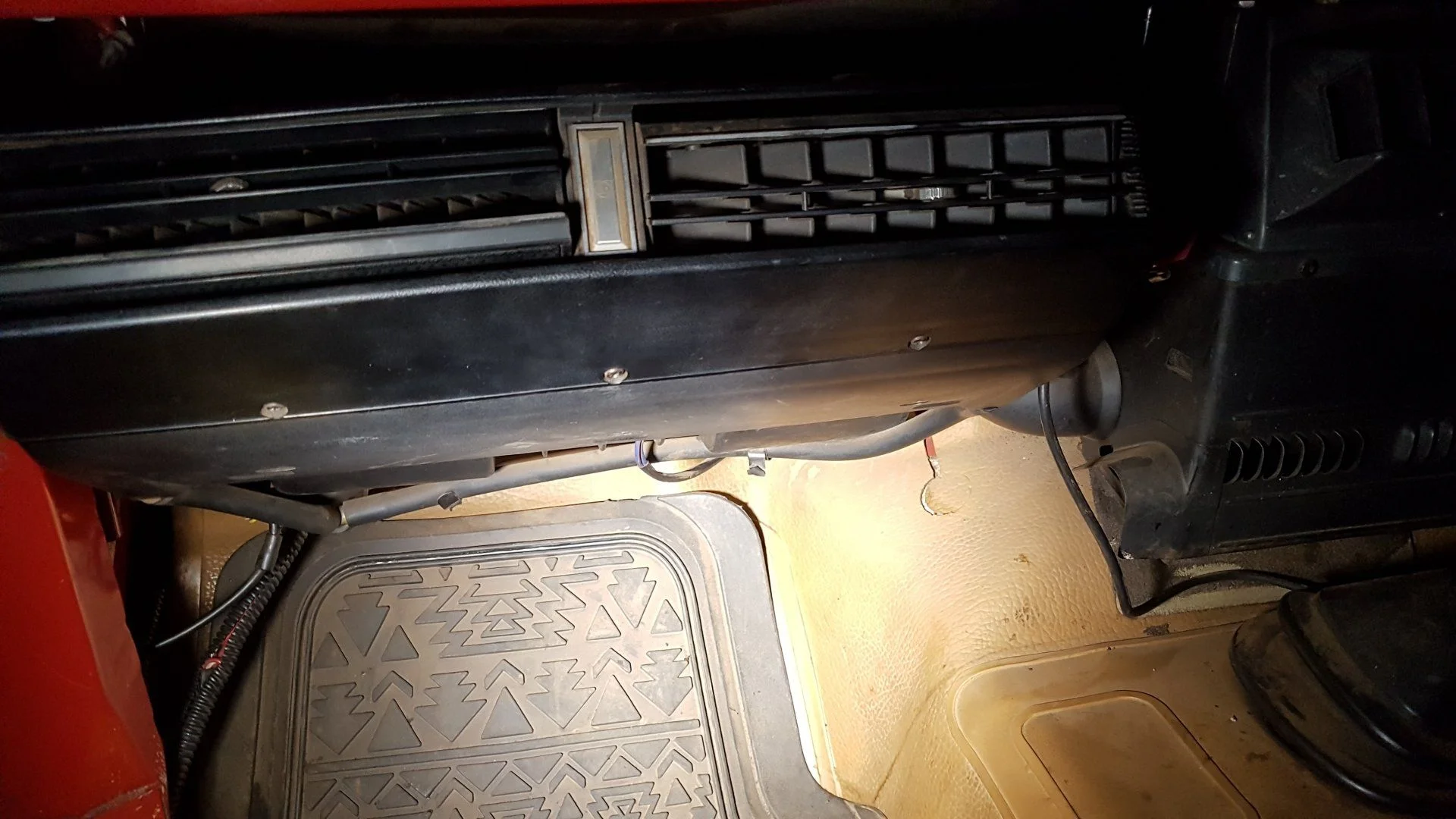

Will do I'll get on it tomorrow and post pics, i have to remove my A.C. Vent and hoses to access it.



[ToyotaMatt]

a/c vent ?



[ToyotaMatt]

pull ash tray now and use a wand camera ......



[D0g]



[ToyotaMatt]

RHD ?



[D0g]

It's located behind that and i don't want do it right now



[D0g]

Yes
