SOLD Rebuilt 4-sp transmission and '3-sp' t-case (1 Viewer)

[Vulcan]

Vehicle Model

1. 40 Series

Location

Chicago, Illinois United States

I have for sale a bebuilt 4-speed transmission and transfer case from late 73 built FJ40. The t-case is the '3 speed' iteration with the lower gearing as I understand it. There was nothing "wrong" with it to begin with, I just wanted it to be in great shape to link up with a rebuilt motor.

Tons of new stuff went into the build, including new transfer case input and output gears, new transmission output shaft, and new bearings/seals/gaskets for both transmission and t-case. Darrell Noorda in Utah did all the work on it.

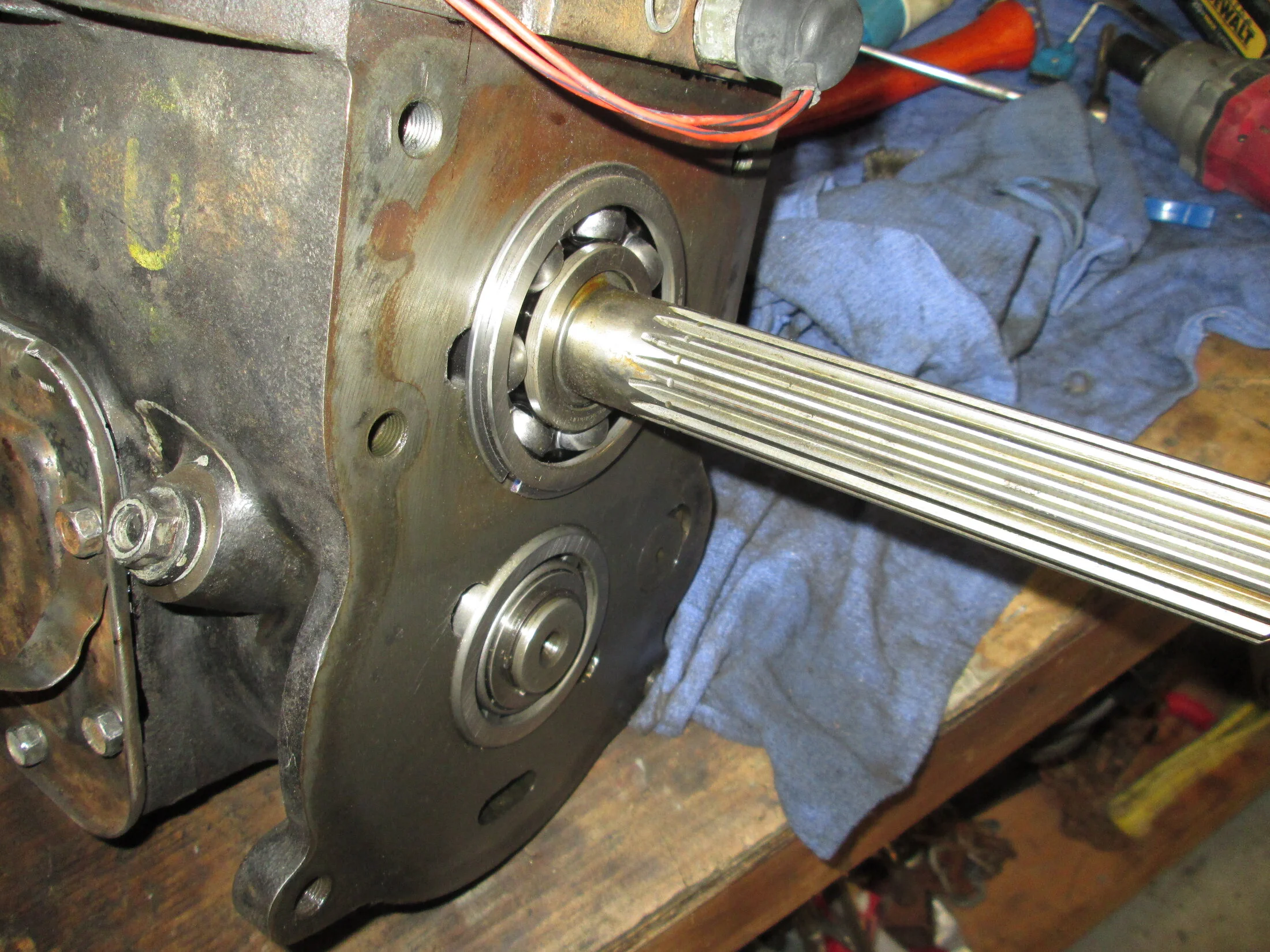

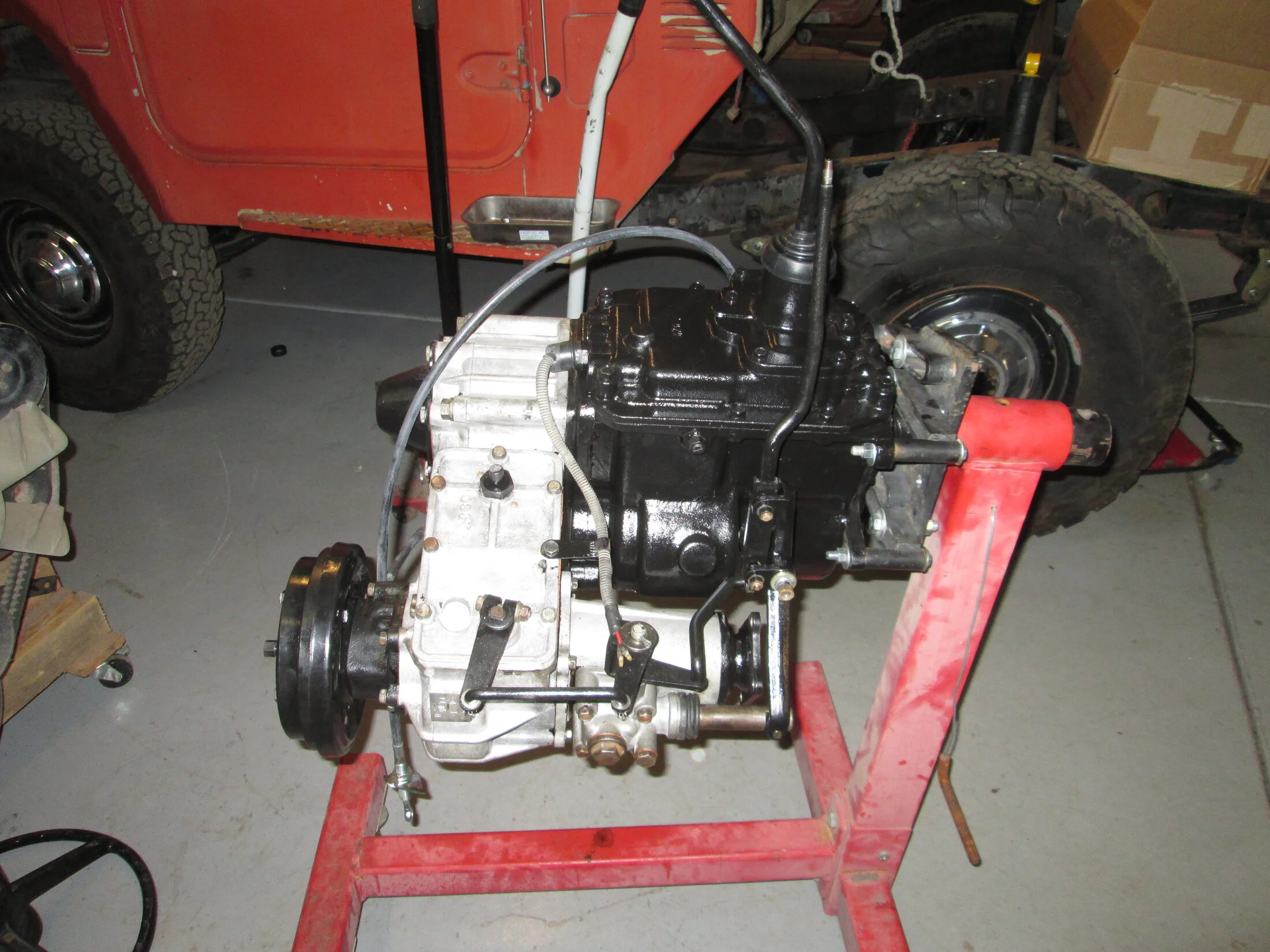

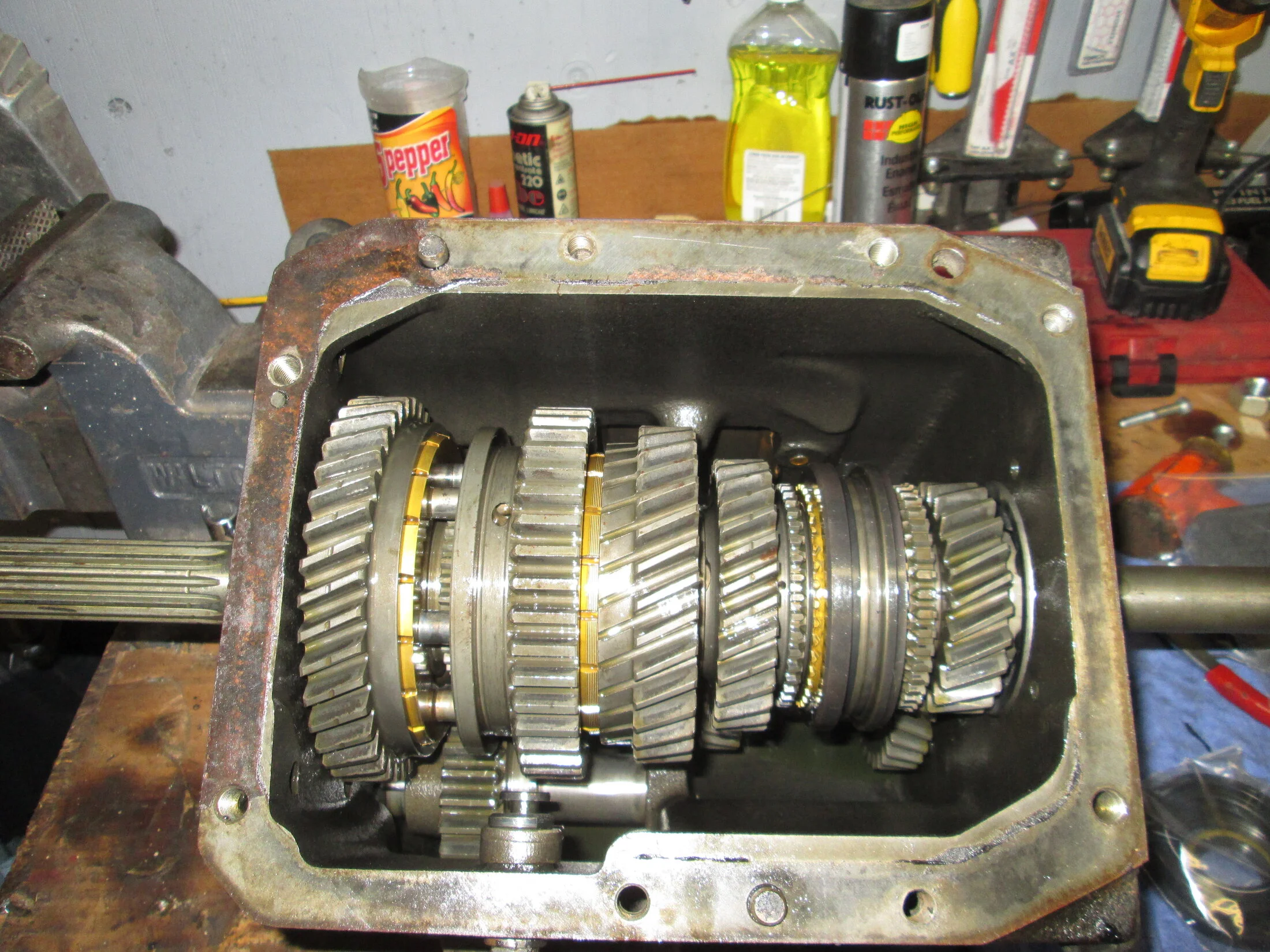

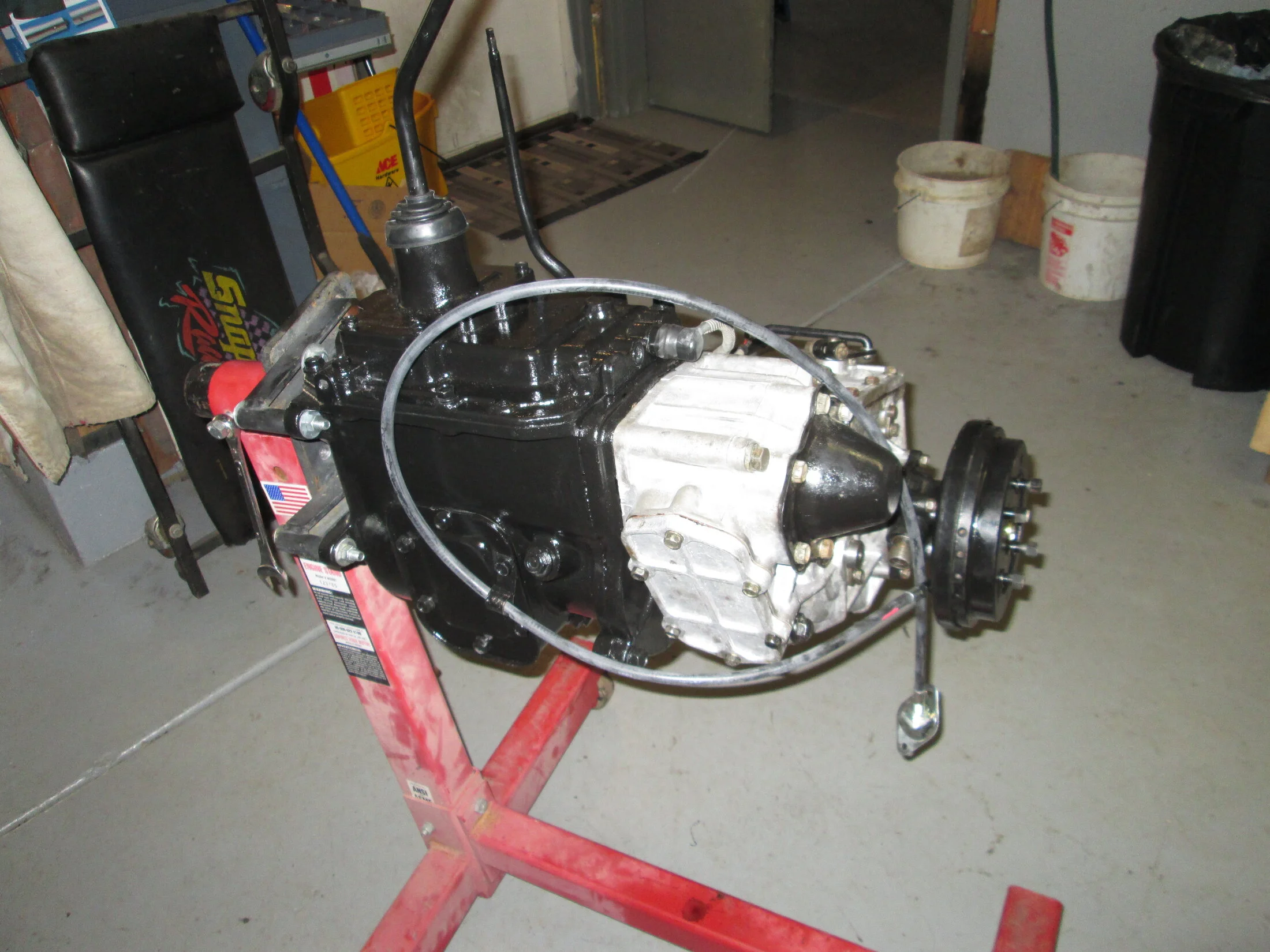

Here are pictures from when everything was built - about 6 years ago. It has been stored as it was shipped since then. If you're interested, let me know. I will open up whatever I'm capable of opening and send you as many pictures as you want. Happy to answer other questions.

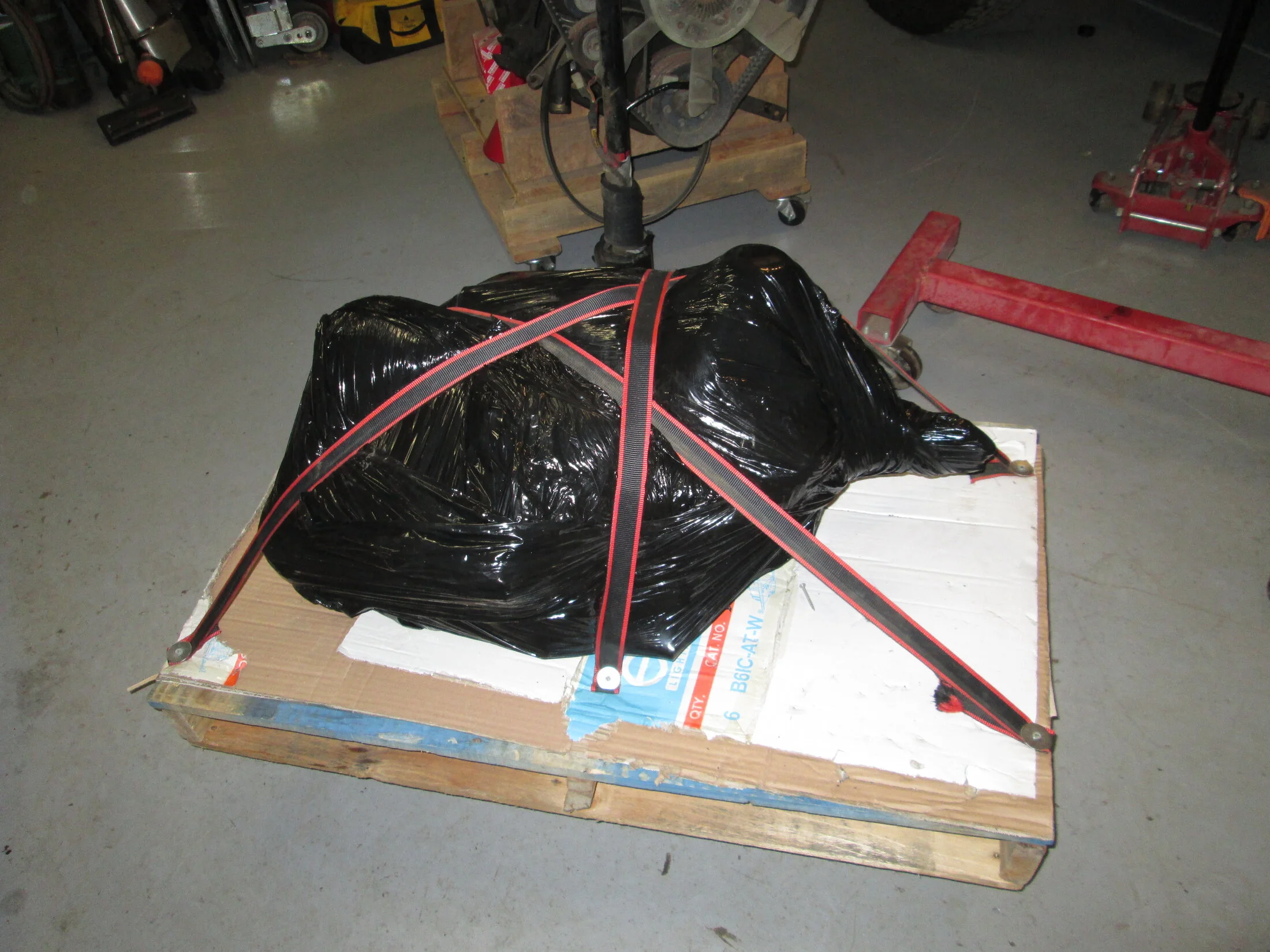

Asking $1,600 + shipping, OBO. Fastenal/Blue Lane shipping shouldn't be too horrible east of the continental divide. If Fastenal won't work for your location (or you want to use a different service), I'd ask you please arrange the shipping particulars and I will drop it off on a pallet.



[Vulcan]

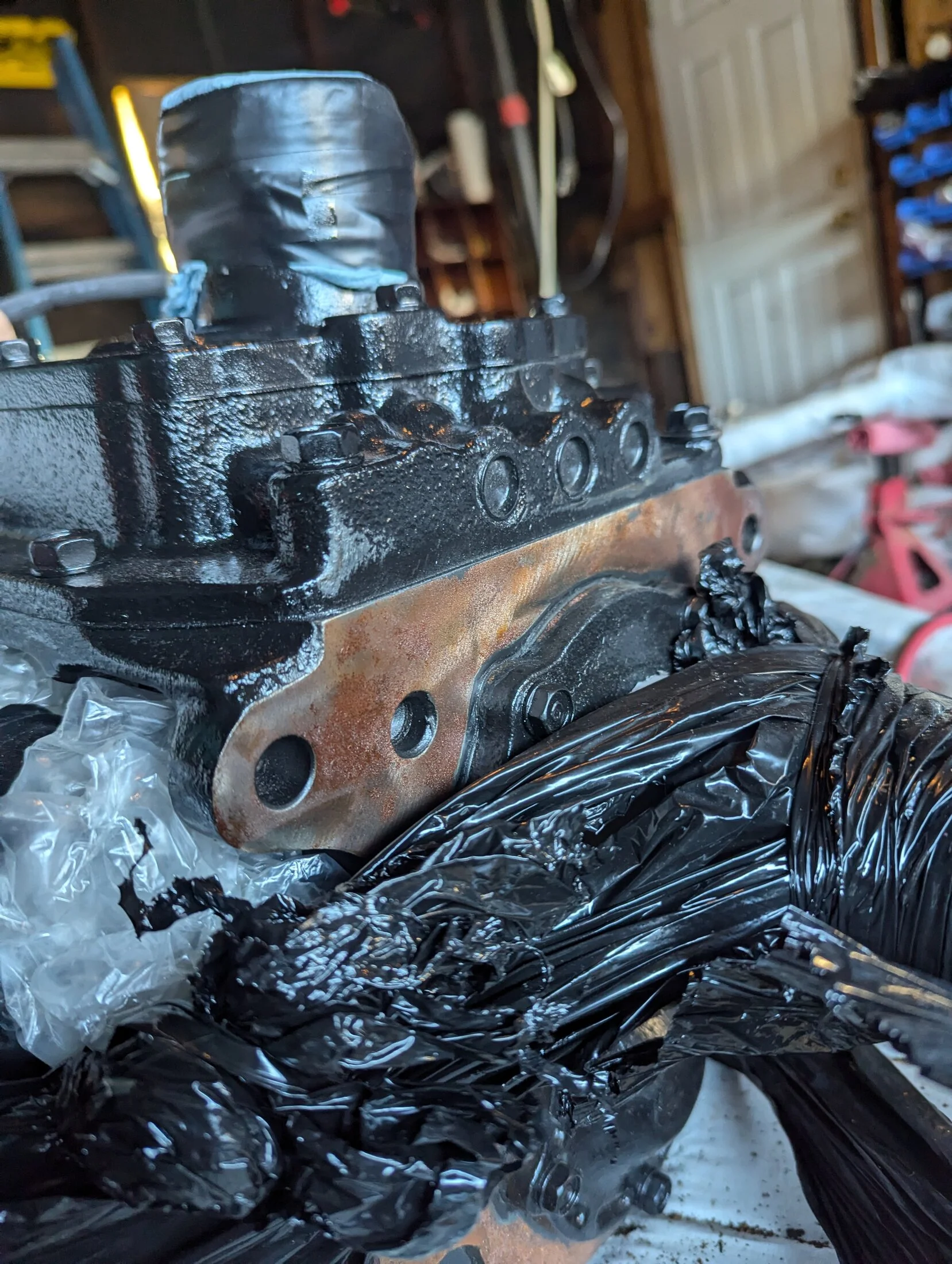

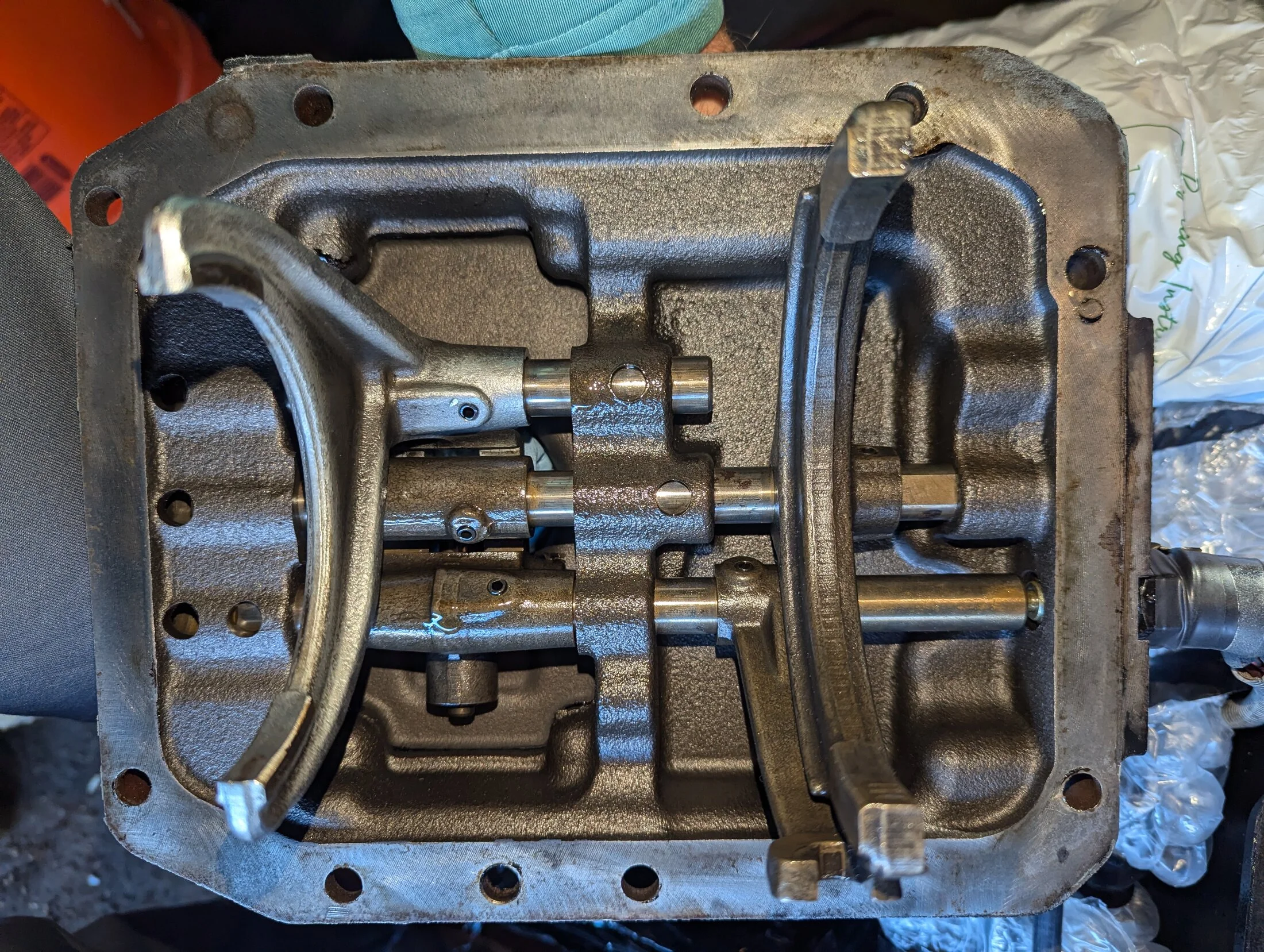

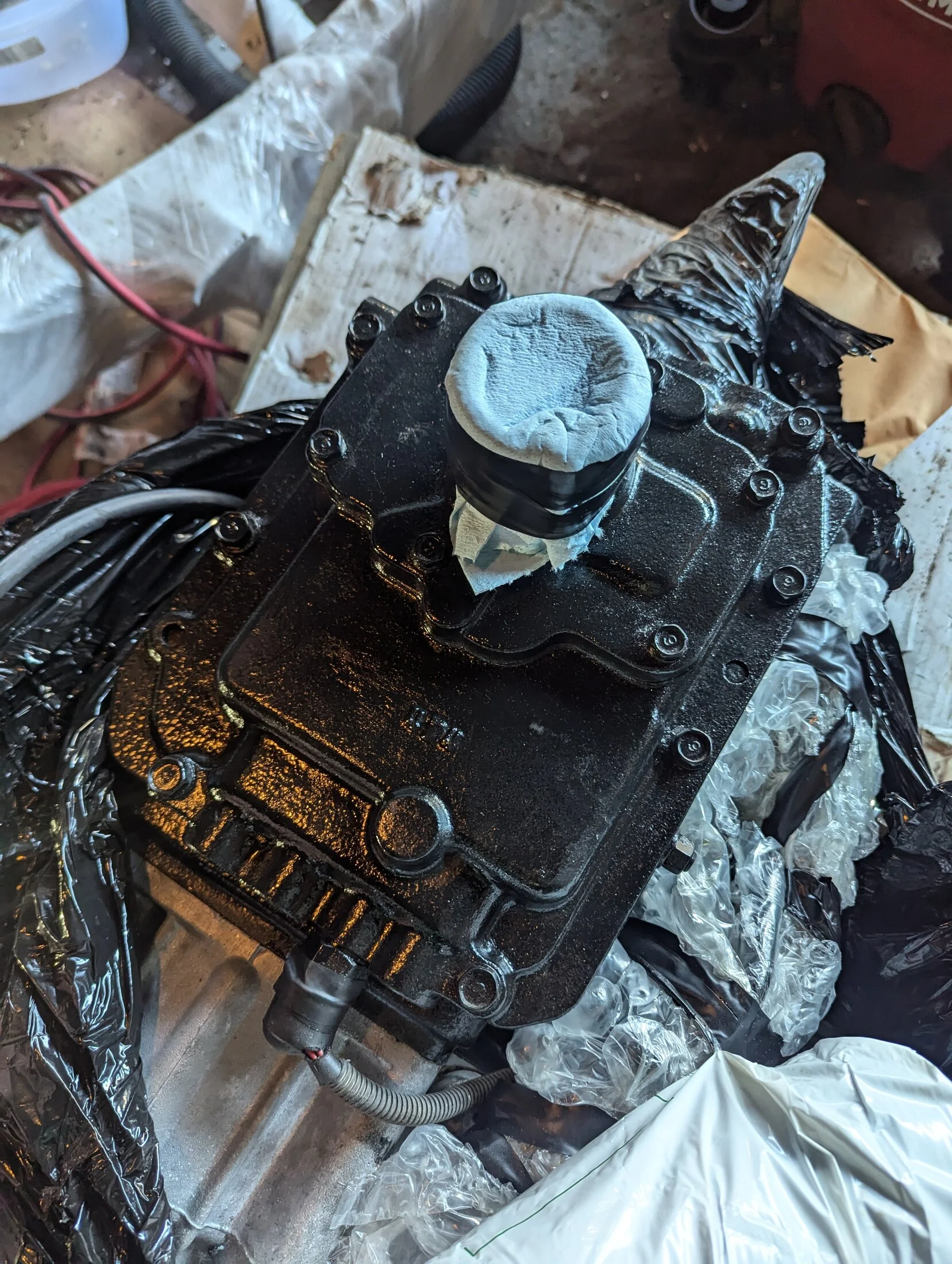

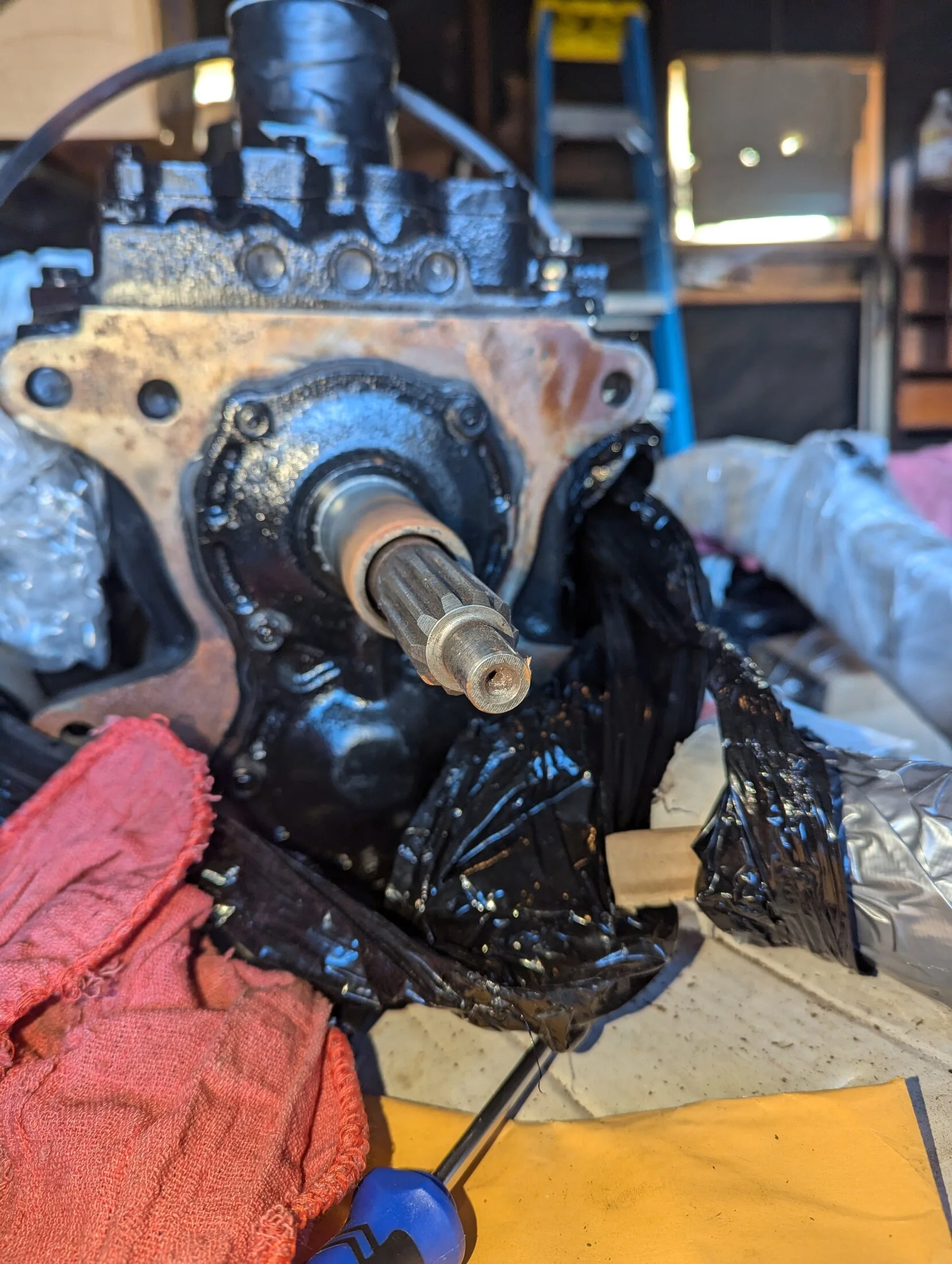

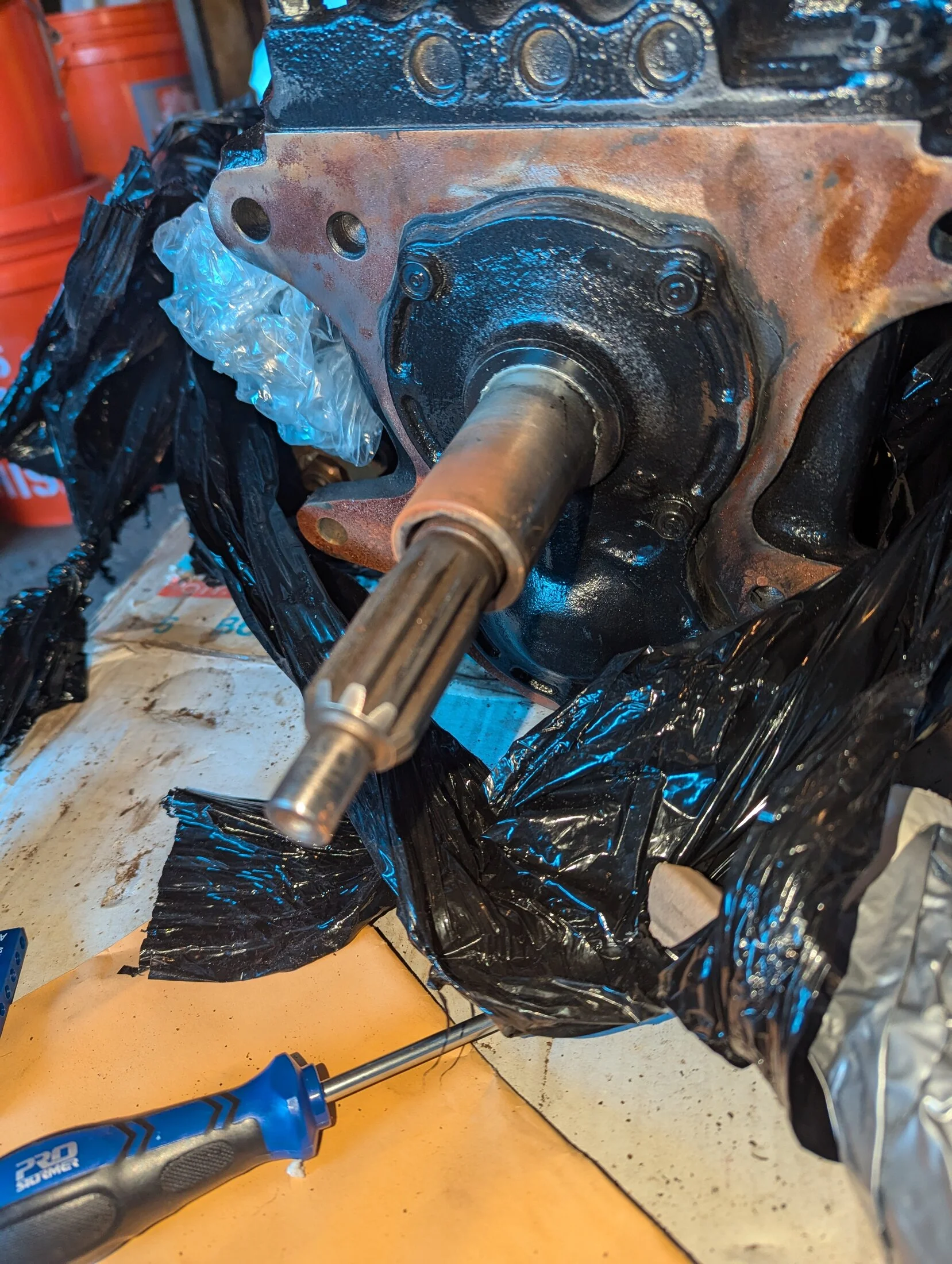

Adding some additional pics, including the transmission innards, from a couple days ago



[Vulcan]

To clarify, I could ship this unit anywhere in continental US, I'll just need your help figuring out who to ship with if Fastenal isn't an option (i.e. if you are west of the continental divide).

Please feel free to reach out with any questions, thanks!



[Vulcan]

Bumping this to say:

I may be taking a road trip from north central IL to TX next several weeks and may be able to deliver the trans/t-case assembly to you along the way! Reach out to discuss.

And, what new parts went into the trans/t-case?

• Cruiser Outfitters 4 sp transmission rebuild kit (part number TR47586)
• Cruiser Outfitters 3 sp t-case rebuild kit (TC7375)
• TC Input Gear - 4spd Trans to 3spd TC (part number TCG60030)
• TC High Speed Output Gear E-4/1975 (29 Tooth) (part number TCG36203E)
• T-Case Hi-Low Shift Clutch Sleeve (part number TCSHFTHL60011)

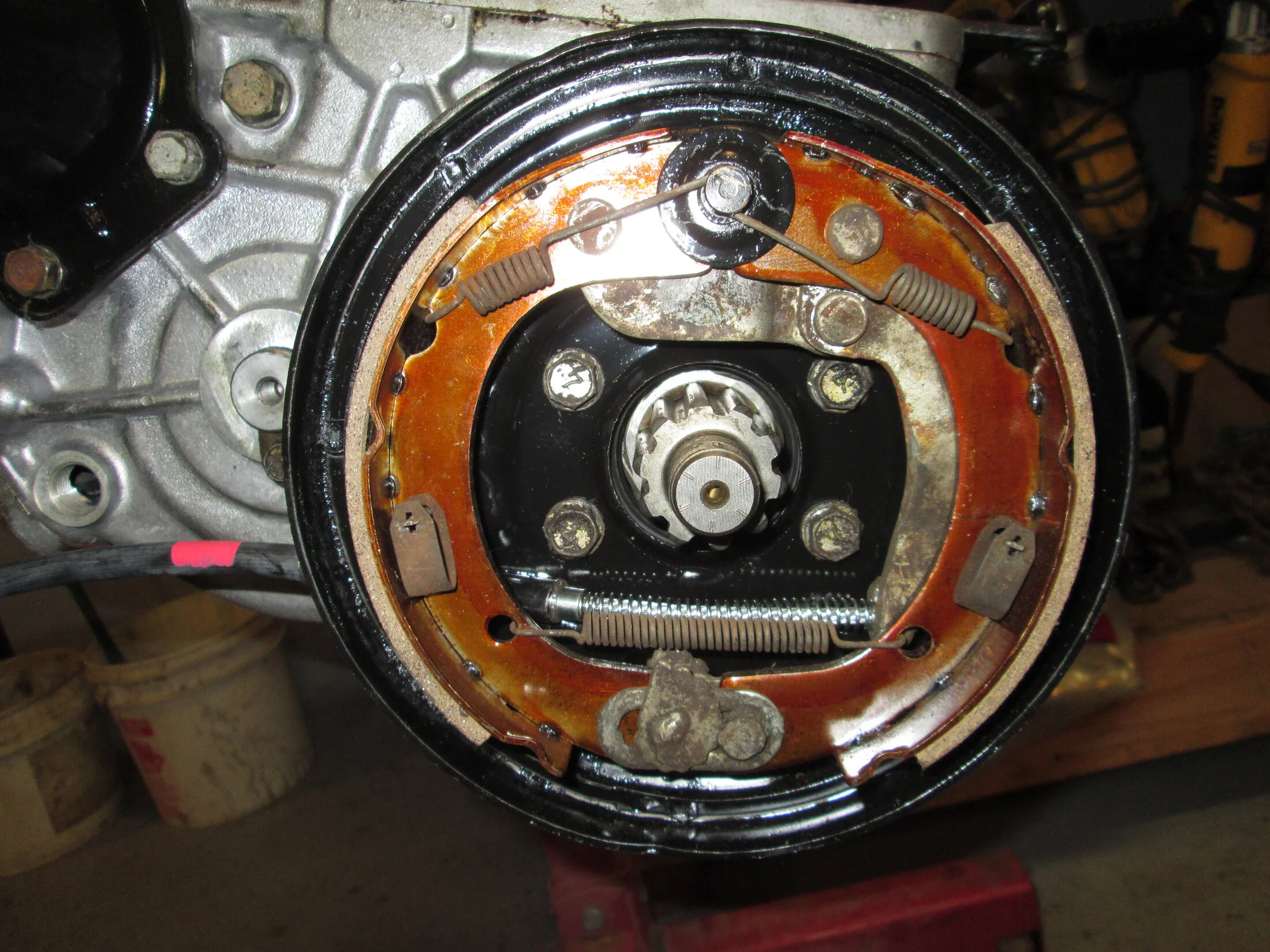

• Park Brake Shoes (part number PB60011)
• Transmission Output shaft, 74-80 4 Speed (part number 33321-60043, from FJ Parts)
• New t-case shaft boot and trans inner dust boot
• $100 of acid etching primer and paint

Thanks for looking and reach out with any questions.

Claude



[cstav86]

Making it to San Antonio? If so interested.



[Vulcan]

@cstav86 ill be north of Dallas, do you have any excuse to blow a day heading up there?

Seeing what fastenal charged for the engine, probably wouldn't be terribly much to send you the trans/t-case...



[bryce112]

PM sent
