Racks, Sliders and Control Arms (1 Viewer)

[TRAIL TAILOR]

Anyone interested in coming to my shop (Green River, WY) for a day to day and a half so I can pull measurements for a rack and sliders?

The local rental car place had a 200 I used for preliminary slider measurements, but its gone now.

I'll make it worth your while!!

Jason



[TRAIL TAILOR]

Anyone for a free rack or sliders?

J



[ikeb]

guys... i live nowhere near wyoming... but i've been following him on the 100-series thread (i don't have a 100-series and he's that good ). he has incredible skills. surely somebody nearby would volunteer for this opportunity?!?



[TRAIL TAILOR]

guys... i live nowhere near wyoming... but i've been following him on the 100-series thread (i don't have a 100-series and he's that good ). he has incredible skills. surely somebody nearby would volunteer for this opportunity?!?

Thank you for the kind words. Many know I'm changing direction and will only be offering racks and sliders starting in '17 for the most part. One off bumpers ONLY as well.

The 200 sliders are 85% designed, just need a final fit-up and to set my jigs. Racks will be identical to my others, just need to verify mount configurations and measurements. Lo-Pro mounts will be designed for the 200 just like my 100 (if there is any difference) Mounts allow for a 3/4" off roof line (high point) up to 2-1/4". Flat, Expo and Basket in full and 3/4 configurations.

As always, willing to customize racks and sliders to fit your needs and wants.

Thanks,

Jason



[TRAIL TAILOR]

For a look at my products..

100 sliders-

100 Lo-Pro Expo rack (1.25" and 1" tube)



[ikeb]

For a look at my products..

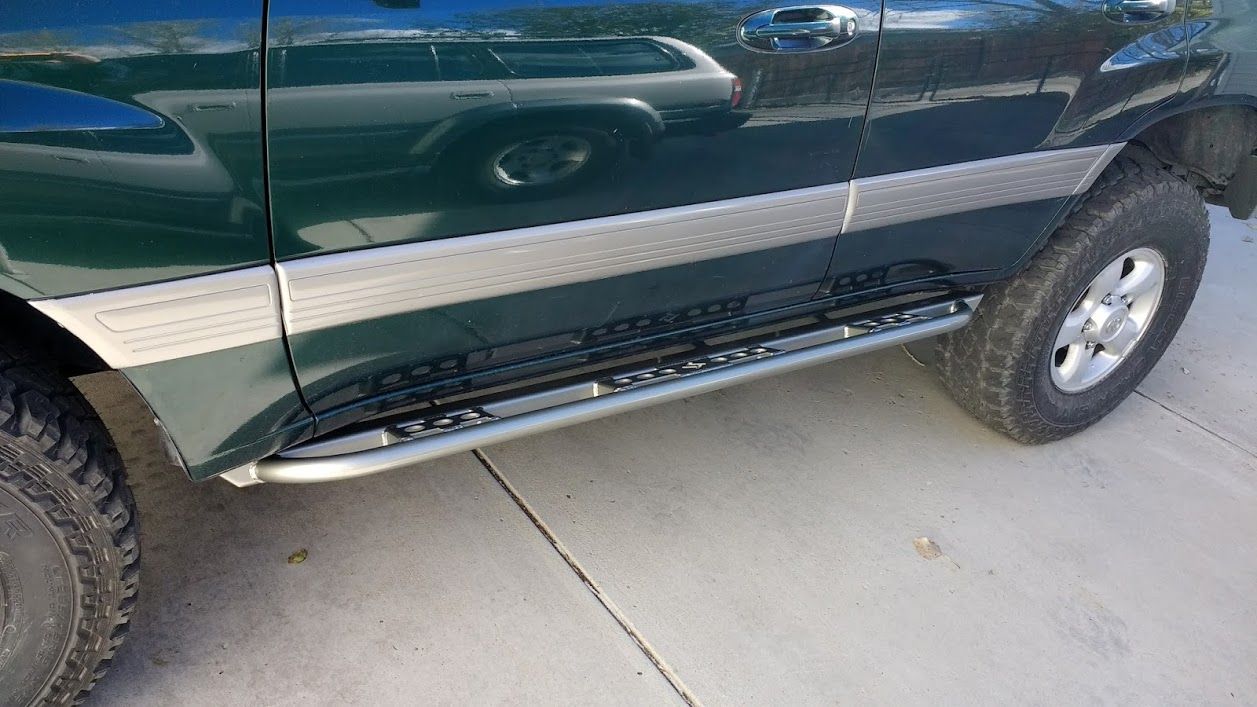

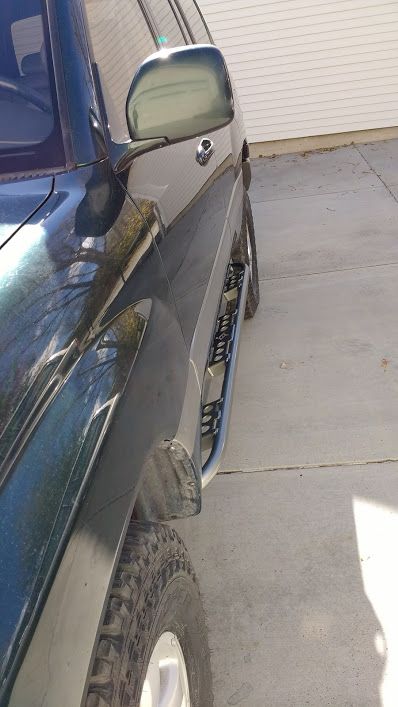

100 sliders-

View attachment 1347542 View attachment 1347543

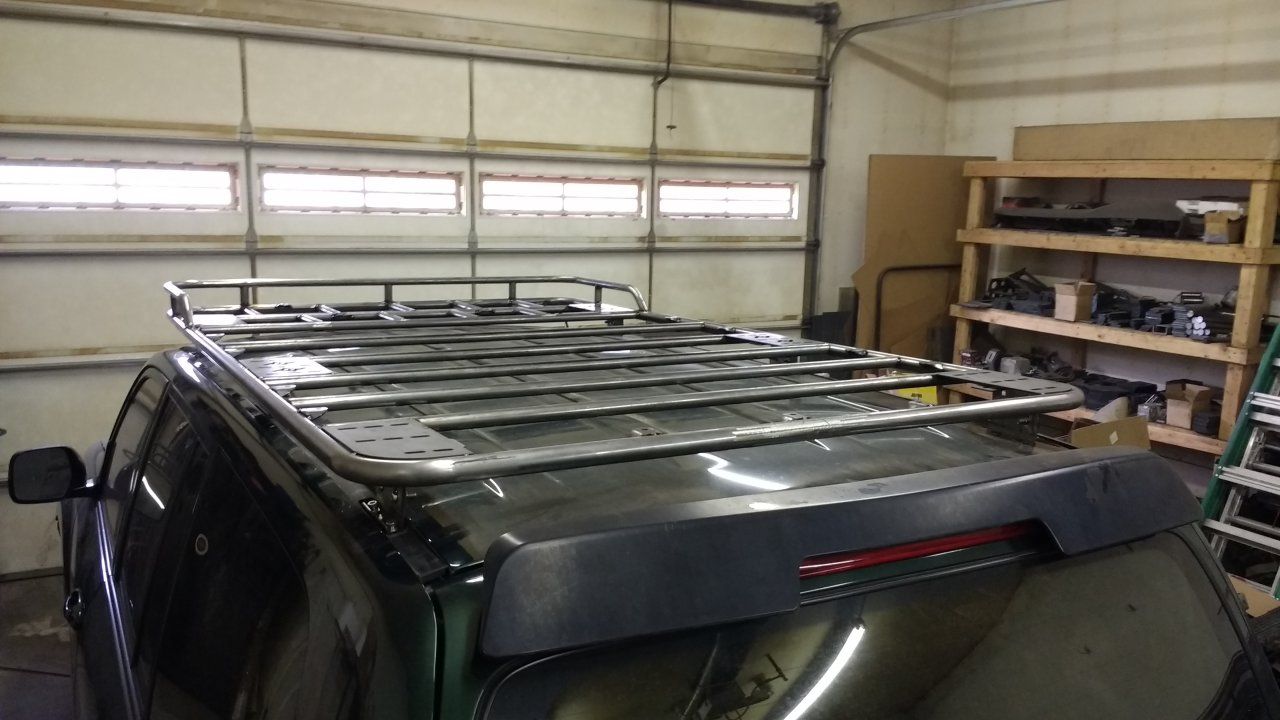

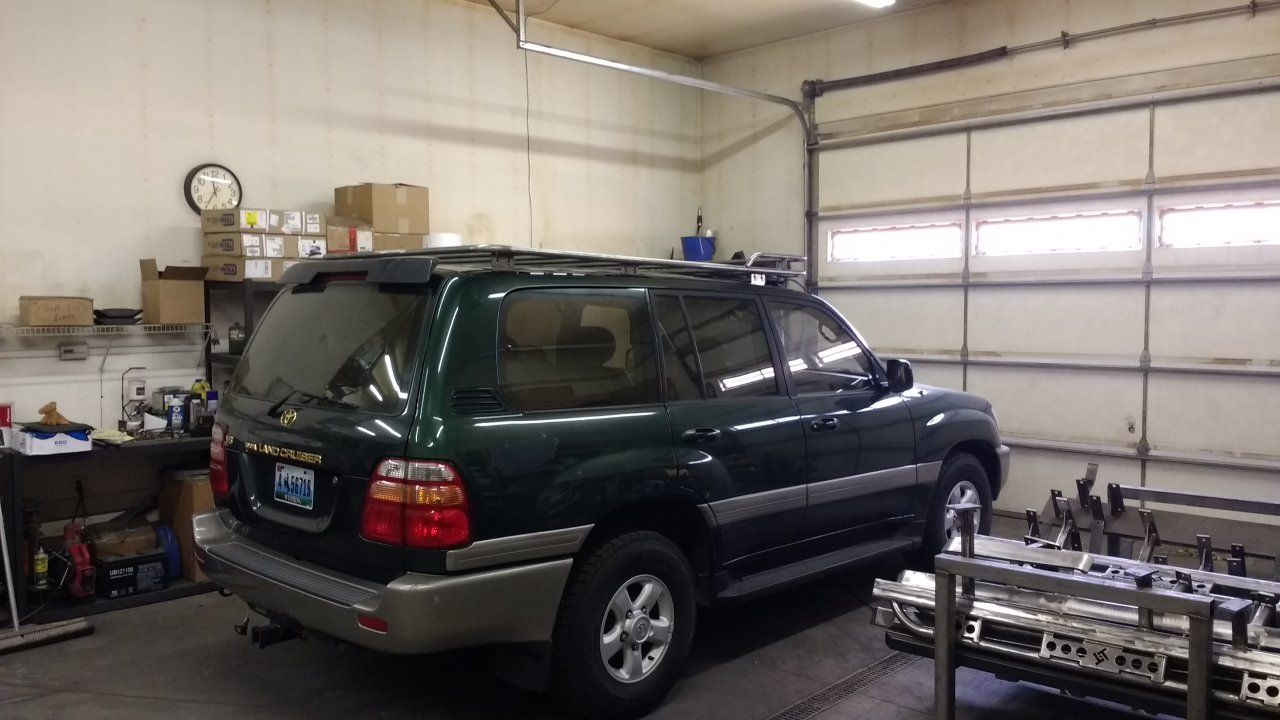

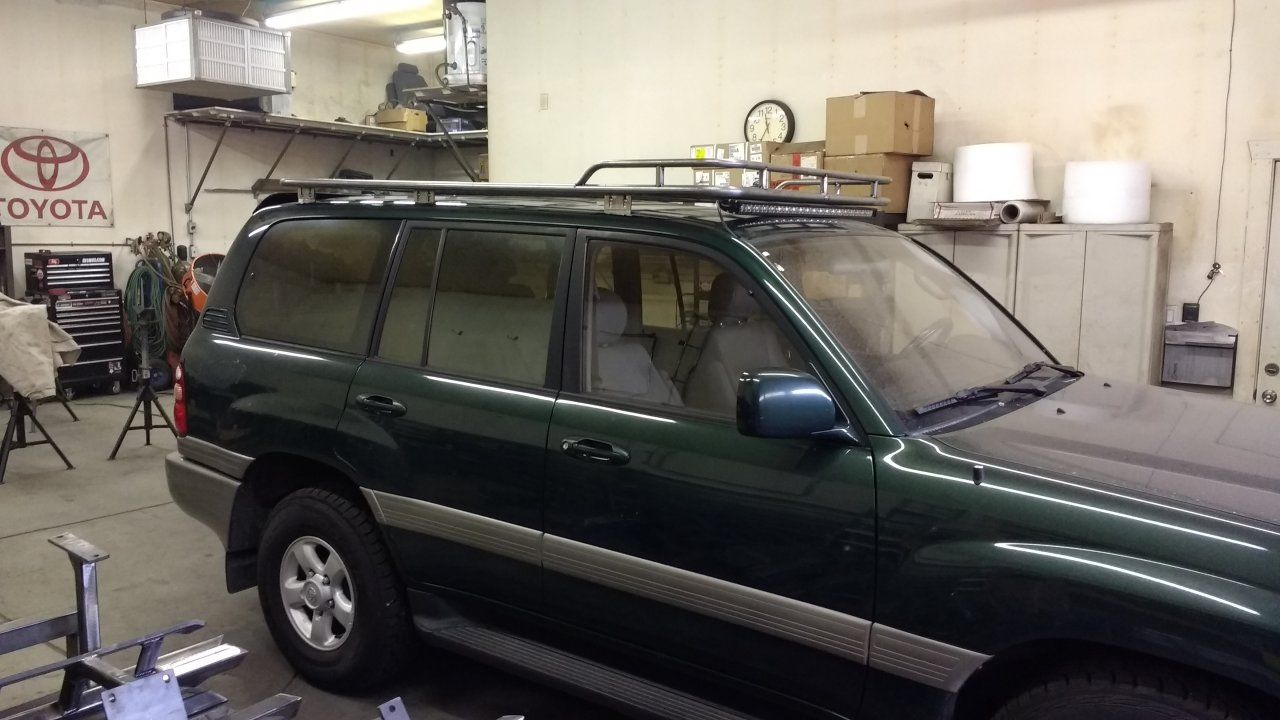

100 Lo-Pro Expo rack (1.25" and 1" tube)

View attachment 1347544
View attachment 1347545
View attachment 1347546

good idea @reevesci ... i know there are a few folks in the 200-series forum that have earlier model LCs and follow those threads, but a picture is worth a 1000 words - so they say - and i think your work is great from what i've seen and read! wish i lived closer to you. i'd love to be the guinea pig for this.



[labcab]

Hey Jason @reevesci - I can't believe you don't already have a volunteer. Maybe you should change the thread title to "Free gear in Wyoming!"

I just picked up a '11 LX for the wife last month. I don't think she'll let me add any mods or swing through Wyoming any time soon, but I'd be happy to take some measurements for you.



[TRAIL TAILOR]

D,

Thank you so much. I may have you shoot me some pics and measurements if its not too much trouble.

J



[TRAIL TAILOR]

Looks like I may have a volunteer. But, just in case I will keep this open if it falls through.


Also, as of today I'm a Currie dealer and I will be making adjustable rear control arms and panhard bars for the 80, 100 & 200s.

Standard-- Uppers will be 1.5" x .250" DOM w/ CrMo tube adapters and 3/4-16 jack screw w/ greasable poly fixed ends
Lowers will be 1.75" x .250" DOM w/ 2.5" x 1"-14 Currie Johnny Joints, CrMo tube adapters w/greasable poly fixed ends

ULTI-- same as above but, with a Johnny Joint AND screw jack for UCAs.

J



[TRAIL TAILOR]

A special thanks to @labcab for pulling measurements and taking detailed pics for me on the rack channels/ roof top and mounts and the rear control arms. He was part of my 100 rack and slider R&D group and his measurements were spot on.

I'll have the control arms and racks available within the next week.

Rack mounts will be the same as my 100 mounts and be low profile. Slider frame mounts are at the laser cutter right now and should be available in the next two weeks.

Sliders will be a flat step style made from 3 x 2 x 3/16" rectangle tube, 3/16" skid step plates, and HREW or DOM tubing (client choice) and 5/16" frame mounts. All CNC bent and laser cut.

See pic for visual reference (100 series).

Thanks,

Jason



[TRAIL TAILOR]

A few have requested rack and slider pricing. All prices are bare metal. I do not have a powder coater near me. But, I'm happy to ship to your coater of choice.


RACKS-- 52" x 84"
Flat rack with 6 Lo-Pro mounts and sunroof cut-out--- 500.00 plus shipping (145.00 to a business addy)
Expo rack with 6 Lo-Pro mounts and sunroof cut-out---575.00 plus shipping (145.00 to a business addy)
Add the front-most mounts to above pricing-- 65.00 extra.

I'm happy to build anything custom (within reason) or 3/4 length racks are available as well.


SLIDERS
Sliders with all mounting hardware --- 650.00 plus shipping (125.00 to a business addy)
add DOM tube-- 50.00 extra
add diamond plate top -- 80.00 extra

Thanks,

Jason



[natvet]

I am going to need some sliders soon. I like the price. Tagged for next purchase.



[TRAIL TAILOR]

I am going to need some sliders soon. I like the price. Tagged for next purchase.

200 sliders should be available for purchase in about 2 weeks.

Jason



[Obi Wong Kenobi]

Interested!



[TonyP]

200 sliders should be available for purchase in about 2 weeks.

Jason

Whats the lead time? I may be purchasing a 200 in the mid-west and can stop by WY on my way back to UT.



[TRAIL TAILOR]

Whats the lead time? I may be purchasing a 200 in the mid-west and can stop by WY on my way back to UT.

I've got 5 sets of tube cut and bent right now waiting on the frame brackets from the cutters. I can squeeze a set in as soon as I get those. Frame brackets are two weeks out from today per my cutter.

Jason



[Streamer]

Do you still need a 200 series for measurements? It's a long shot I know, but I just saw this thread. I'd be willing to swing by.



[TRAIL TAILOR]

Do you still need a 200 series for measurements? It's a long shot I know, but I just saw this thread. I'd be willing to swing by.

Looks like I'm all squared away. But, I'll be in touch if I need to revisit anything.

J



[Streamer]

Looks like I'm all squared away. But, I'll be in touch if I need to revisit anything.

J

Thanks. I hate I missed out. I'm just right up the road around these parts.



[TRAIL TAILOR]

Thanks. I hate I missed out. I'm just right up the road around these parts.

I'm in Green River and get up to Pinedale, Cora and Jackson quite often.

J
