Artboard 1.jpg

INCREASED VISIBILITY + ADDED SECURITY + ADVENTURE RECORDING​

- LUCENTVUE REARVIEW MIRROR CAMERA SYSTEM -​

Toyota Land Cruiser 80 Series​


You face it all in your Land Cruiser adventures and this dash cam mirror and backup camera system is here for it. Whether you’re fully-loaded and need that additional rear viewing capability from the rear camera’s wide and remotely adjustable up-down camera angles, or worried about security/accountability during your travels and want piece-of-mind via the integrated DVR and G-Sensor with their instant recording/saving of front and rear video footage during a collision or break-in, the LucentVue has you covered.

Added bonus: effortlessly recording your overland and wheeling adventures! See some LucentVue footage from Rugged co-owner Rochelle's 2024 Rebelle Rally on our YouTube (Link below. Be sure to select 4K for YouTube video quality.)

It's for these very reasons why we worked with Caballo Automotive to help bring you the bolt-in LucentVue 4K Rearview Mirror Camera System for your Toyota 80 Series Land Cruiser or Lexus LX 450.

What We Love:
  • Adjustable rear camera position (up/down) via the mirror unit.
  • Extra-wide rear viewing
  • Adjustable screen brightness
  • Automatic video recording of our adventures
  • Mirror personalization and customization options
  • Fitment and ease of use
  • Security features
KEY FEATURES

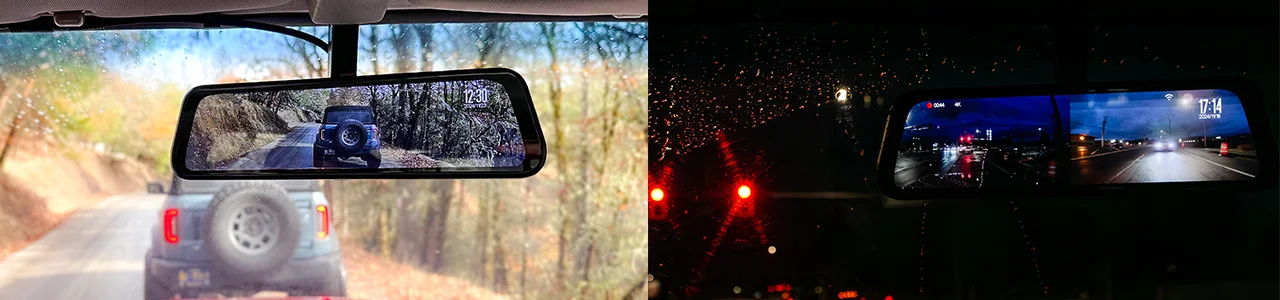

  • Exceptional Visibility: Featuring a 140° rear viewing angle in stunning resolution, enhance your situational awareness even at night with the wide dynamic range camera, a standard feature with the LucentVue system.
  • Integrated DVR: The integrated DVR ensures continuous recording of your driving adventures and automatically locks critical footage during collisions or tampering for enhanced security via its built-in G-Sensor.
  • Designed for Use: The LucentVue 4K Rearview Camera is user-friendly and durable, making it an ideal choice for the demands of overland adventures.

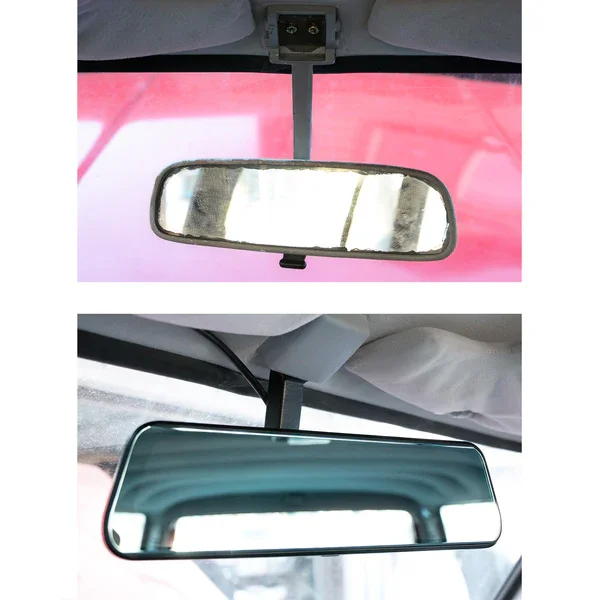

  • Easy Installation: The mounting arm for the Land Cruiser smart mirrors are a direct bolt-in to the OEM mirror mounting location.
SPECIFICATIONS
  • Front Camera: 4K Ultra HD
  • Rear Camera: FHD Camera w/ Sony Starvis Technology
  • Video Format: MP4
  • Memory Card Type/Capacity: Micro TF/128GB Max. Speed
  • Display: 9.66" LCD MIPI Display
  • Lens: All-Glass Wide Angle Lens with High-Resolution Multi-Layer Filter
PARTS INCLUDED
  • LCD High-Resolution LucentVue Mirror w/ 80 Series Land Cruiser Mounting Arm
  • FHD WDR Remote Mount Universal Camera
  • Primary Wiring Harness
  • Primary Rear Camera Harness
  • Extension Harness for Rear Camera
  • 3 Toyota Trim Panel Retainer Clips
  • 2 Posi-Taps
  • 32GB TF/Micro SD Card
  • Instruction Manual
  • Install Instructions
FITMENT

1991- 1997 Toyota Land Cruiser 80 Series
1980-1992 Toyota Land Cruiser 60 / 62 Series*
1996 - 1997 Lexus LX 450

*Note: This item and the parts included are specifically for 80 Series, however the mirror will mount to the 60/62 Series, but the factory plastic trim cover for the mounting arm will not work. We're working on a solution for this issue.

PRODUCT LINKS





Rugged Overland is a small business dedicated to providing above-and-beyond customer service and advice, helping other enthusiasts to reach their adventure rig goals. We’ve reopened with a soft-launch, and are meticulously building our product catalog behind-the-scenes, including some Land Cruiser - specific products.

Rugged Overland Outfitters - Medford, OR
www.ruggedoverland.com
IG / FB: @RuggedOverland
YouTube: @ruggedoverlandoutfitters
Call: (541) 450-9766
Email: joe@ruggedoverland.com

@RuggedOverland

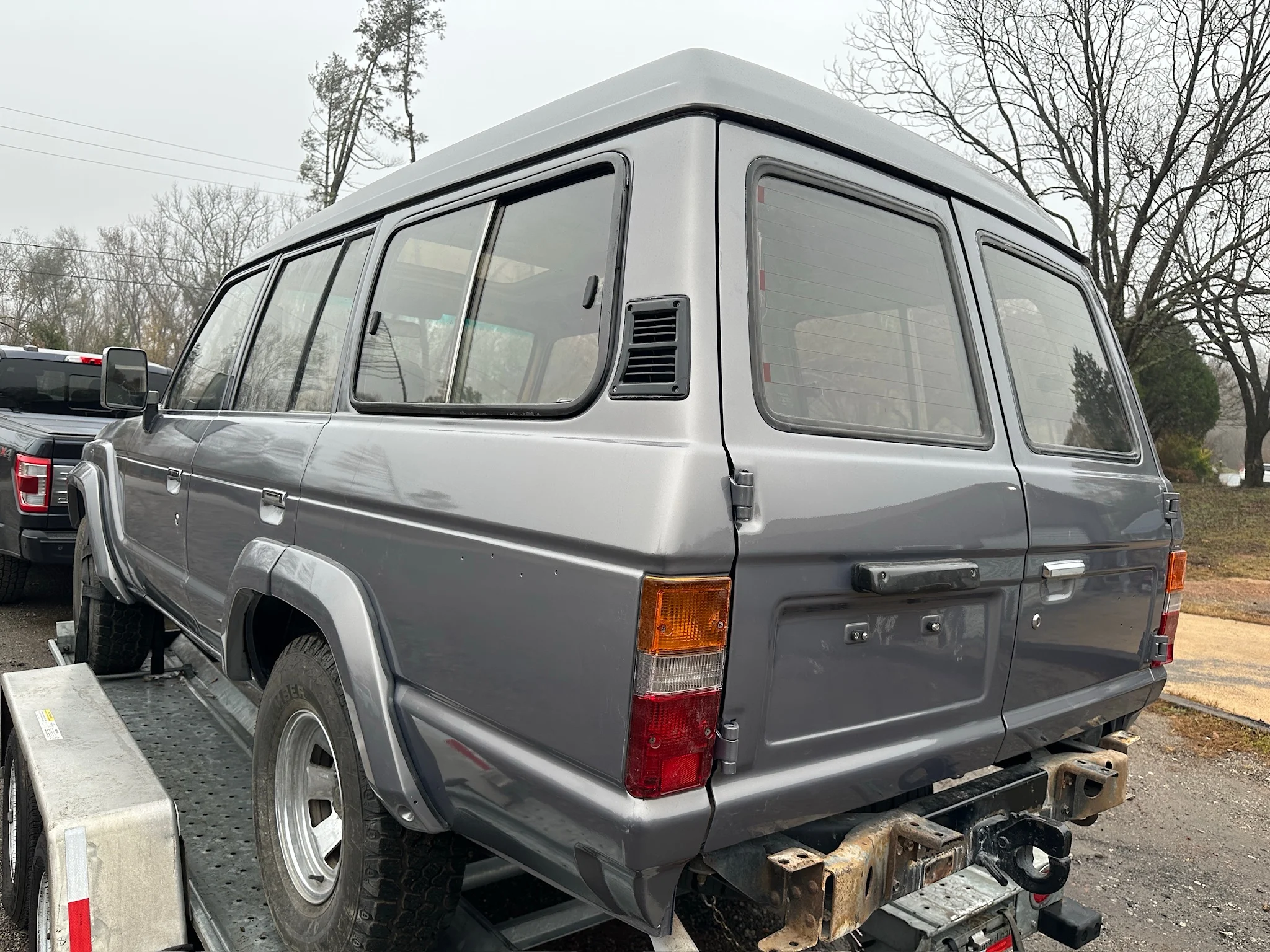

Where would the camera mount on a truck with ambulance doors?

Is the rearview mirror always presenting video or can it be turned off while driving to just function as a rearview mirror?


@RuggedOverland

Where would the camera mount on a truck with ambulance doors?

Is the rearview mirror always presenting video or can it be turned off while driving to just function as a rearview mirror?
First off... I'm in love with your Cruiser.. 😍

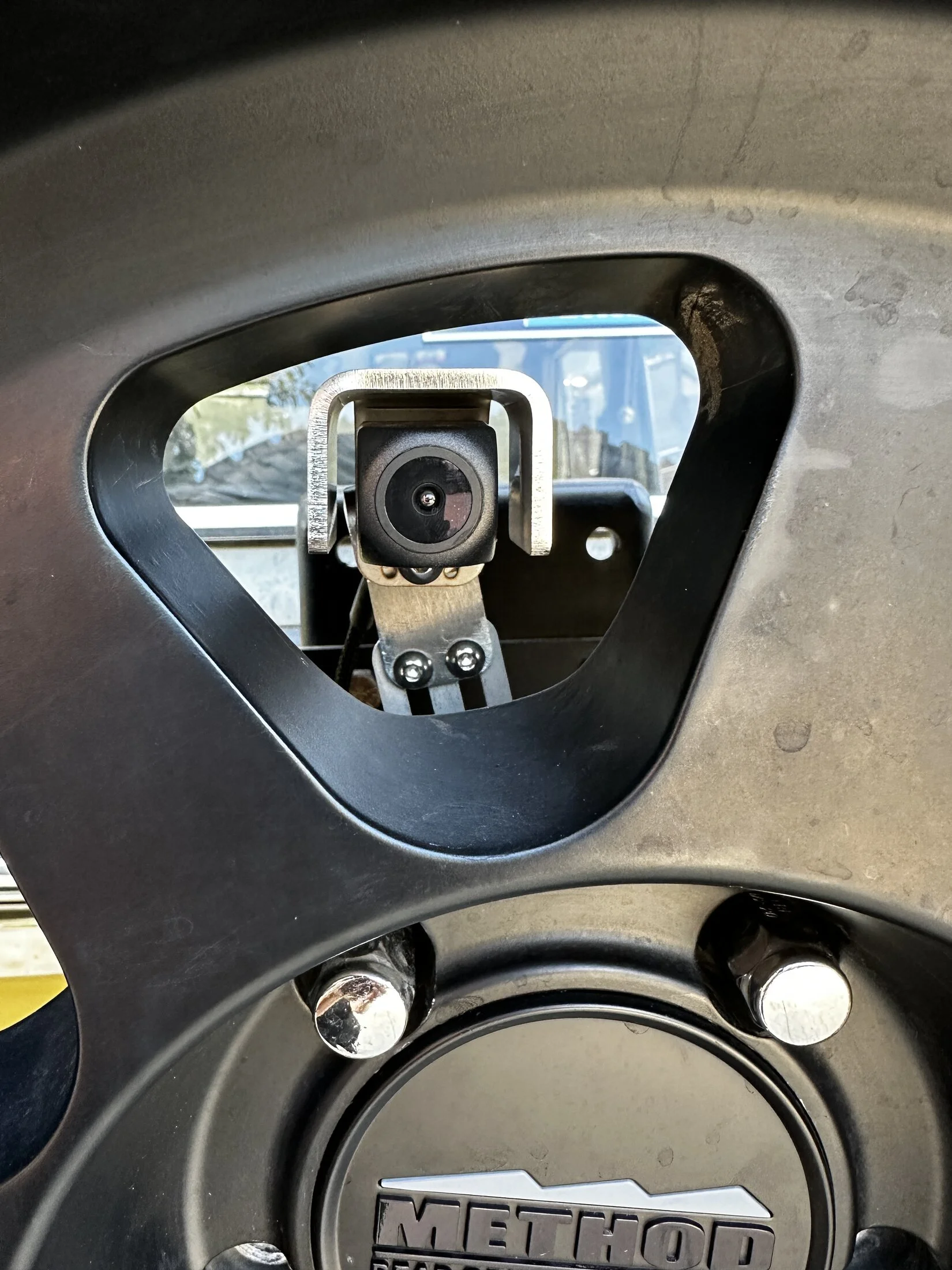

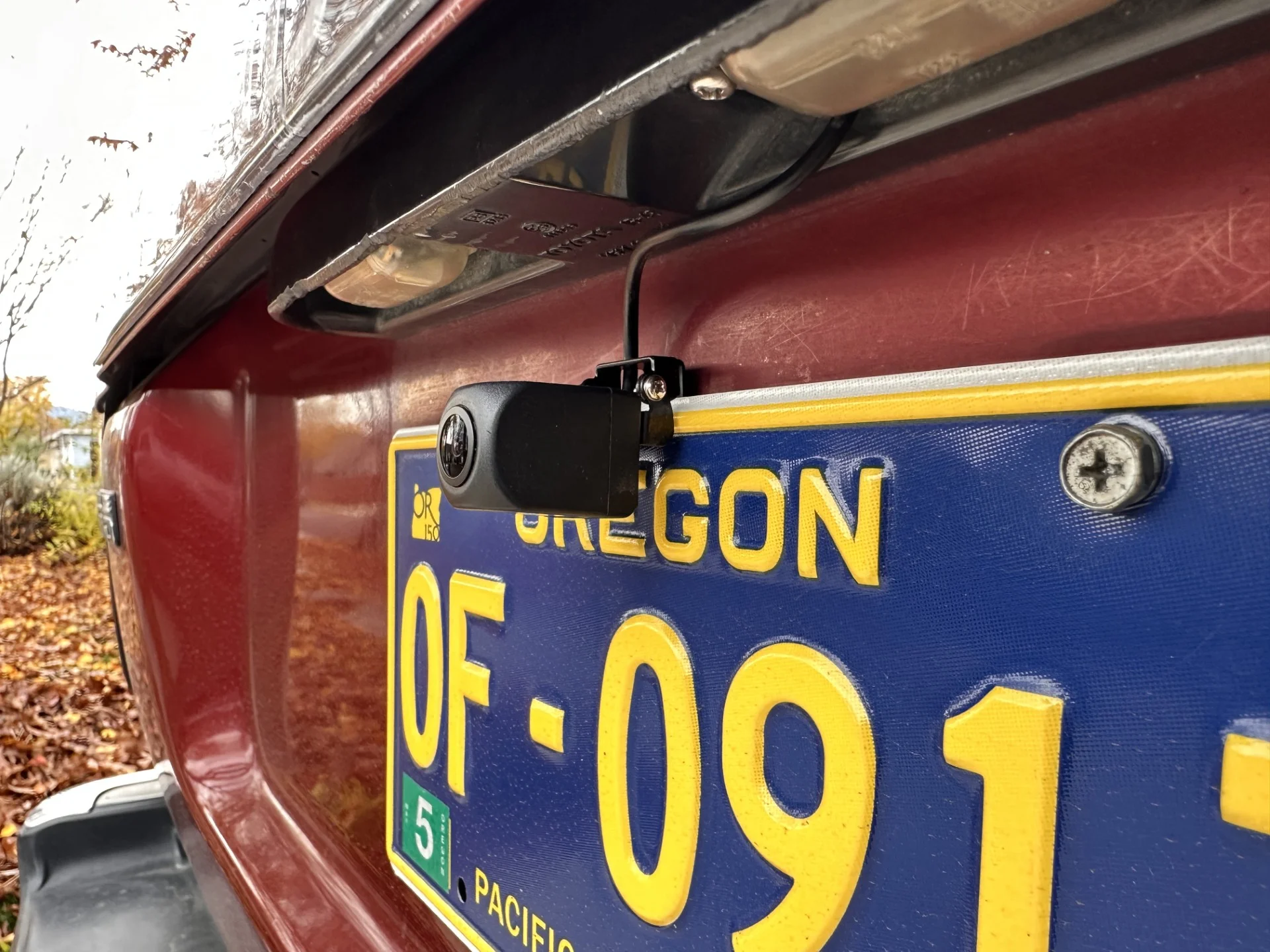

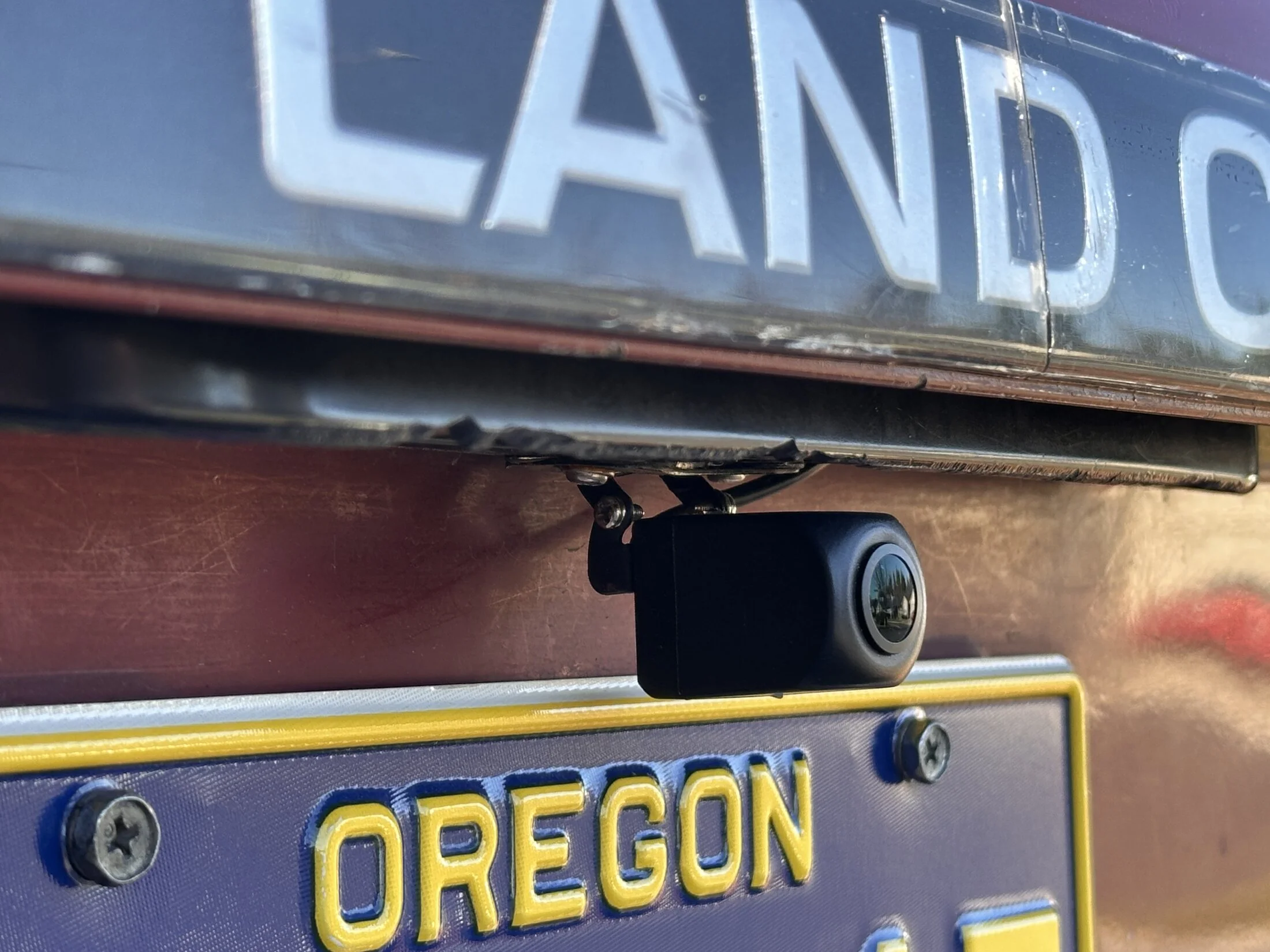

With the ambulance doors, there are a few different options I would suggest. The easiest option would be license plate mount that would be offset, but with the 140* viewing angle from the camera I would expect it to still provide solid visibility. If you are not going to do a dark tint you can mount the camera inside, and if it can be close enough to the glass wouldn't block the field of view. If you are going to do a bumper with tire carrier, that would be an other option using the spare tire mount.

The system is meant to be used full time to help with obstructed views, but absolutely can be turned off and utilized as a standard rearview mirror.

Since we did the post, we did come up with a kit specifically for the 60/62 that keeps a clean finish inside. (Also, huge thanks to @ThreeEyedBandit for bringing his 62 over for us to drool over and confirm fit!)

Rugged Overland LucentVue for 60/62



Also, feel free to give us a call! 541-450-9766
