LJ78 Door Control Relay Location

[RevngeSevnFold]

Hello Everyone,

I am trying to debug my cruiser's central locking, I checked every door all of them have the electronic locks but when I press the unlock button only the drivers side locks and unlocks. Does any of you guys/gals have an idea where the door control relay is located in this cruiser? Any help would be appreciated.



[GTSSportCoupe]

Take a look through here: '90-'92 70-Series Wiring Manual.pdf



[RevngeSevnFold]

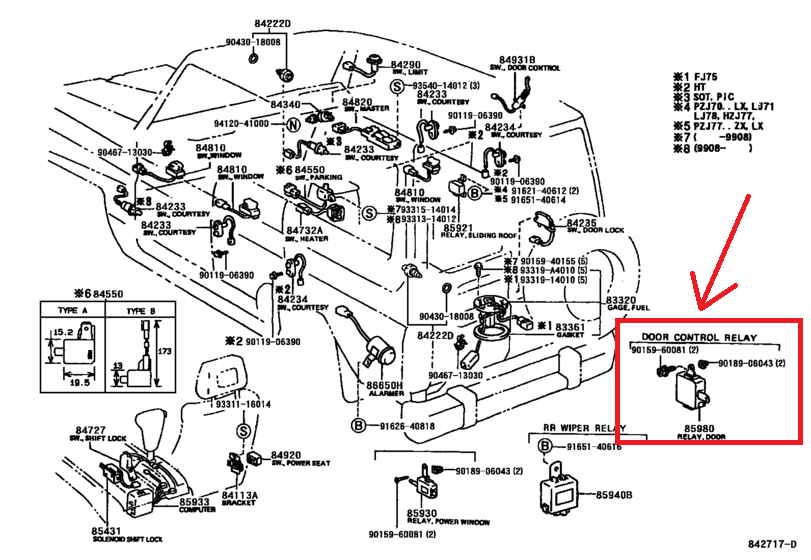

Thank you for the response! I have that exact pdf! But the picture with it in is really silly. Shows it being in the left rear window/right side door?? Not sure. I can check behind the rear left side interior panel, just wanted to check if anyone know the exact location so I don't waste time removing panels unnecessarily.



[Postoy]

The controller you are looking for is in the drivers door. I’ve had to replace this controller before.



[RevngeSevnFold]

The controller you are looking for is in the drivers door. I’ve had to replace this controller before.

Thank you very much sir! Now I can start troubleshooting why the central locking is not working on my other doors, I pray that that relay is not missing or something. Cause only the driver door mechanism is working electronically atm.



[RevngeSevnFold]

Ok, checked the wiring diagram again and driver door electric lock goes through the relay as well so it must be there, yay!
