exhaust manifold on the 1HZ turbo

[steve hall]

hi guys can any one tell me the correct way to put the rings on the exhaust manifold on the 1HZ turbo do the rings go on first of the o rings thanks



[1tontoy]

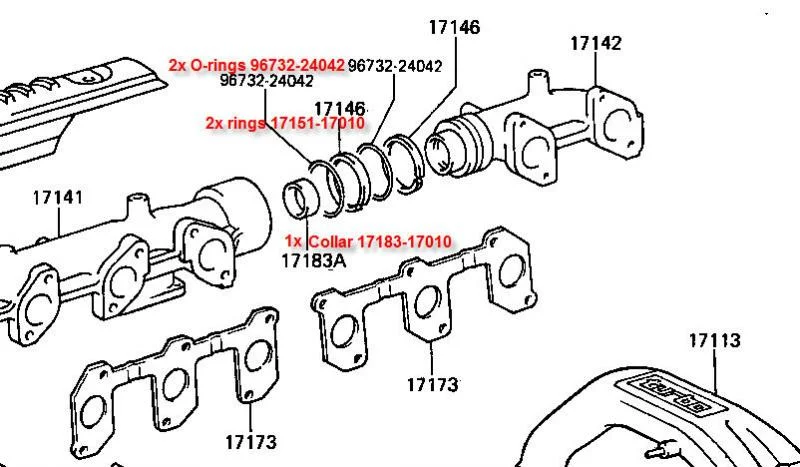

The O-rings go in the grooves, first.
Then, put the snap rings over the O-rings. The O-rings help to 'push or expand' out the snap rings.

Welcome to MUD!



[steve hall]

thanks 1tontoy I did it that way but still leaks do you reckon I should get a new collar as well thank s for the help
