ARCHIVE Engine Wire No. / #4 Sub. Harness 1/79-1/90 2F 3F / 3FE DIESELS too Oil Pressure sending unit rubber boot cover insulator ( Parts Superseded Update )

[ToyotaMatt]

. .
​

Its been 32+ years since the first Engine Wire NO.4 Assy. , Sub. Harness was PLANT A11 assembly line installed on a Land Cruiser engine ..

all 2F 3F Carb. & 3FE and DIESEL 's too , had a new idea approach detail little black rubber boot cover applied over there mechanical cluster meter type-gauge's Oil Pressure sending unit .

it had two purposes that i know of :

- engine and road related vibration dampening / insulator , much a vulcanized rubber motor mount achieves ..

- temperature fluctuation shifts insulator , both in extreme cold and extreme hot driving conditions ..

- it would be kool to find out one day if TOYOTA engineers at the time of its across the board introduction had other benefits of its use in-mind that remain un-known still ?

. .

.

​

.



[ToyotaMatt]

.

reserved tech video



[ToyotaMatt]

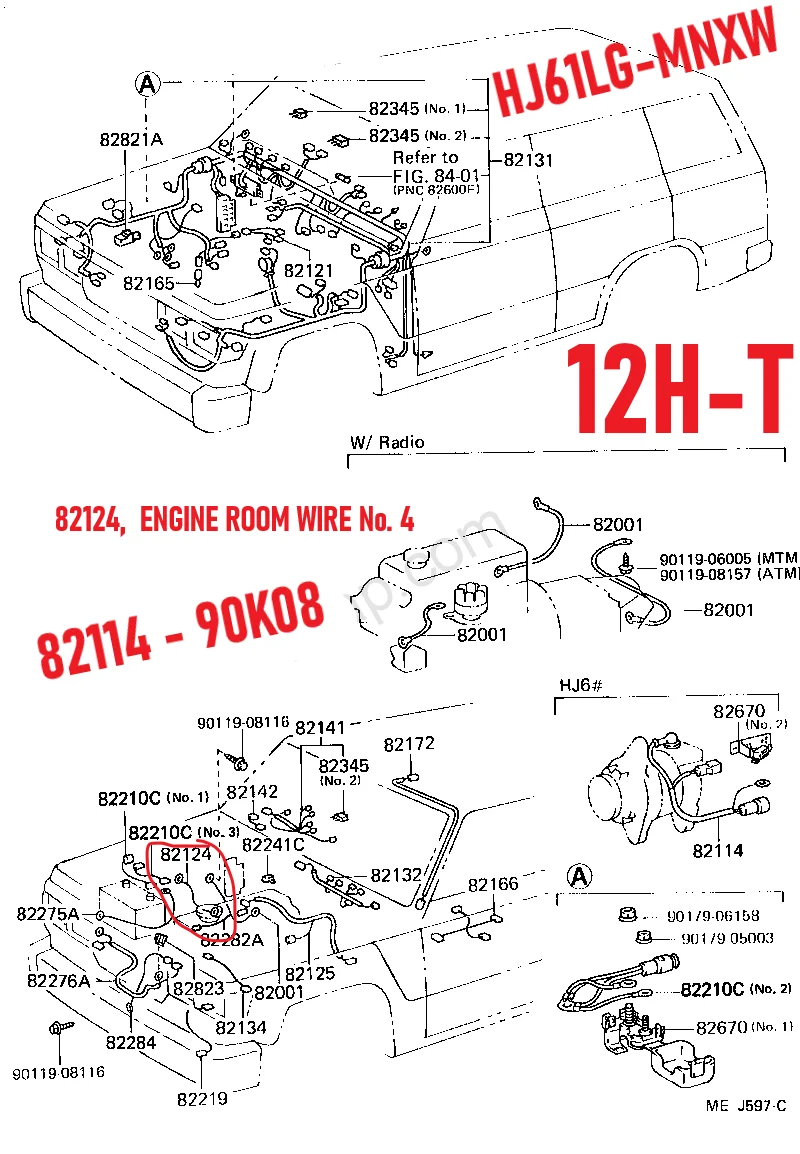

- PETROL & DIESEL Engine EPC . parts diagrams :

.



[ToyotaMatt]

.

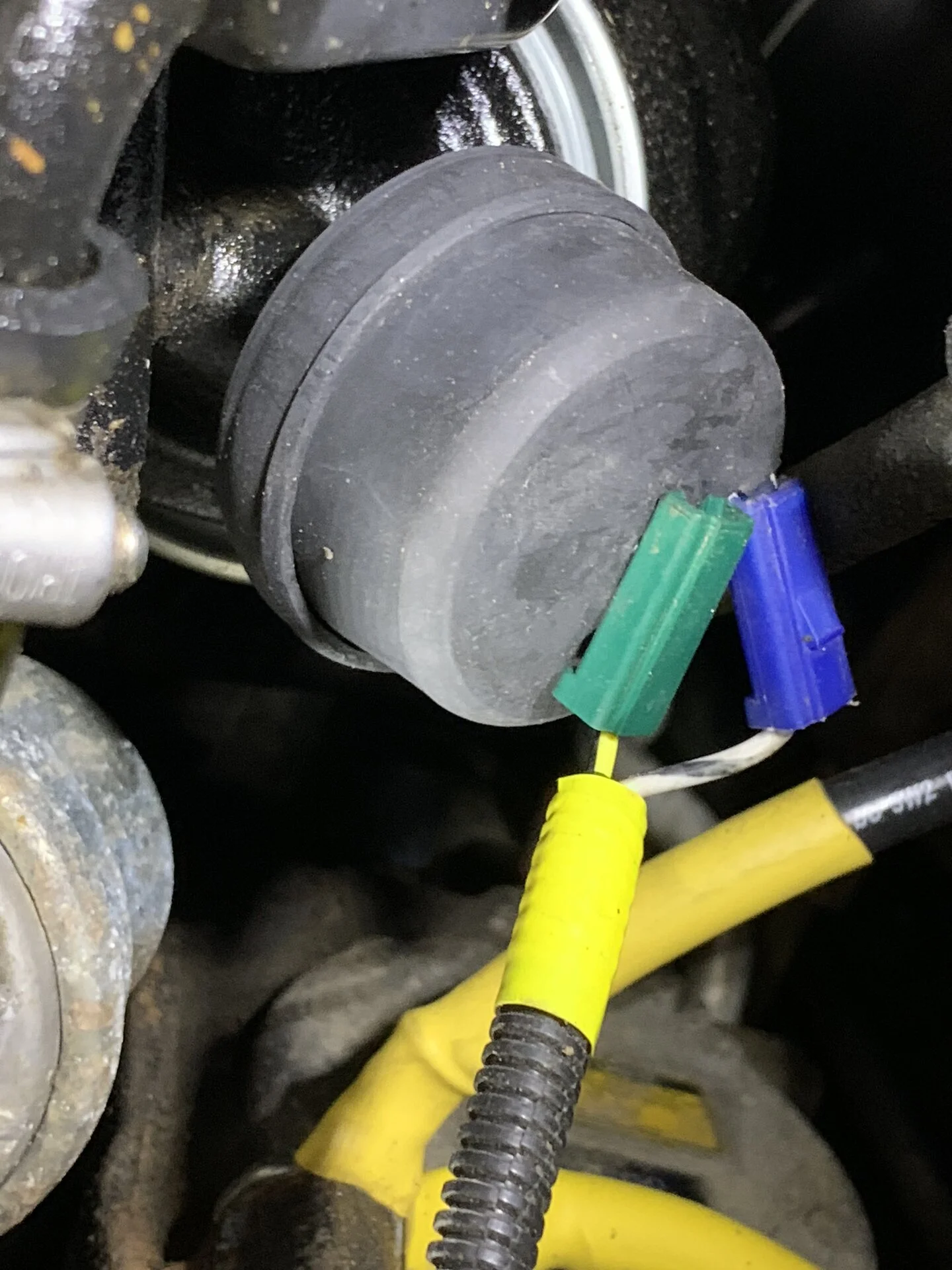

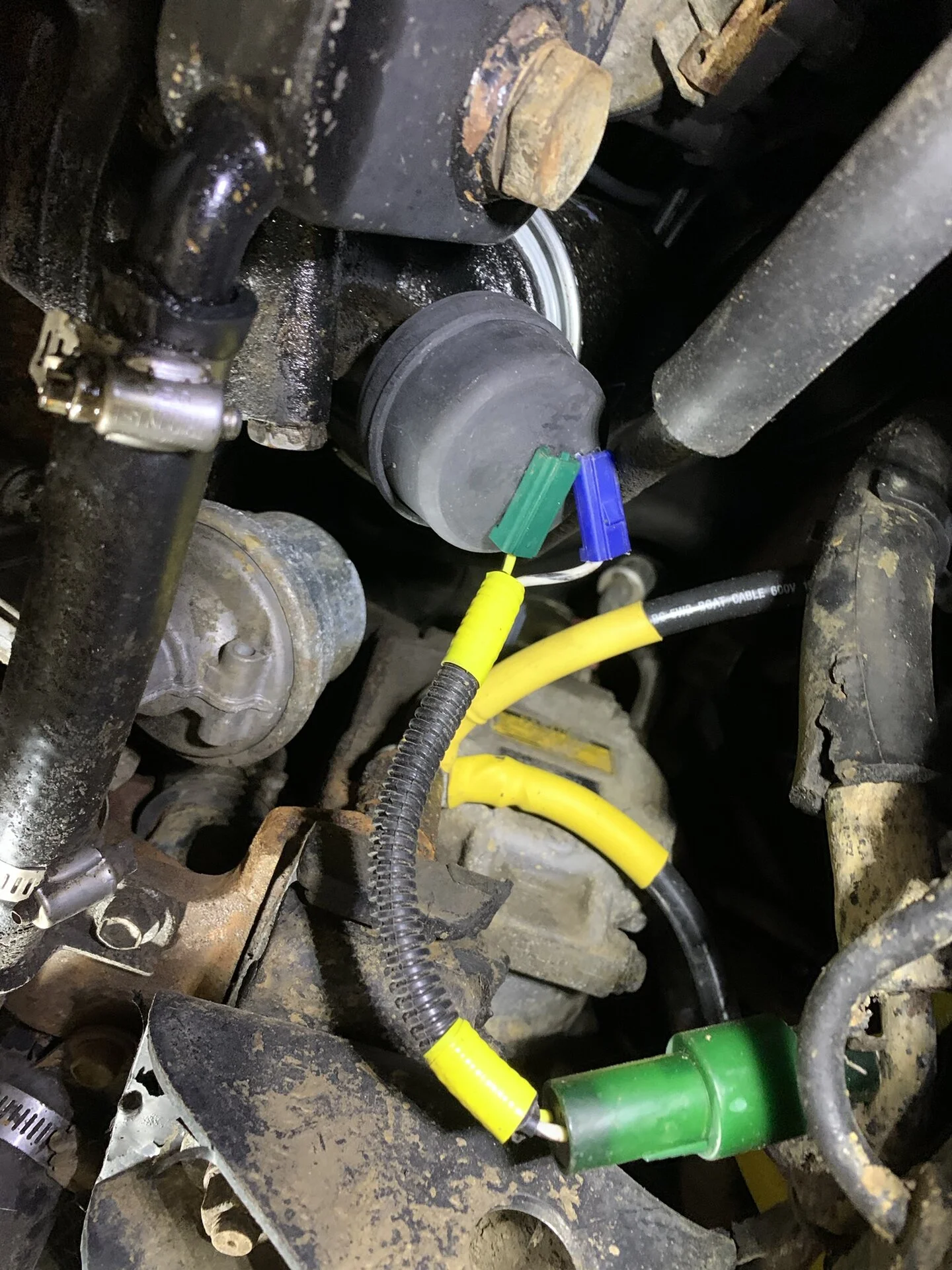

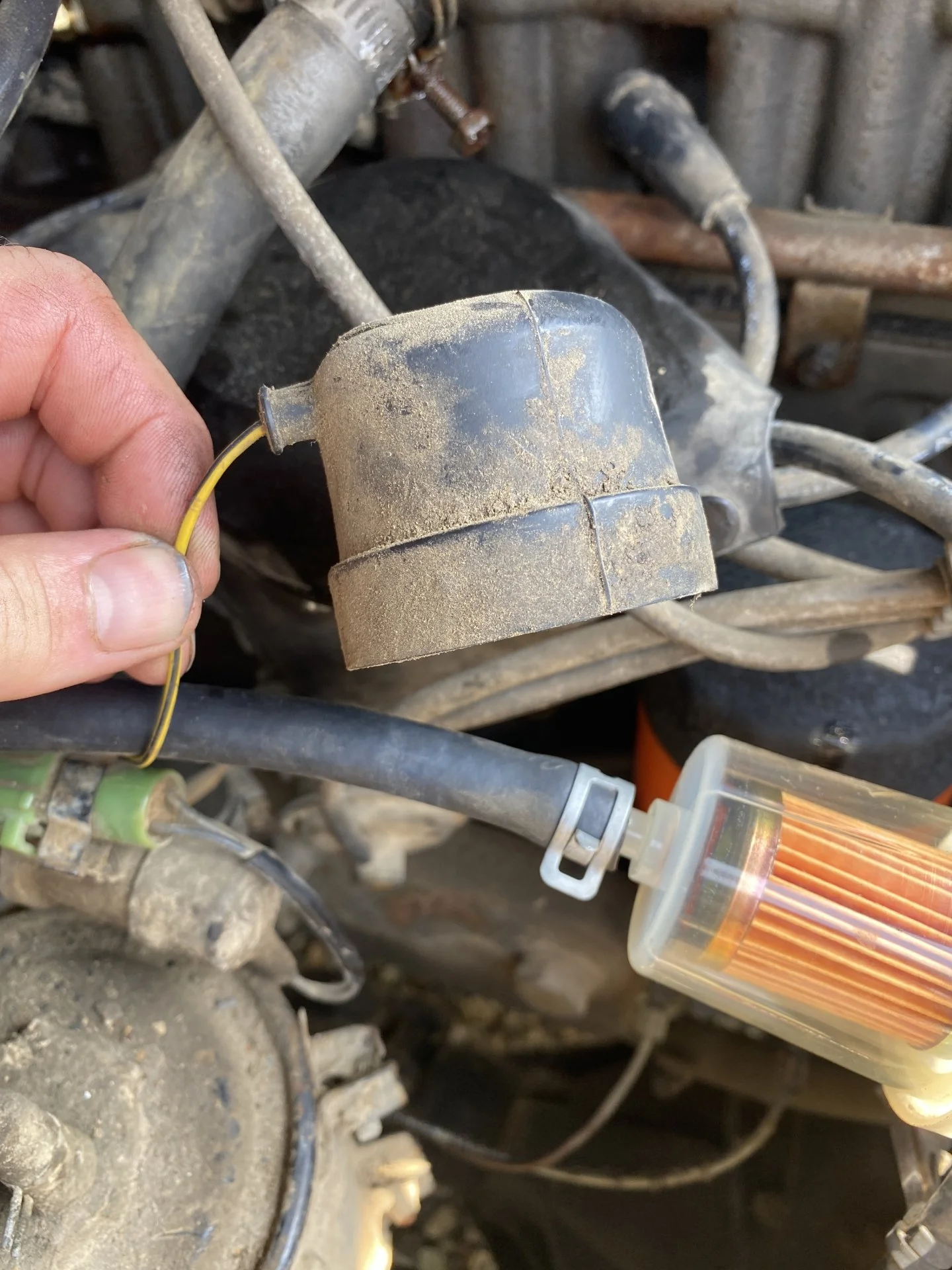

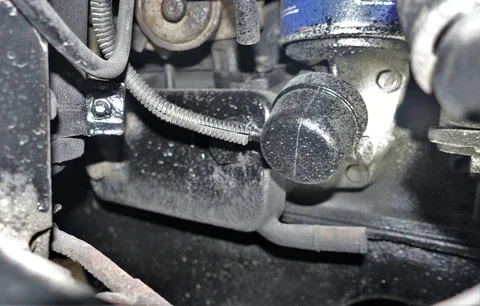

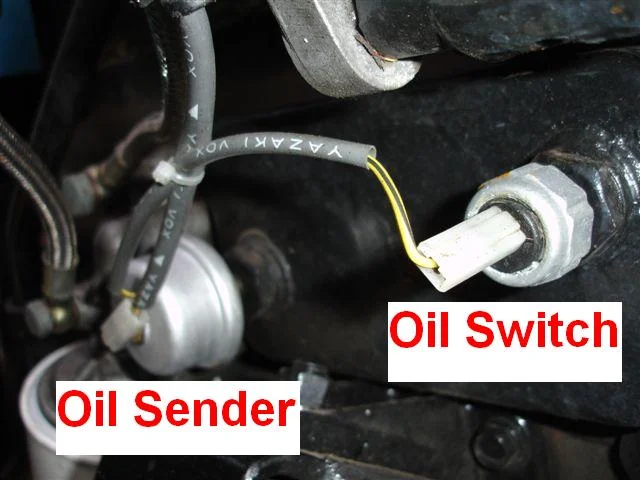

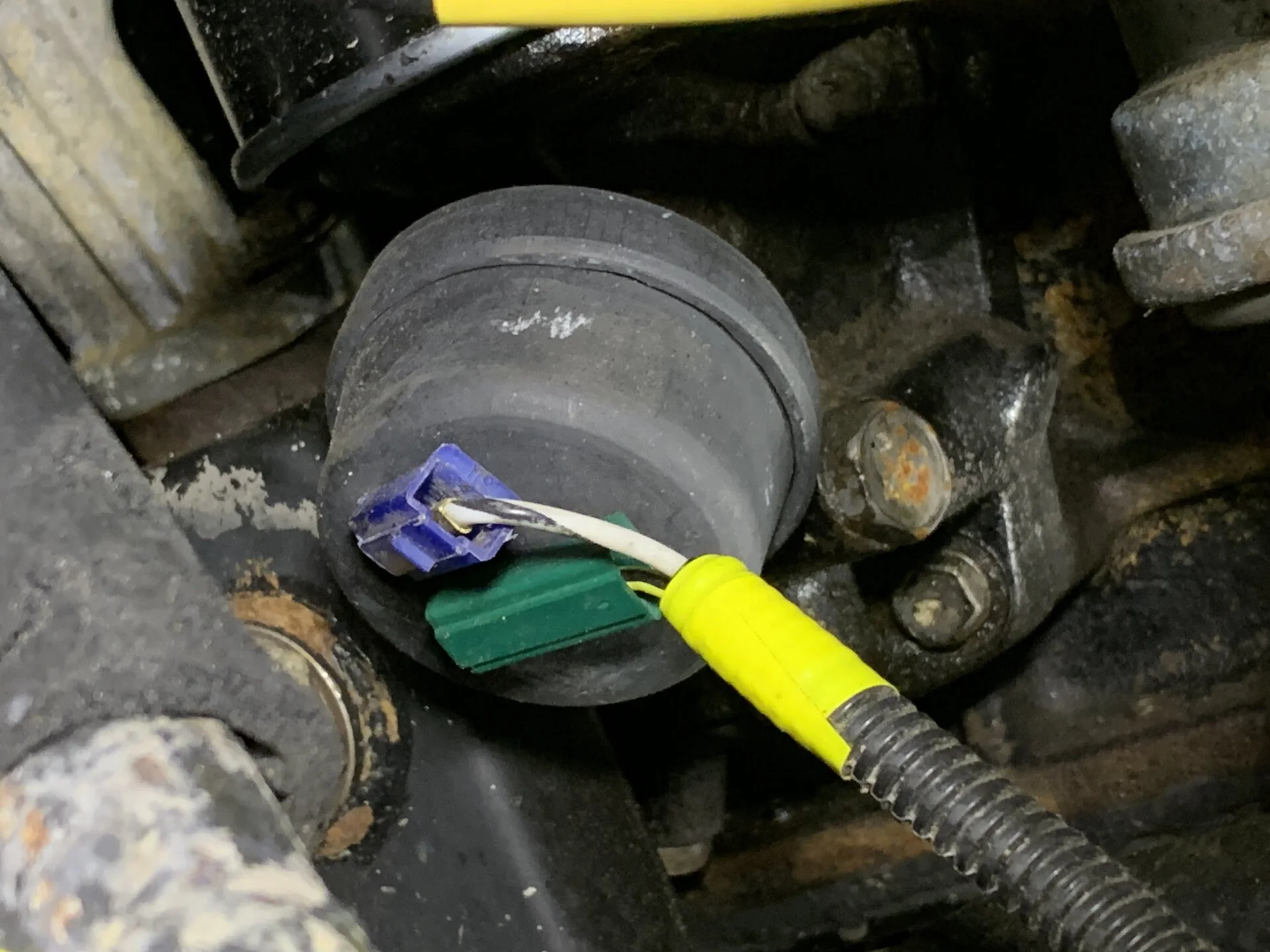

original factory installed-still tech. image examples :

- IF Anyone has this Black Rubber Insulator Boot Cover parts detail still installed on there Land Cruiser ' s Engine , or ANY other TOYOTA Engine , Please POST your Nice photos / pics below ,

- i would like to double-duty this TECH. thread in-particular , to be a Historical Archive for future , past and current Land Cruiser owner operators to relate to and refer to as they continue to evolve there Vintage TOYOTA Parts related needed skill sets Tech.

- after all ? knowledge is power , and everybody likes having a little more of that it seams ..

.

.

.


.

.



[ToyotaMatt]

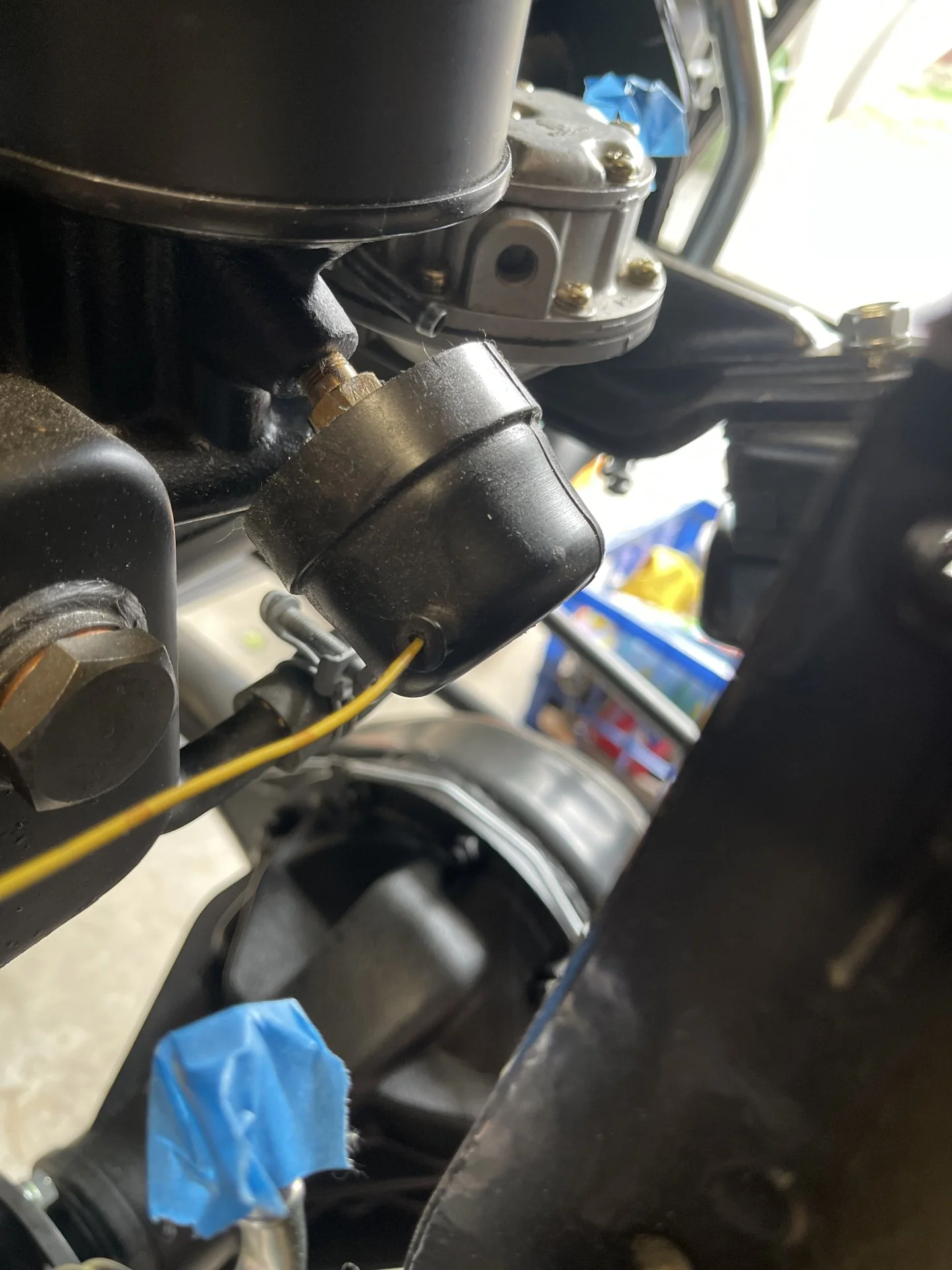

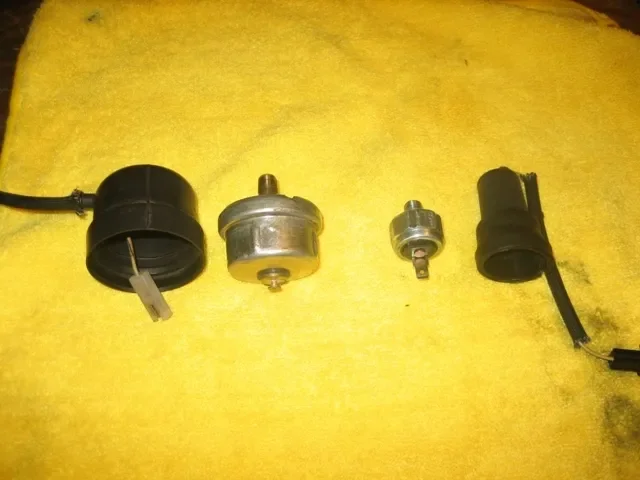

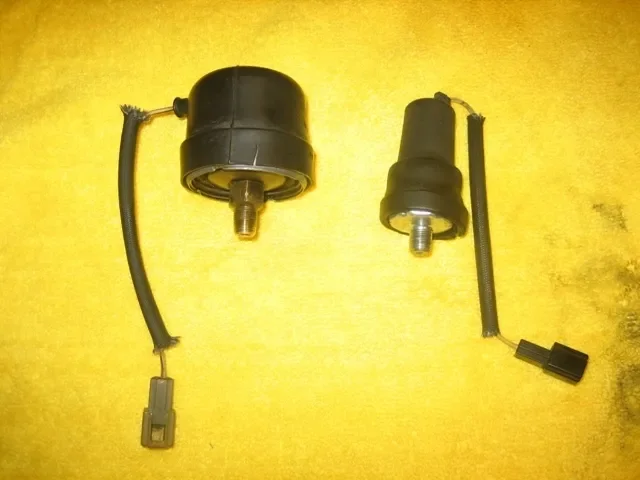

Reproduction stand alone examples , also then installed ..



[ToyotaMatt]

Update : Fresh young and tender arrival of Chemical Resistant and UV rated EPDM boot covers ...

i still have some in-stock and available now ...

thanks
matt



[cps432]

Dang it Matt, I’m gonna have to put in an other order… but let me double check all my other rubber booties in the engine bay… you have too many “must have need/wants/optional/highly suggested” available right now and I can’t fathom replacing one boot while the others wither and rot.



[ToyotaMatt]

Engine Wire no. 4 Parts superscession update :



[ToyotaMatt]

.

.



[ToyotaMatt]

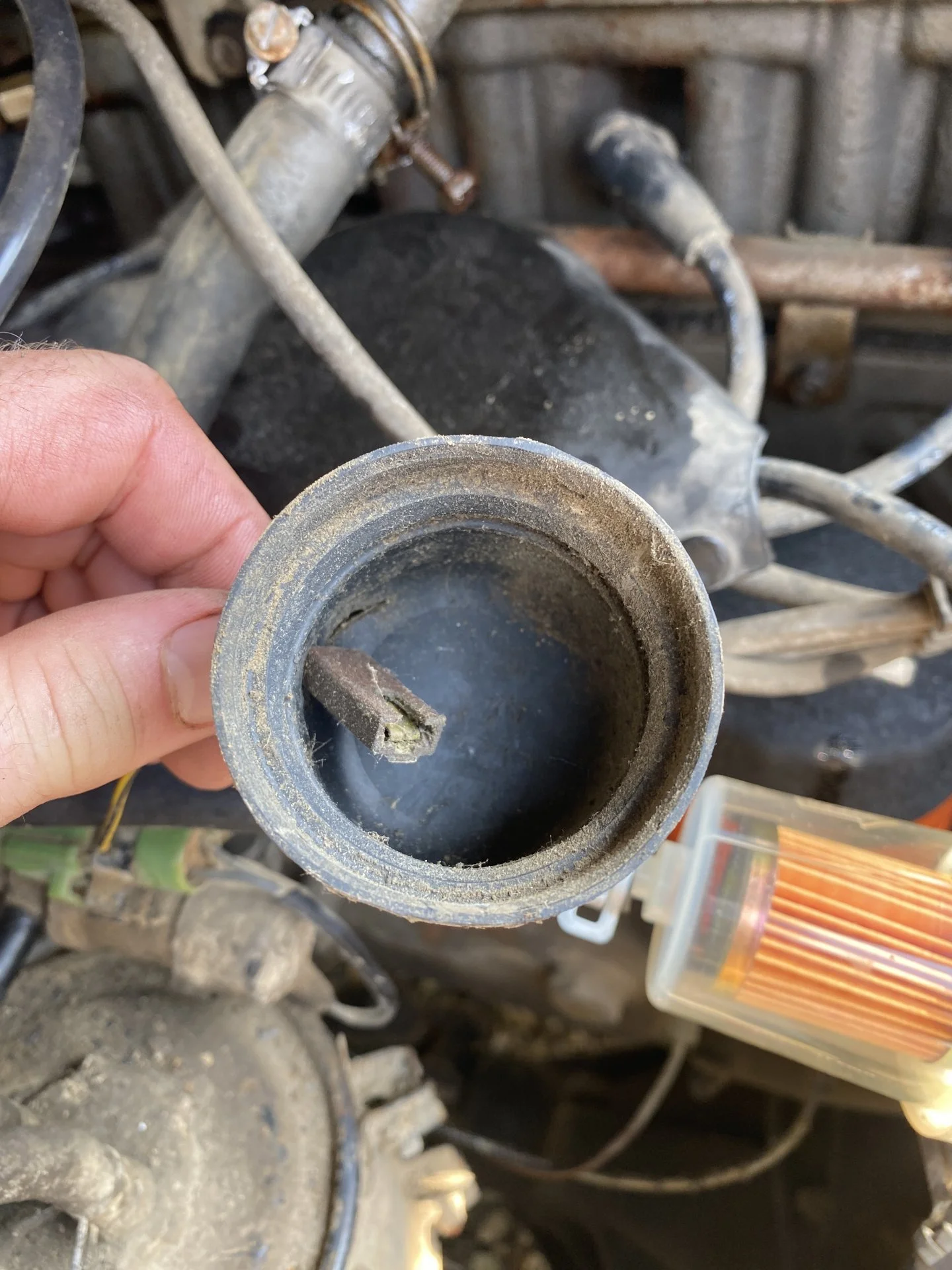

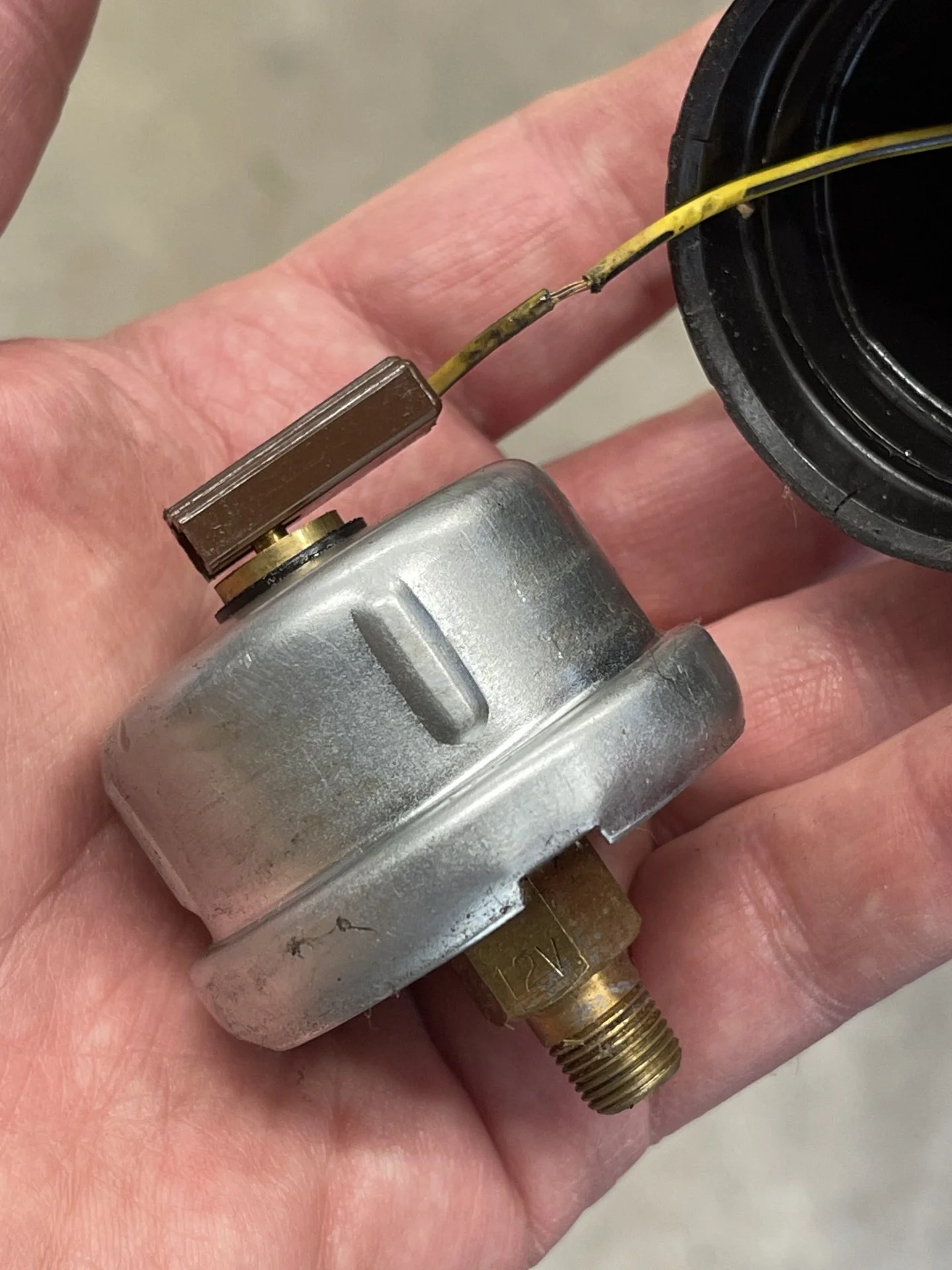

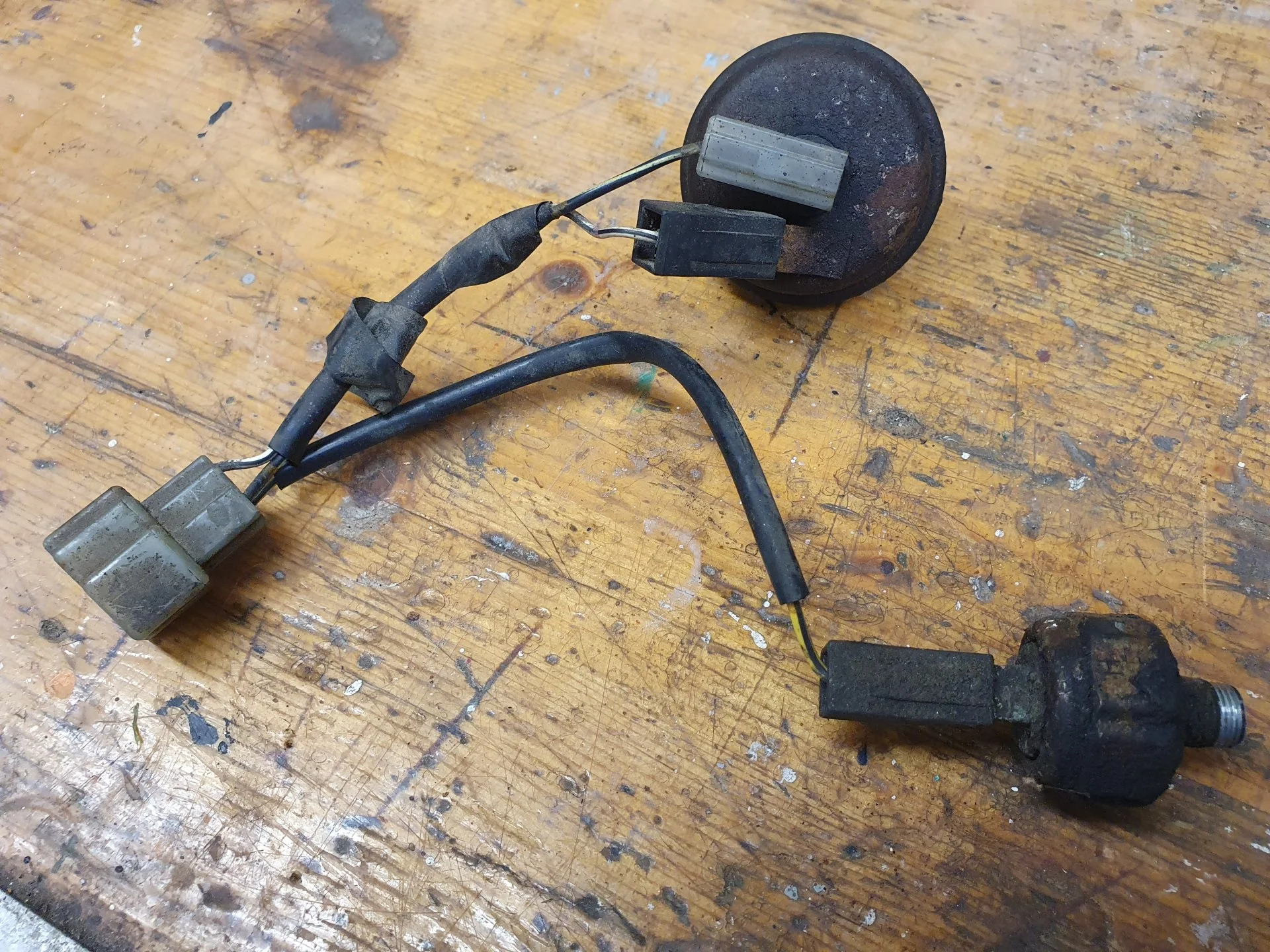

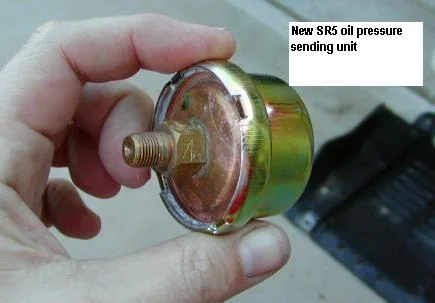

Original Examples :



[ToyotaMatt]

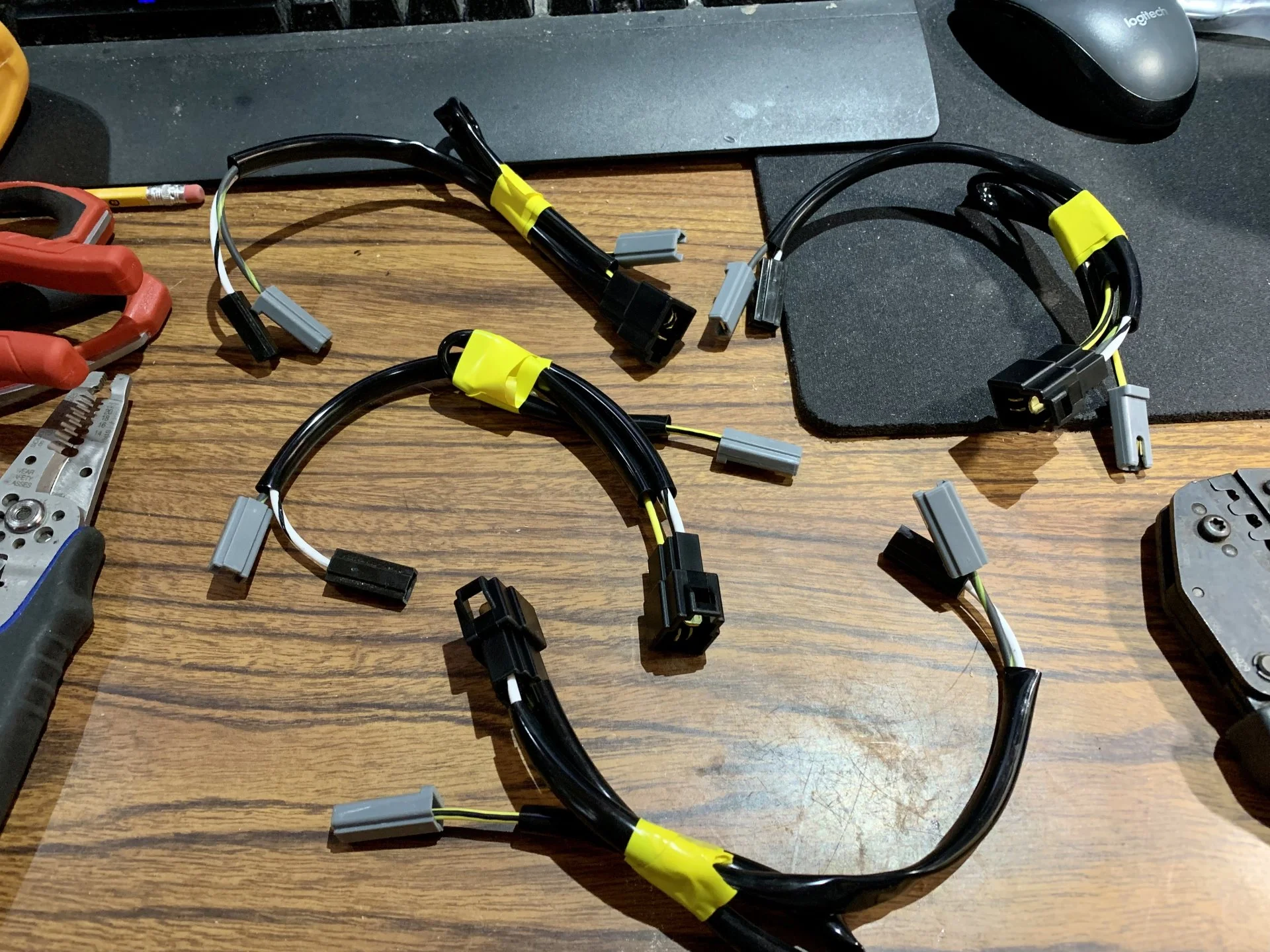

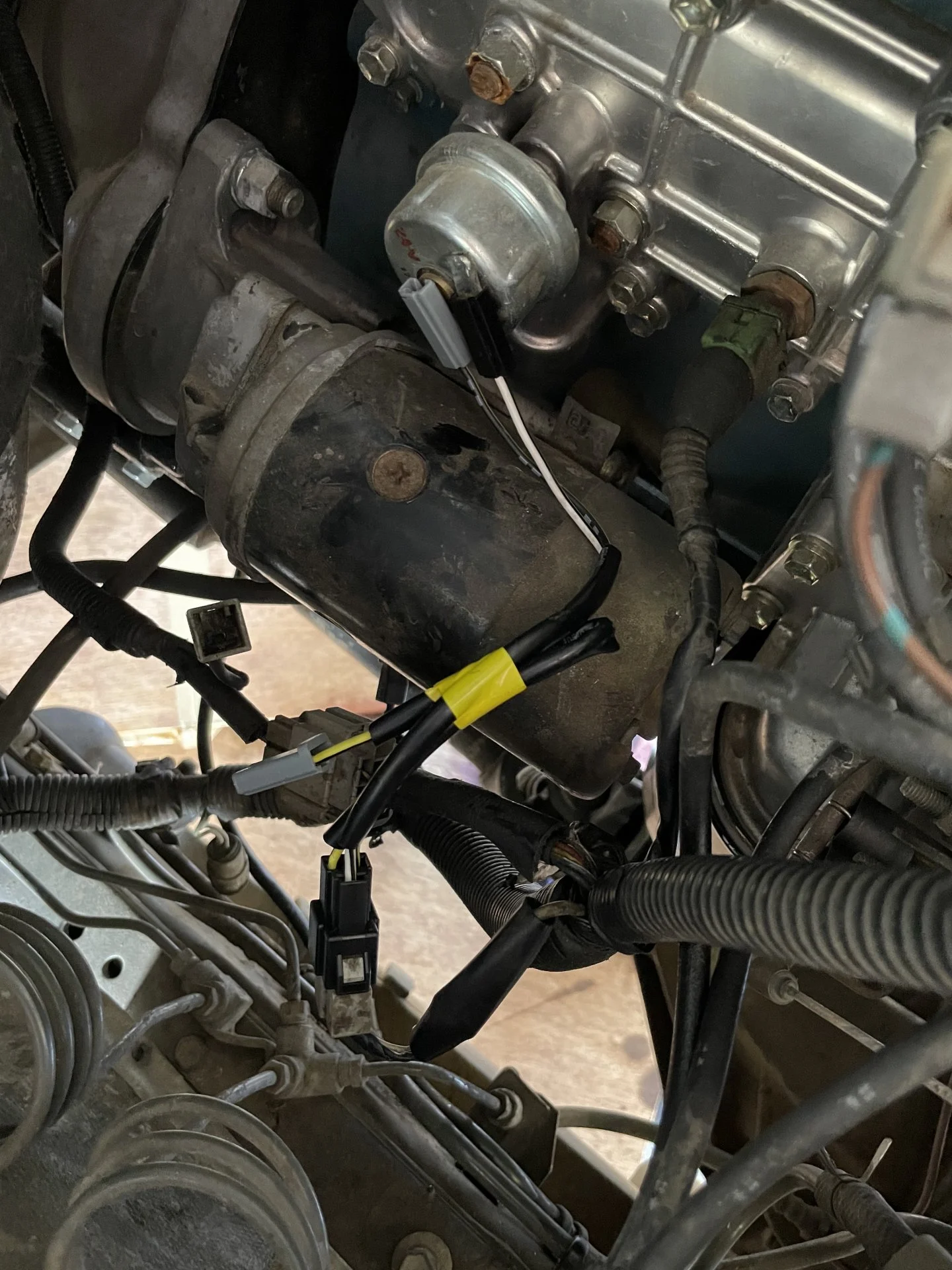

A new addition to the engine wire NO. # 4 is this rascal below for the
DIESEL 60 series folks …


.

.

.



[ToyotaMatt]

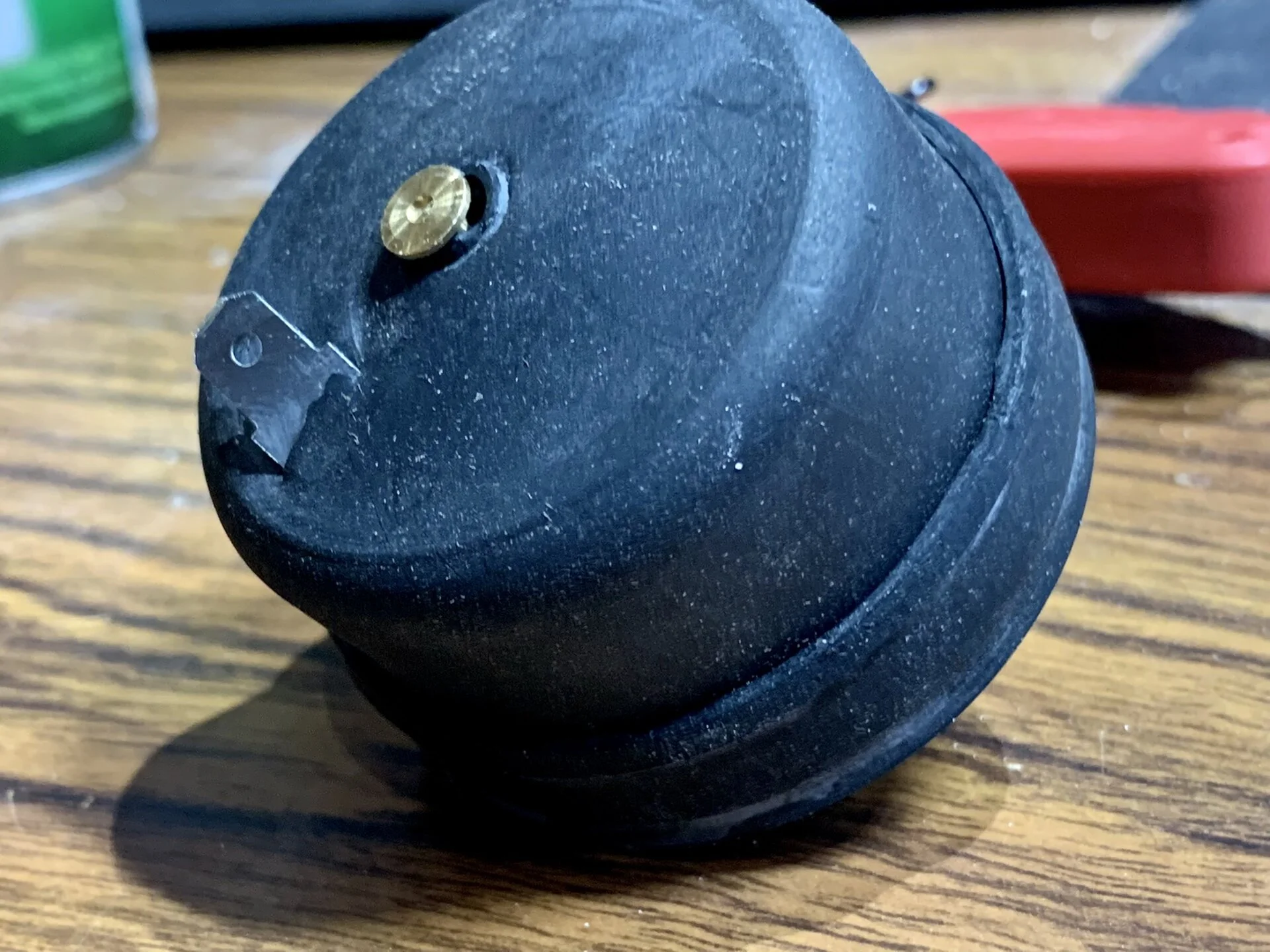

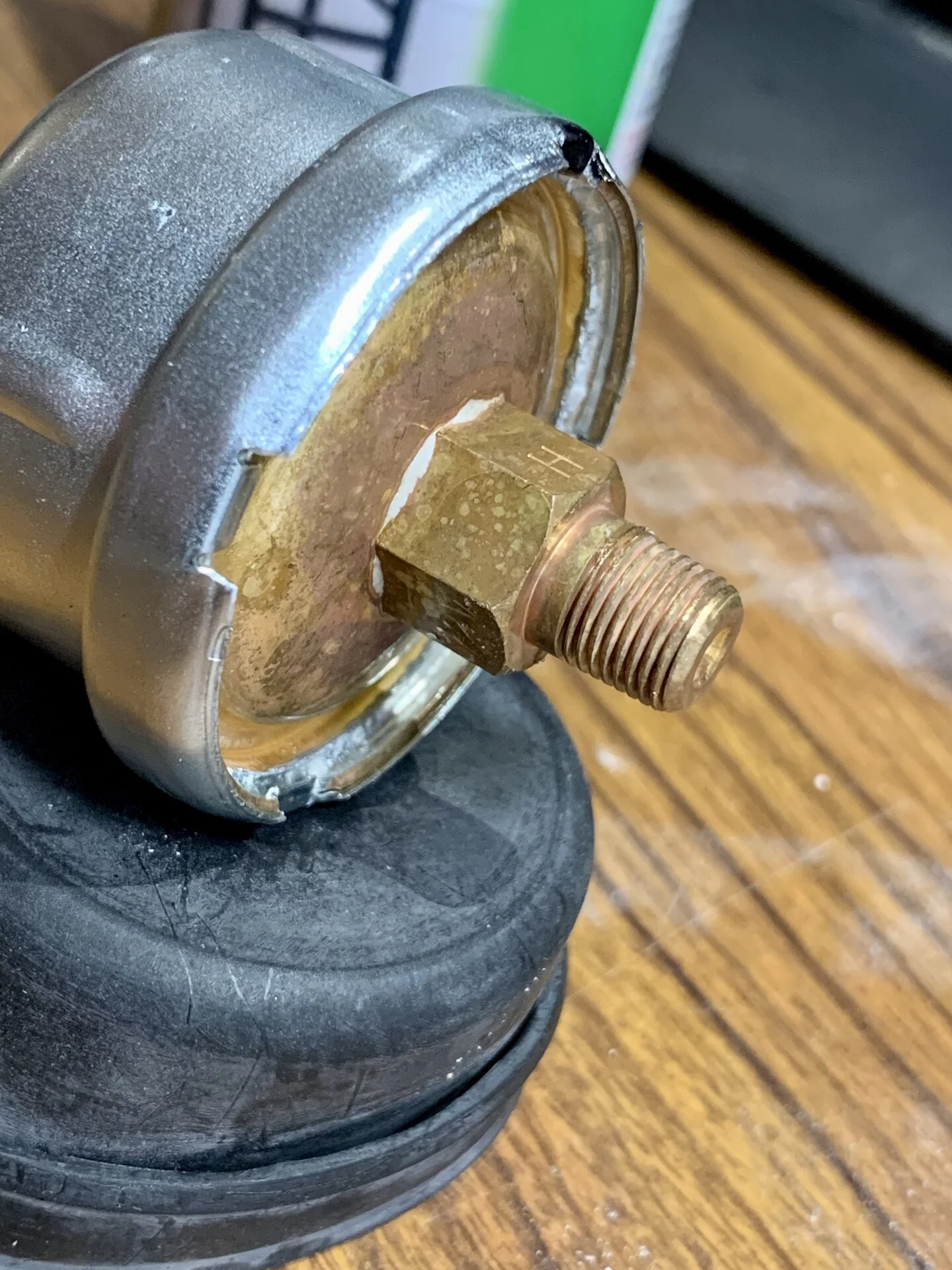

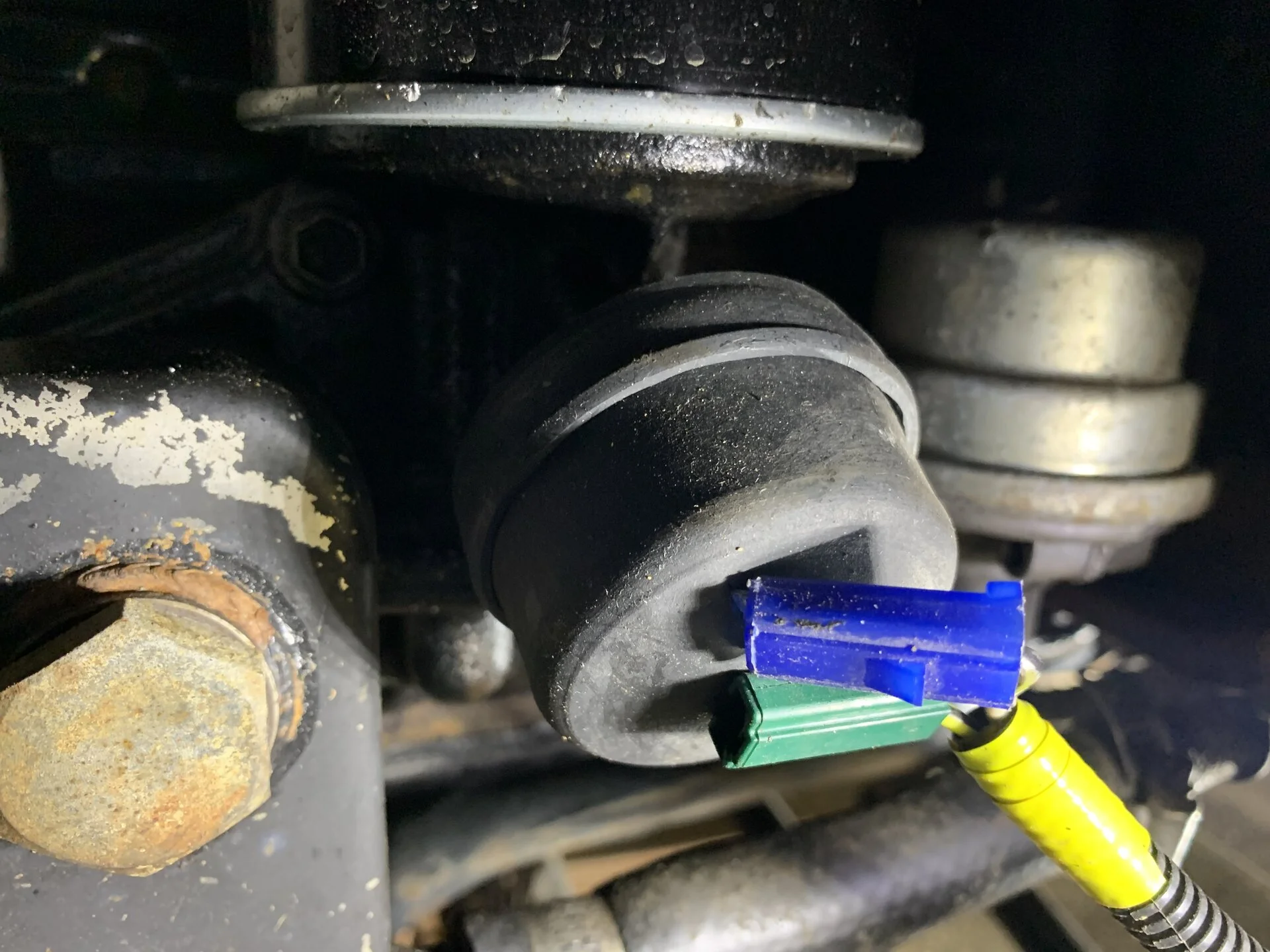

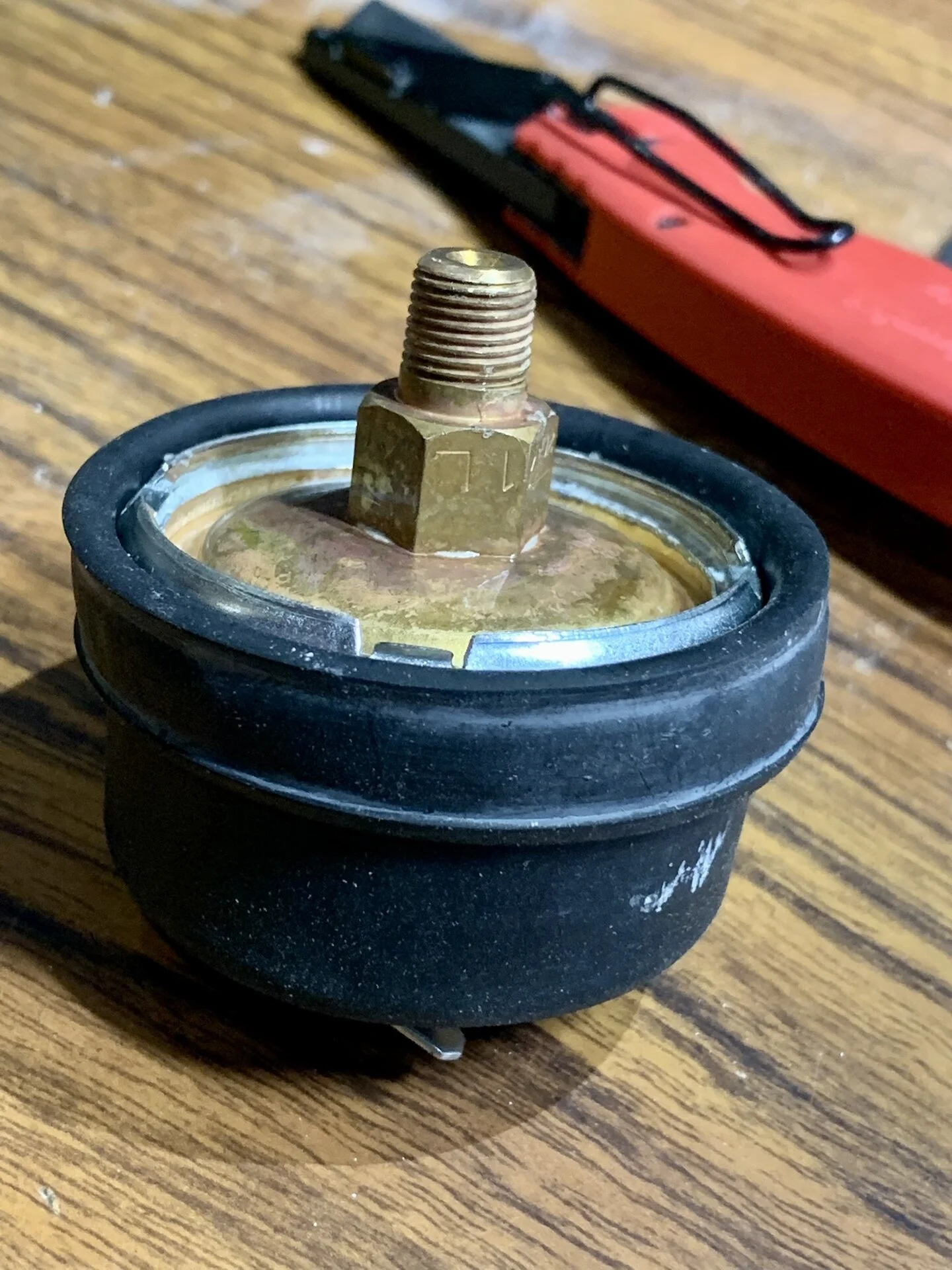

Here I outline the precision incision in the field to adapt to a updated OEM TOYOTA oil sender switch that has the 2 grounding tab :

EAZY PEEZY

Measure 3 times , exact-o knife 1 time ….done A+
