cluster wiring diagram

[ferociousfish]

hey guys, about to install new gauges and wondering if anyone has a wiring diagram for the main round connector on the cluster. Just want to know what each wire is for going into the connector. Had a search but couldn't find anything.
Cheers



[Poser]

BEEN HERE? <---- this is a link



[ferociousfish]

Yep, tried there too. I've seen one on here before but I'm obviously not using the correct words for the search function. All I need to know is what wire does what to the round circular connector on a 77 cruiser.
cheers



[lone gunman]

is this the pic your after ? its from this post

https://forum.ih8mud.com/40-55-seri...ven-mechanical-gauges-into-stock-cluster.html

hope this helps, i cant really think of another.



[lostmarbles]

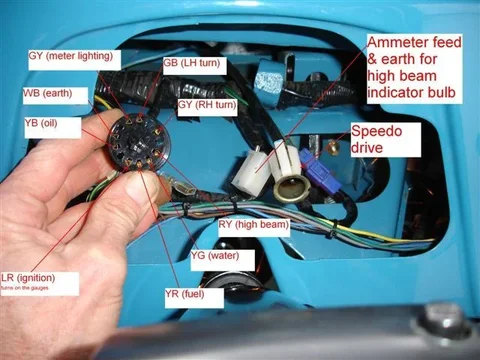

Here's my 1979 BJ40. Hope this helps.......



[lone gunman]

i forgot about that one lostmarbels and that was a good one!



[Poser]

Gosh, just like the schematic says...



[ferociousfish]

Thanks guys. Just what I was looking for! Don't know which schematic was the correct one Poser but couldn't find it anywhere. Trust me I looked. Alls good on the end though! Cheers all!
