The most advanced driving lights we have ever created are here. Introducing ARB Intensity IQ – the smart driving light that does it all.
Times have changed and access to new technology is ever-increasing. The ARB Intensity IQ was developed from the ground up, with performance front of mind, while delivering a design that complements modern vehicle styling and front bumper design. Packed with unique-smart features, the Intensity IQ sets a new level of driving light design and usability.

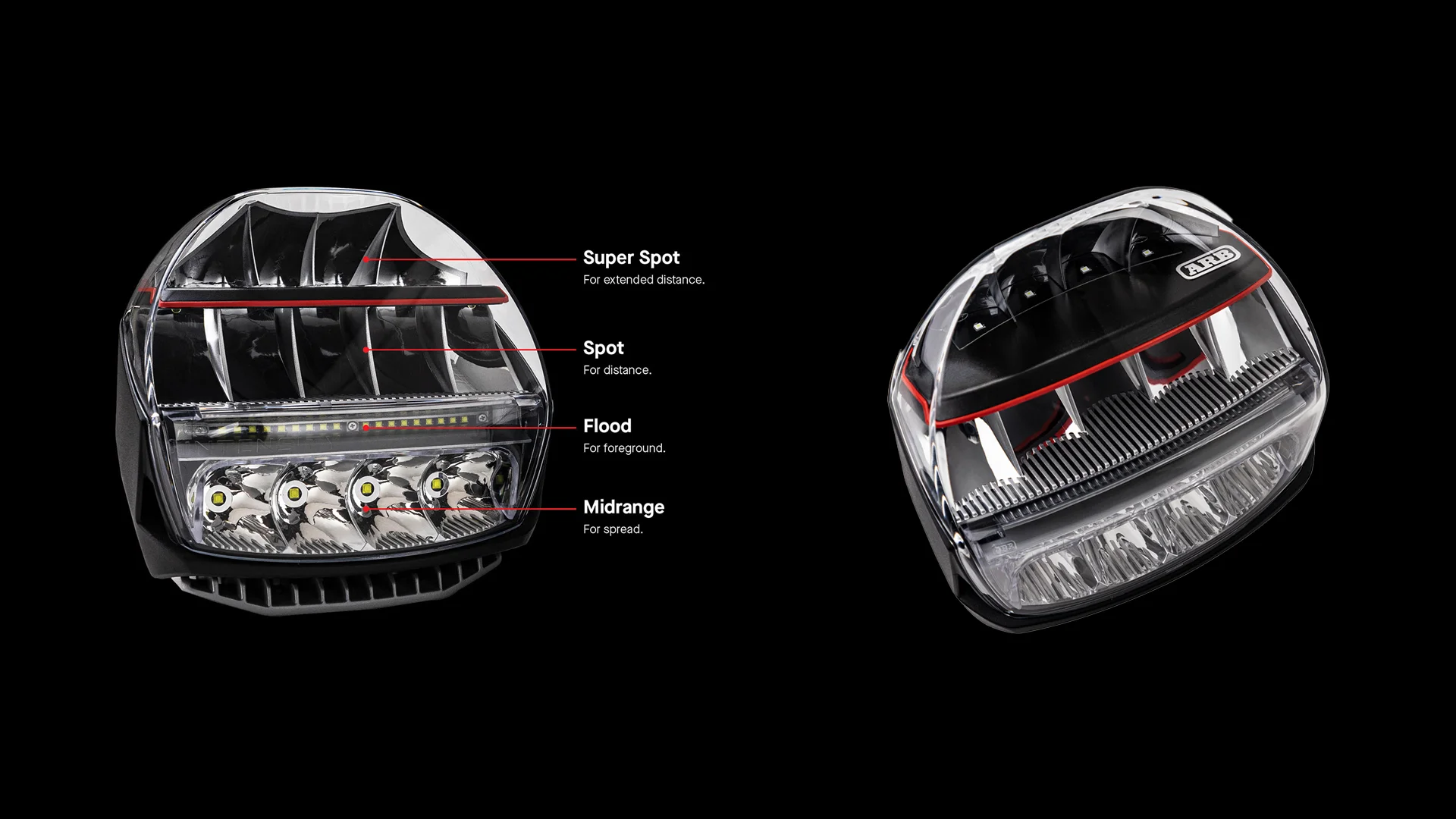

THE FOUR-OPTIC DESIGN
A unique four-optic design (Super Spot, Spot, Flood, and Midrange) is employed to provide virtually an unlimited choice of light beams to suit any road condition.
- The Super Spot and Spot optics, based on free-form reflector technology, produce an even spot beam for extended distance illumination.
- The Flood optic has a specially designed lens to maximize the light spread for excellent foreground visibility.
- The Midrange optic employs a conventional parabolic reflector to illuminate the midrange area.
- The beam pattern of each of the two lights can be independently adjusted so you could run, for example, one focused on spot and one focused on flood.

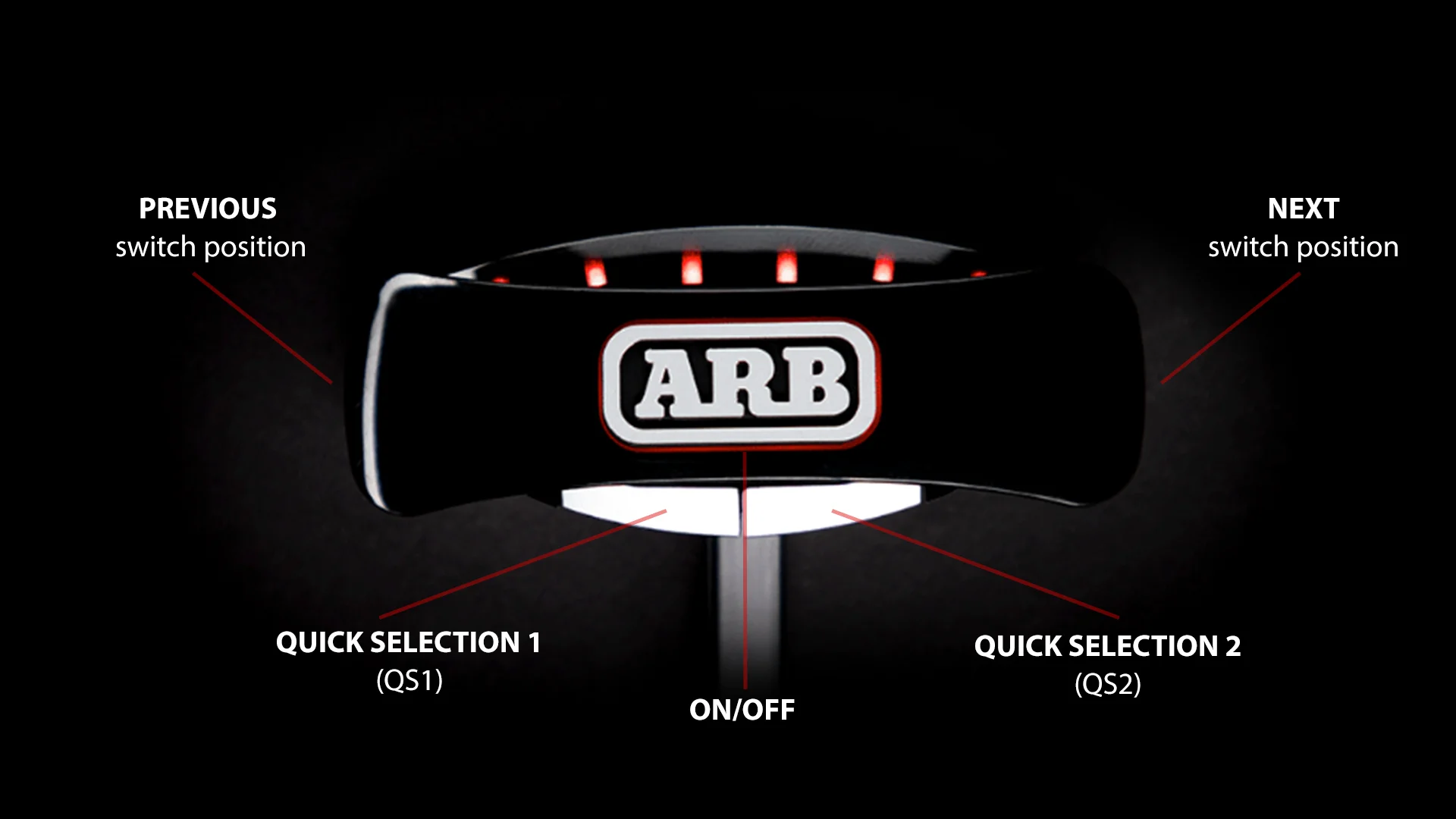

CUSTOMIZABLE ONBOARD SWITCH
A physical switch controller that is equally as intuitive accompanies the revolutionary Intensity IQ lights. Access up to eight different preset configurations at the click of a button, instantly changing the Intensity IQ lights to suit your needs. The Intensity IQ controller sports a design that is both ergonomic and practical, with users being able to feel and adjust rather than relying on seeing the device itself.
ARB INTENSITY IQ APP
Whether you plan to utilize the lights on-road or off-road, finding the right balance of lighting when can be challenging. ARB has taken this into account when designing the ARB Intensity IQ app. The user-friendly application allows users to control and set thousands of different light combinations from their mobile device. The on-board switch is also fully customizable via the ARB Intensity IQ app.

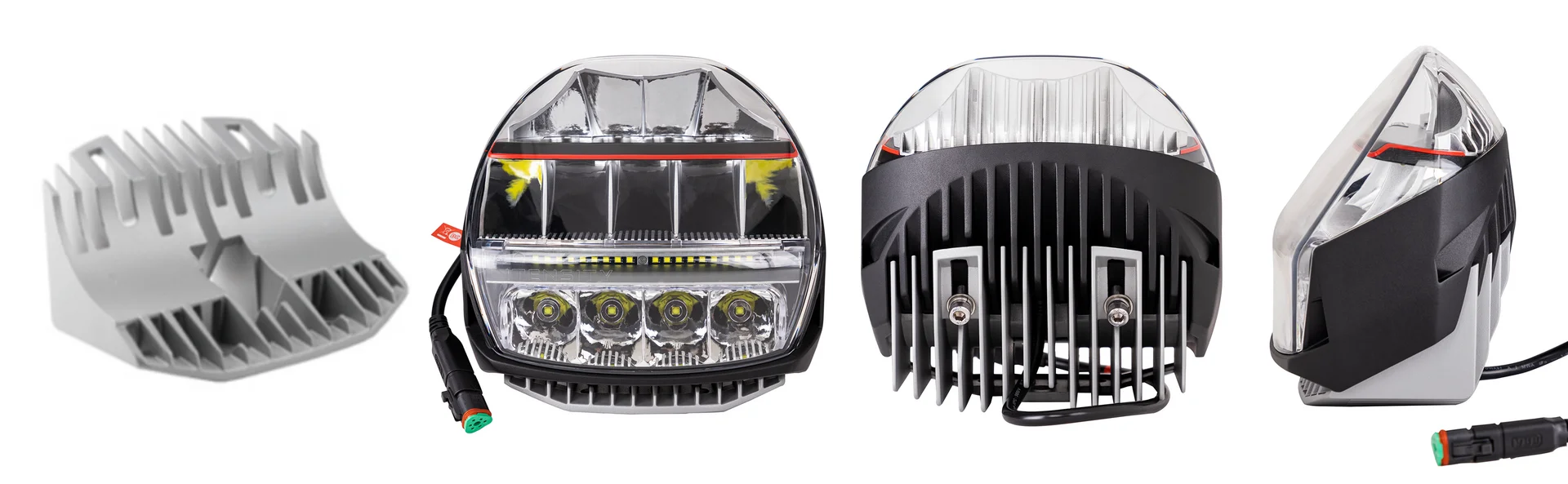

INNOVATIVE MOUNTING BRACKET
Intelligent thermal management maximizes light output in all driving conditions and provides outstanding LED life expectancy. Cooling is maximized via the die cast aluminum body which acts as a massive heat sink. An innovative, sleek new mounting bracket design not only allows adjustment of light beam angle, but also provides additional mass and surface for cooling.
OTHER KEY DETAILS
- Light fade in/out preventing flash blindness
- Adjustable light intensity and light beams
- Courtesy light function
- Work light function
- Emergency light function
- Sold as a complete kit (2X IQ lights, wiring harness, switch, and control module
SPECIFICATIONS & TECHNICAL DATA
- LED Configuration
- Super Spot: 4 x Cree XP-P LEDs
- Spot: 2 x Cree XM-L3 & 3 x XP-p LEDs
- Flood: 18 x Cree XT-E LEDs
- Midrange: 4 x Cree XM-L3 LEDs

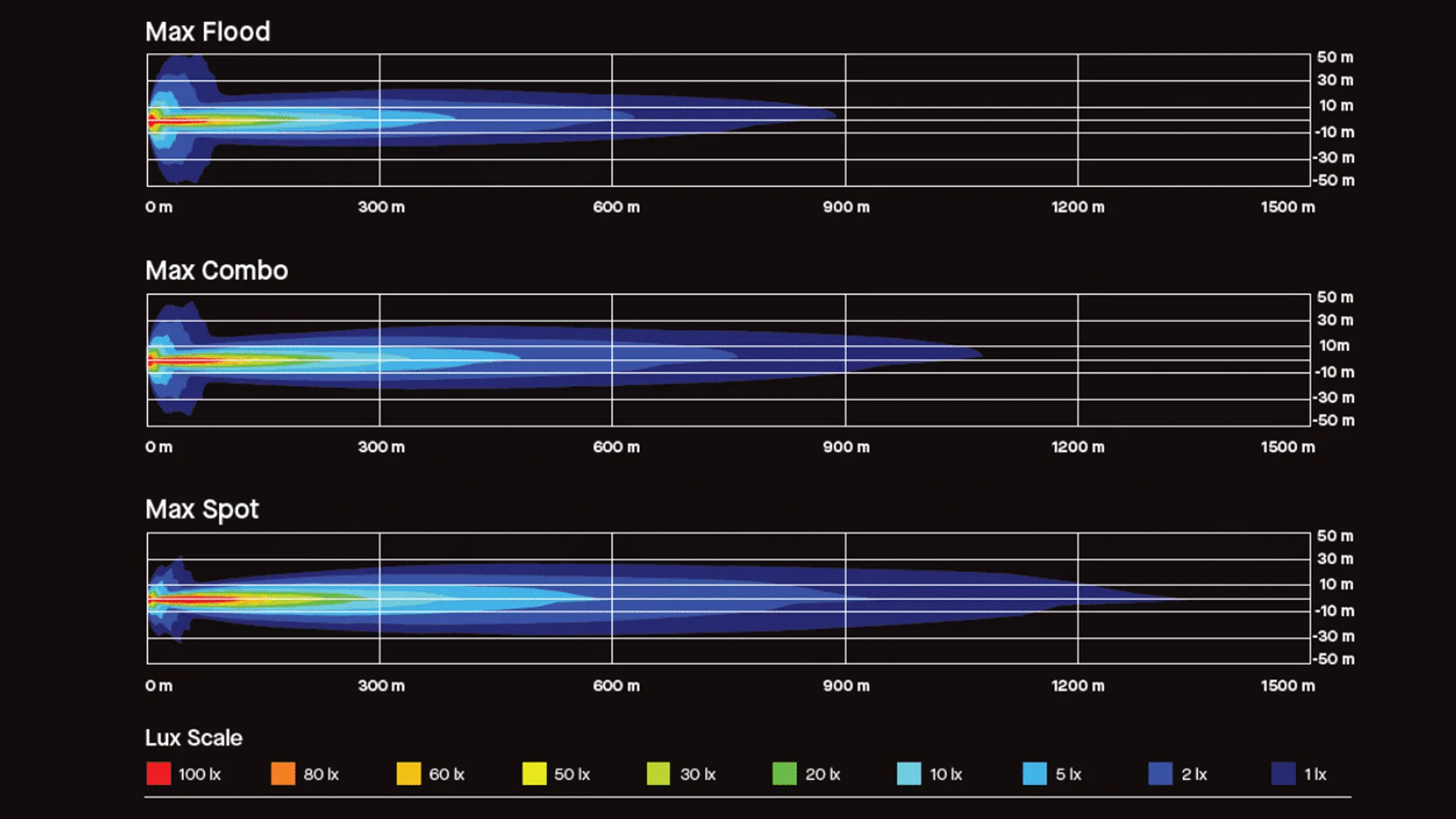

- Raw Lumens
- Max Spot 7,070 Lumens
- Max Flood 14,060 Lumens
- Effective Lumens
- Max Spot 6,613 Lumens
- Max Flood 6,666 Lumens
- Max Combo 6,265 Lumens
- Color Temperature
- 5700-6200K
- Operating Temperature
- -40°F to +176°F
