97 Supercharged FZJ80 bypass coolant pipe leak

[FredZ]

Hello folks
Recently I discovered a small coolant leak at the bypass pipe nipple. I am not too thrilled to remove the supercharger if I can help it. Has anyone experienced a removal of bypass pipe without messing with s/c? Is that a possibility?

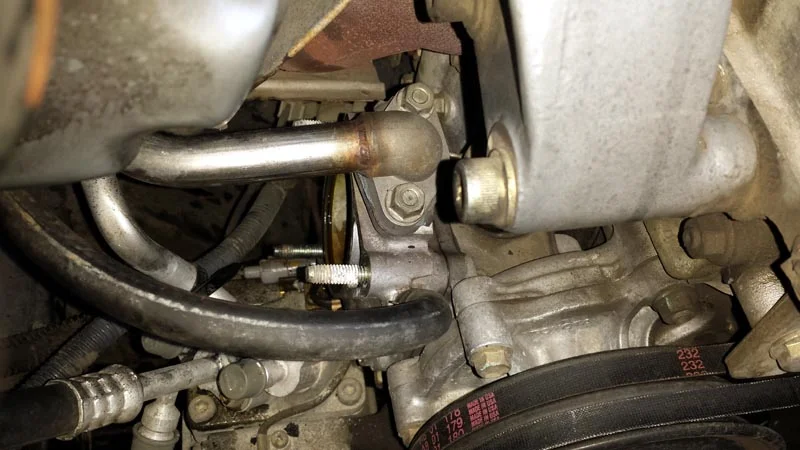

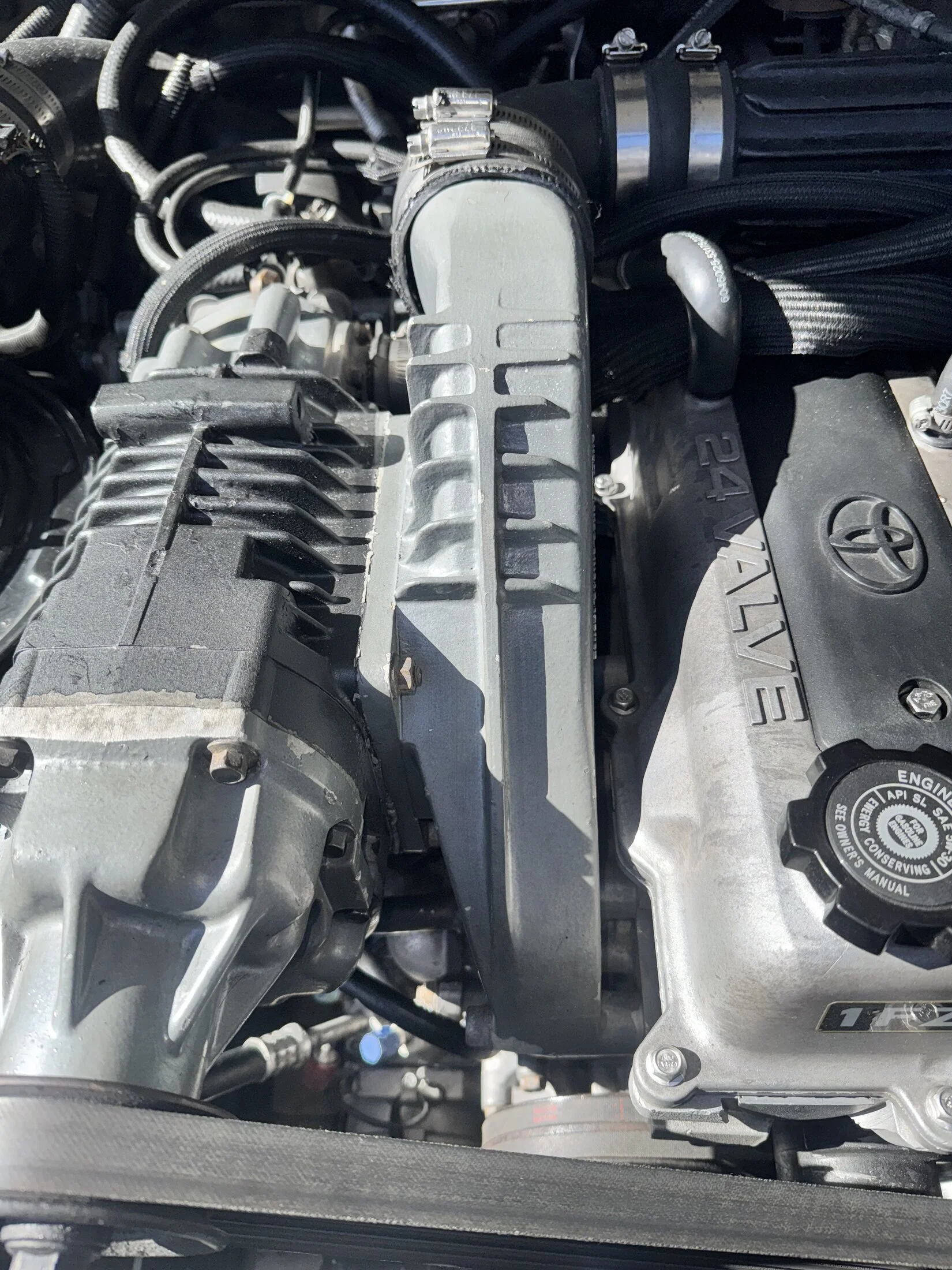

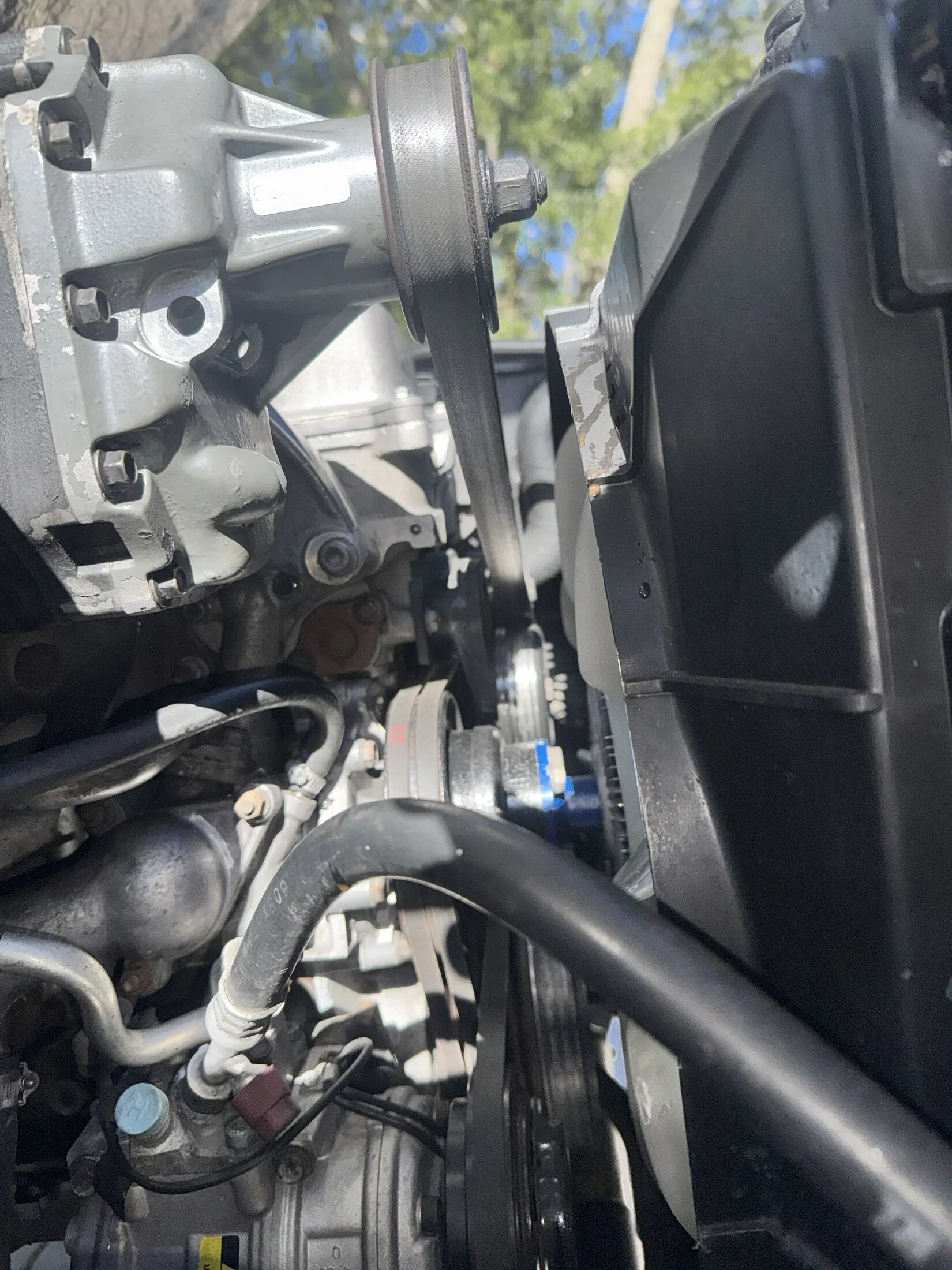

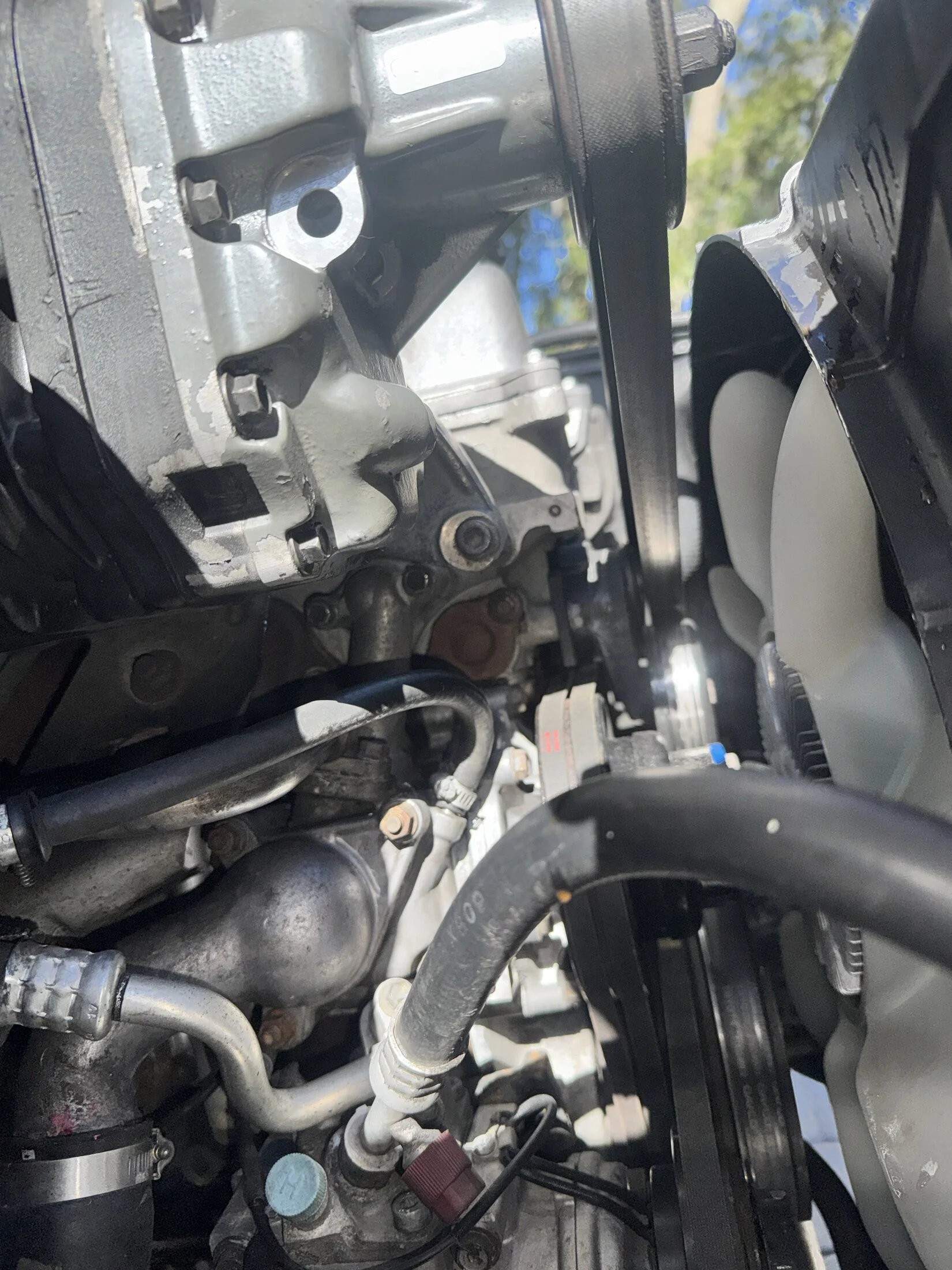

The space appears to be very tight to get back bolt of the bypass pipe. See attached pics

As always, Thanks for all help



[george_tlc]

Yep, easy to remove. Had to replace a stuck open thermostat on my '97 SC a bunch of years ago. You can get to everything necessary without touching the s/c.

At most you need to go through your tool assortment to find what's needed to get into the space that's available.

cheers,
george.



[FredZ]

Thanks for the quick reply. Appreciated
I can see removal of thermostat be easier but I was wondering about the bypass pipe that attaches to the side of engine block hidden be the supercharger.



[george_tlc]

Can you put an arrow on where the leak actually is located? Can't see any leak in your pics (or I'm blind as a bat)...

cheers,
george.



[FredZ]

Hi George

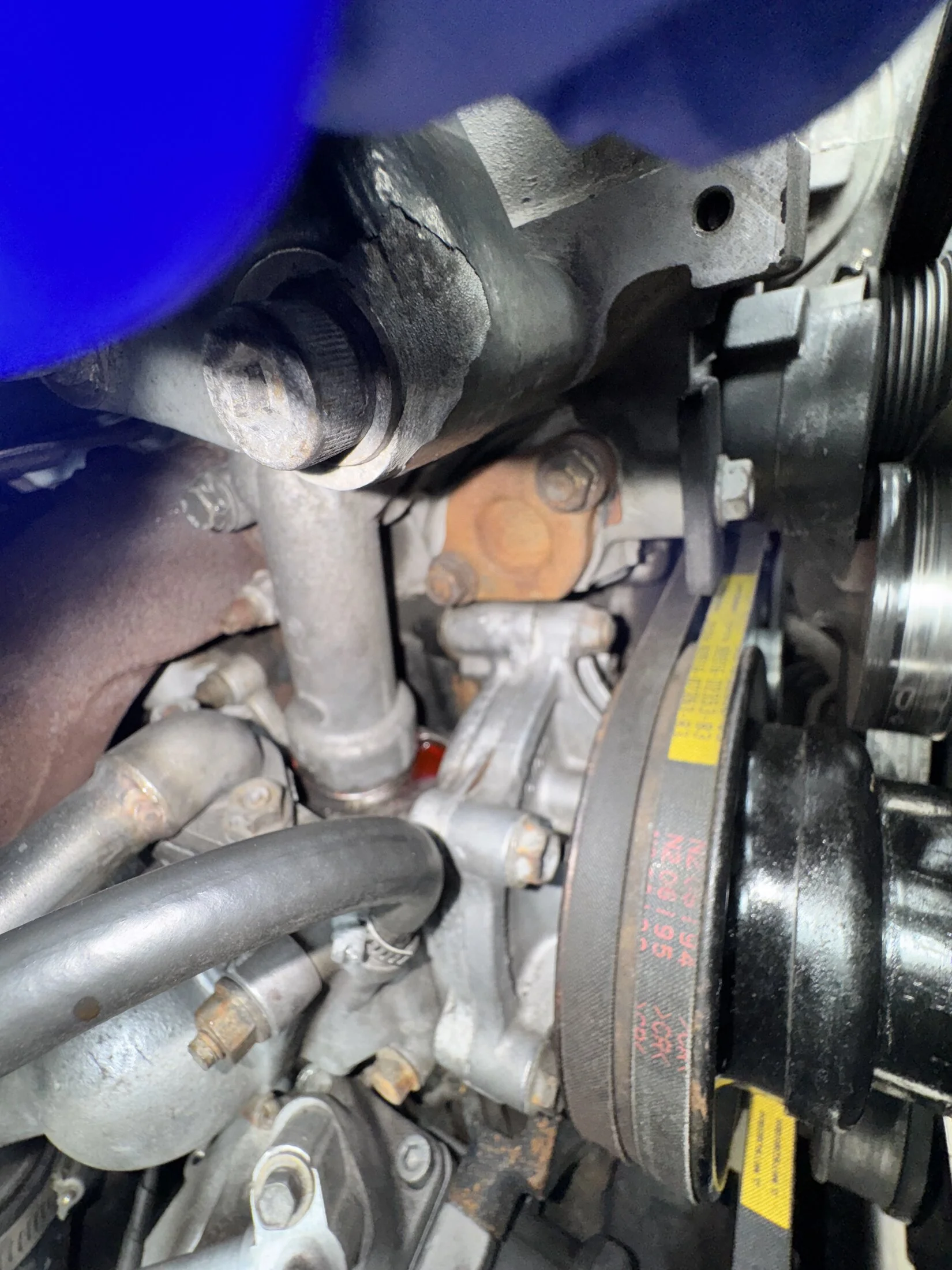

Here is a better pic of the red/orange coolant leak. It appears to be from the worn out o-rings at nipple at the bottom of bypass pipe. I hope there is enough room to take the two bolts & wiggle out the bypass pipe.



[lumbee1]

I literally just did this two weeks ago. You have to remove the supercharger however you don't have to pull it all the way out.

• I removed the airbox completely to make more room for the supercharger.
• I then unbolted the supercharger and pulled it closer to the passenger side fender. Throttle body and hoses remained connected.
• I unbolted the supercharger air intake from the side of the head and lifted it out of the engine bay.
• The coolant bypass pipe is easy to access now. New parts to install are 3 orings and one small silver pipe.
• Reinstall the supercharger air intake and reattach the supercharger. Be sure to seal the supercharger and air intake with loctite flange gasket.



[FredZ]

Hi thanks for advice. I will follow your advice & report back if I run into any issues.
I guess our rigs are getting old & need more attention specially o-rings, seals gaskets etc.
Btw, have you serviced your s/c & any heads up
My rig has about 199000 mile.



[lumbee1]

Hi thanks for advice. I will follow your advice & report back if I run into any issues.
I guess our rigs are getting old & need more attention specially o-rings, seals gaskets etc.
Btw, have you serviced your s/c & any heads up
My rig has about 199000 mile.

I installed my supercharger a little more than 2 years ago. It doesn't need service yet.



[FredZ]

Ohh, I didn’t know they still available used or new?
Mine was installed by local Toyota dealer in 2004 as brand new unit



[lumbee1]

Ohh, I didn’t know they still available used or new?
Mine was installed by local Toyota dealer in 2004 as brand new unit

Mine was definitely used but in great condition.



[Fj80oregon]

Ohh, I didn’t know they still available used or new?
Mine was installed by local Toyota dealer in 2004 as brand new unit

Magnuson re released them you can buy a brand new kit for only $8500!!!



[FredZ]

Thanks, Nice to know. I wonder if they still providing maintenance/repair service kits for original units?
