Need to replace most of my instrument panel/control panel light bulbs.

1) Seat Heater Switches R&L
2) 2nd and PWR Selector Switches
3) Power Quarter window Switches R&L
4) Power Rear View Mirror Control

Im really glad I did this project because there was a lot of s#*@ stuck on the switches.

Ordered the bulbs from my local Toyota dealership and am now waiting...

Ill update the thread once I install light bulbs.



[Scoin]

Sub'd, I need to do this to a few switches.



[CCuzj100]

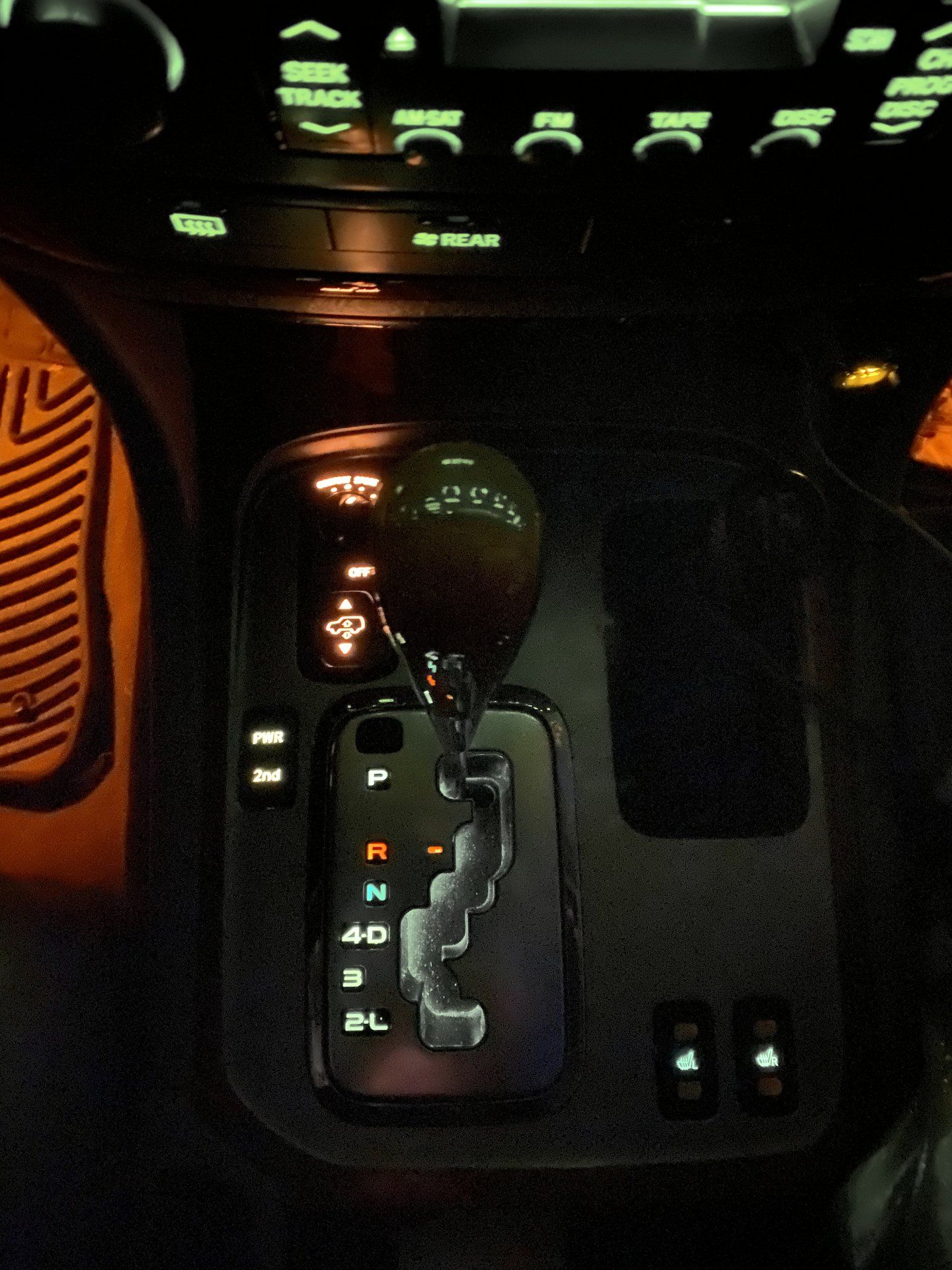

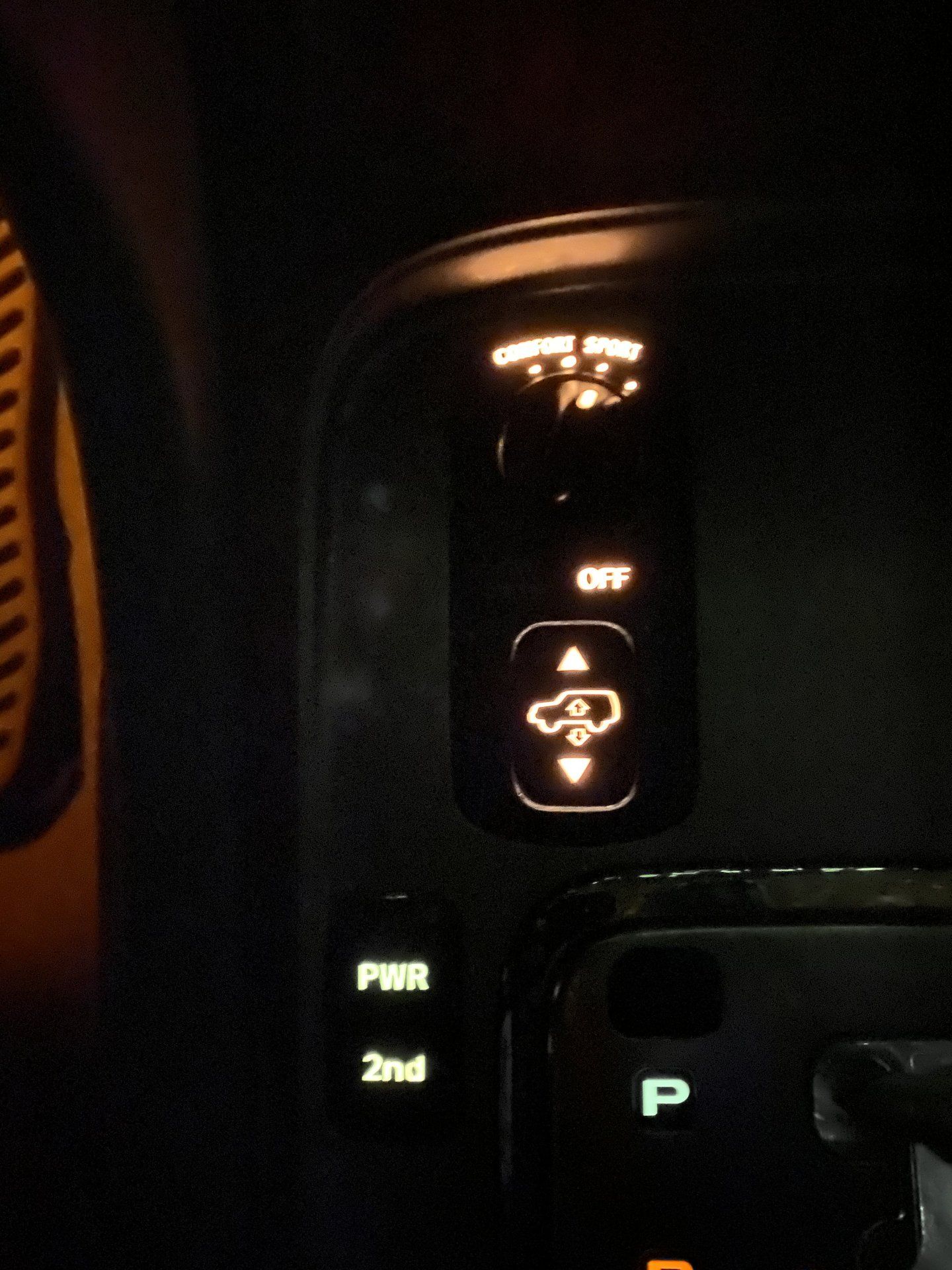

Update...lights came in from toyota $4 each bulb and pic is attached.

Overall Im VERY HAPPY with this small and easy project.



[CCuzj100]

Literally took 30 minutes total including the time taken to order the lights



[TLCJC]

Nice work!

How did you get the switches out?

Do you have pictures of replacing the bulbs?



[CCuzj100]

Thabks @TLCJC

Center console trim around the PDRNL needs to be pried up, then right above the cup holder squuze a plastic trim mold removing tool and pop up.

Id rec using a glove to reach in a just pop the switches up from the bottom and they come right out.

I did not unplug any switches just cleaned with alcohol wipes and reinstalled the control panel while waiting for the bulbs. I let the switches just hang outside the housing.

The bulbs were a cinch, use a small flathead to twist and remove old bulbs and simply install new bulbs with a light 1/4 turn clockwise (does not lock so dont over crank it)



[CCuzj100]

As for the power rear view and quarter mirror control panel, remove the large square piece with the same flathead and pop the switches out from behind.



[SICARIO]

Can you list a part number for us google challenged folks that want to buy online?



[CCuzj100]

@SICARIO

84999-10310



[trdcorolla]

@CCuzj100

Is that the same bulb for all of the switches (1-4) in your original post? Also, how many bulbs did you need to buy for all the the switches in your original post?



[KraziAzn]

Update...lights came in from toyota $4 each bulb and pic is attached.

Overall Im VERY HAPPY with this small and easy project.

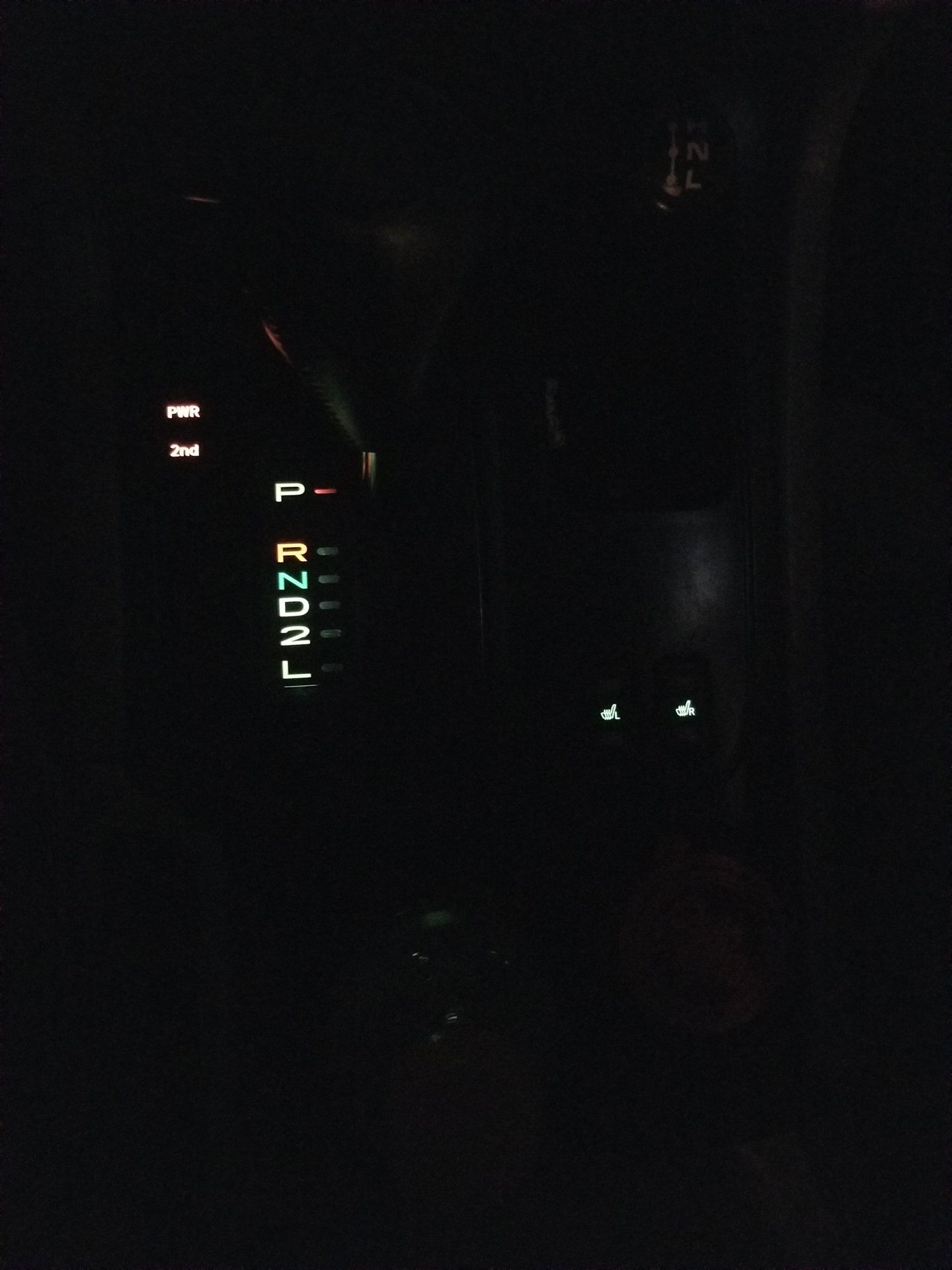

View attachment 1619838

OMG, THEY LIGHT UP?! I never knew that! hahaha. I wonder what other light is broken on my dash.



[fisherman978]

Do all of those swithes run the same bulb



[badlander]

FYI, The mirror adjust switch has a socket for a bulb but it is inoperative in LC`s so don't waste a bulb in there expecting it to light up, it won't. LX470's have similar switch parts but theirs actually do light up.



[fisherman978]

FYI, The mirror adjust switch has a socket for a bulb but it is inoperative in LC`s so don't waste a bulb in there expecting it to light up, it won't. LX470's have similar switch parts but theirs actually do light up.

So is there a aftermarket cheap led option for the rear vent bulbs ?? And heated seats and per? Are they the same



[badlander]

I believe the vent and heater switches use the same bulb number. I have used the same bulb for both and can see no difference. Don't know about any aftermarket led options.



[LXRestore]

Hey Fellow OCD bulb folks. Anyone have an idea what a properly lit ahc console switch on an LX looks like at night? I appear to have one bulb working in the center of it, but I suspect there might be a few bulbs in that one. Thanks.



[LRscorned]

I just replaced my burned out rear window vent, AHC, and PWR/2nd switch bulbs. Quite easy. Turns out Dorman replacement bulbs 639-041 (Toyota) and 639-003 (Honda) work for those who don’t want to go LED. They were about 1/3 the price at Advanced Auto Parts compared to the Toyota bulbs listed above at the dealer.



[LRscorned]

Hey Fellow OCD bulb folks. Anyone have an idea what a properly lit ahc console switch on an LX looks like at night? I appear to have one bulb working in the center of it, but I suspect there might be a few bulbs in that one. Thanks.



[TLCJC]

LRScorned- What bulbs were used for your AHC? They look extra bright in the photos?



[LRscorned]

LRScorned- What bulbs were used for your AHC? They look extra bright in the photos?

639-003 from Advanced Auto Parts. The dead bulbs o took out had the green cover but I didn’t put them on the new bulbs. It isn’t as bright as the photo seems to show but they a slightly brighter and whiter than the other switches.
