Who has a Warn 8274 Winch on their FJ40?

[JohnnyC]

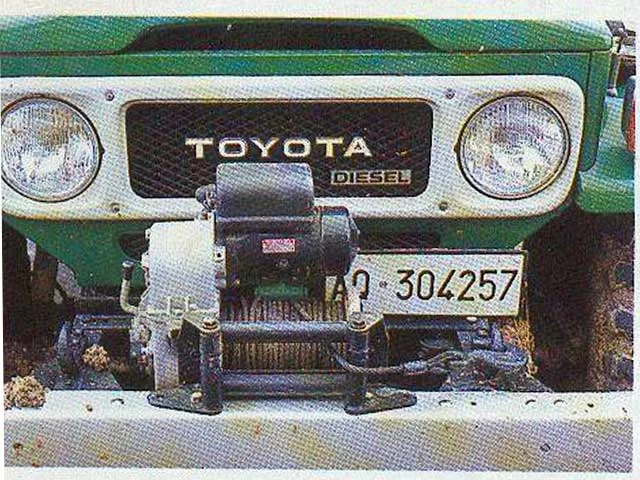

Yes you can mount it like the oem electric denso winch… see here … original pic from @treerootCO



[pb4ugo]

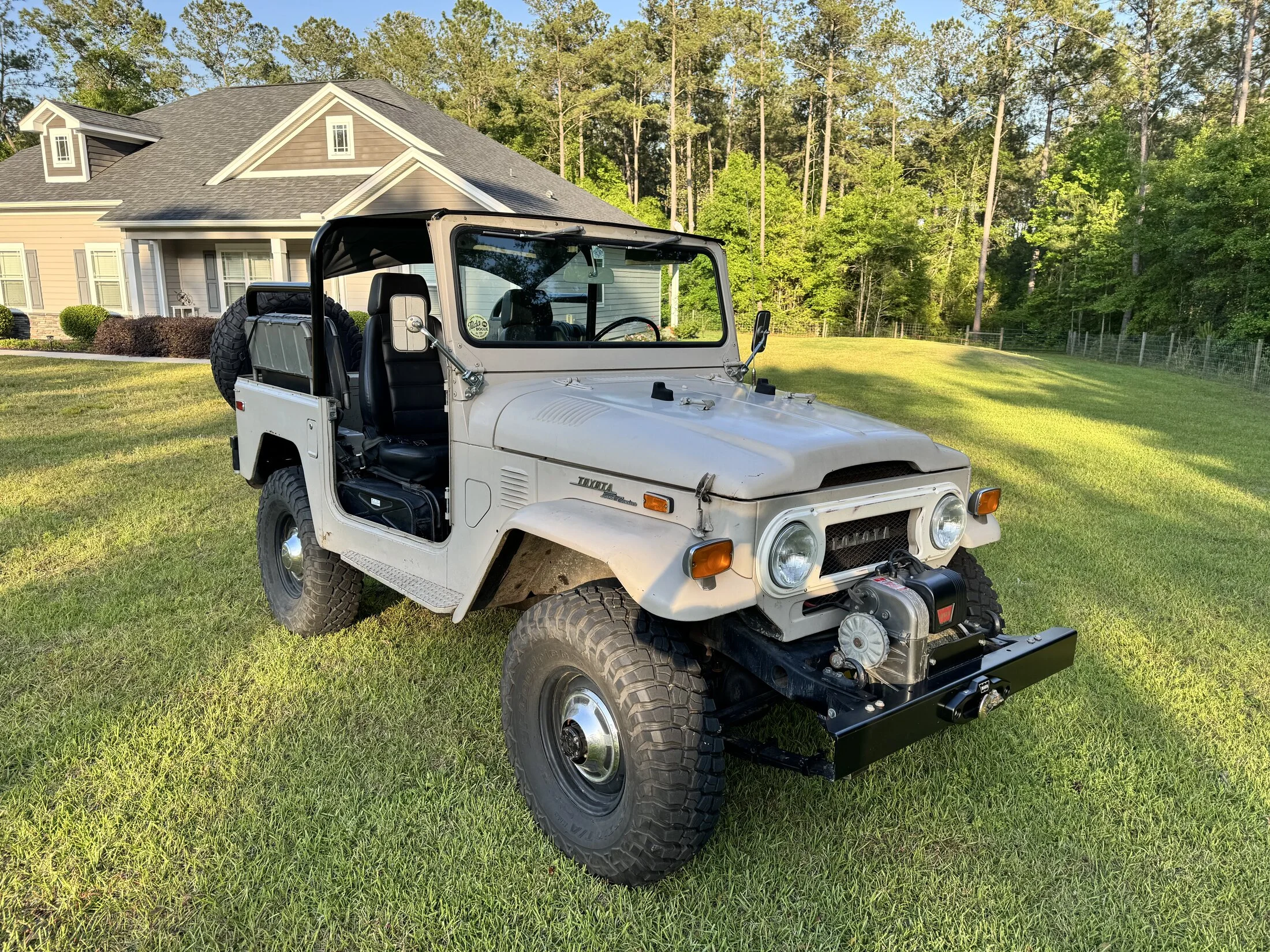

On the 8274's the cable comes off the bottom of the drum. Warn made a bracket to mount on top of the frame rail. You can see the fairlead mounts to the winches lower mounting bolts.



[pb4ugo]

I rebuilt this one last yr.



[sleepycruiser]

I rebuilt this one last yr.

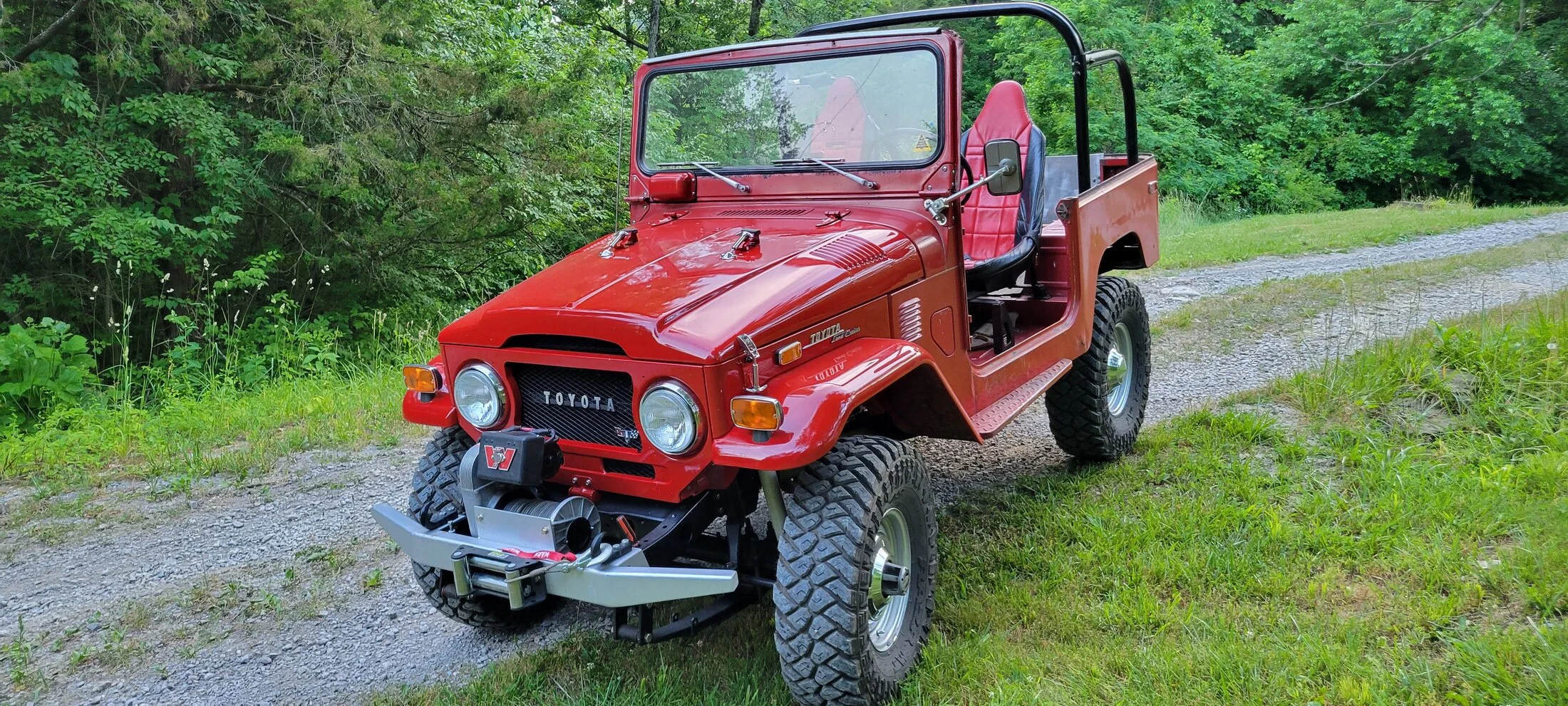

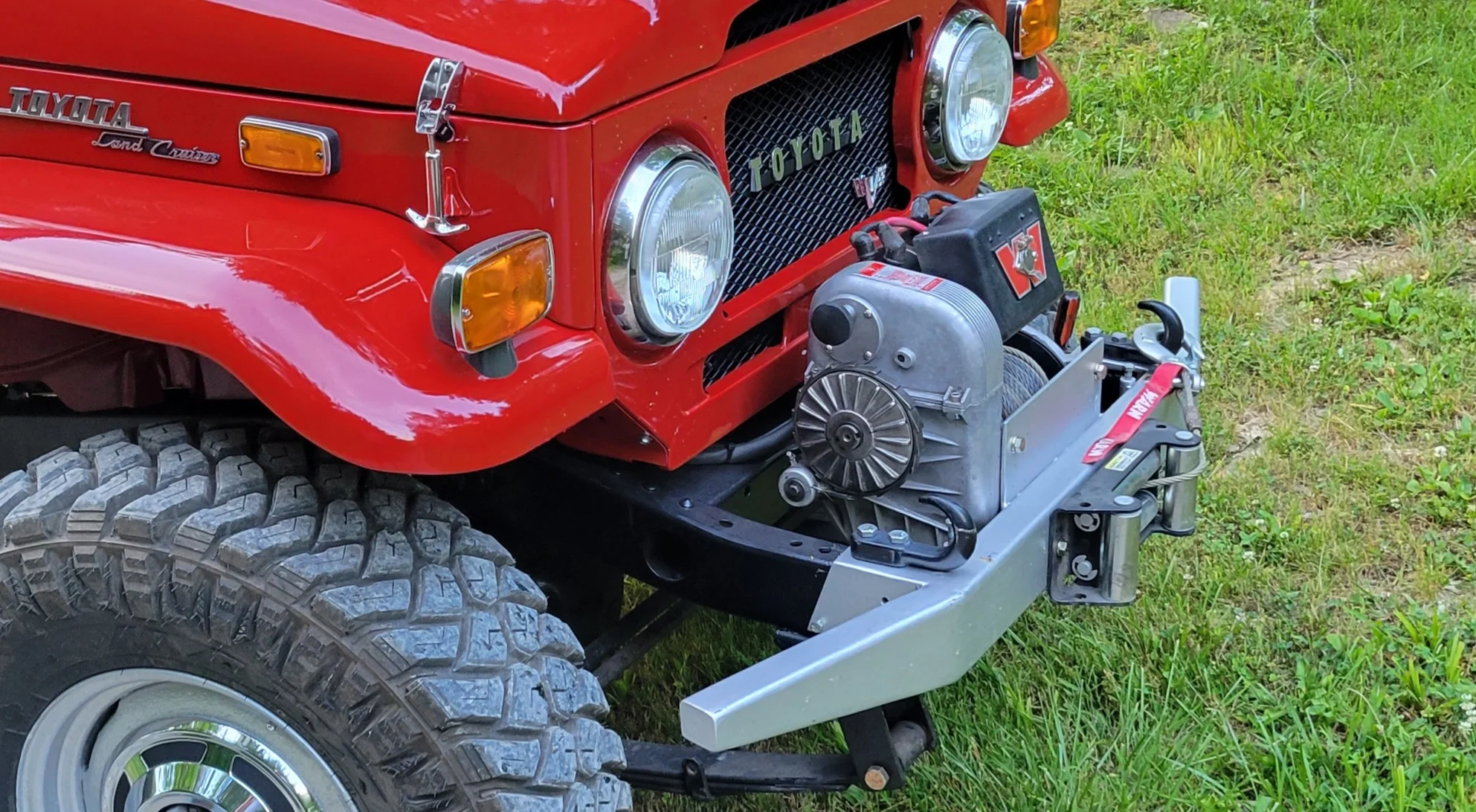

View attachment 3645130View attachment 3645131

Perfect picture and color.

This pic shows the winch mount I have so I don’t think mine will work.



[pb4ugo]

Perfect picture and color.

This pic shows the winch mount I have so I don’t think mine will work.

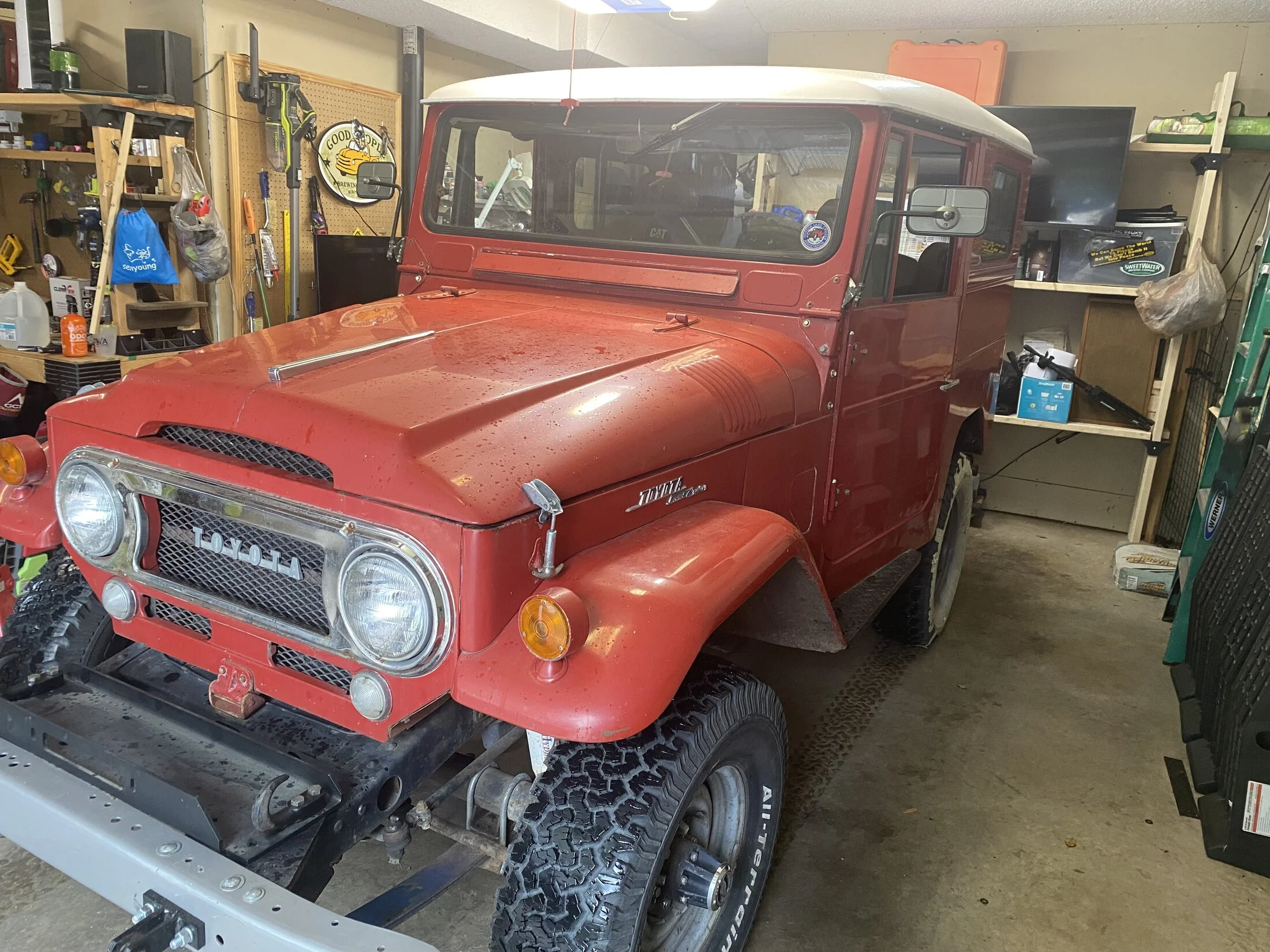

View attachment 3645145

That mount is for a low profile planetary type winch like a M8000. The winch mounts on the flat plate and the fairlead uses the 2 holes on the frt vertical part.



[pb4ugo]

A winch type similar to this .

Edited to try and not show what it's attached to. Unsuccessfully



[dazerb]

I WANT a warn winch on my 40...

What else might slot into this bumper? Is this the 8274 setup with plate and lower cable opening in bumper?



[sleepycruiser]

That mount is for a low profile planetary type winch like a M8000. The winch mounts on the flat plate and the fairlead uses the 2 holes on the frt vertical part.

That is what I thought. Might just try to find a deal on an M8000, 9000, etc.



[Rocky_LC]

Conn-Ferr made a lockable steel box that fit between the frame horns…. Heavy duty.

A 8274 is better, though….

Sorry the cover is on!



[S.CarolinaFZJ80]

I WANT a warn winch on my 40...

What else might slot into this bumper? Is this the 8274 setup with plate and lower cable opening in bumper?

View attachment 3645255

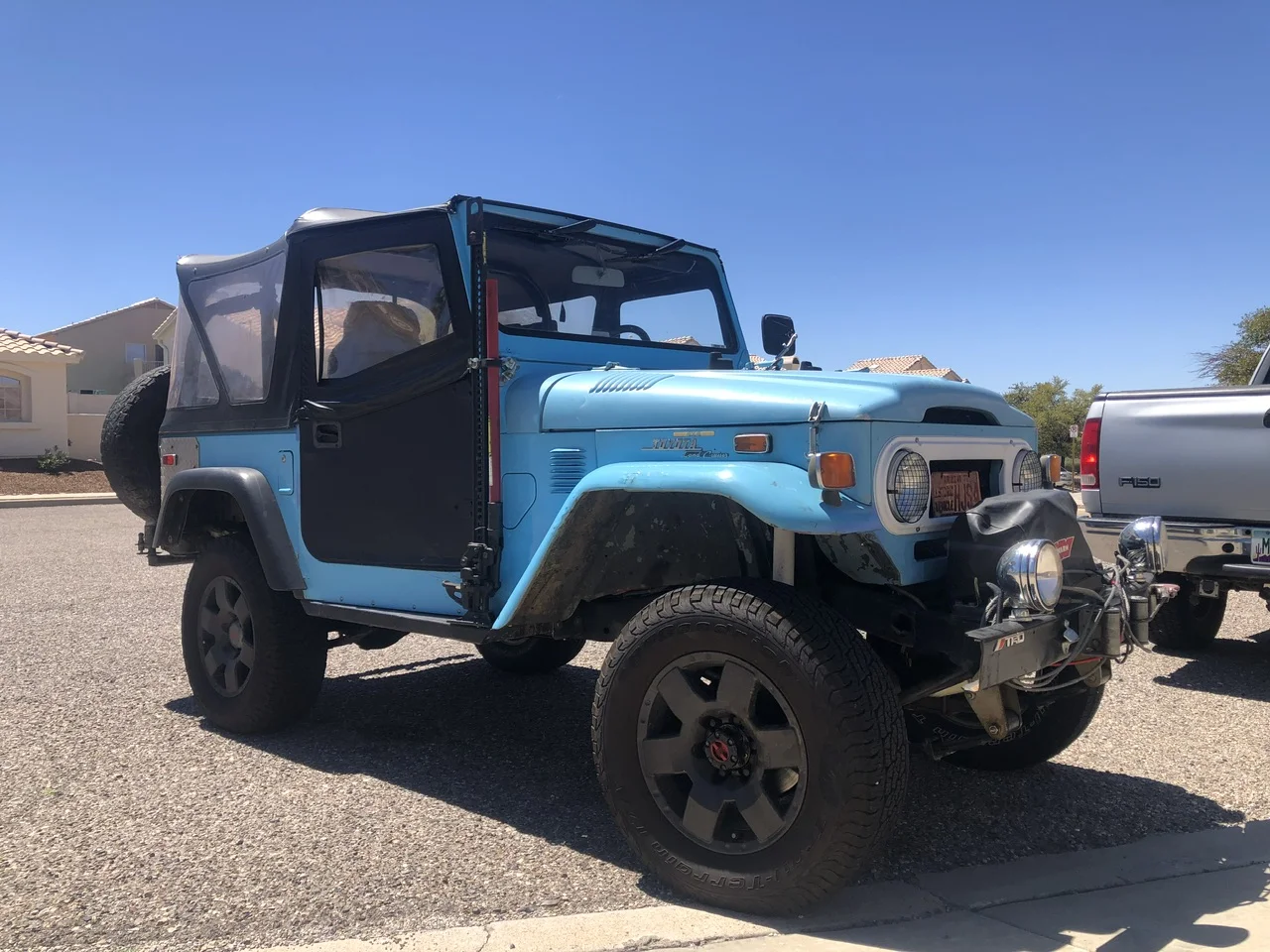

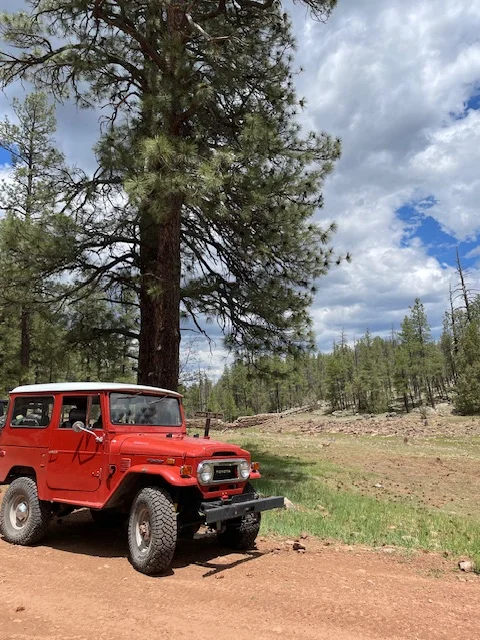

That looks like an original Warn bumper for the 8274

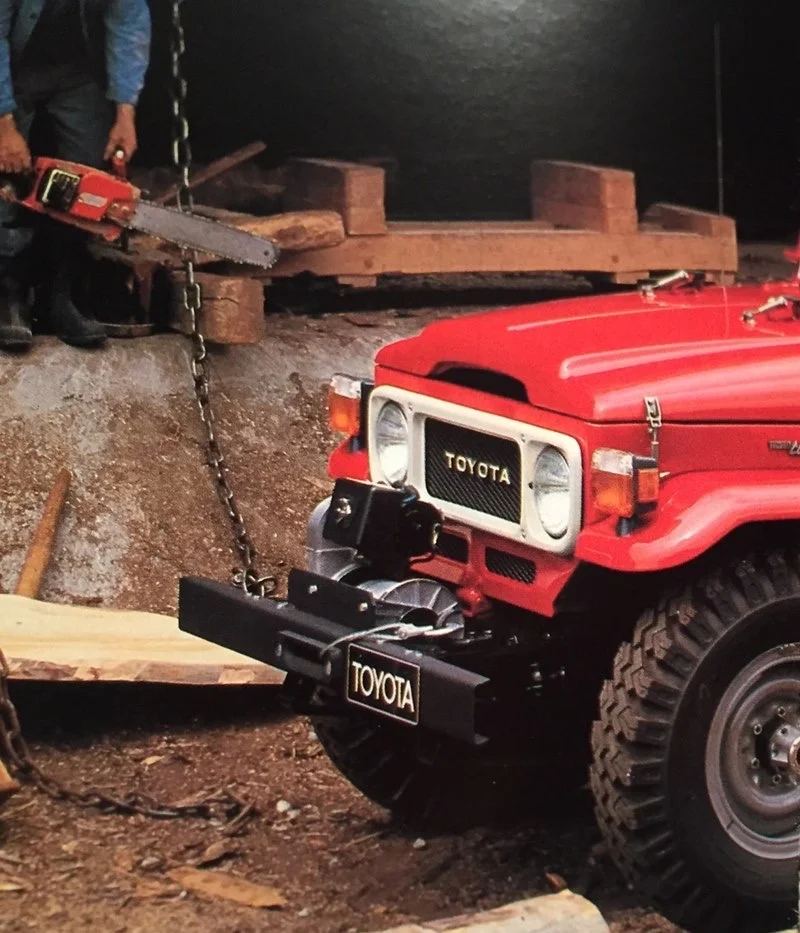

Pic here is from a Toyota brochure



[S.CarolinaFZJ80]

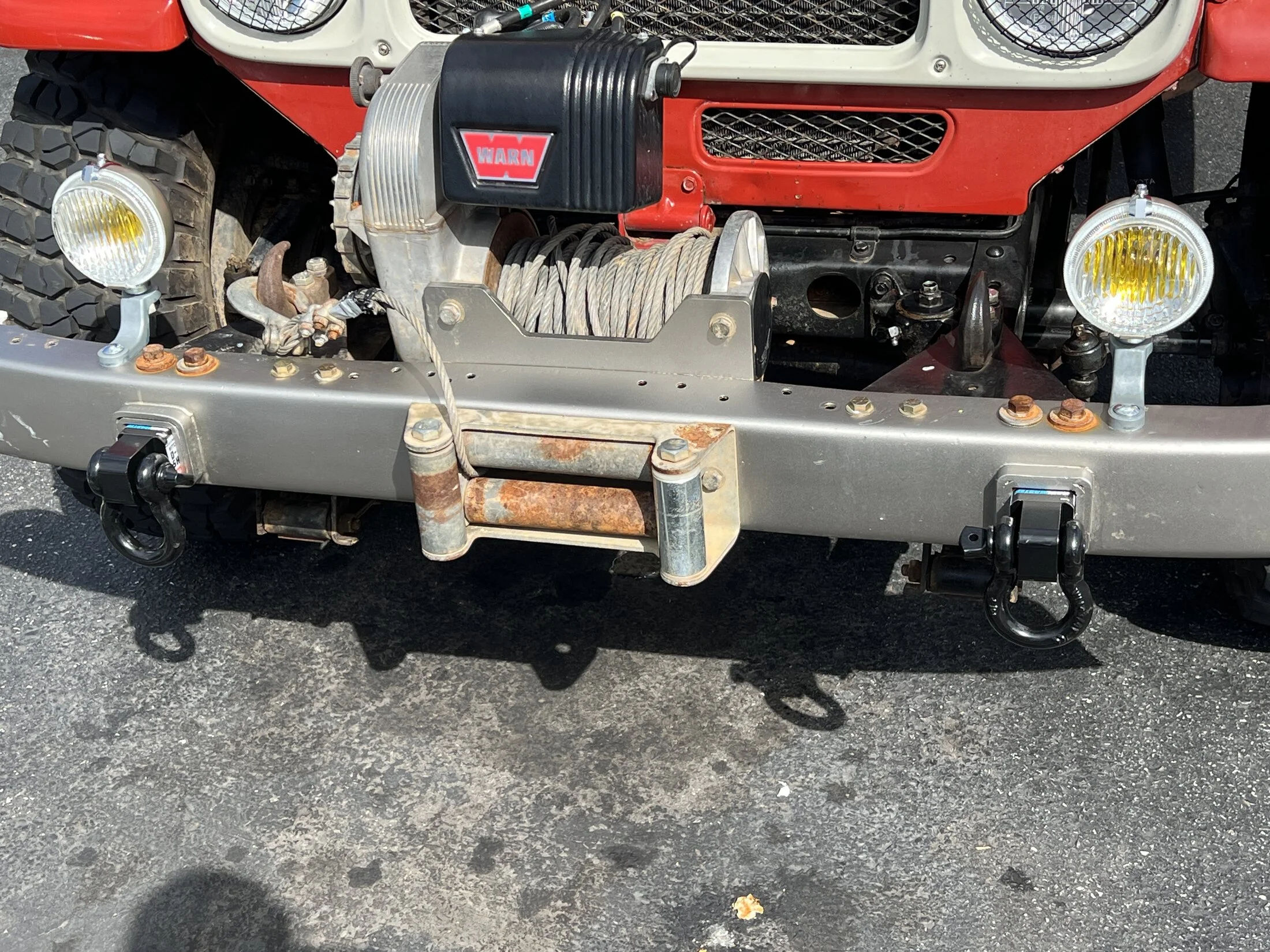

I’m thinking about getting a winch for the 40 and of course the 8274 pulls up. My winch plate bolts on top of the frame rails and the tow hooks bolt it down. Would the 8274 fit on that or would it need to be lower so the cable comes out of the front of the bumper?

@sleepycruiser
You might be able to bolt an 8274 to that.
My 40 had a similar winch mounting plate on it when I got it.

I've since switched to the bolt on bracket from @powthief19

8274 Winch Mounting Plate

Made of 3/8" laser cut steel. Use this to fabricate a mount for your Warn 8274 with a stock bumper. UPDATE: 8/2/23 - 9 Kits available - Some welded and ready for shipping. Also now available: Bumper Support DIY Kit that you would weld the 3/8" 8274 mount to. This fits inside your OEM bumper...

forum.ih8mud.com



[S.CarolinaFZJ80]

That is what I thought. Might just try to find a deal on an M8000, 9000, etc.

You can have my 8274 above frame horn mount plate.if yours doesn't work.

It's just a trip hazard in my garage anyway



[pb4ugo]

I WANT a warn winch on my 40...

What else might slot into this bumper? Is this the 8274 setup with plate and lower cable opening in bumper?

View attachment 3645255

It looks like it.



[ASO544]



[jjenloe]

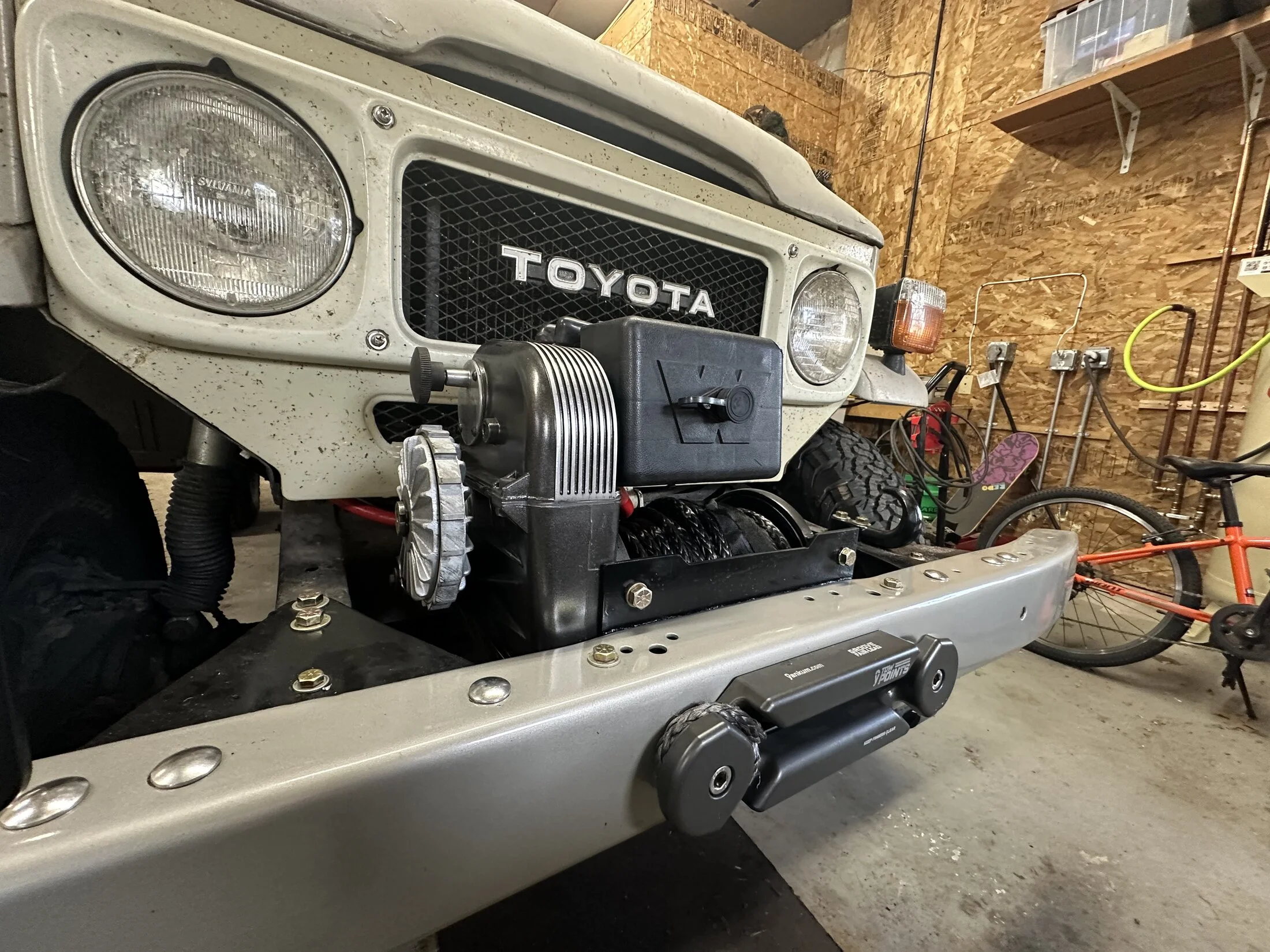

I used some scrap plate and an old Jeep bumper PO had on my 40. It fits nicely between the factory bumper.



[archie73]

That looks like an original Warn bumper for the 8274
Pic here is from a Toyota brochureView attachment 3645263

I’m no logger or certified chainsaw operator, but what the hell is going on in the background? That’s looks really sketchy with the chain in the fall line to the chainsaw…

Thread hijack over.



[CondeCruiser]

I WANT a warn winch on my 40...

What else might slot into this bumper? Is this the 8274 setup with plate and lower cable opening in bumper?

View attachment 3645255

8274 will bolt right up to that bumper.



[sleepycruiser]

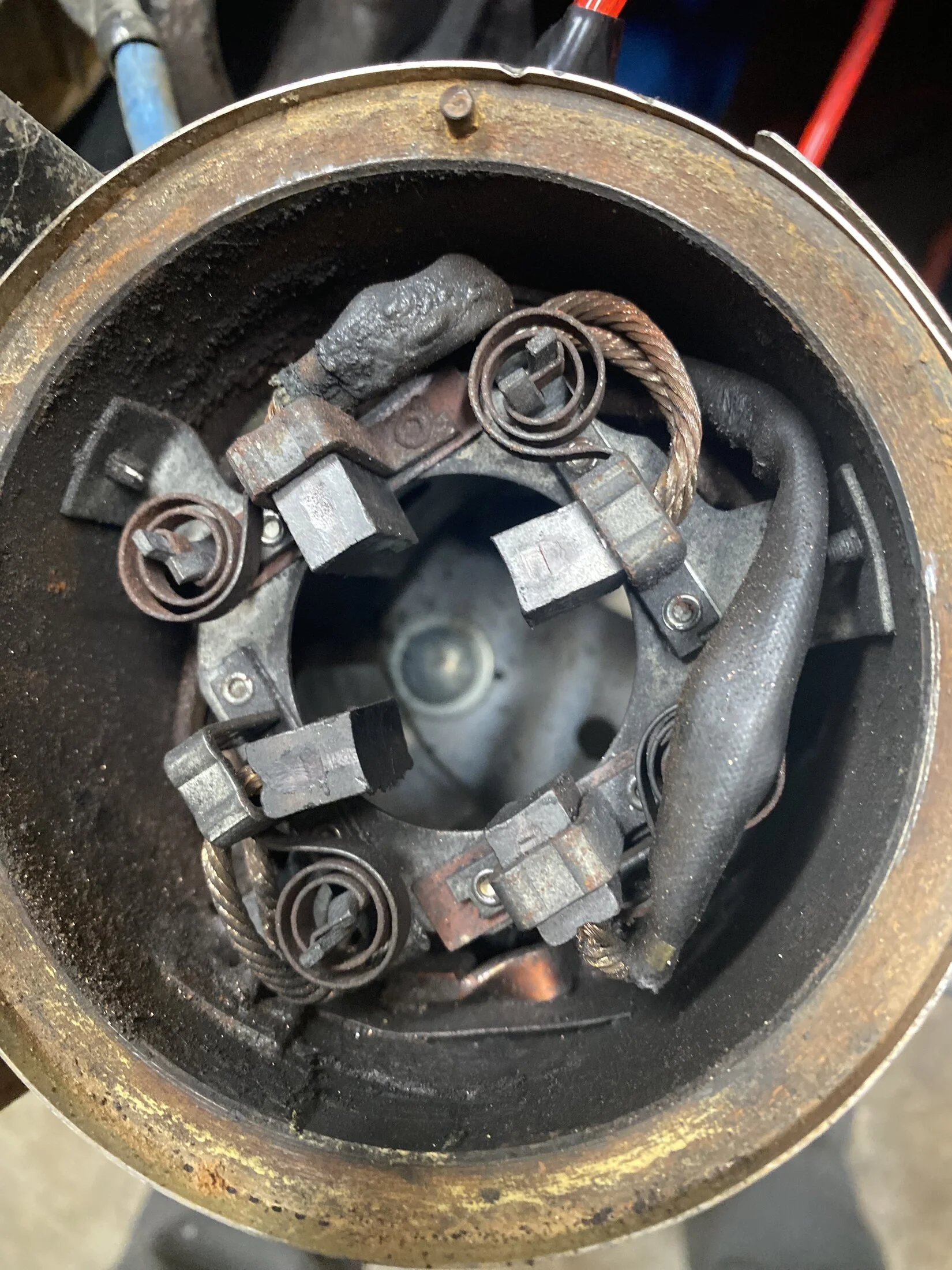

Just picked up an 8274 this week. I have a dead short somewhere and I believe it is bc the brushes are touching the armature. The washer that goes there is made out of some sort of plastic or fiber and it was in a few pieces when I took the motor plate off. I’ve made a few from plastic, but I assume the Warn washer is heat resistant or something. Does anyone know where I can get that washer? I’ve looked and apparently I don’t know what it is called.

Going to try the version I made today to at least see if that is the issue…but want the Warn part.



[sleepycruiser]

Also, can anyone tell me if the brushes should have continuity between them and the motor case?? That might be my issue.



[1911]

Warn still makes and sells 8274 parts, but they're not good at selling motor parts like brushes and etc.

If you can't find the parts you need, it might be a good excuse to replace the motor with a 9.5XP motor or even better their industrial winch motor, both of which will bolt right up. Even the 9.5XP motor will make your 8274 an unbelievable powerhouse - more than twice the hp of the stock motor.
