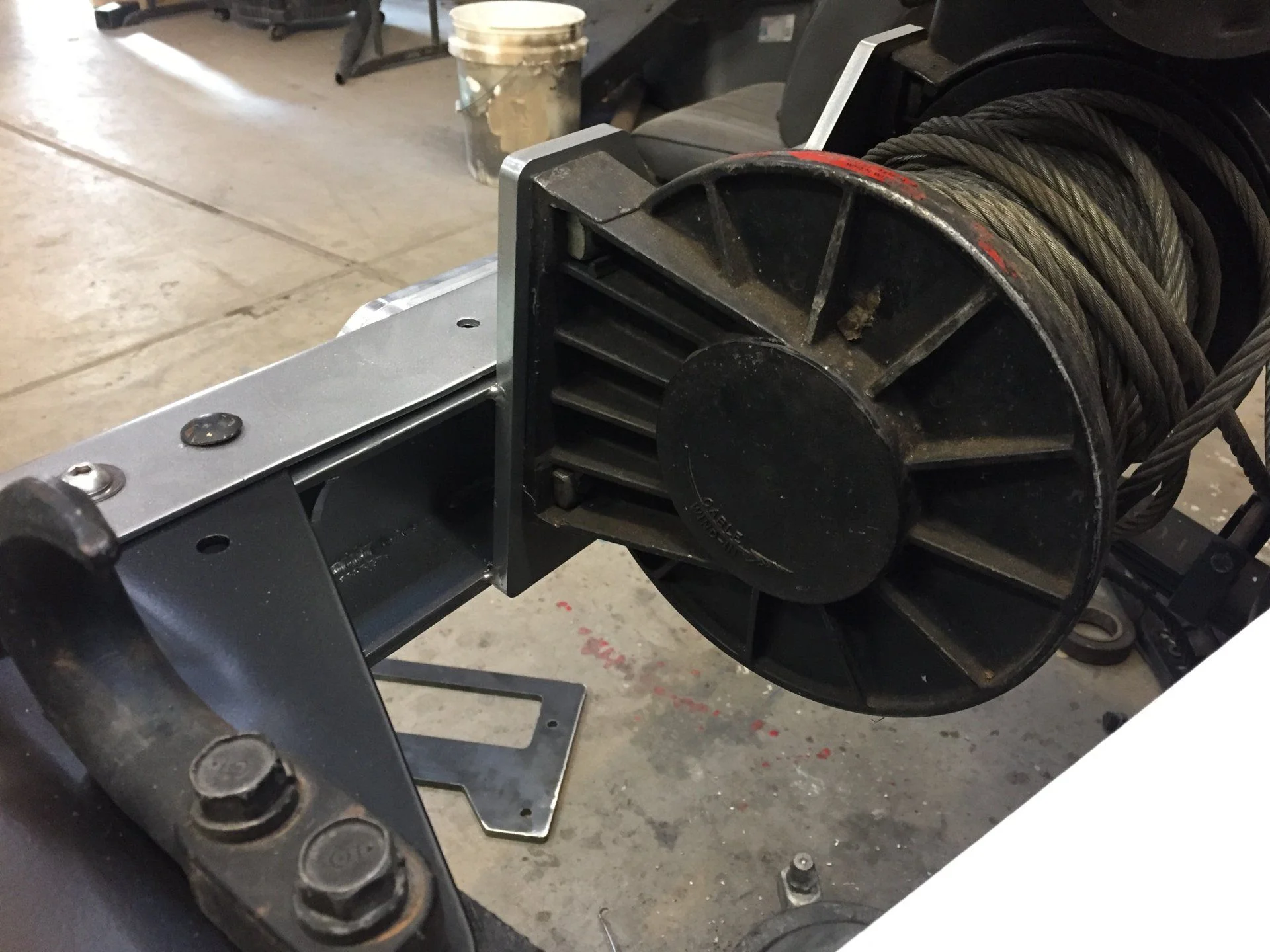

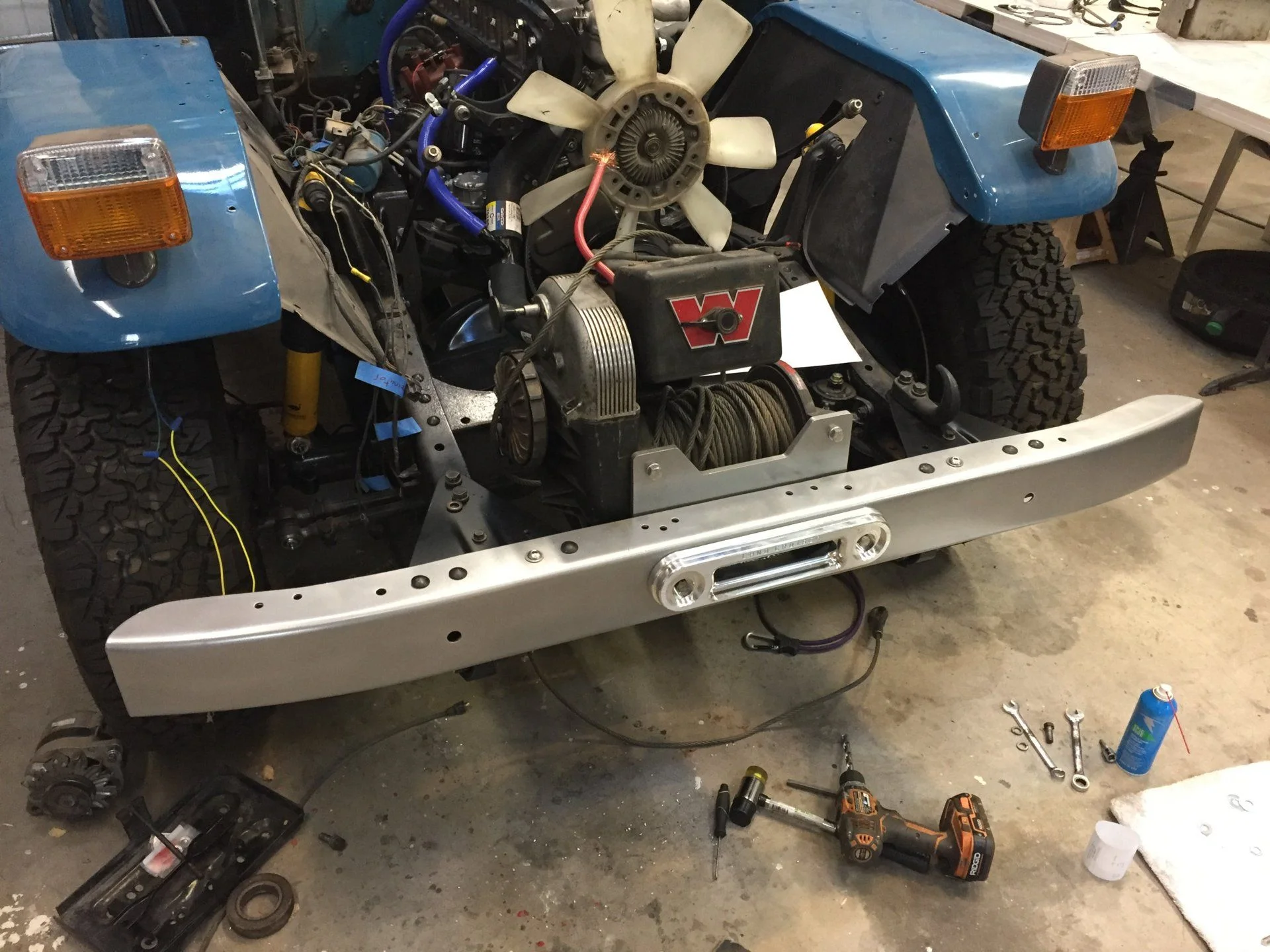

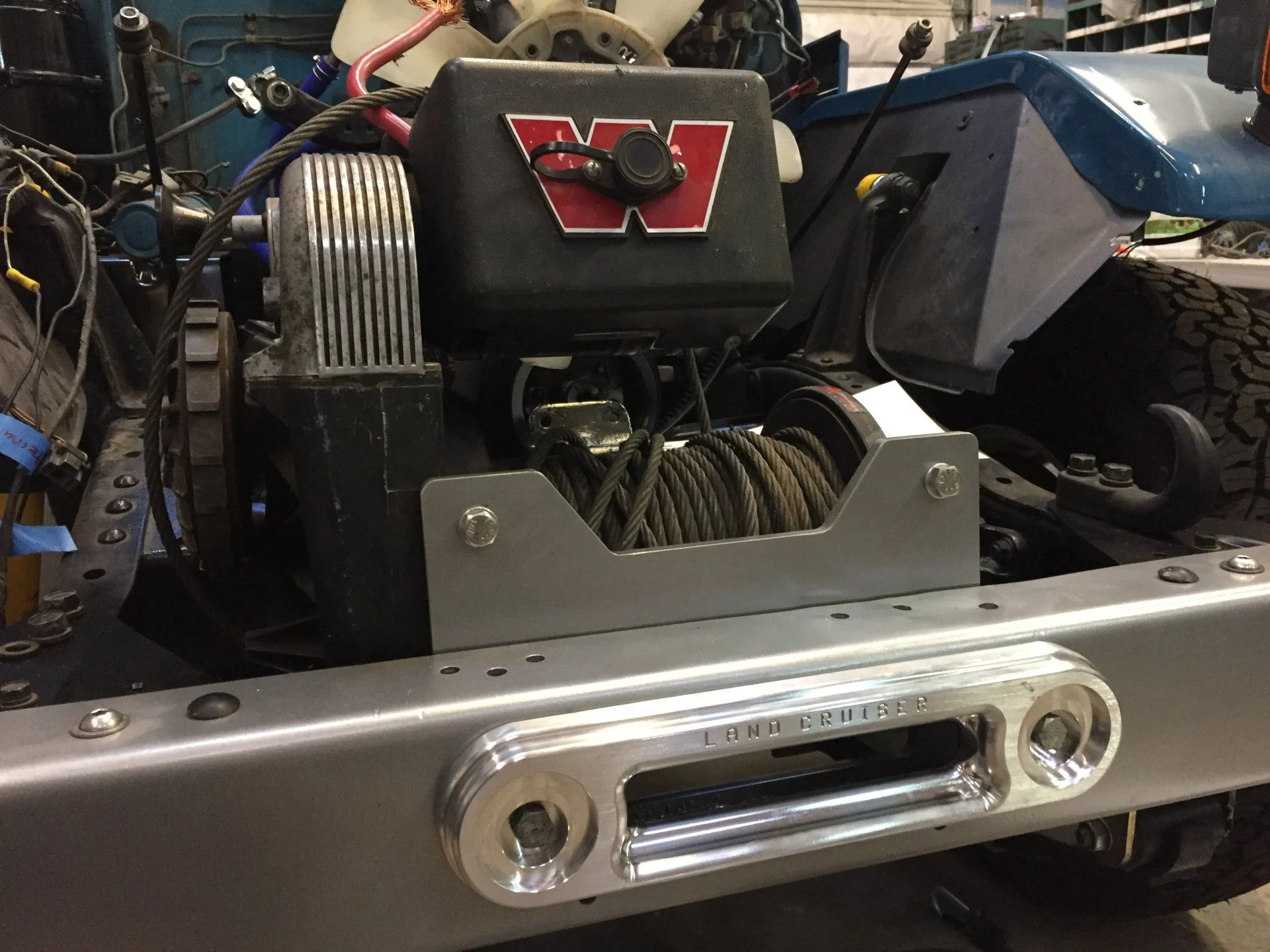

Made of 3/8" laser cut steel. Use this to fabricate a mount for your Warn 8274 with a stock bumper.

UPDATE: 8/2/23 - 9 Kits available - Some welded and ready for shipping.

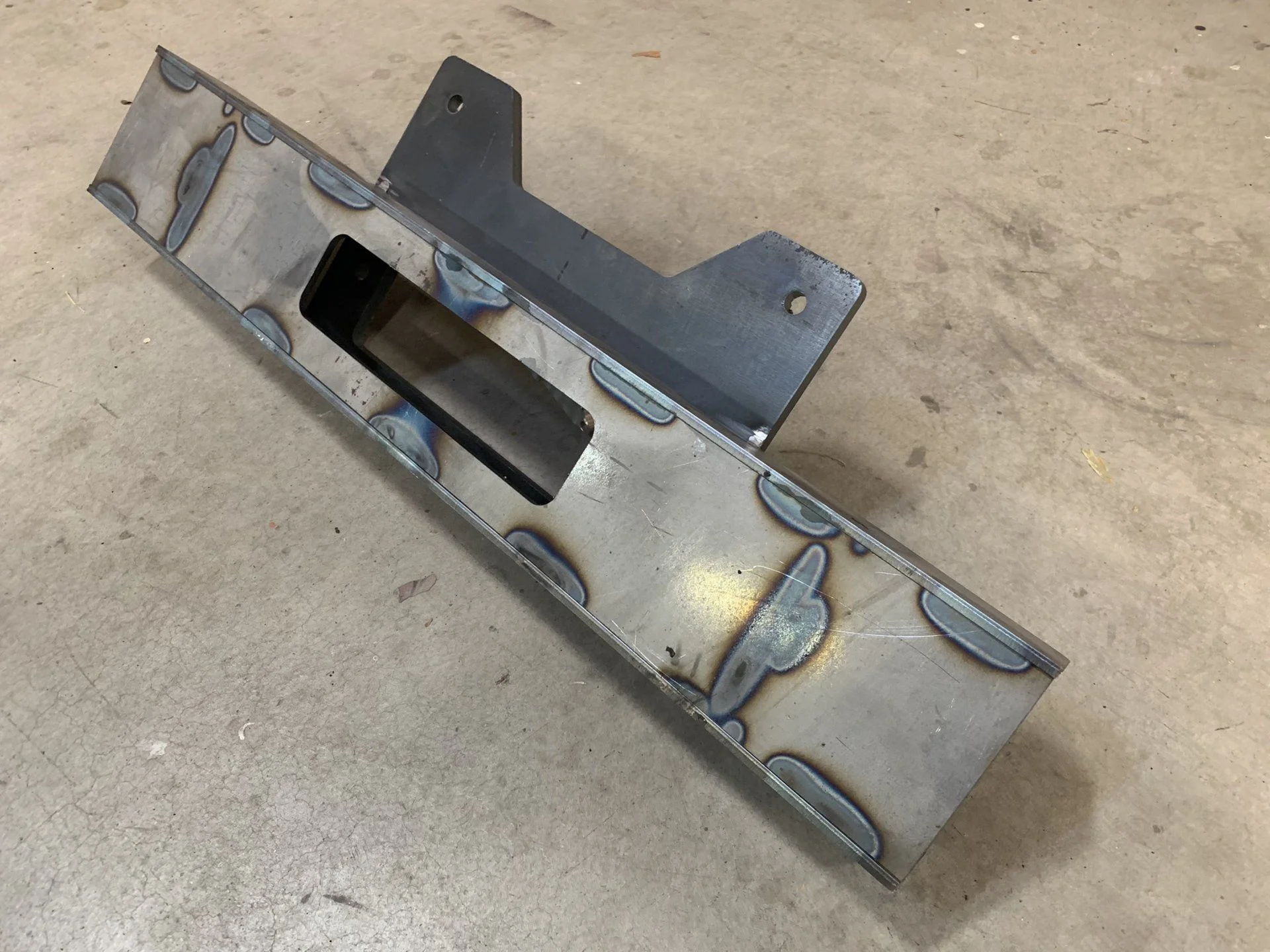

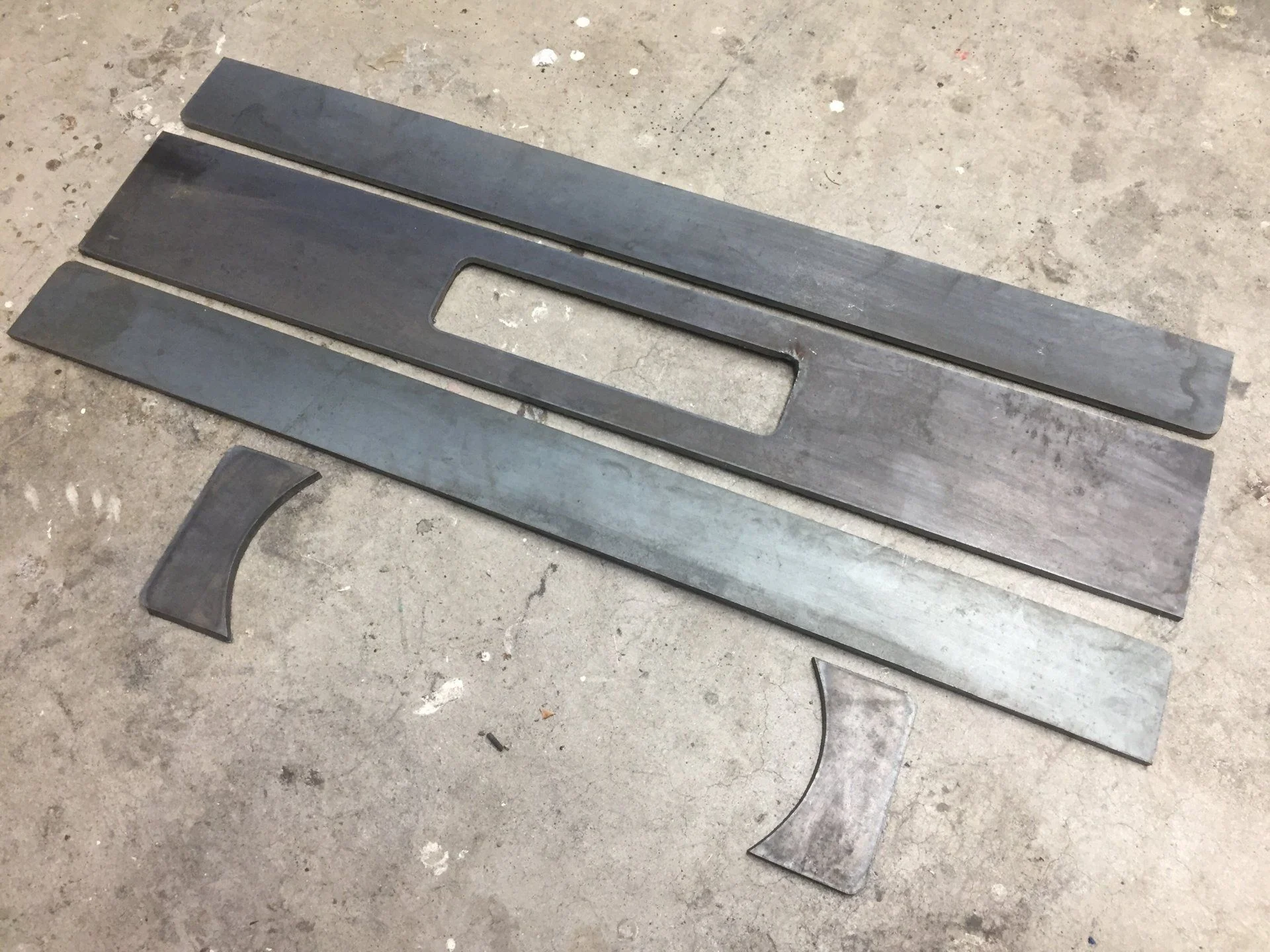

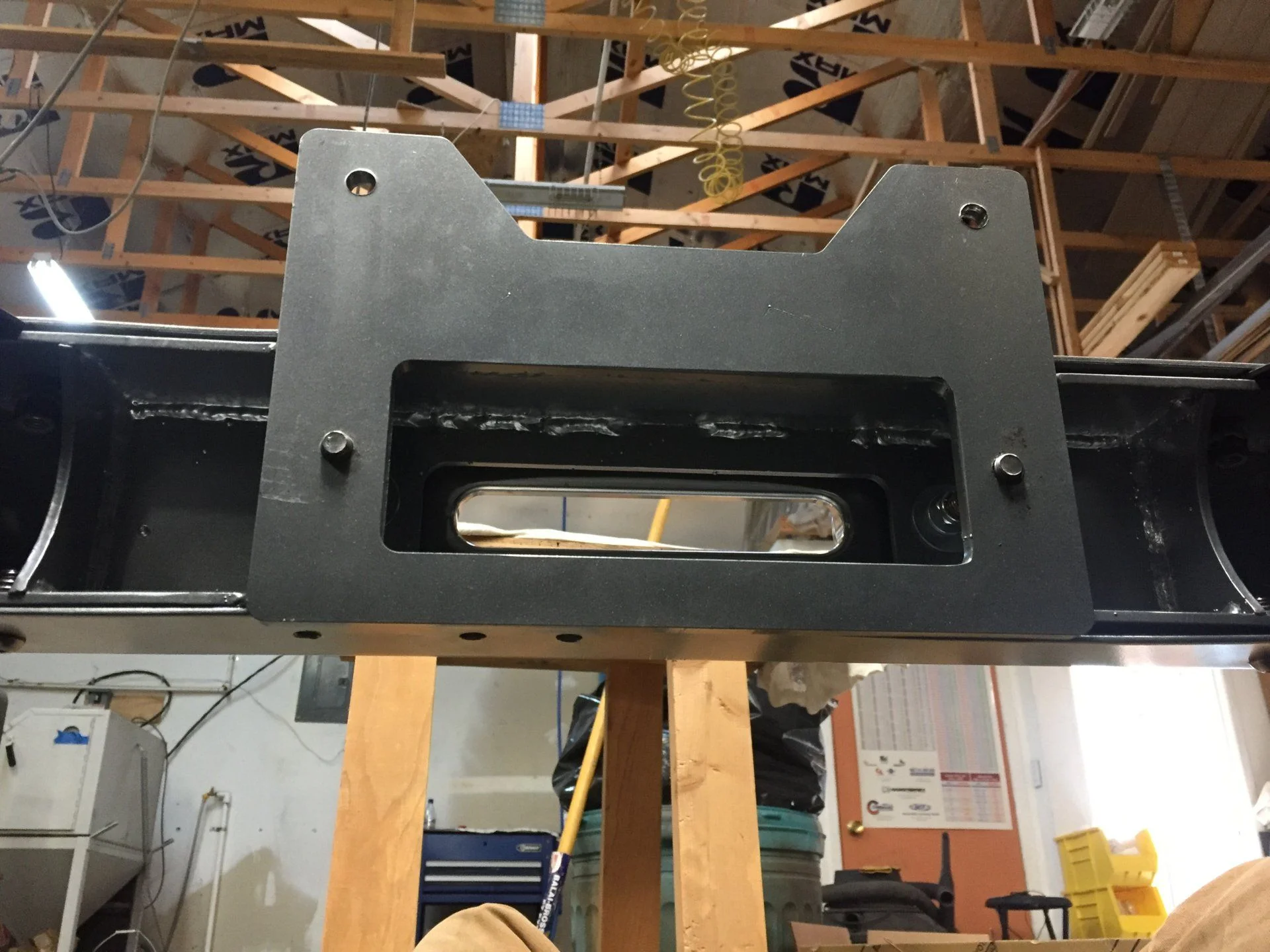

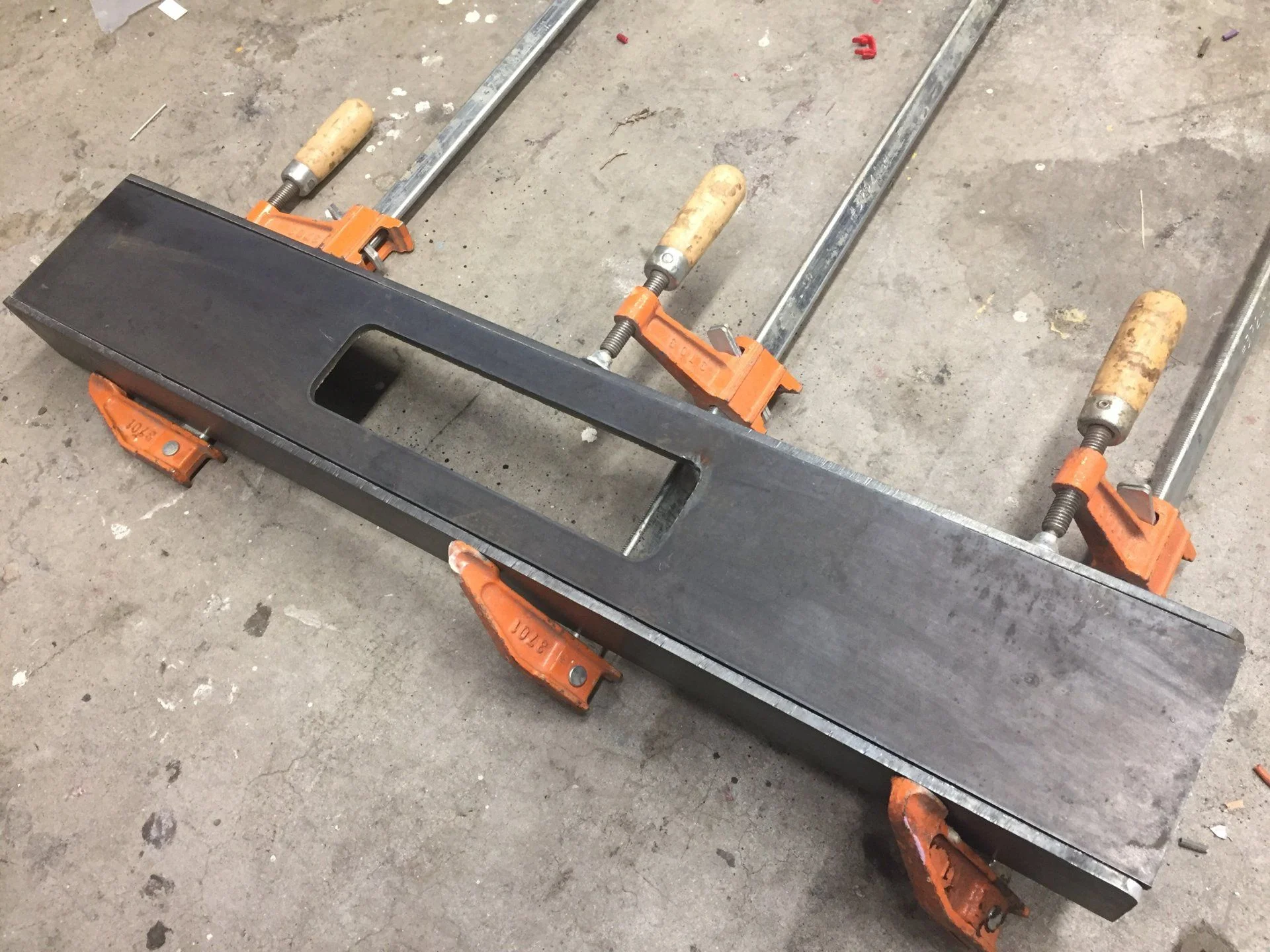

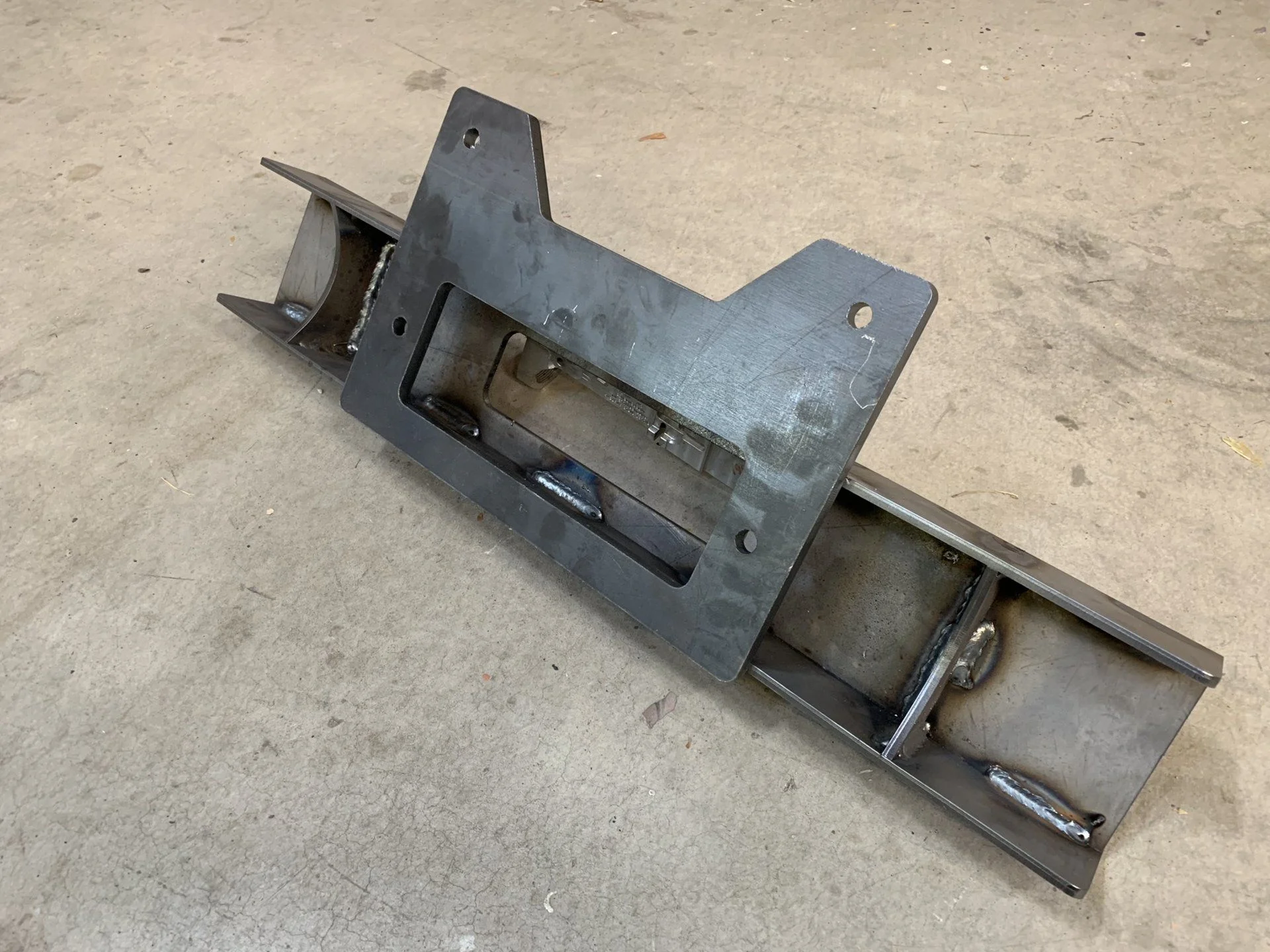

Also now available: Bumper Support DIY Kit that you would weld the 3/8" 8274 mount to. This fits inside your OEM bumper and bolts to the Toyota Bumper Mount Plate. Drill your own holes. Cut via laser out of 3/16" steel.

Any questions, just let me know!

Update: 7/7/22 -- ** NOW FITS FJ55** Just tell me FJ40 or FJ55 (Iron Pig) (1" offset to driver side for hand crank clearance)

8274 Mount Plate: $150
Shipping for mount plate:$25
Fully welded & shipped cost: $565 west of Colorado. $585 east of Colorado.

Not welded, complete kit, shipped: $465

Must use frame extensions. Confirmed fit with OEM Frame Extensions.


Free shipping if you live in Gardnerville NV!

Chris










Last edited:
Yes, I'd move to get a complete set for my 40

I'll also PM you or Visa versa

John

Hey, so is this available as a complete kit? $200 total? un/welded? Might be interested if I can find a used 8274 for a decent price...

Yeah I got(not received yet)the complete kit, he also said he could weld it up for extra.
