Adding details from old post I found

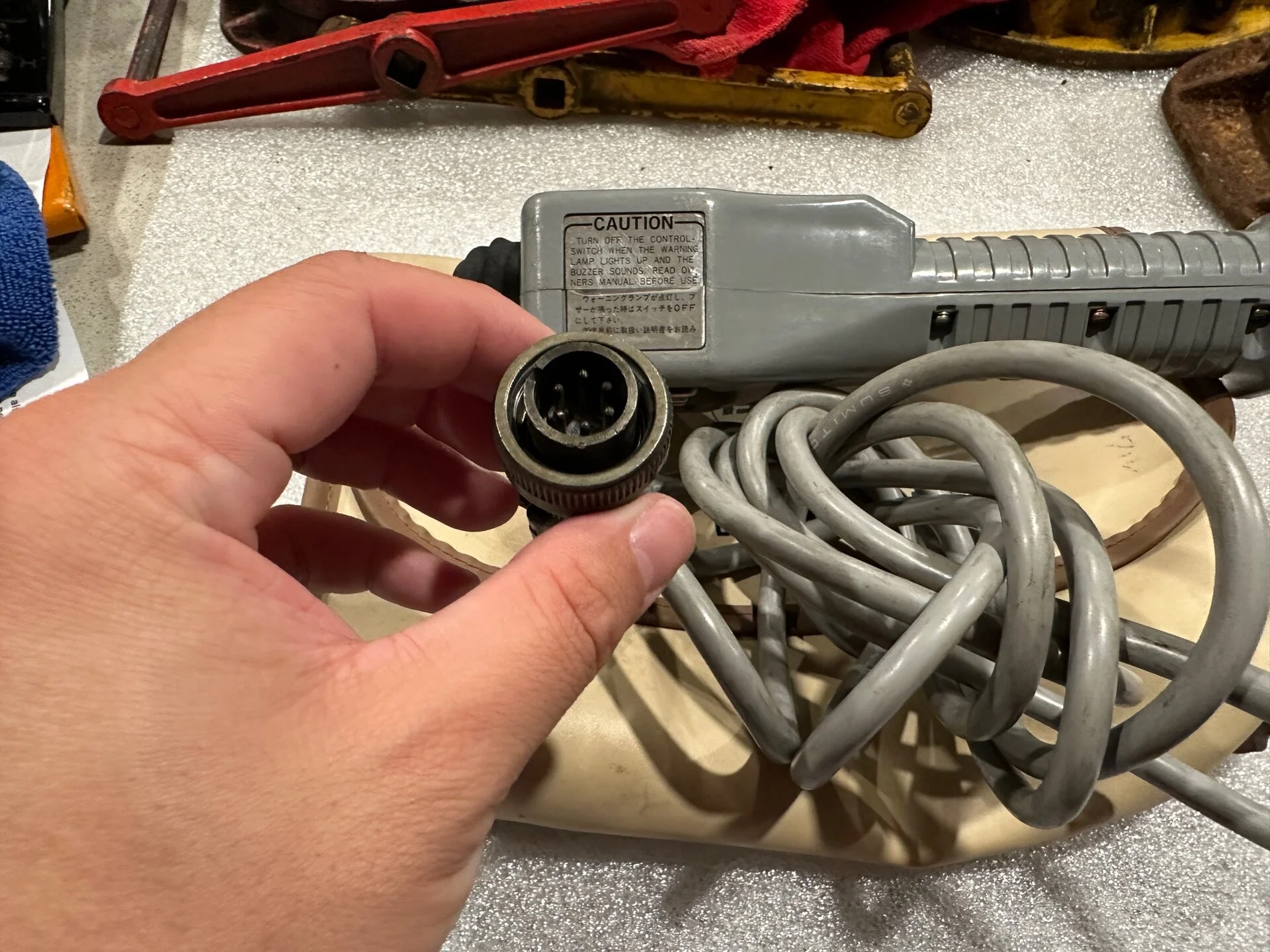

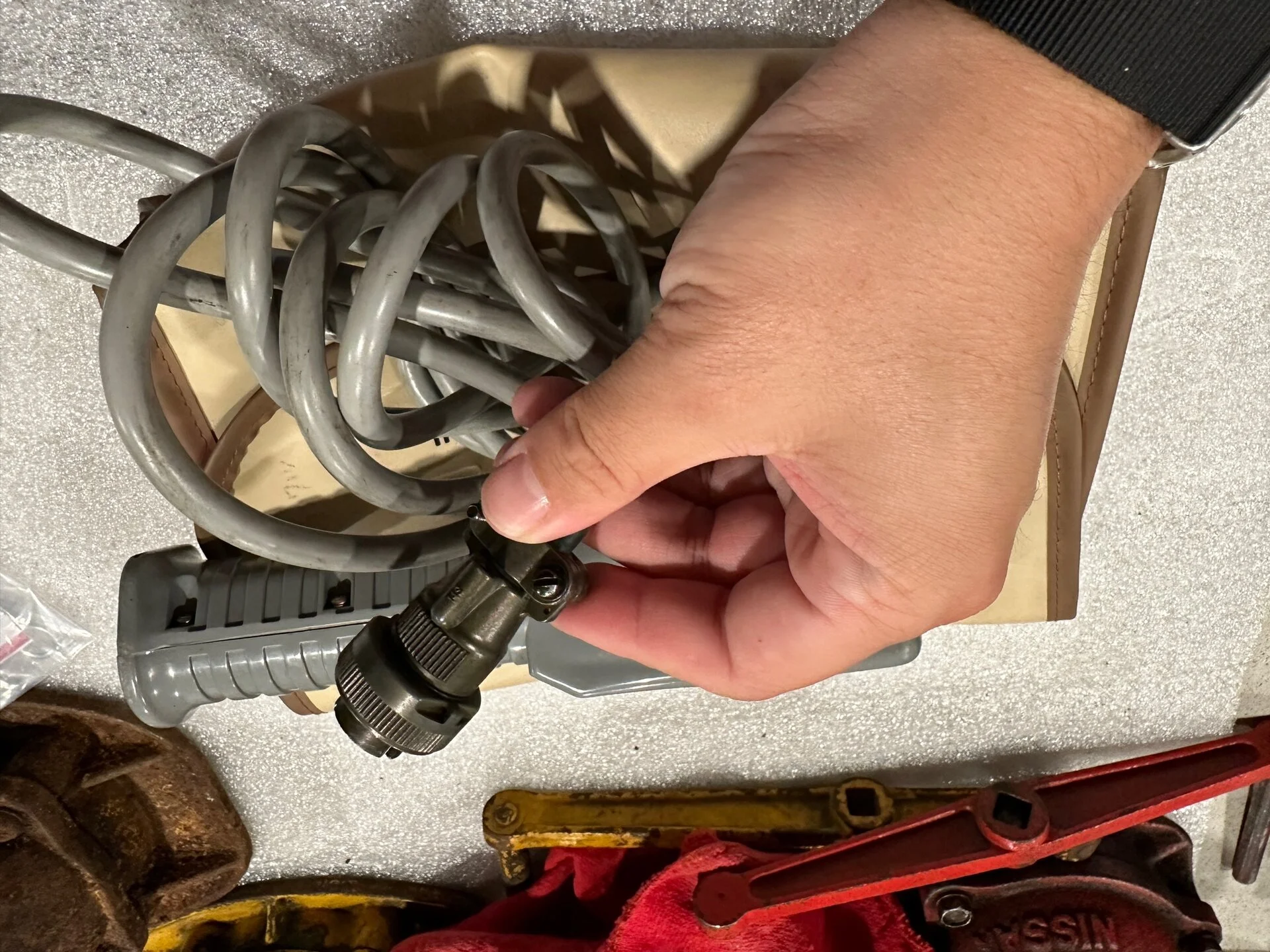

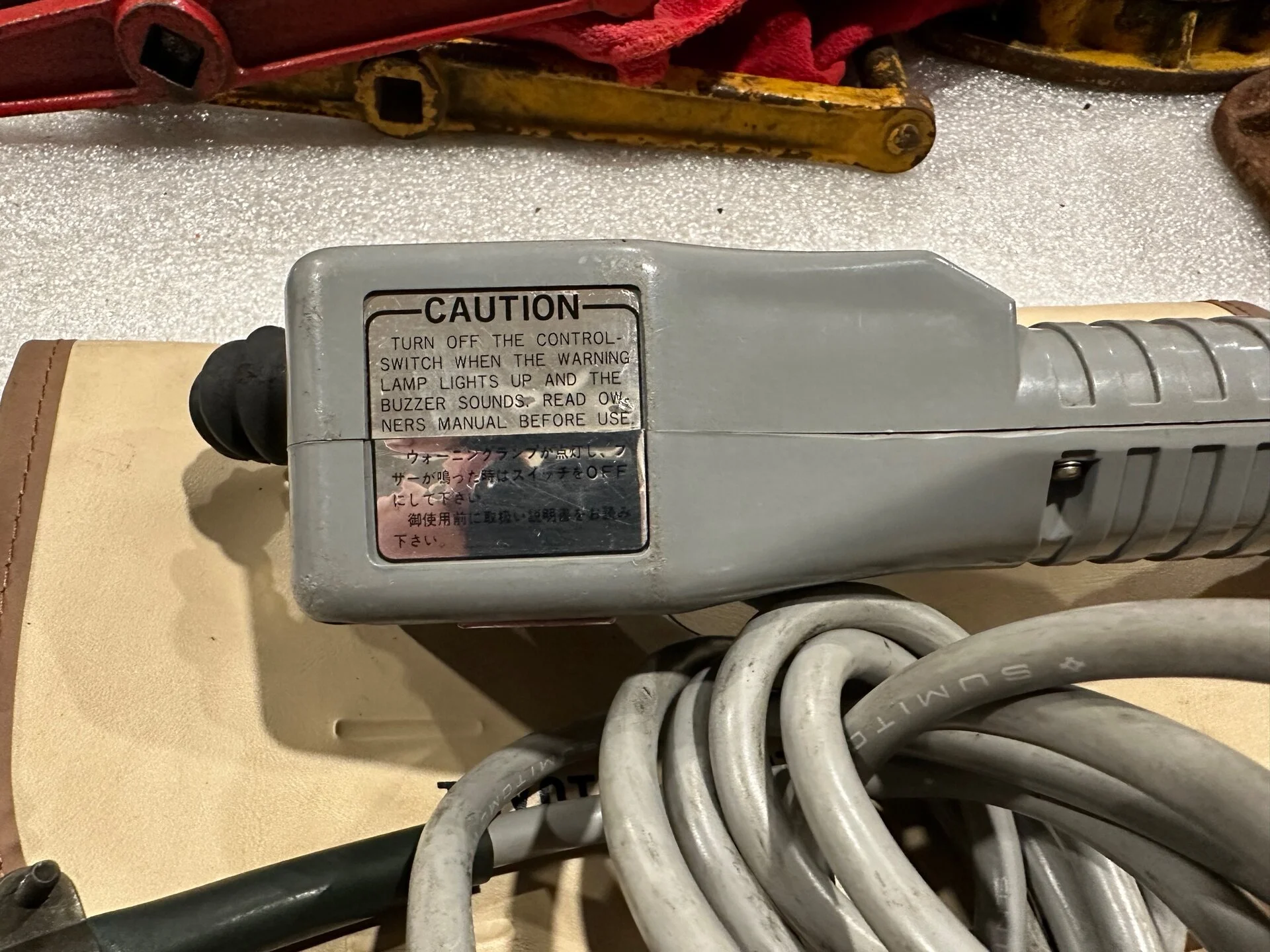

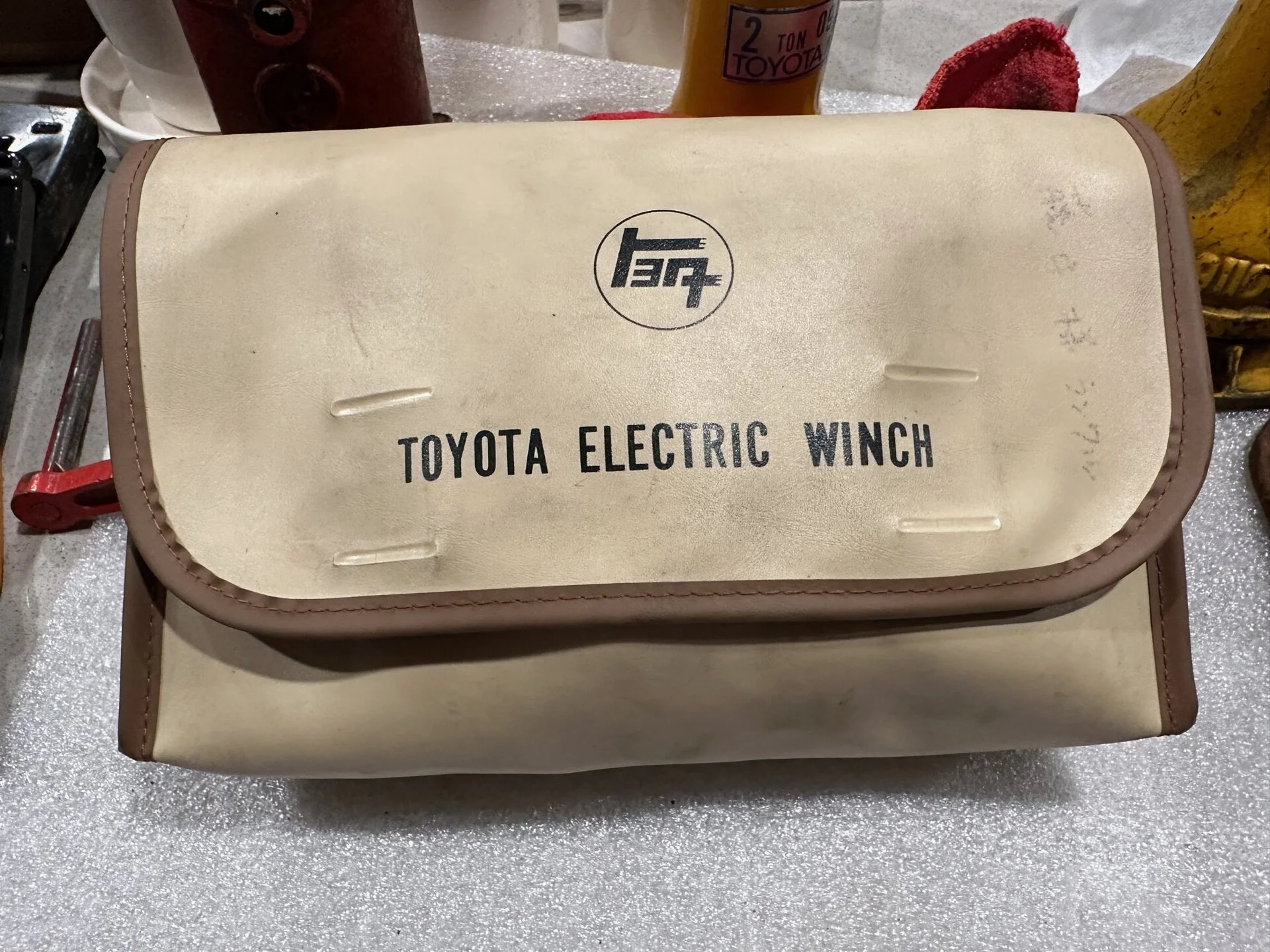

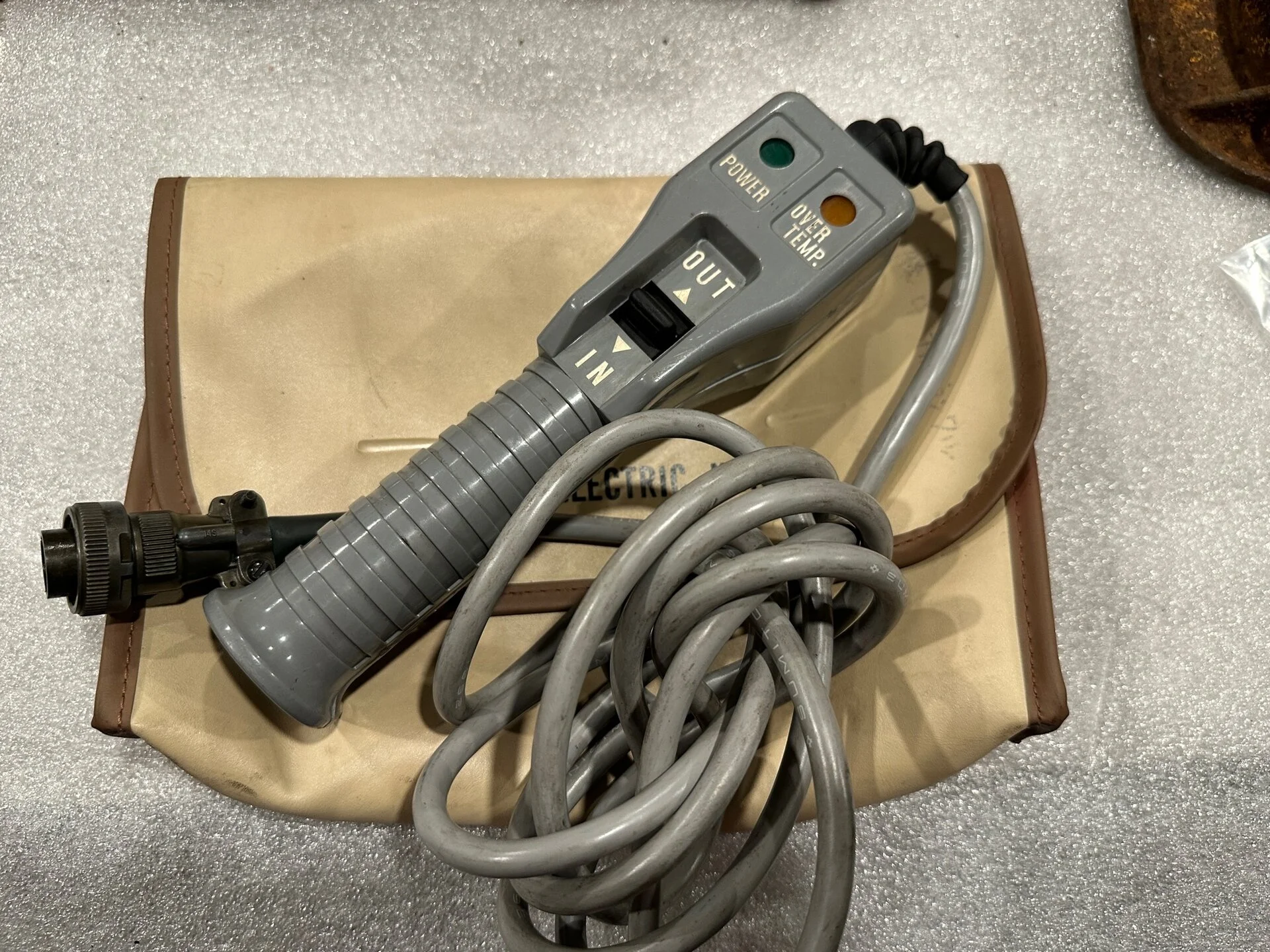

This winch controller works for all Toyota Aisin winches installed on vehicles listed below.
Part 38640-35010 (SWITCH ASSY, WINCH CONTROL) was found on the following models:
Market Date range Model Frames/Options Found in diagram
Japan 11/1983-02/1989 TOYOTA HILUX YN5*,6*,LN5*,6* 38-02: WINCH
Japan 09/1988-07/1997 TOYOTA HILUX KZN130,LN8*,10*,112,13*,VZN130,YN8*,10*,130 38-02: WINCH
General 08/1988-11/2004 TOYOTA HILUX/4RUNNER LN,RN,YN,VZN10*,11*,13*,KZN,LN205 38-02: WINCH
N. America 08/1983-02/1989 TOYOTA 4RUNNER TRUCK RN5*,6*,7*,VZN6*,LN5*,6* 38-02: WINCH
Japan 01/1990-07/2004 TOYOTA LAND CRUISER FJ75,LJ7*,HZJ7*,PZJ7*,KZJ7* 38-02: WINCH
Japan 04/1996-10/2002 TOYOTA LAND CRUISER PRADO KDJ9*,KZJ9*,RZJ9*,VZJ9* 38-02: WINCH
General 11/1984-12/1989 TOYOTA LAND CRUISER RJ70,LJ70,BJ7*,HJ75,FJ7* 38-02: WINCH
General, N. America 01/1990-12/2006 TOYOTA LAND CRUISER FJ,FZJ,HDJ,HJ,HZJ,KZJ,LJ,PZJ,RJ7* 38-02: WINCH
General 04/1996-11/2008 TOYOTA LAND CRUISER KZJ9*,LJ9*,RZJ9*,VZJ9* 38-02: WINCH
General, N. America 01/2007- TOYOTA LAND CRUISER FZJ7*,GRJ7*,HZJ7*,VDJ7* 38-02: WINCH
Europe 11/1984-12/1989 TOYOTA LAND CRUISER RJ7*,LJ7*,BJ7* 38-02: WINCH
Europe 01/1990-07/2001 TOYOTA LAND CRUISER BJ73,LJ7*,RJ7*,HZJ7*,PZJ7*,KZJ7* 38-02: WINCH
Japan 08/1987-12/1989 TOYOTA LAND CRUISER FJ6*,HJ6* 38-02: WINCH
Japan 01/1990-12/1997 TOYOTA LAND CRUISER FJ80,FZJ80,HDJ81,HZJ81 38-02: WINCH
Japan 01/1998-07/2007 TOYOTA LAND CRUISER HDJ101,UZJ100 38-02: WINCH
Europe, General 08/1980-07/1987 TOYOTA LAND CRUISER BJ60,HJ6*,FJ6* 38-02: WINCH
General 08/1987-02/1992 TOYOTA LAND CRUISER BJ60,HJ6*,FJ62 38-02: WINCH
General 01/1990-11/2006 TOYOTA LAND CRUISER FJ80,HDJ80,HZJ80,FZJ80 38-02: WINCH
General 01/1998-08/2007 TOYOTA LAND CRUISER FZJ10*,HDJ100,HZJ105,UZJ100 38-02: WINCH
General 08/2007- TOYOTA LAND CRUISER GRJ200,URJ20*,UZJ200,VDJ200 38-02: WINCH
Europe 08/1987-12/1989 TOYOTA LAND CRUISER FJ62,HJ6* 38-02: WINCH
Europe 01/1998-07/2007 TOYOTA LAND CRUISER HDJ100,UZJ100 38-02: WINCH
