Slee Stainless Steel Brakeline Orientation

[1994LCNM]

Hi all,

I just purchased Slee SS for my 03 470. I took off the left rear wheel looking for the "Center Lower" and "Center Upper" lines.

Can someone please help me orient where these are? I have attached a picture from another thread on this forum, but which way am I looking? Or is there a better pic i am not seeing? Where are the "Center Lower/Upper" located?

Thank you!

@TheForger



[1994LCNM]

I will look again



[ClassyJalopy]

Hi all,

I just purchased Slee SS for my 03 470. I took off the left rear wheel looking for the "Center Lower" and "Center Upper" lines.

Can someone please help me orient where these are? I have attached a picture from another thread on this forum, but which way am I looking? Or is there a better pic i am not seeing? Where are the "Center Lower/Upper" located?

Thank you!

@TheForger

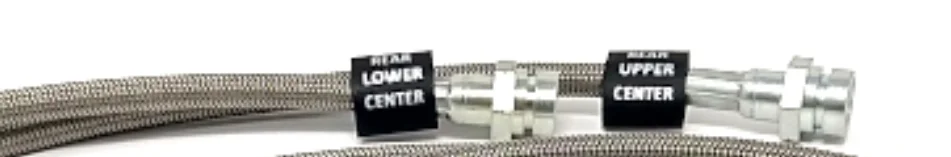

View attachment 3833496

View attachment 3833497

This pictures was taken from the back side of the truck looking towards front. The photog is sitting under the truck where the spare tire goes, The brake lines are attached to the bracket mounted to the rear upper control arm mount on the rear axle - driver side.
HTH



[1994LCNM]

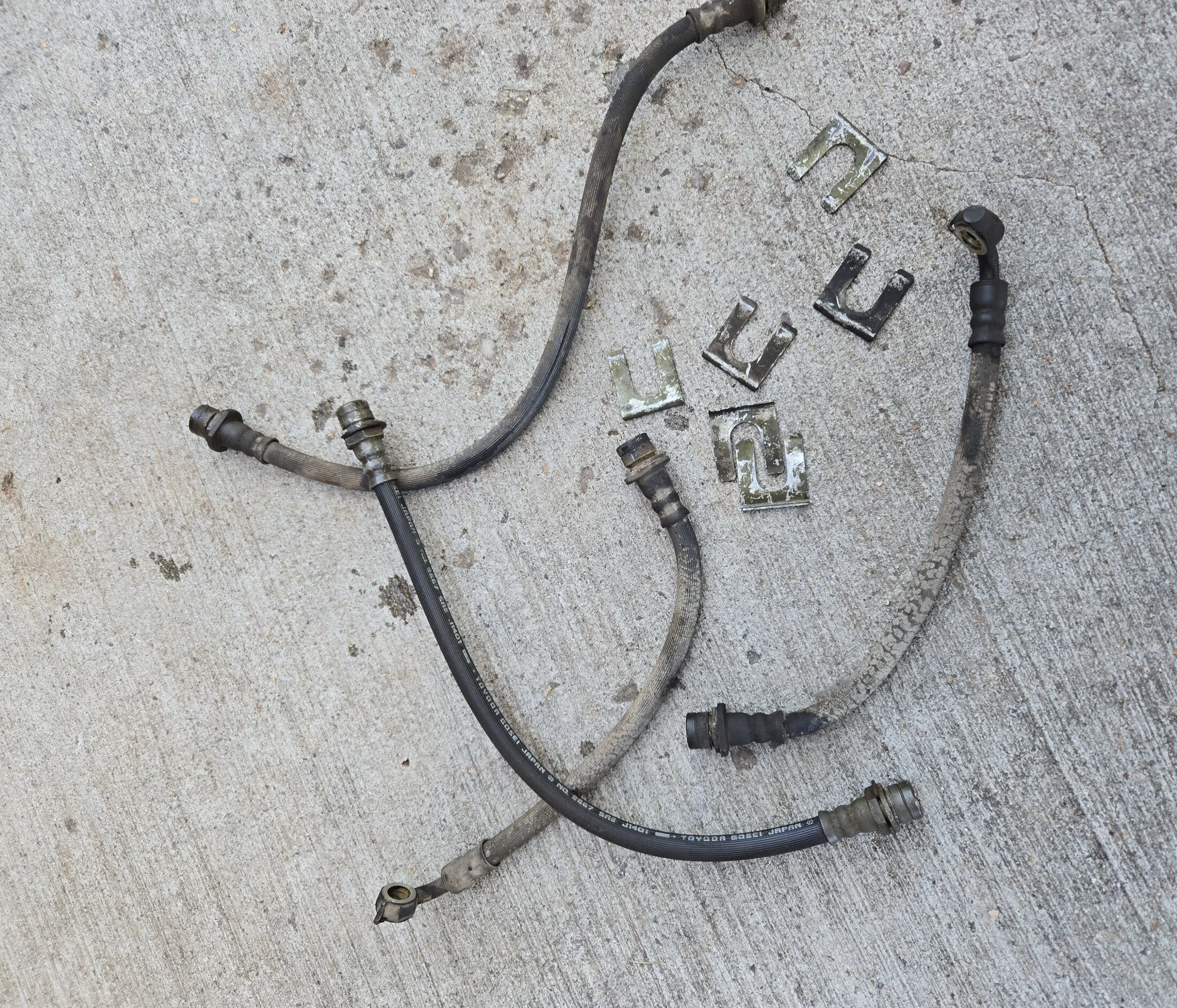

Thank you @ClassyJalopy , I got it figured out. It took about 4 hours to do because 3 of the taps were rusted shut and it SUCKED!

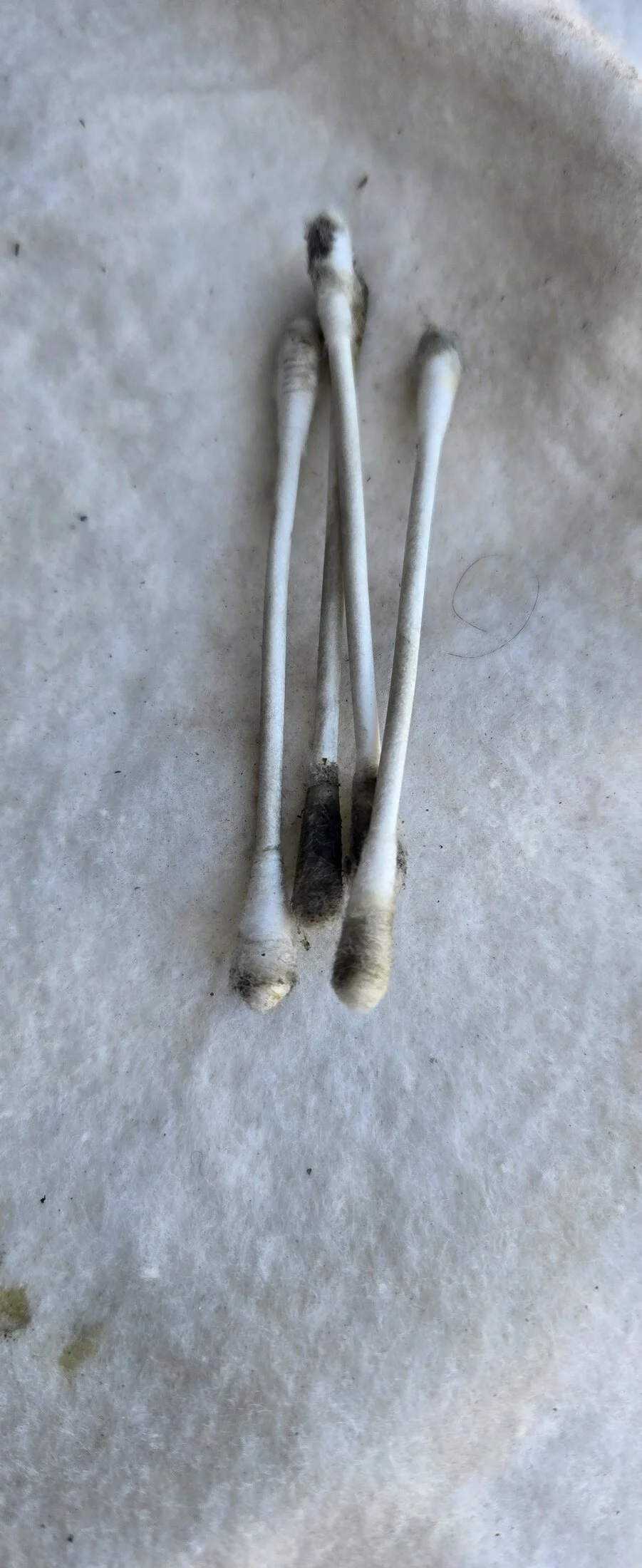

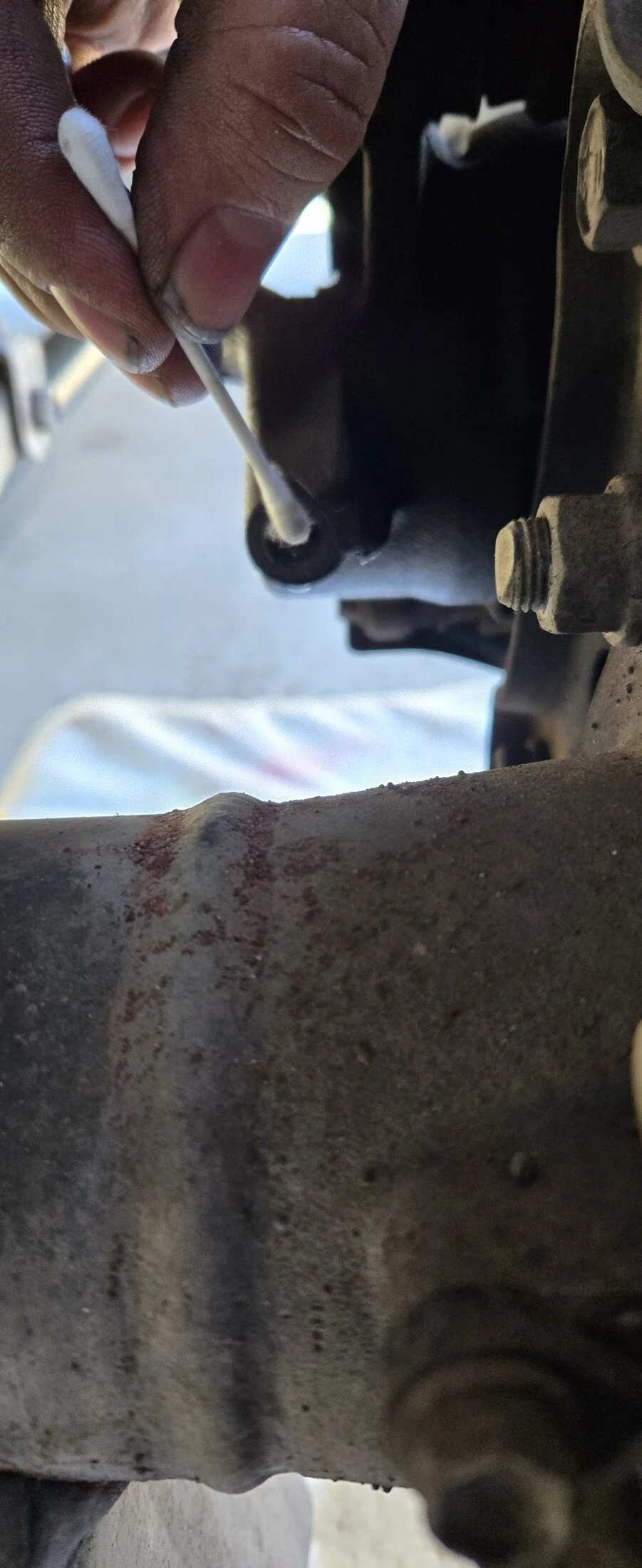

Also, I used cotton swabs to clean out the threads and then flushed.
