Does anyone have pictures of how to remove the flywheel inspection cover so I can highlight the timing marks with some white paint? I am having a hard time passing smog because the techs can't figure out how to check the timing. I have printed up pictures to show them the window above the starter but I would like to paint the BB and line on the flywheel and the arrow mark in the inspection window so that they can be seen better. I have read this is possible by removing the flywheel inspection cover on the bottom but I could not find it yesterday. Any pictures of description of how to do this would be helpful.
Removal of flywheel inspection cover to paint timing marks.
- Thread starter Madronesfj62
- Start date
This site may earn a commission from merchant affiliate
links, including eBay, Amazon, Skimlinks, and others.
RodrigzCrzr
SILVER Star
Is it a 60 or 62?
- Thread starter
- #3
RodrigzCrzr
SILVER Star

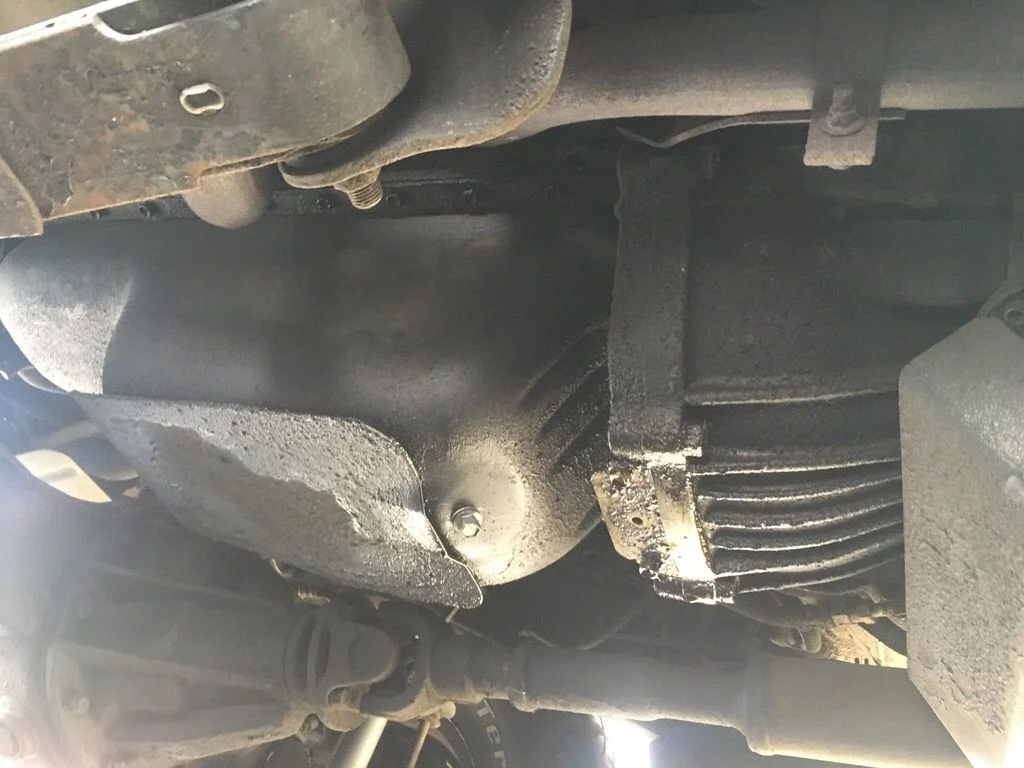

Small plate at the bottom of bell housing of the trans. 2 screws.
- Thread starter
- #5
That's what I thought. So if I remove that I should be able to rotate the flywheel, with truck in neutral, and find the BB and line for the timing marks?
RodrigzCrzr
SILVER Star
Don't paint a line on the TDC 0° scribe on the flywheel. It will only confuse the tech. The 7° BTDC timing ball doesn't need paint. It's easy to see with a decent strobe since it's indented
i used a pen paint marker to highlight the 7* line -- makes it a lot easier to see when timing.
- Thread starter
- #10
Yeah, that's what I wanted to do. Just wanted to figure out how to access it. Was it easy to get to from the bottom access plate?
The inspection plate on the FJ60 (manual transmission) is fairly large--it covers about the bottom 1/2 of the bell housing. I think it is used for inspecting clutch components as well as the flywheel ring gear etc. The picture above is for the FJ62 I guess and it looks small and may only be there to inspect the ring gear. You need to be able to see the part of the fly wheel that is facing towards the front of the truck.
- Thread starter
- #12
So is there a way to do this on the FJ62? I want to make things as easy as possible for the smog tech.
They need to adjust timing or just check to see what it’s set at?
If the truck passes visual for smog components and gets a clean score on the dyno run does it really matter where the timing is set?
If the truck passes visual for smog components and gets a clean score on the dyno run does it really matter where the timing is set?
- Thread starter
- #14
For some reason they have to check to see what it is set at.
So they need to check it but they don’t know how? Sounds about right.
Paint a white line on the power steering pump pulley and tell them that’s where it’s done.
Paint a white line on the power steering pump pulley and tell them that’s where it’s done.
