A reproduction Land Cruiser tool roll with FJ25-era Toyota tools. The kit includes the types of tools originally supplied in FJ25 and early FJ40 Land Cruiser tool kits. All tools are vintage Toyota except for the spark tester and curved grease nozzle. A repro Content list is included.

Asking $849 OBO including shipping. Shipping to US only. Please PM to discuss.

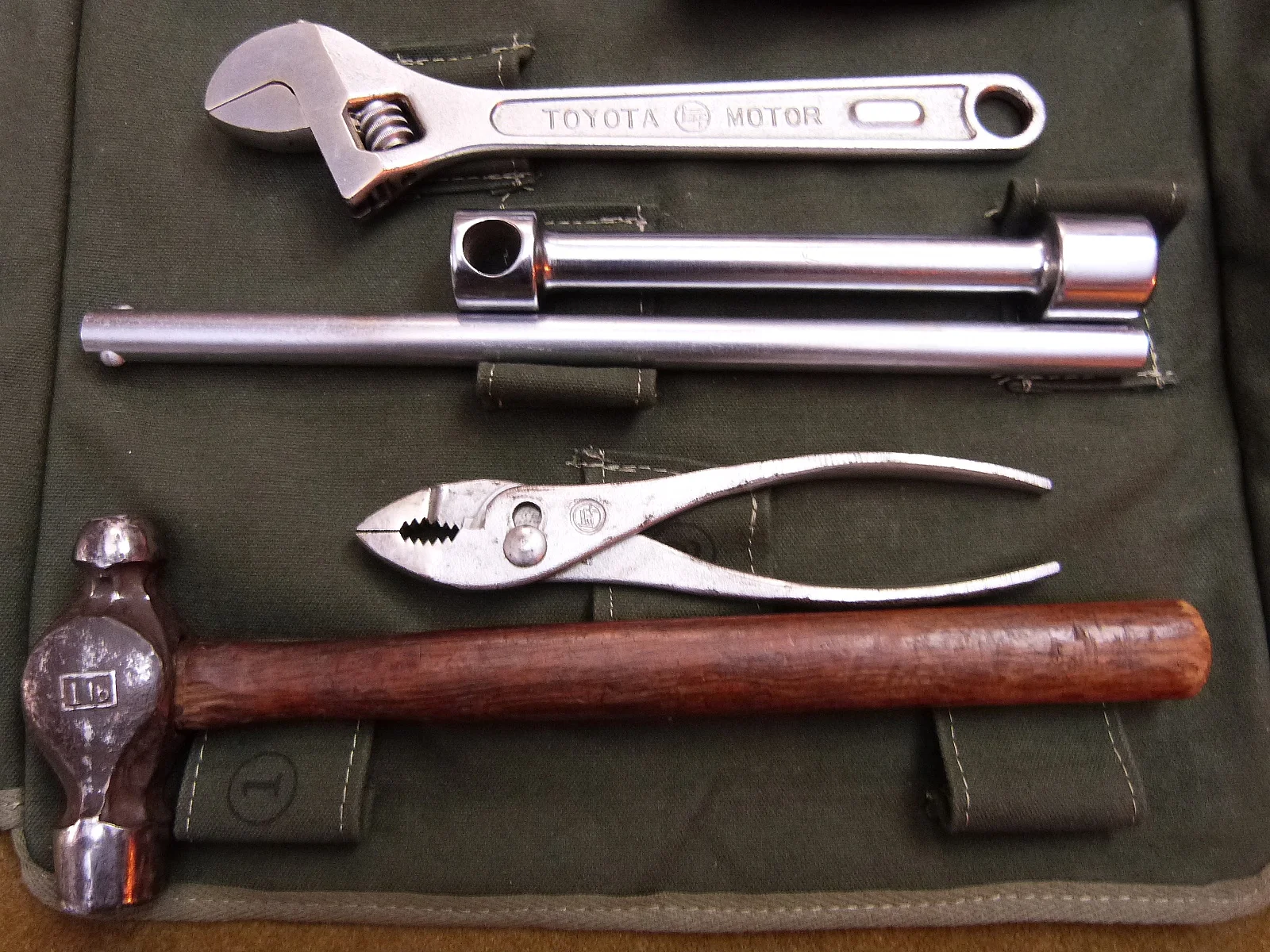

Several FJ25-era tools are included (estimated dates):
  • Maruki brand hammer (1lb), with the Maruki logo and 1lb marking (through 1959)
  • Pliers (200mm) with TEQ logo, with curved handles and nested triangles grips (1958-1960)
  • Lug wrench (23mm) 2-piece, with TEQ logo (through 1957)
  • Adjustable wrench (10inch), marked Toyota TEQ Motor with oval pad (though 1959)
  • Spark plug wrench (21mm), 2-piece, marked Toyota Motor, recessed socket with knurled center and bar handle (1958-60)
  • 6-wrench set with blue wrench clip, open-end wrenches, flat handle, marked Kyoto KTC logo K.T.C and Nickel Chrome Vanadium, with small TEQ logo stamp on reverse (through 1957)
  • Grease pump, marked Toyota TEQ Motor, side seam, back unmarked (1958-60)
  • Engine Adjust Kit, 4-leaf feeler gauge (.008, .010, .014, .018, stamped inches) (1958-60)
  • Engine Adjust Kit, 8x9mm ignition wrench marked BX SST 1001-6, back unmarked (1958-60)
The tools are in good used condition with marks and wear from age and use. The grease pump appears unused. A later 10x12 Toyota TEQ Motor wrench substitutes for the earlier version. In the Engine Adjust Kit, a contemporary spark tester is in place of the yellow-handle TEQ spark tester, a 2-loop .7/.8mm spark plug gap tool is in place of the 2-loop .8/.9mm gap tool and the red handle points file is missing.

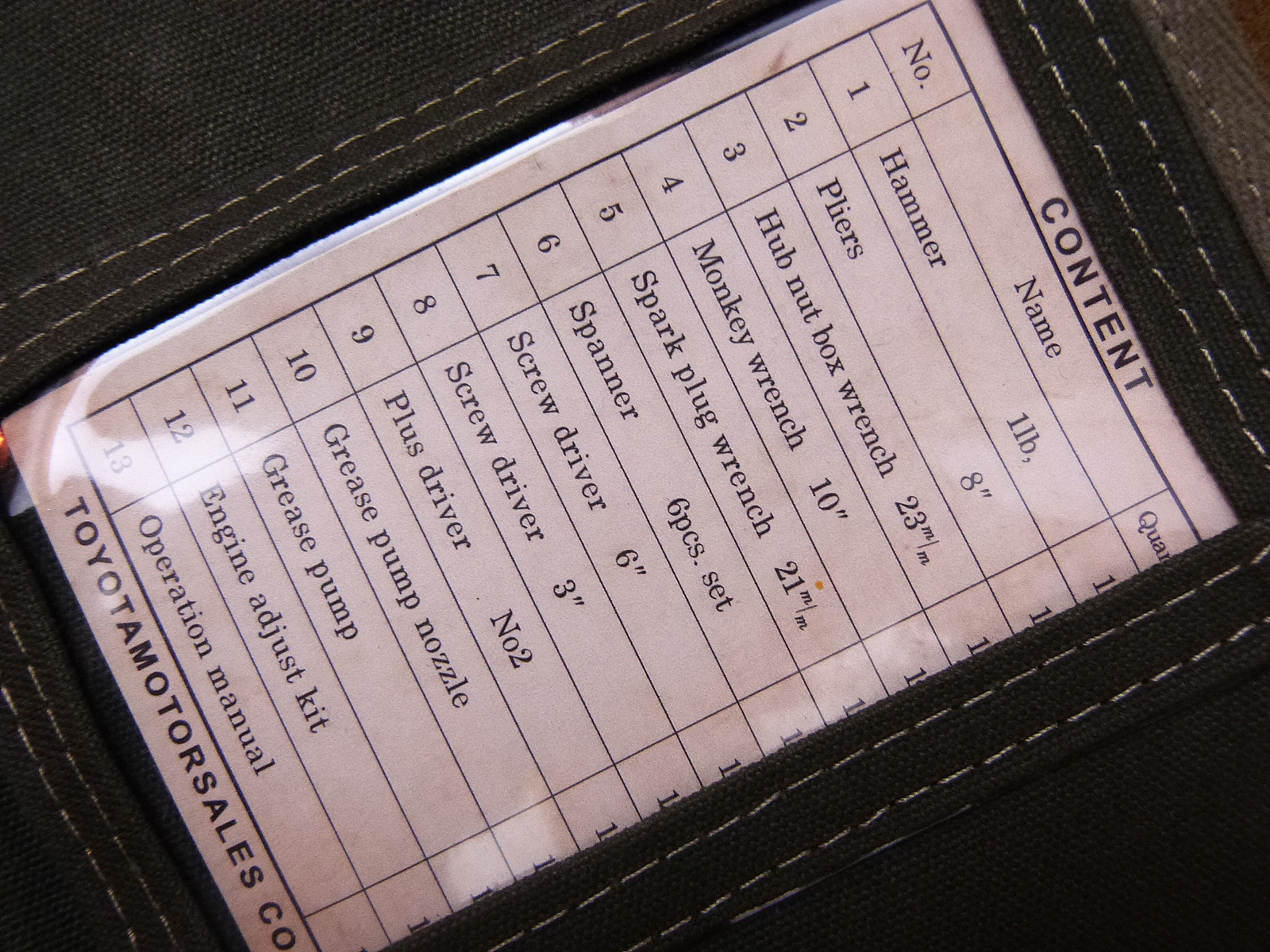

The canvas is a high-quality, repro Land Cruiser tool roll made from green double-fill canvas. It is one of a batch made around 2016 and was purchased new at that time. After being stocked with Toyota tools it has been stored indoors. The binding and strap are twill tape and it has a painted slide buckle. The materials and workmanship are excellent. The Content list is a reproduction.

full

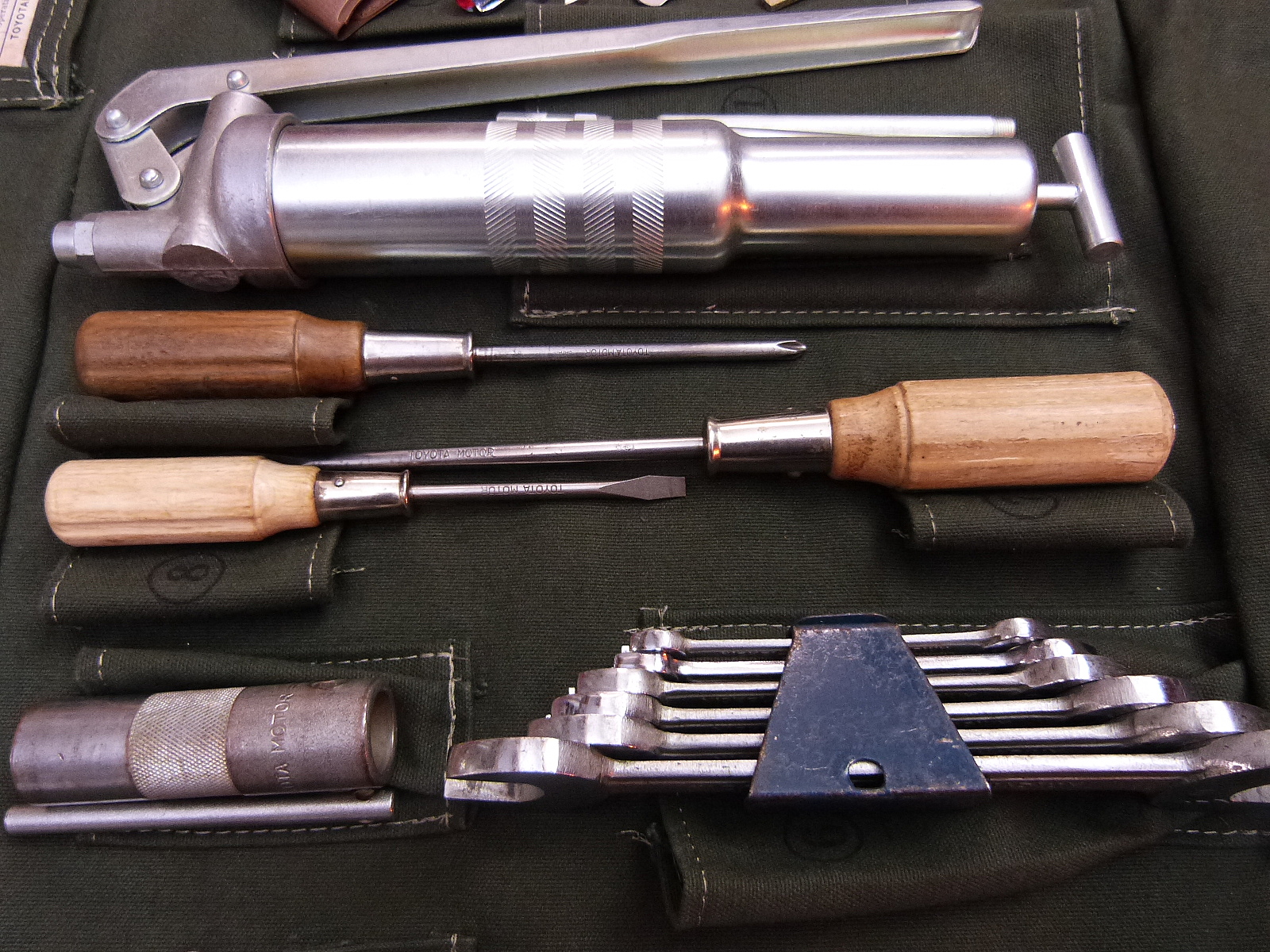

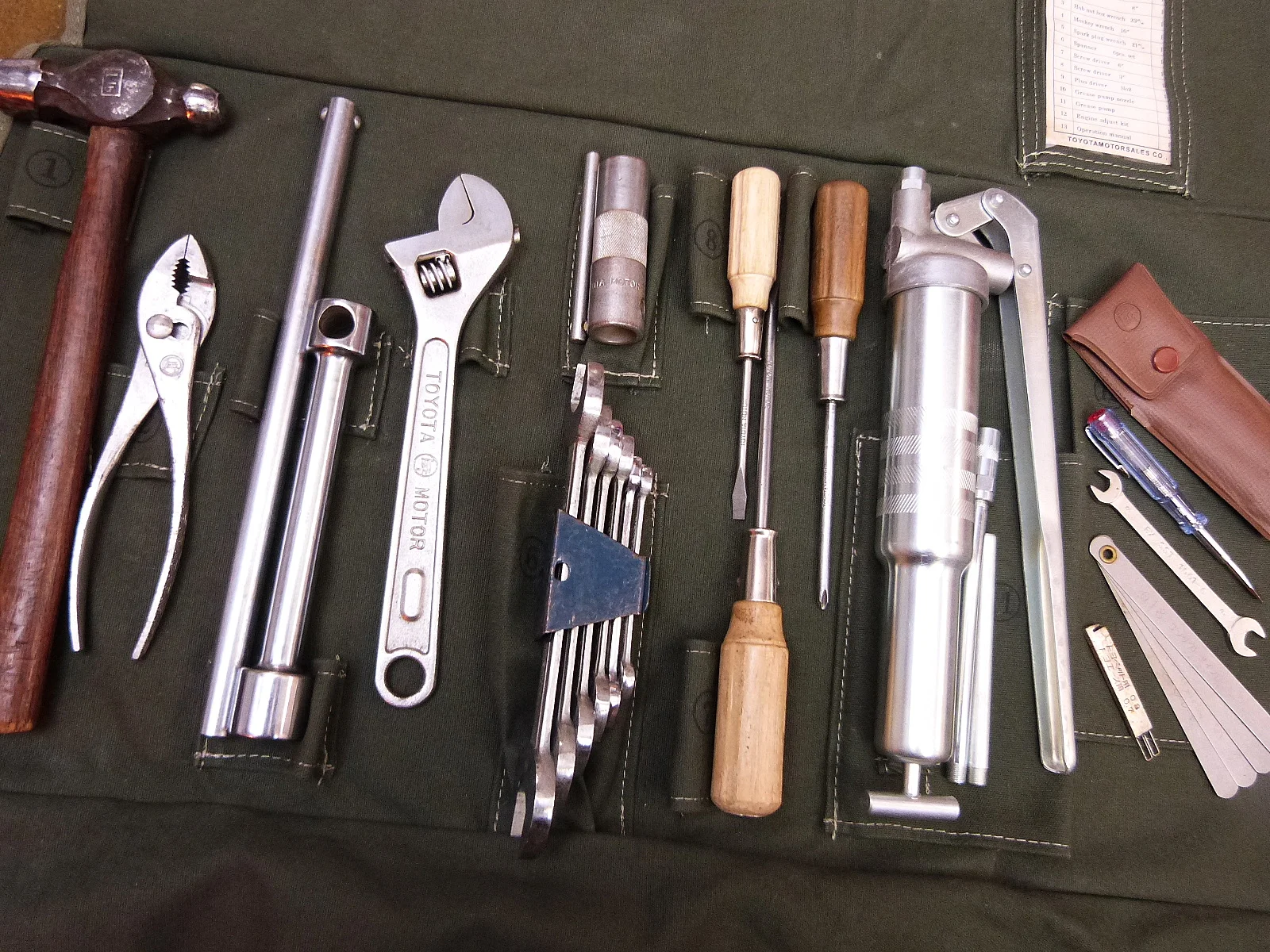

This kit includes the following pieces:
  • Maruki brand hammer (1lb), with the Maruki logo and 1lb marking

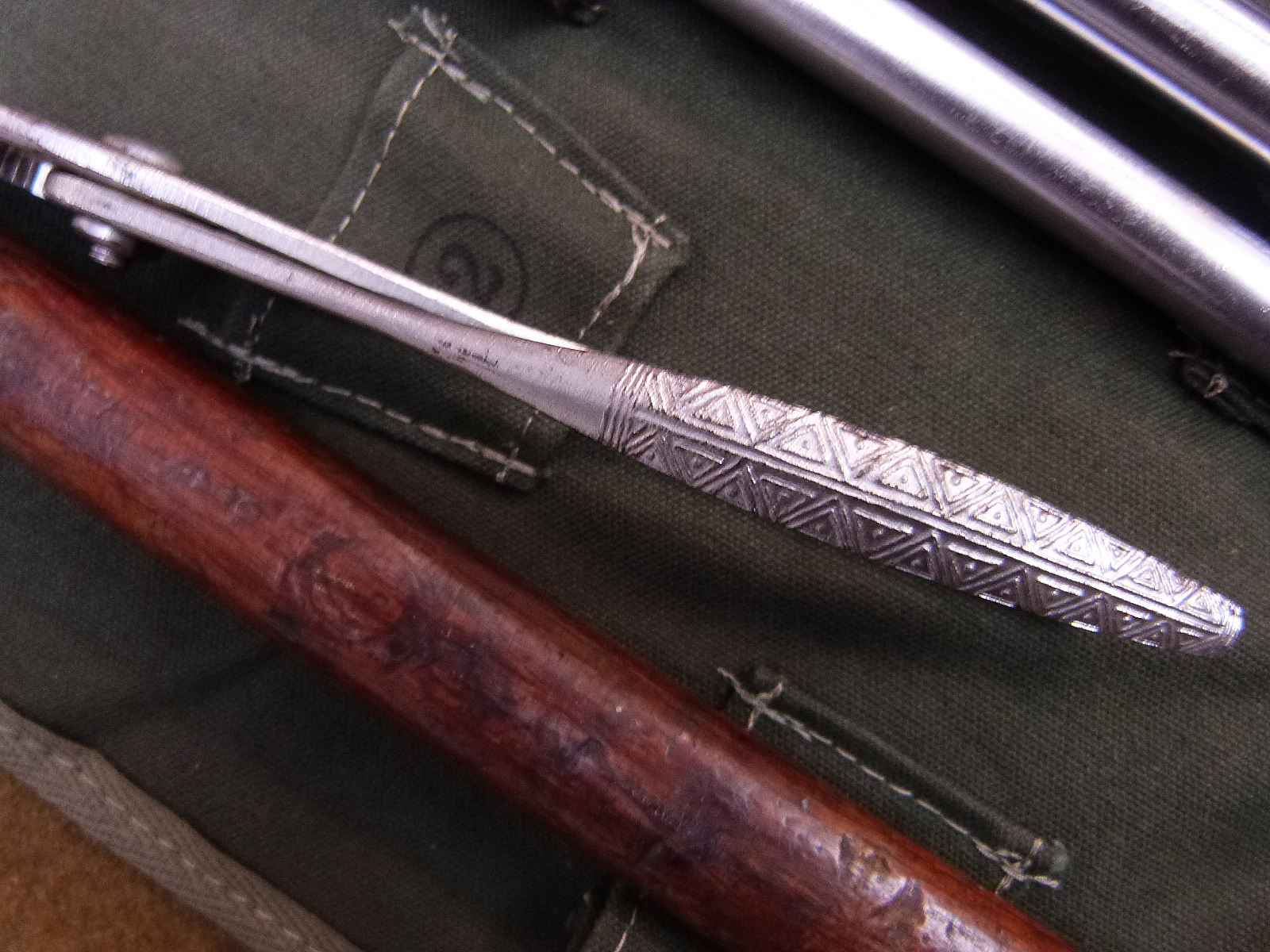

  • Pliers (200mm) with TEQ logo, with curved handles and nested triangles grips
  • Lug wrench (23mm) 2-piece, with TEQ logo
  • Adjustable wrench (10inch), marked Toyota TEQ Motor with oval pad
  • Spark plug wrench (21mm), 2-piece, marked Toyota Motor, recessed socket, knurled center, with bar handle
  • Screwdriver (150mm), wood handle, flat blade, marked Toyota Motor on the shank
  • Screwdriver (75mm), wood handle, flat blade, marked Toyota Motor on the shank
  • Screwdriver (100mm), wood handle, No.2 cross-head, marked Toyota Motor Japan on the shank

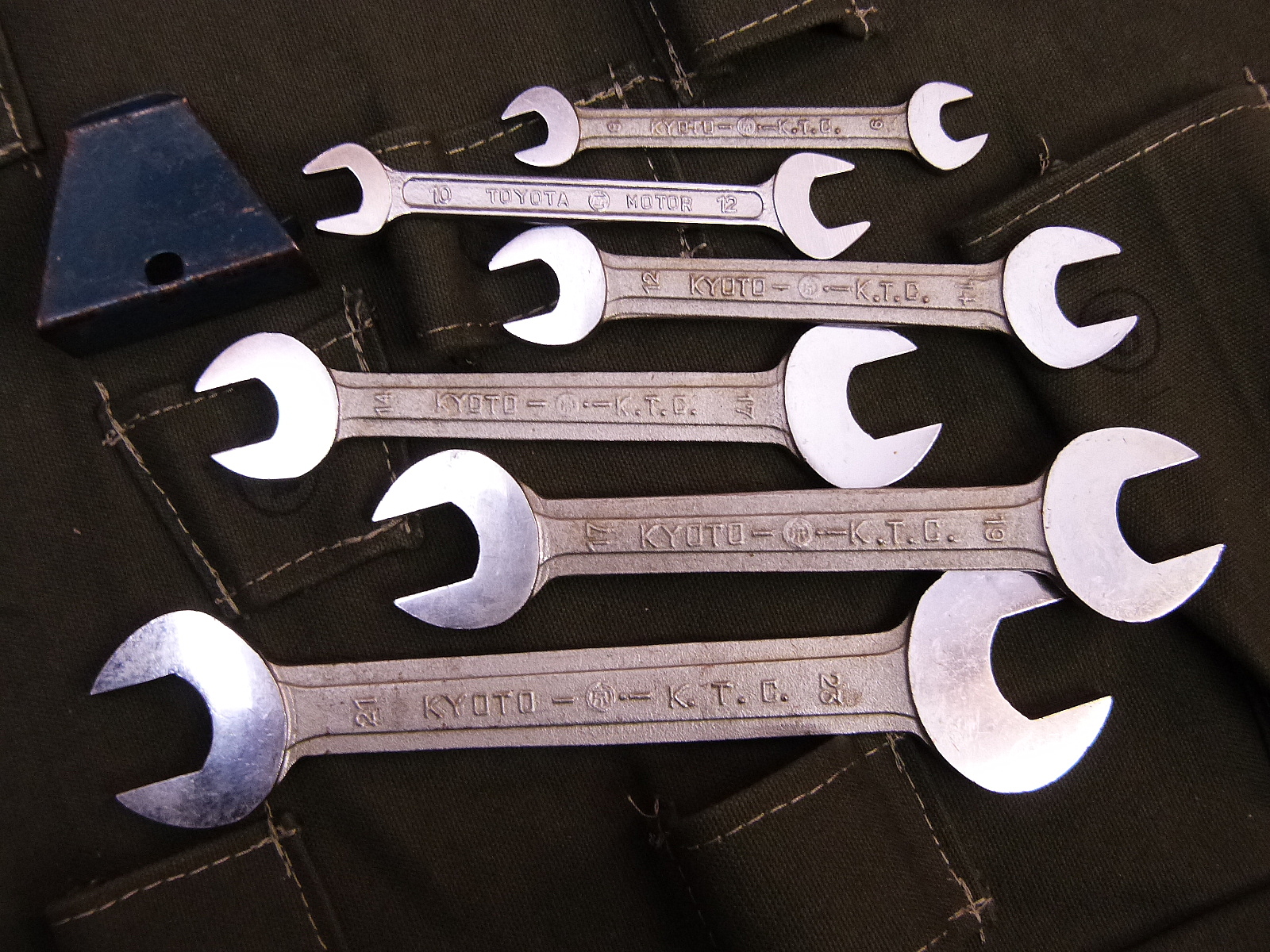

  • 6-wrench set with blue wrench clip
    • Open-end wrench (8x9mm), flat handle, marked Kyoto KTC logo K.T.C and Nickel Chrome Vanadium, with small TEQ logo stamp on reverse
    • Open-end wrench (10x12mm), recessed handle, marked Toyota TEQ Motor and Nickel Chrome Vanadium
    • Open-end wrench (12x14mm), flat handle, marked Kyoto KTC logo K.T.C and Nickel Chrome Vanadium, with small TEQ logo stamp on reverse
    • Open-end wrench (14x17mm), flat handle, marked Kyoto KTC logo K.T.C and Nickel Chrome Vanadium, with small TEQ logo stamp on reverse
    • Open-end wrench (17x19mm), flat handle, marked Kyoto KTC logo K.T.C and Nickel Chrome Vanadium, with small TEQ logo stamp on reverse
    • Open-end wrench (21x23mm), flat handle, marked Kyoto KTC logo K.T.C and Nickel Chrome Vanadium, with small TEQ logo stamp on reverse
    • Blue wrench clip - 6-wrench set size

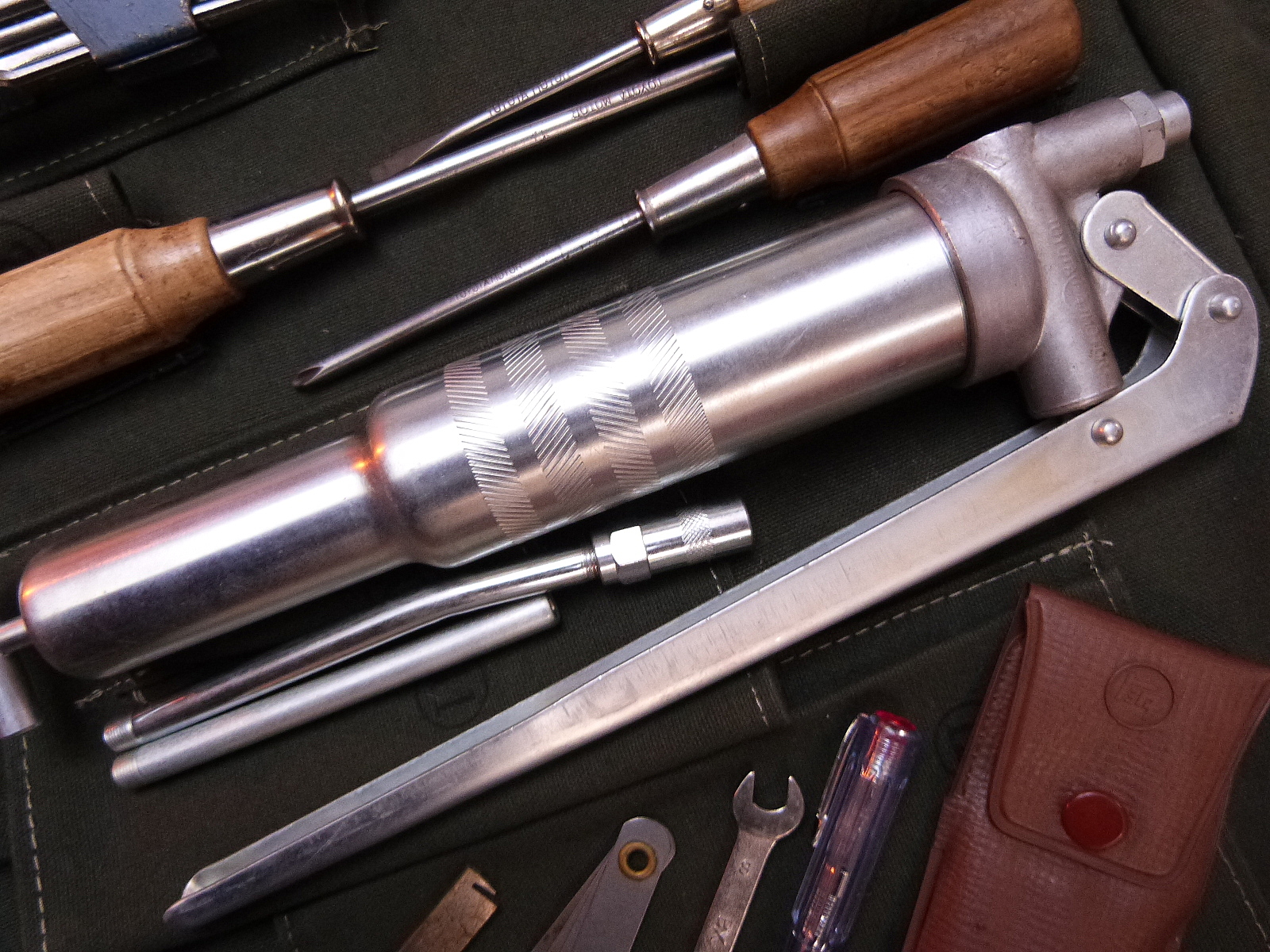

  • Grease pump, marked Toyota TEQ Motor, side seam, back unmarked, with straight nozzle and contemporary curved nozzle with chuck

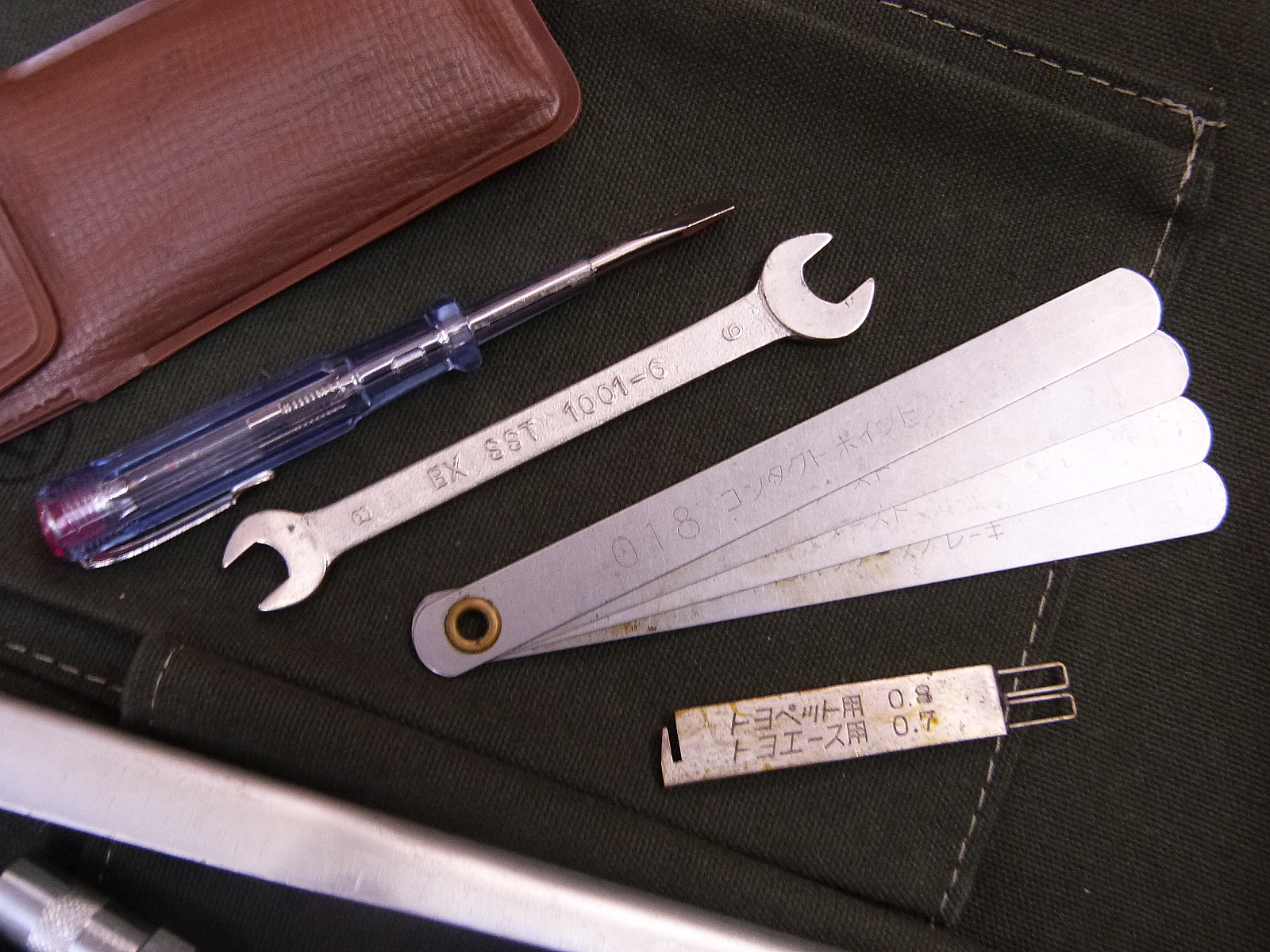

  • Engine Adjust Kit, JDM brown vinyl pouch with TEQ logo, containing:
    • 4-leaf feeler gauge (.008, .010, .014, .018, stamped inches)
    • 8x9mm ignition wrench marked BX SST 1001-6, back unmarked
    • 0.7/0.8mm spark plug gap tool
    • contemporary, clear-handle automobile spark tester screwdriver marked Made In Japan

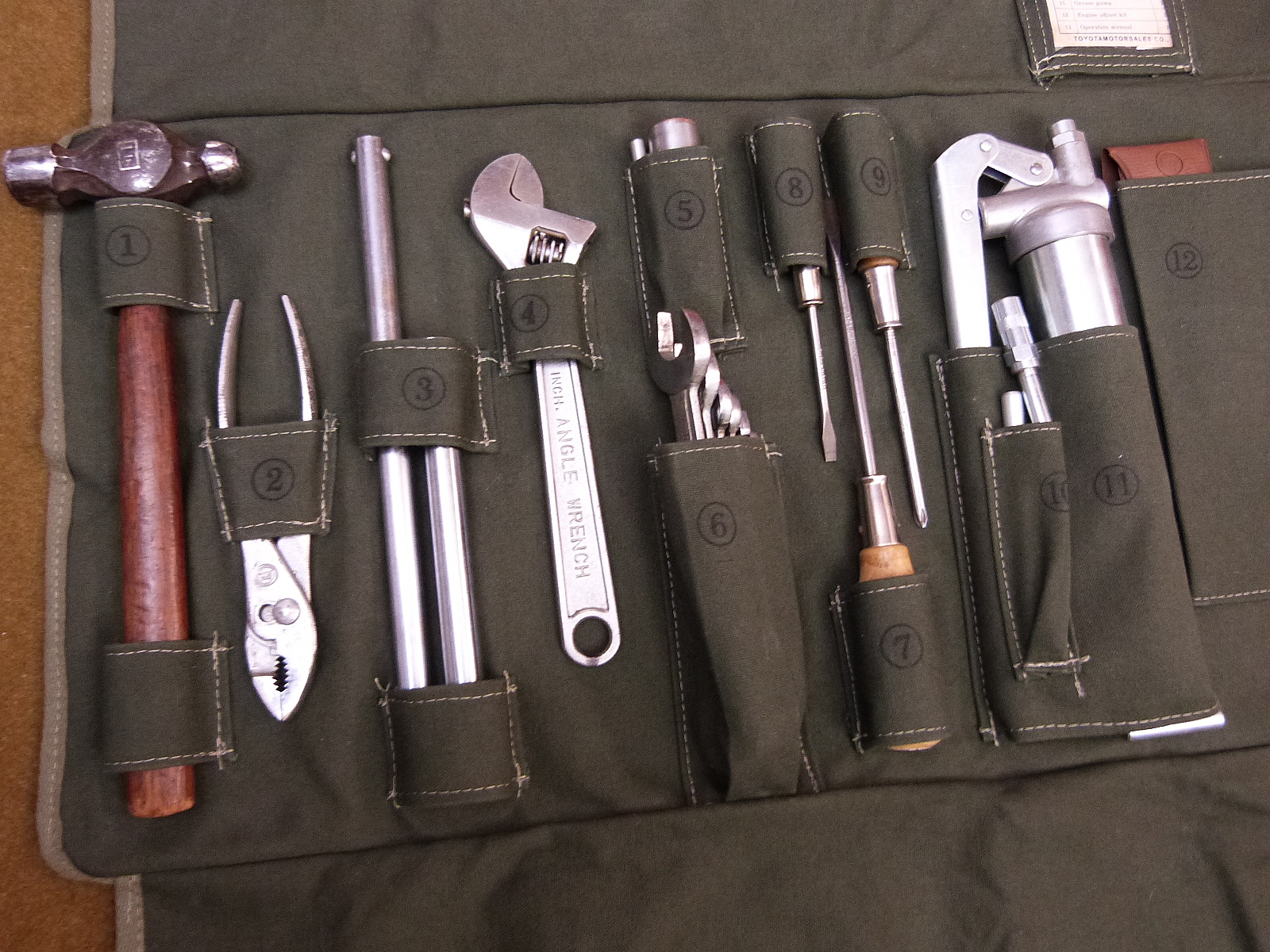

  • Repro large tool roll, green double-fill canvas, with full length strap, painted slide buckle and repro Content list
More images here.

full

full

full

full

full

full

full

full

full

full

full

full

full

full


The lighting in the following photos makes the tool roll appear gray, the photos above are better representations of the actual dark green color.
full

full

full
