FJ40 Power Steering Conversion - 80 Series Power Steering Box Kit? (2 Viewers)

[Will Van]

I want to do a power steering install on my 1977 FJ40. I have heard the 80 series power steering box works very well with a 1HZ power steering pump (which is ultimately what I want to do).

Does anyone make a power steering kit using the 80 series power steering box?

I basically want to recreate @The Eradicator's setup. Any input appreciated. Thanks!



[DSRTRDR]

Kevin (Tools R Us - RIP ) used a 60/3FE series reservoir for the power steering conversion on my 40, with an 80 series box

info and pics on my conversion start at post #326: the DSRTRDR is getting some TLC . . . (where the initially planned 60 steering box is shown; which turned out to be leaking - then jump to post #357 (where Kevin ultimately fits the 80 series box, more pics following about how the column was set up, coming from an original one-piece steering column



[Will Van]

Kevin (Tools R Us - RIP ) used a 60/3FE series reservoir for the power steering conversion on my 40, with an 80 series box

info and pics on my conversion start at post #326: the DSRTRDR is getting some TLC . . . (where the initially planned 60 steering box is shown; which turned out to be leaking - then jump to post #357 (where Kevin ultimately fits the 80 series box, more pics following about how the column was set up, coming from an original one-piece steering column

Thank you. I wonder if the 60 series box and the 80 series box have the same bolt pattern?



[DSRTRDR]

yes, they do - same clearance on the shock tower, too - that's why Kevin was able to swap in the 80 box so easily after prepping for the 60 box



[lelandEOD]

Be aware... there are two bolt patterns for the -60 boxes. The early boxes (though ~'85(ish) have a parallelogram pattern while the later 60 boxes are rectangular. The later 60 boxes are the same as the 70 and 80 series boxes.

I went with the later style on my 1HZ conversion to have a wider range of compatibility.



[lelandEOD]

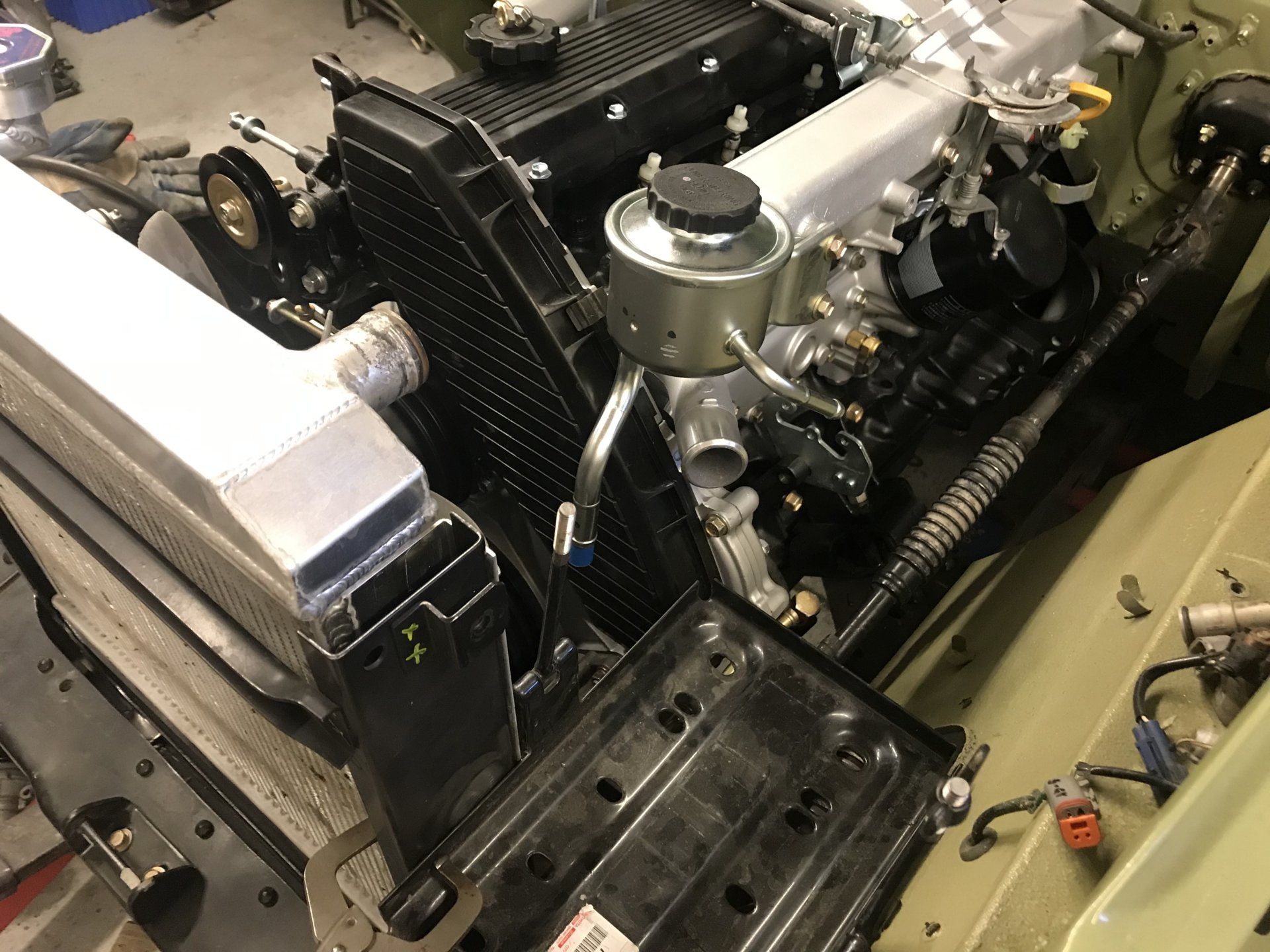

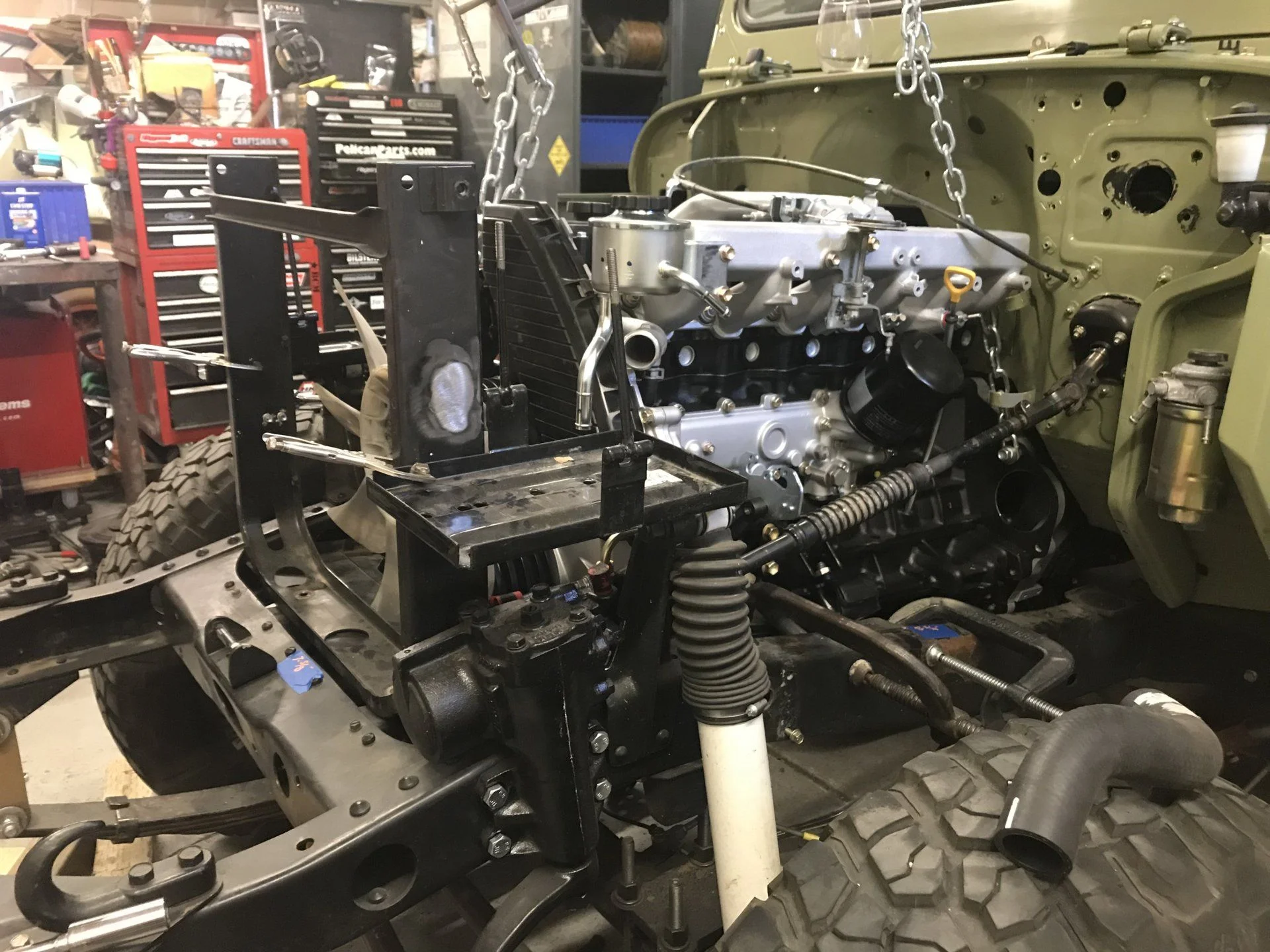

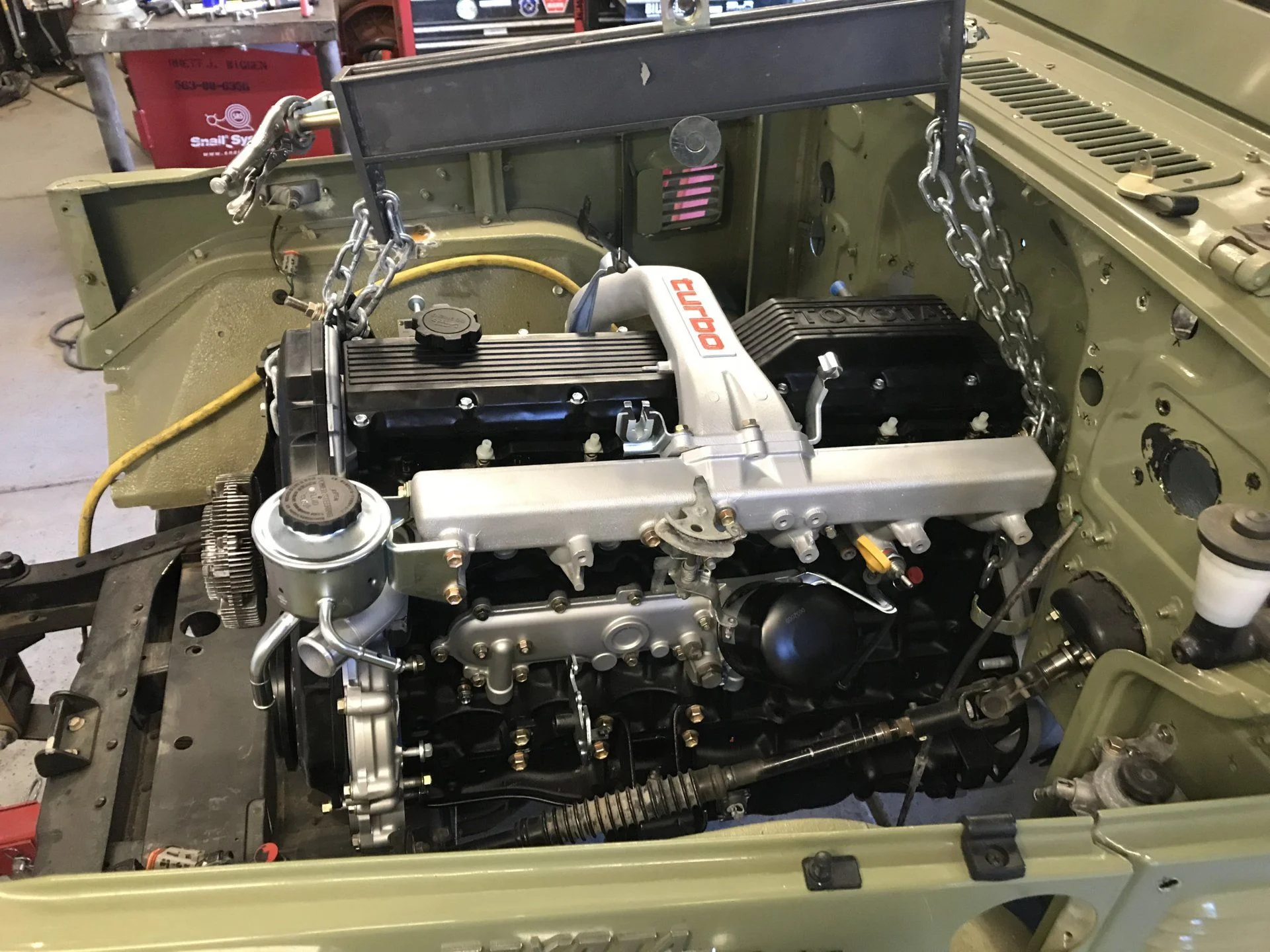

Here are a few shots of my conversion:



[Drake2]

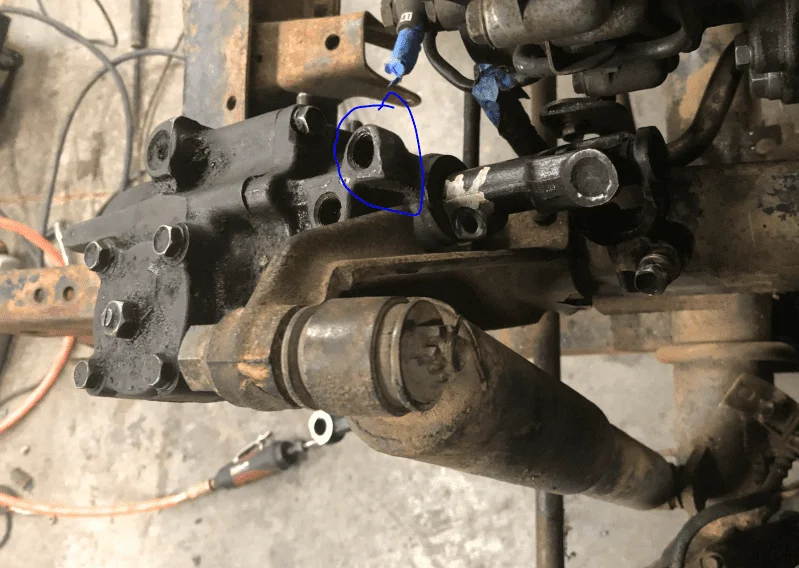

If this is the box you are installing you may want to address this port. It looks like it got hammered by something and definitely will NOT seal up. Unless it's the picture angle but I don't believe that is the case.



[Drake2]

Here are a few shots of my conversion:

View attachment 2179801View attachment 2179802View attachment 2179803View attachment 2179804

Your rig looks really nice, super clean. Great job!



[Will Van]

Here are a few shots of my conversion:

View attachment 2179801View attachment 2179802View attachment 2179803View attachment 2179804

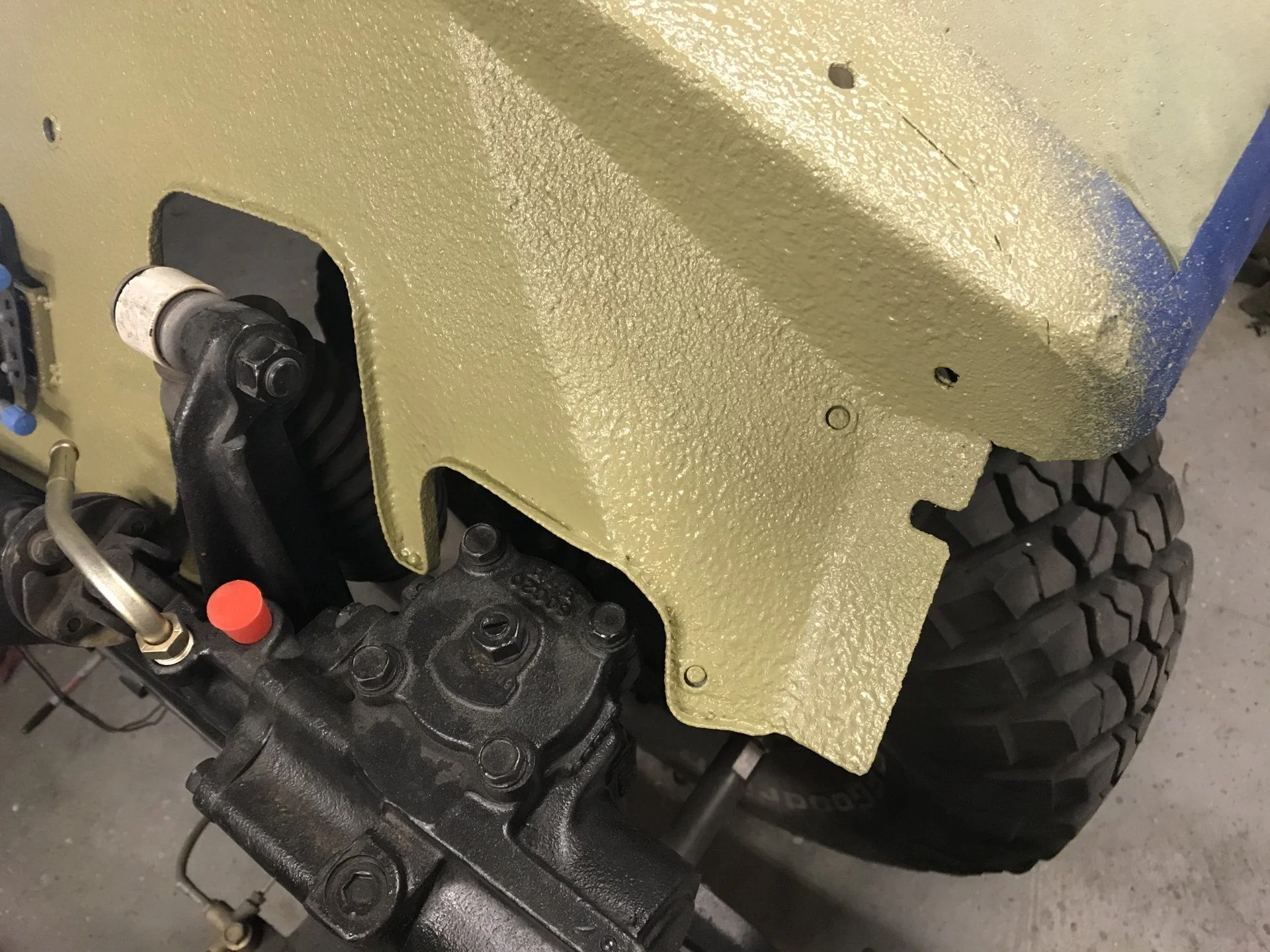

That is beautiful! Did you notch the driver’s side fender for the steering box? Looks factory!



[Will Van]

Be aware... there are two bolt patterns for the -60 boxes. The early boxes (though ~'85(ish) have a polygon pattern while the later 60 boxes are rectangular. The later 60 boxes are the same as the 70 and 80 series boxes.

I went with the later style on my 1HZ conversion to have a wider range of compatibility.

Also, great intel on the two styles of 60 series steering boxes. Thank you!



[3_puppies]

post #6 in this thread has pics of both boxes side by side

Steering Box year

How do you tell what year a 60 series steering box came from, thanks in advance for any help, cheers, Larry

forum.ih8mud.com



[lelandEOD]

That is beautiful! Did you notch the driver’s side fender for the steering box? Looks factory!

Yup, I’ve put a lot of effort into making my work look like something the factory may have done. ... if the factory was a middle-aged dude with modest means, and even more modest abilities.



[Will Van]

post #6 in this thread has pics of both boxes side by side

Steering Box year

How do you tell what year a 60 series steering box came from, thanks in advance for any help, cheers, Larry

forum.ih8mud.com

Thanks!

I wonder if the late-model 60 series boxes and the 80 series boxes have the same bolt pattern?



[AussieHJCruza]

Thanks!

I wonder if the late-model 60 series boxes and the 80 series boxes have the same bolt pattern?

Yes they do



[Will Van]

Here are a few shots of my conversion:

View attachment 2179801View attachment 2179802View attachment 2179803View attachment 2179804

Also, you used an 80 series steering box, correct?



[lelandEOD]

Also, you used an 80 series steering box, correct?

Yup. I went with a stock box for the time being but I’ve been keeping ear to the ground for a second one to have rebuilt with a 100-series sector shaft.



[Will Van]

Yup. I went with a stock box for the time being but I’ve been keeping ear to the ground for a second one to have rebuilt with a 100-series sector shaft.

What's the advantage of the 100 series sector shaft?



[lelandEOD]

It's heavier duty, as I understand it.

... not that I'm ever - ever - going to break a standard -80 box. I just like tinkering.



[Will Van]

...I just like tinkering.

That's an understatement. Just got up to date on your 1HZ rebuild. Wow!!!



[Will Van]

It's heavier duty, as I understand it.

... not that I'm ever - ever - going to break a standard -80 box. I just like tinkering.

Did you find a front steering stabilizer solution?
