For Sale [CA] Spidertrax 609 with TrueHi9, Solid kingpins, driver drop (1 Viewer)

[xjcracker]

I have to let my VERY light mileage Spidertrax 609 go.

It is a Drivers Drop Spidertrax housing with:

• Solid Axle Kingpin Billet inner Cs
• Solid Axle Keyed Kingpin Knuckles (new and not yet installed)
• Solid Axle Keyed Kingpin High Steer Arms (new and not yet installed)
• BlackBird Custom Rotors 5x5.5" (new and not yet installed)
• Spicer Spindles (new and not yet installed)
• BlackBird Custom caliper Brackets (new and not yet installed)
• 35 Spline Alloy USA 4340 inner Axle shafts cryoed
• 35 Spline Alloy USA 4340 outer Axle stubs cryoed
• CTM U-Joints
• Warn Drive Slugs
• TrueHi9 Third member w/Detroit, 5.13 gears, 1310 yolk
• PSC Double ended Full hydro Ram reworked to be the exact stroke of the axle
• 1/4" wall TieRods

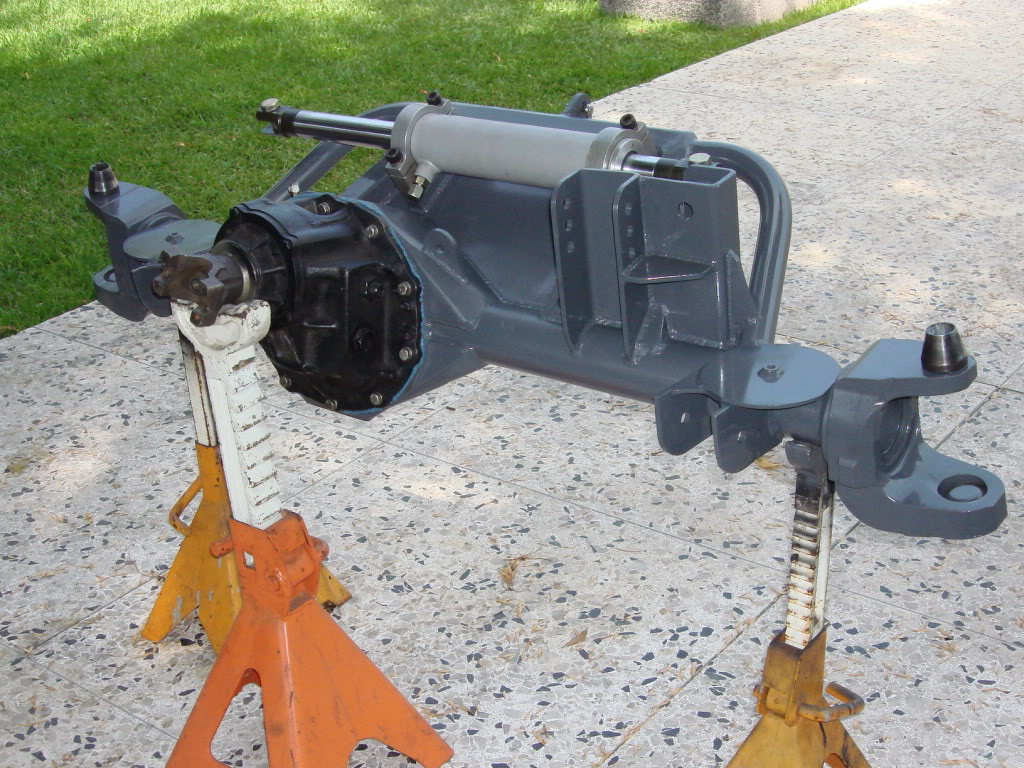

This axle is set up for a jeep with a passenger side three link. It has been trussed and the pumpkin has been plated. The housing is a Spidertrax 1/4" DOM housing and the WMS I THINK is 66" or close to it. The coil buckets are not on the axle and not included (easily purchased from Claytons).

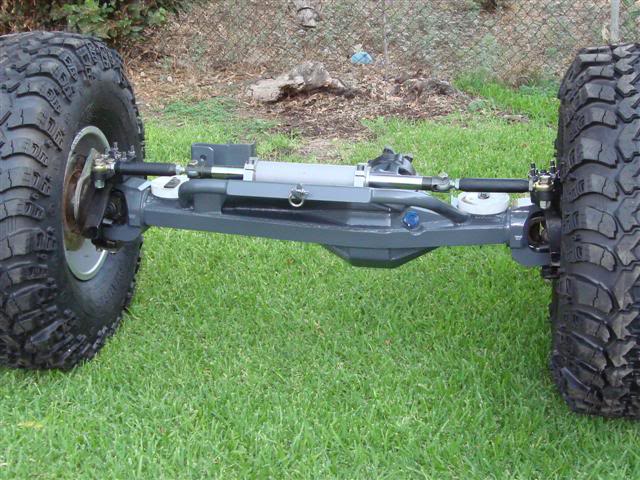

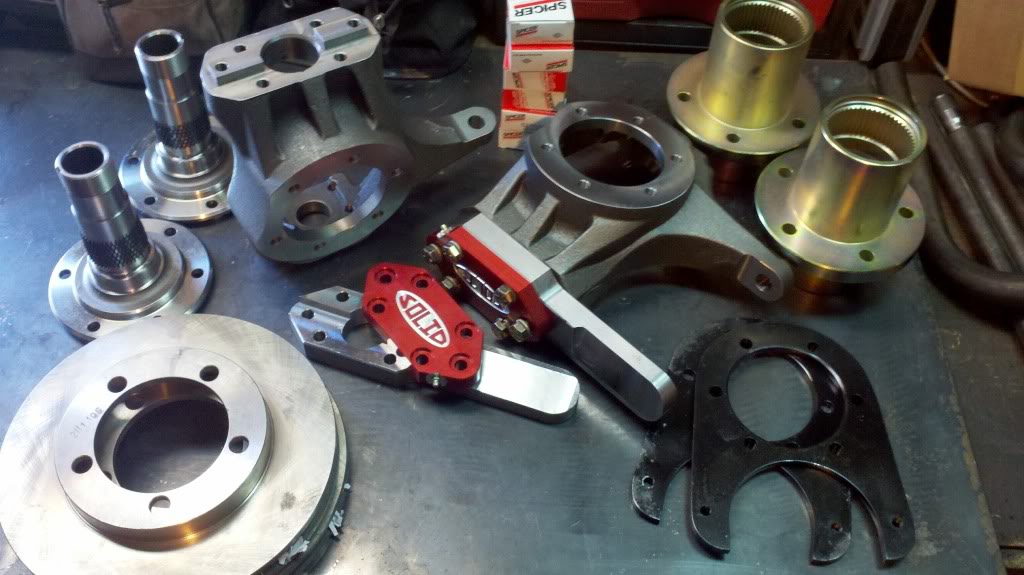

The axle pictures show PartsMike high steer arms and non keyed knuckles but these have been removed and the picture at the bottom shows all the new parts I have for this axle.
I am located in Pasadena, CA and shipping is available. I am asking for $5000 obo as this cost me well over $7500 to build up. (Wheels and tires not included)

NEW ITEMS:
