Hey, we have a couple of 79 series Ute's with electrical problems and I'm wondering if anyone has diagrams for the following:
2021 dual cab workmate 79 series, particularly showing the abs wiring ( I have a short or open circuit in the right hand side wheel speed sensors)

A 2006 hdj79 I've got a electrical drain somewhere draining the battery every night, and blows the fusable links every now and then.

Fingers crossed someone has something.
Dan

Hello,

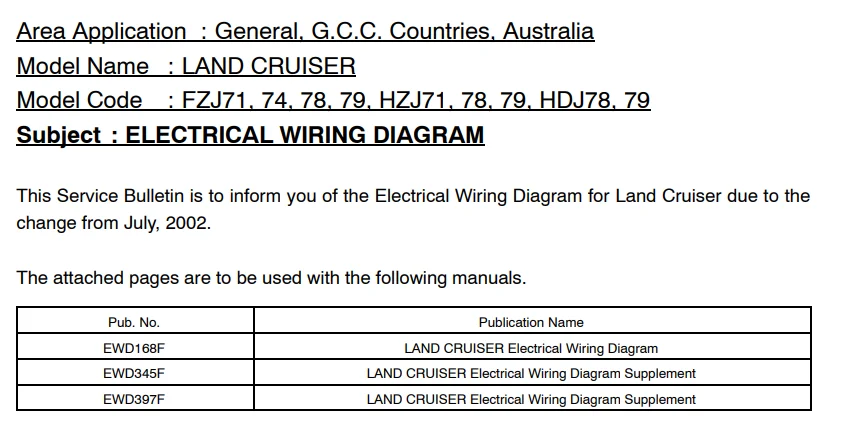

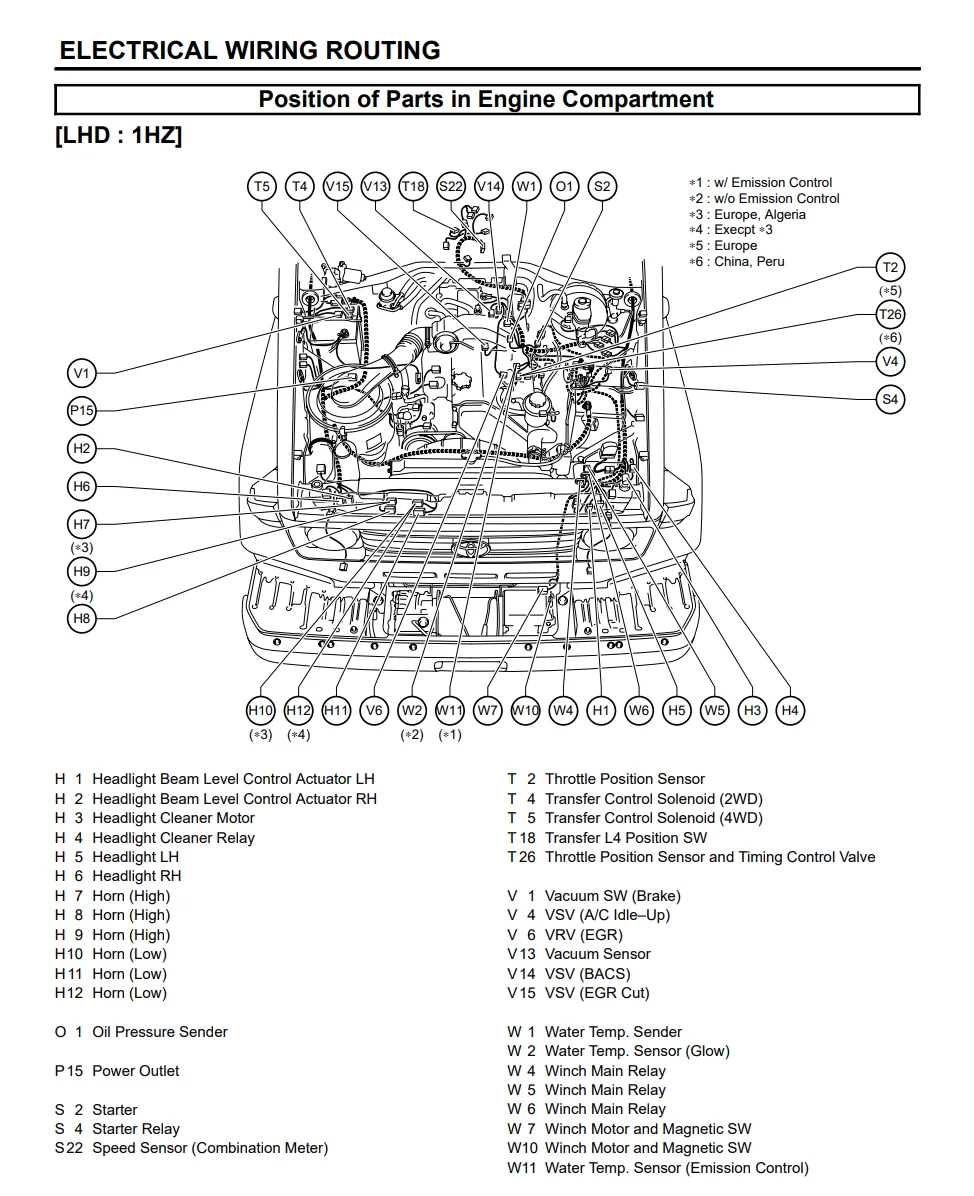

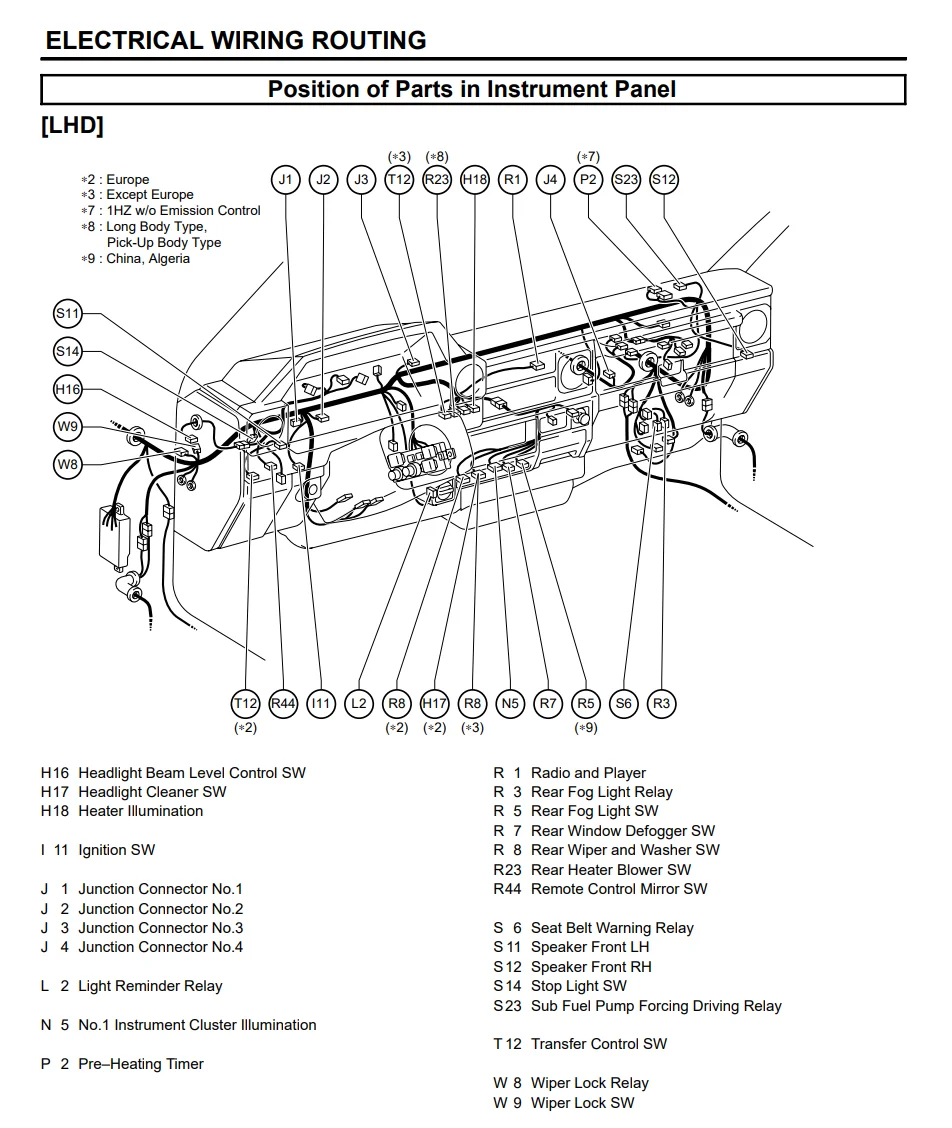

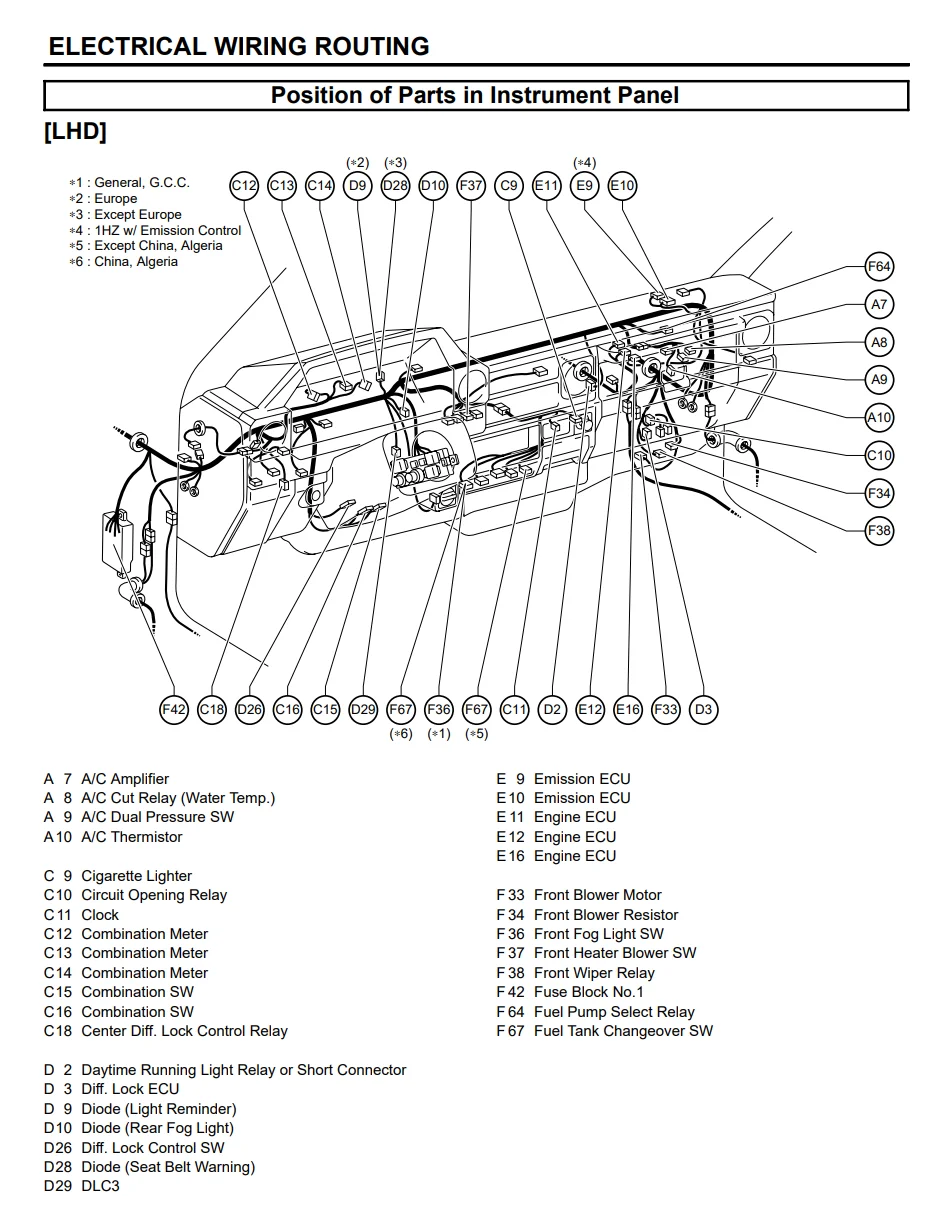

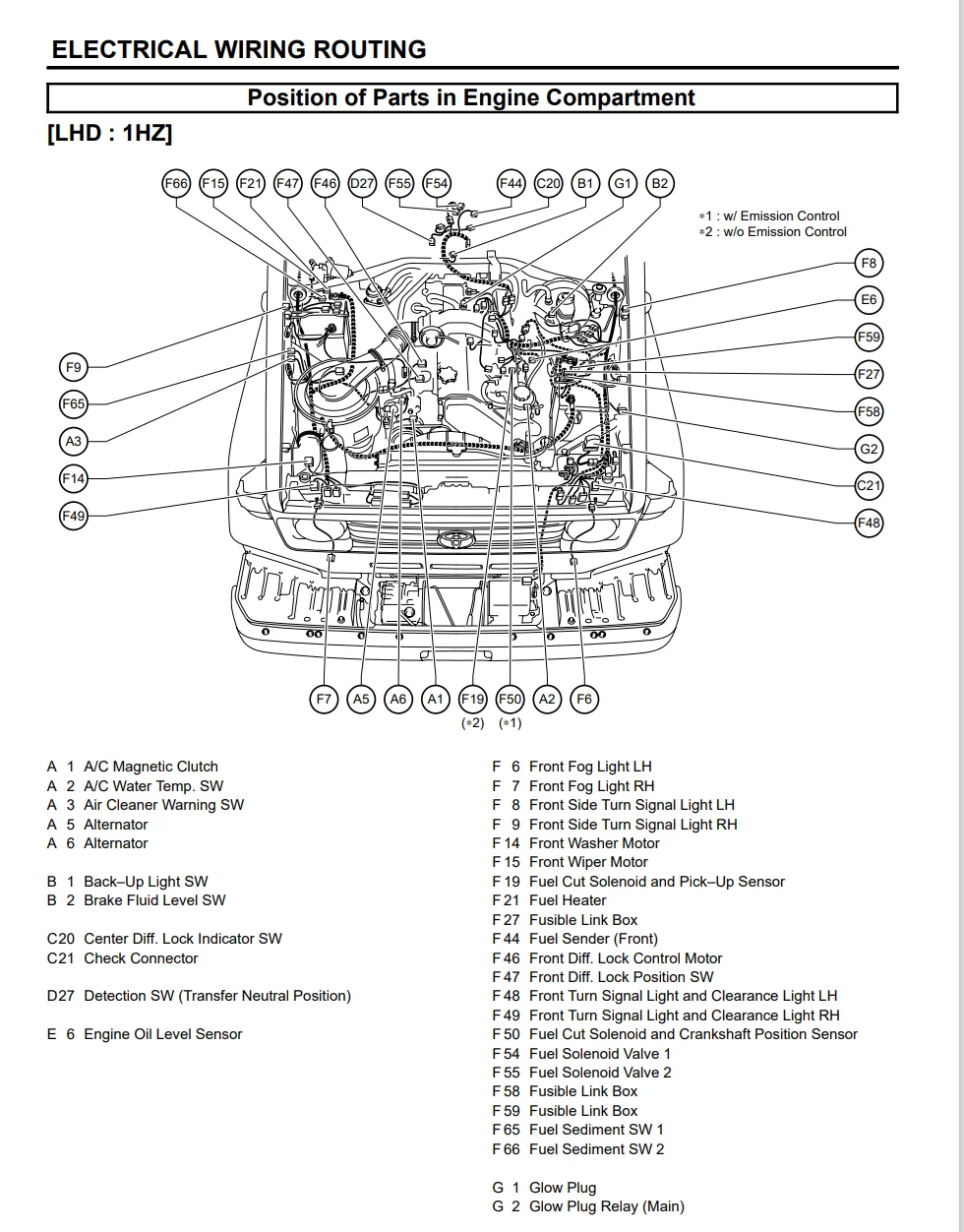

This is from a Service Bulletin for 2002 - 2006 model year 70 Series. LHD only, I am afraid, but it should be useful as a guide.

The diagram says 1HZ engine but the bulletin states that it applies to 1HD engines as well.









I understand newer models require a subscription to the Toyota manual web page.

Hope this helps.





Juan

Thanks Juan,

I'm not against paying for the diagrams but all the links have been to Europe websites and I'm worried being in Australia they will be different. Has anyone had experience with with Australian vehicles and the Europe diagrams?

Dan
