For Sale 76 / 78 series rear bumper CAD files for diy build (1 Viewer)

[malteser]

Location

United States

Rear bumper CAD files for diy build. Fits LWB 70 series models (76 , 78 & Prado 77,78,79). Have these files cut at a shop on CNC and build the bumper yourself. Selling for €50. Private message if interested



[jlbrown159]

Do you have any more pictures of the bumper on the vehicle? Also, does it require any cutting of the body?
Thanks!



[malteser]

Do you have any more pictures of the bumper on the vehicle? Also, does it require any cutting of the body?
Thanks!

No cutting required.



[olandevo]

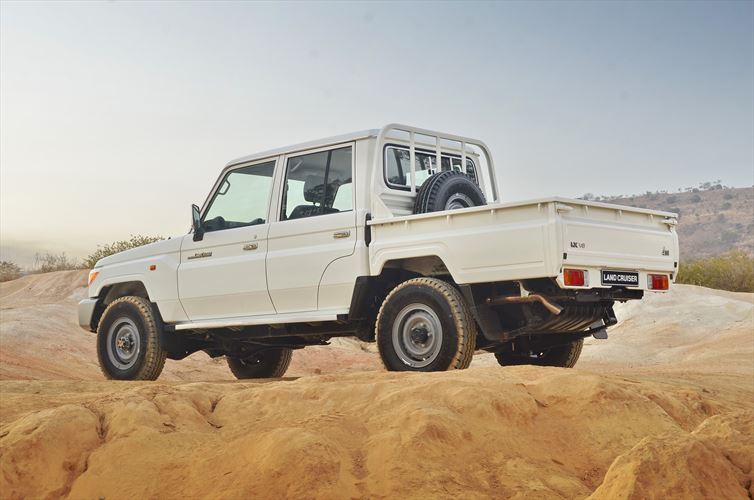

Interested. Wondering if swingouts could be adapted to this also? I have a 75 with a 79 box w/tailgate similar to this:



[malteser]

Interested. Wondering if swingouts could be adapted to this also? I have a 75 with a 79 box w/tailgate similar to this:

View attachment 3089537

Swing outs can be adapted easily, but I wouldn't know if it would fit a dual cab, I highly doubt it.



[olandevo]

Swing outs can be adapted easily, but I wouldn't know if it would fit a dual cab, I highly doubt it.

I have no problem modifying the drawing slightly to work with the pickup box. I get that its different than your troopy but realistically the frame mounts should still be the same. And the body lines for the most part follow true. Is it a .dxf file? What cad program did you use to make the drawing?



[malteser]

I have no problem modifying the drawing slightly to work with the pickup box. I get that its different than your troopy but realistically the frame mounts should still be the same. And the body lines for the most part follow true. Is it a .dxf file? What cad program did you use to make the drawing?

So sorry for never replying, honestly don't know how I didn't see it till now. The 2D files are .dxf and the 3D assembly is .step. I used Creo for this.
