2012 4Runner Headlight Retrofit

[Rics4rnr]

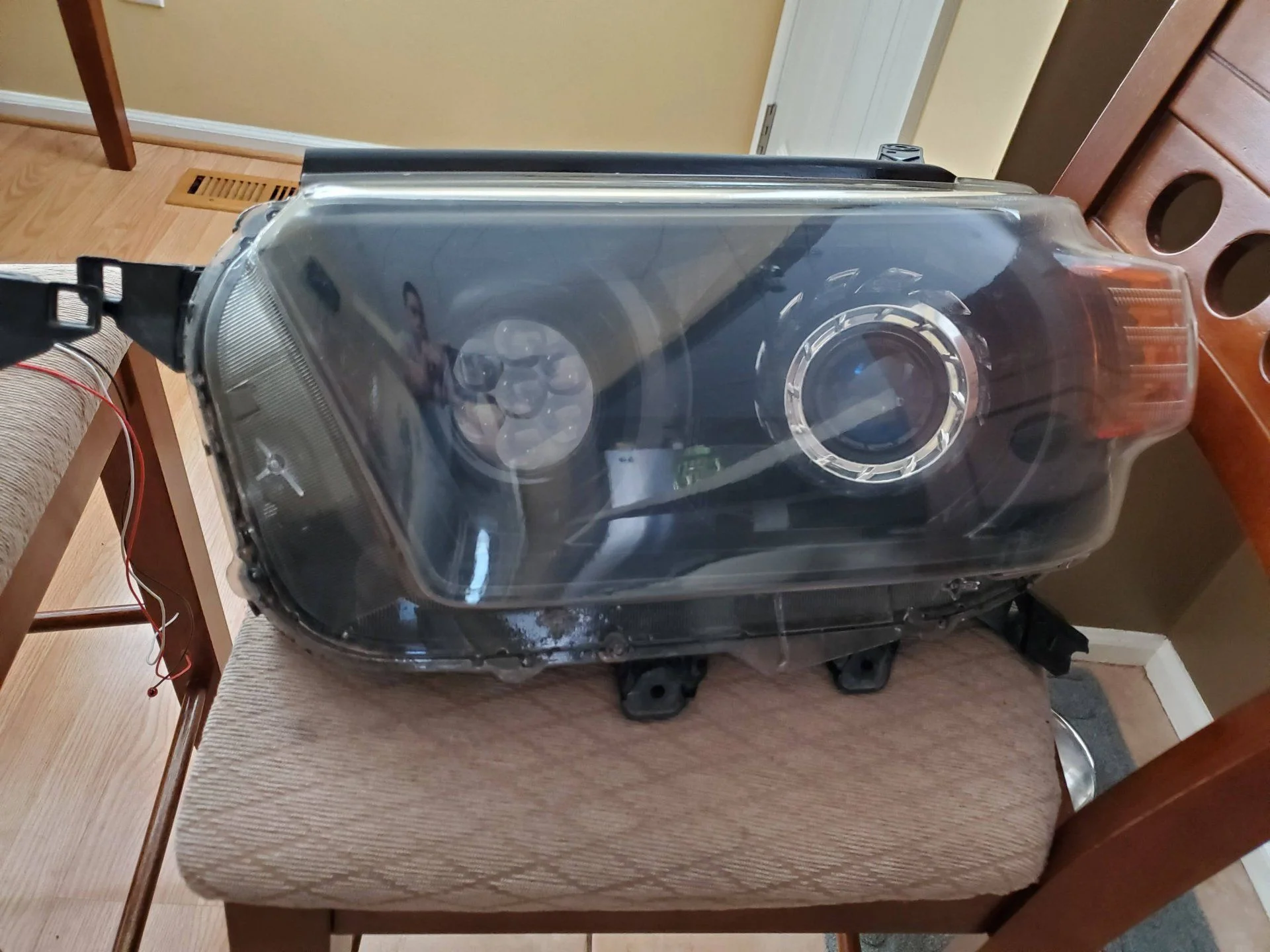

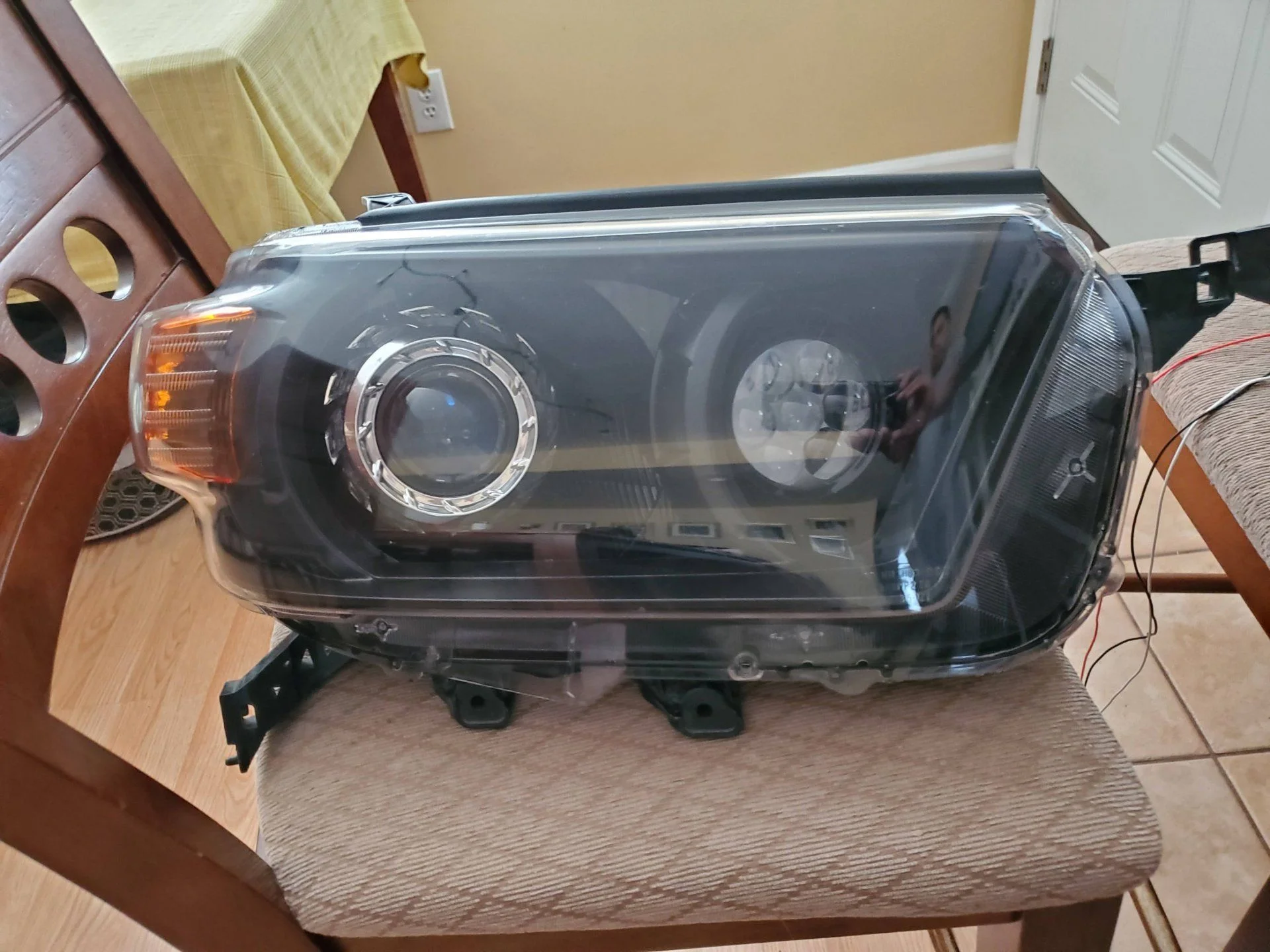

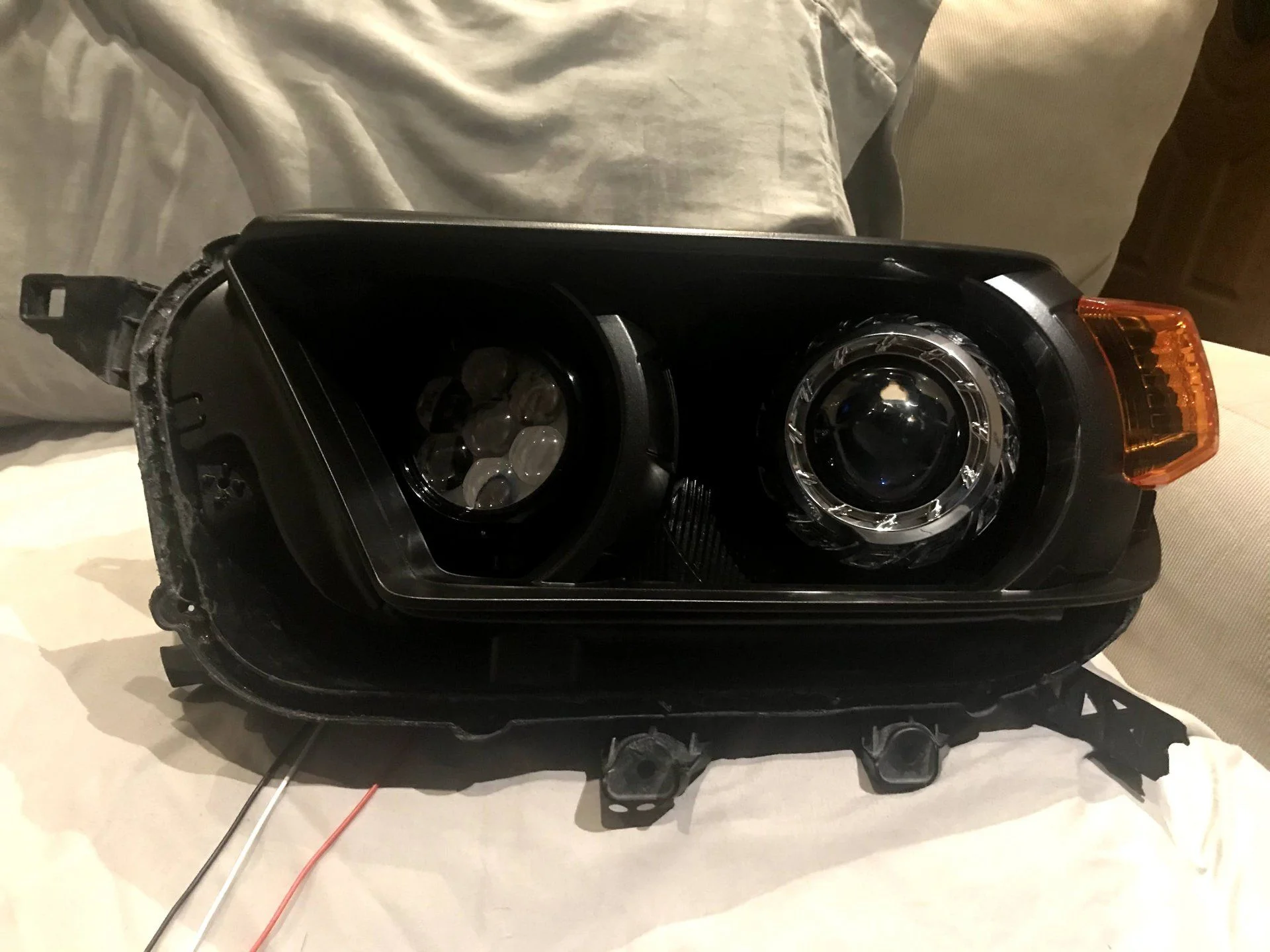

My wife wanted a new look on her 5th Gen 4Runner and I found some donor headlights to retrofit. The lens was removed and the build begins by removing the chrome from the inter housing. Then painting all the chrome pieces black so the projector and new shroud. sticks out.



[YotaFun]

My wife wanted a new look on her 5th Gen 4Runner and I found some donor headlights to retrofit. The lens was removed and the build begins by removing the chrome from the inter housing. Then painting all the chrome pieces black so the projector and new shroud. sticks out.View attachment 2570982View attachment 2570984View attachment 2570985View attachment 2570986View attachment 2570987

Very cool



[Rics4rnr]

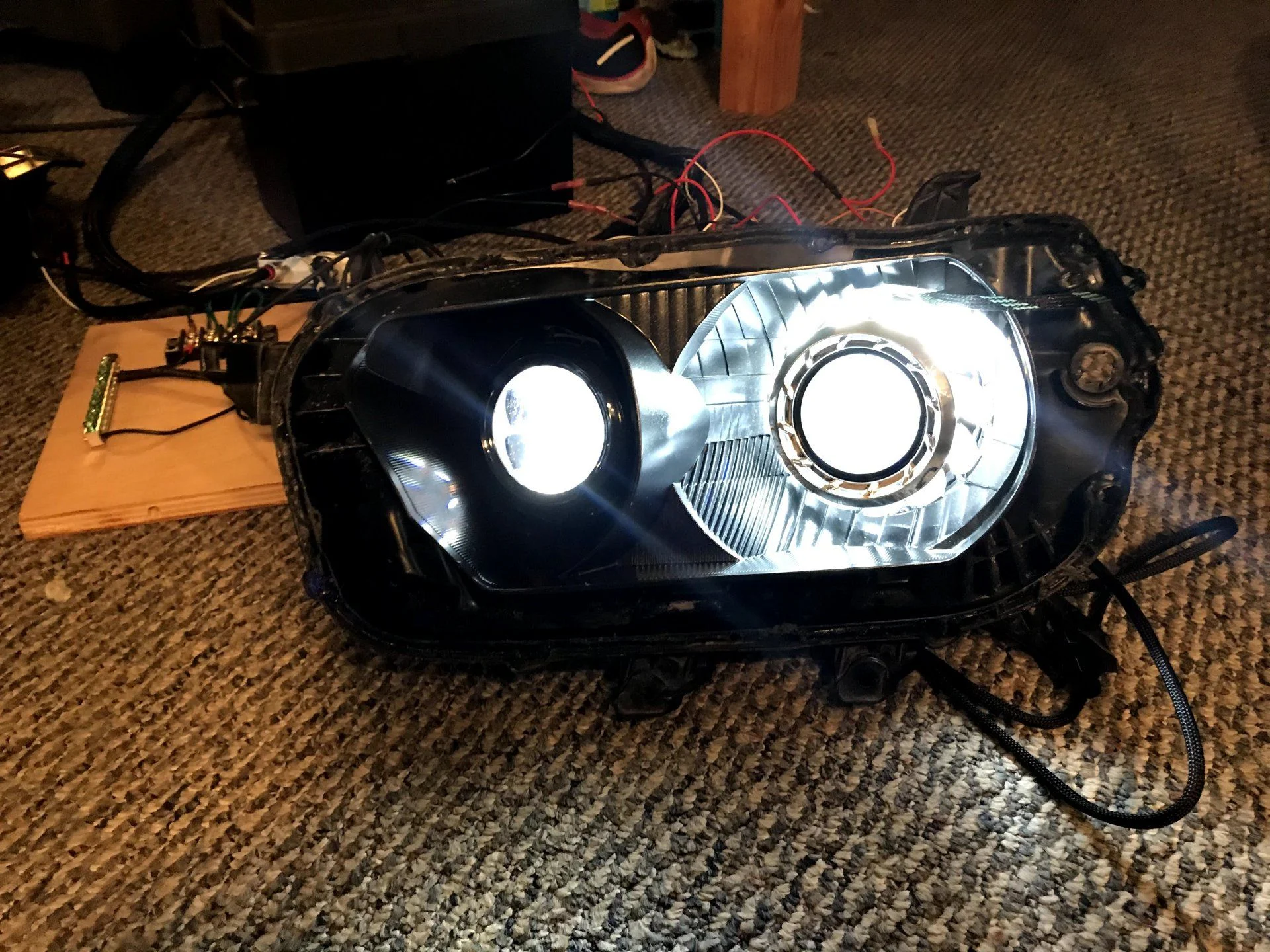

Waiting for some warmer weather to align the projectors before sealing and installing on the 4Runner.



[YotaFun]

Waiting for some warmer weather to align the projectors before sealing and installing on the 4Runner.

View attachment 2571079

View attachment 2571081

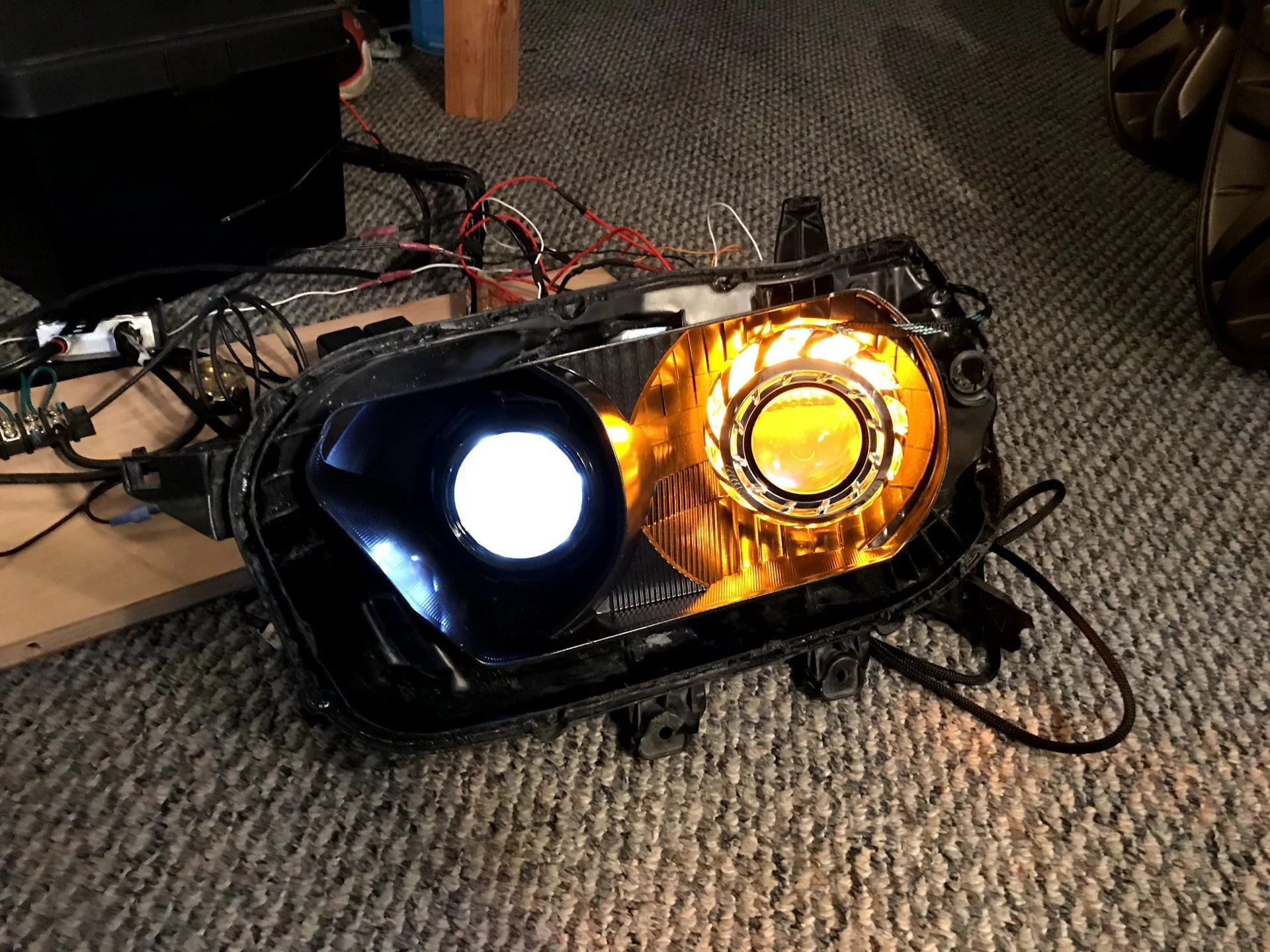

Does the halo ring around the projector switch to amber for the turn signal?



[Rics4rnr]

Yes there is a halo ring behind the shroud that are switch back and they will be white as a DLR . There is a module for the halos that are connected to the turn signals and blink amber then back to white as the DLR. If you are interested in making a set let me know.



[Rics4rnr]

Sorry I meant DRL



[Rics4rnr]

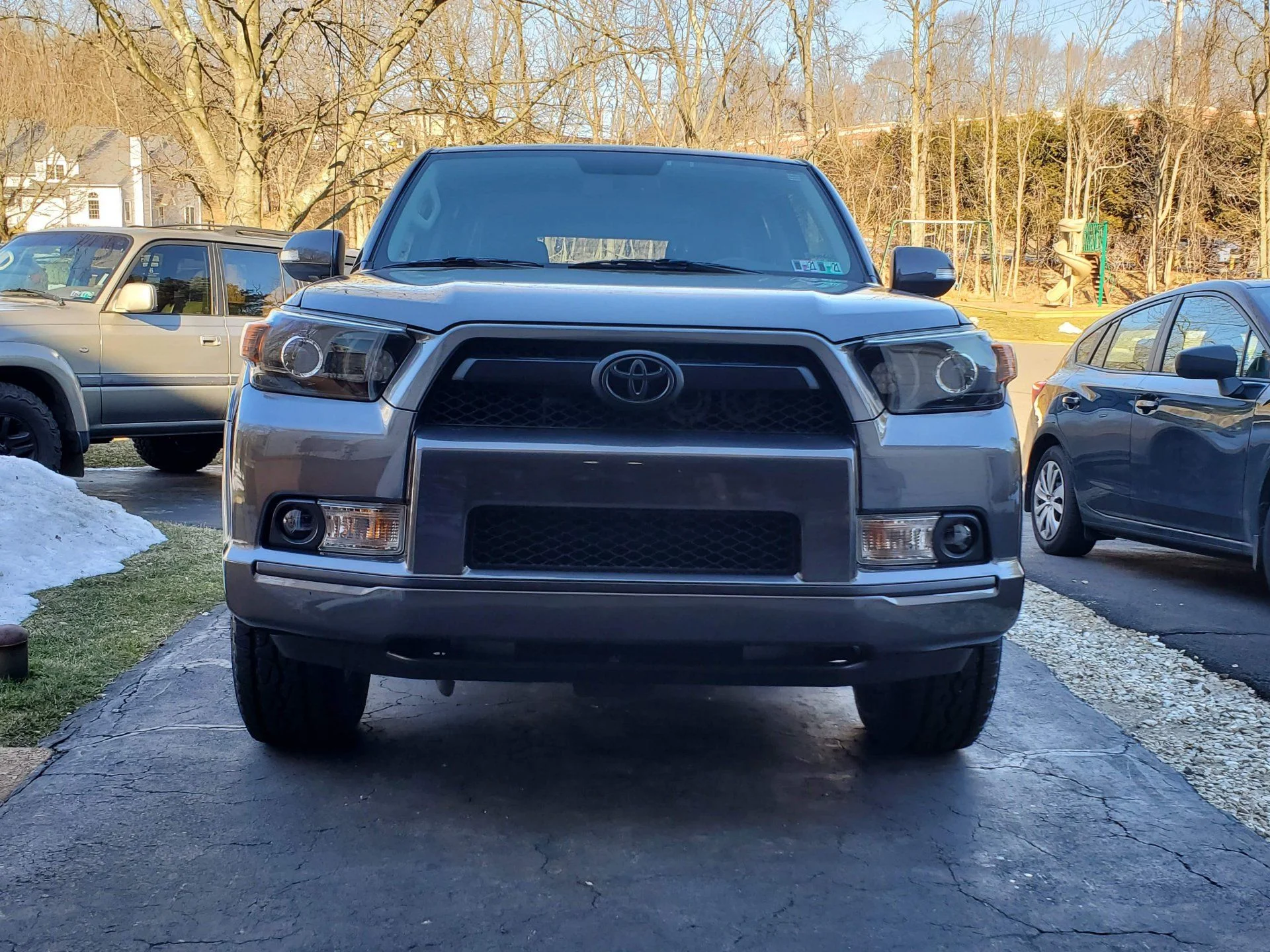

Here’s a couple pictures before I started and during the retrofitted lights



[Rics4rnr]

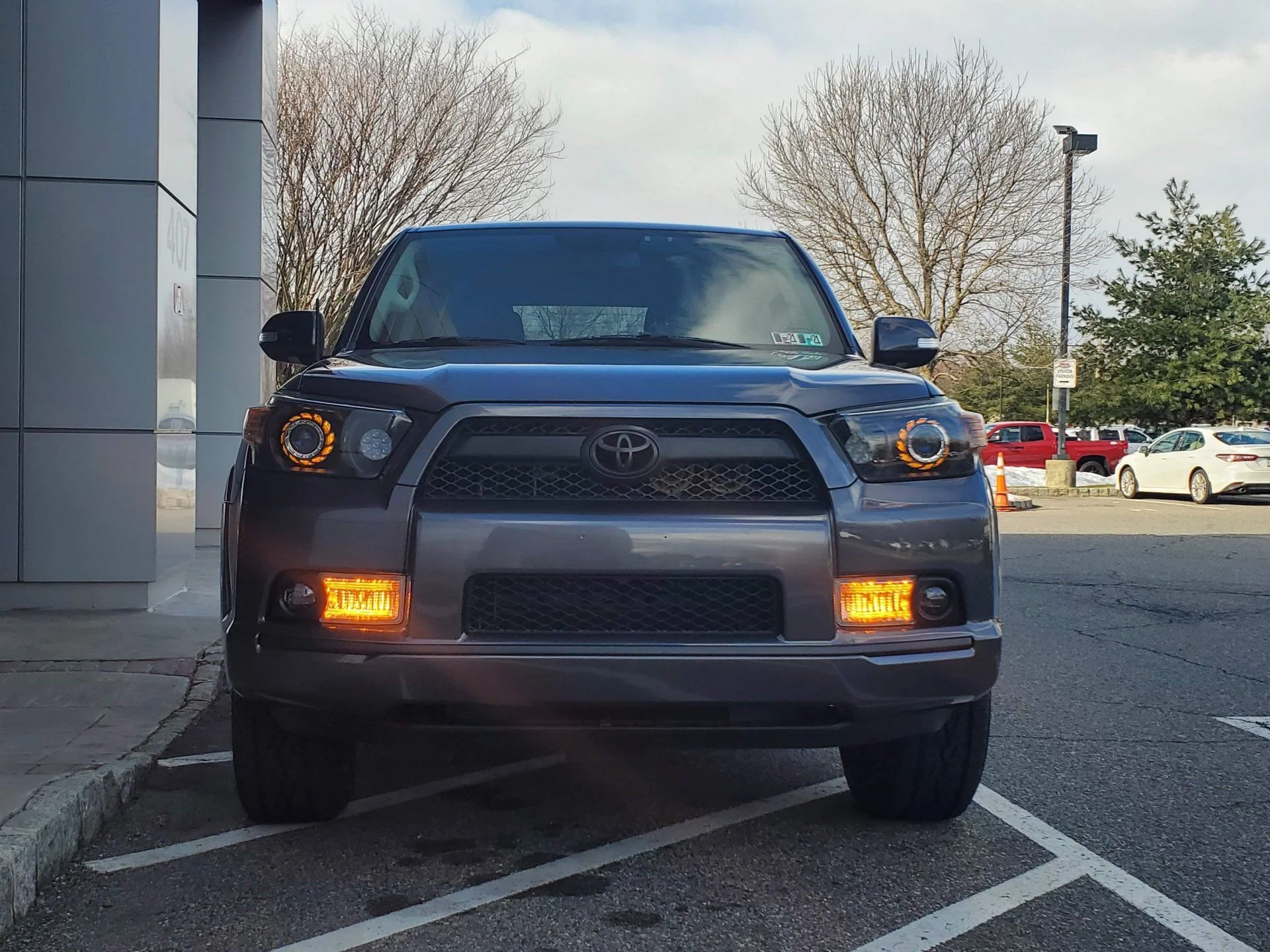

I finished the new headlights, new Morimoto driving lights, and cleaned up the bumper and grille.



[surfishjoe]

Looks great Rick! Really changes the look of the front end. I have toyed with the idea of updating the sequoias lights to the new style but for now they stay stock I have bigger fish to fry.
