I am finally ready to sell the buggy. This buggy would be a great buggy for about anyone. Definately simple to work on and reliable. This Buggy took 3rd in the unlimited division at the 2008 URE Rock Race....

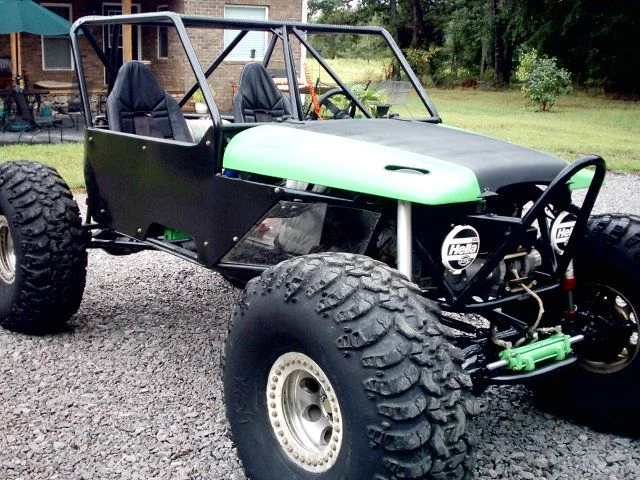

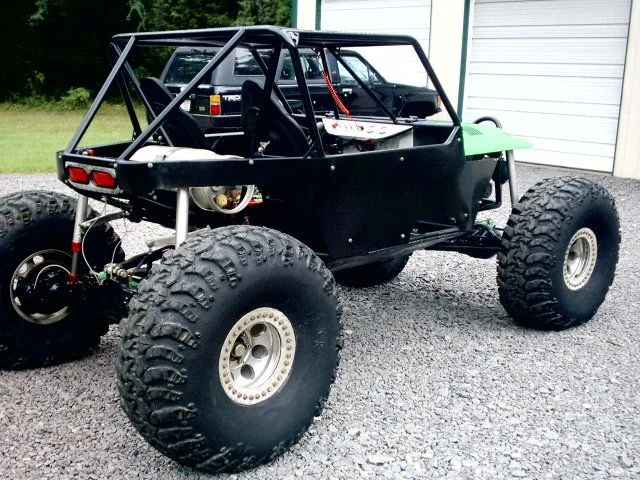

2007 Toyota rear steer buggy
Chassis built by me here at M&M offroad.
Build up link
http://www.mandmfab.com/id57.html
Chassis is built entirely of 1 ½ 120 wall dom and 1 ¼ dom
Belly pan is 3/16 solid steel for protection that starts at front of oil pan all the way back
Links and tie rods are 1 ½ .25 wall dom with ¾ 28,000lb rated rod ends
Walker Evans Air shocks with 14” travel on each corner (new when installed)
Onboard air, made from factory AC. works great

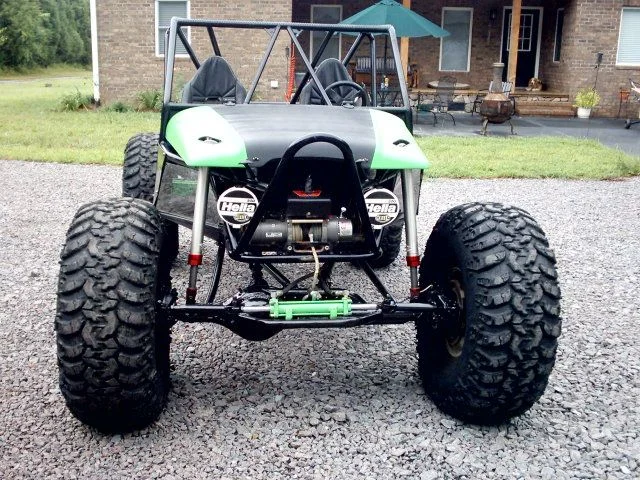

Front winch is 6000lb short drum Warn (new when installed) has synthetic rope on it
Rear winch is 1500lb with cable

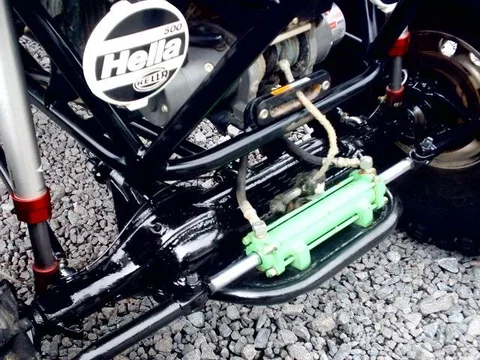

Front axle is 8” Toyota that has been clearenced and setup with full hydro steering 30 Spline Longfields throughout 4:30 Factory gears that have been welded for reliability, Trail gear drive flanges with extra pins. Completely rebuilt when put together, new bearings, seals, brakes, 1 ½ wheel spacers

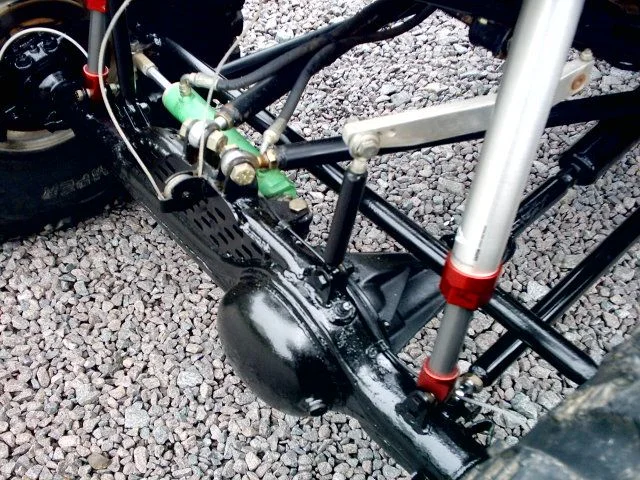

Rear Axles is custom 8” Toyota with steering capability. Hand operated full hydro steering. Also clearanced and running 30 spline Longfields through out. 4:30 Factory geared and welded for reliability. Trail gear drive flanges with extra pins Completely rebuilt when put together, new bearings, seals, brakes, 1 ½ wheel spacers
Tires are 42 15 15 Irocs. They have trail usage only and have great tread depth with the typical abrasions and cuts from spinning on rocks. A little custom grooving
Wheels are 15x8 eagle alloys with ¼ aluminum bead locks added. Making them 15x9’s
Engine. Reman with over a year left on warranty 22r (from crate to chassis when installed) I estimate less than 1500 miles on it.
Runs on Propane. All new propane components were installed when built
Transmission is 83 Toyota 5 speed with less than 100k on it shift smooth.
Clutch installed new when buggy was built (Beck Arnley)
Front Transfer case is Toyota mini truck with less than 100k
Rear Transfer Case is Fj40. Rebuilt and with Aluminum case savor installed
Rock lights fore and aft.
Drive shafts have been sleeved for strength
Battery is less than a month old Optima red top
Radiator was new when installed (factory Toyota)
16” electric fan was new when installed
Seats are racing seats with pads from Jegs
5 Point Harnesses installed with extra shoulder protection pads
Extras
2 parts transfer cases, misc. t case stuff from fj40
2 aluminum propane tanks and 1 steel tank (I believe 1 is full and others are ½ plus)
1 4:30 welded third (good shape)
Extra set of side skins
Spare drive shaft
Spare Lower link
Other random stuff
$14,500.00 really don’t need any trades looking for cash to fund next build. 336-909-2076 PJ
