1hz Turbo plumbing? (1 Viewer)

[Sando]

So I've got a turbo and all that's left to do is plumb up the intake from the airbox to the snail, then to the cross over pipe, but I can't exactly find a tidy way to do it, has anyone got any photos of their setup, just looking for some ideas :/



[Douglas S]

Just get the parts from a 1HD-T...



[Sando]

Tried that, called around and haven't found anything yet, doesn't help I'm on a remote area :/ was trying to get a 1hdt airbox lid and cross over pipe.



[ForealBoreal]

Keep your airbox lid and just get some silicone fittings.
Get the factory cross pipe it's just easy.



[Tim-HJ61]

From memory, On the turbo inlet side you need

2x 3" 90 degree silicone elbows and a length of 3" steel exhaust pipe, or stainless.

On the turbo outlet side you need
One silicone 45 degree bend reducer. 2" at one end to go on turbo, 2.5" at other end.
One silicone elbow 90 degrees 2.5" to go, at a really tight push, onto the crossover pipe.
One piece of steel exhaust or stainless 2.5" to join the two silicone elbows

Tim



[doug720]

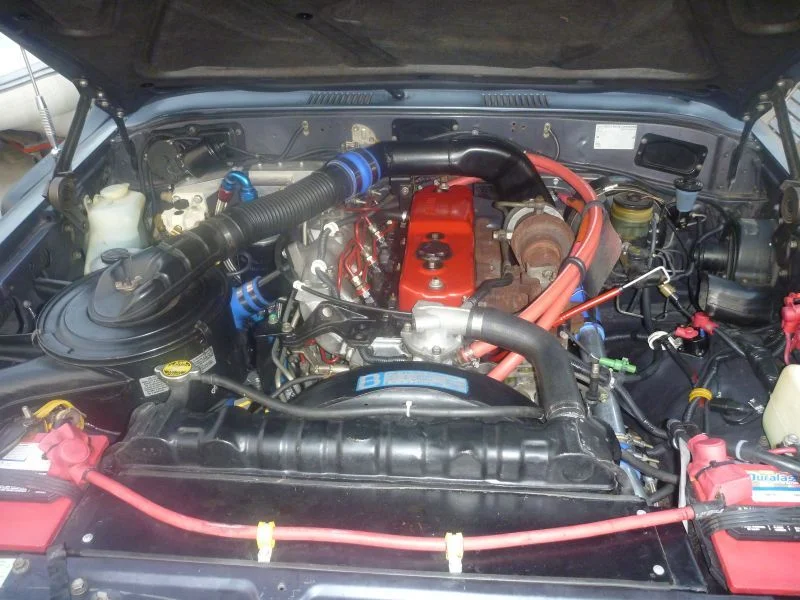

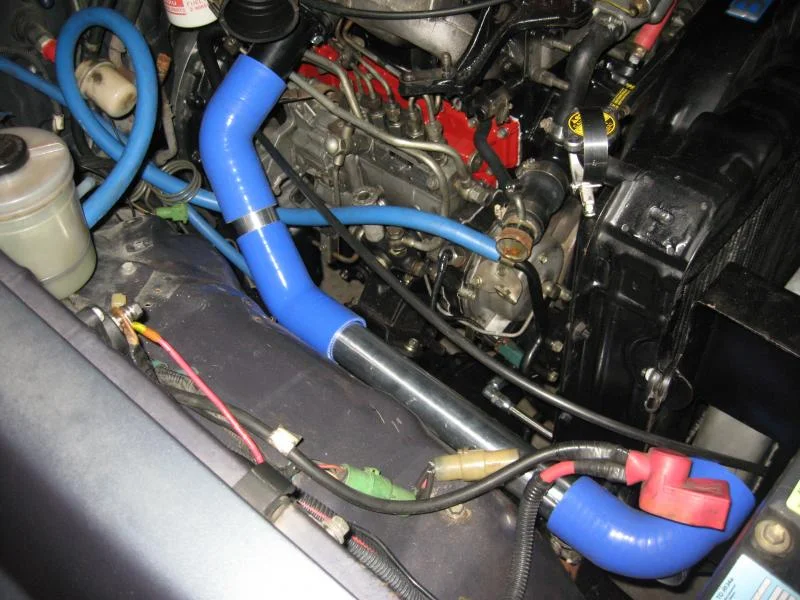

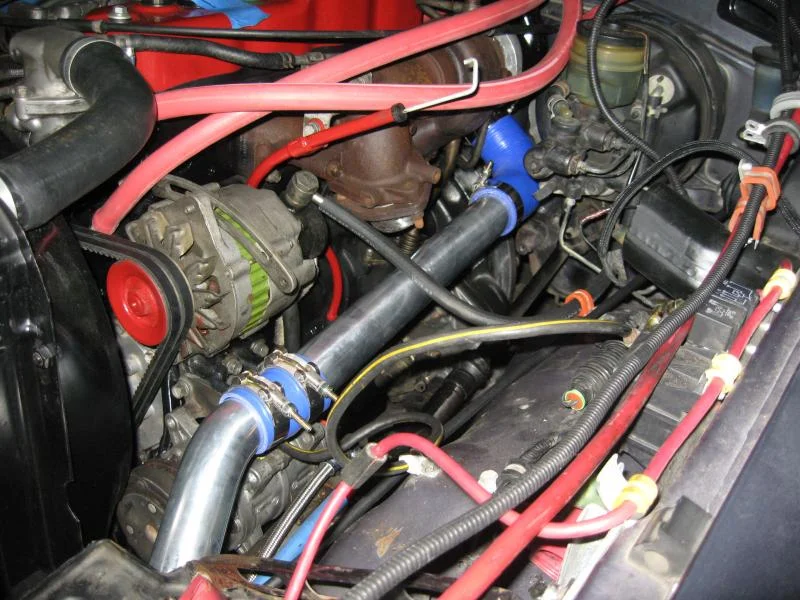

Here is my set up. You can see many more pictures in the link below my signature.

All the fittings, tubes and clamps came from CXRacing.com Many have used this company here on mud.

Hope this helps

Doug
