11" brake hose installed with 10mm on each end.

11" brake hose installed with 10mm on each end.

  • Media owner mrjay2u
  • Date added Mar 26, 2010
  • Reactions 0
  • Comments 0

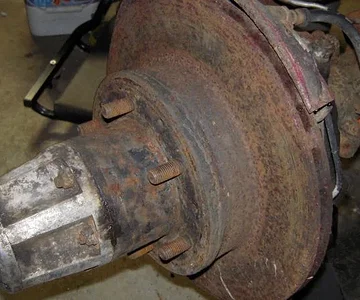

I got a disc front axle off C.L. for $200. I knew it needed rotors for sure and at least a rebuild of the Warn hubs. It came with various other parts and do say I got a screaming deal this close to home on the axle. Thanks Ben.

I got a disc front axle off C.L. for $200. I knew it needed rotors for sure and at least a rebuild of the Warn hubs. It came with various other parts and do say I got a screaming deal this close to home on the axle. Thanks Ben.

  • Media owner mrjay2u
  • Date added Feb 1, 2010
  • Reactions 0
  • Comments 0

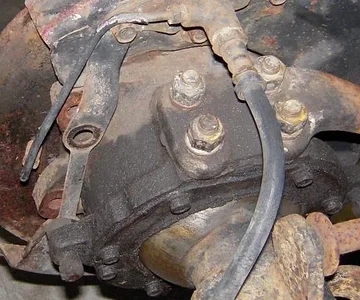

Identifing the axle was made by the little ring on the brake line. It read 6/76, so I assumed it is a 1976 axle, or at least a 76 brake line, with the small pattern knuckles.

Identifing the axle was made by the little ring on the brake line. It read 6/76, so I assumed it is a 1976 axle, or at least a 76 brake line, with the small pattern knuckles.

  • Media owner mrjay2u
  • Date added Feb 1, 2010
  • Reactions 0
  • Comments 0

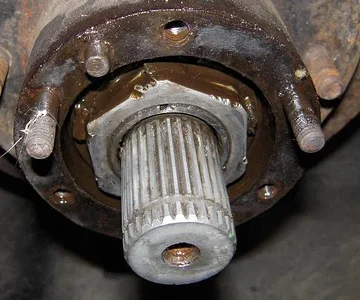

Someone used the screw driver 'trick' to adjust the nuts. I will replace these.

Someone used the screw driver 'trick' to adjust the nuts. I will replace these.

  • Media owner mrjay2u
  • Date added Feb 1, 2010
  • Reactions 0
  • Comments 0
Got a set of 6 shooters including the Trail Gear cromoly birfs, from here on MUD. This worked out to be cheaper than what I was finding the fj60 knuckles for, so Im happy

Got a set of 6 shooters including the Trail Gear cromoly birfs, from here on MUD. This worked out to be cheaper than what I was finding the fj60 knuckles for, so Im happy

  • Media owner mrjay2u
  • Date added Feb 1, 2010
  • Reactions 0
  • Comments 0

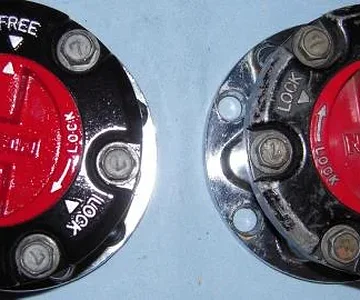

Found a set of IFS aisin hubs, installed the longfield hub gears to convert them to a soild axle hub and repainted the faces. Before and after the paint

Found a set of IFS aisin hubs, installed the longfield hub gears to convert them to a soild axle hub and repainted the faces. Before and after the paint

  • Media owner mrjay2u
  • Date added Feb 1, 2010
  • Reactions 0
  • Comments 0

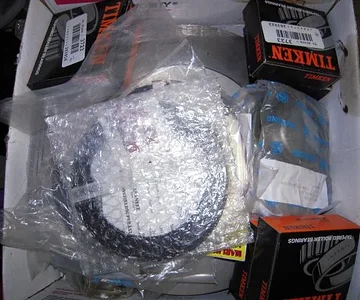

Got a box of parts, including Longfield Wipers, Timkin Wheel Bearings adn races, Toyota trunion bearings and races, Marlin axle seals, etc.

Got a box of parts, including Longfield Wipers, Timkin Wheel Bearings adn races, Toyota trunion bearings and races, Marlin axle seals, etc.

  • Media owner mrjay2u
  • Date added Feb 1, 2010
  • Reactions 0
  • Comments 0

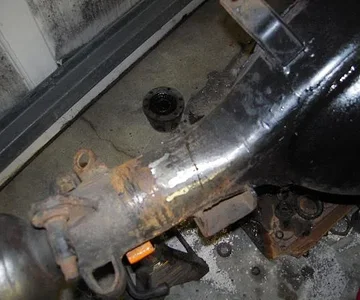

The previous owner had it set up for spring over, so I removed the perches

The previous owner had it set up for spring over, so I removed the perches

  • Media owner mrjay2u
  • Date added Feb 1, 2010
  • Reactions 0
  • Comments 0
All torn apart, getting ready for something

All torn apart, getting ready for something

  • Media owner mrjay2u
  • Date added Feb 1, 2010
  • Reactions 0
  • Comments 0
The housing was sand Blasted and primered............. Thanks Speedy

The housing was sand Blasted and primered............. Thanks Speedy

  • Media owner mrjay2u
  • Date added Feb 1, 2010
  • Reactions 0
  • Comments 0
paint

paint

  • Media owner mrjay2u
  • Date added Jan 31, 2010
  • Reactions 0
  • Comments 0
And painted more

And painted more

  • Media owner mrjay2u
  • Date added Jan 31, 2010
  • Reactions 0
  • Comments 0

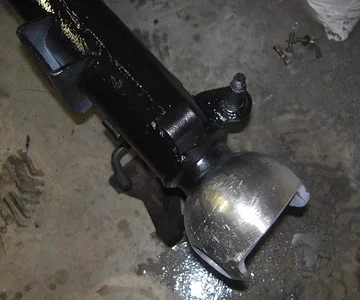

Painted the axle a satin black

Painted the axle a satin black

  • Media owner mrjay2u
  • Date added Jan 31, 2010
  • Reactions 0
  • Comments 0

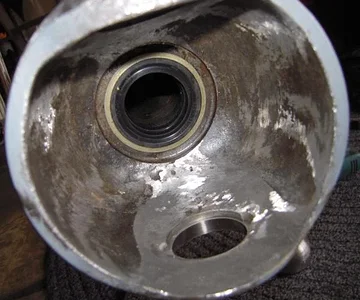

cleaned old grease and s**t from knuckle

cleaned old grease and s**t from knuckle

  • Media owner mrjay2u
  • Date added Jan 31, 2010
  • Reactions 0
  • Comments 0

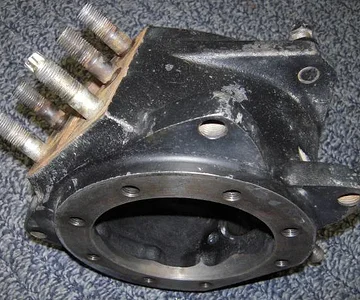

Painted the knuckles hammerite grey

Painted the knuckles hammerite grey

  • Media owner mrjay2u
  • Date added Jan 31, 2010
  • Reactions 0
  • Comments 0
clearanced the ball to fit the chromo birfs

clearanced the ball to fit the chromo birfs

  • Media owner mrjay2u
  • Date added Jan 31, 2010
  • Reactions 0
  • Comments 0

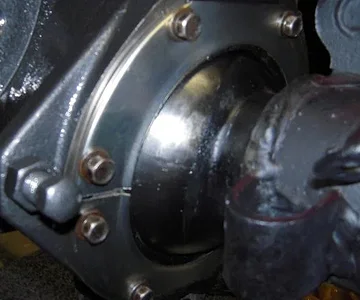

Added the Marlin HD axle seal.

Added the Marlin HD axle seal.

  • Media owner mrjay2u
  • Date added Jan 31, 2010
  • Reactions 0
  • Comments 0
Sized up the new Longfield wiper seal, the instruction said to be sure they fit into the groove on the back of the knuckle. It fit like a glove.

Sized up the new Longfield wiper seal, the instruction said to be sure they fit into the groove on the back of the knuckle. It fit like a glove.

  • Media owner mrjay2u
  • Date added Jan 31, 2010
  • Reactions 0
  • Comments 0

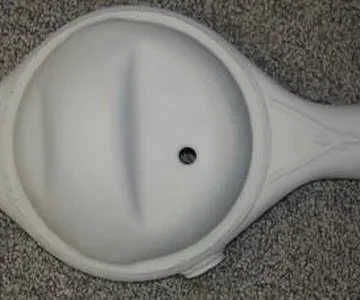

Smoothed out the ball for the new wiper seal

Smoothed out the ball for the new wiper seal

  • Media owner mrjay2u
  • Date added Jan 31, 2010
  • Reactions 0
  • Comments 0
Longfield wipers installed. Very easy install

Longfield wipers installed. Very easy install

  • Media owner mrjay2u
  • Date added Jan 31, 2010
  • Reactions 0
  • Comments 0
Theres Chuck checking out my work, or looking for beer. I'm not sure.

Theres Chuck checking out my work, or looking for beer. I'm not sure.

  • Media owner mrjay2u
  • Date added Jan 31, 2010
  • Reactions 0
  • Comments 0
I Filled the knuckle up a bit since there isnt any access on the 6 shooter knuckles to add more grease

I Filled the knuckle up a bit since there isnt any access on the 6 shooter knuckles to add more grease

  • Media owner mrjay2u
  • Date added Jan 31, 2010
  • Reactions 0
  • Comments 0
The spindle all bolted up, w/ backing plate eliminators

The spindle all bolted up, w/ backing plate eliminators

  • Media owner mrjay2u
  • Date added Jan 31, 2010
  • Reactions 0
  • Comments 0
Caliper mounted up

Caliper mounted up

  • Media owner mrjay2u
  • Date added Jan 31, 2010
  • Reactions 0
  • Comments 0
One more

One more

  • Media owner mrjay2u
  • Date added Jan 31, 2010
  • Reactions 0
  • Comments 1
A shot of the converted hub installed

A shot of the converted hub installed

  • Media owner mrjay2u
  • Date added Jan 31, 2010
  • Reactions 0
  • Comments 0
The Long side all finished up, Now on to the short side

The Long side all finished up, Now on to the short side

  • Media owner mrjay2u
  • Date added Jan 31, 2010
  • Reactions 0
  • Comments 0
mrjay2u

'76ish front axle build with 6 shooters

  • Items 27
  • Album owner mrjay2u
  • Date created
My axle build to replace the front axle on my '67 Fj40. Some shopping online, a trip to Bobby Longs, and a lot of help from Mudmaster, has made this go pretty smoothly so far, but as of now, its not under my truck just yet.
