[alabamatacomaguy]

Someone on here with a 3d printer was making them also I believe a few years back. Not sure if a one time thing or he has a store selling. I would try cityracer site to see if they had something. That place tends to have lots of good stuff we all need



[Ol'40]

Thank you Boys.. Does anyone know their correct name to help the search??
A part no. would be great..

Thanks.. Gaz



[ERNRAM]



[ERNRAM]

TOYOTA LAND CRUISER 40 55FJ40L-A - BODY - FRONT DOOR PANEL GLASS | Japan Parts EU

TOYOTA LAND CRUISER 40 55FJ40L-A , FRONT DOOR PANEL GLASS

www.japan-parts.eu



[Ol'40]

Thanks @ERNRAM that really helps. I looked up Spectre and they want $19.99 a pair, black, plus postage..
I'l have to try some wreckers over here...

Cheers all..



[kellervernon]

Currently under assessment. One issue is that I can't print "Toyota" on it. Just consulted a lawyer.

how about printing "toyoda" the original family name?



[Living in the Past]

There are significantly fewer ‘79+ cars, so the mat will be limited in production. Also, the logo is in a spot that’s easy to delete if necessary. The topic has been covered quite a bit. Personally I see the logo as a nice to have rather than must have unless the car is from Dan’s museum. In that case, it wouldn’t need a mat .

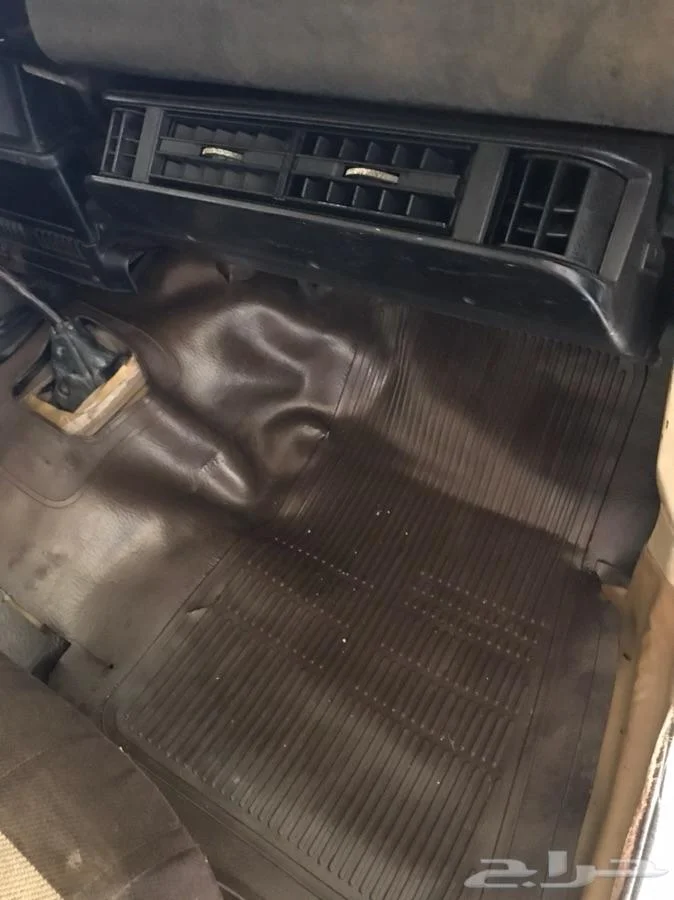

Found this photo on the web. It shows how the outline for the transfer case shift lever on the 83/84 was larger so could be cut for either the four or five speed. Not sure if this is something that is possible?



[DesertFJ40]

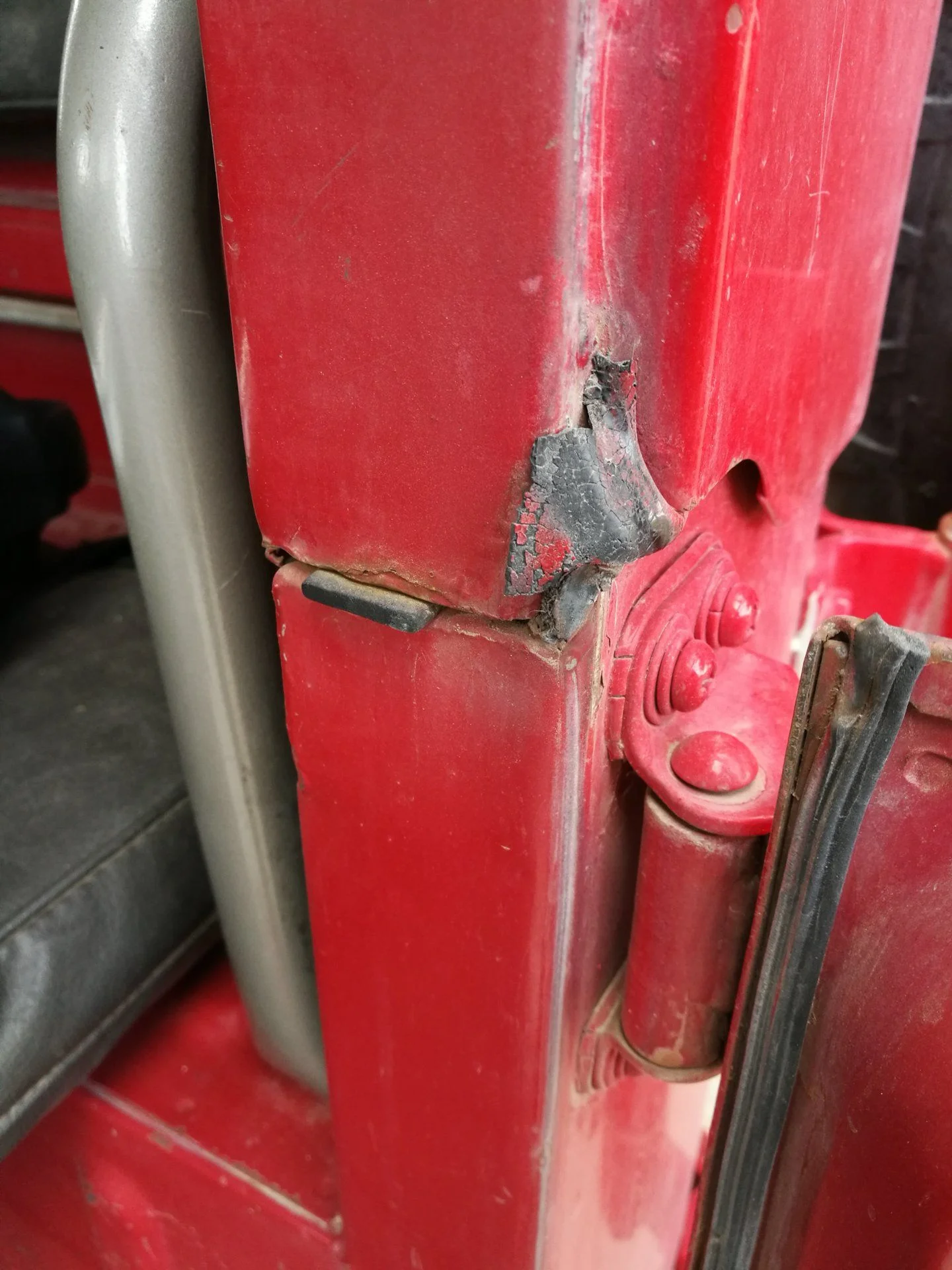

Are these rubber spacers for the rear hatch available anywhere? I was unable to find a part number through Toyota diagrams

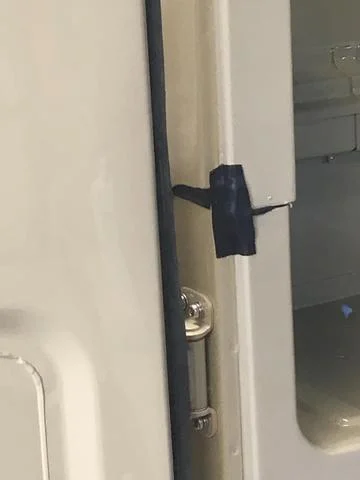

I know City Racer has some listed for Ambulance doors, but unsure if they will work with a hatch door. They have slight difrences in design:

He lists that they are compliant "with the earlier version, " but does that mean "earlier style ambulance doors" or "earlier version hatch doors"? @Racer65, if you need, I can remove these spacers and send them to you to reproduce for the earlier hatch door. I'm planning to be removing the hardtop soon and replace the tub gaskets/roof weatherstripping



[CharlestonG8R]

The round clamp for the air cleaner hose is no problem; however, I was challenged by the oval one (for the '79+ model years) so I gave up on the set for now.

The aftermarket carb is the same part # as the OEM one, so it will definitely fit the stock air cleaner.

Hi Roger! A few years ago, Marshall removed the Weber carb from my 6/1981 and took me back to stock with a stock air cleaner. Eventually I found the late model cowbell and I picked up the hose from you. Unfortunately, the hose can't be retained by pressure alone and needs a clamp on the oval side. Have you attempted to make the oval clamp again? Do you have any suggestions? As you've no doubt discovered, the round clamps don't really fit this application very well (I have one installed, but it is gapped on bottom and top).

Oh, and I'm in for a late model mat!



[ToyotaMatt]

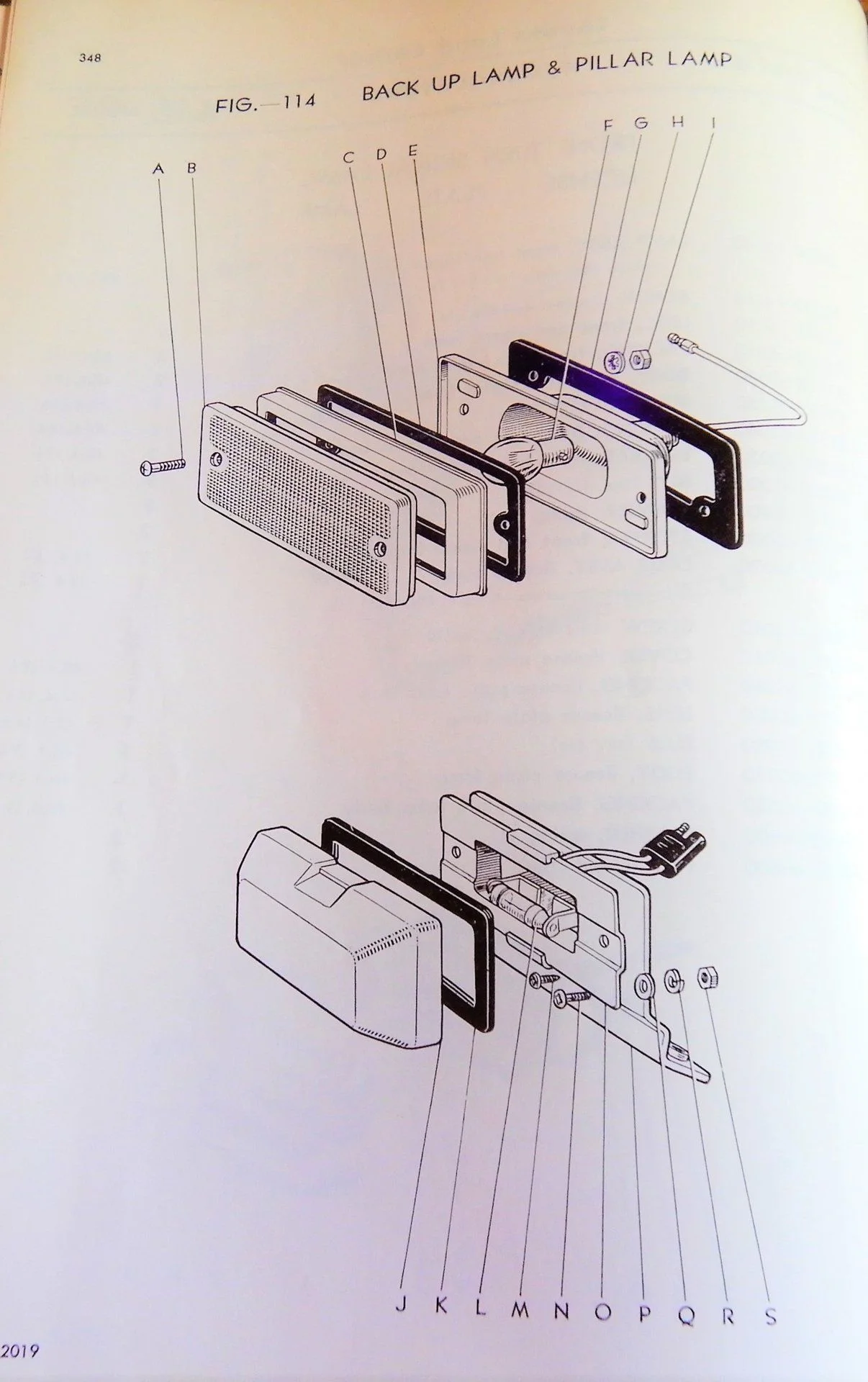

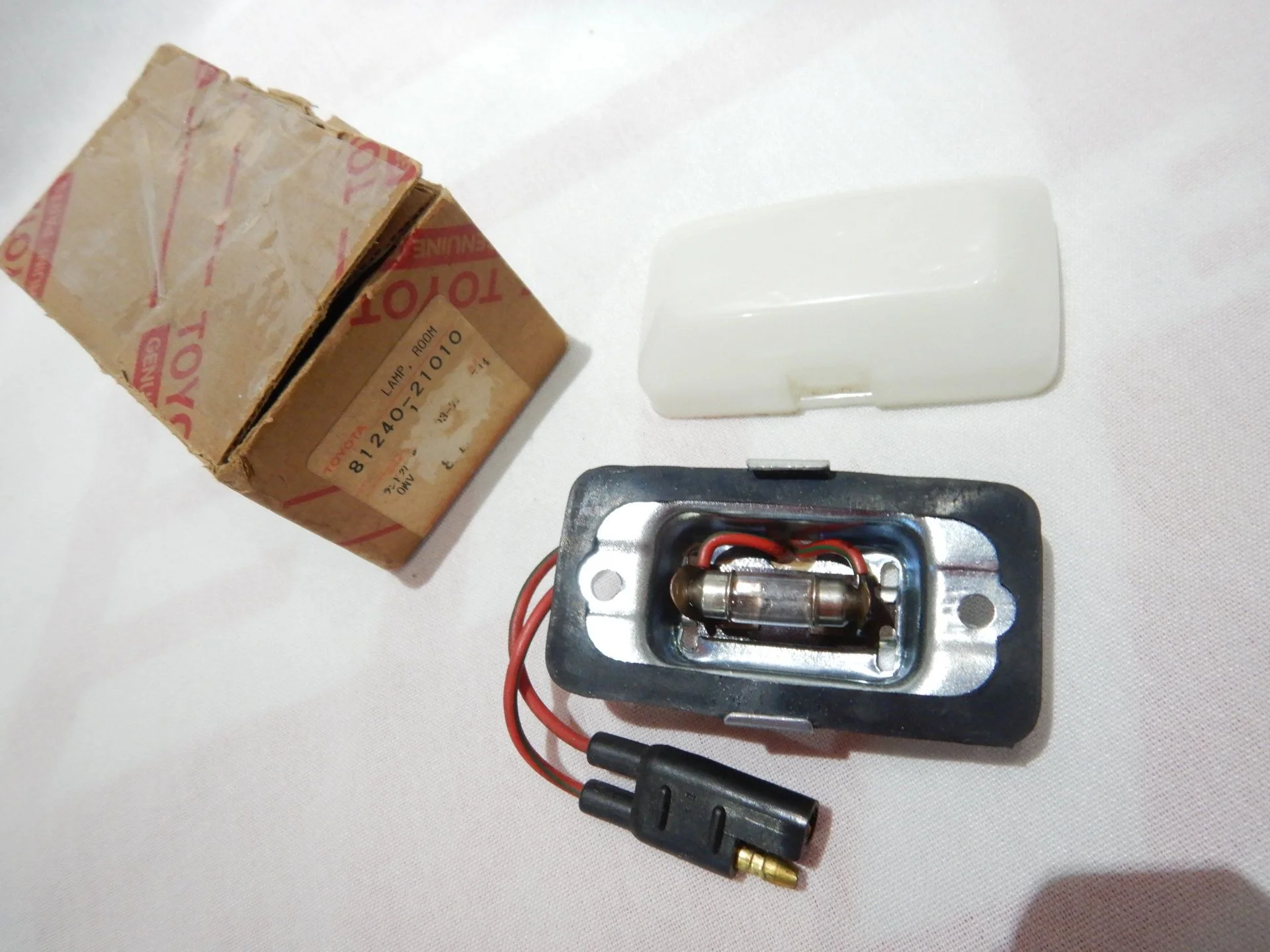

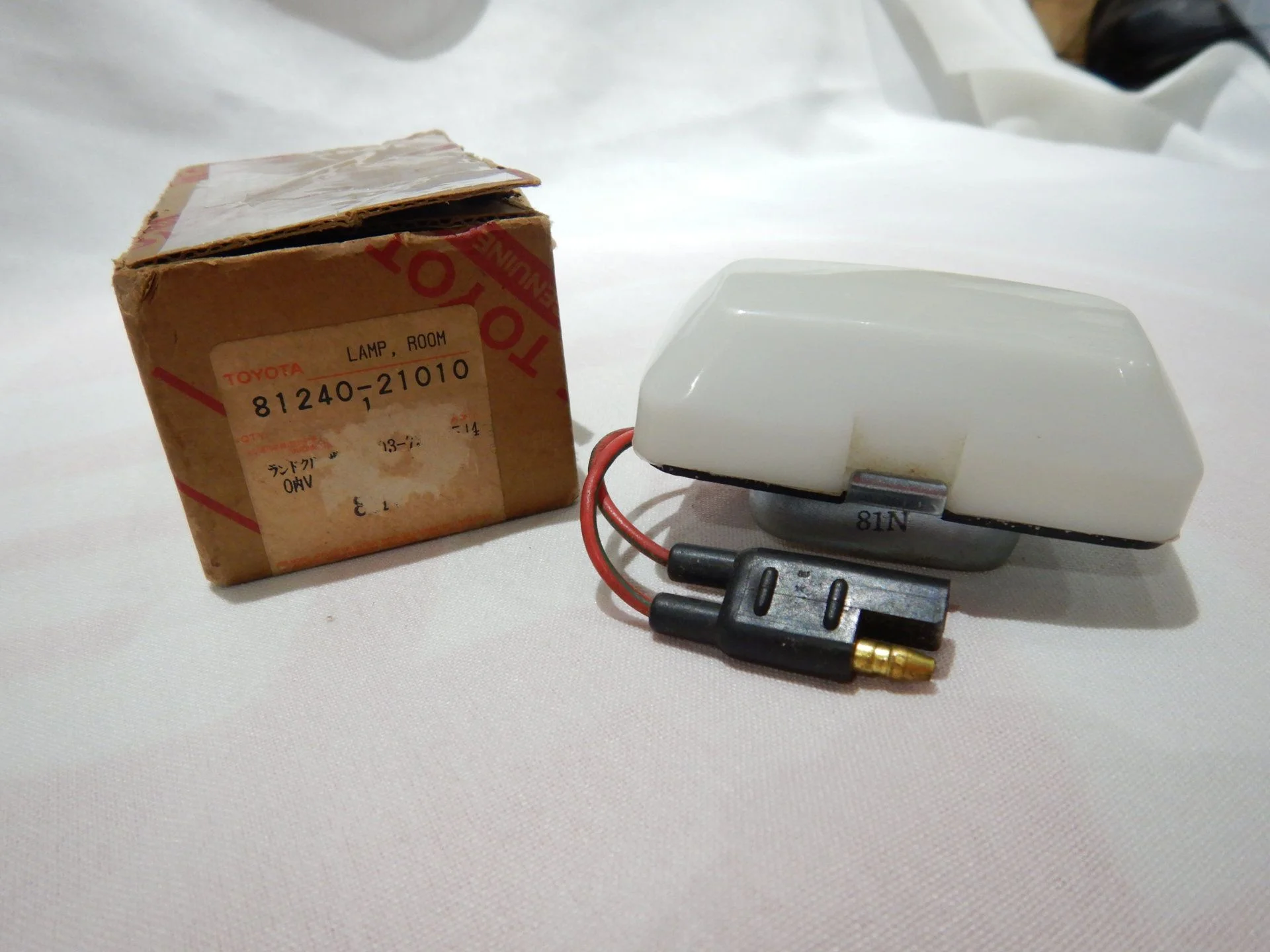

I purchased this NOS Pillar Lamp online through Johannesburg South Africa , Hell of ride to the other side of

Planet Earth to Find Me

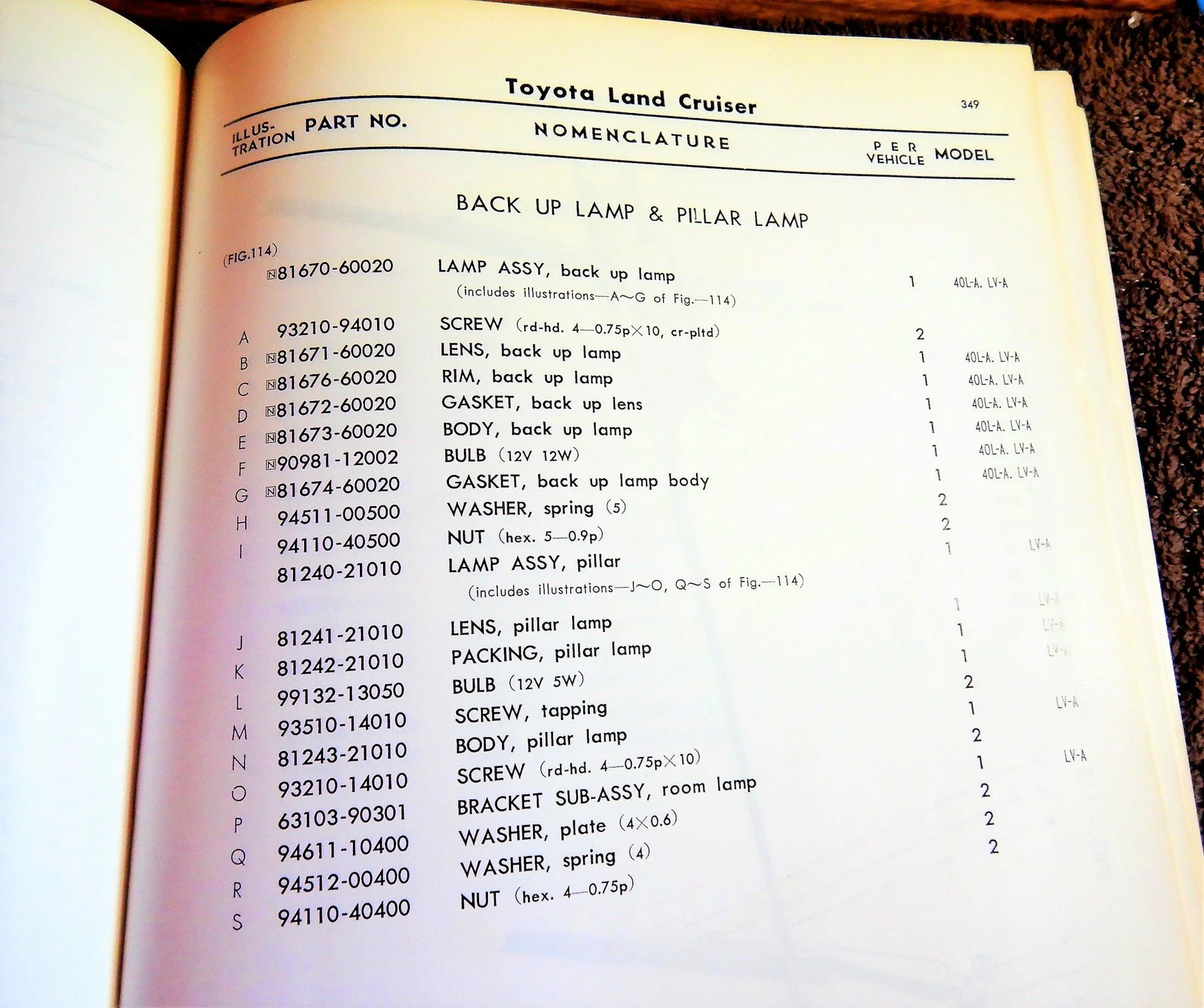

81240-21010

1958-12/74 fj40 VAN / hardtop



[ToyotaMatt]

If a Part is Closer to The Galapagos Islands then it is to Me , Its Truly

Unobtainium

​



[cruiserdan]

I remember when that style packaging was new.....



[cruiserdan]

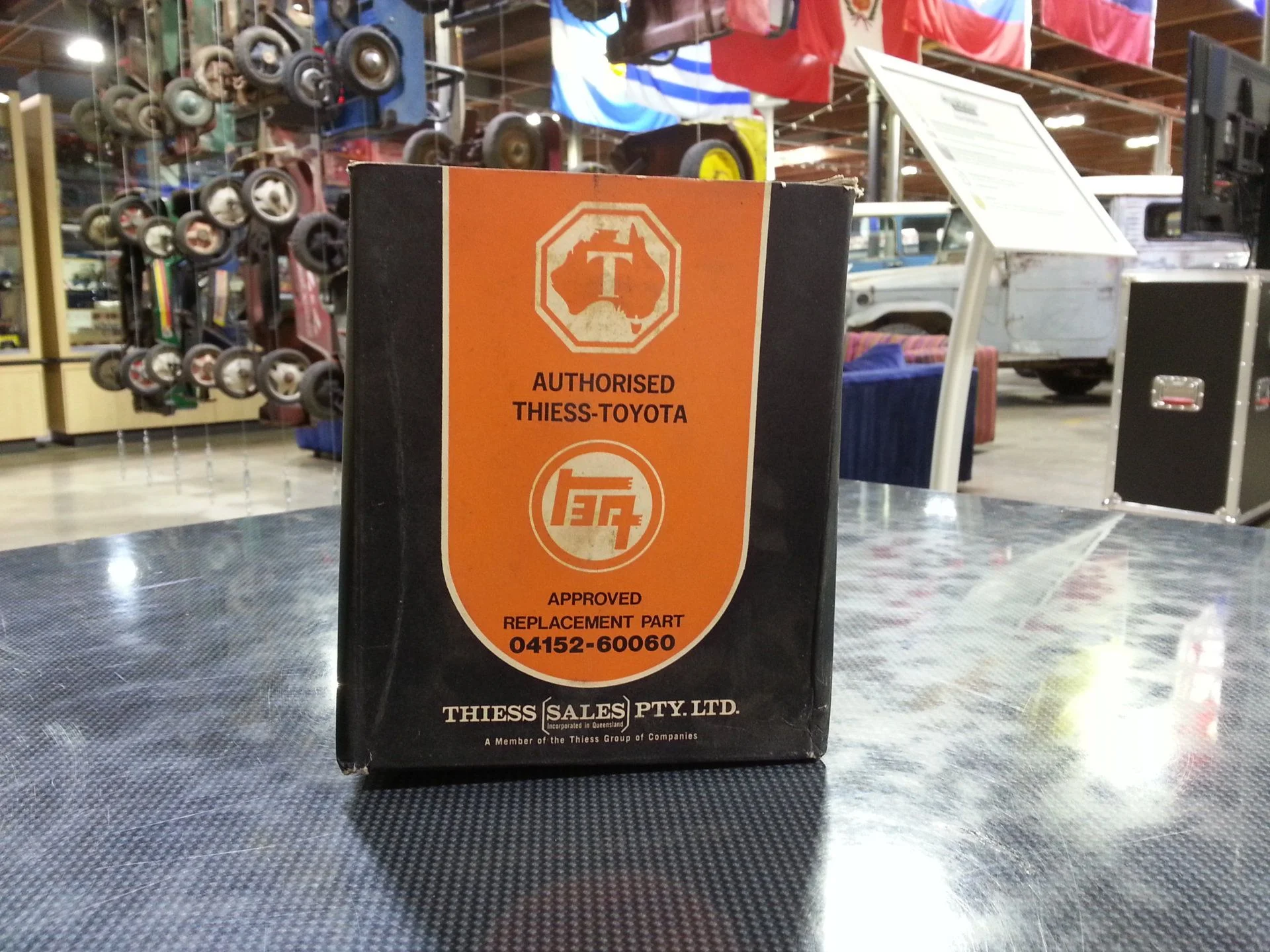

Here is an old package. It's my current desk art.



[OGBeno]

Whoah.



[brian]

That was the large dealership in oz wasnt it?



[cruiserdan]

That was the large dealership in oz wasnt it?

The original Distributor in Australia.



[jgeoffr]

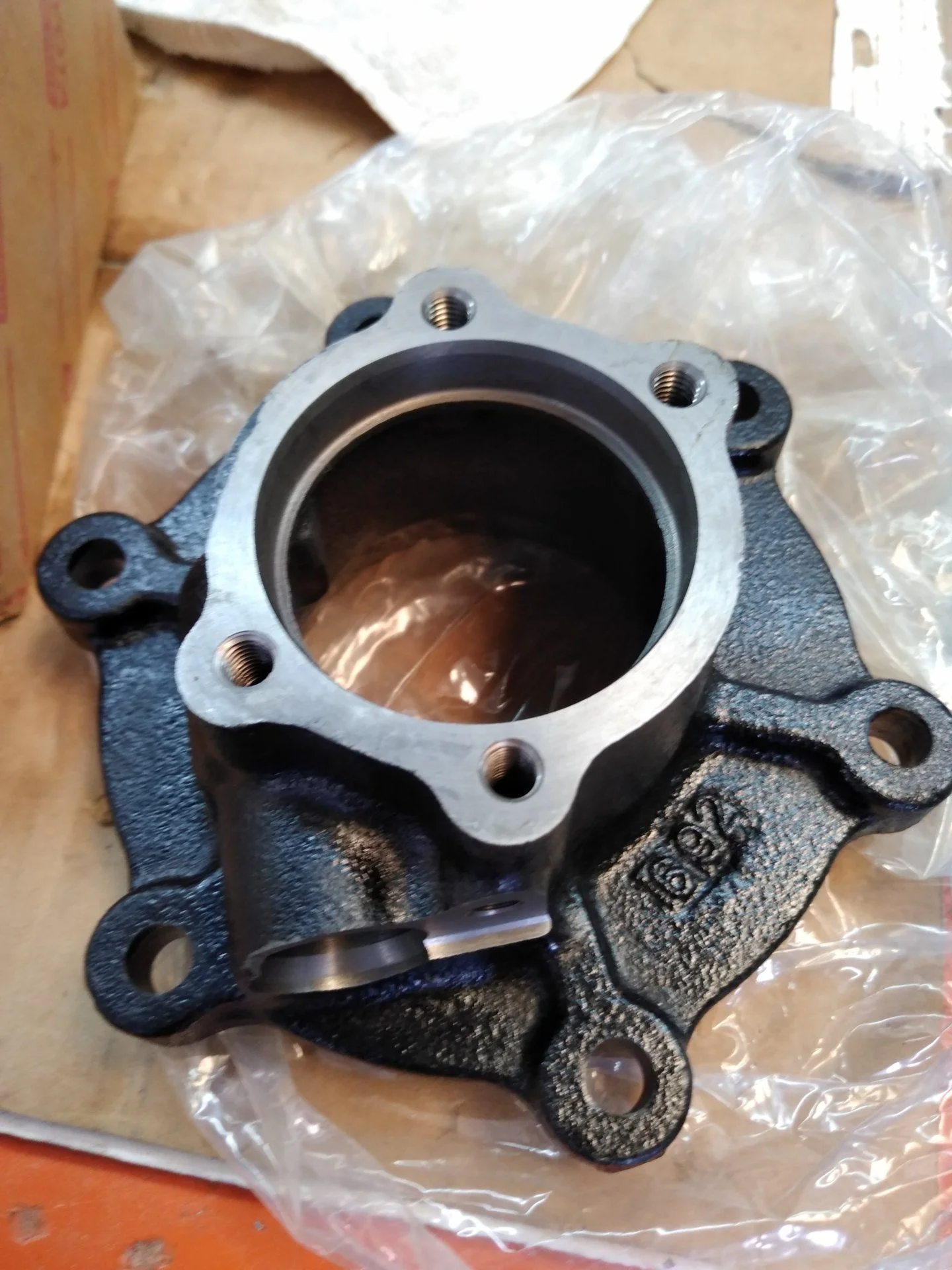

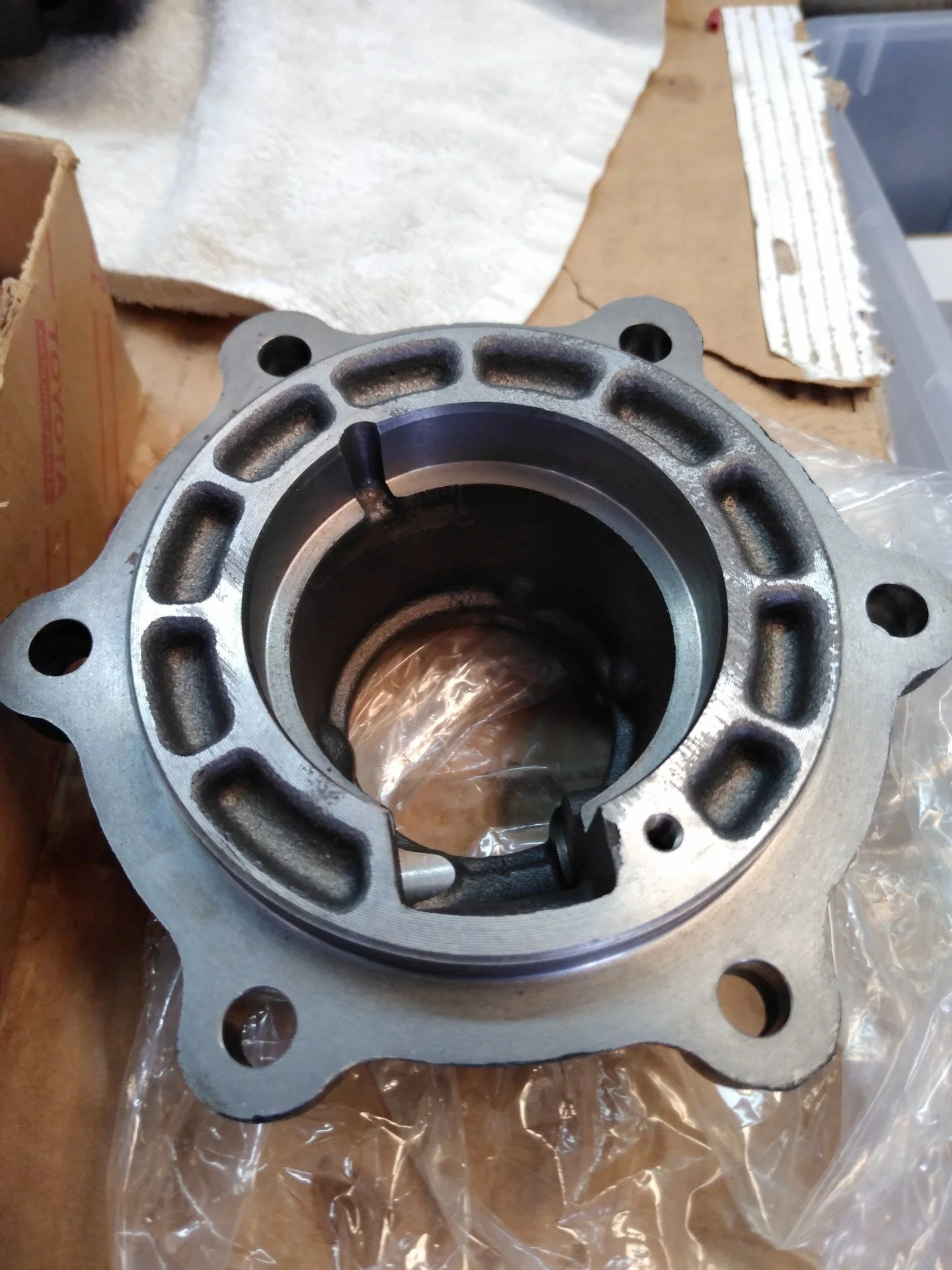

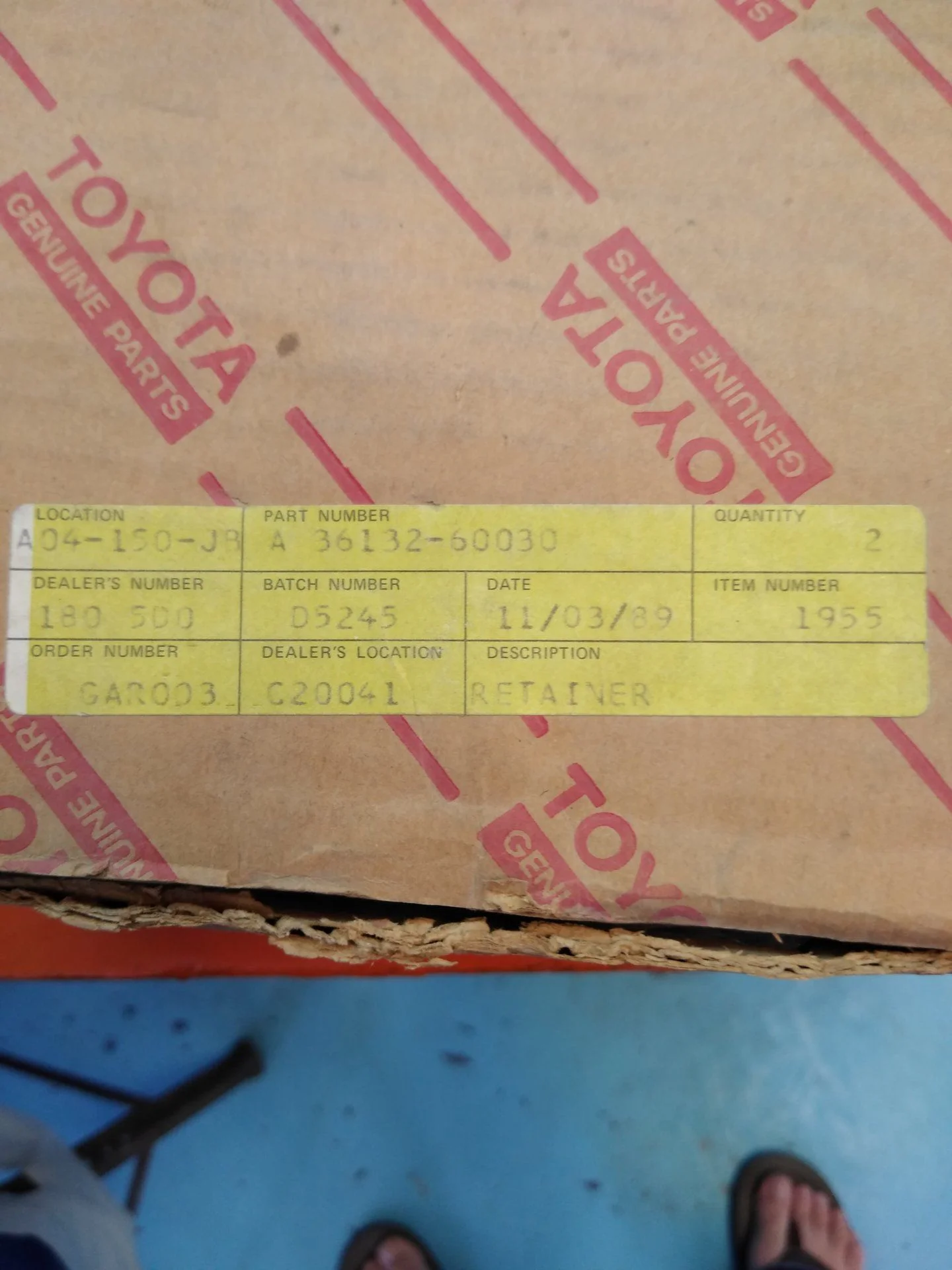

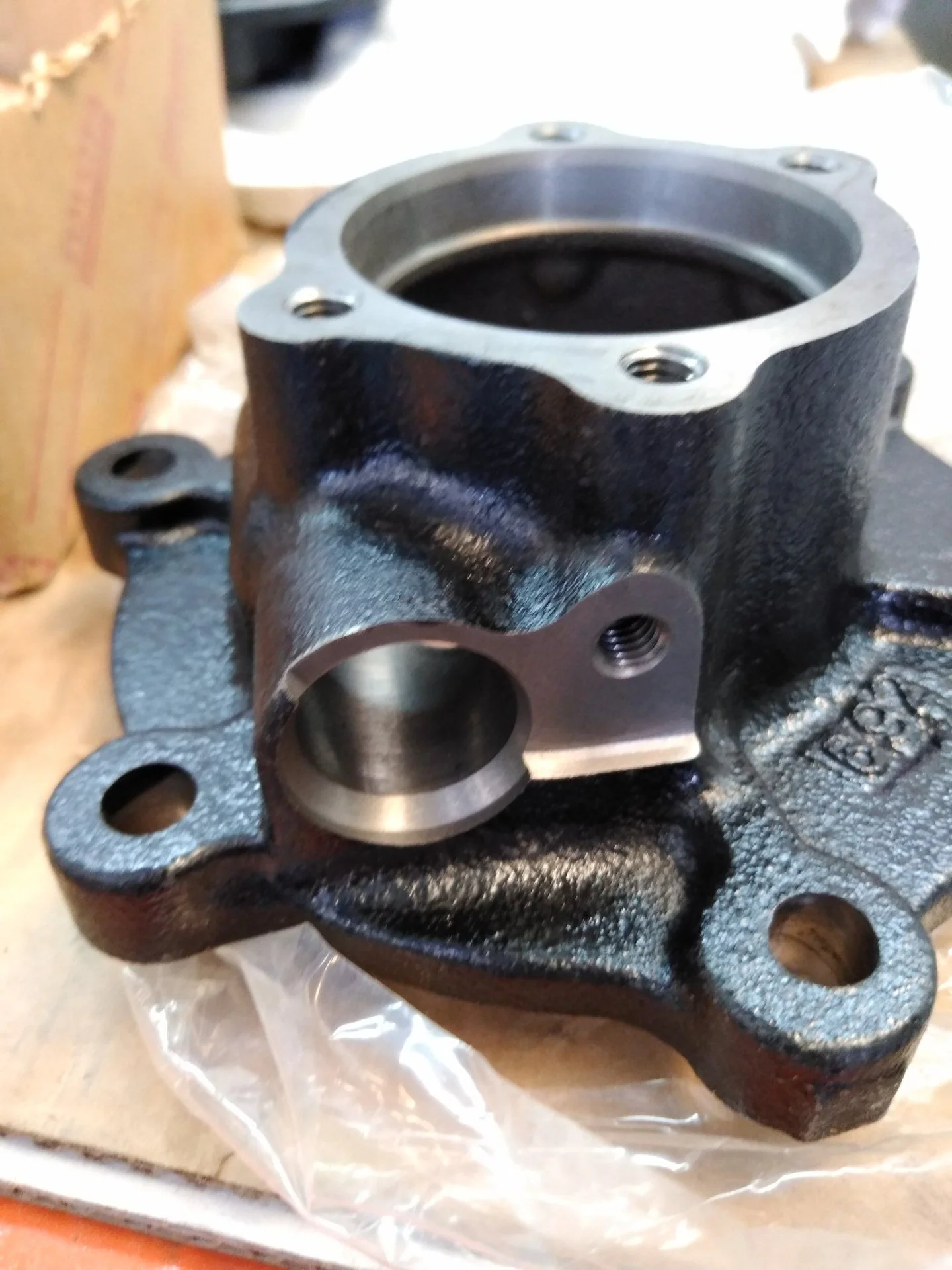

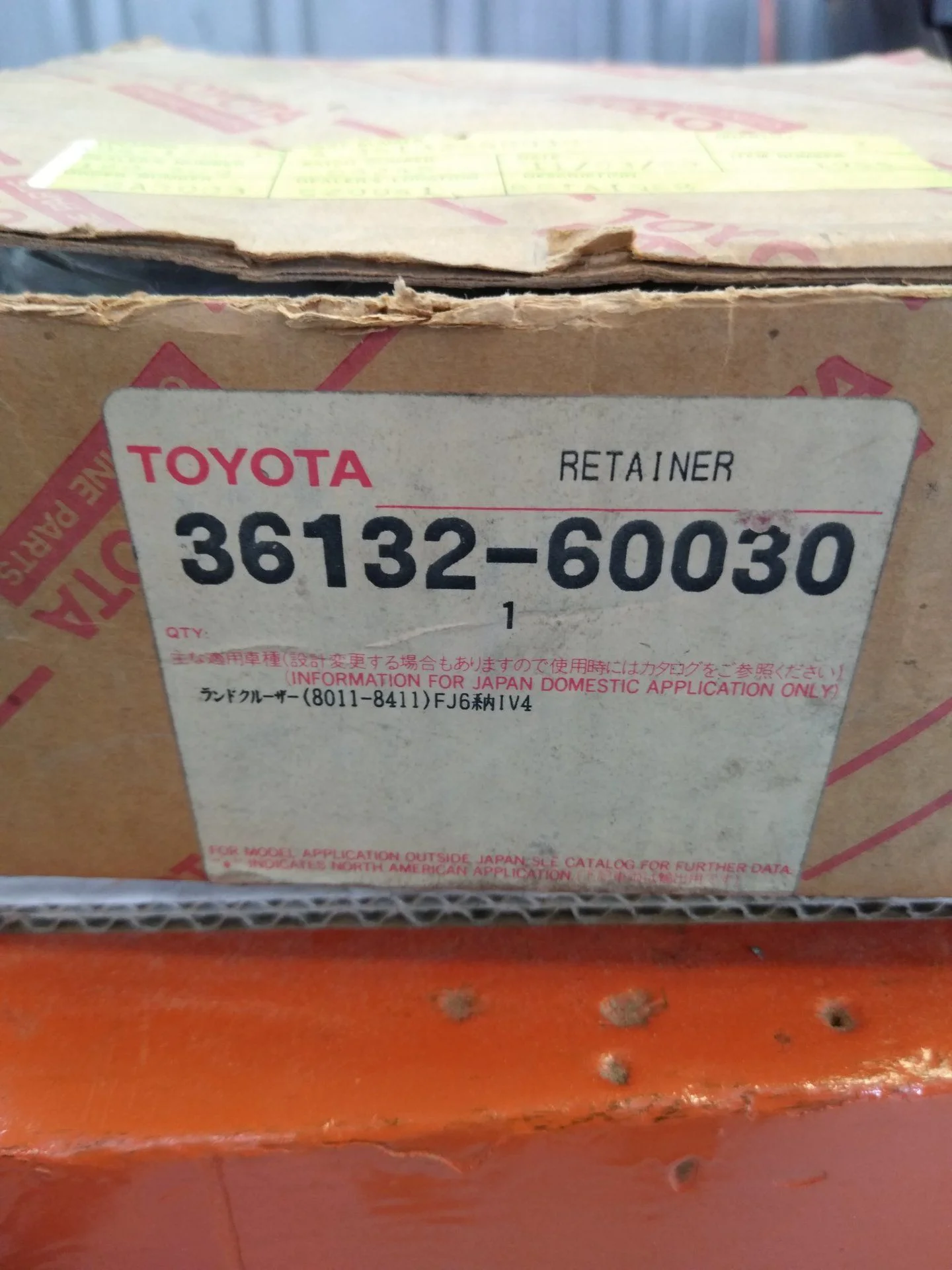

I know a batch of these were found several years ago, but this was a great find for me in 2019. NOS split case rear output shaft retainer with the extension for the driveline parking brake.

Thing has been sitting on a shelf for nearly 30 years just waiting for someone to buy it. Best part, it was $41 and change. They must not have updated the pricing since 1989 either!

-Geoff



[Living in the Past]

I know a batch of these were found several years ago, but this was a great find for me in 2019. NOS split case rear output shaft retainer with the extension for the driveline parking brake.

Thing has been sitting on a shelf for nearly 30 years just waiting for someone to buy it. Best part, it was $41 and change. They must not have updated the pricing since 1989 either!

-Geoff

View attachment 2022016

View attachment 2022017

View attachment 2022018

View attachment 2022019

View attachment 2022020

Were you able to locate the two other pieces that are unique to the split transfer case hand brake setup? Hardest piece to find in good shape is the brake drum.



[jgeoffr]

Were you able to locate the two other pieces that are unique to the split transfer case hand brake setup? Hardest piece to find in good shape is the brake drum.

My 82 troopy came with the full split case driveline parking brake. Issue was that the output shaft retainer bearing race was spinning in the retainer. I have the original one being worked on at an old school machine shop to bring it back to spec but since a NOS one was available I figured it was best to go new.

The output shaft was worn so I got the replacement shaft through Kurt at Cruiser Outfitters. I’m reusing the original drum backing plate. The drums themselves are still available (last time I checked). So I think I’m good to go. (Fingers crossed)

-Geoff



[Living in the Past]

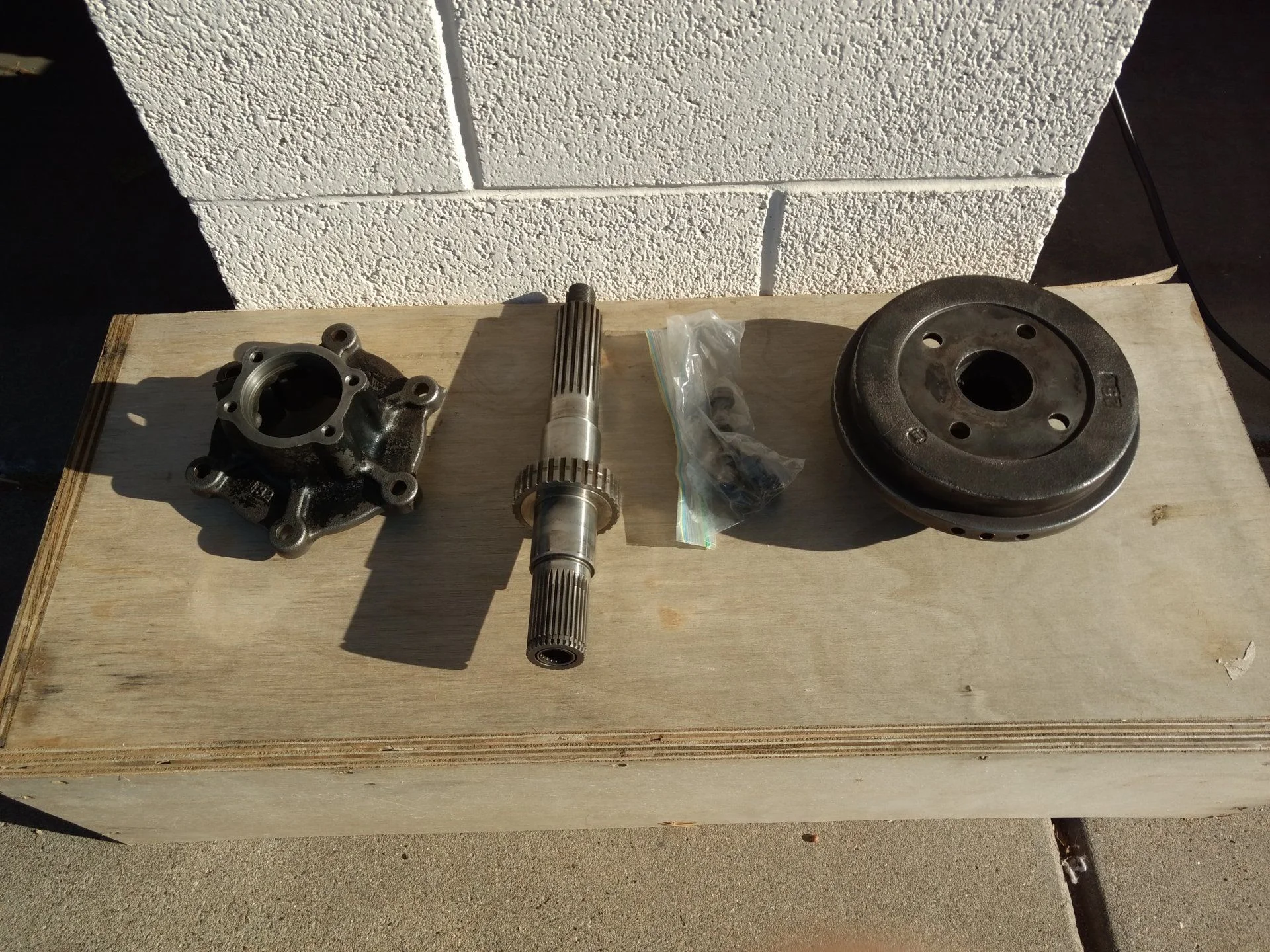

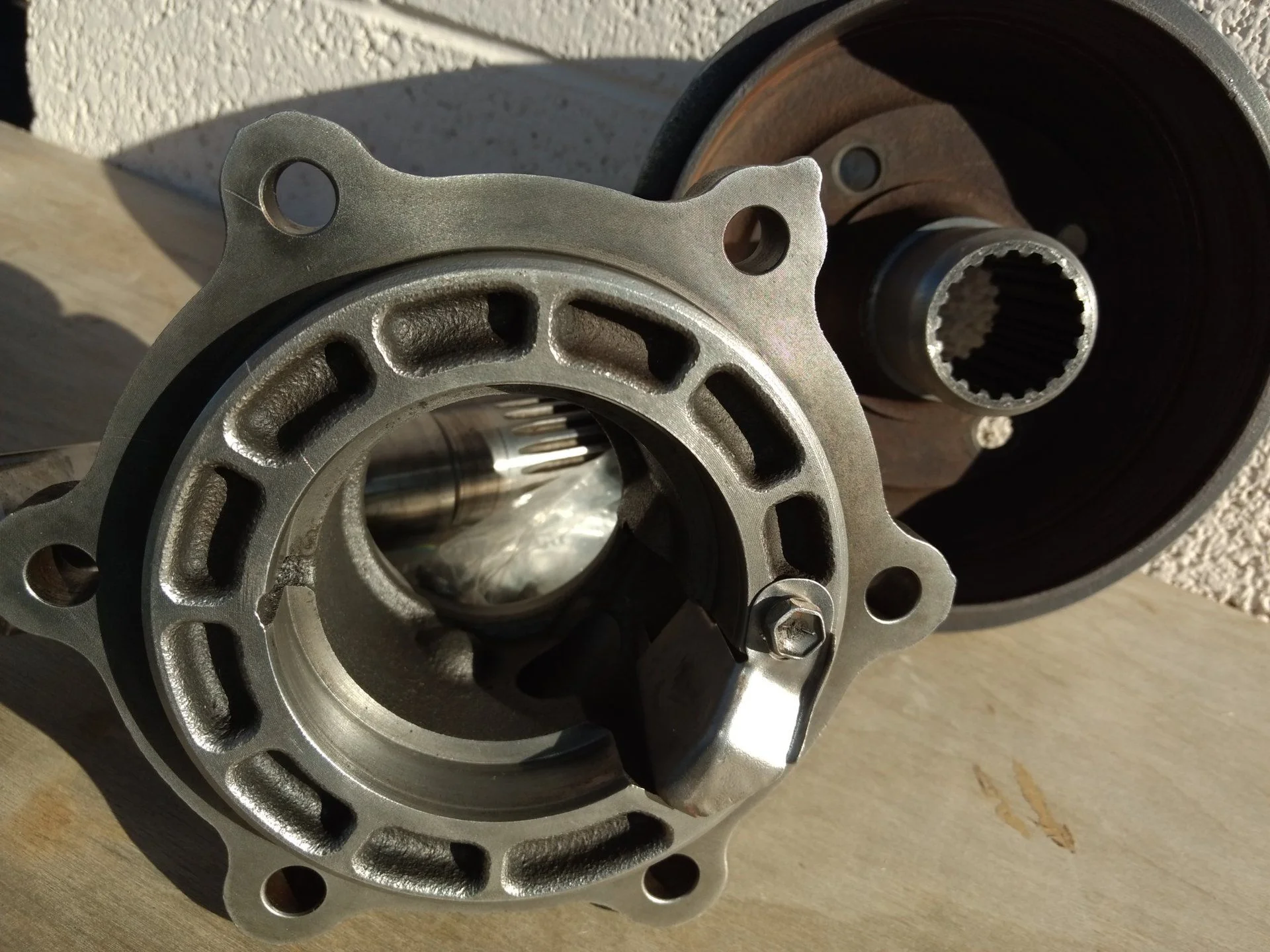

Couple pictures of the last set up I sold.

Last I checked only aftermarket brake drums are available. Like Australia believe your part of the world for plenty of these. Both regions used their vehicles hard. Believe sand is not one of the best environments for bearings. Not sure Australia was much better. Friend I sold this for was collecting 8/80+ T/T he could buy cheap. Many had unusable parts. Had a hard time finding me a good H41 input shaft to use in my H55F from a BJ42. Surprisingly the internal parts of the H55F are in real good shape. Finding NOS especially at that price is something most of us in the US can only dream about. Seeing threads by expats in the Middle East not the easiest even being there to find good clean rust free late model 40 series. In the long run appears it cheaper and easier to update my US model 79. Helps being in AZ where if you can find one that's spent it's here will rival the Middle East as far as rust.
