Unobtainium (4 Viewers)

[McSavage]

@RAGINGMATT can probably help with the linkages



[Racer65]

Try here 78101-90311 - Toyota Parts Deal

Doesn't matter where you check. Discontinued.



[billmc]

Doesn't matter where you check. Discontinued.

Thanks, looks like ball bearing fab it is



[ToyotaMatt]

Thanks, looks like ball bearing fab it is

Hi Bill ,

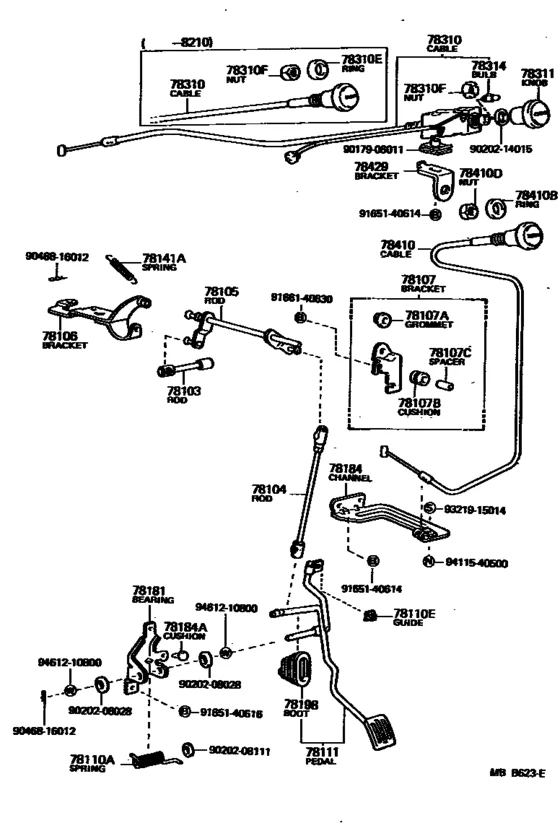

Please Identify each Call Out # in The Diagram below u need . ( Example : 78104 )

​



[billmc]

Hi Bill ,

Please Identify each Call Out # in The Diagram below u need . ( Example : 78104 )

View attachment 2046409​

Hi Matt,

I'm looking for 78111 and 78104.

Thx



[ToyotaMatt]

Hi Matt,

I'm looking for 78111 and 78104.

Thx

PM sent



[Economist LC76]

This may be common knowledge. I was just told by my toyota dealer that rear U-Bolt part number 90117-14001 is no longer available in the U.S. even though the online system let me order them. I tried ordering them for my ‘82 FJ40.

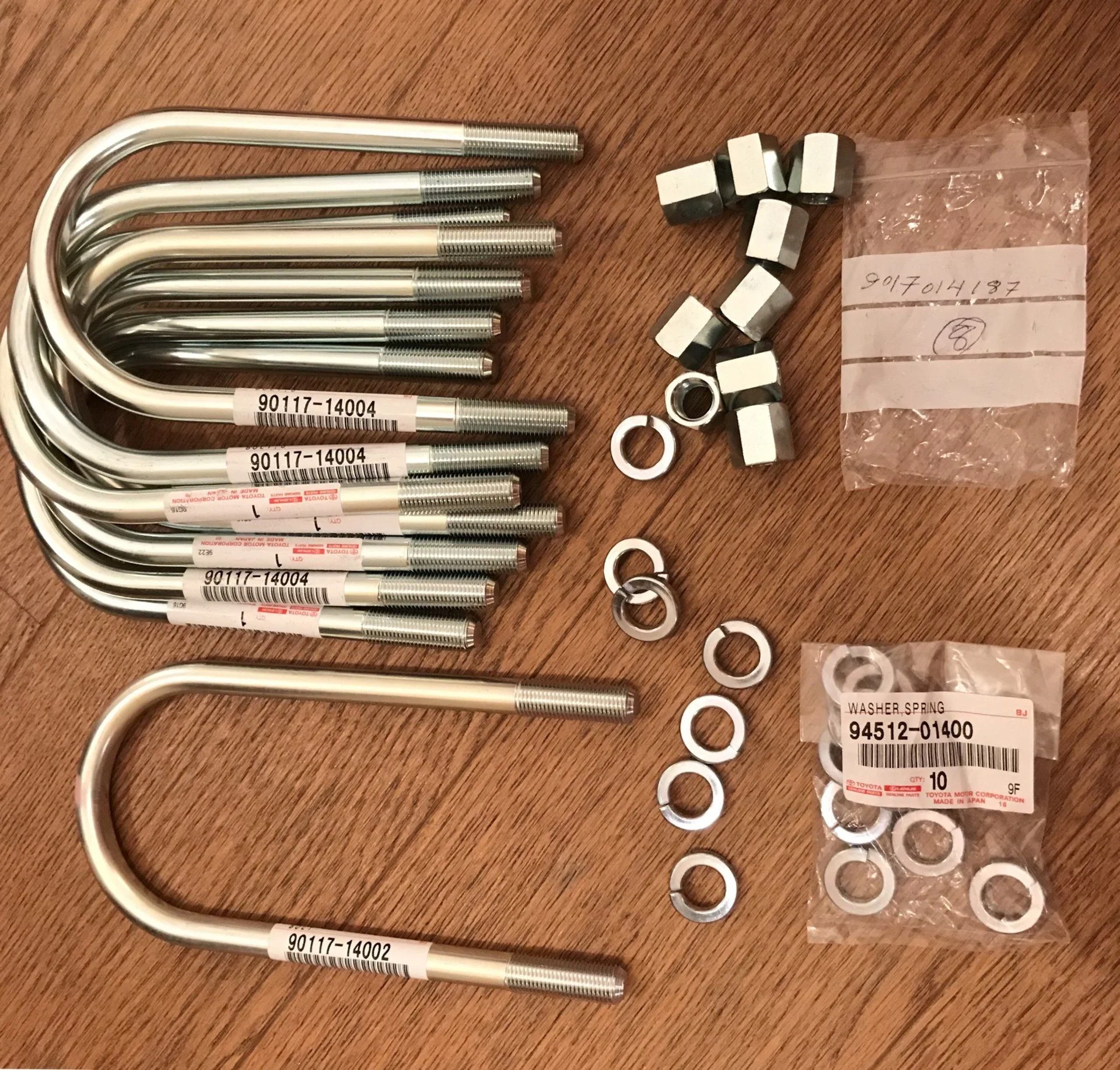

U bolts are still a puzzle for me.
Long 90117-14002
And short 90117-14004
For pre 08.1980
Available from Toyota

Sad it’s not cadmium



[cruiserdan]

Cad went away because of all the nasty chemicals involved in the process.


Cadmium and its compounds are highly toxic and exposure to this metal is known to cause cancer and targets the body's cardiovascular, renal, gastrointestinal, neurological, reproductive, and respiratory systems.
Safety and Health Topics | Cadmium | Occupational Safety - OSHA

https://www.osha.gov/SLTC/cadmium/



[OGBeno]

Try here 78101-90311 - Toyota Parts Deal

That’s the wrong part number. It supersedes and of course it is discontinued.

None of these parts have been available for years... maybe a decade or more.



[Economist LC76]

Cad went away because of all the nasty chemicals involved in the process.
Cadmium and its compounds are QUOTE]

It’s over in US and in Europe, but outside is still legal. For restoration purposes I might order cad for few small things...



[ToyotaMatt]



[cruiserdan]

It’s over in US and in Europe, but outside it isn't important if people live or die. For restoration purposes I might order cad for few small things...

Edited for clarity.



[ToyotaMatt]

I recently started Offering these in My Store.

Reproduction

Orange

Call Out # 78198

BOOT Sub Assy, ACCELERATOR CONNECTING ROD.

78199-90352-R

72-84 , FJ40

72-80 FJ55

81-87 FJ60

​



[ToyotaMatt]

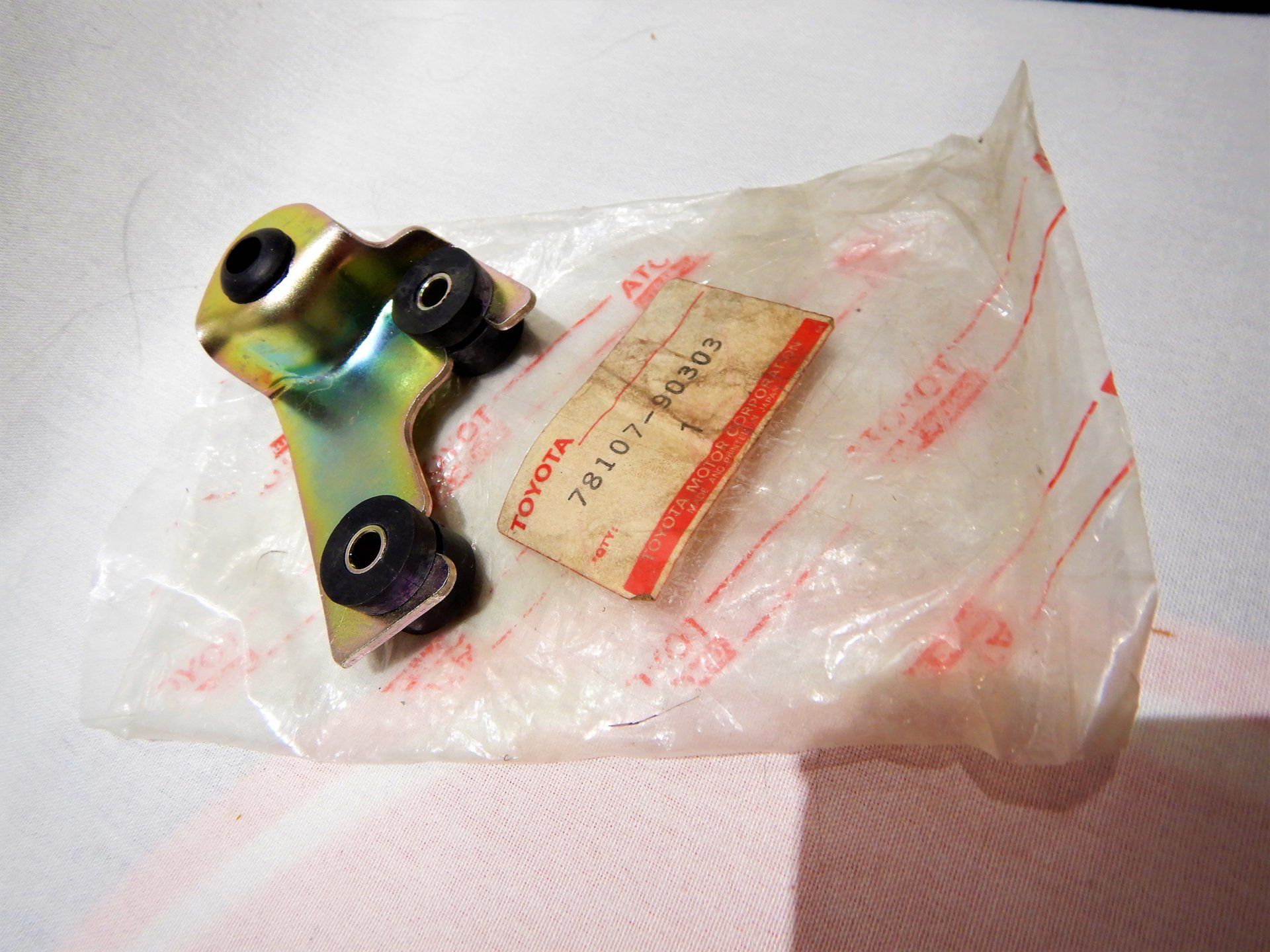

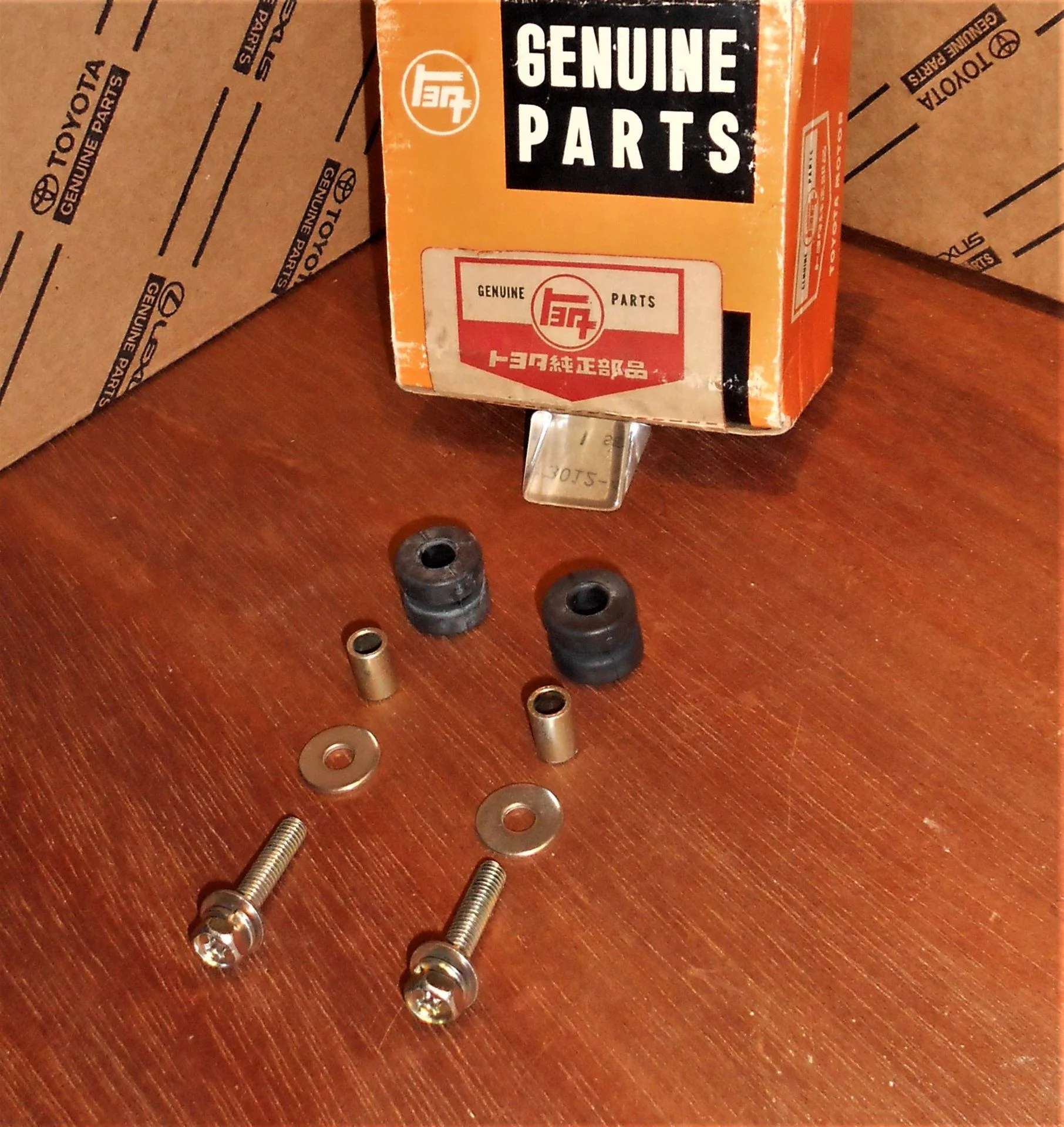

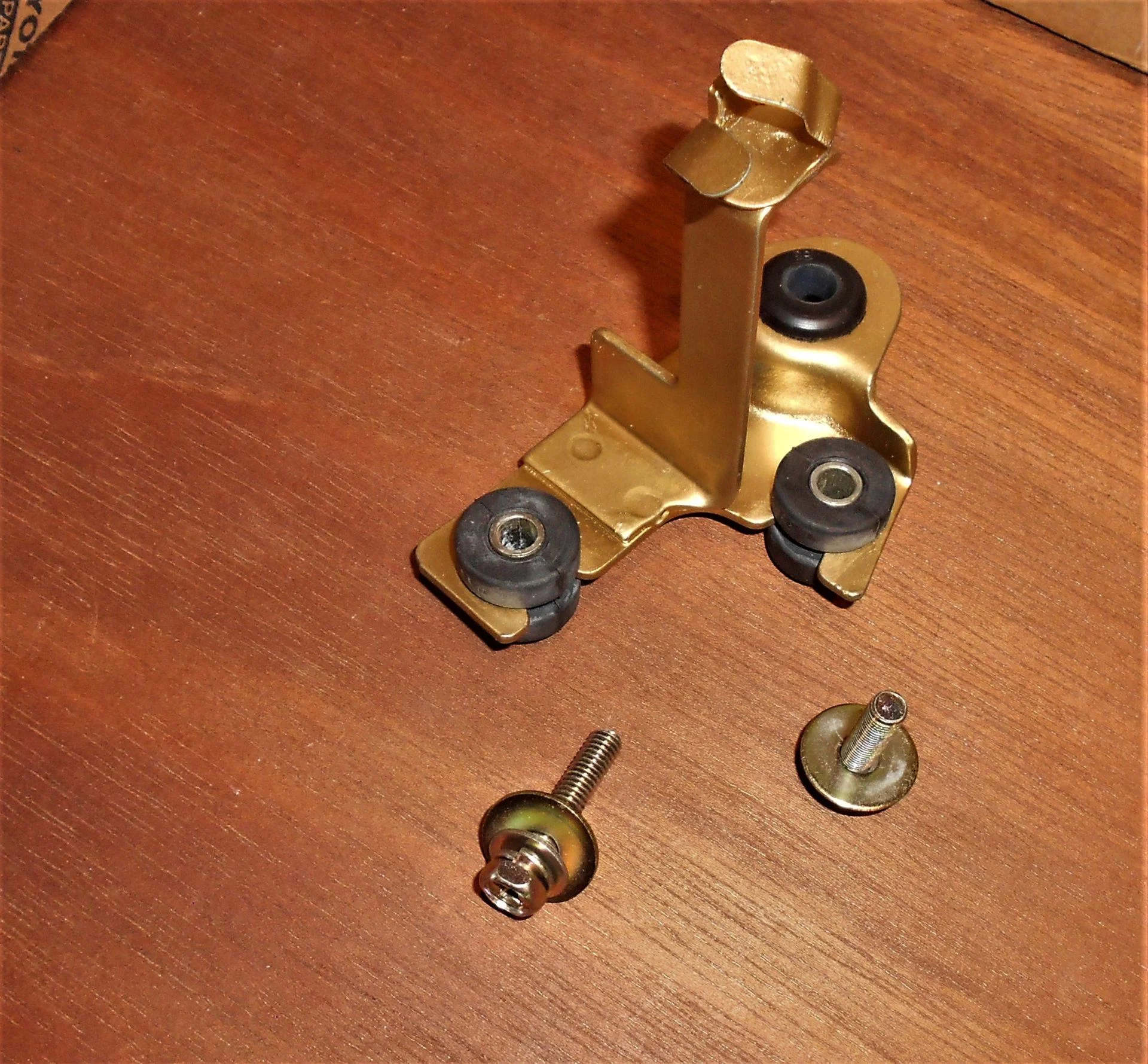

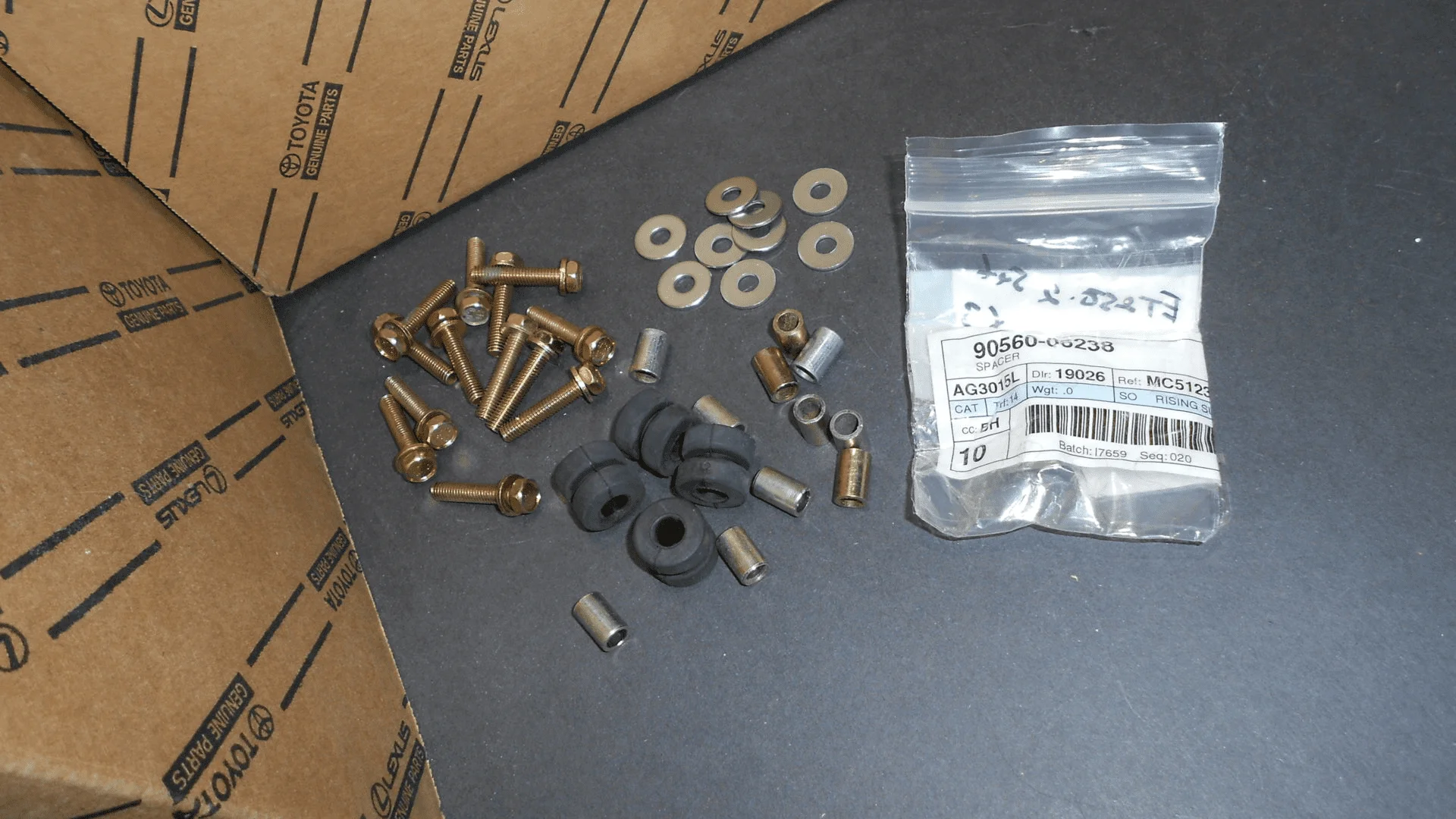

I have also Reproduced all the Discontinued Parts within the 78107 Bracket Call Out # Box In the Parts Diagram :

- 78107c / 90560-06238-R Spacer

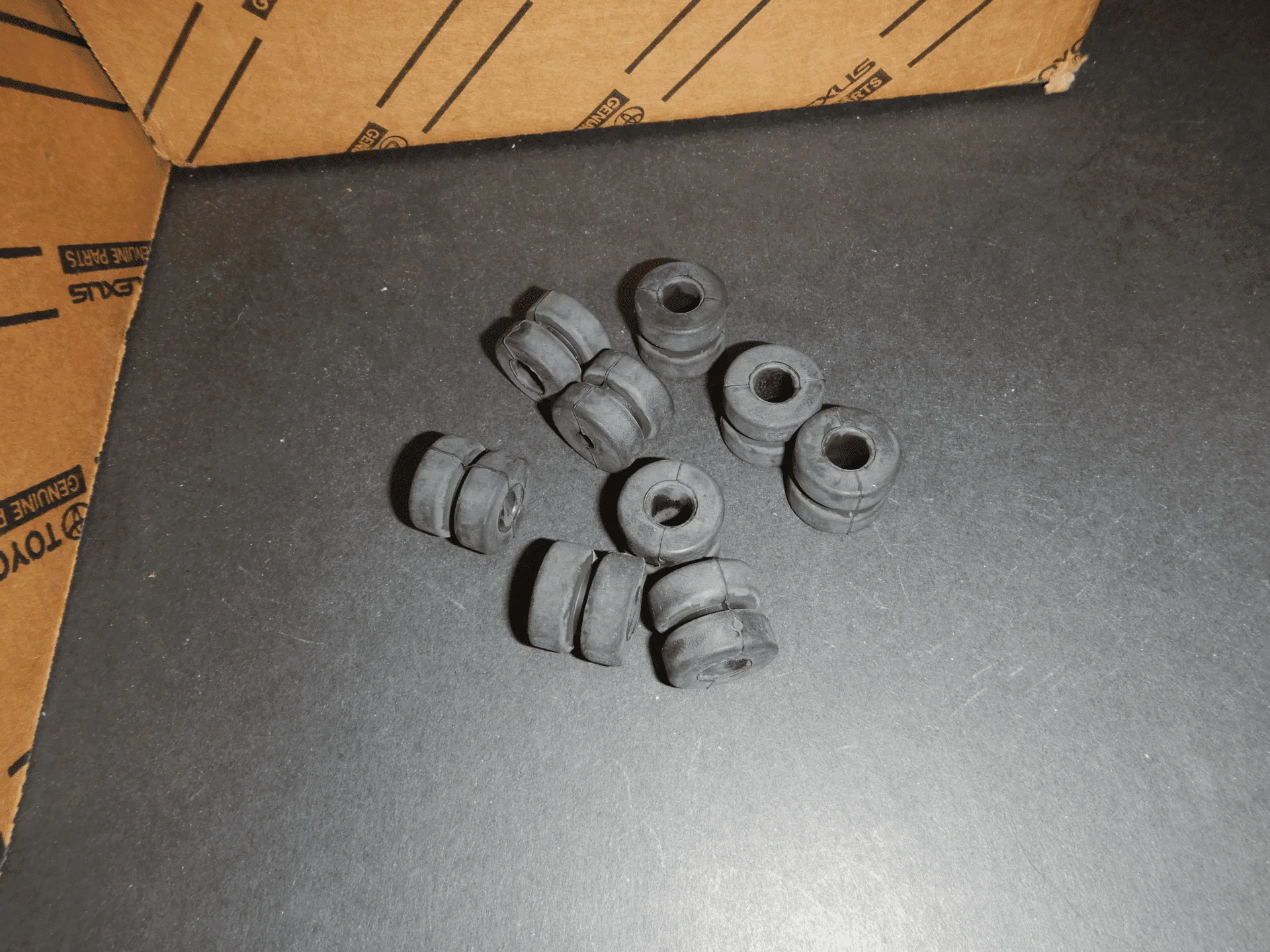

- 78107b / 90540-09059-R Cushion

- 91661-40630-R / Bolt w/ washer



[ToyotaMatt]



[McSavage]

Ok @Racer65 you teased us with pictures of a beautiful mat for late model 40’s in April. July came and went and we were all patient. The heat coming off my floorboard is killing me dude!



[40Man]

Ok @Racer65 you teased us with pictures of a beautiful mat for late model 40’s in April. July came and went and we were all patient. The heat coming off my floorboard is killing me dude!

He told me there was a delay getting materials (looking like September). I really appreciate all that goes into making these things right. I've been waiting a year and a half and will continue to wait as I know it will be a great product. I have enough of his repro stuff on my rig that it might be a FJ-R65 at this point.



[ToyotaMatt]

When i Opened the Small Wooden Box or Micro-Crate if u will , i was Not sure if this NOS 27020-60040 Had

Found Me or I it ?

It weights over 2 times a Normal FJ60 / FJ40 2F Alternator

also , this 60040 is easily almost twice the Volume , space it takes up in Engine Bay

first thing i did , was to Grab MY Trusty Rite-AID Hand Held Magnifier Glass , and Spot on NO TRACK Marks

on the 3 male brass terminals inside the Case where u plug in your 3 pin Connector Plug

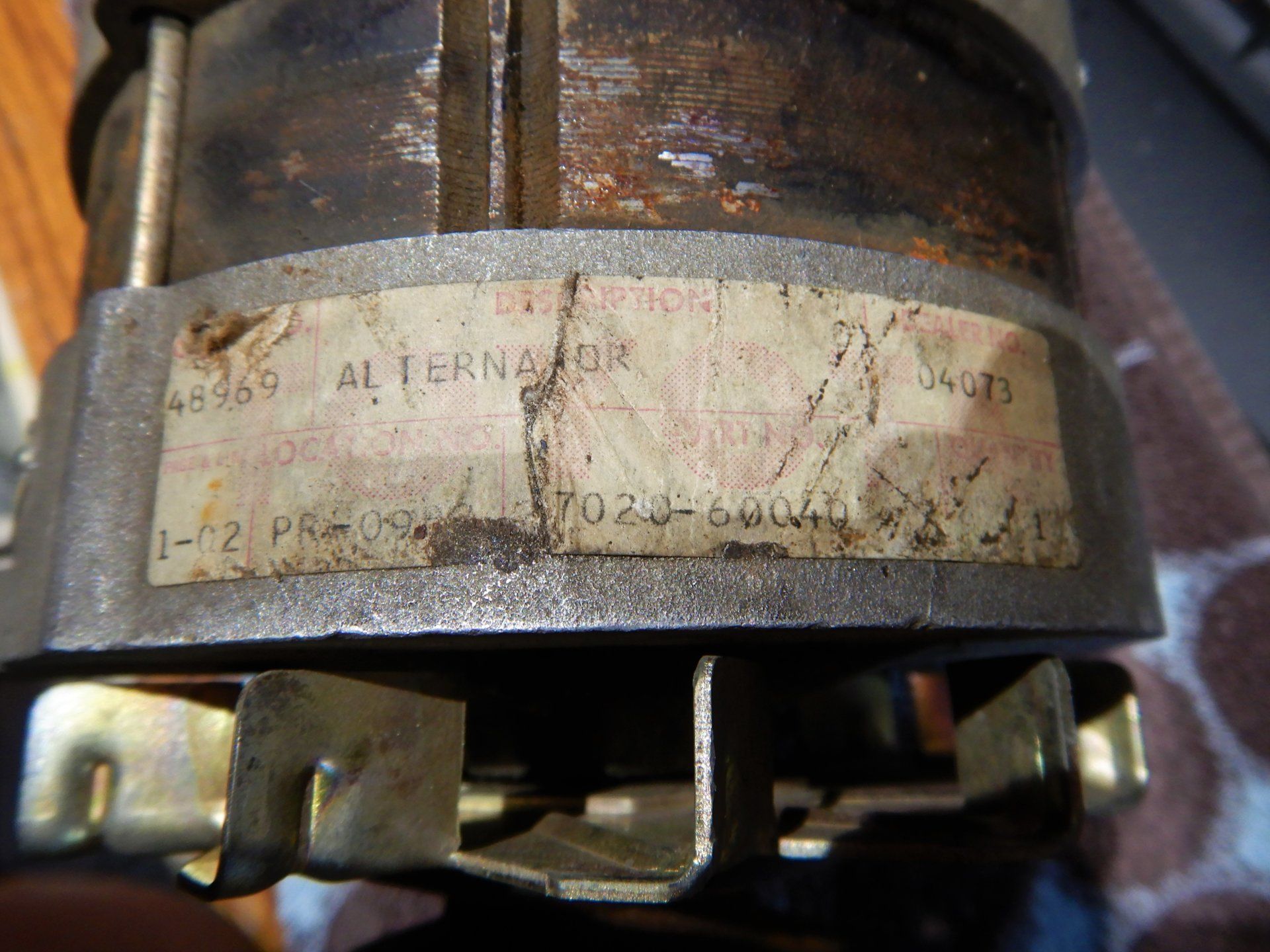

- then i studied the Paper Decal still attached , Dealer Code 04073 etc. ....

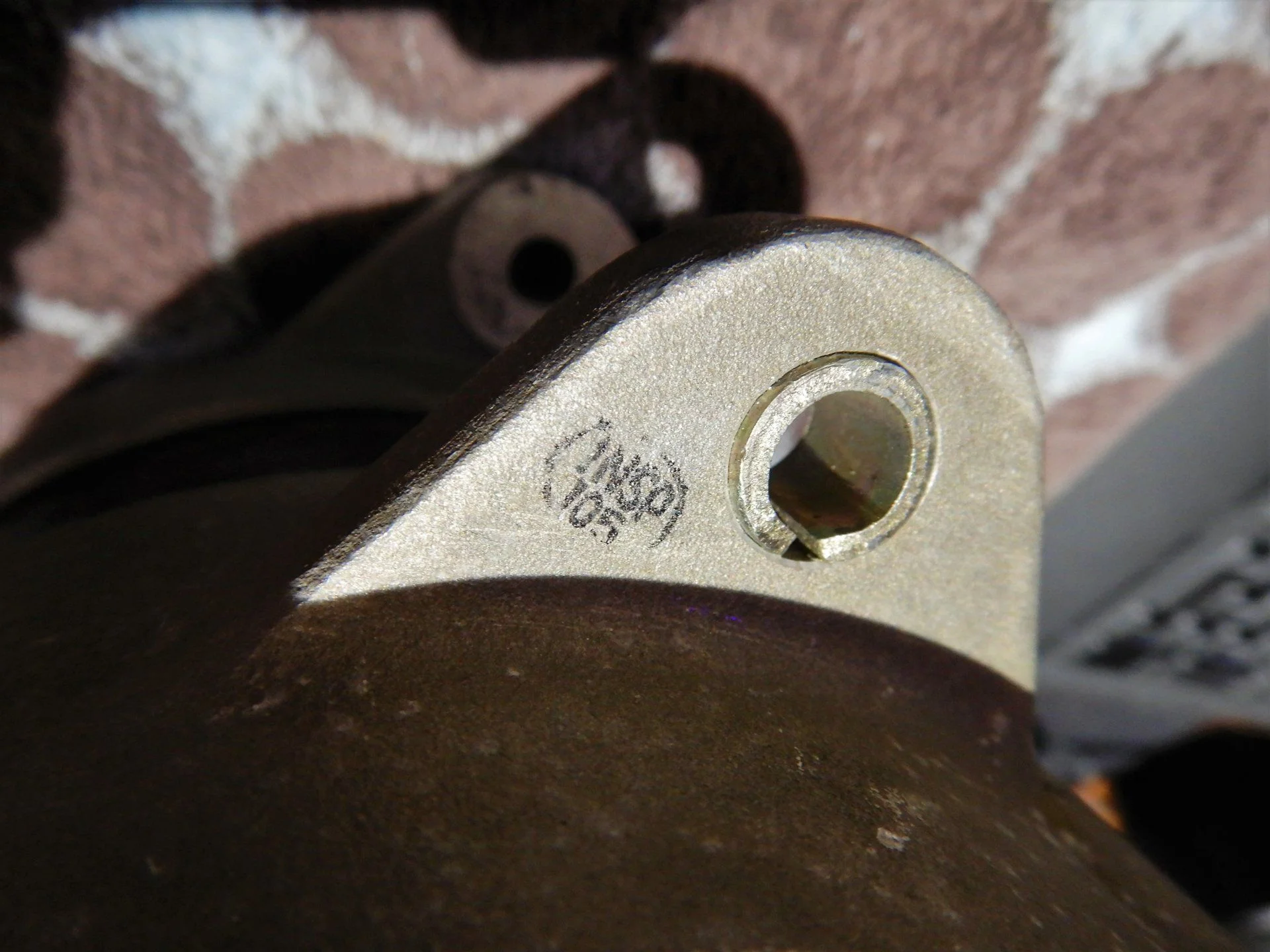

also , the INSP. black stamp un-touched by age and Time it seams

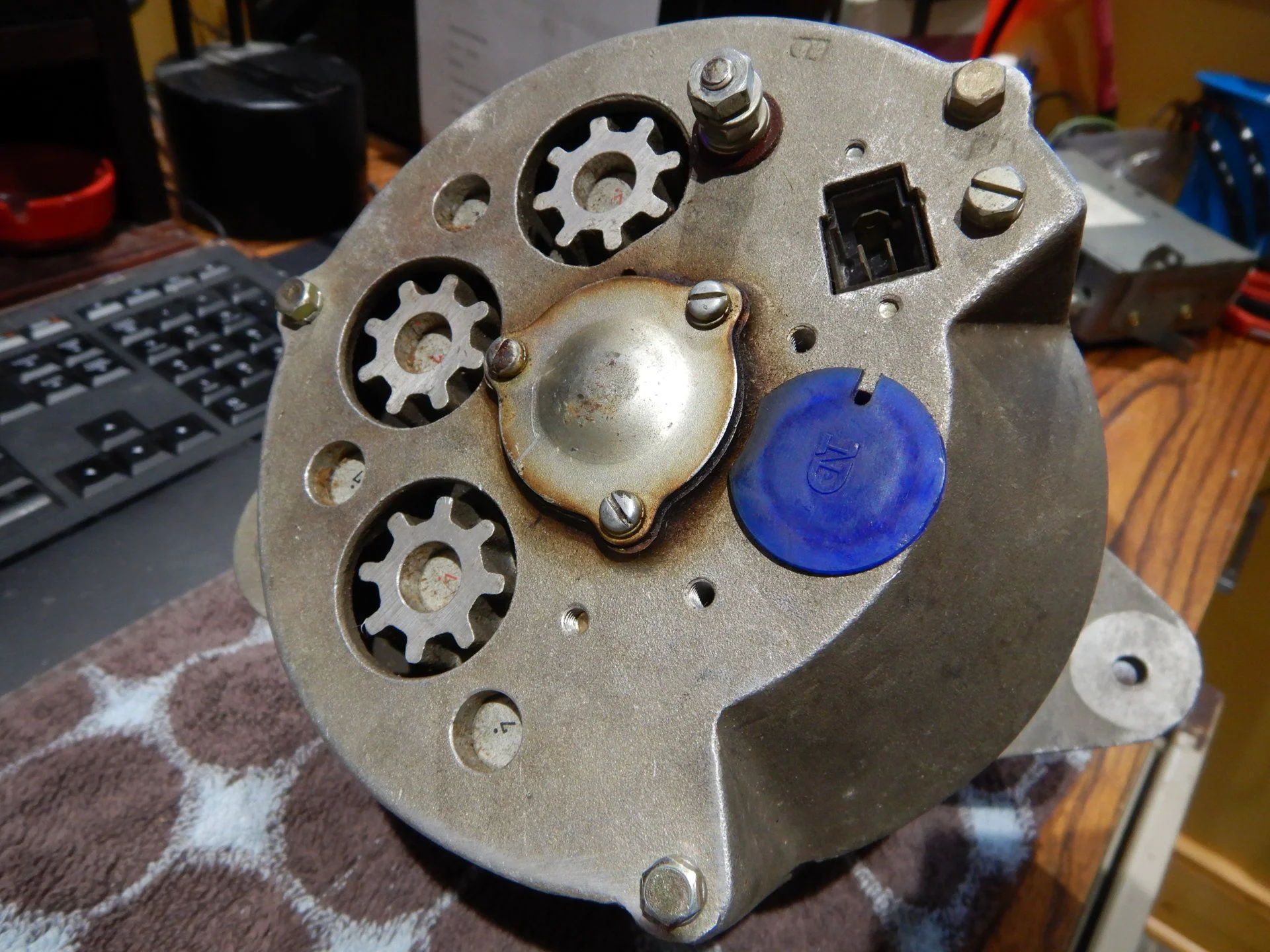

the Blue plastic plug in the back is fascinating a well ..


this will be a well documented Restoration , for historical Archives etc


The 27020-60040 is in My 1967 Paper Parts Cataloger



If anyone has a Older documentation Please Post it or Send me a PM


Truly " Unobtainium "



[ToyotaMatt]



[Racer65]

Ok @Racer65 you teased us with pictures of a beautiful mat for late model 40’s in April. July came and went and we were all patient. The heat coming off my floorboard is killing me dude!

Yup, I know. It's painstaking work...there's always something. I had delays with materials sourcing for the production run, which is now now resolved. Production is going smoothly so far, and I'm fairly confident of a mid to late September release. Until then, I'm sorry I have to entertain you with another tease...
