I just wanted to document this process for posterity. I seemed to find myself occasionally saying on the forums that turbo is such a great bang/$ option compared to the TRD/Magnuson route (which is also a great option, depending on your needs [CA]). But rather than just typing it on an internet board and feeling smug about what I had read somewhere, I thought why not actually try it? Thanks to @scottryana, @lilevo, @mtncruiser97 and @2KCruiser for providing some ideas. :)


It should be said that I do not suffer from the acute OCD/”while you’re in there-syndrome” commonly found on ih8mud. I am more of a “good’nuf” type of guy. I did not do any PM in preparation for the turbo: no HG, head studs, injector cleaning, etc. The plan is just to slap this thing together and see how it works.

The idea is to basically mimic the TRD/Magnuson supercharger: 5-6 psi, no intercooler, no tuning. Once I’ve done that and documented my results, I’d like to add either an intercooler or meth injection and maybe turn up the boost a little bit.

I will be following the basic recipe that @scottryana was so kind to provide: So are there any TRD Superchargers left?

I did deviate from the recipe here and there to save a buck, but all the major components are quality USA or Japan parts. If you’re not concerned about Chinese junk, you could probably save about $300-$400 compared to what I spent by getting a knockoff wastegate, BOV and turbo. If you have better fabrication skills than me, you could save a few more Benjamins by making your own y-pipe using the stock exhaust manifolds (this would be awesome with my twin-scroll turbine housing), but after some buddies and I cobbled together a DIY turbo kit for a 3.4 Tundra last week (crossover pipe and turbo flange was a lot of work and a lot of “oh s***” moments), I gave up on that idea and just coughed up the money for a cast manifold. That was a tough battle with my inner cheapo. :eek:

Baseline dyno is scheduled for next Wednesday and I still have parts trickling in the mail, so don’t hound me for updates :D BTW, the dyno is mainly for MUD. I should start a gofundme account so you guys can pitch in on my dyno pulls (I told you I was cheap!) :eek:

So anyway, without further ado, I present my victim: 1996 LX450 with a salvage title and 310k miles.

20160309_122005-1-jpg.1222182

Last edited:
Joined
Aug 5, 2010
Messages
5,663
Location
Colorado
BTW, so far I have spent $1504 including shipping and I *think* I have purchased all the major stuff. I'm just waiting on hoses, clamps and pipes until I have a better idea of how things are going to fit together in the engine bay. I will post a complete list of parts and cost and where I found it when I'm all done.

:edit: Jump to Shopping List

Last edited:

BlueCruiser84

SILVER Star
Joined
Nov 1, 2004
Messages
3,479
Location
Staunton, VA
Any updates yet?!?!?!?!?!!!!!!

Seriously. I like this. I don't have the mud OCD either. Slam that bitch together and if it blows up it blows up.

I'm super pumped to see a parts list. I'm dying to try my hand at a turbo.


LFD2037

TEXAS LEXUS!
Joined
Oct 22, 2013
Messages
3,923
Location
Wax., TEXAS
YES!!!!! I've been waiting for this. I'm a thrifty SOB as well so this'll be right up my alley.

Joined
Aug 10, 2015
Messages
121
Location
PNW
I'm going to be attempting this at some point as well with my 93, but having a 95+ definitely makes it easier/cheaper. At least with 10psi or less.
I can't wait to see this done and the dyno results!

Joined
Dec 9, 2010
Messages
330
Location
Carrollton, GA
Website
www.facebook.com
More pictures of the Ariel Atom looking thing in your buddy's garage. Oh, and more turbo details as they emerge, too.

Joined
Aug 5, 2010
Messages
5,663
Location
Colorado
More pictures of the Ariel Atom looking thing in your buddy's garage. Oh, and more turbo details as they emerge, too.
Homemade racecar inspired by the atom, but totally designed and built from scratch. Powered by a built up and turbo'd honda B16A makes 345whp and weighs about 1200lbs :eek:


2KCruiser

Everything 2KRacing, practically live here
Joined
Jan 28, 2013
Messages
1,668
Location
SoCal
Website
www.2kracing.com
Boost builds are always fun projects. I will be turbocharging another 80 soon too. Going another route this time.

Joined
Nov 8, 2013
Messages
279
Location
Boulder, CO
damn where in CO, are ya? also what turbo and turbo manifold are you going to be using? i want to do this to my truck here soon if i can stop throwing money at guns and other stuff for my truck!

Joined
Aug 5, 2010
Messages
5,663
Location
Colorado
I'm using the treadstone cast manifold. As far as I'm concerned, it's the only real viable commercially available option for an offroad truck. CX Racing makes a manifold, but it is tubular steel and I don't like the prospect of a chinese tubular manifold bouncing around offroad with 40lbs of turbo hanging on it, although you could potentially reinforce it. Plus, CX racing manifolds were known to crack back in my "import tuner" days :lol: Cast just seems like the better option for a truck, even if I do lose a few HP. Turbo is the same Borg Warner listed in Ryan's formula in the OP. S300SX .91a/r. I just happened to get a really good deal on it by shopping around :)

:edit: I'm in Westminster. I'm originally from Boulder (still work there) :)

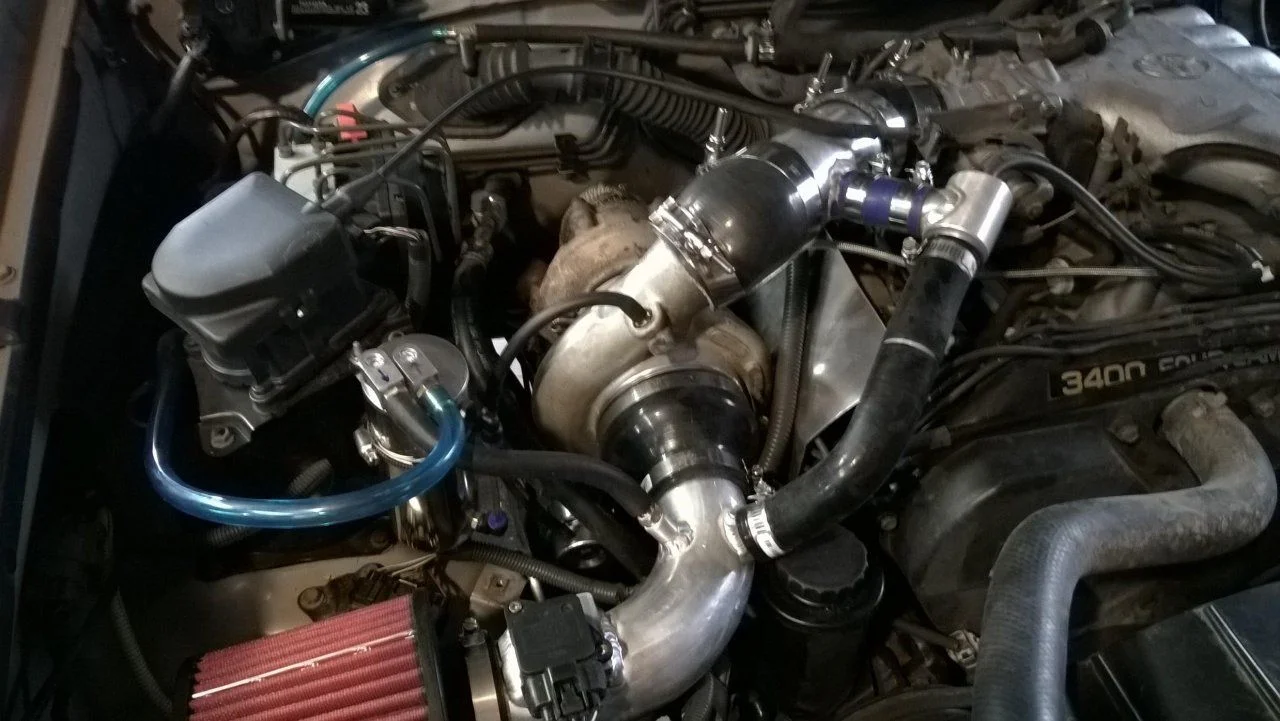

:edit::edit: No thread for the tundra. That was literally just a weekend project done on a whim. Took about 16 hours (2-3 guys dividing the labor and a few trips to the hardware store and exhaust shop) to get it up and running. The LX should require a lot less fabrication, so hopefully it will go a little smoother :eek:

Last edited:

jamesurq

Reefmonkey
Supporting Vendor
Joined
Apr 18, 2015
Messages
6,751
Location
Greensboro, NC
Website
reefmonkey.com
Sounds like fun - tagging on to learn.

Joined
Jan 31, 2005
Messages
4,077
Location
Denver CO
When you're done bring it to a Rising Sun meeting and we can race up I-70 :)

Joined
Nov 8, 2013
Messages
279
Location
Boulder, CO
if you need any help putting this thing together let me know, would love to see what im in for when i do mine!

Joined
Aug 5, 2010
Messages
5,663
Location
Colorado
Baseline Dyno:



Woof! Now before you go telling me that my 80 is a dud, this dyno is a Superflow (eddy current) dyno that will typically show lower numbers than a dynojet or mustang. And it's at 6000' elevation. The dyno operator doesn't fudge around with correction factors to make his shop look good. This particular dyno has a reputation as an ego killer. I have read on MUD that my truck should make 140-150hp stock, so 120hp seems low. But I can say it runs just like every other stock landcruiser (better than some), so I'm happy with this as a baseline. It will be re-tested on the same dyno, so all I'm really looking for is a percentage type increase.

Joined
Aug 5, 2010
Messages
5,663
Location
Colorado
Strapped down and rearin' to go:

Joined
Feb 2, 2004
Messages
11,311
Location
Washington
Actually it looks the opposite of a dud. They usually say about 3% power loss per 1000' of elevation gain. So my 135awhp at 1000' would would be about 115awhp at 6000'. So I would say you are definitely right where you're supposed to be for a before dyno.
