Also, I went to the website and couldn’t find any flange head jis bolts in m8x30x1.25 yellow zinc grade 10.9, I saw the standard head. I just like the idea of a wider head especially with a 12mm hex. Thoughts?



[MSP1989]

Wonderful, I like the yellow & gold colors



[davework]

Just restocked with stainless that has been out of stock for some time. Stainless assortment kits available again, FJ40 timing chain kits, and t-stat kits as well.



[aging fleet]

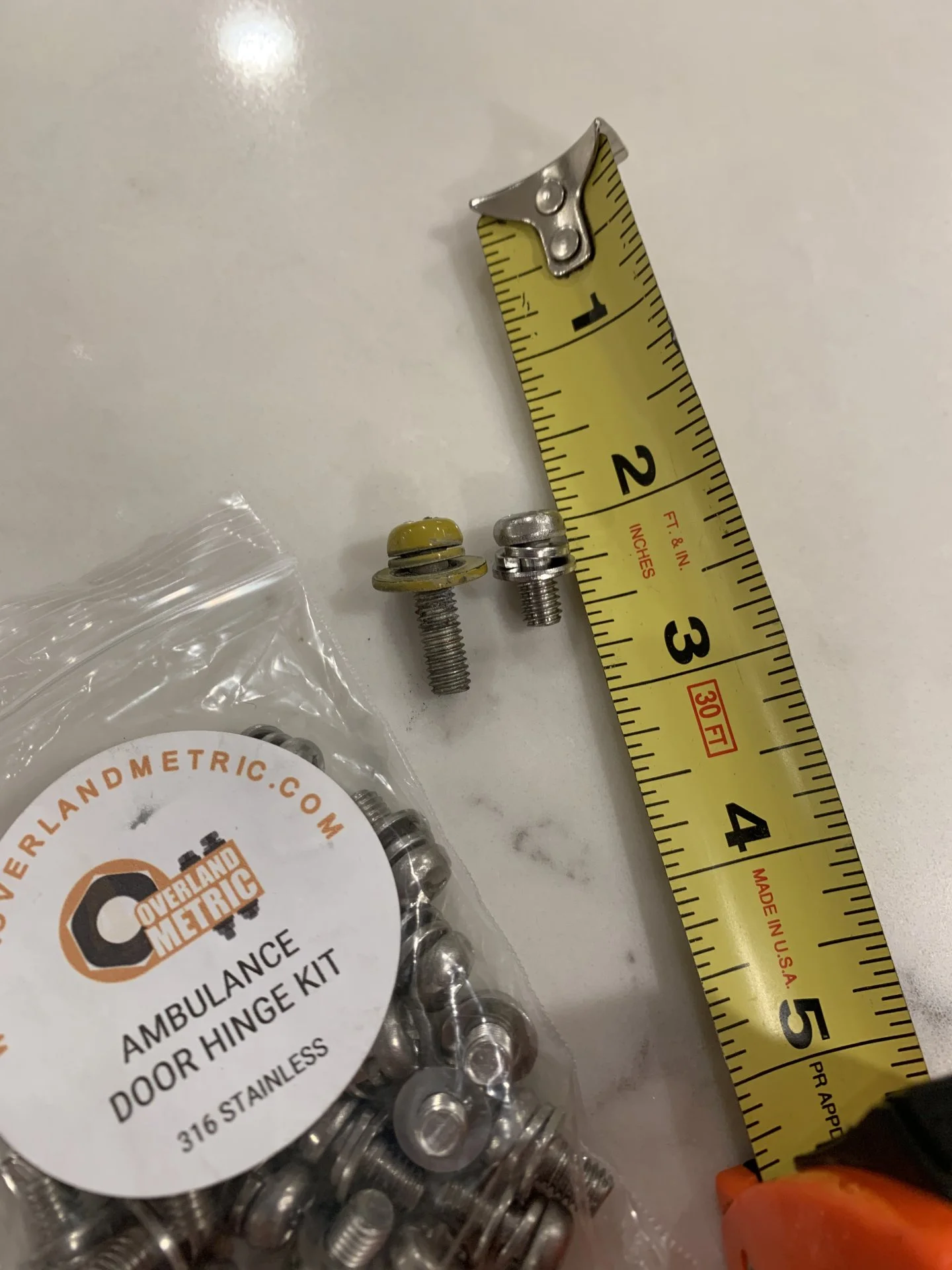

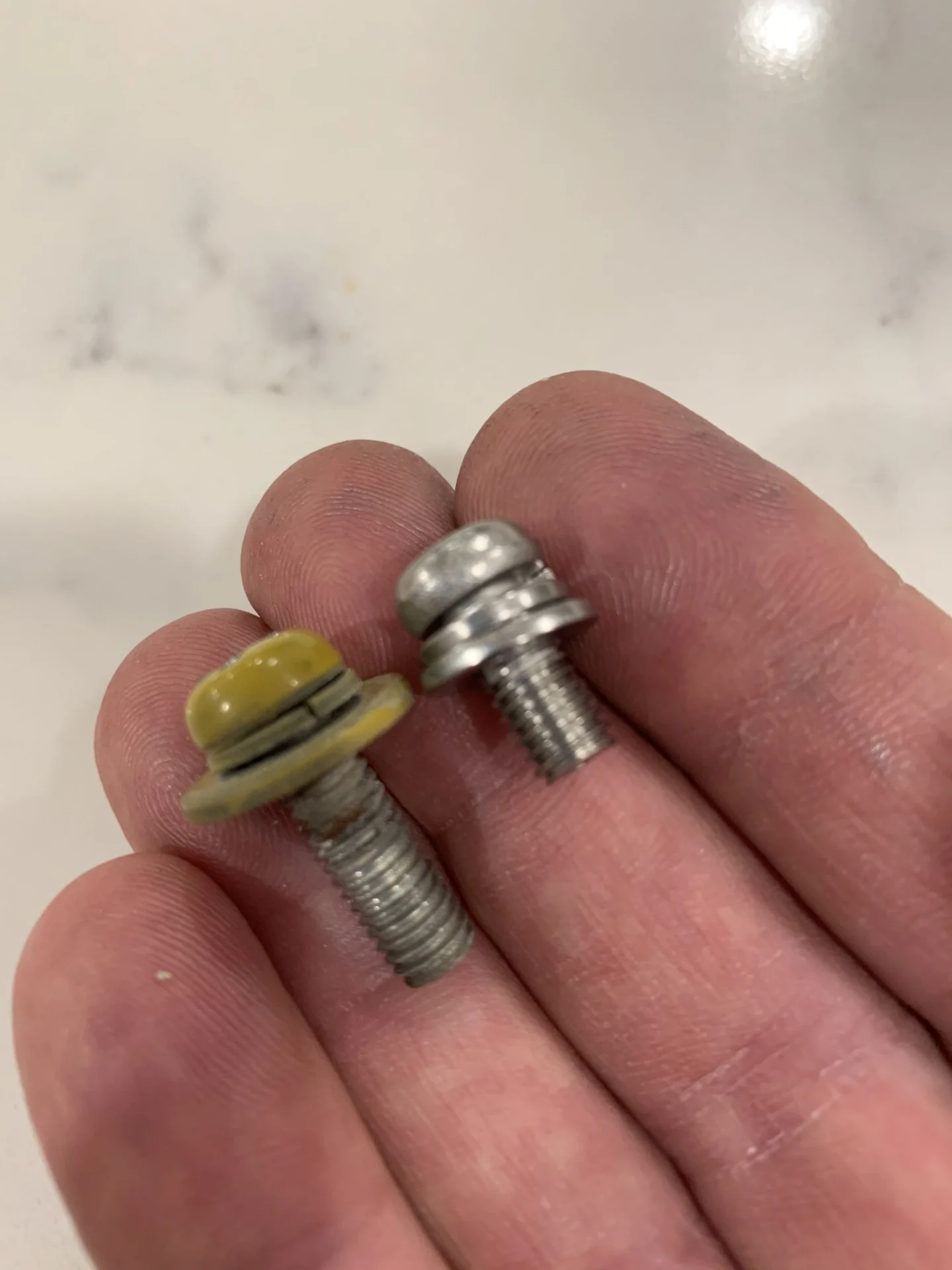

@davework, question about an ambulance door hinge kit I ordered recently. The bolts are quite a bit shorter than the original hardware and, unless I fully compress the split lock washer, I'm unable to get the bolt to bite threads in the door.

Are these the proper bolts for the 28 pieces pan head kit?



[davework]

Are these the proper bolts for the 28 pieces pan head kit?

No those are too short. Sorry for the inconvenience, we will get it sorted out for you.



[aging fleet]

No those are too short. Sorry for the inconvenience, we will get it sorted out for you.

Thanks @davework, you guys already reached out with a return shipping label, I'll have them back in the mail this weekend. Thanks for getting me sorted out.



[Snicklephritz87]

@davework do you have a good 60 series kit? I am about to start a resto and will need a few replacement bolts along the way.



[John Staton]

@davework do you have a good 60 series kit? I am about to start a resto and will need a few replacement bolts along the way.

I would like to see a small assortment for a 60. I dont NEEEED anything right now, but a small assortment for when I run into issues would be nice. I have suggested it to anther vendor on here and he told me that it would be cheaper to just figure out what I needed and order it from his selection. I kind knew that and he kind of missed my point.



[405]

Hi All,

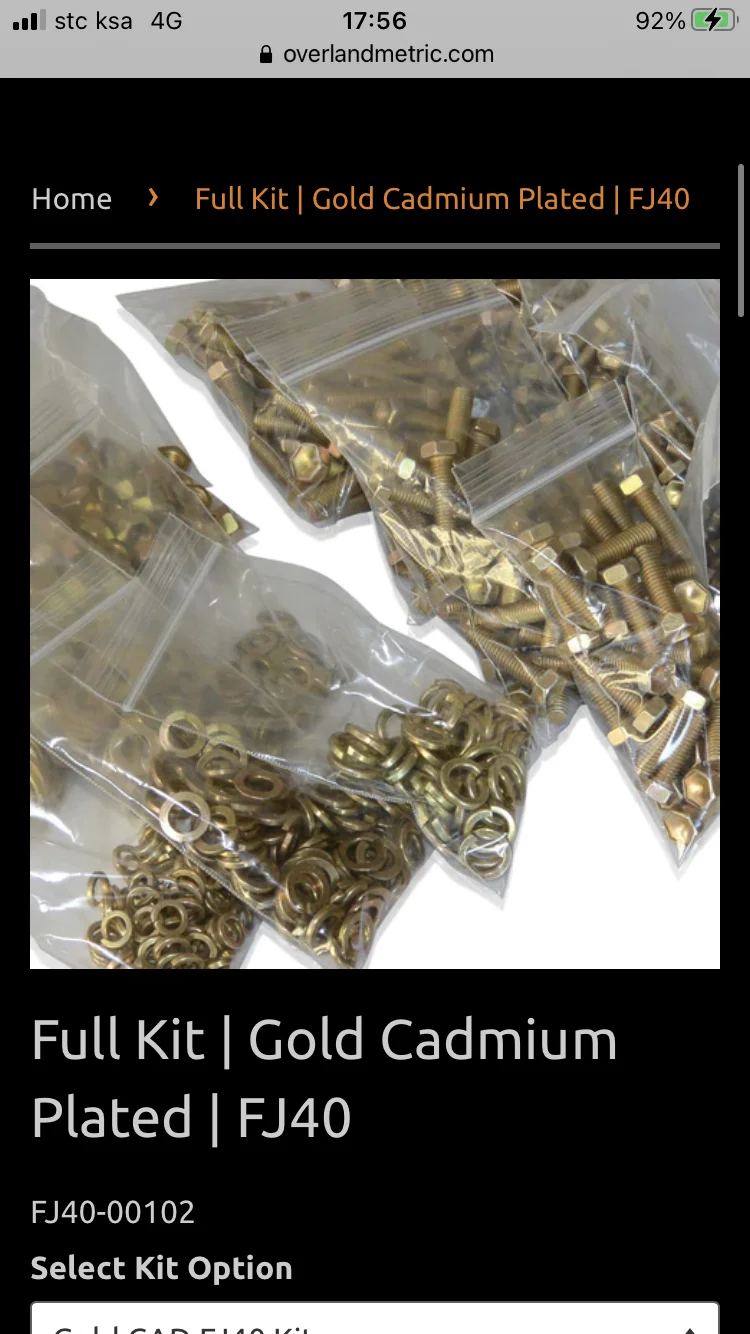

I am interested in one of the full Overland Metric kits for my FJ40. It is a 1978, what would be the correct kit to use for my year? The yellow zinc or gold cad? Also does anyone have some photos of the hardware installed on their FJ40?
Thanks



[Hugh Heifer]

Bump! Dave and Overland Metric is a sponsor for GSMTR! Support our sponsors!



[UZJ40]

I'm trying to find out if I can order M8 1.25 silver zinc nuts as they are not individually listed on your site. I've purchased 3 full kits from you in the past, but I'm out of M8 nuts. If you can't sell these, please let me know so I can look elsewhere.

Thanks!



[davework]

Will send you a PM



[Markelov69]

View attachment 2883213


I went went with the Overland Metic stainless for those (could only find the zinc in gold).

Their full FJ40 kits really are great and quick delivery!

Getting close to done with my frame off and just running out of a few common sizes.

Thanks. I also purchased their full kit in silver zinc and then located a place in SLC where I had all of my original hardware re-zinced in silver. My only concern with the stainless was whether it would match the silver zinc or look odd. Perhaps I'm overthinking it, and it's close enough.



[John Staton]

I still check this site every now and then hoping for a 60kit. I purchased the kit below from ebay...was expensive as it was shipped from AUS, but I have dipped into it several times when working on my truck. If something showed up here for the 60 with a different assortment I would buy it too as I have run into bolts that are not in this kit.



[PabloCruise]

Just an update for anyone looking for M12 JIS Bolts - I've been working with mfg, and I think these are just going to be too expensive to produce in the Qty I could commit to, probably around $9 EA for a yellow zinc bolt, and double that for a stainless.

I would just buy OEM Toyota here:

2F Bell Housing to H42 Tranny = Toyota PN 91619-61235 (this is a M12x35 bolt) ~$2.30 EA from esteemed MUD vendors - this bolt could also be used for other M12 applications, cutting as needed.

As far as the engine mounts, the engine mount bracket to engine block look to be M10s. The engine mount themselves are M12, but vary whether a M12 bolt is needed for earlier models, to using a M12 nut on later models. The M12 bolt on earlier models is Toyota PN: 91619-41228

If OEM is not preferred for some reason, JIS M12s are available from BelMetric (in silver zinc):

Regular Hex Class 8.8 JIS Hex Bolts:
12x1.25 JIS Small Head Bolts : Bel-Metric, Metric Hardware, Metric Fasteners, Metric Bolts, Metric Nuts & Time-Sert Thread Repair

Flanged Head Class 10.9 JIS Hex Bolts:
M12X1.25 Flange Bolts : Bel-Metric, Metric Hardware, Metric Fasteners, Metric Bolts, Metric Nuts & Time-Sert Thread Repair

Glad to see you are still active on here!
I got your 40 kit back in the day.
I found this thread when I went looking for M12x1.25 flange bolts to mount an H55 to F bell housing.
I did have trouble finding you when searching for JIS fasteners on MUD, but my Search is not always the strongest...



[DrRock]

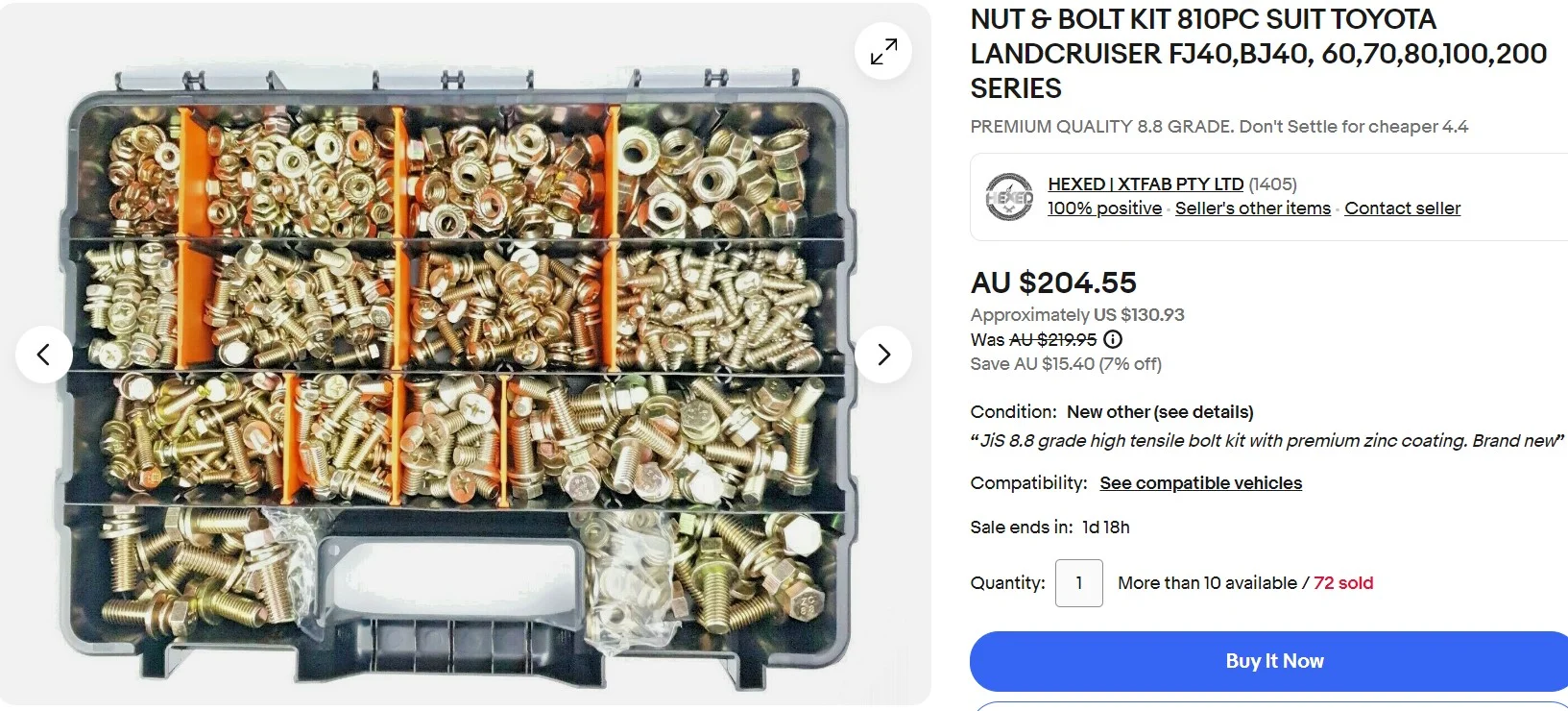

I still check this site every now and then hoping for a 60kit. I purchased the kit below from ebay...was expensive as it was shipped from AUS, but I have dipped into it several times when working on my truck. If something showed up here for the 60 with a different assortment I would buy it too as I have run into bolts that are not in this kit.
View attachment 3609549

Hello John, 2x. Would love to see a 60 kit too.



[Lucky1386]

Building a 60. Any chance you guys might make a kit soon?



[davework]

No plans for a 60 specific kit at this time. But the 40 assortment would serve very well based on my experience.



[Lucky1386]

No plans for a 60 specific kit at this time. But the 40 assortment would serve very well based on my experience.

Bummer but thank you for the response.



[Rigger]

I bought a 40 kit and my boys helped themselves to so many bolts that I had to buy another kit.
