Builds Oman -> SoCal 1995 FZJ75 Troopy (3 Viewers)
- Thread starter prwillard2
- Start date
This site may earn a commission from merchant affiliate
links, including eBay, Amazon, Skimlinks, and others.
c2dfj45
Supporting Vendor
Nice install @prwillard2 ....haven't seen them with an ABS door card. Looks good.
Appreciate the business.....did you install the hood struts yet?
Appreciate the business.....did you install the hood struts yet?
prwillard2
SILVER Star
- Thread starter
- #663
Thanks!
Not yet, that is one of the many projects for when I'm able to take some time off work here soon to get ready for the move.
c2dfj45
Supporting Vendor
Hood struts are one of the best things going
prwillard2
SILVER Star
- Thread starter
- #665

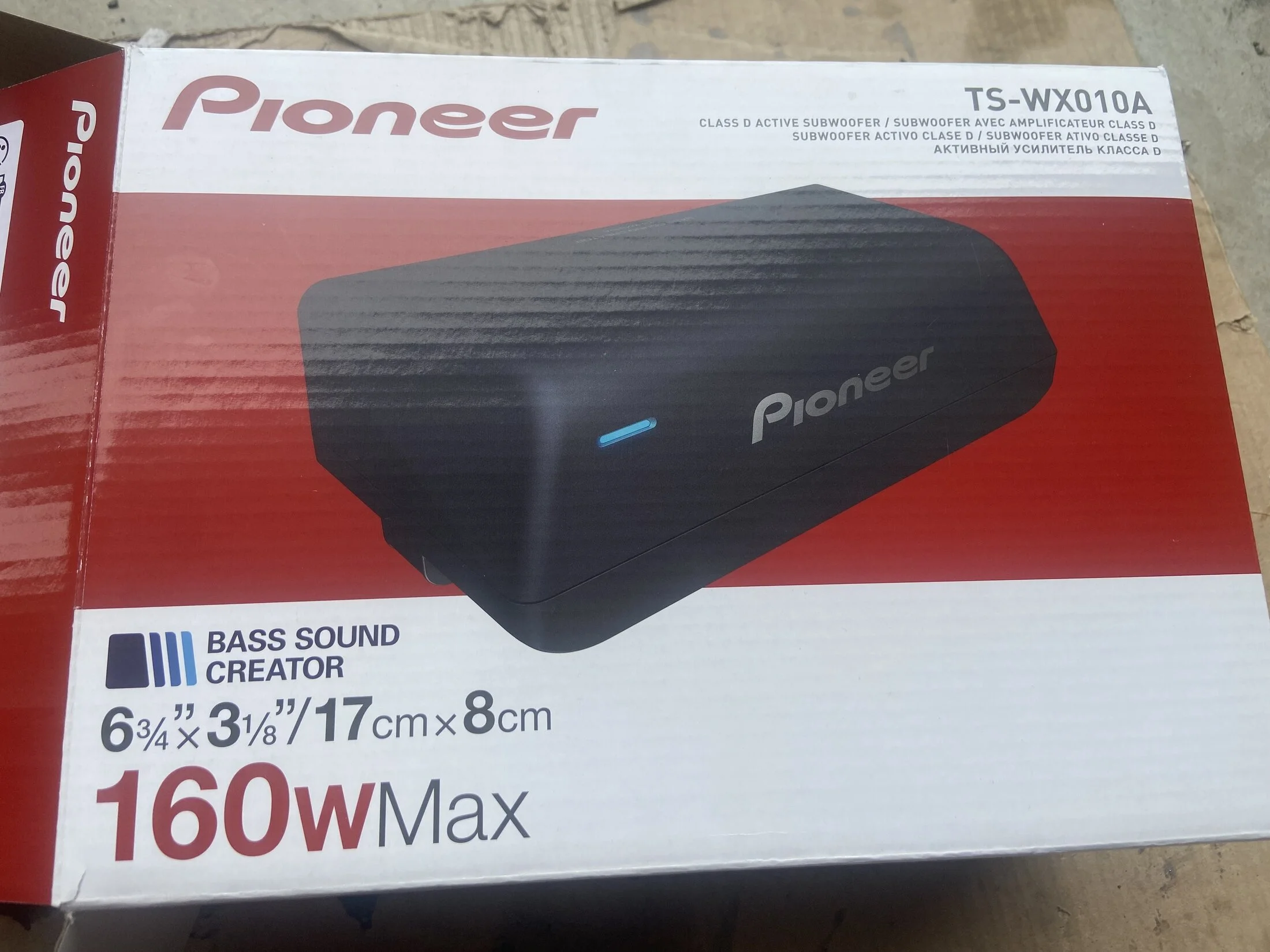

Finished wiring in my speakers and sub! This truck sounds better than my 200.
This mini sub fits under the passenger planted seat bracket.
This mini sub fits under the passenger planted seat bracket.
prwillard2
SILVER Star
- Thread starter
- #666

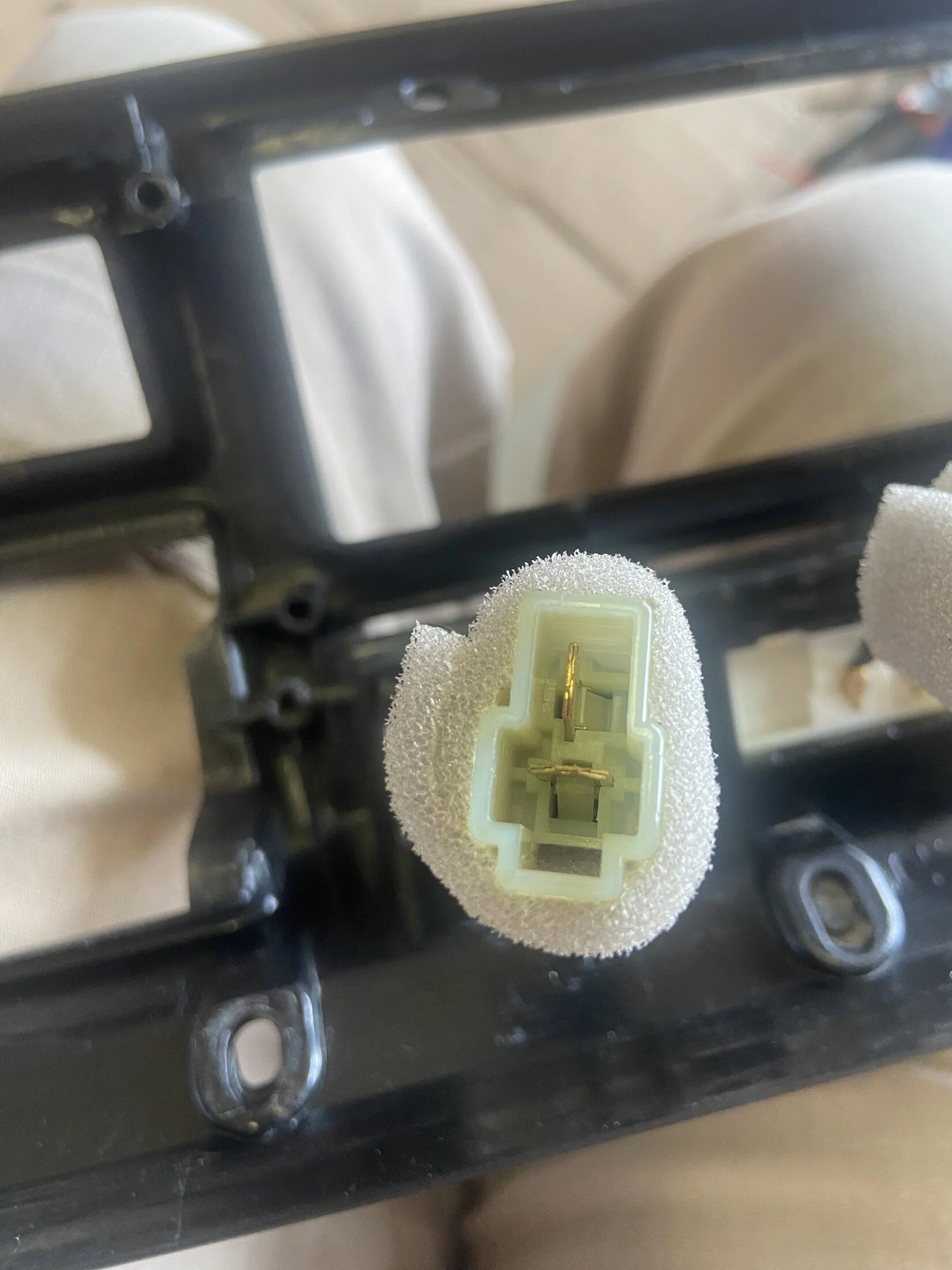

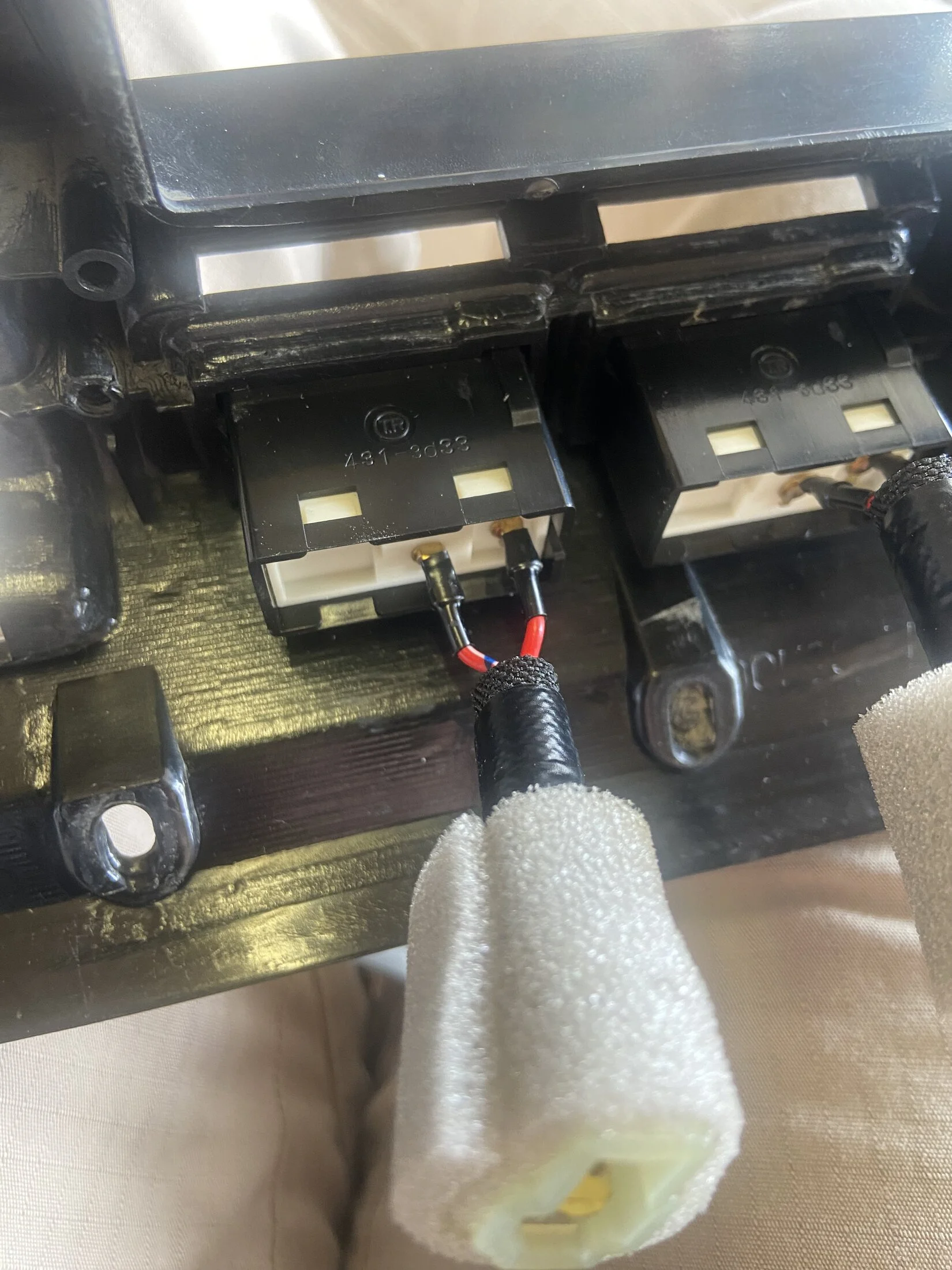

Can anyone tell me which is the positive or negative terminal on these OEM switches?
I know red/white is ground, but without taking off the tape on these plugs I'm not sure if they're the top verticle plug or the bottom horizontal plug.
I know red/white is ground, but without taking off the tape on these plugs I'm not sure if they're the top verticle plug or the bottom horizontal plug.
There is no positive/negative on a two pin switch, both sides will be +12v. The horizontal (bottom) pin should be the +12v supply side, the vertical (upper) pin should be the switched load side.
prwillard2
SILVER Star
- Thread starter
- #668
Meaning the upper pin goes to whatever I'm trying to turn on, and the bottom pin comes from my battery and is the power source?
Sorry, not great at electrical.
That's exactly right. Really it shouldn't matter which pin goes where, but all the places I find that style plug in the wiring diagrams it is wired that way.
prwillard2
SILVER Star
- Thread starter
- #670
Thank you!
prwillard2
SILVER Star
- Thread starter
- #671
Started installing my Egon DC Relay Hub today. This was designed/developed by Andrew St. Pierre White and Heiner Klarmann and is available here: DC-Hub | Egon | Auto Electric Installer | Bayswater, Western Australia - https://www.egon.com.au/relay-hub-2/

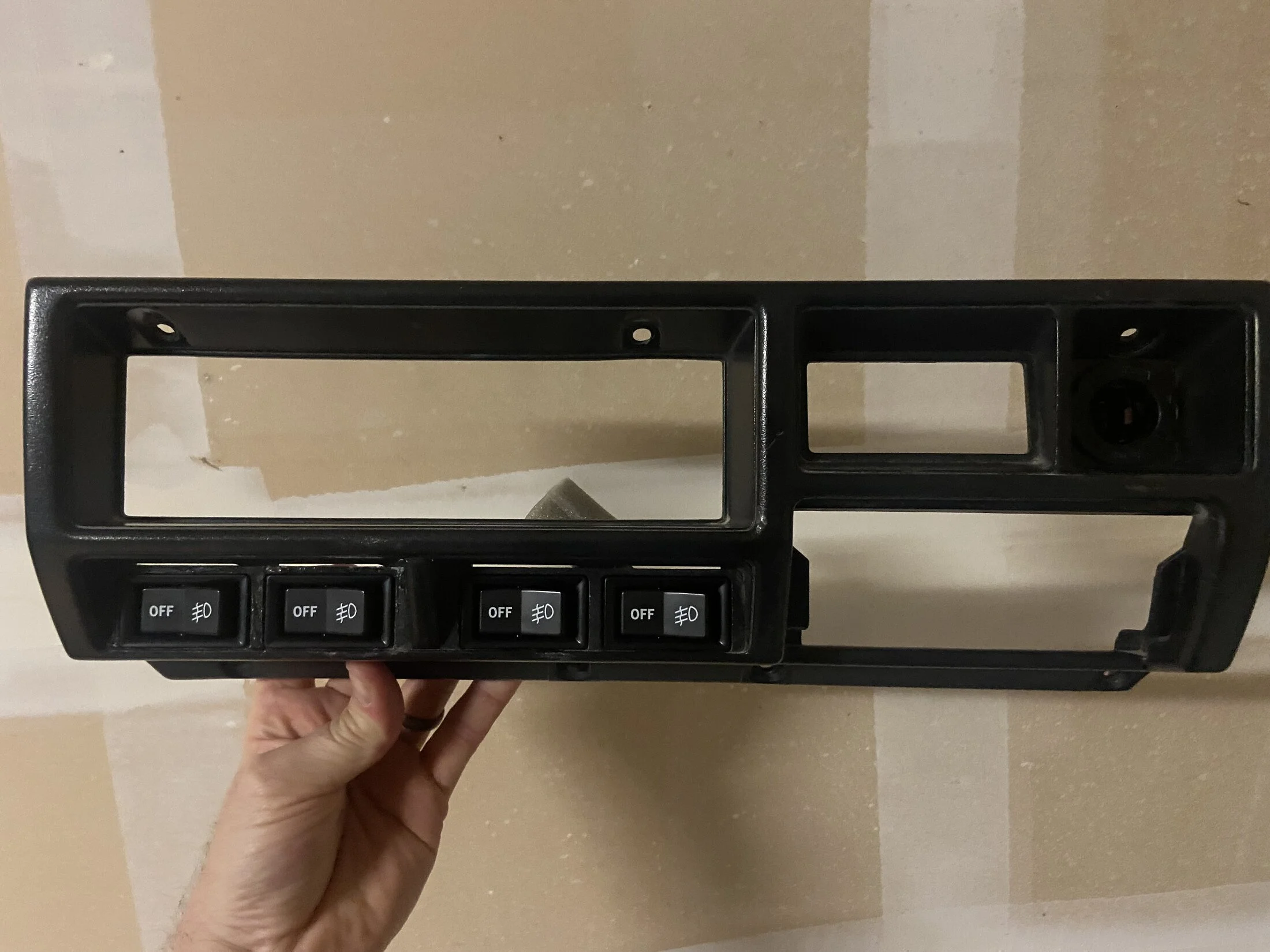

I ordered this because I wanted to be able to use the 4 OEM switches that go under my HVAC controls and also have fused constant power for other things as well.
This hub allows you to have up to 5 constant power items and 5 switched power items. Switched power items will be turned on with the 4 OEM dash switches and the 5th is from the OEM locker for my Eaton E Locker.
I ordered this because I wanted to be able to use the 4 OEM switches that go under my HVAC controls and also have fused constant power for other things as well.
This hub allows you to have up to 5 constant power items and 5 switched power items. Switched power items will be turned on with the 4 OEM dash switches and the 5th is from the OEM locker for my Eaton E Locker.
prwillard2
SILVER Star
- Thread starter
- #672

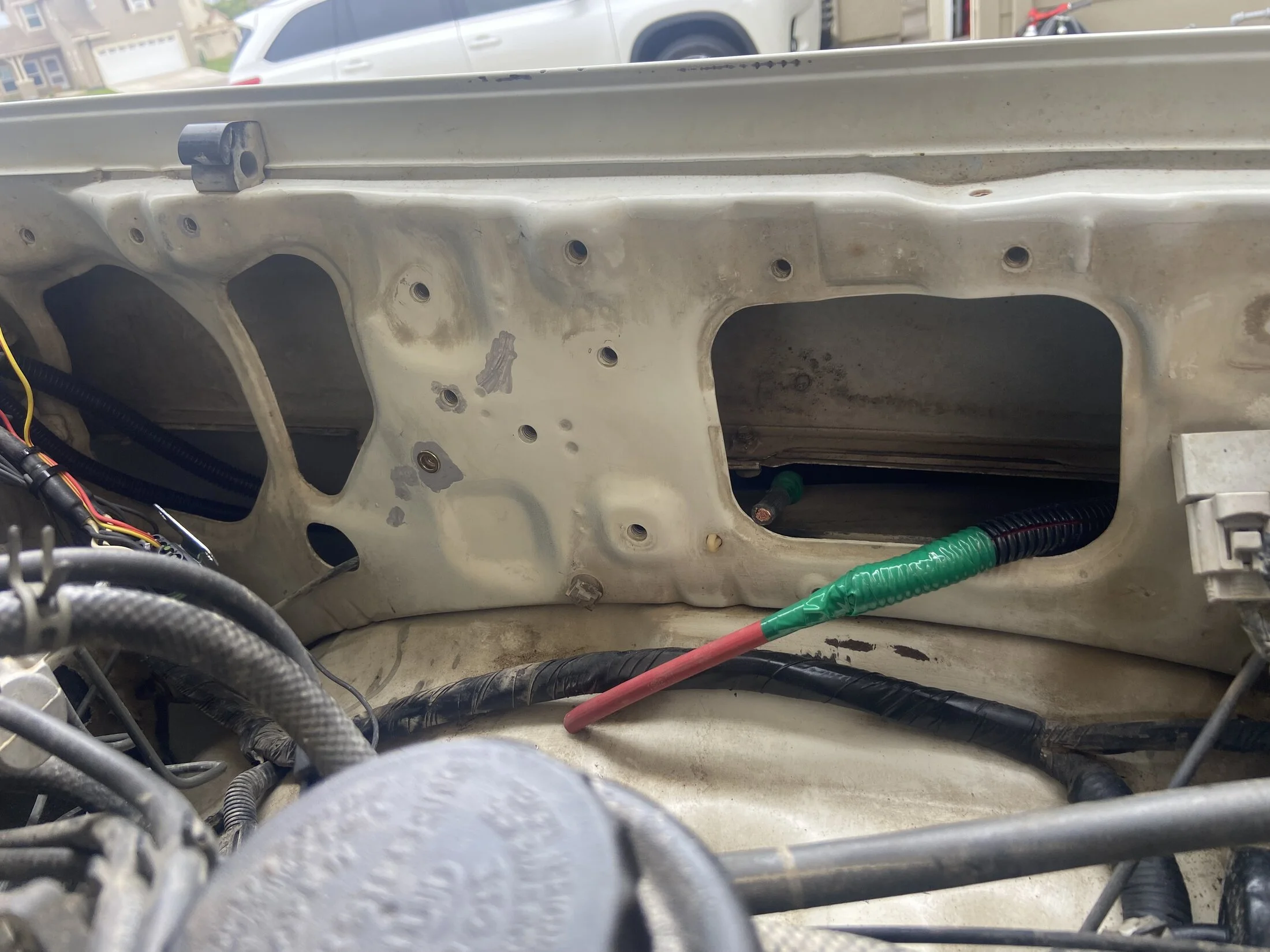

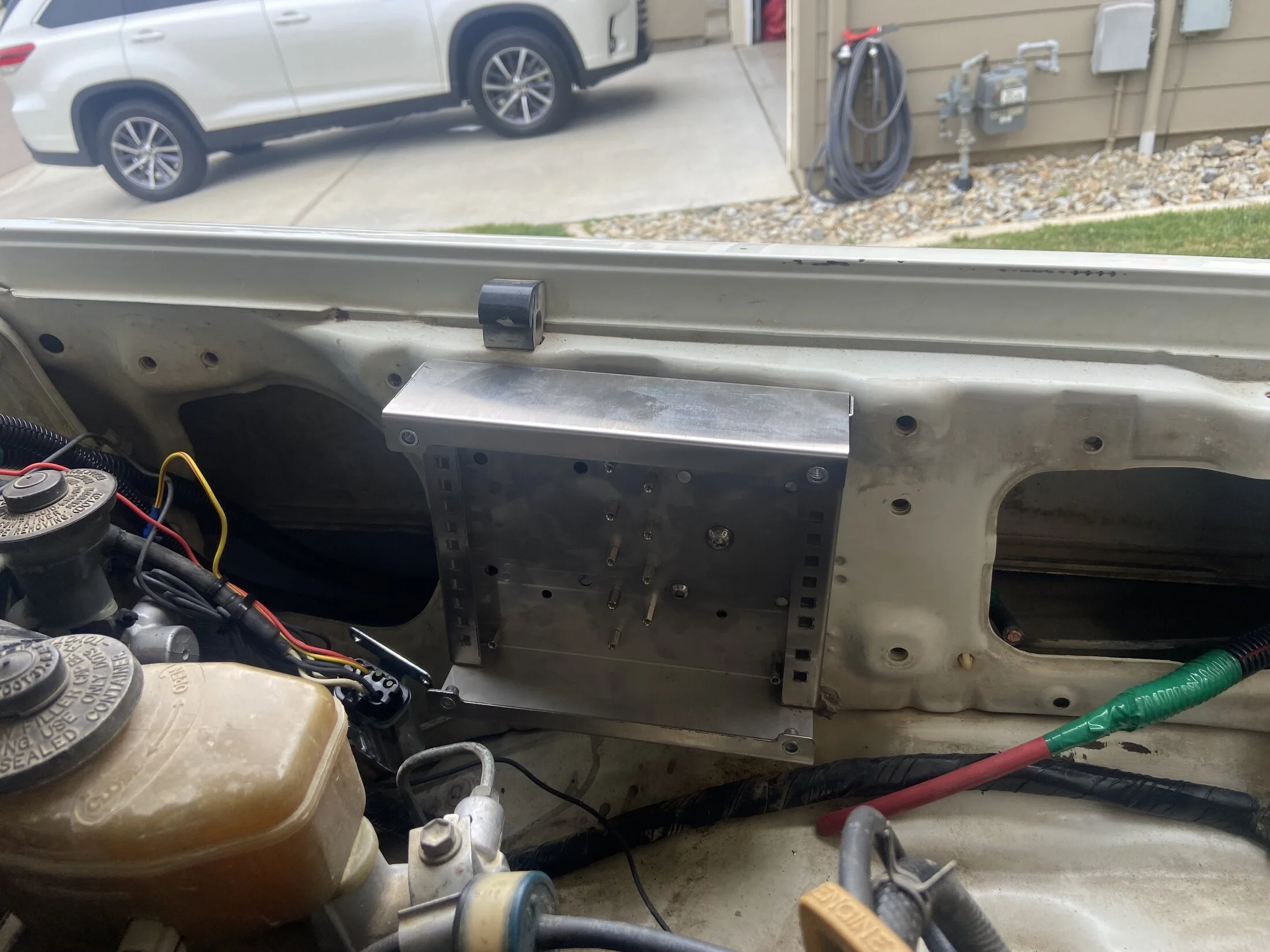

Attached the hub to my drivers side inner fender in my engine bay. Used one of the M8 captured nuts and added an M6 rivnut to give it a solid mounting position.
I had to move my charcoal canister for right now, the bracket goes over the large opening you see to the right but always the pos and neg cables to fit behind it.
I had to move my charcoal canister for right now, the bracket goes over the large opening you see to the right but always the pos and neg cables to fit behind it.
prwillard2
SILVER Star
- Thread starter
- #673

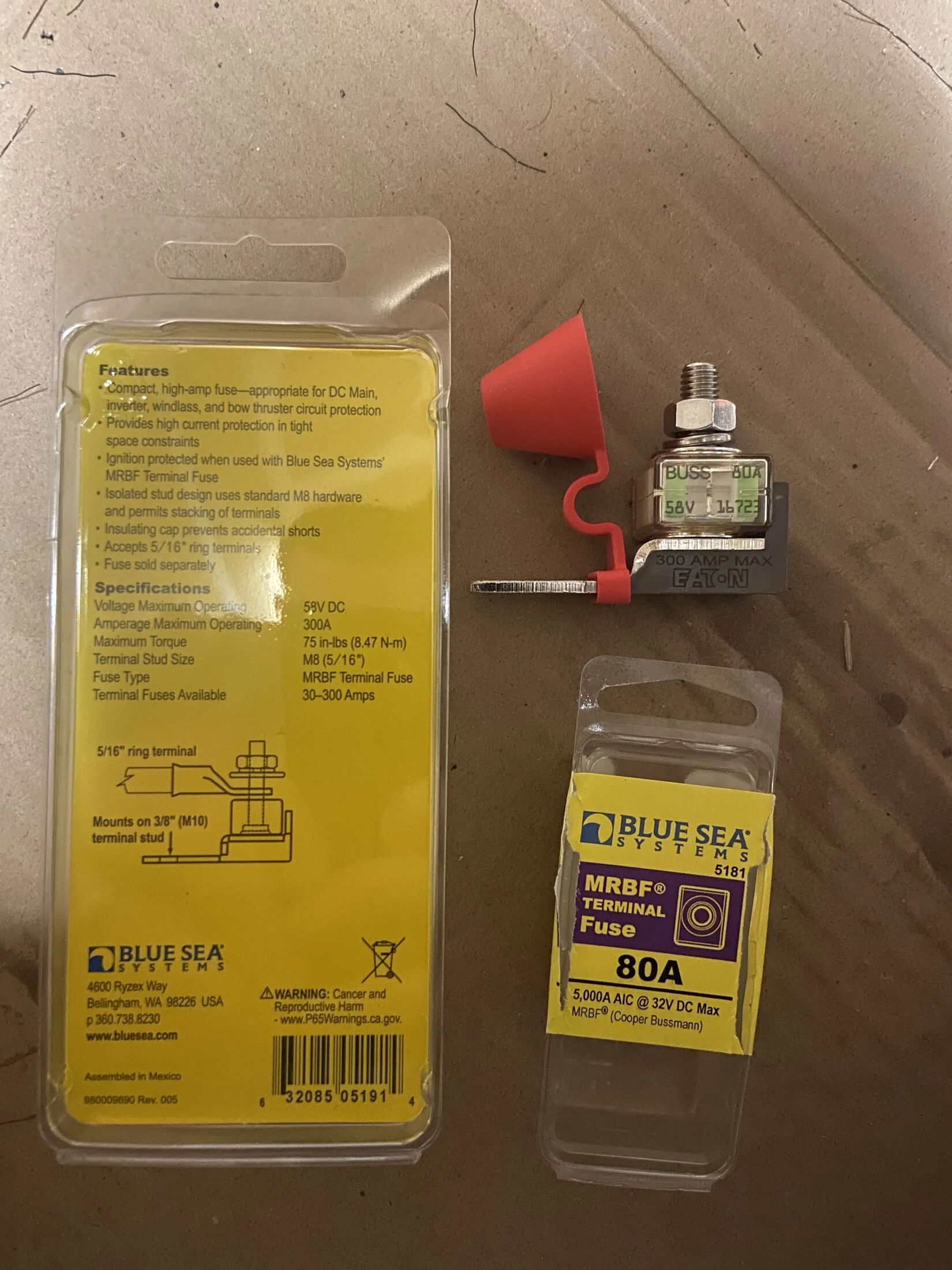

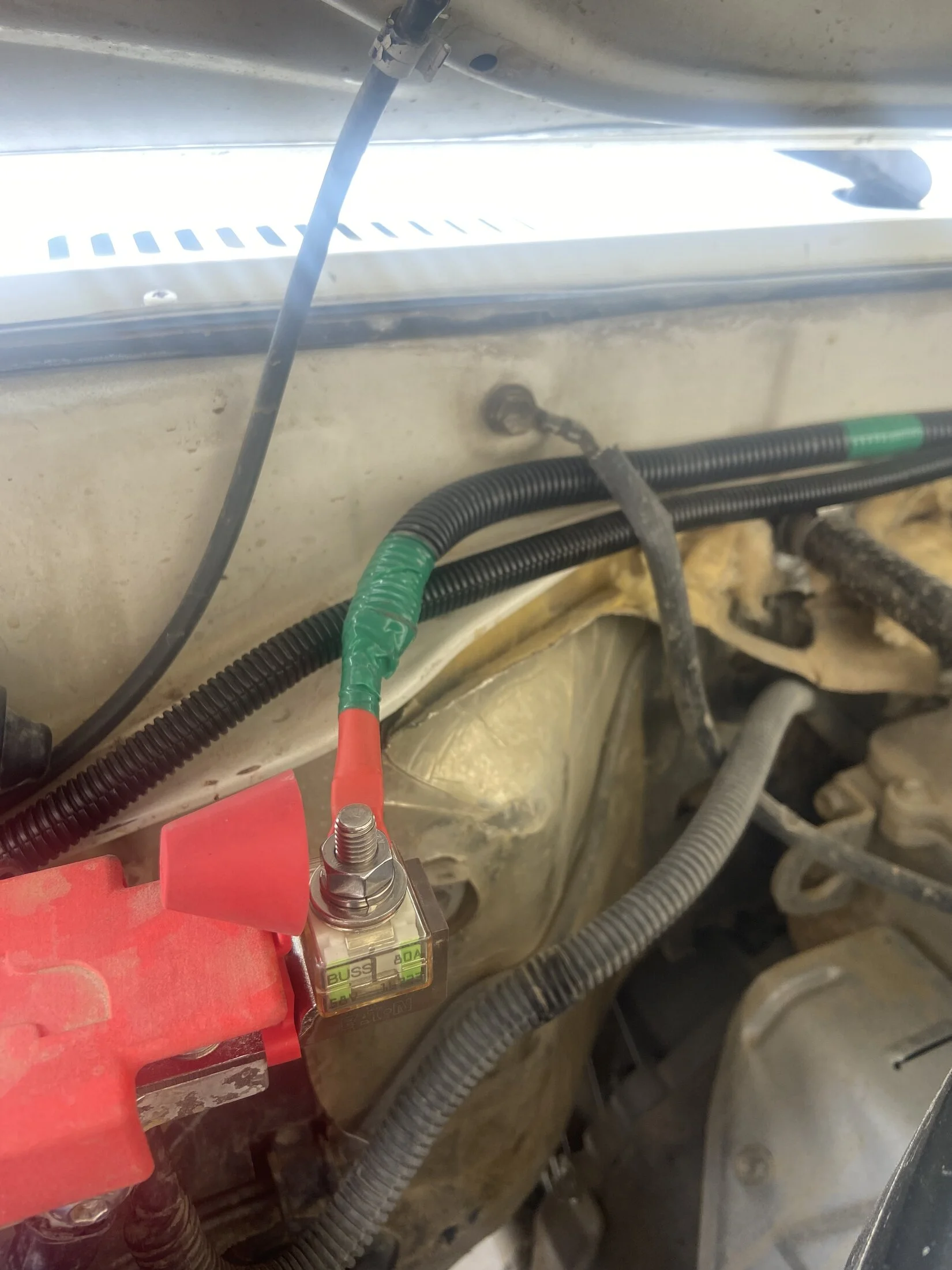

The relay hub can take up to 80 amps, so I needed a way to add an 80 amp fuse to my system without taking a mile of space. Ended up using a Blue Sea Terminal 80A fuse.

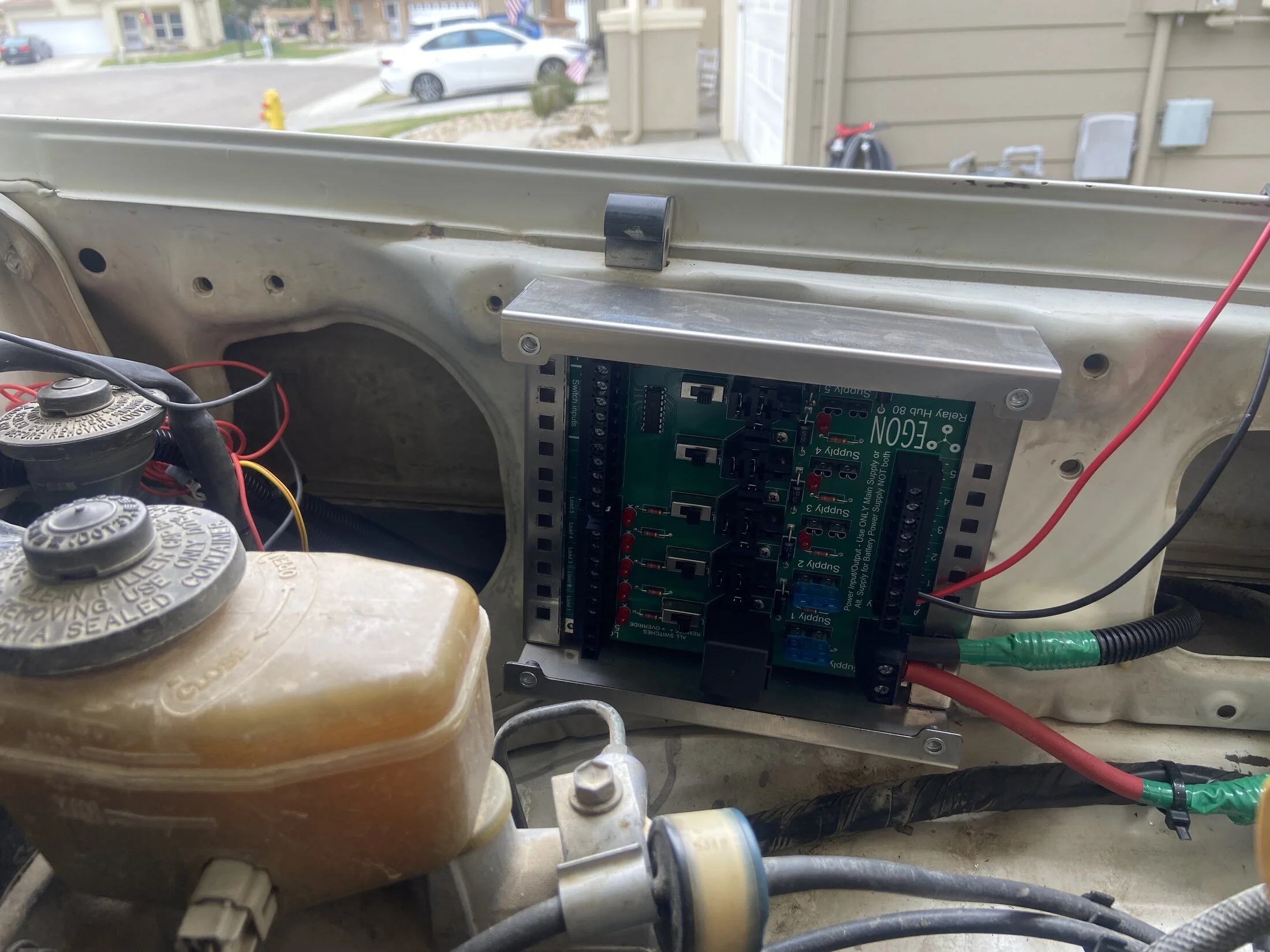

4 AWG positive and negative cables run to the circuit board, tying directly back to the battery.
4 AWG positive and negative cables run to the circuit board, tying directly back to the battery.
Is that like the s-pod product?
prwillard2
SILVER Star
- Thread starter
- #675
Similiar, but allows me to integrate my own switches. I looked at the SPOD and this one was like $250 USD vice the SPOD which is like a grand.
prwillard2
SILVER Star
- Thread starter
- #676

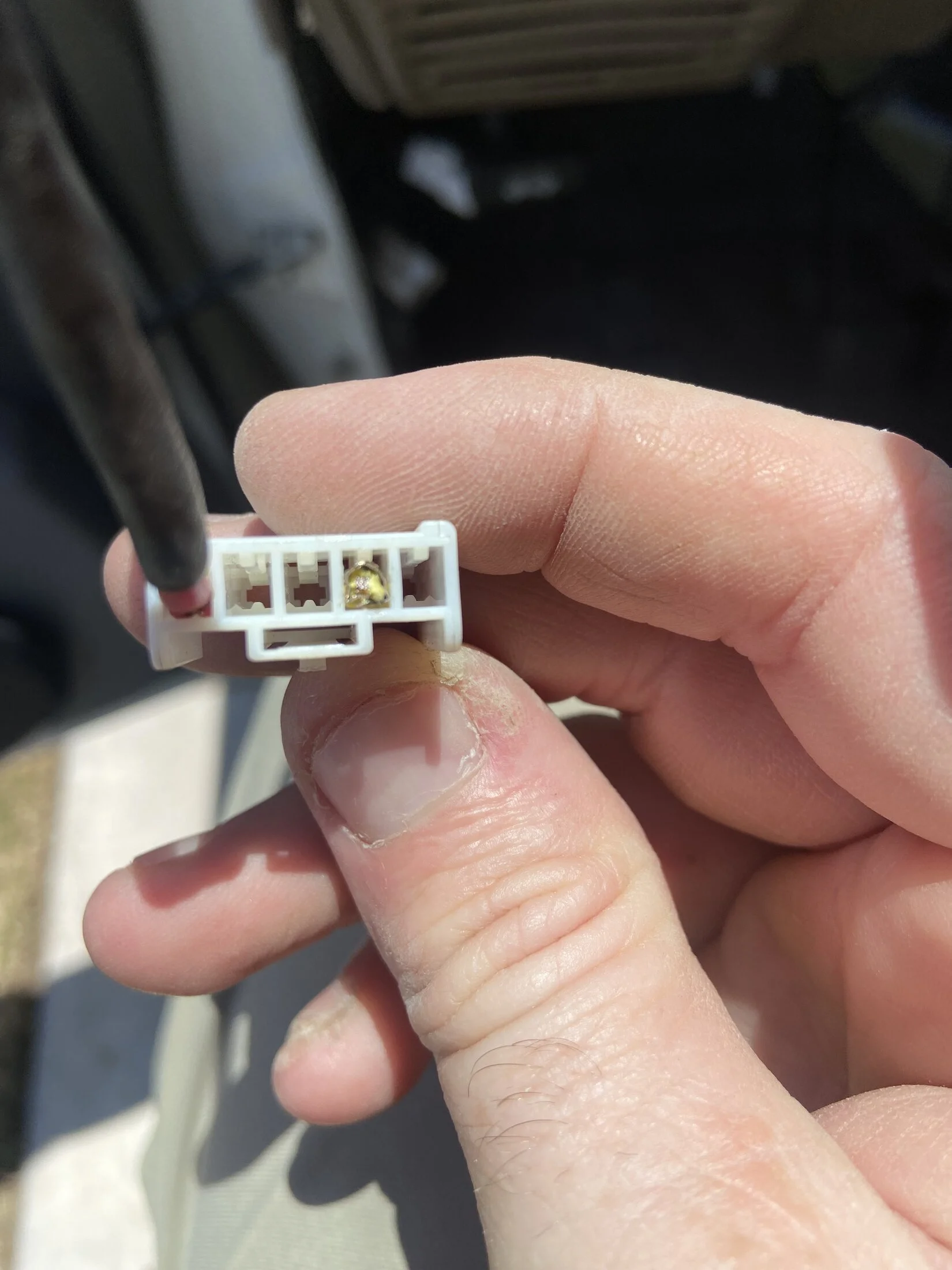

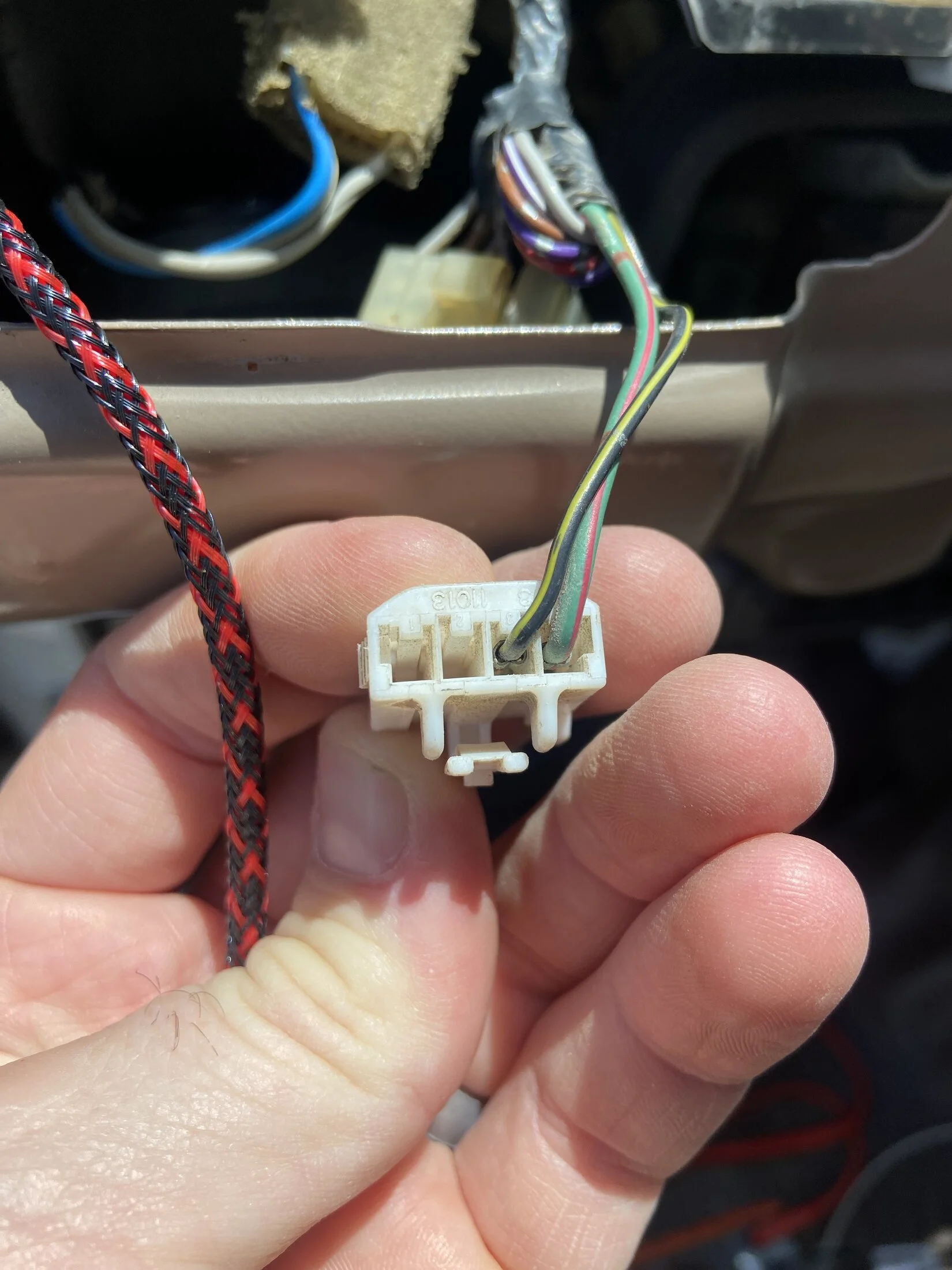

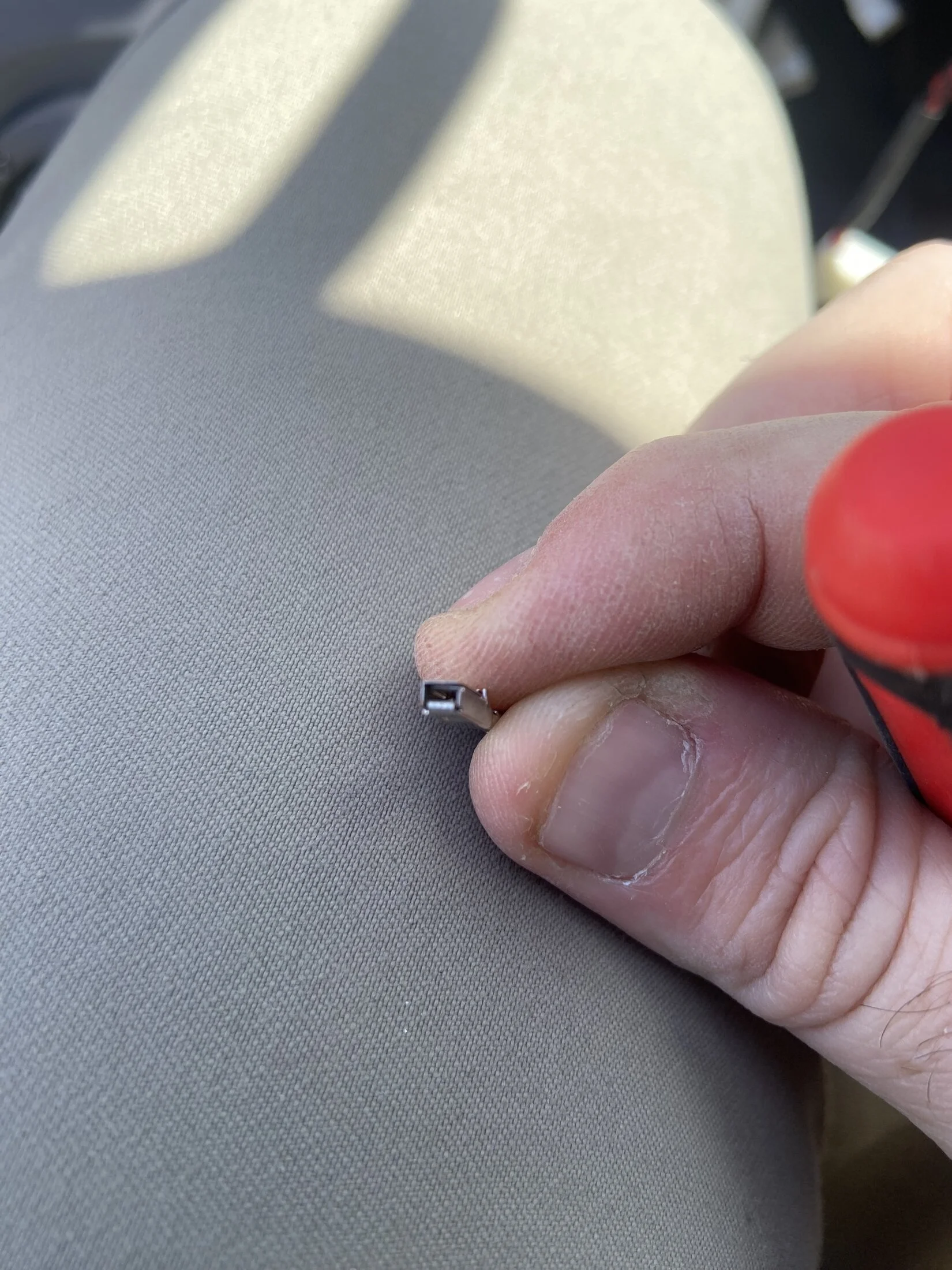

Can anyone tell me what connectors for the ends of wires I need for wiring into this kind of harness?

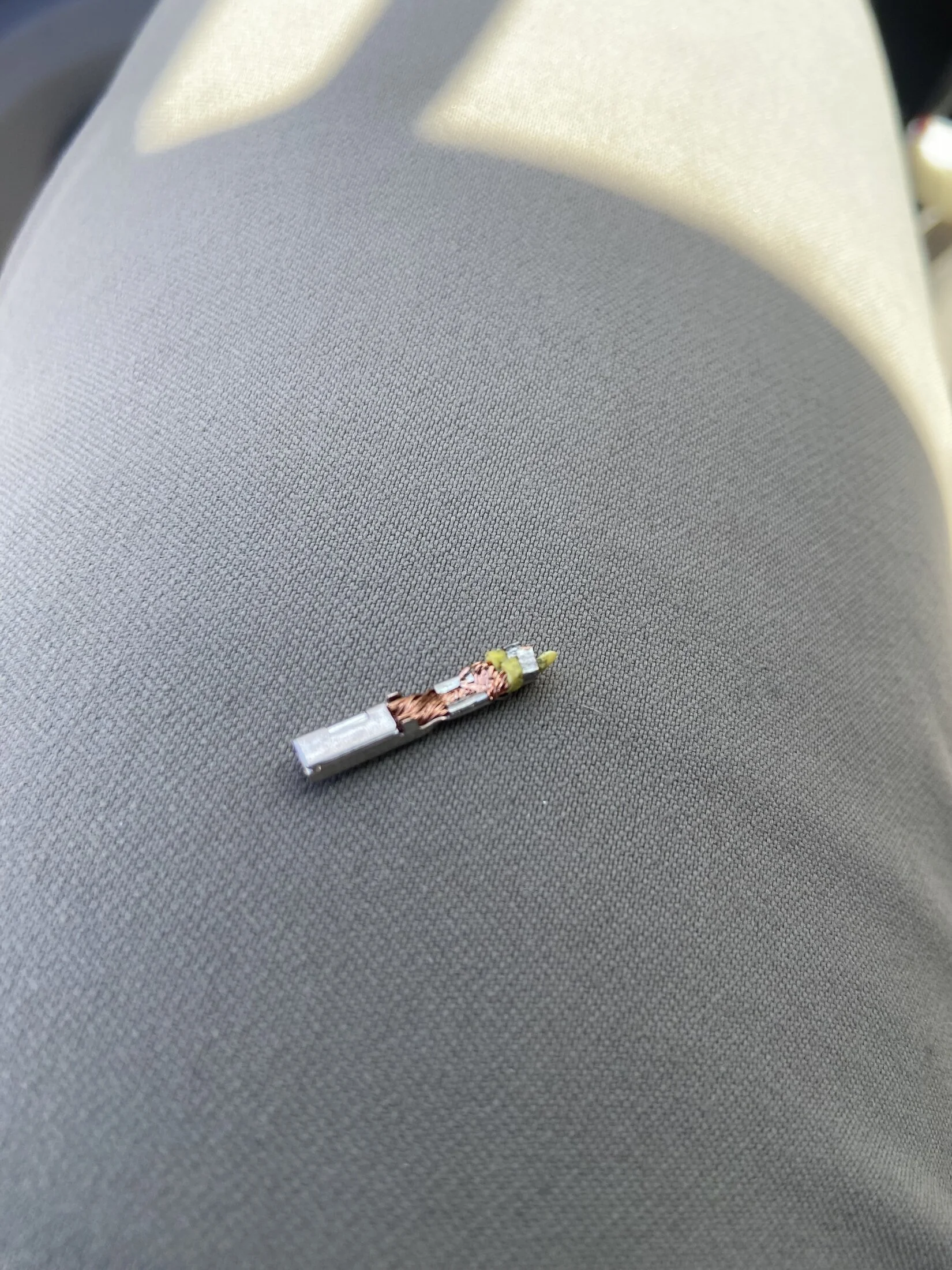

This original lead was from the OEM locker switch.
This original lead was from the OEM locker switch.
Looks like standard STMS teminals
Is this the same plug?
www.corsa-technic.com
6098-0243 - Sumitomo | HD090-4S - Corsa Technic | 4-Way Kit
Motorsport electrical products: OEM and hard to find terminals and connector kits, wiring, harness supplies, tooling, and sensors for modern and vintage motorcycle, automotive applications. Easy online shopping, low cost shipping options, to expedited around the world. We accept Paypal and...
www.corsa-technic.com
Look like this terminal normaly those are SMTS
●[Yazaki] 090 type [Sumitomo TS/ Yazaki 090II] series Female terminal non-waterproofing /F090-SMTS
090 type Sumitomo TS/ Yazaki 090II series-response female terminal non-waterproofing (this product i…
www.hi-1000ec.com
prwillard2
SILVER Star
- Thread starter
- #680
Is this the same plug?
6098-0243 - Sumitomo | HD090-4S - Corsa Technic | 4-Way Kit
Motorsport electrical products: OEM and hard to find terminals and connector kits, wiring, harness supplies, tooling, and sensors for modern and vintage motorcycle, automotive applications. Easy online shopping, low cost shipping options, to expedited around the world. We accept Paypal and...
Gentlemen thank you!Look like this terminal normaly those are SMTS
●[Yazaki] 090 type [Sumitomo TS/ Yazaki 090II] series Female terminal non-waterproofing /F090-SMTS
090 type Sumitomo TS/ Yazaki 090II series-response female terminal non-waterproofing (this product i…www.hi-1000ec.com
