New seatbelt alternative using 79-series belts

Discussion in '60-Series Wagons' started by red66toy, Oct 30, 2016.

  1. red66toy

    red66toy dorkus malorkus GOLD Star

    Messages:
    2,119
    Likes Received:
    865
    Joined:
    Feb 25, 2003
    Location:
    Seattle, WA
    First off. The following info is just a demonstration of my own personal project. Modifying or using non-original parts for the seatbelt system is untested and potentially dangerous. The owner (you) assumes all liability and responsibility for any injury or death resulting from modifications to, or use of non-original parts for, the seatbelt system.


    Now that is out of the way… Hello everyone,

    So as we should all be aware our cruisers are not getting any younger. One system we should all address sooner rather than later is the original seat belts. Over time the nylon webbing loses its strength and replacing it with a new belt system is a good idea. Now Toyota currently only sells the driver’s side belt, and only in grey (7322090A1703). The passenger side belt and both receivers are long gone. So where does that leave someone wanting new belts? Some have used the Seatbelt Planet belts with success: FJ60 Seat Belt Replacement . Recently though @boozewz showed that the 79 series front seat belts bolt right in!: 1989 GCC Spec FJ62 G Trim . There is also the possibility of other Toyota seatbelt systems bolting in as well. I personally loved the idea of using new Toyota parts, especially LC parts, to update the old front seat belts. Color options for the front belts from the 79-series are black (as shown in the link above), Oak (which is a light brownish) and grey. There is also a blue-grey color offered in older pre-2009 79-series. I have no idea on how they fit though. I decided to hunt down the grey belts (from a 200-2012 VDJ79) for my grey interior. To get the parts I would have to order them pretty much sight unseen since they would have to come from overseas. However, @boozewz was kind enough to go out of his way to check with his local Toyota parts dealer and sent me pics of the grey color, and @Locked79 took pics of his grey seat belts in his 79-series. This community is beyond awesome to say the least.


    After staring at too many parts diagrams, I figured out the correct part numbers for the grey seat belts are as follows: Inner left receiver 73240-60242-B2; Inner right receiver 73230-60331-B1; Outer left seatbelt 73210-60662-B1; Outer right seatbelt 73220-60522-B1 . I also plan on ordering a new bolt for each retractor since they didn’t come with one and I don’t want to reuse the old ones. I believe the part number is 90105-A0163.


    I ordered the belts through Amayama. The ONLY way I was able to get the receivers was through @reevesci . If I had know in the first place he could get these kind of parts I would have purchased the belts from him as well. Belts cost me about $137 each and the receivers were about $50-60 each.

    Here are the left and right belts:
    [​IMG]

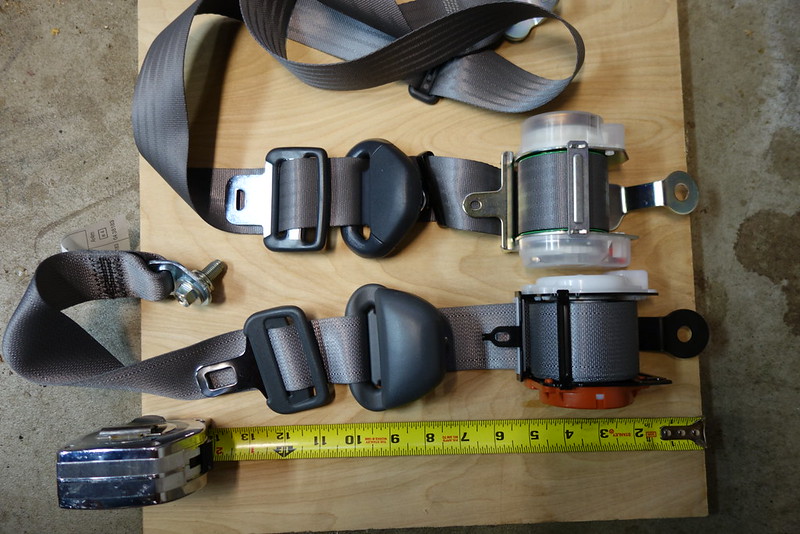

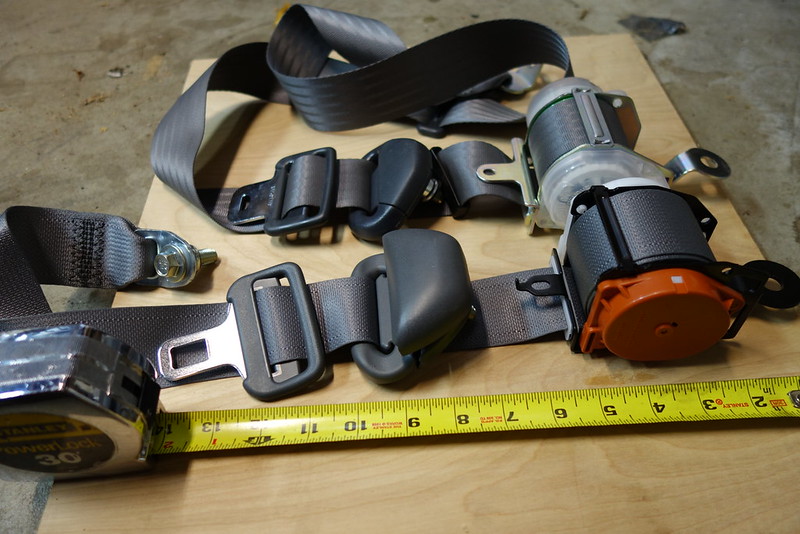

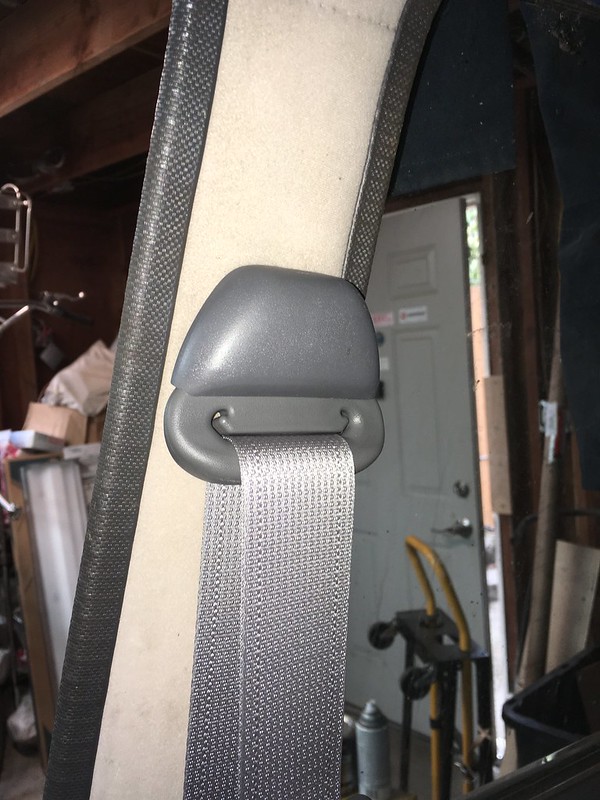

    The 79-series belt (right) next to a brand new 62-series grey belt (left). You can see a slight difference in the grey but still a good match overall. You will also notice a small difference in the top mounting screw plate, which I will address a little later.
    [​IMG]
    [​IMG]
    [​IMG]

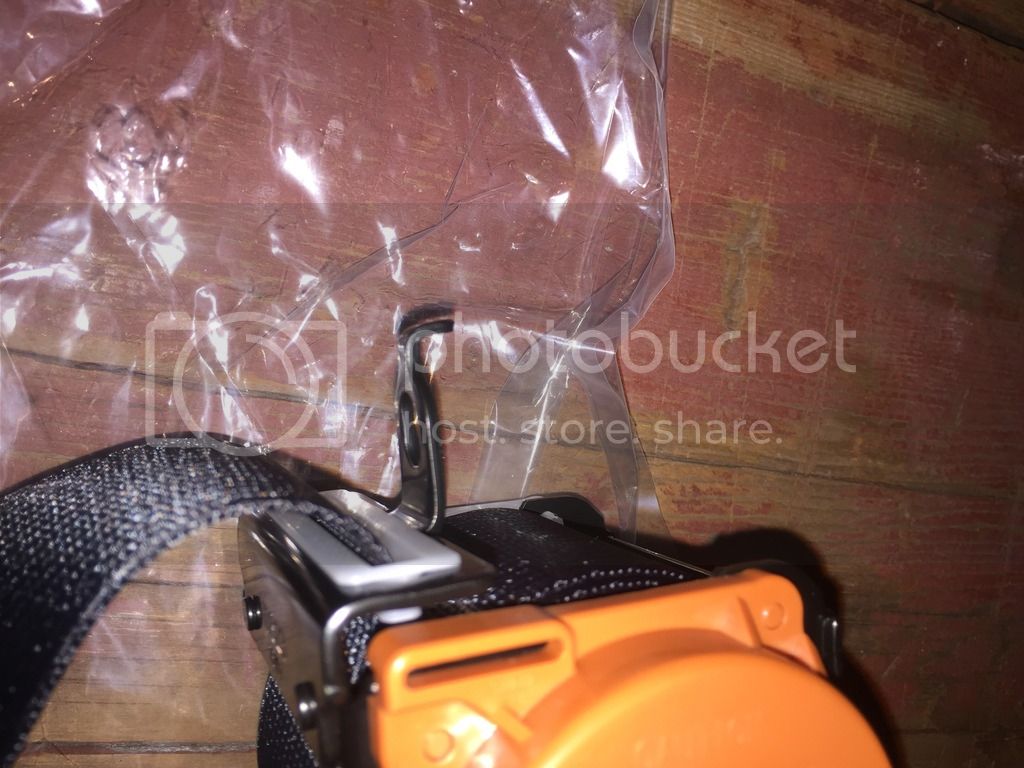

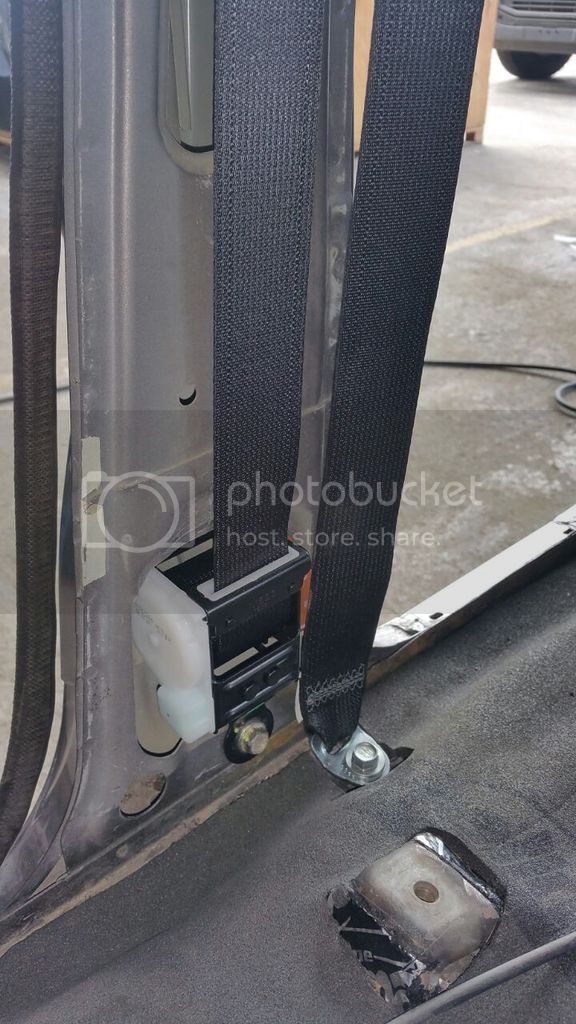

    Also the 79 series belts don’t come with a little retainer clip like the 60-series belts so it is important to reuse this to keep the belt against the B-pillar and off the cover:
    [​IMG]

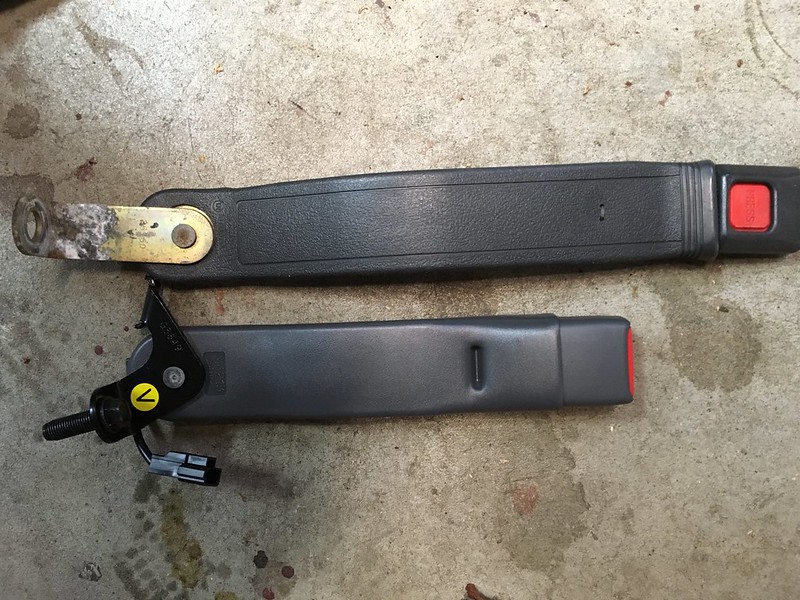

    Here is the driver’s side receiver. It is shorter than the original:
    [​IMG]

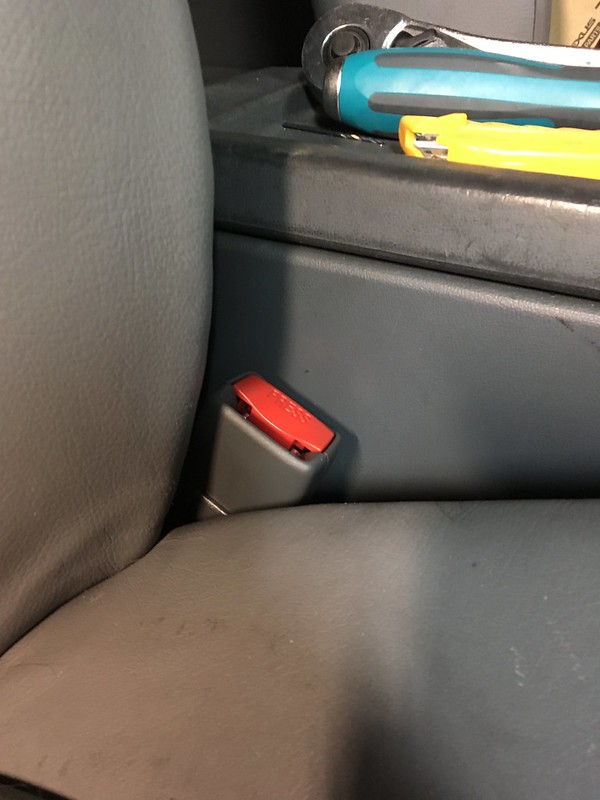

    But when mounted with BMW seats, it still is long enough to easily buckle up. I don’t know how they would work with stock seats (I'll try and test this when I get to ripping out the interior but that could be a while). I tested the receiver height with my lady (5’5” tall) and myself (6’) and we could both use it just fine after adjusting the seat to our preferred driving positions:
    [​IMG]

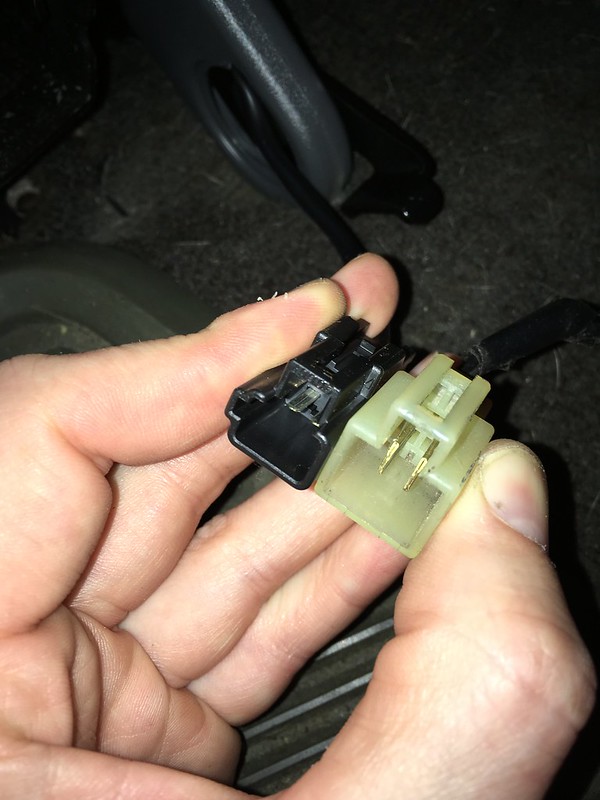

    The plug for the seat belt warning light is different but I plan to cut the new plug off and splice on the old plug. The wires on the new receiver are much shorter than the original but the splicing will take care of that as well:
    [​IMG]

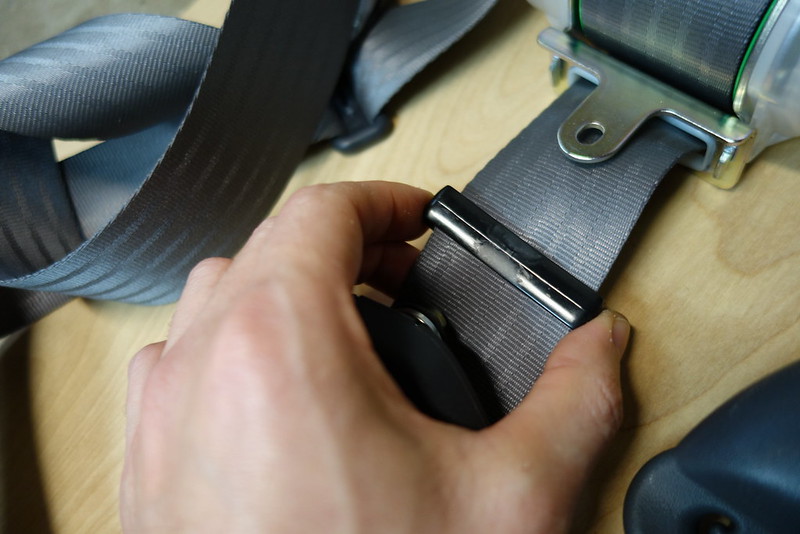

    And now the only real difference in the belts, the little screw tab:
    [​IMG]

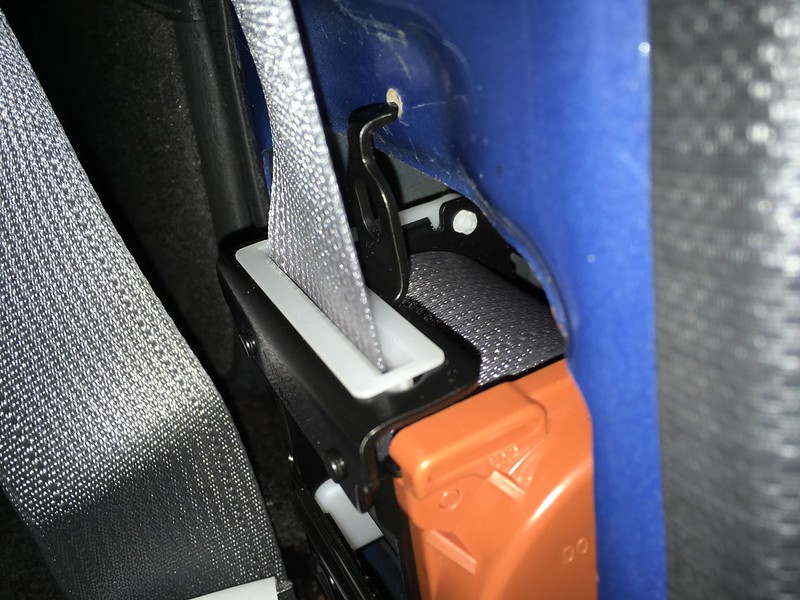

    As you can see the 79-series belt retractor is a little shorter than the 62 series. The little hole for the screw doesn’t line up. To get around this (and what @boozewz also did) I am going to grind off the little 90-degree tab. I plan on using a small piece of metal to bridge the difference to mount the top securely. I think the purpose of the little screw is to just keep the receivers from moving side to side in the B-pillar cut out. I'll post up pics later of this.

    I am very happy that I will have a brand new seatbelt system in the front. A huge thank you to @boozewz for this brilliant alternative and @reevesci for the parts. :clap: This really is a great community. :cheers:

    Last edited: Nov 3, 2016
    beno, micruz60, Landpimp and 8 others like this.
  2. NookShneer

    NookShneer SILVER Star

    Messages:
    730
    Media:
    9
    Albums:
    2
    Likes Received:
    537
    Joined:
    Aug 4, 2010
    Location:
    North of Seattle, WA
    Nice write-up Chase. Looking forward to doing this as well.

  3. boozewz

    boozewz SILVER Star

    Messages:
    857
    Likes Received:
    804
    Joined:
    Nov 27, 2008
    Location:
    Saudi Arabia
    Thanks for taking the time to write this up. I'll add the part numbers for the black belts tomorrow when I'm on my computer.

    Cheers

    red66toy and NookShneer like this.
  4. CuCruiser

    CuCruiser SILVER Star

    Messages:
    144
    Likes Received:
    121
    Joined:
    Mar 12, 2016
    Location:
    Jocko Valley, MT
    Thank you thank you thankyou! :clap::beer::cheers:

  5. red66toy

    red66toy dorkus malorkus GOLD Star

    Messages:
    2,119
    Likes Received:
    865
    Joined:
    Feb 25, 2003
    Location:
    Seattle, WA
    These are not permanently installed yet so we can test the receiver length with your new seat setup if you want before you buy them.

  6. NookShneer

    NookShneer SILVER Star

    Messages:
    730
    Media:
    9
    Albums:
    2
    Likes Received:
    537
    Joined:
    Aug 4, 2010
    Location:
    North of Seattle, WA
    I'll take you up on that!

  7. boozewz

    boozewz SILVER Star

    Messages:
    857
    Likes Received:
    804
    Joined:
    Nov 27, 2008
    Location:
    Saudi Arabia

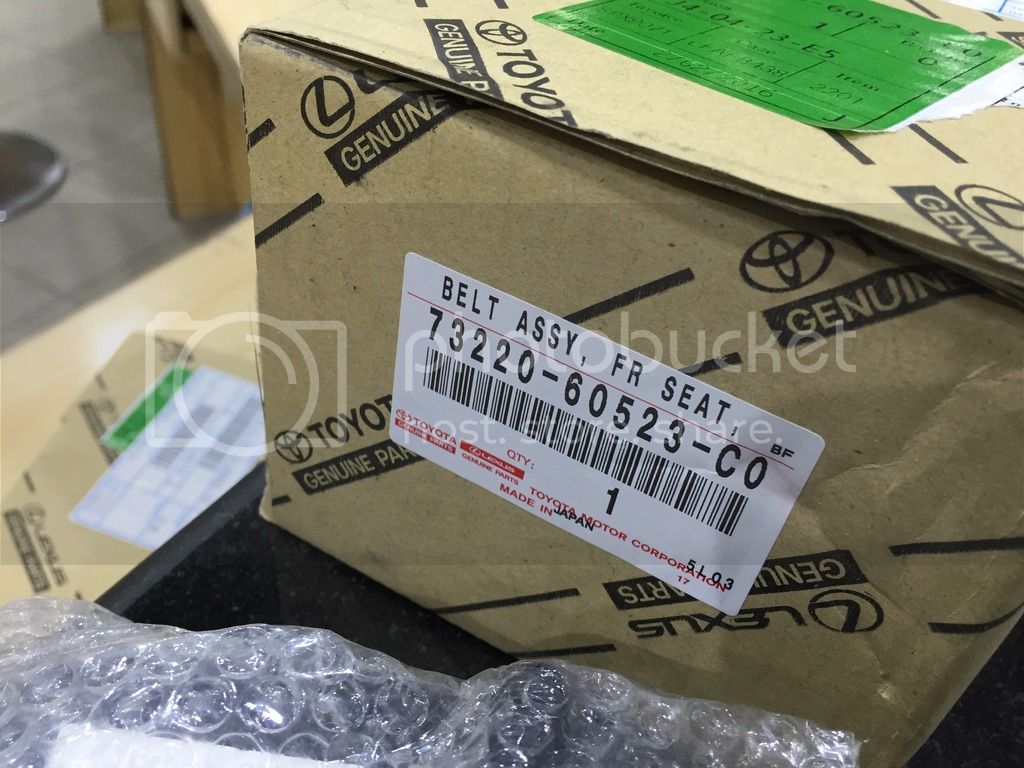

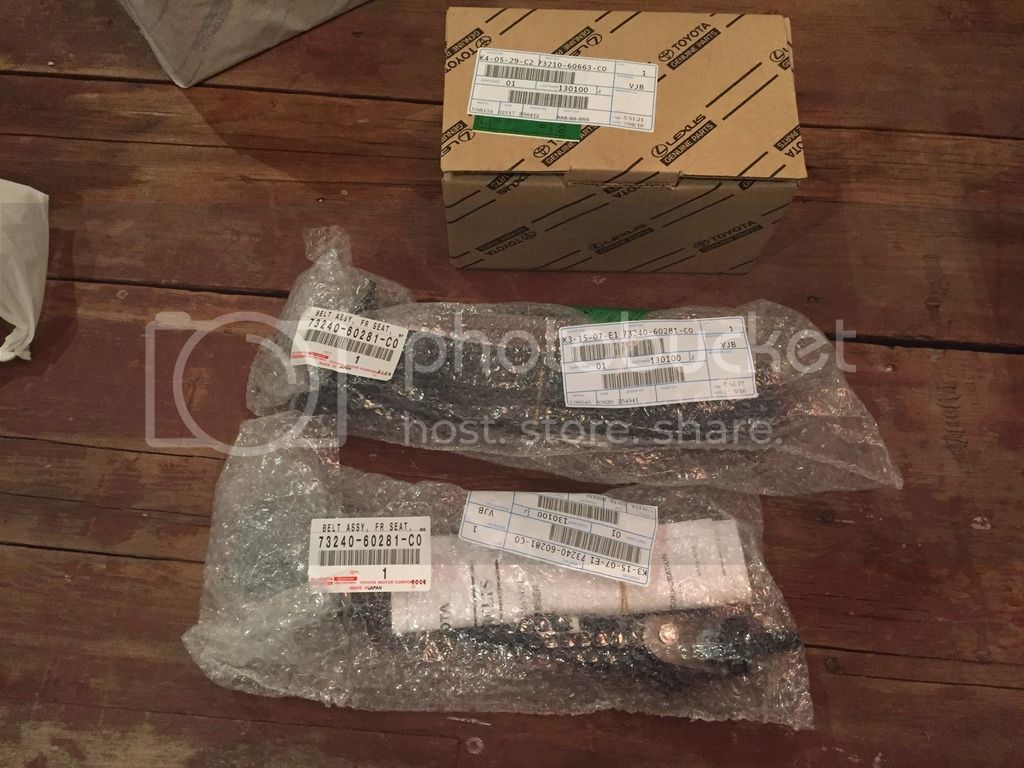

    For those looking for black seat belts, here are the part numbers:

    Retractor Belts: 73220-60523-C0 (LH) and 73210-60663-C0 (RH)
    Receiver: 73240-60281-C0 (get 2 of these)

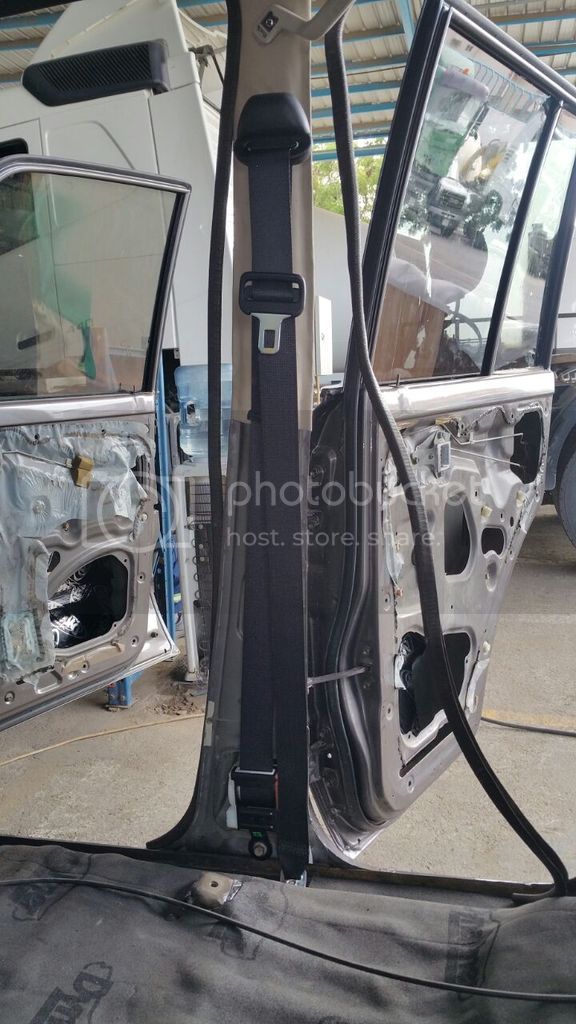

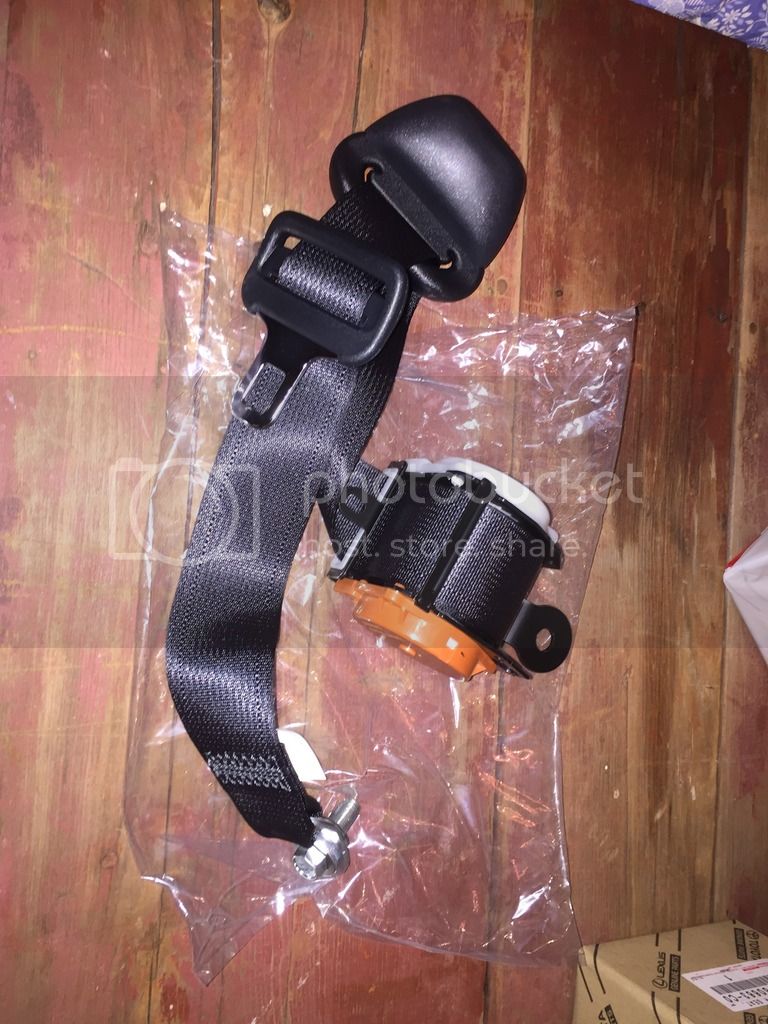

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    red66toy likes this.
  8. 87CRUSR

    87CRUSR SILVER Star

    Messages:
    1,849
    Media:
    10
    Albums:
    1
    Likes Received:
    415
    Joined:
    Apr 11, 2003
    Location:
    So Cal
    Nice write up. looking forward to fitment feedback with stock seats.

  9. cruisermatt

    cruisermatt ランドクル62! SILVER Star

    Messages:
    5,105
    Media:
    11
    Albums:
    2
    Likes Received:
    1,691
    Joined:
    Jul 22, 2012
    Location:
    Orlando Florida
    Very nice. However a problem you guys are going to run into is that upper tab on the spool is there for a reason, over time the spool will shift every so slightly one way and the inertia lock will kick in. You'll be driving and the seatbelt will just lock. I've retrofitted seatbelts into other vehicles before and this was an issue I had. It looks like you could drill a hole for that 90 degree tab pretty easily, or go the extreme route and do that as well as a tab holding a captive nut so you can put an upper bolt in as well. If I put these seat belts in I will do this for sure.

    Thanks for doing the legwork you guys!!

  10. red66toy

    red66toy dorkus malorkus GOLD Star

    Messages:
    2,119
    Likes Received:
    865
    Joined:
    Feb 25, 2003
    Location:
    Seattle, WA
    You bring up a good point! I forgot about the little inertia ball. Should be an easy work around. I'll post up what I do for that. Thanks!

  11. boozewz

    boozewz SILVER Star

    Messages:
    857
    Likes Received:
    804
    Joined:
    Nov 27, 2008
    Location:
    Saudi Arabia
    Will definitely now be looking into that! Thanks!

    FWIW, I installed the same belts into my HZJ80, and they fit like a glove. The 80 even has the hole on the B pillar to accommodate the upper 90 degree tab. Plug and play.

  12. cruisermatt

    cruisermatt ランドクル62! SILVER Star

    Messages:
    5,105
    Media:
    11
    Albums:
    2
    Likes Received:
    1,691
    Joined:
    Jul 22, 2012
    Location:
    Orlando Florida
    No problem, I retrofitted front seatbelts on what was my most recent temporary daily driver and basically about once a month the drivers seatbelt would lock and every two weeks the passenger seatbelt would lock. Had a 19mm ratchet in the backseat to quickly get out, unbolt the spool, unlock the inertia lock, and bolt it back in. Had it down to about 1.5 minutes. Total PITA.

  13. pandasfj

    pandasfj SILVER Star

    Messages:
    386
    Likes Received:
    97
    Joined:
    Feb 5, 2012
    This is so cool. Thanks guys for posting this up. I need to start on my interior so I think I might go in this direction. I been wanting to go with black seat belts but I have a question about the rear seat belts. Is there a replacement aftermarket that mounts in same place of an orig. 62 series? I was thinking of having my belts sent out to get re webbed but I rather go aftermarket if possible.

  14. NookShneer

    NookShneer SILVER Star

    Messages:
    730
    Media:
    9
    Albums:
    2
    Likes Received:
    537
    Joined:
    Aug 4, 2010
    Location:
    North of Seattle, WA
    @red66toy Chase - do you have a rear set of belts currently? I didn't think you had a belts back there from our last conversation in your 62.

    Anyone have the rear belts to measure and compare lengths / retractor dimensions?

    @reevesci Jason you mentioned this as a future project you had, are you able to help with measurements on a set you have?

  15. reevesci

    reevesci Enabler Supporting Vendor

    Messages:
    13,872
    Media:
    1,796
    Albums:
    31
    Likes Received:
    12,484
    Joined:
    Jun 21, 2011
    Location:
    Redding, CA

    I have new OEM rear shoulder belts. Is that what you want measurements from?

    J

  16. red66toy

    red66toy dorkus malorkus GOLD Star

    Messages:
    2,119
    Likes Received:
    865
    Joined:
    Feb 25, 2003
    Location:
    Seattle, WA
    I just have the lap belts. Our 62 was born a few months too early to get the shoulder belts. I may try the non-retractable OEM option that $OR lists as that is a bolt in solution.

  17. NookShneer

    NookShneer SILVER Star

    Messages:
    730
    Media:
    9
    Albums:
    2
    Likes Received:
    537
    Joined:
    Aug 4, 2010
    Location:
    North of Seattle, WA

    Yes, was wondering if the same set could fit in the back seat or if another 70 series kit would work as a retrofit.

    Thought length measurements of an OEM rear set to compare to the front retractable belts listed above would be a starting point.

  18. reevesci

    reevesci Enabler Supporting Vendor

    Messages:
    13,872
    Media:
    1,796
    Albums:
    31
    Likes Received:
    12,484
    Joined:
    Jun 21, 2011
    Location:
    Redding, CA
    I have both new 60 fronts and rears, I'll check. IIRC the rears are a bit shorter.

    J

  19. TF88FJ62

    TF88FJ62

    Messages:
    39
    Albums:
    1
    Likes Received:
    4
    Joined:
    Jan 30, 2016
    Location:
    Washington DC
    I understand that some 88 FJ62's may be rear shoulder belt ready. I can tell by the VIN or is there another easy tell?

  20. red66toy

    red66toy dorkus malorkus GOLD Star

    Messages:
    2,119
    Likes Received:
    865
    Joined:
    Feb 25, 2003
    Location:
    Seattle, WA
    And the retractors have different mounts right?
