Hopefully my experience will help. So far it looks like rear camera cable is too short, but I will know soon

Ugh. I was worried about that. How did you route to the rear and where did you mount it?



[katit]

Ugh. I was worried about that. How did you route to the rear and where did you mount it?

Check my topic for pics but I am going to mount it on top hitch and route down right c pillar and along right side.

Front camera will be interesting too



[dbleon]

Not 100% sure on the CD changer. The system gives me an option to select the CD player but I had already removed it by the time I saw that. I've got to open up the dash and console again this week. I'll plug it up and check. The tape deck I am pretty certain is a no go.

Steering wheel controls work great. I just need to remap the forward/backward buttons. They are flipped. Factory amp can be tied in however the common knowledge on that is there are going to be issues with noise. Swapping the amp was an easier solution than chasing interference.

So amp bypass cable or running new wire to doors?

Are you using optical out to the dsp/amp?



[OrlandoJon]

So amp bypass cable or running new wire to doors?

Are you using optical out to the dsp/amp?

I replaced the amp and used a Metra harness to hookup to the factory speaker wiring. I’m using standard RCA connections. The DSP doesn’t have an optical in.



[OrlandoJon]

Thanks to a little forum searching I found the issue with the front left speaker. Looks like it was setup to be interrupted by the nav system. I cut and spliced the wires together and I’m in business.



[trdgolden]

Looking at doing the same thing due to 60 pin issue with my 04. Should I go ahead and run new speaker wires?



[Live to Ski]

It was a long morning but I got the Teyes up and running. Be warned: if you like diagrams and manuals for an install, this project is not for you. The documentation is pretty rough but the good news is it mostly all works. AC controls worked almost automatically after following the directions on Teyes site. FM radio is not working but I may have used the wrong antenna lead. The big set back today was I couldn't get the sub under the passenger seat. There just wasn't enough room. So next project will be to gut the stock sub enclosure and mount it there. I gutted out the CD changer. I'm going to order the 3d printed pocket to go in that slot and install sub control and the DSP USB connection in there.

More details coming shortly.

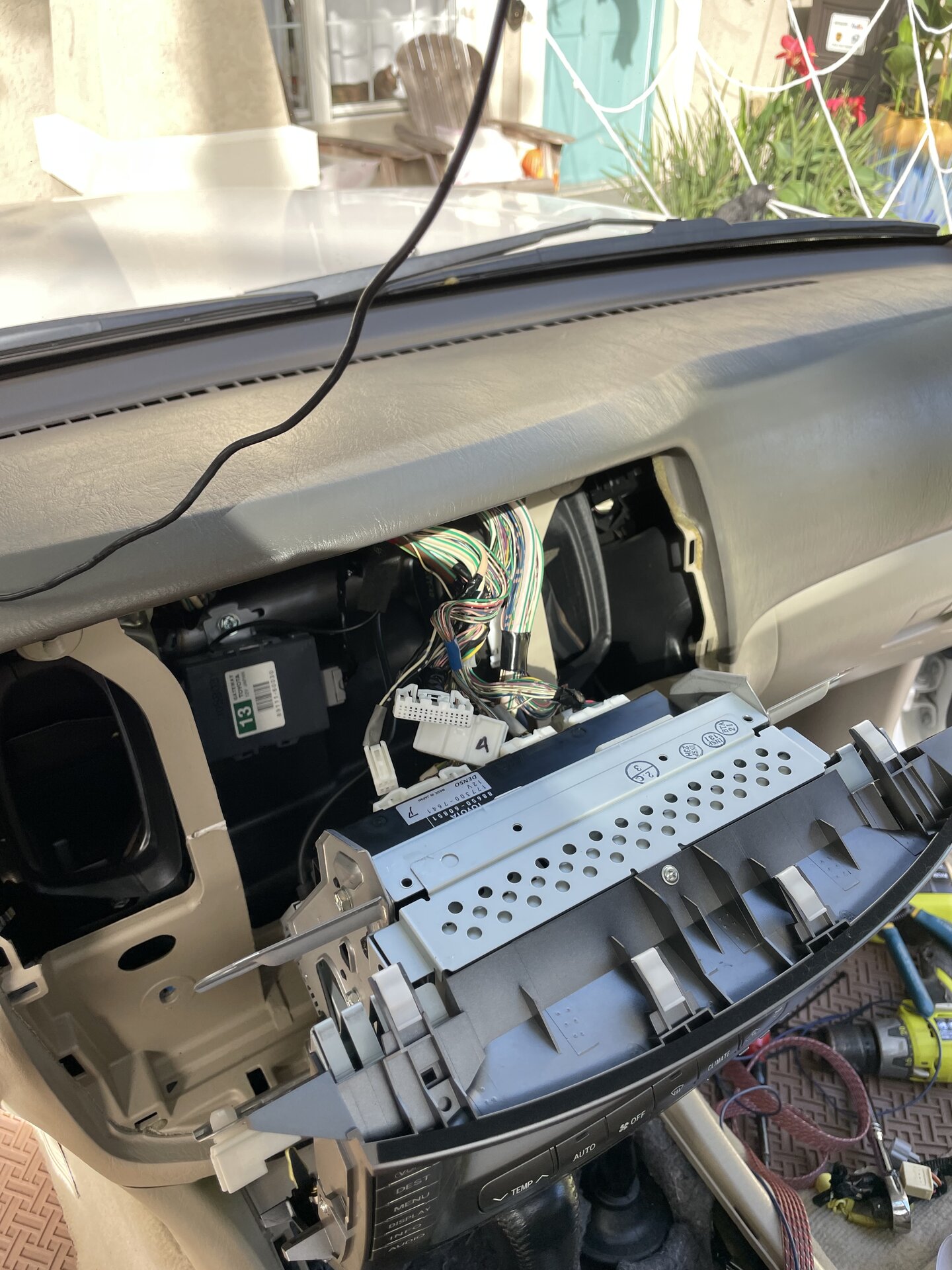

View attachment 3452589

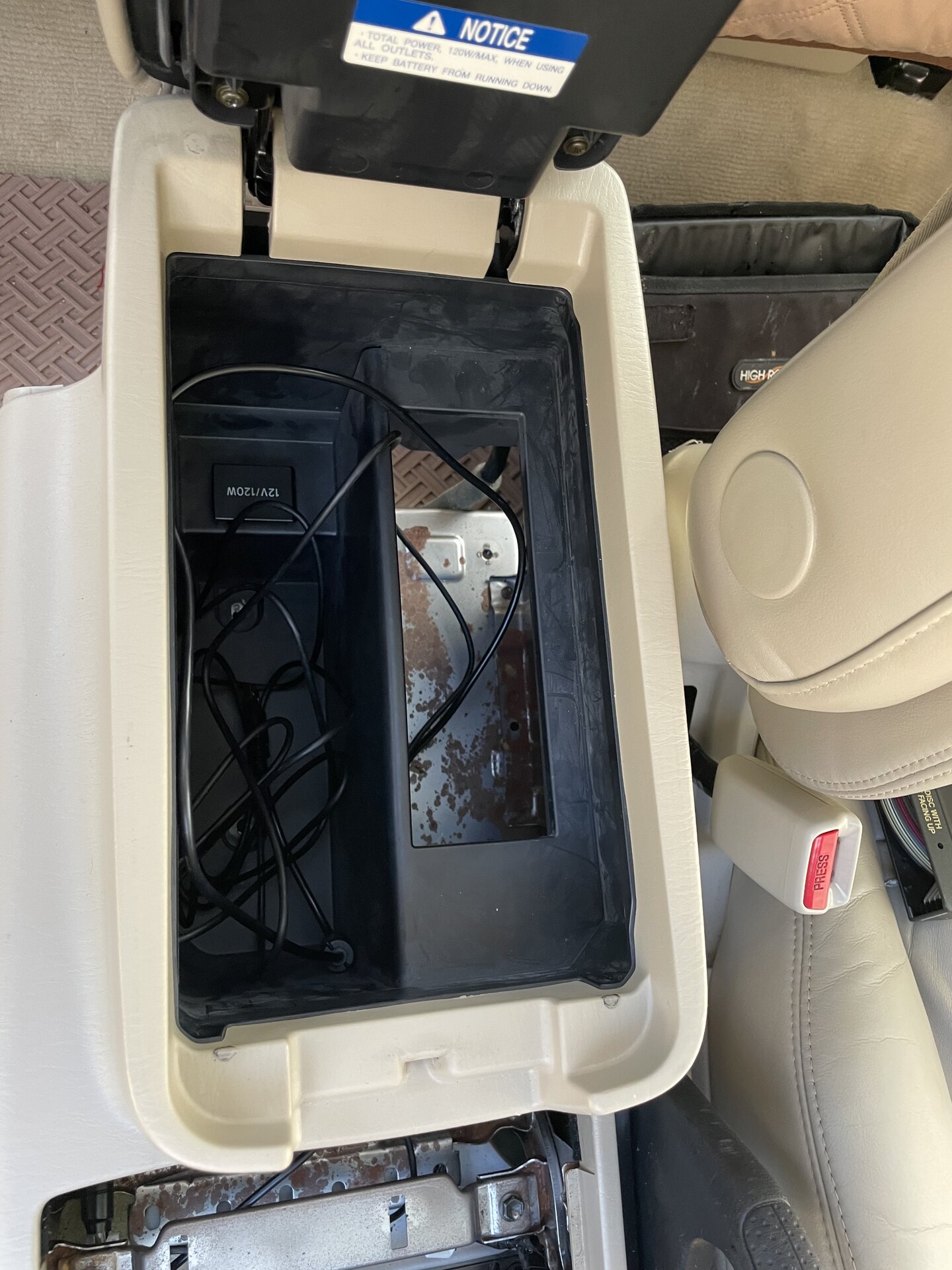

View attachment 3452593

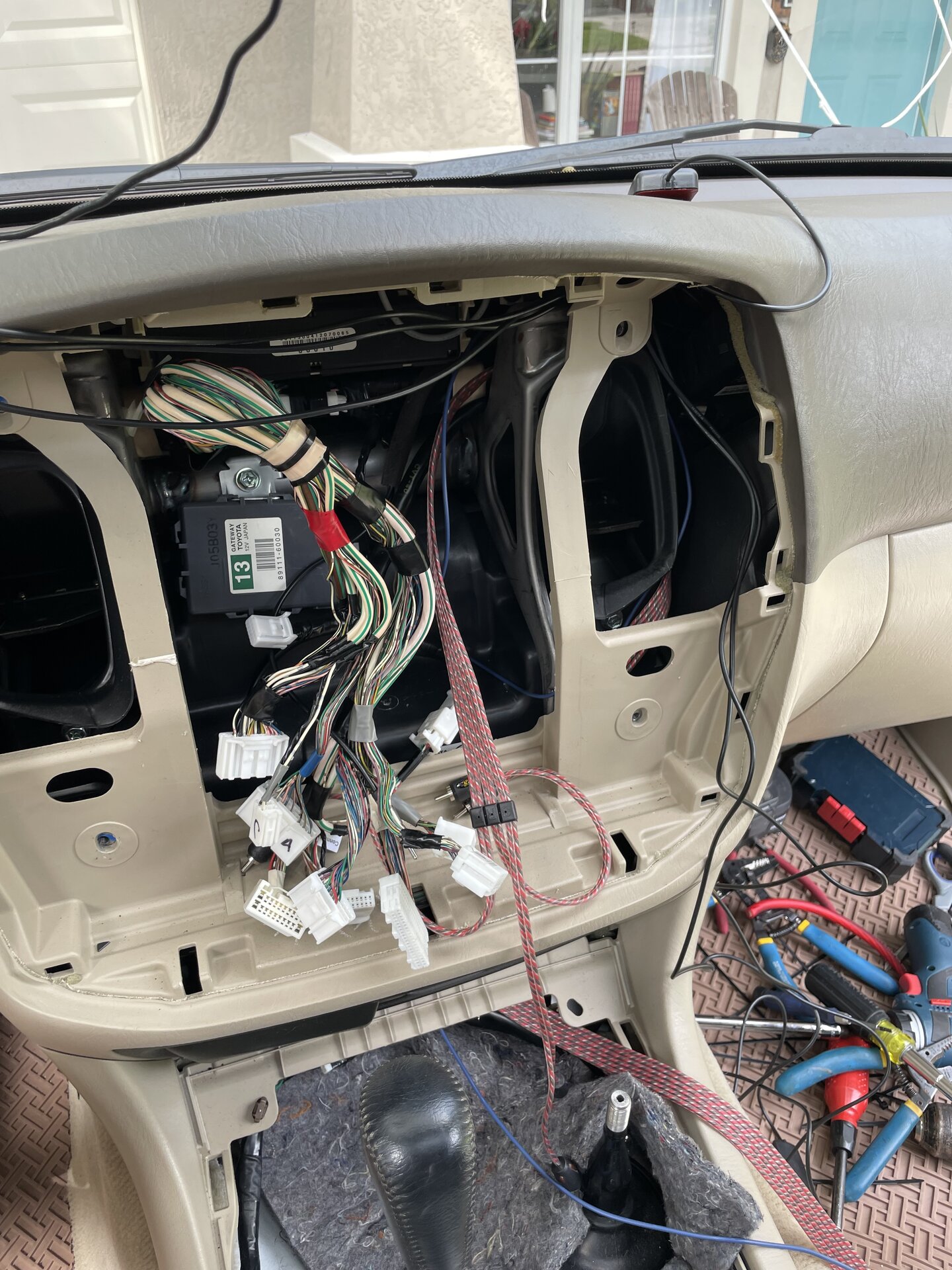

View attachment 3452594

It was a long morning but I got the Teyes up and running. Be warned: if you like diagrams and manuals for an install, this project is not for you. The documentation is pretty rough but the good news is it mostly all works. AC controls worked almost automatically after following the directions on Teyes site. FM radio is not working but I may have used the wrong antenna lead. The big set back today was I couldn't get the sub under the passenger seat. There just wasn't enough room. So next project will be to gut the stock sub enclosure and mount it there. I gutted out the CD changer. I'm going to order the 3d printed pocket to go in that slot and install sub control and the DSP USB connection in there.

More details coming shortly.

View attachment 3452589

View attachment 3452593

View attachment 3452594

sir, you are a braver man than I.

interested in the 3d printed cd changer delete pocket. source? cost? group buy?



[Mike NXP]

sir, you are a braver man than I.

interested in the 3d printed cd changer delete pocket. source? cost? group buy?

Builds - Benjamin’s 3D Prints Build

M4V3 for me - will message you.

forum.ih8mud.com

Builds - Benjamin’s 3D Prints Build

could I get one too Ben? No problem. PM me.

forum.ih8mud.com



[Live to Ski]

Builds - Benjamin’s 3D Prints Build

M4V3 for me - will message you.

forum.ih8mud.com

Builds - Benjamin’s 3D Prints Build

could I get one too Ben? No problem. PM me.

forum.ih8mud.com

I do recall that item.

thought you were talking about a full size pocket vs only the cd portion. Think they came in the unicorn bare bones uzj100s.

anyway, that is what i'm looking for (in a galaxy far away).



[OrlandoJon]

Looking at doing the same thing due to 60 pin issue with my 04. Should I go ahead and run new speaker wires?

Honestly I would say yes. If you are going to have doors and panels open, bite the bullet and do it. I will probably go back and do mine so I can assign separate amp channels to my tweeters and the woofers.



[OrlandoJon]

sir, you are a braver man than I.

interested in the 3d printed cd changer delete pocket. source? cost? group buy?

Ha! There were moments of real frustration yesterday. The directions from Teyes talked about need to disassemble part of the OEM screen but didn’t elaborate. I was pulling my hair out because there was one cable that still didn’t match anything. As it turns out, I didn’t need that cable.



[Live to Ski]

Like I said earlier.....you are a braver man than I



[OrlandoJon]

Got the sub installed today. Like a dummy, I forgot to by sound matting so it’s a little noise. Also ran wires for the rear 360 camera and the turn signal taps.



[krom]

Got the sub installed today. Like a dummy, I forgot to by sound matting so it’s a little noise. Also ran wires for the rear 360 camera and the turn signal taps.

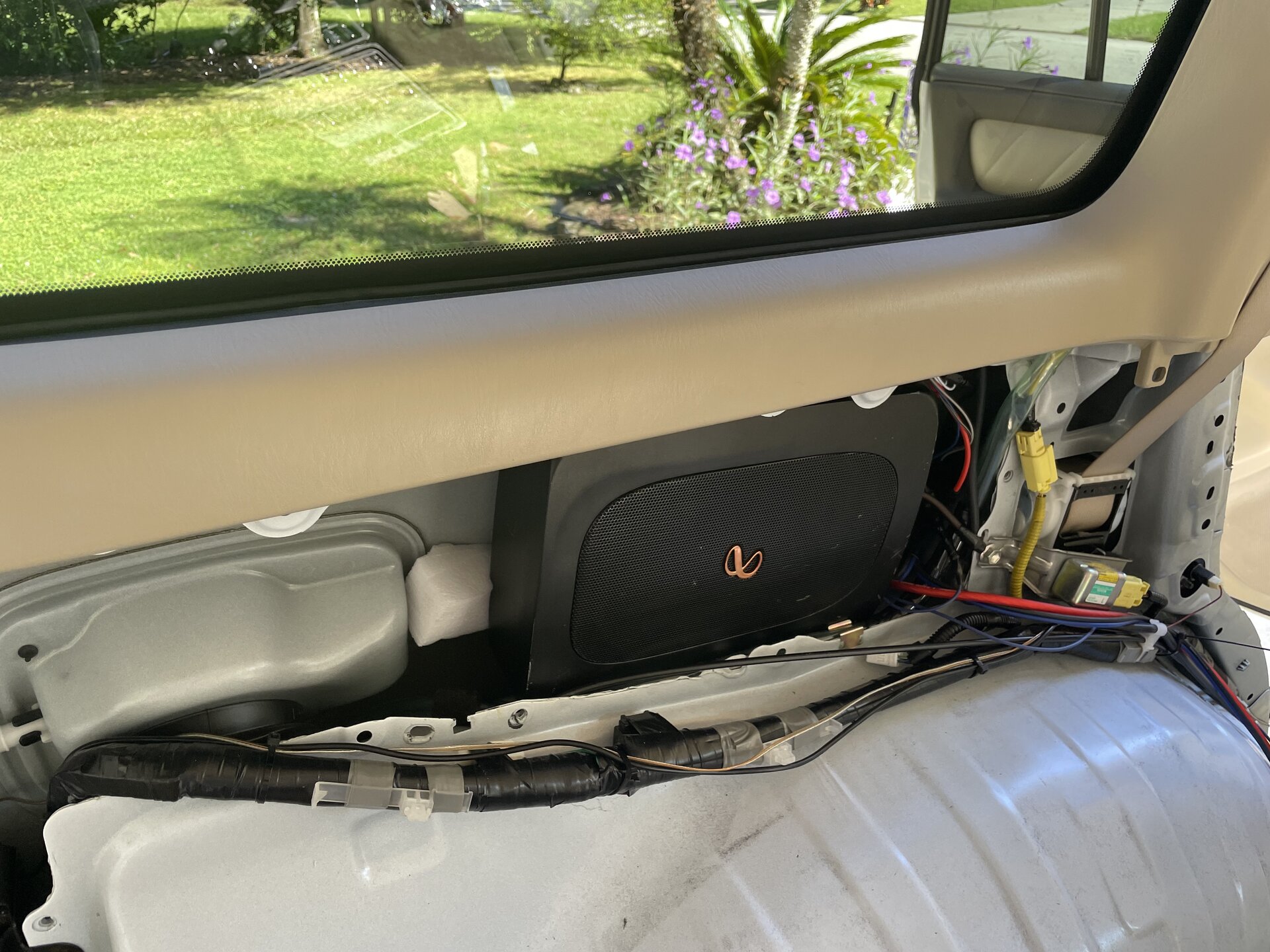

View attachment 3458836

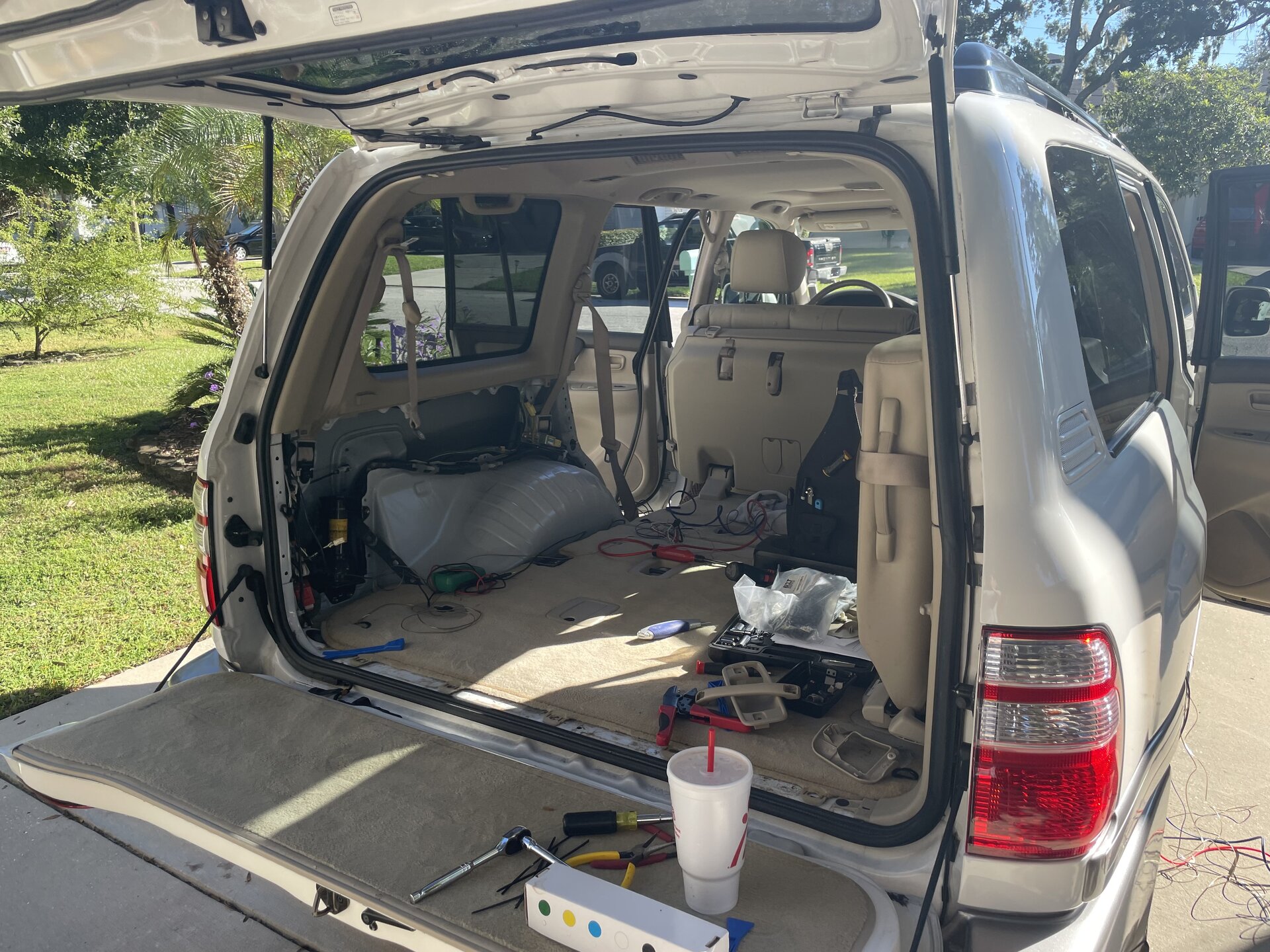

View attachment 3458837

Nice! Did you mount the sub some way to the original sub mounts or just place it in there?



[OrlandoJon]

Nice! Did you mount the sub some way to the original sub mounts or just place it in there?

I built some brackets to mount it. I’ll take some better photos this week when I put in soundmatting.



[krom]

I built some brackets to mount it. I’ll take some better photos this week when I put in soundmatting.

How is the build coming along? Were you able to take any pics of the sub mounting? Thanks
